3018 Y-axis Extension Kit, 3018 Accessories Upgrade to 3040, Compatible with Most 3018 CNC Router CNC Milling Machines, 3018-PROVer/3018-PROVer Mach3

Brand: Genmitsu

(281 votes)

Seller: N/A

Sell on:

Amazon US

3018 Y-axis Extension Kit, 3018 Accessories Upgrade to 3040, Compatible with Most 3018 CNC Router CNC Milling Machines, 3018-PROVer/3018-PROVer Mach3

0885996168

/ Email: Support@fado168.com

Monday to Friday: from 08h - 22h, including Saturday and Sunday

$66.48

Delivery time 15-20 day. View detail

The Product does not have an exact weight, The total order value may be changed after approval

Style:

For 3018-PRO

For 3018-PROVer V2

For 3020-PRO MAX

Quantity:

Seller List

The Time commitment

Fado168.com offers flexible shipping packages
3-5 days 7-20 days

+ See the detail

Free customs procedures

Fado168.com represent the customers to handle all the paperworks from the stage of export from ASIA import to Cambodia

+ See the detail

Diversified payment, flexible

Transfer by Internet Banking, via Bank account, by Wing or pay direct at Company

+ See the detail

Free delivery

Free delivery in Phnom Penh

+ See the detail

Safe shopping

With Fado168.com buyers always have insurance the risk when order the international goods

+ See the detail

Loading Product Infomation...

PRODUCT FEATURES

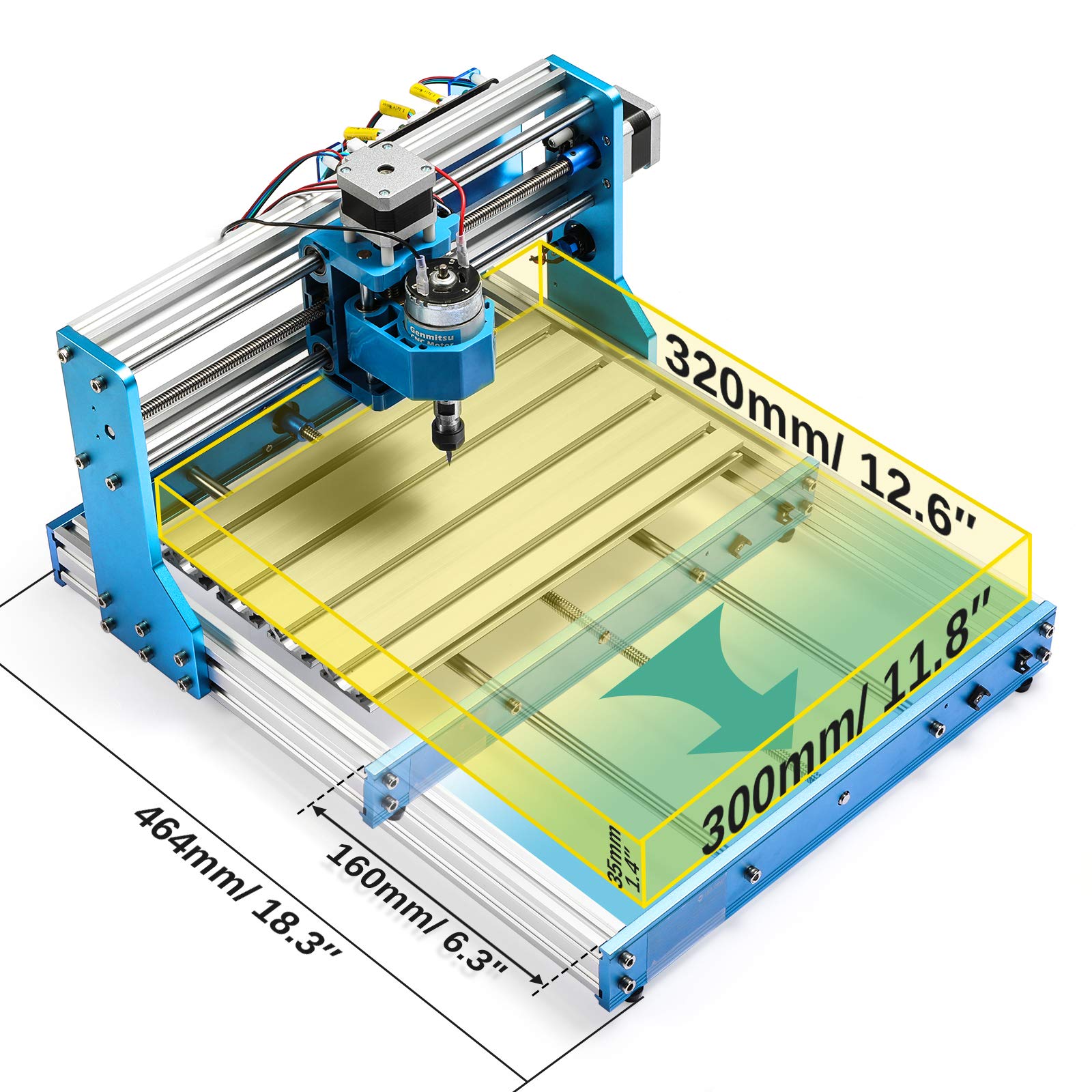

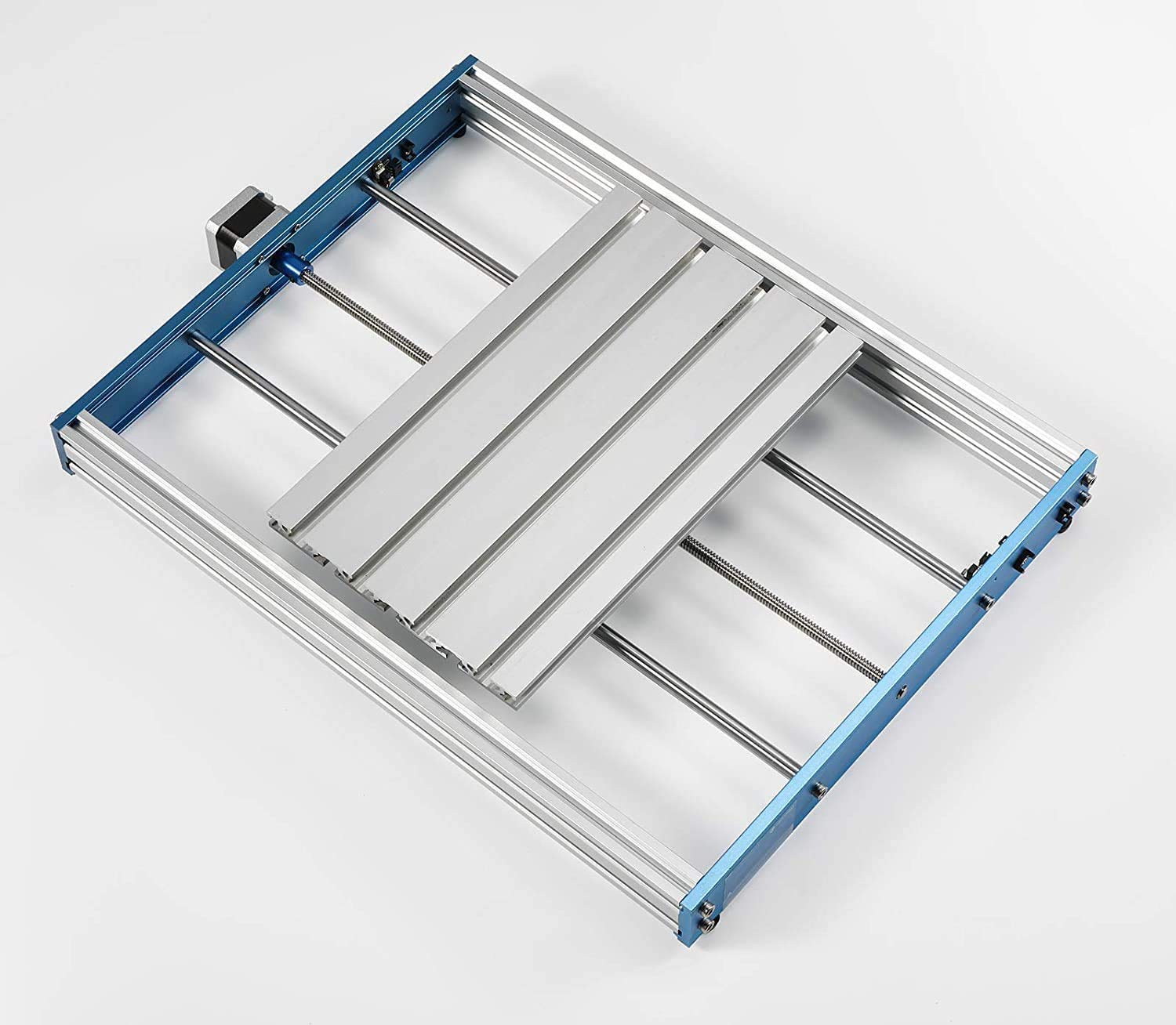

Super Size your CNC: This kit will extend your CNC‘s Y-Axis to 370mm(14.6”) and allows it to travel 320mm, easily convert your 3018 to a 3040. Note: The stock limit switch wire is long enough to accommodate the Y axis extension. In order for this to work you must move the X axis arms forward on the Frame far enough so that the Y+ wire can reach the Y+ limit switch, and then secure the X axis arms by tightening all 6 screws on each arm.
Compatibility: Perfectly compatible with 3018-PROVer & 3018-PROVer Mach3 CNC’s. (Note: Currently it cannot work on 3018-PROVer V2)
Model Selection Guide for Other Brand 3018 Series User and Genmitsu 3018-MX3 User: If you find a COUNTERBORE in the screw hole of the optical shaft part (see the pic), please choose the kit for 3018-PROVer series, otherwise the one for 3018-PRO series.
Simple Assembly: We will take you through the assembly process every step of the way.
Cost-Effective: Save money by putting your current CNC to better use. You don’t need to spend tons of money on a bigger one.

Product Specifications

Manufacturer: Genmitsu
Part Number: 101-63-YS3018P
Item Weight: 3.64 pounds
Package Dimensions: 20 x 8.3 x 2.6 inches
Item model number: CNC Y Axis Extension Kit
Style: For 3018-PRO
Material: Aluminum
Power Source: /
Item Package Quantity: 1
Included Components: CNC Y Axis Extension Kit
Batteries Included?: No
Batteries Required?: No

Product Information

Product description

Genmitsu 3040 Y-Axis Extension Kit

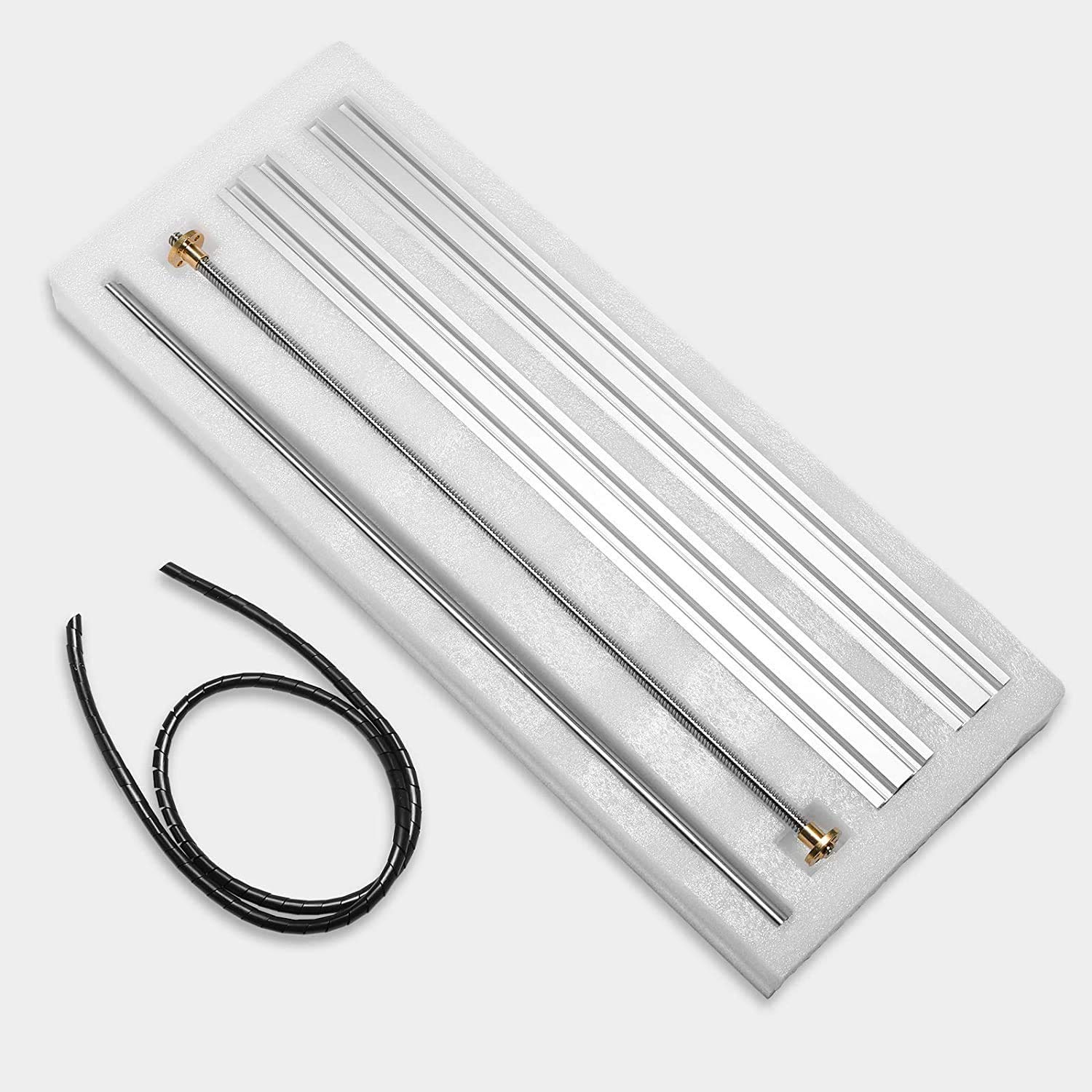

WHAT'S INCLUDED?

For 3018-PRO& 3018-MX3 Series:

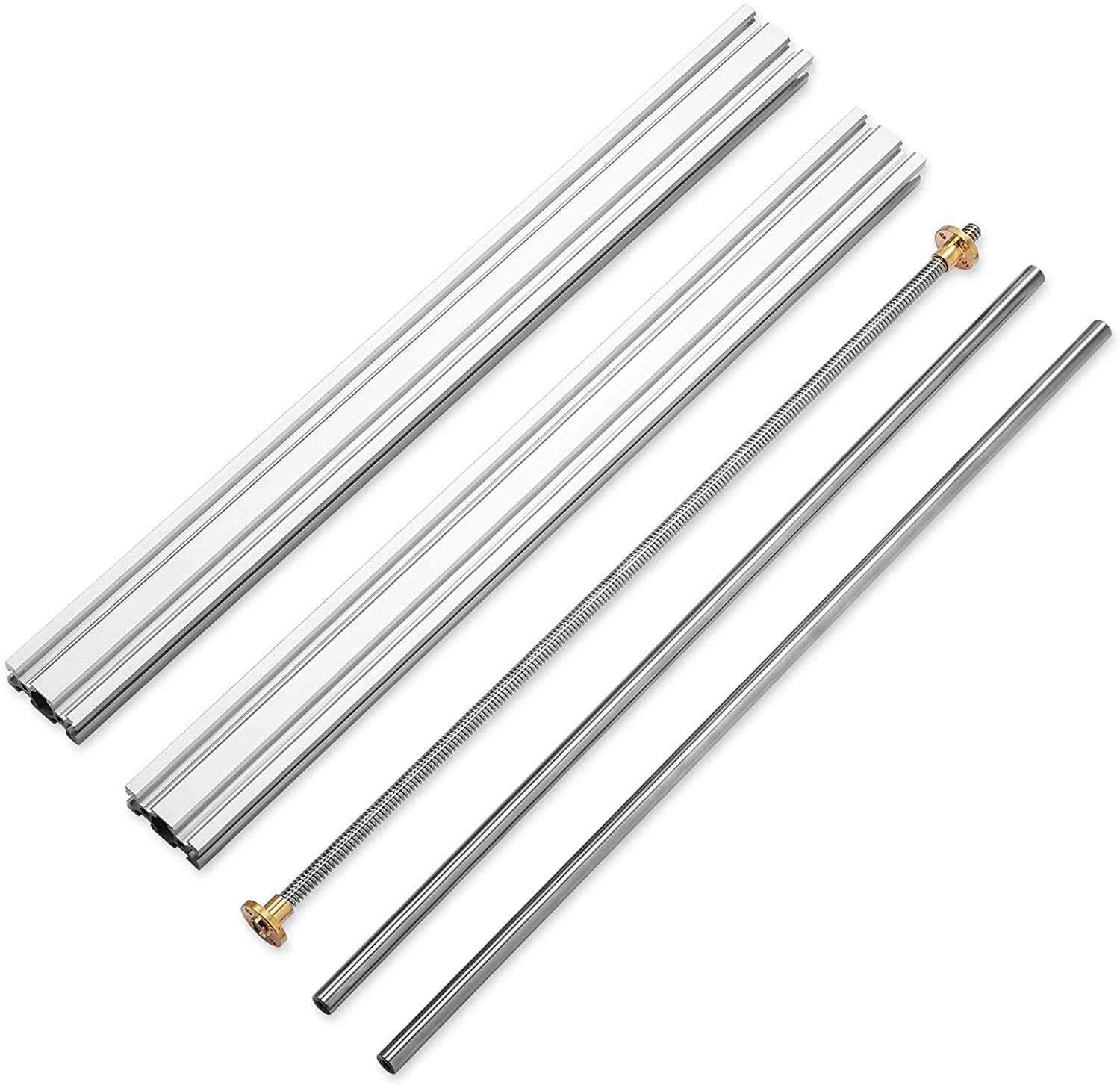

2 x Y-axis Aluminum Extrusions
1 x Y-axis Extended Lead Screw
2 x Y-axis Extended Linear Rails
1 x Replacement Zip-ties
1 x Assembly Instruction

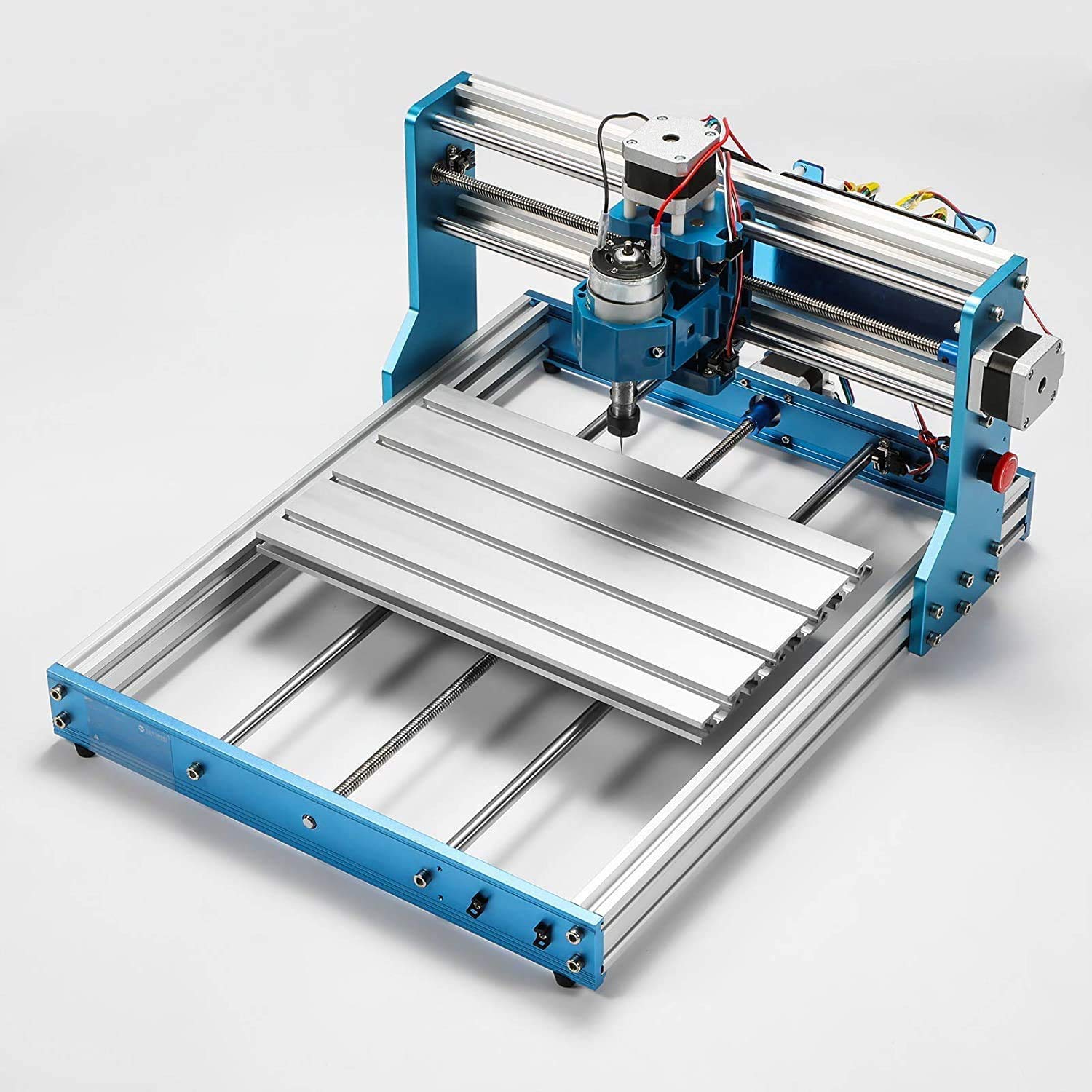

Expand your machine's potential with an easy upgrade that will provide over double your previous work area. Perfect for making signs or just accommodating larger stock material for multiple cuts.

Note: The stock limit switch wire is long enough to accommodate the Y axis extension. In order for this to work you must move the X axis arms forward on the Frame far enough so that the Y+ wire can reach the Y+ limit switch, and then secure the X axis arms by tightening all 6 screws on each arm.

Material: Aluminum
Package Weight: 1.77 KG (3.90LB)
Package Dimension: 51.5*21.5*7.5cm

Model Selection Guide

Note for Other Brand 3018 Series User and Genmitsu 3018-MX3 User:

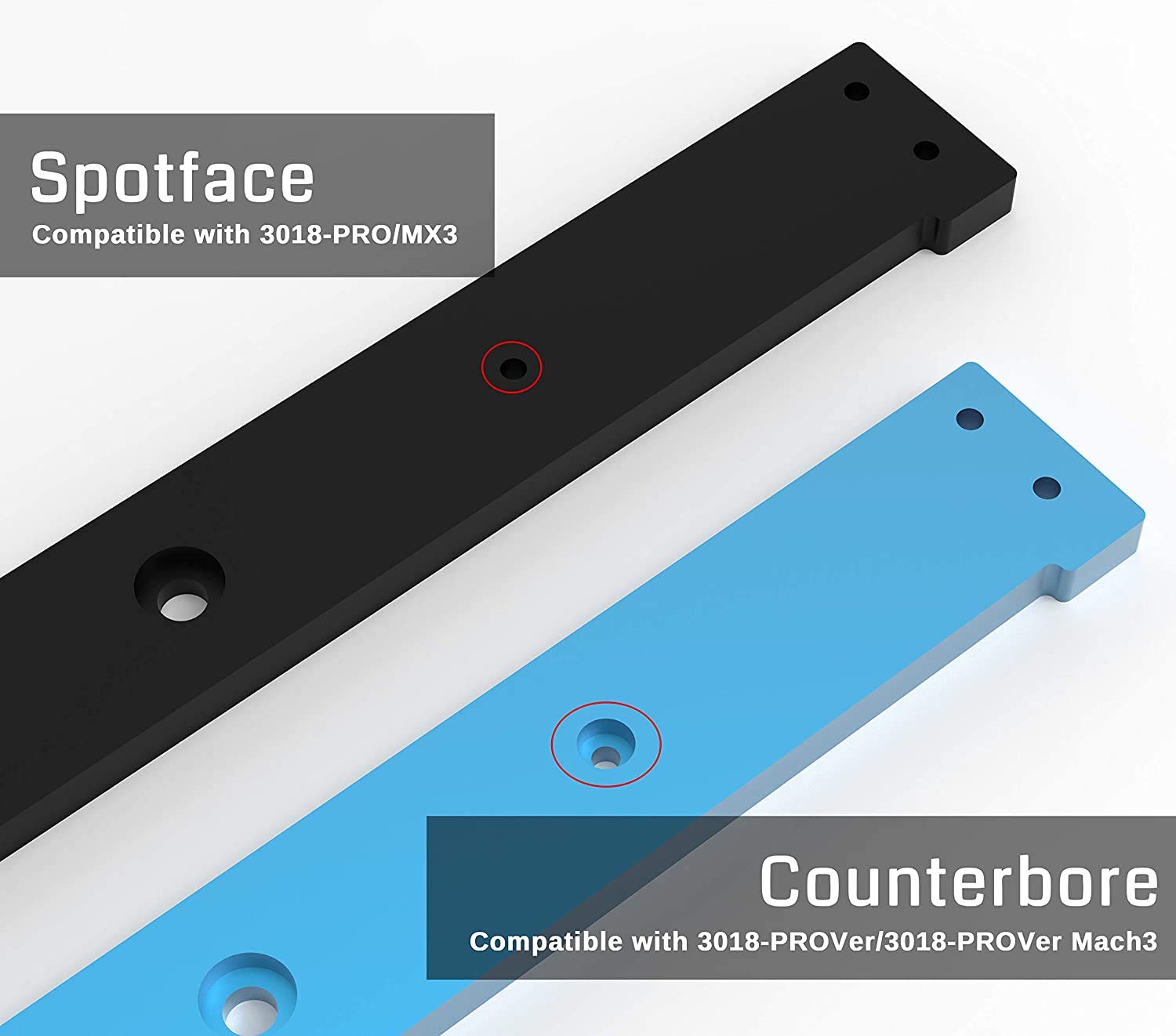

If you find a COUNTERBORE in the screw hole of the optical shaft part (see the pic), please choose the kit for 3018-PROVer series, otherwise the one for 3018-PRO series.

The diameter of the lead screw is 8mm and the diameter of the guide rail is 10mm. The compatible assembly screw is the Bolt M5 x 16.

If you are not sure if this kit matches your machine or not, please contact our support team to confirm before ordering.

How to assemble the extension kit?

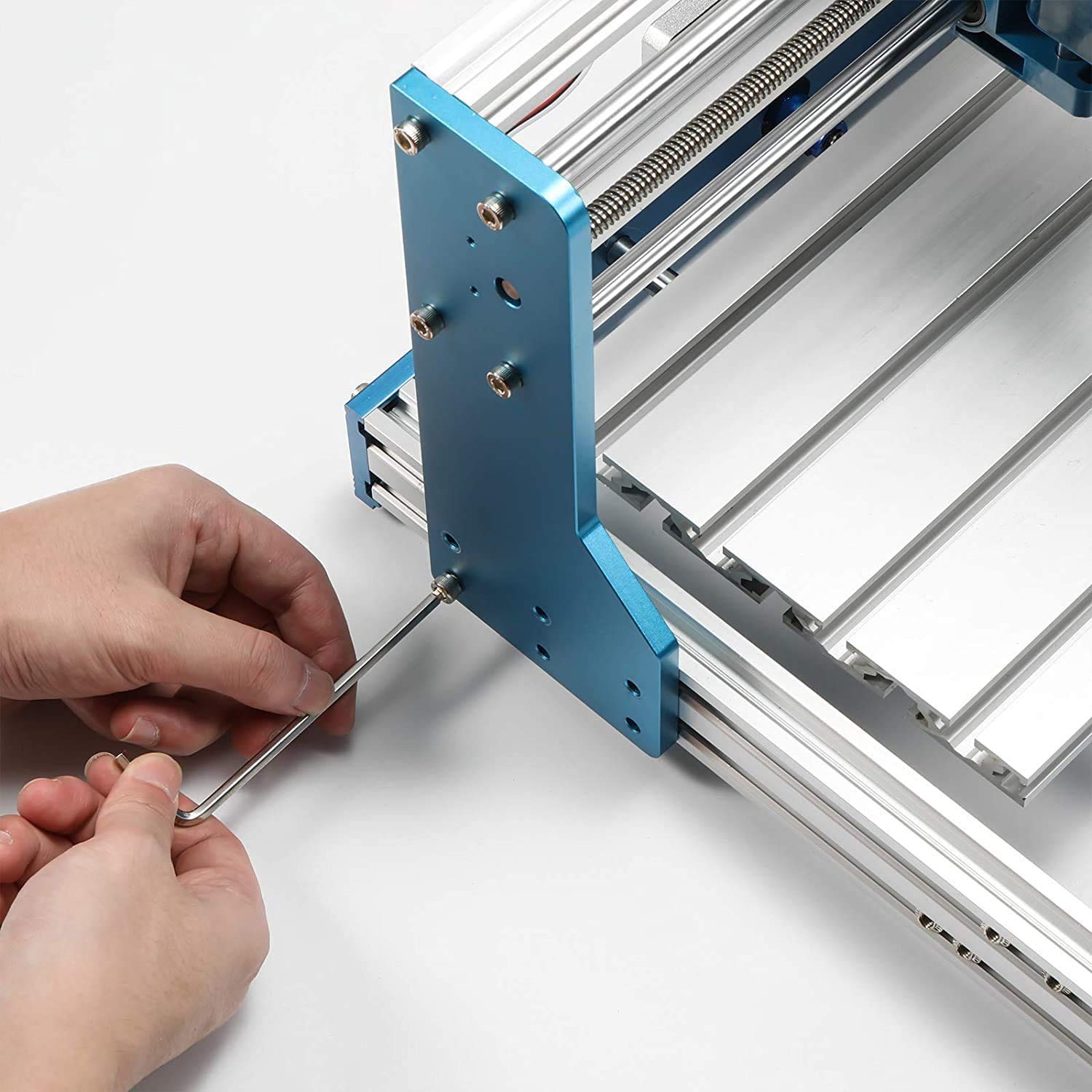

1. Disassembly

Disconnect & remove all wires connecting to the base of your CNC.
Unscrew the gantry assembly from either side of the CNC's base.
Take apart your frame.

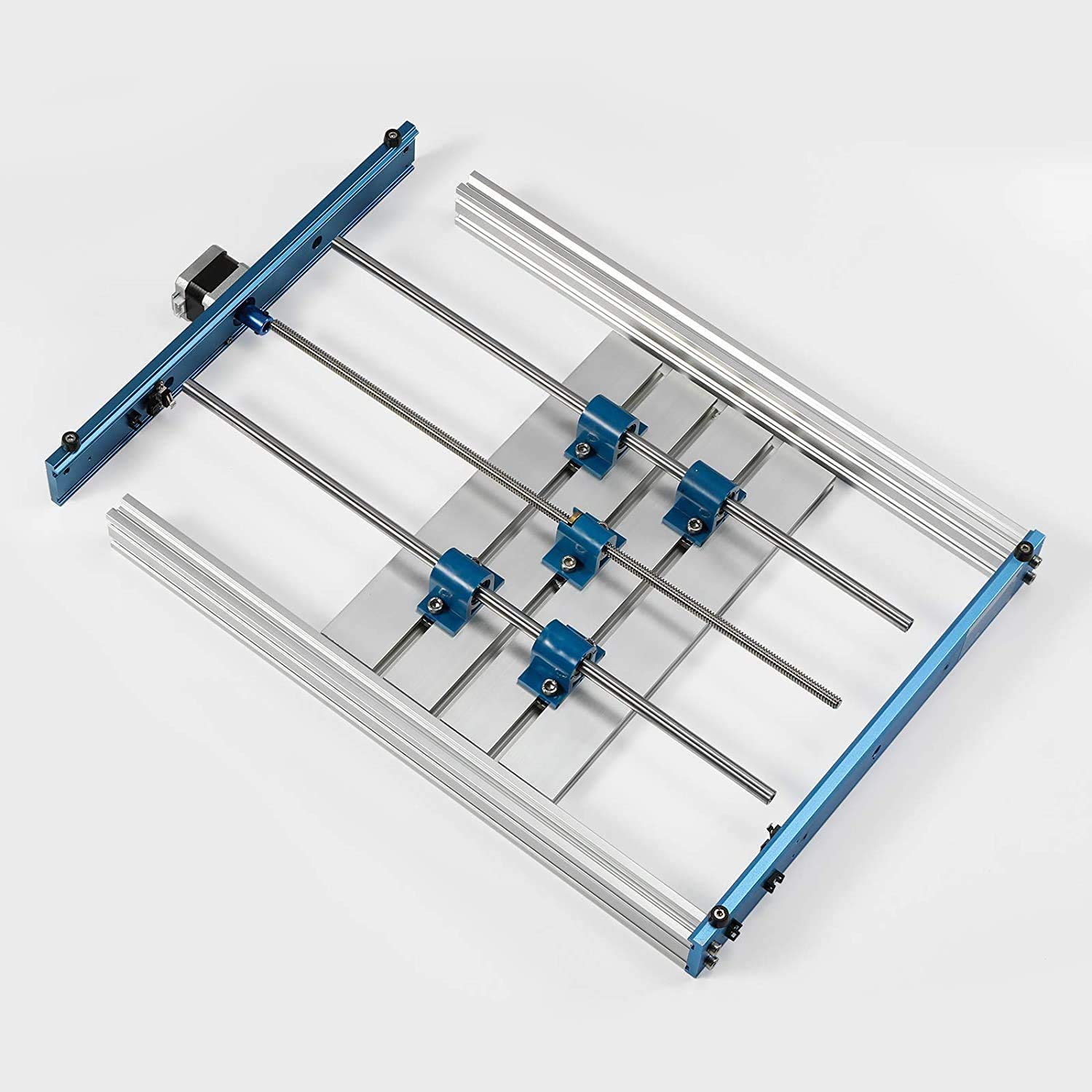

2. CNC Base Assembly

Attach the extended side extrusions & linear rails to the back panel.
Install extended lead screw into CNC bed through spring & copper nut.
Install the bed with threaded lead screw into the liner rails already attached to back panel.
Secure the lead screw to the Y-Axis stepper motor through the coupler.
Install the front panel & square frame.

3. Final Assembly

The process of mating the base frame with the gantry assembly mirrors the same process as when you assembled your CNC for the first time, the only major difference is that rather than having the gantry spaced 46.5mm from the rear of the frame, you are now going to want it to move more forward in order to take advantage of the expanded Y-Axis.

Rather than give you a specific number, it is strongly suggested that you move the gantry as far forward as your wiring will allow. This is usually around 60-80mm depending on whether you have limit switches.

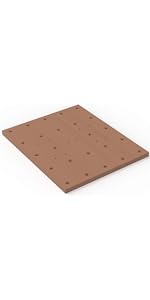

	Aluminum Bench Vise Clamp	300-500W Spindle Holder For 3018-PRO	3040 MDF Spoilboard	3040 Aluminum Spoilboard	2PCS T-Track Mini Hold Down Clamp	10 PCS 1/8 Shank Straight Router Bits
