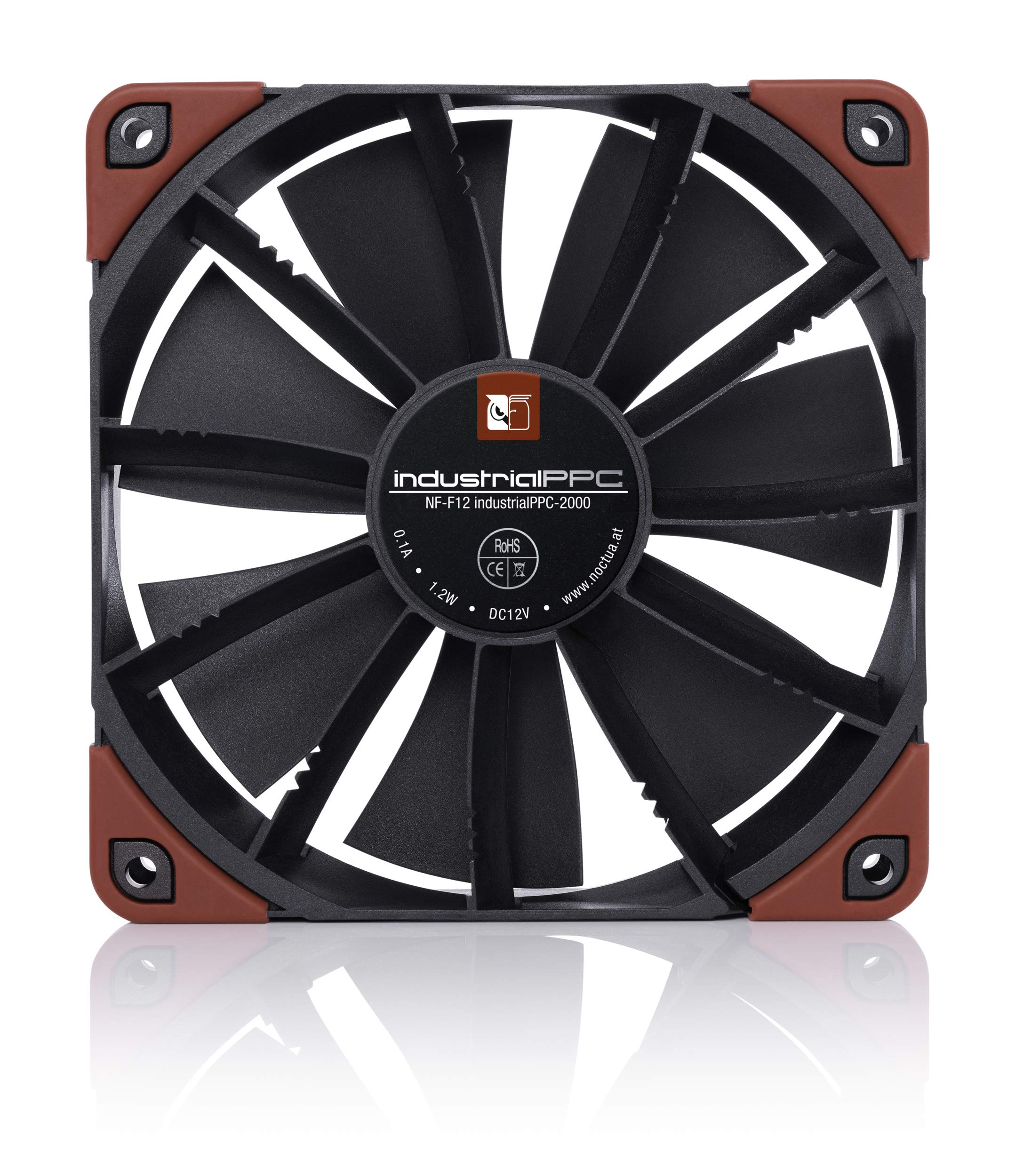

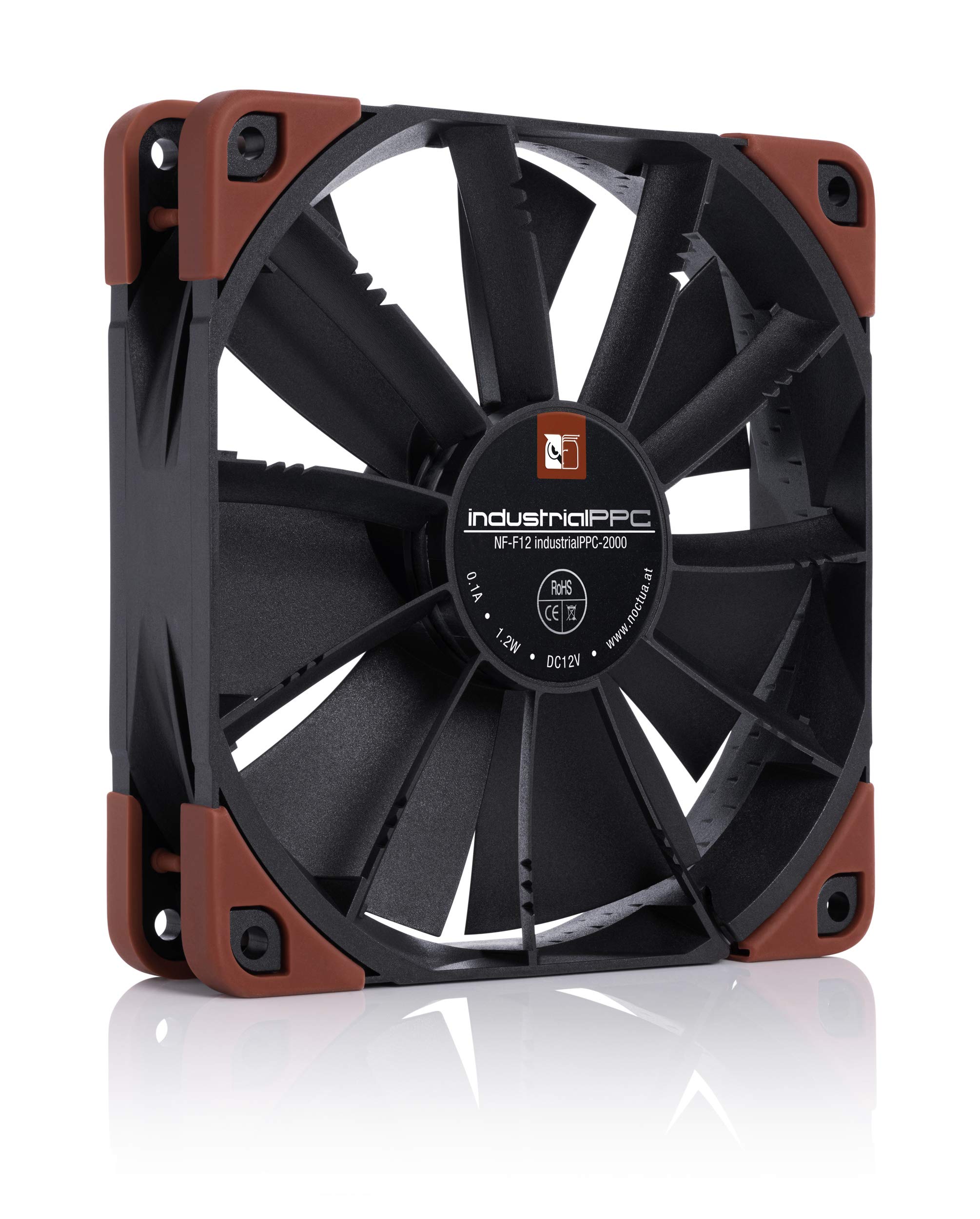

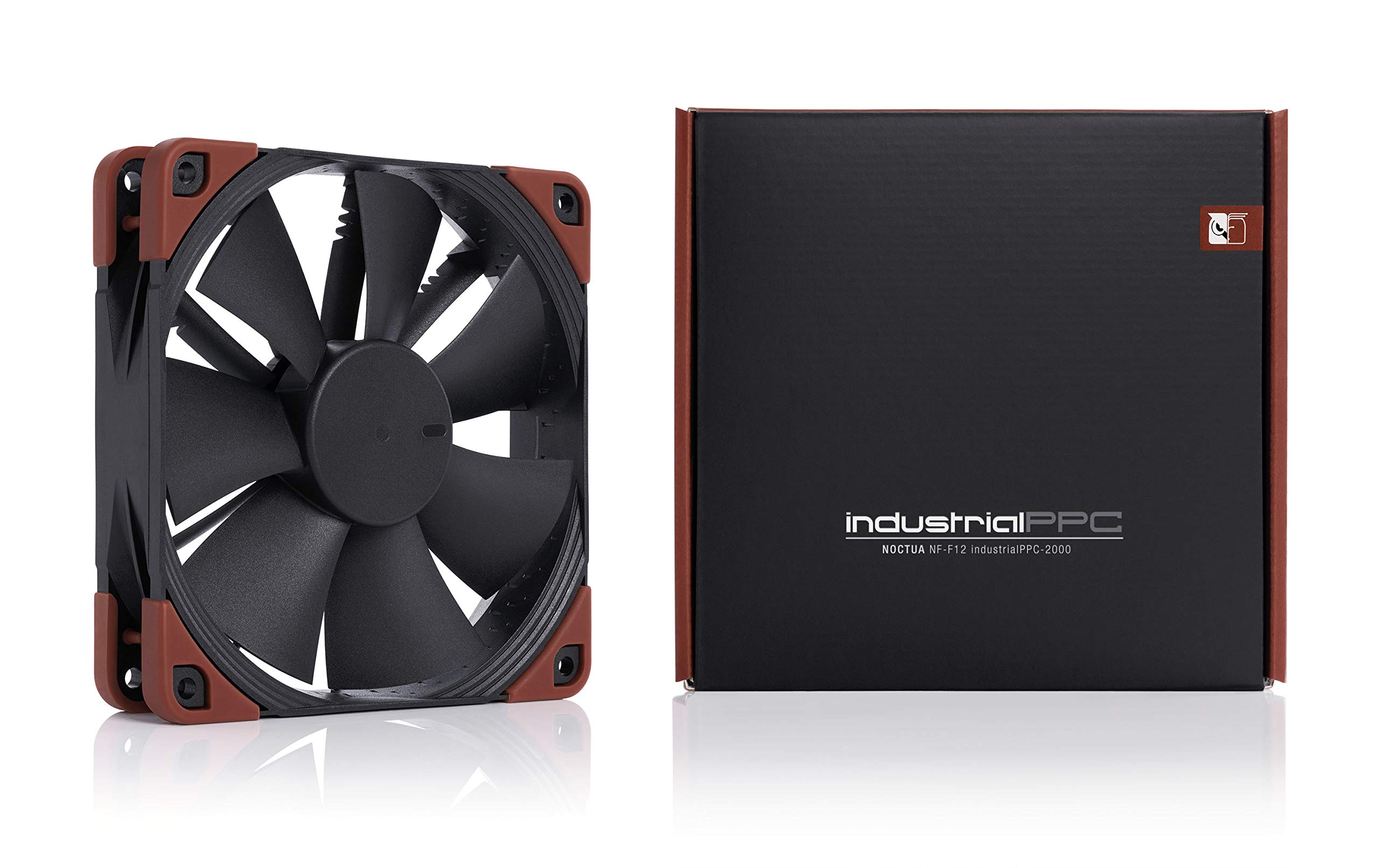

Noctua NF-F12 iPPC-2000, Heavy Duty Cooling Fan, 3-Pin, 2000 RPM (120mm, Black)

Brand: Noctua

(450 votes)

Seller: N/A

Sell on:

Amazon US

Noctua NF-F12 iPPC-2000, Heavy Duty Cooling Fan, 3-Pin, 2000 RPM (120mm, Black)

0885996168

/ Email: Support@fado168.com

Monday to Friday: from 08h - 22h, including Saturday and Sunday

$40.06

Delivery time 15-20 day. View detail

The Product does not have an exact weight, The total order value may be changed after approval

Quantity:

Seller List

The Time commitment

Fado168.com offers flexible shipping packages
3-5 days 7-20 days

+ See the detail

Free customs procedures

Fado168.com represent the customers to handle all the paperworks from the stage of export from ASIA import to Cambodia

+ See the detail

Diversified payment, flexible

Transfer by Internet Banking, via Bank account, by Wing or pay direct at Company

+ See the detail

Free delivery

Free delivery in Phnom Penh

+ See the detail

Safe shopping

With Fado168.com buyers always have insurance the risk when order the international goods

+ See the detail

Loading Product Infomation...

PRODUCT FEATURES

Heavy duty cooling fan, 120x120x25 mm, 12V, 3-pin Molex, 2000 RPM, 29,7 dB(A), >150,000 h MTTF
Award-winning 120x25mm fan with Focused Flow frame for high static pressure and superior cooling efficiency
12V 2000rpm model (29.7dB) with 3-pin connector
High-speed industrialPPC version for industrial heavy-duty applications that require extreme cooling performance and advanced ingress protection
Ruggedised fibre-glass reinforced polyamide construction and IP52 certified water and dust protection

Product Specifications

Series: NF-F12 iPPC 2000
Item model number: NF-F12 iPPC 2000
Item Weight: 0.01 ounces
Product Dimensions: 4.72 x 4.72 x 0.98 inches
Item Dimensions LxWxH: 4.72 x 4.72 x 0.98 inches
Color: Black
ASIN: B00KFCQT6M
Is Discontinued By Manufacturer: No
Date First Available: June 24, 2014
Compatible Devices: Desktop
Noise Level: 29.7 dB
Material: Fibre-glass reinforced polyamide
Maximum Rotational Speed: 2000 RPM
Air Flow Capacity: 121.8 CMPH
UPC: 842431014344 804904101180
Global Trade Identification Number: 00842431014344
Manufacturer: Noctua
Number of Items: 1

Product Information

Product description

Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-F12 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-F12 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-F12 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology ensures an MTTF of over 150.000hrs. Topped off with Noctua’s trusted reliability, the NF-F12 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.

Focused Flow frame

Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.

2000rpm industrialPPC version

Thanks to its elevated 2000rpm top speed, the NF-F12 industrialPPC-2000 provides a significant performance boost over the 1500rpm retail version. Combined with the industrialPPC series' robust polyamide construction and advanced protection features, this makes the fan ideal for challenging industrial applications.

Three-phase motor design

While most axial fans use single-phase motors with 4 slots, Noctua's industrialPPC fans feature a three-phase design with 6 slots, which provides smoother transitions between the slots and thus allows for even higher running smoothness, further reduced vibrations and unprecedented energy efficiency.

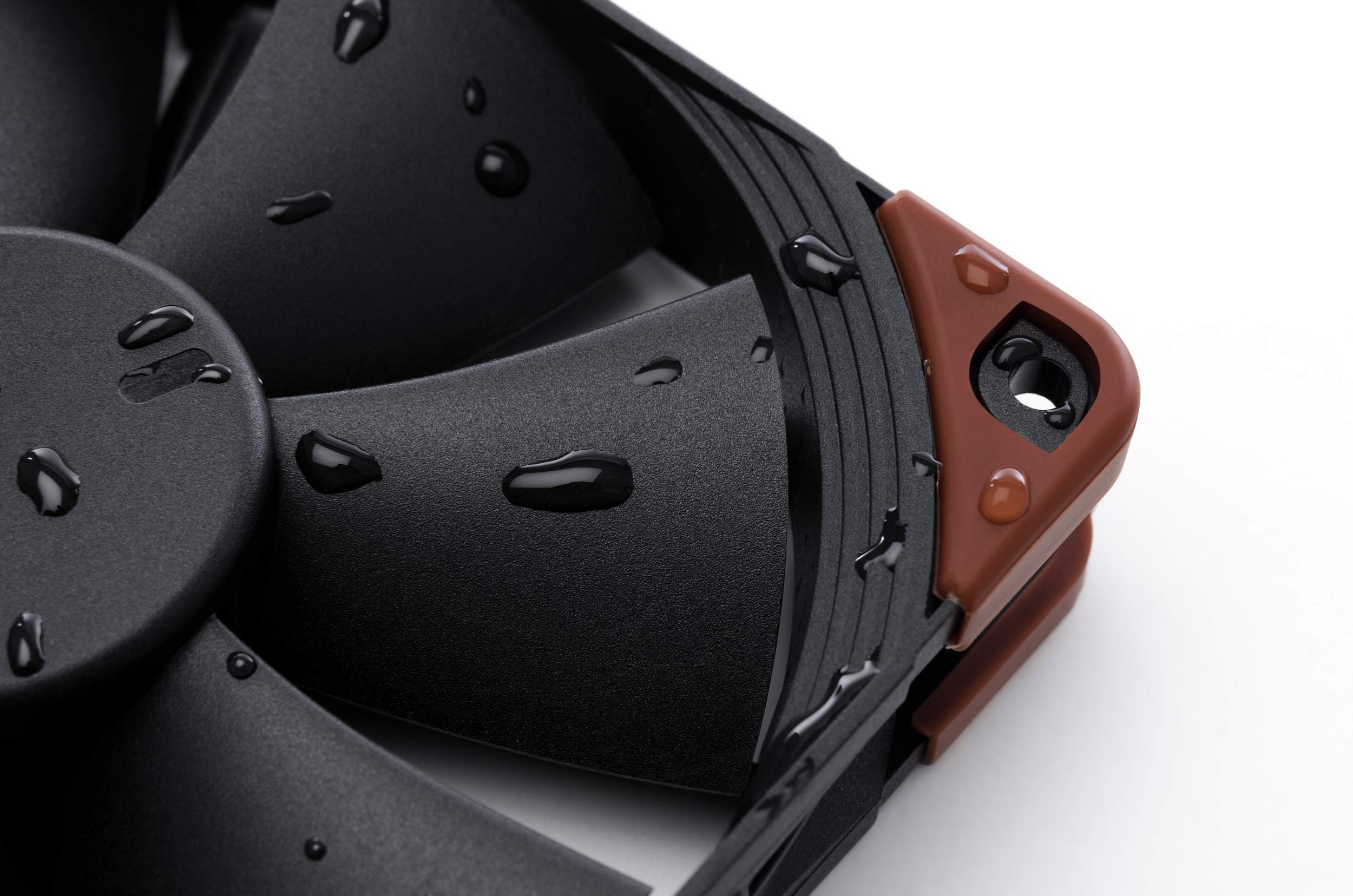

IP52 water- and dust protection

Thanks to a special varnish coating that covers the motor and PCB, the NF-F12 industrialPPC complies with the ingress protection rating IP52. This means that it is not only highly dust resistant but also withstands dripping water equivalent to 3mm rainfall per minute.

Fibre-glass reinforced polyamide construction

Both the impeller and the frame of Noctua’s industrialPPC fans are made entirely from fibre-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua’s standard fibre-glass reinforced PBT fans.

Please Note:

The industrialPPC models are high-speed fans for industrial applications. As such, they are not as quiet as other Noctua fans and less suited for low-noise PC builds.

	NF-F12 industrialPPC-2000	NF-F12 industrialPPC-2000 PWM	NF-F12 industrialPPC-2000 IP67 PWM	NF-F12 industrialPPC-3000 PWM	NF-F12 industrialPPC-24V-2000 SP IP67 PWM	NF-F12 industrialPPC-24V-3000 SP IP67 PWM

Customer Reviews	447	1,221	568	3,467	22	66
Price	$27.95	— no data	$34.95	$29.95	— no data	$34.95
Connector	3-Pin	4-Pin PWM	4-Pin PWM	4-Pin PWM	4-Pin PWM	4-Pin PWM
Voltage	12V	12V	12V	12V	24V	24V
RPM	2000	Max: 2000 / Min: 450	Max: 2000 / Min: 450	Max: 3000 / Min: 750	Max: 2000 / Min: 450	Max: 3000 / Min: 750
Acoustical Noise	29,7 dB(A)	29,7 dB(A)	29,7 dB(A)	43,5 dB(A)	29,7 dB(A)	43,5 dB(A)
Static pressure	3,94 mm H₂O	3,94 mm H₂O	3,94 mm H₂O	7,63 mm H₂O	3,94 mm H₂O	7,63 mm H₂O
Airflow	121,8 m³/h	121,8 m³/h	121,8 m³/h	186,7 m³/h	121,8 m³/h	186,7 m³/h
Ingress Protection Rating	IP52	IP52	IP67	IP52	IP67	IP67
Size	120x120x25 mm	120x120x25 mm	120x120x25 mm	120x120x25 mm	120x120x25 mm	120x120x25 mm
