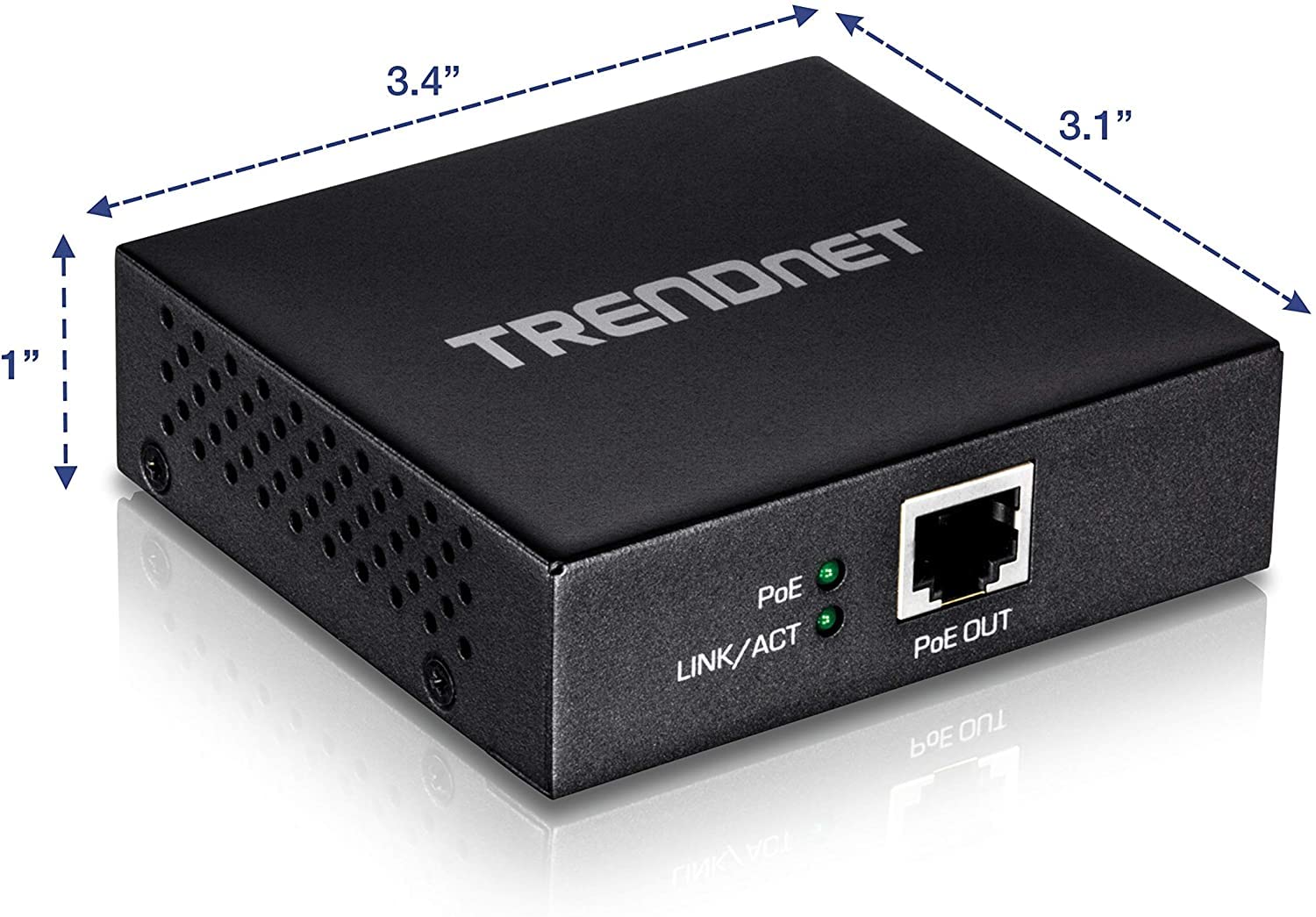

TRENDnet Gigabit PoE+ Repeater/Amplifier, 1 x Gigabit PoE+ In Port, 1 x Gigabit PoE Out Port, Extends 100m For Total Distance Up To 200m (656 ft), Supports PoE(15.4W) & PoE+(30W), Black, TPE-E100
DEVICE INTERFACE: 1 x Gigabit PoE+ in port, 1 x Gigabit PoE out port, LED indicators, Durable Metal Housing
NDAA COMPLIANT: With our NDAA compliant Repeater/Amplifier, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
MANUFACTURER PROTECTION: We stand by the quality of our products.The TPE-E100 Gigabit PoE+ Repeater/Amplifier is backed and supported with 3 years of TRENDnet Manufacturer Protection.
RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your needs during normal business hours. We take pride in being there for our customers.
POE POWERED: The Gigabit PoE+ Repeater extends a single PoE/PoE+ network connection for a remote PoE or PoE+ device installation. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE (15.4W) or PoE+ (30W) device
DAISY CHAIN: Daisy chain up to 3 PoE Extenders for a total PoE+ network extension of 400m (1,312 ft.)
RANGE: The PoE+ amplifier extends a PoE/PoE+ network connection an additional 100m for a total distance of up to 200m (656 ft.) from the PoE power source equipment
WALL MOUNTABLE: The extender features a convenient wall mountable design for installation flexibility
1 x Gigabit PoE+ in port • 1 x Gigabit PoE out port
1 x Gigabit PoE/PoE+ in port •1 x Gigabit PoE/PoE+ out port •1 x Power port
1 x Gigabit PoE++ in port, 2 x Gigabit PoE out port
1 x 10GBASE-T port (data); 1 x 10GBASE-T PoE++ port (data + power)
1 x 2.5G RJ-45 port (data), 1 x 2.5G RJ-45 PoE++ port (data + power out)
1 x 2.5GBASE-T port (data); 1 x 2.5GBASE-T PoE+ port (data + power)
RAM buffer
128 KB
128 KB
1Mb
-
-
-
MAC Address Table
2 K
2 K
2 K
-
-
-
Jumbo Frame
9 KB
9 KB
9 KB
-
-
-
Power Consumption
0.9W
1.6W
3.3W
Max. 0.7W (without PD)
Max. 95W (with PD)
Max. 0.7W (without PD)
Operating Temperature
0 – 40° C (32 - 104° F)
0 – 40° C (32 - 104° F)
0° – 45° C (32° - 113° F)
0 – 40° C (32 – 104° F)
0° – 40° C (32° – 104° F)
0 – 40° C (32 – 104° F)
Operating Humidity
Max. 90% non-condensing
Max. 90% non-condensing
Max. 95% non-condensing
Max. 90% non-condensing
Max. 90% non-condensing
Max. 90% non-condensing
Dimensions
86 x 79 x 25mm (3.4 x 3.1 x 1 in.)
121 x 75 x 26mm (4.77 x 2.95 x 1 in.)
110 x 70 x 29mm (4.3 x 2.8 x 1.1 in.)
193 x 82 x 38mm (7.6 x 3.2 x 1.5 in.)
154 x 73 x 36mm (6 x 2.9 x 1.4 in.)
154 x 73 x 36mm (6 x 2.9 x 1.4 in.)
NDAA compliant
✓
✓
✓
✓
-
✓
TAA compliant
-
-
✓
✓
-
✓
TRENDnet’s Gigabit PoE+ extender, model TPE-E100, takes a single PoE+ connection and extends it an additional 100m (328 ft.) for remote PoE/PoE+ device installation. The PoE Extender auto-detects a PoE (15.4W) or PoE+ (30W) connection and extends it for a total distance of up to 200m (656 ft.) from the PoE+ power source equipment. The TPE-E100 features a convenient wall mountable design for installation flexibility. Daisy-chain up to 3 units for a total PoE+ network extension of 400m (1312 ft.).
PoE Powered
Extends a single PoE/PoE+ network connection up to 100m (328 ft.) for a remote PoE or PoE+ device installation.
Daisy-Chainable
Daisy chain up to 3 PoE Extenders for a total PoE+ network extension of 400m (1,312 ft.).
Wall Mountable
Extends a PoE/PoE+ network connection an additional 100m for a total distance of up to 200m (656 ft.) from the PoE power source equipment.
