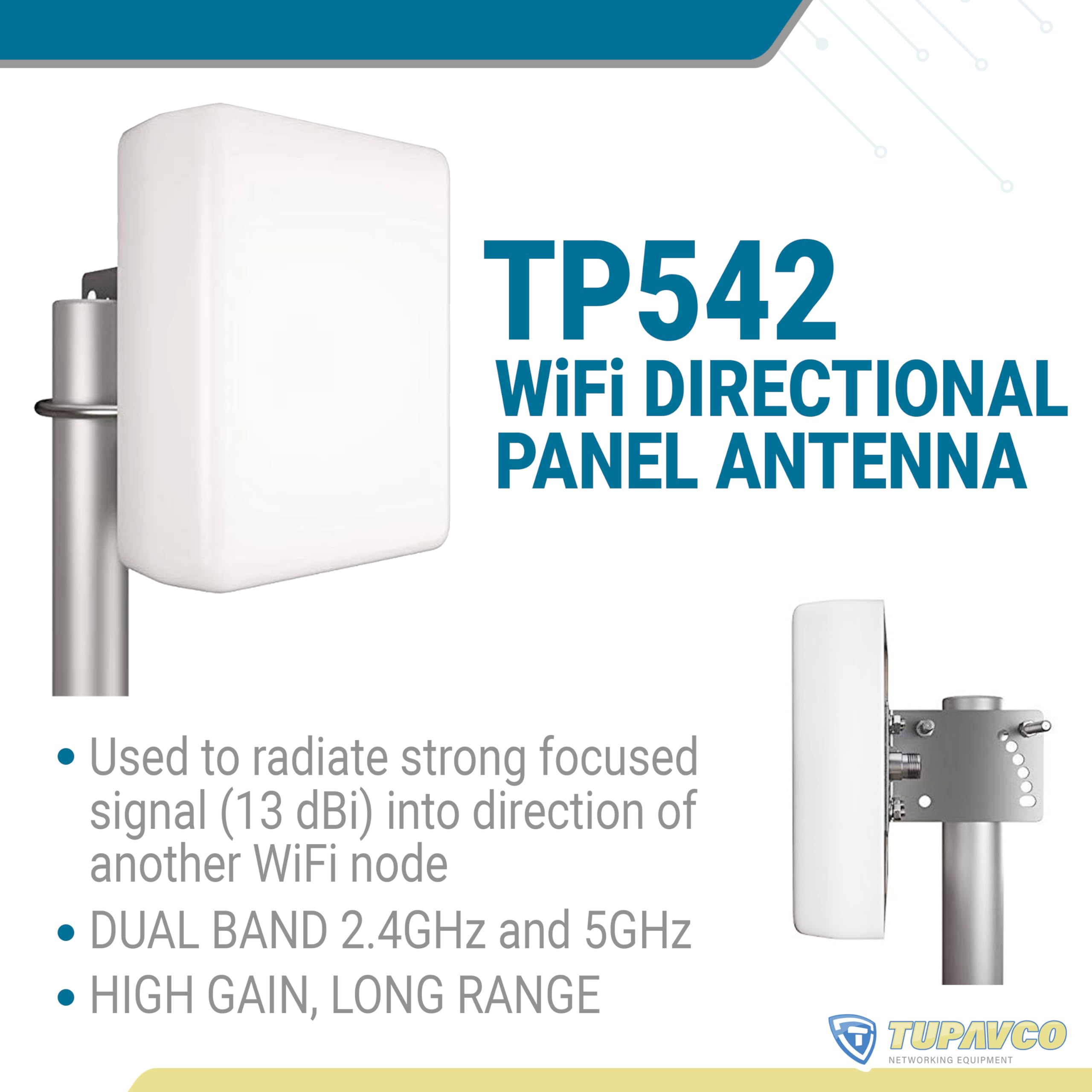

Tupavco TP542 Dual-Band (13dBi) Outdoor Directional Panel Antenna (2.4GHz & 5GHz WiFi) Wireless Network Signal (Pole Mast Mount) Weatherproof High-Gain Long-Range (w/N-Female Connector)

Dual-Band covers both 2.4GHz and 5GHz frequency spectrum.

Dual-band or multi-frequencies equipment is capable of transmitting a signal in either of two different standard frequency ranges. The primary differences between the 2.4 GHz and 5GHz wireless frequencies are range and bandwidth; while the 5GHz range provides faster data rates but at a shorter distance, 2.4GHz offers coverage for further distances but may perform at slower speeds. The router or access point device needs to have a detachable external antenna connector that supports both ranges in a single antenna.

Directional Long Range Point-To-Point

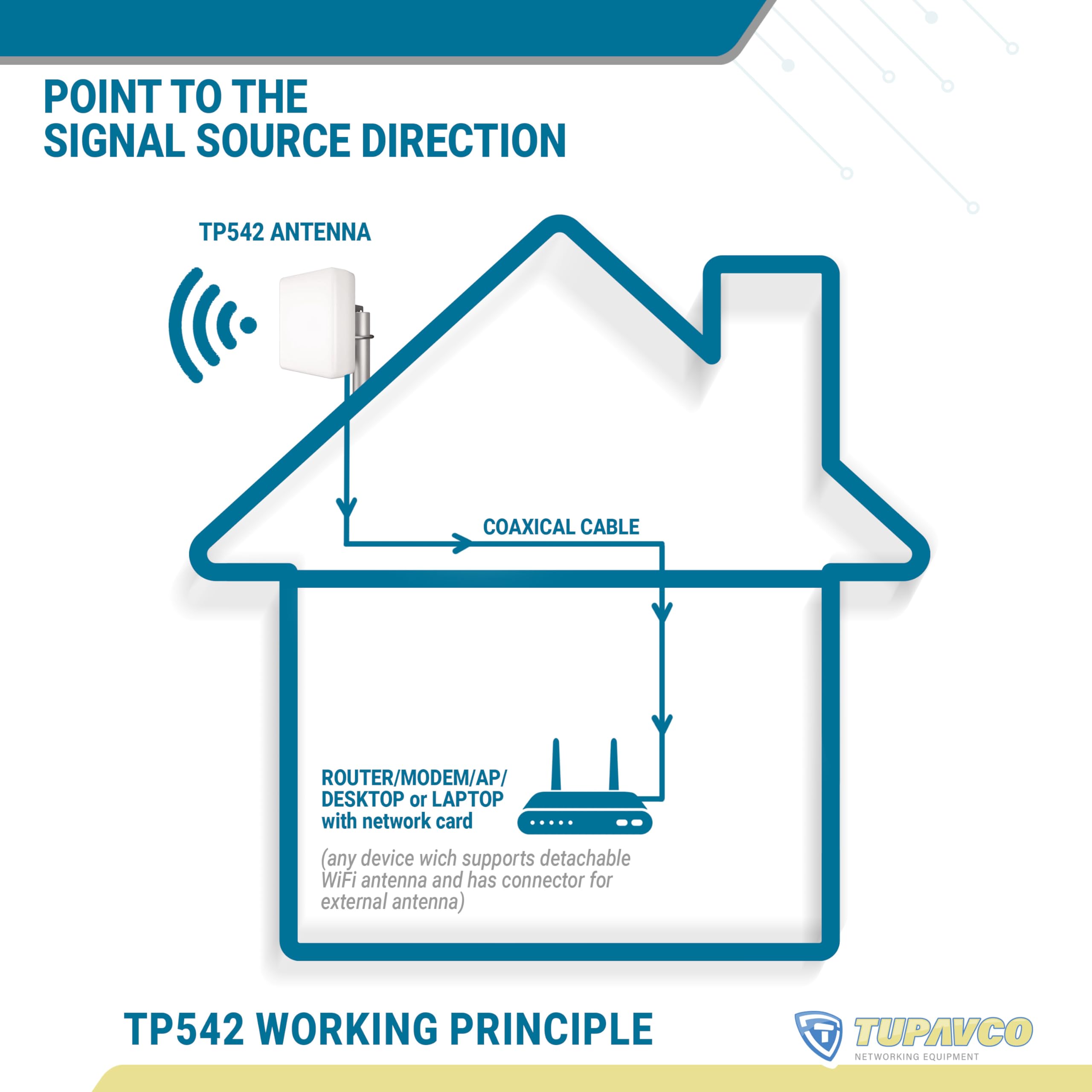

This directional antenna is designed for point to point directional wireless applications. To maximize the benefits of this antenna type, point the signal beam to a remote WiFi node. It provides the most focused 13dBi signal in a narrow beamwidth of ~40° horizontally and ~35° vertically.

The distance this antenna can reach may vary based on obstacles on the antenna path to the remote WiFi node like walls, trees, and other objects. The best signal gain is when a “direct line of sight” between the antenna and the remote location is possible.

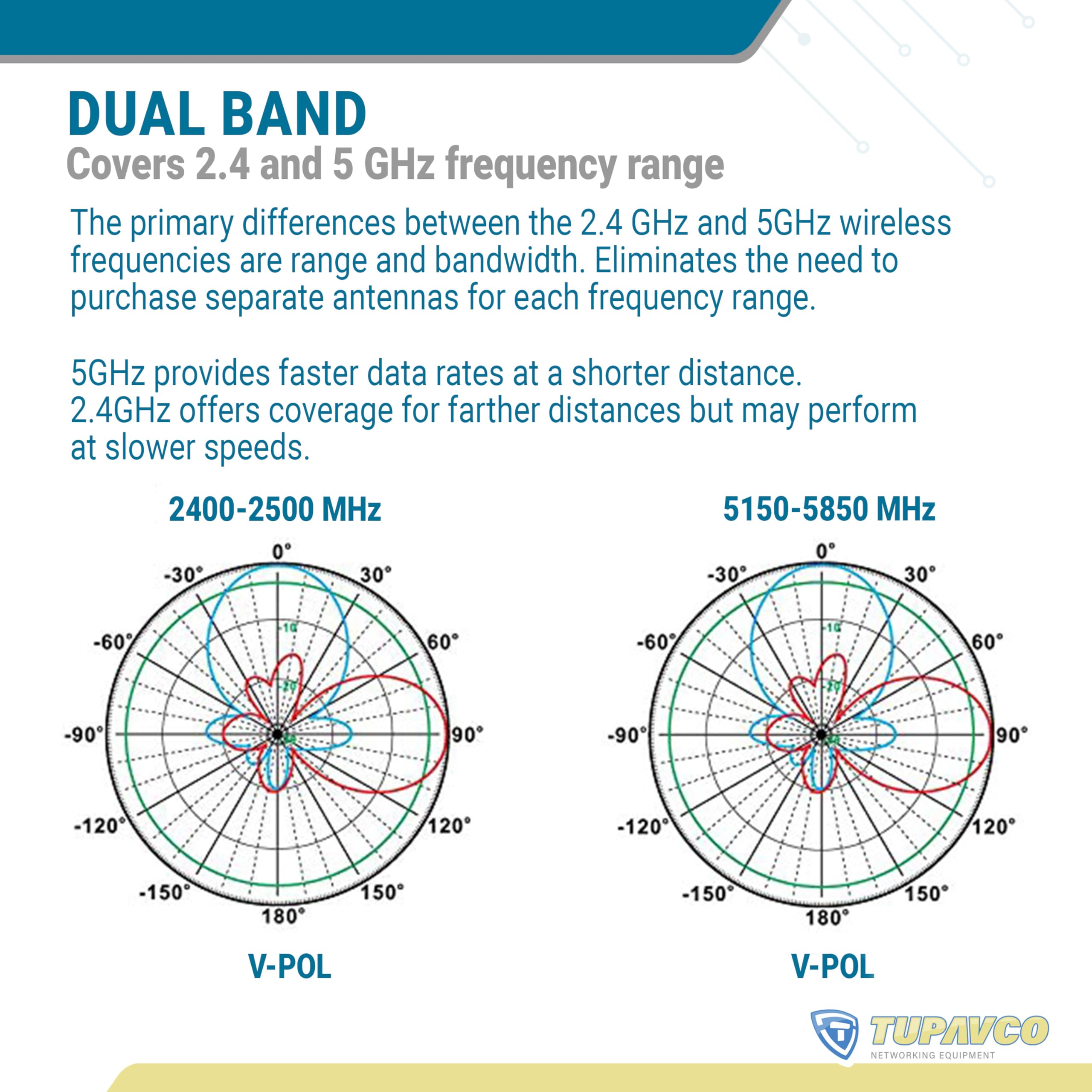

Gain: 13 dBi • Frequency: 2400-2500/5150-5850 MHz • VSWR: <2.0:1 • Polarization: Vertical • Horizontal Beamwidth: 2.4GHz-40° 5GHz-41° • Vertical Beamwidth: 2.4GHz-35° 5GHz-33° • Nominal Impedance: 50 Ohms • F/B Ratio: >20 dB • Max Input Power: 100W
