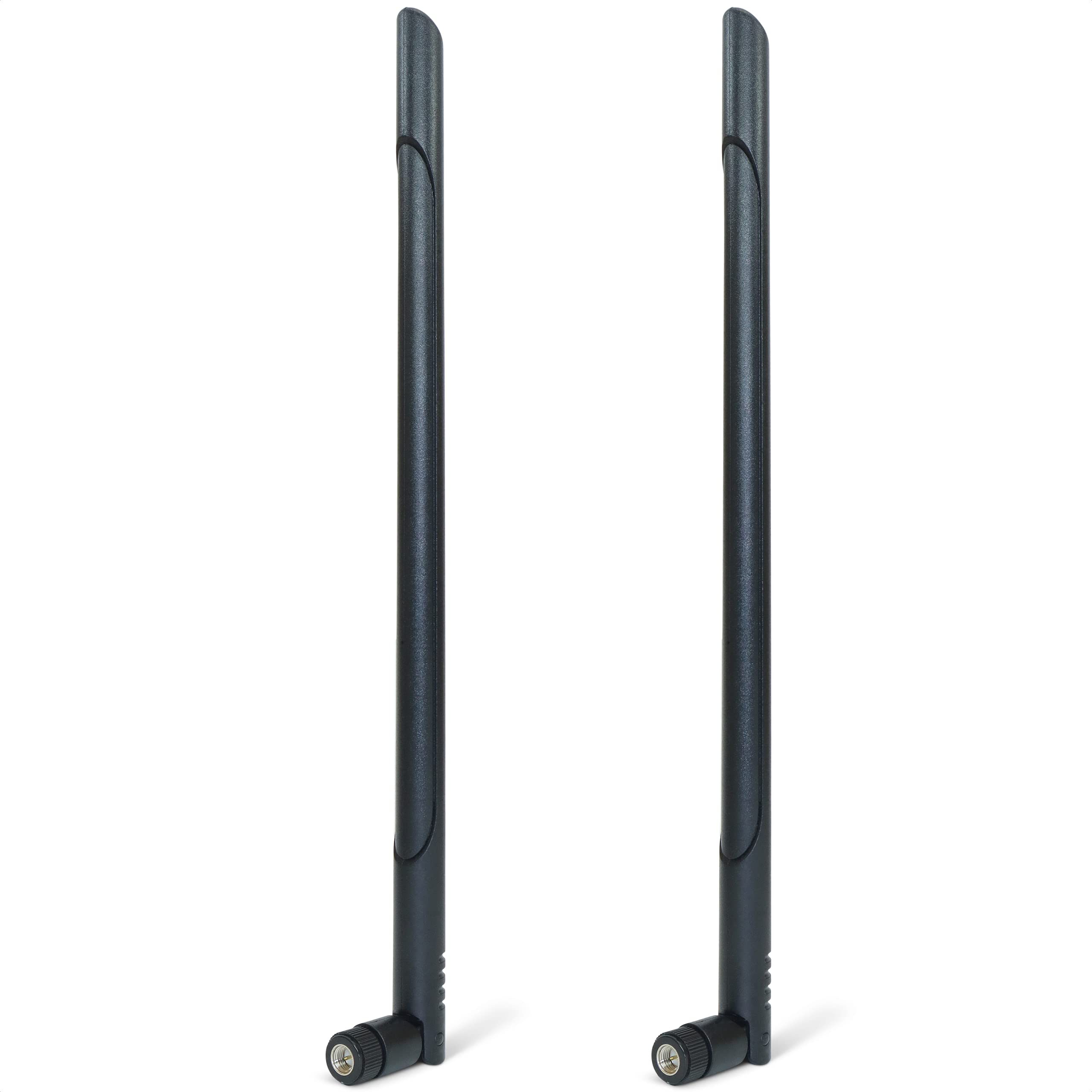

Proxicast 5-8 dBi High Gain External 4G/5G Antenna Compatible with Cisco, Cradlepoint, Netgear, Pepwave, MoFi, CalAmp, Digi, Sierra and Other Routers & Modems with SMA Connectors (ANT-120-006-2PK)
Universal Direct Replacement for Low Gain SMA Male "Rubber Duck" Style Antennas included with many Cellular Products
Boosts Signal Strength and Upload / Download Data Speeds and Increases Range on AT&T, Verizon, T-Mobile, USCellular, Bell, Telus, Rogers, Telcel, Movistar and most other cellular carriers
Compatible with any 4G or 5G Sub-6 Broadband Router, Modem or Amplifier / Booster with an SMA Antenna Jack
5 to 8 dBi Omni Antenna Swivels and Tilts to Increase Weak Wireless Signal Reception and Improve Poor Internet Speeds from Remote Cell Towers
Supports all 4G/LTE Bands and 5G NR FR1 Low-Frequency Bands n71 (T-Mobile), n5 (AT&T, Verizon), n2 (Verizon), n66 (Verizon) and Mid-Frequency C-Bands n41 (T-Mobile) and n77 (AT&T, Verizon). Also Compatible with FirstNet and CBRS Systems.
This high-efficiency 4G/5G/FirstNet/CBRS omnidirectional antenna provides up to 8 dBi of gain and supports all sub-6 GHz frequency bands used by cellular carriers worldwide.
The polycarbonate antenna's hinge rotates 360 degrees and tilts 90 degrees for optimal positioning and maximum signal reception.

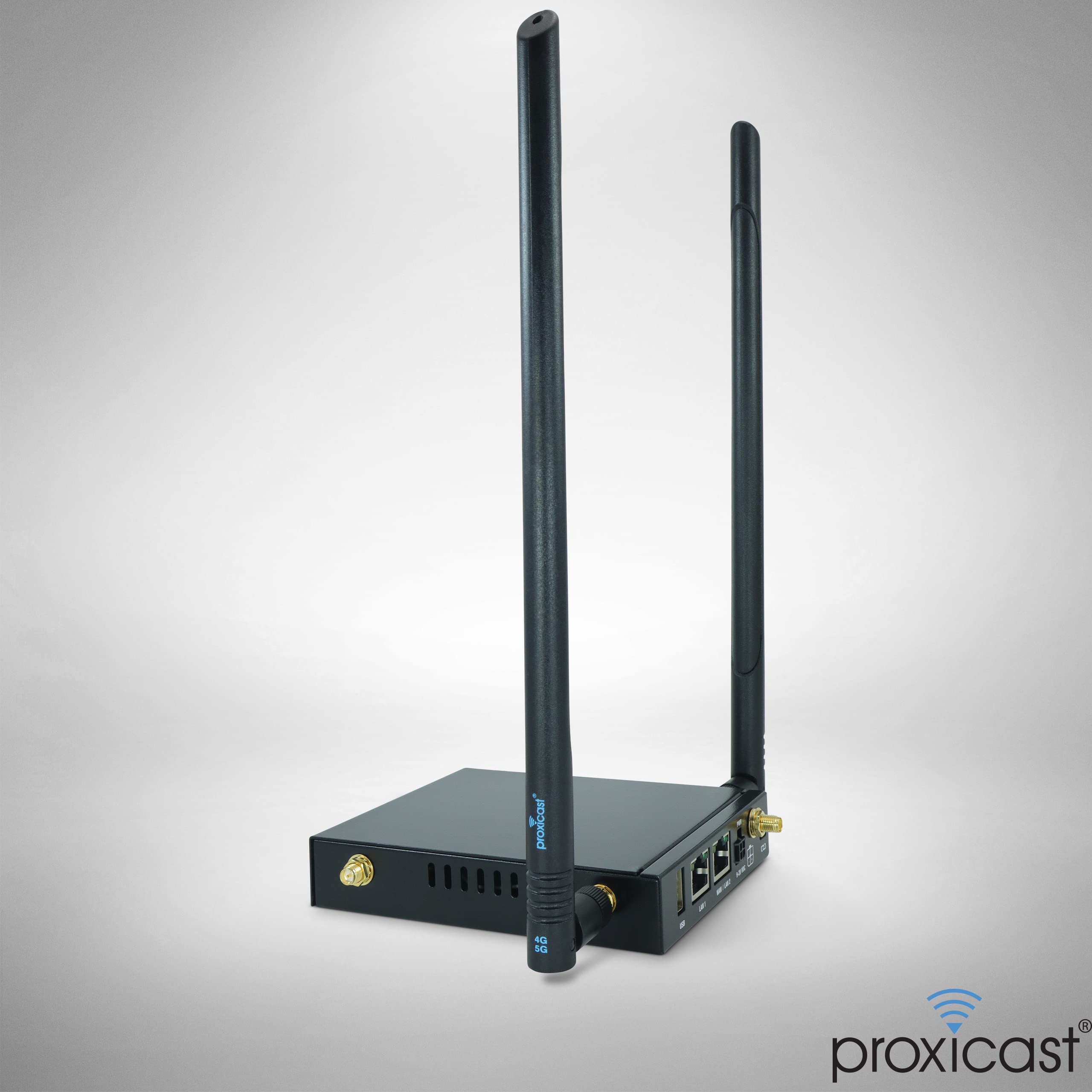

Replacement for Standard Low Gain Antennas
The SMA male screw-on plug and integrated ground-plane make installation simple. This antenna is a smart choice for applications where extra gain is required.
Key Features
Universal Compatibility
8 dBi Peak Gain
600 - 6000 MHz Frequency Coverage
Omni Directional Radiation Pattern

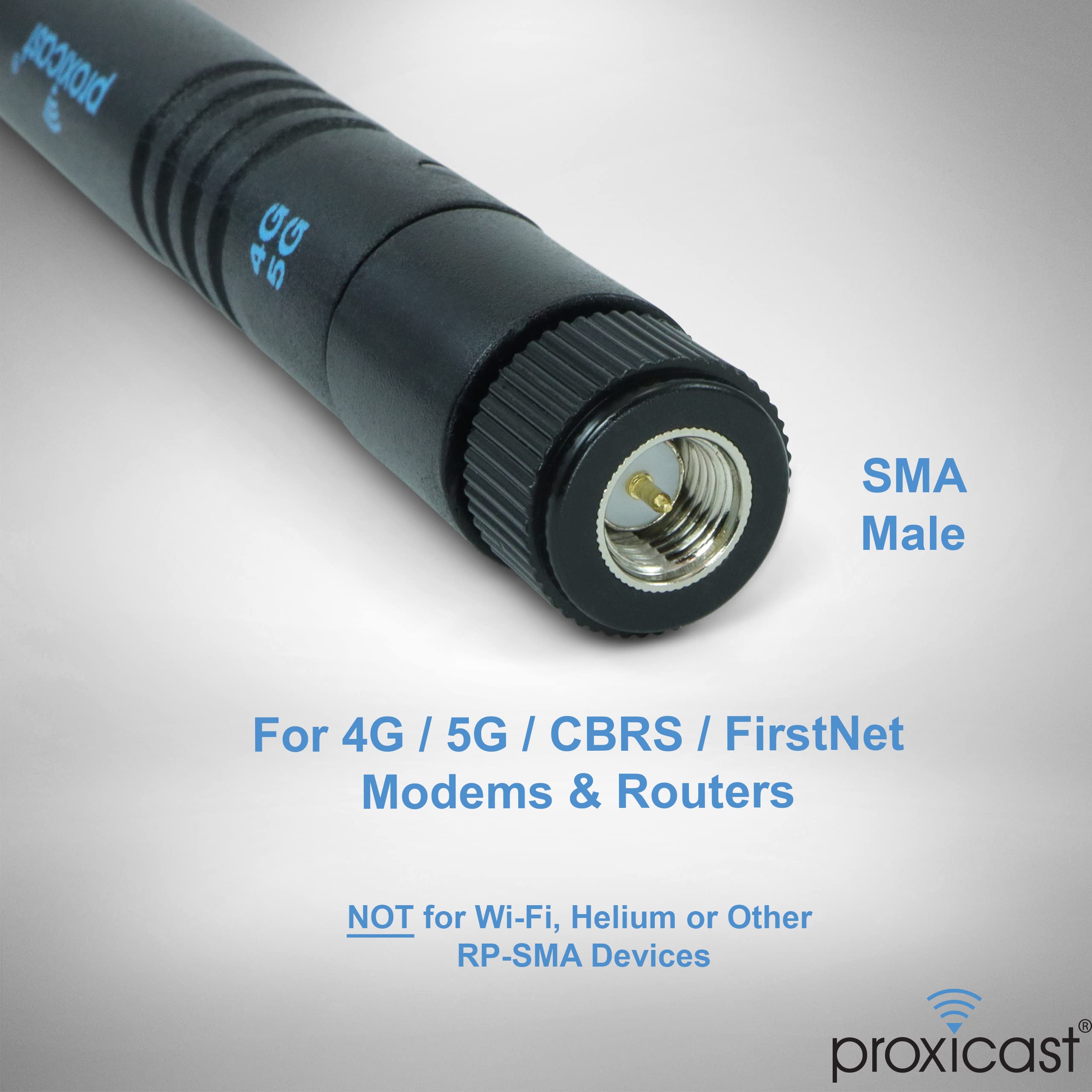

SMA Male Connector
Integrated Ground Plane
Swivel Hinge
4G LTE, 5G, FirstNet & CBRS
Supports all 4G/LTE, 5G, FirstNet and OnGo (CBRS) radio bands between 600 and 6000 MHz. Compatible with all brands of modems and routers with SMA antenna jacks.
3 Way Hinge
Our SMA Swivel Connector hinge provides the ultimate in positional flexibility. Rotate and flip it to find the best signal.

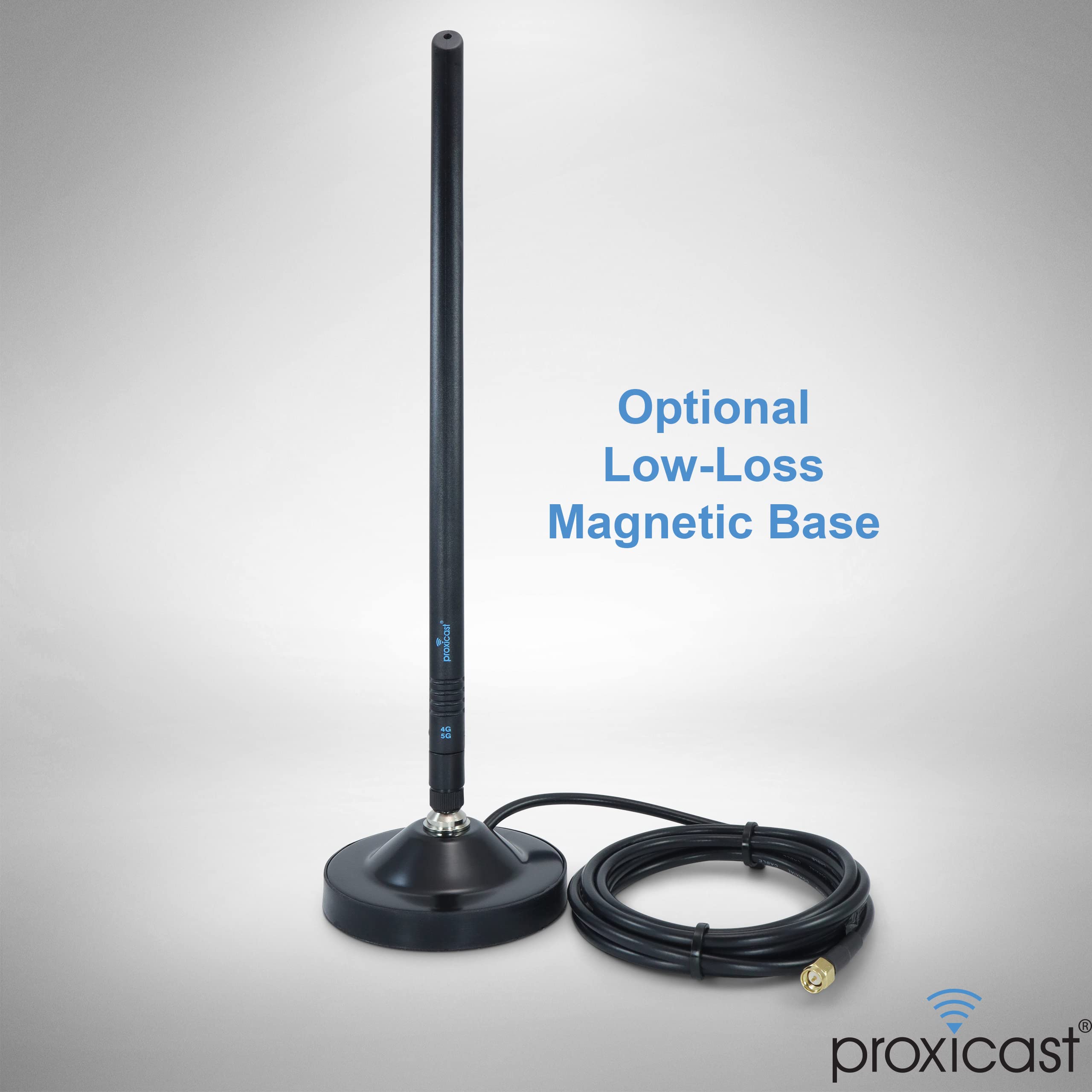

Optional Magnetic Base
Need to position the antenna in a better location? Our Pro-Grade Magnetic Base (ANT-120-MB5) is designed for ultra-low loss at high frequencies.
Specifications
Frequency Range:
600-6000 MHz
Impedance:
50 Ohms
Peak Gain:
8 dBi
Radiation Pattern:
Omni-directional
Polarization:
Vertical
VSWR:
< 2.0:1
Ground Plane:
Integrated
Connector:
SMA Male Swivel
Material:
Polycarbonate / Brass - RoHS compliant
Operating Temp:
-40C to +60C

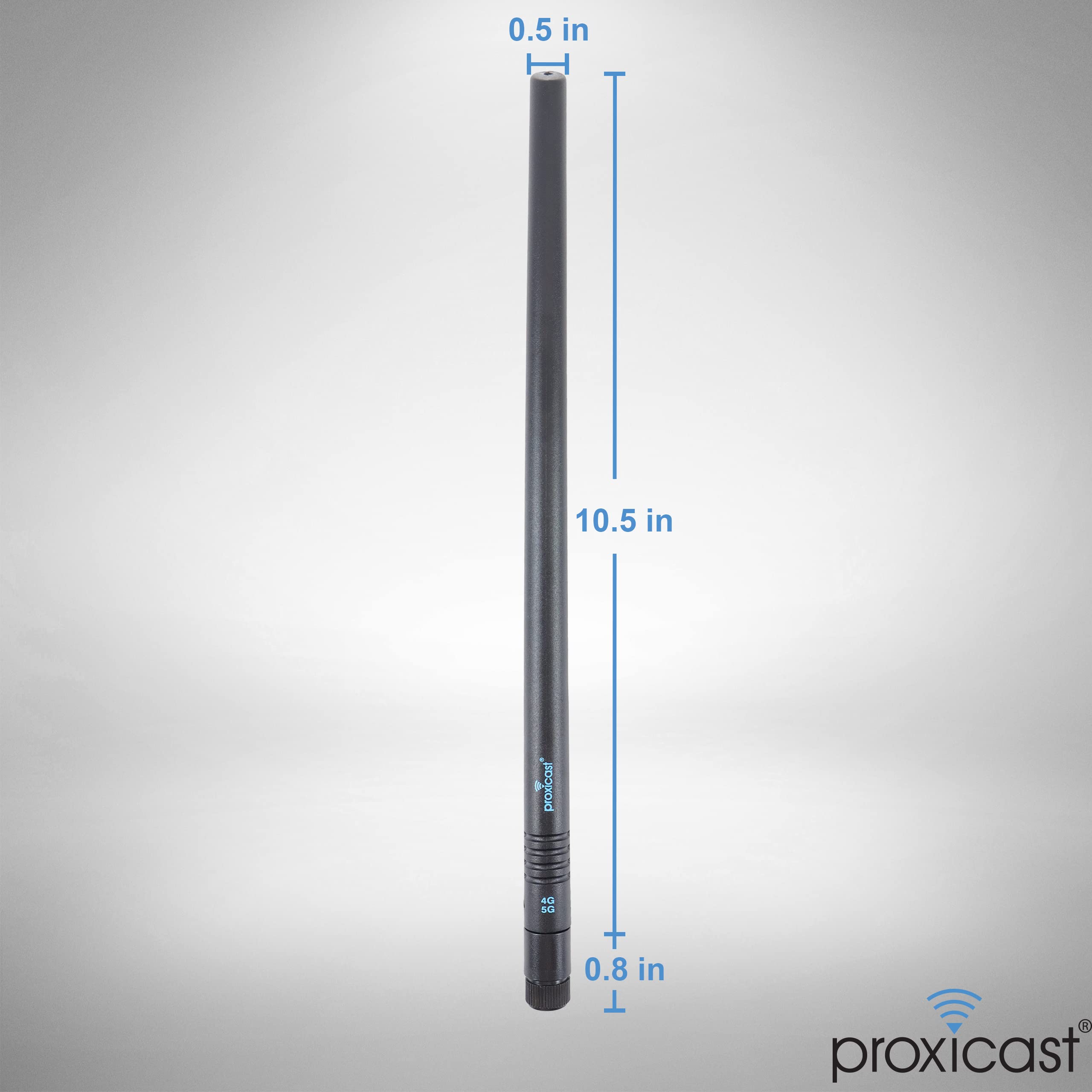

Height:
11.3 inches / 28.5 cm
Diameter:
0.5 inches / 13 mm
For Best Results
Start with antennas oriented vertically
Fully tighten coax connectors to modem antenna port
Stand 3+ feet away from antenna when testing
Maximize signal Quality (SINR, RSRQ) not signal Strength (RSSI, RSRP, bars)

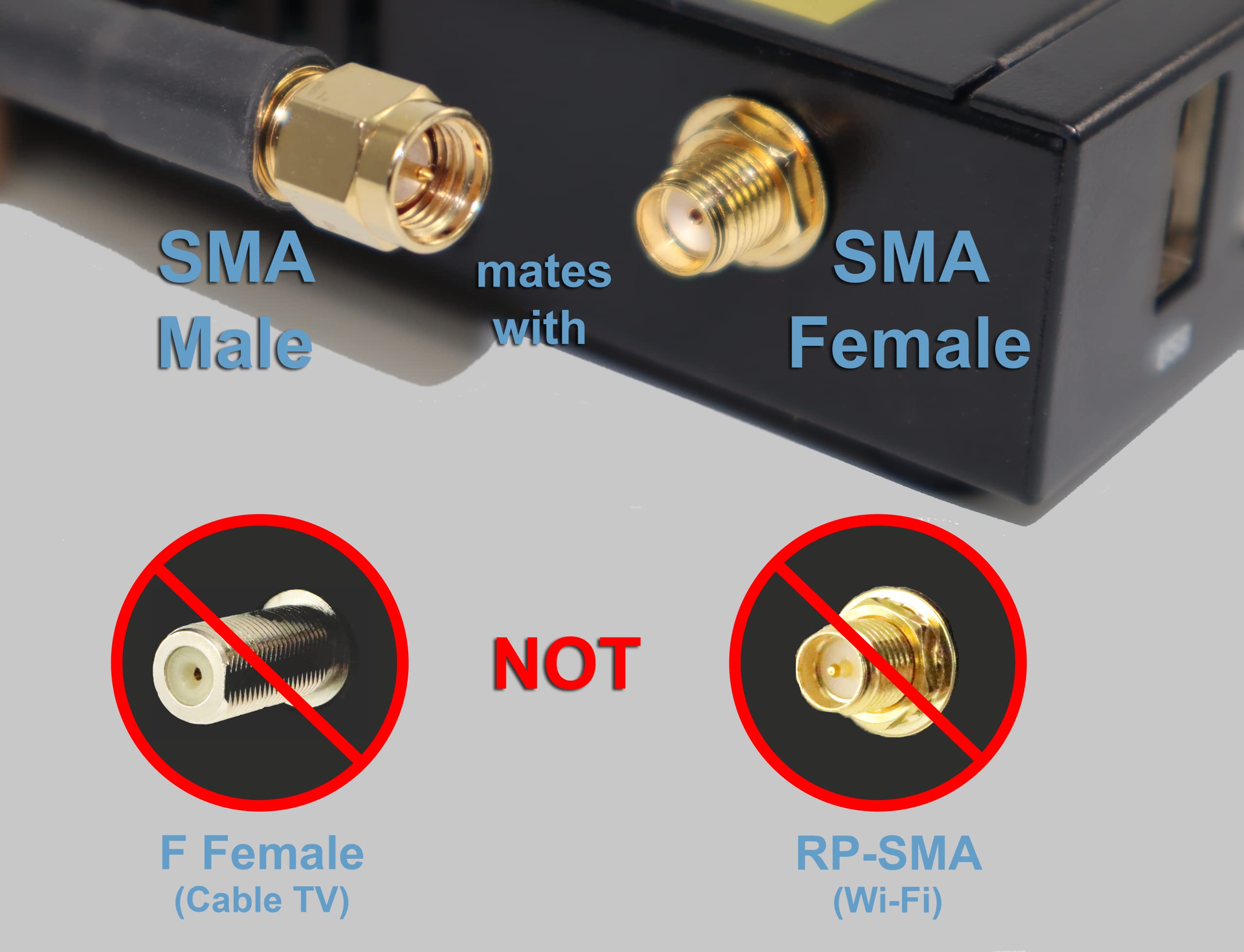

This antenna does NOT mate with Wi-Fi or Helium (RP-SMA) antennas jacks
