Input: 110V/220V AC; Output: DC 24V 15A max. Output voltage is adjustable 5%. Three sets of output Channel.
Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.
Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.
It comes with built-in cooling fan and temperature detector. Cooling fan will not run until the inner temperature reaches 113°F (45℃), which makes heat dissipation more efficient.
Compact small size, high efficiency, high reliability and stable performance. Indoor use only!
Product Specifications
Brand: ALITOVE
Power Source: Dc 24v
Product Dimensions: 4.41 x 8.46 x 1.96 inches
Mounting Type: Wall Mount
Current Rating: 15 Amps
Maximum Frequency: 60 Hz
Minimum Frequency: 50 Hz
UPC: 702455810141
Manufacturer: ALITOVE
Item Weight: 1.64 pounds
ASIN: B06XK2ZNKC
Item model number: 4328506385
Customer Reviews: 4.4 out of 5 stars 1,057Reviews
Is Discontinued By Manufacturer: No
Date First Available: March 12, 2017
Product Information
Product description
Parameter
Input: AC 100V~120V / 200V~260V 50/60Hz
Output Voltage : DC 24V ( ±10% adjustable, 21.6V~26.4V)
Output Current: 15A max
Output Wattage: 360W max
Fix Screw Hole Diameter: 2.5mm (0.1inch)
Working temperature: -10℃ ~50℃ (-50 ℉ ~ 122℉)
Storage temperature: -20℃ ~ 60℃ (-68 ℉ ~ 140℉)
Environmental humidity: 10-95%
Safety Compliance: FCC / CE /Rohs
Kindly note
We suggest the max use of power should be no more than 80% of the full loads, otherwise,the power supply's spanlife will be shortened. We recommend you to use this 24V 15A 360W power supply to power devices less than 288W.
110V/220V must be selected by switch before using to avoid damaging. Please change the switch to 110V for USA/CA and 220V for EUR.
Package included
1 x 24V 15A Power Supply (Power cord is NOT included.)
Superior Safety
Built-in safeguards to protect against over voltage, over current, overheat, short-circuit, which will provide ultimate protection for you and your devices.

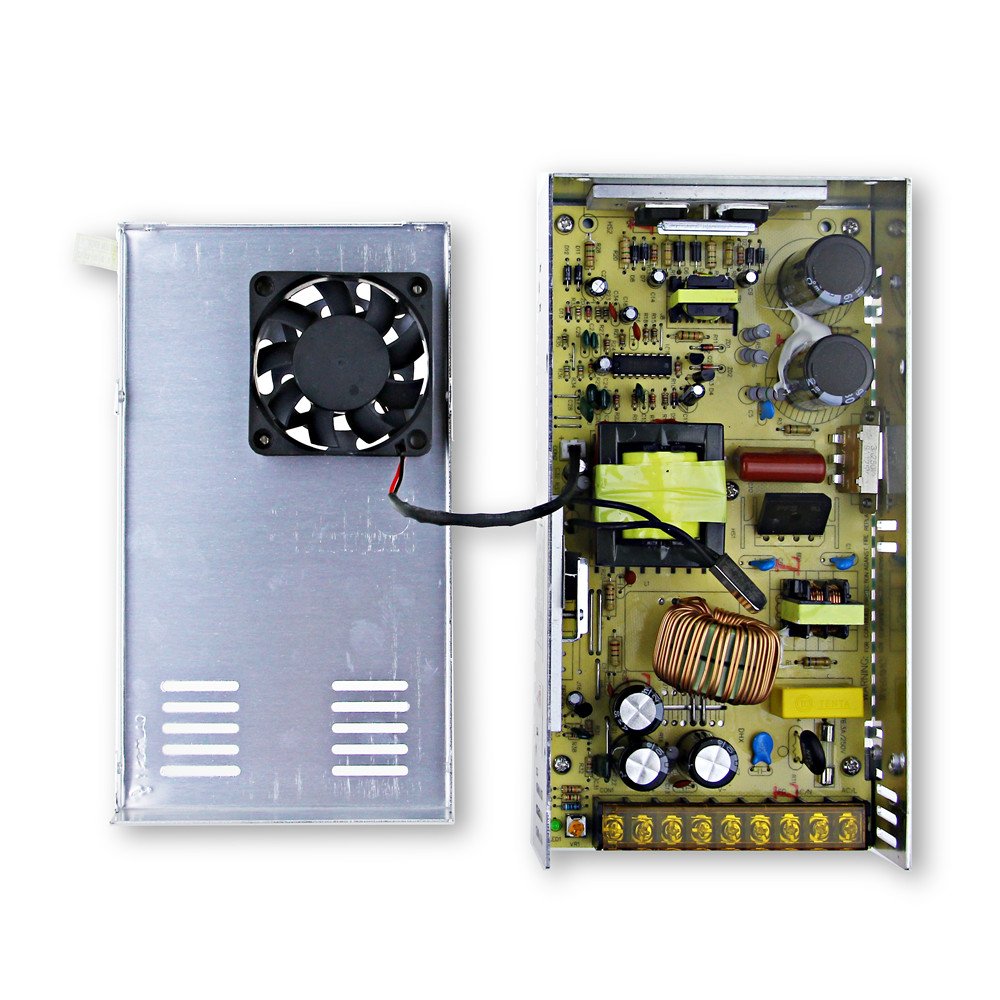

Intelligent Temp control
It comes with built-in cooling fan and temperature detector. Cooling fan will automatically run when the inner temperature reaches 113°F (45℃), which makes heat dissipation more efficient and silent.
±10% Voltage Adjustment
The output voltage can be regulated by ±10%, from 21.6V to 26.4V, which greatly expand its application range. It can supply with any current ( less than 15A) your device draws, such as 10A, 15A.
Three Output Channels
With three independent output channels, it can power more devices. The maximum output of each channel can reach 15A 360W. Total output power of the three channels is 15A 360W.
Stable Output
Built-in advanced synchronous rectifier smart chip and EMI filter, convert fluctuating voltage to stable voltage, effectively reduce electromagnetic interference.
Warning!
110V/220V must be selected by switch before using to avoid damaging. Please change the switch to 110V for USA/CA and 220V for EUR.
