1.Specific: Voltage: 110V/60Hz; Max Flow: 30L/min(8GPM);Max Head:12m(39.4FT);Inlet/Outlet: NPT 3/4’’
2.Wide application:It can be used to supply water and add pressure for mansions of city, villa of suburb, house, to match with insdustrial equipment, to supply water in cycle for cooling air-condition, boiler and solar energy, supply hot water and keep warm in cycle, it can add pressure for water faucet, shower head, toliet, water heater, solar heater, water tank,pipe, etc.
3.Features: The pump is treated with special anti-rust treatment, high temperature resistance, corrosion resistance, anti-fraying,long life,no rust. No leakage, low noise, environmental protection, beautiful appearance, convenient installation, run responsible and so on.
4.Material: The pump is equipped with a stainless steel pump head, aluminum motor shell, PE impeller, ceramic bearings
5. Note: A minimum inlet flow rate of 0.26 GPM is required to ensure automatic starting.
Product Specifications
Part Number: BW-RS15-9S
Item Weight: 0.317 ounces
Product Dimensions: 8.7 x 5.9 x 7.5 inches
Item model number: RS15-9G
Is Discontinued By Manufacturer: No
Wattage: 120.00
Item Package Quantity: 1
Special Features: Flow Switch
Batteries Included?: No
Batteries Required?: No
Manufacturer: BOKYWOX
Product Information
Product description

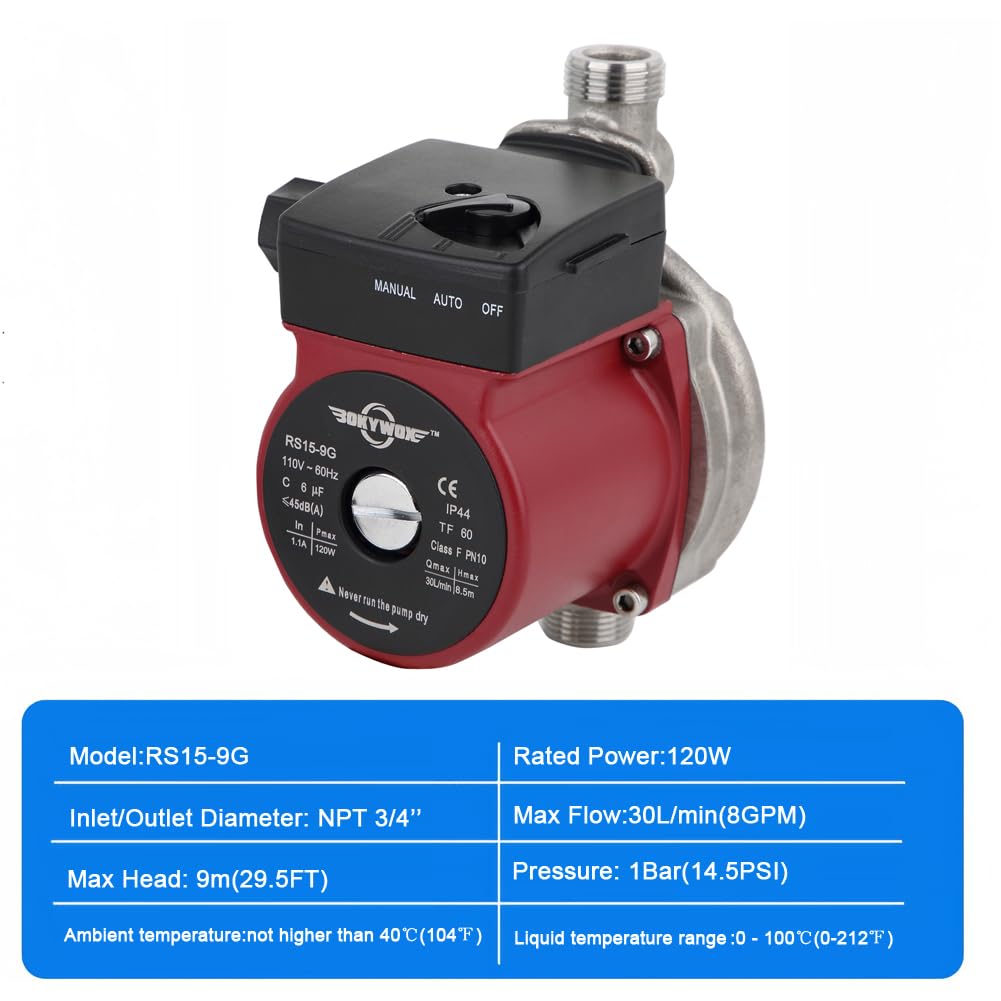

Specification
Type
RS15-9SR
Rated Power
120W
Inlet/Outlet
NPT 3/4''
Flow
30LPM(8GPM)
Max Head
9M(29.5FT)
Voltage
110-120V
Frequency
60Hz
Pressure
1Bar(14.5PSI)
Length of cord cable
1.25m(4.1FT)
Liquid temperature range
0 - 100℃(0-212℉)
Ambient temperature
not higher than 40℃(104℉)
Motor
Protection class IP44 Insulation class F

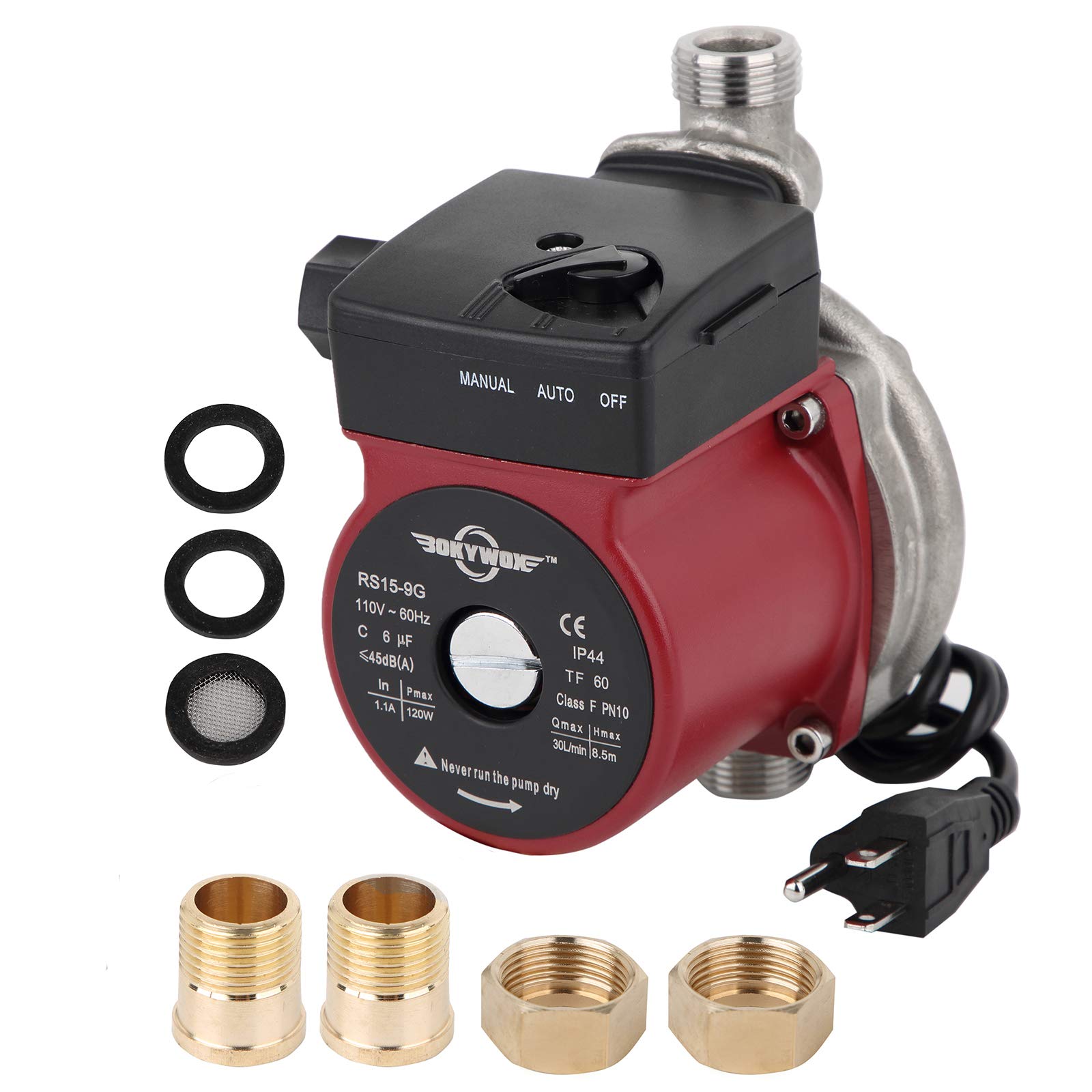

BOKYWOX 120W Hot Water Recirculating Pump
Get better quality and service for less money
BOKYWOX is specilized in producing and exporting pump,valve and tools for several years. We have dozens of professional engineers, several hundred motivated employees, we are dedicated to providing our customers with better quality and service at relatively less money.
Why choose BOKYWOX
Beautiful appearance
Better Quality
Relatively less money
Professional after-sales severice
RS series of circulating pump researched and developed by scientific research personal of our company has following merits: no leakage, low noise, beautiful appearance, convenient installation, run responsible and so on
The pump isn’t sealed with machinery sealing. The stator and rotor of motor are sealed with stainless steel cover. Other parts are all sealed with heat-resisting rubber facing ring,so thaat there is not leakage.
Stainless Steel Material
Built-in Flow Switch
Easy installation
Quite to Work
Wide Application
It can be used to supply water and add pressure for mansions of city, villa of suburb, house, to match with insdustrial equipment, to supply water in cycle for cooling air-condition, boiler and solar energy, supply hot water and keep warm in cycle, it can add pressure for water faucet, shower head, toliet, water heater, solar heater, water tank,pipe, etc.
KEEP QUIET TO WORK
Super silent, aesthetics, easy to install and operate.The hot water circulation pump features high efficiency with low consumption. High temperature resistance, anti-fraying, high flow and leak-tightness. No leakage, low noise, aesthetics, ease of installation and so on.
For example:
10dB: Spends Sound
20dB: Rustle of leaves
30dB: Whisper
50dB: Normal Chat
80dB: Hubbub
100dB: Horn sounds of car
High-precision pump body
The pump is treated with special anti-rust treatment, high temperature resistance, corrosion resistance, antifraying,long life,no rust
304 Stainless Steel Pump Head
The flow parts are made of 304 stainless steel, which rejects the secondary pollution of the water quality in the pump, and ensures that the water quality is clean, clean and hygienic

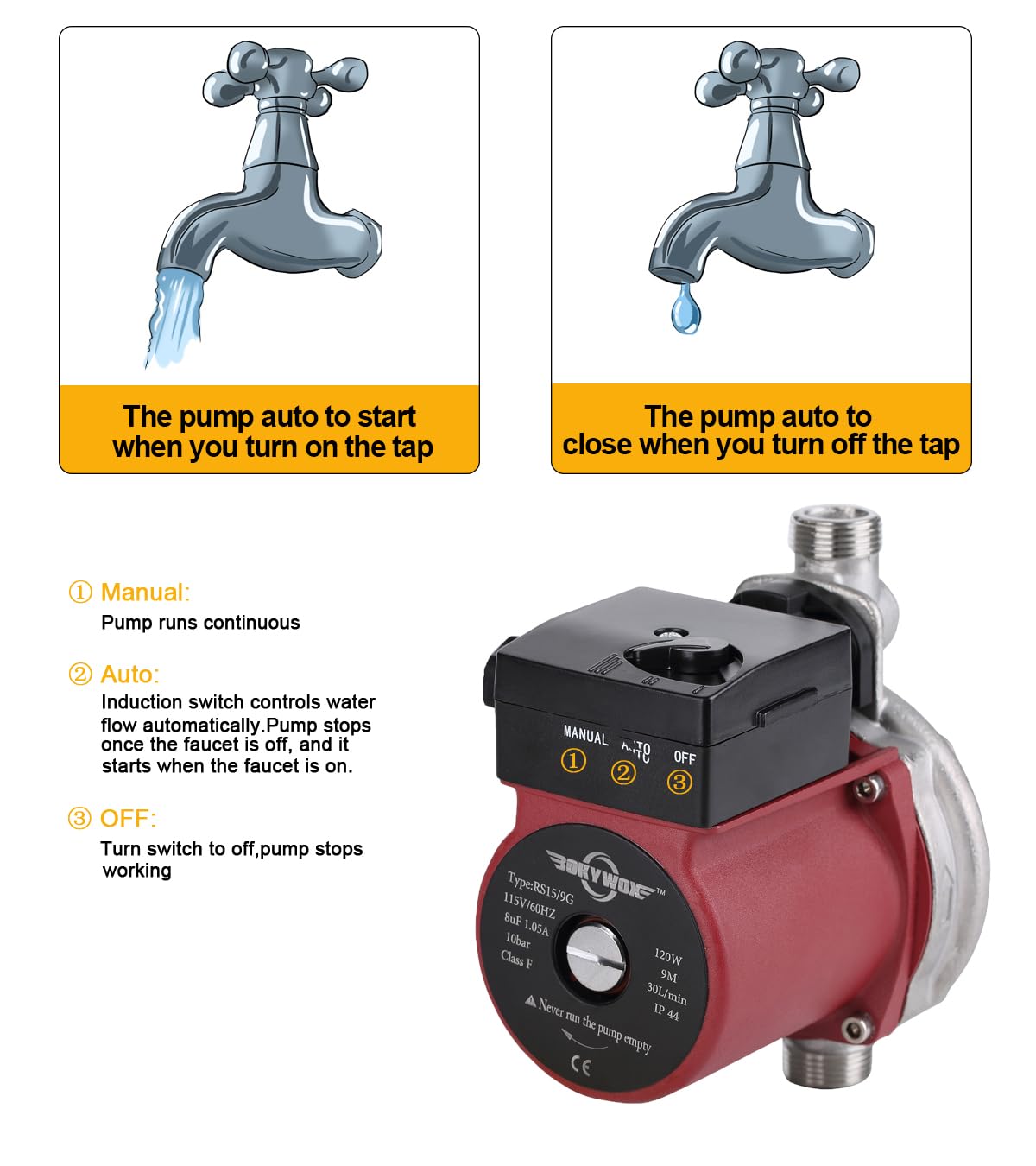

Intelligent dual control technology
Two control methods, manual start or automatic start
Built-in high sensitive electronic sensors, the water will be flow when we open the switch.
