1.Specific: Voltage: 110V/60Hz; Max Flow: 30L/min(8GPM);Max Head:12m(39.4FT);Inlet/Outlet: NPT 3/4’’
2.Wide application:It can be used to supply water and add pressure for mansions of city, villa of suburb, house, to match with insdustrial equipment, to supply water in cycle for cooling air-condition, boiler and solar energy, supply hot water and keep warm in cycle, it can add pressure for water faucet, shower head, toliet, water heater, solar heater, water tank,pipe, etc.
3.Features: The pump is treated with special anti-rust treatment, high temperature resistance, corrosion resistance, anti-fraying,long life,no rust. No leakage, low noise, environmental protection, beautiful appearance, convenient installation, run responsible and so on.
4.Material: The pump is equipped with a cast iron pump head, aluminum motor shell, PE impeller, ceramic bearings
5. Note: A minimum inlet flow rate of 0.26 GPM is required to ensure automatic starting.
Product Specifications
Manufacturer: BOKYWOX
Part Number: AN-09RJ-X1XP
Item Weight: 6.6 pounds

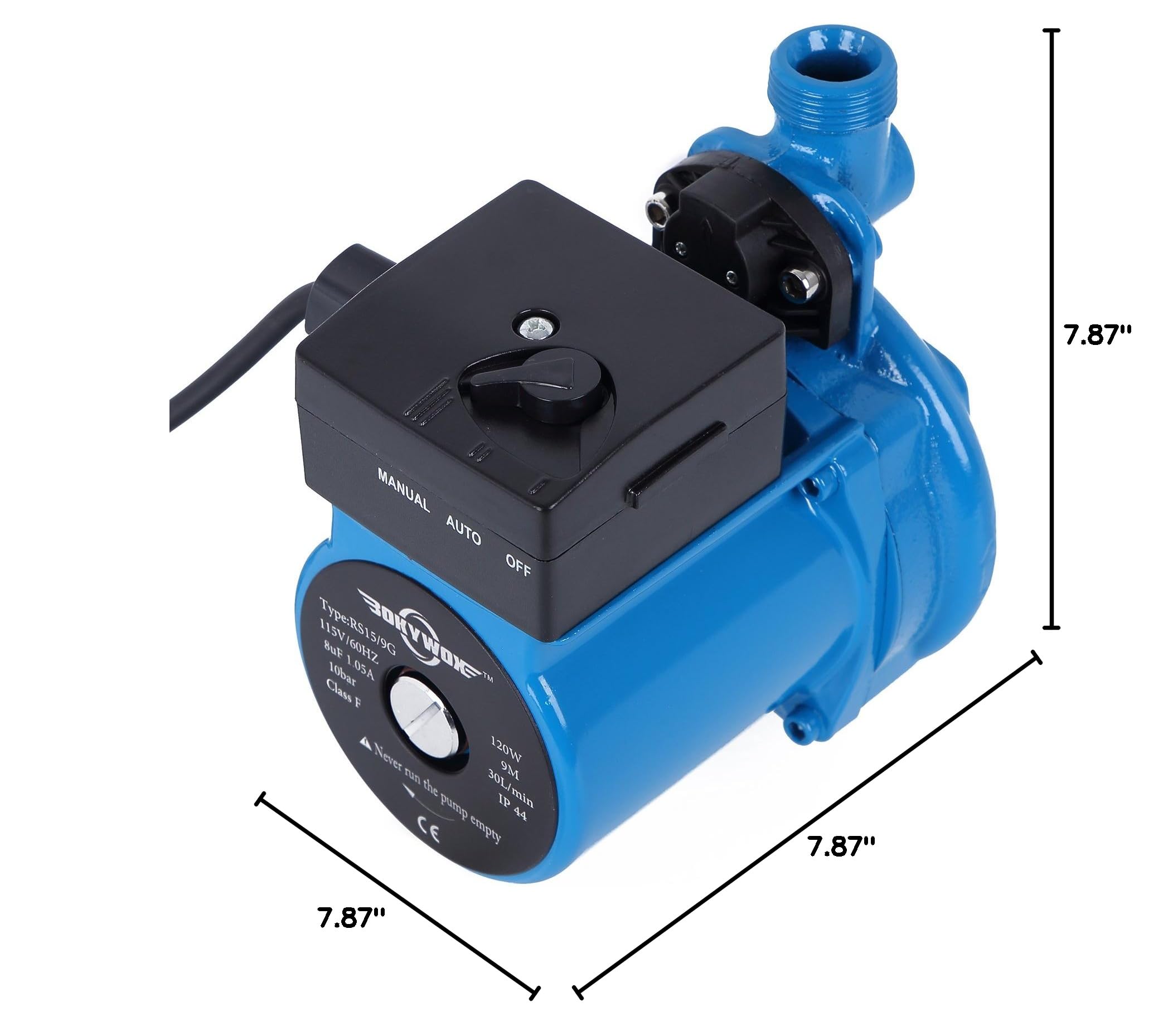

Product Dimensions: 7.87 x 7.87 x 7.87 inches
Item model number: RS15-9G
Is Discontinued By Manufacturer: No
Wattage: 120.00
Item Package Quantity: 1
Batteries Included?: No
Batteries Required?: No
Product Information
Product description

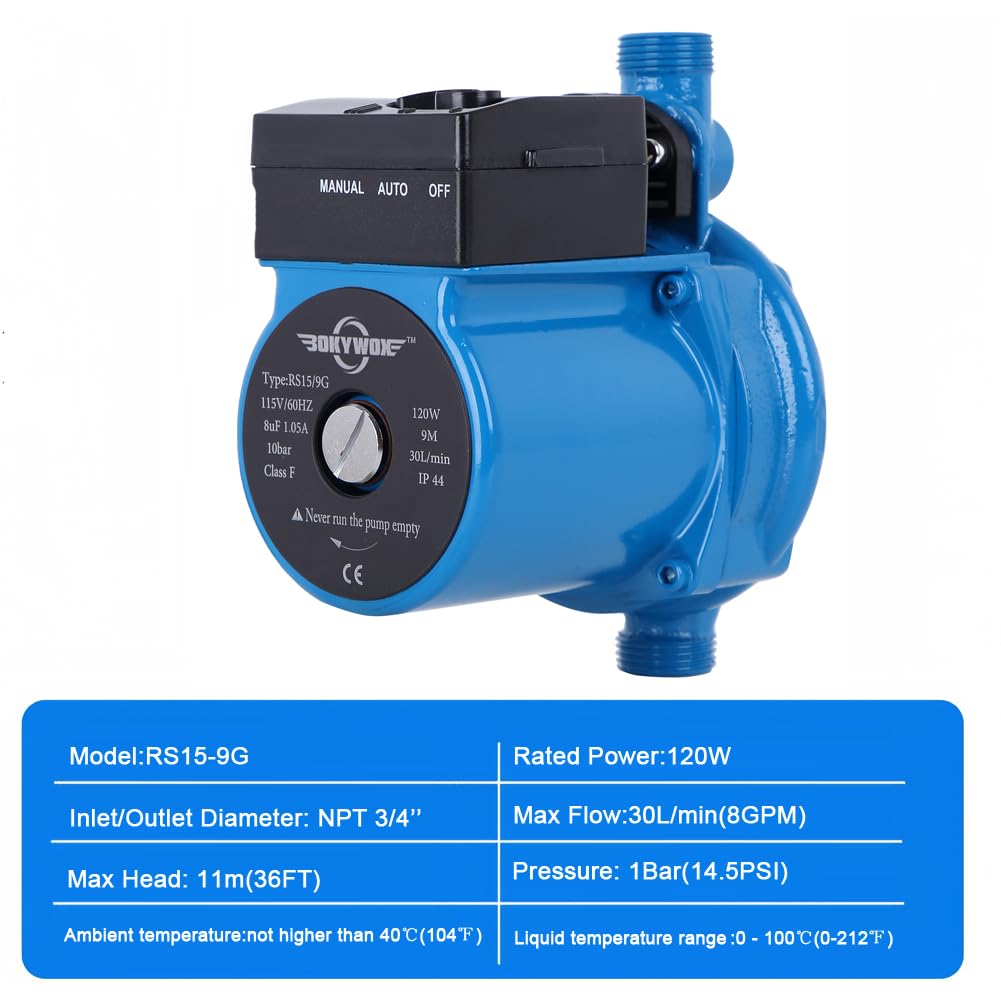

Specification
Model
RS15-9G
Rated Power
120W
Inlet/Outlet Diameter
NPT 3/4''
Max Flow
30L/min(8GPM)
Max Head
11m(36FT)
Volt/Freq
110-120V/60Hz
Pressure
1bar(14.5PSI)
Length of cable
1.25m(4.1FT)
Liquid temperature range
0 - 100℃(0-212℉)
Ambient temperature
not higher than 40℃(104℉)
Maximum working pressure
10bar(145PSI)
Motor
Protection class IP44 Insulation class F
Material
Cast Iron, PP, ceramics
Mounting position
Shaft horizontal mounting
BOKYWOX 120W Hot Water Recirculating Pump
Get better quality and service for less money
BOKYWOX is specilized in producing and exporting pump,valve and tools for several years. We have dozens of professional engineers, several hundred motivated employees, we are dedicated to providing our customers with better quality and service at relatively less money.
Why choose BOKYWOX
Beautiful appearance
Better Quality
Relatively less money
Professional after-sales severice
RS series of circulating pump researched and developed by scientific research personal of our company has following merits: no leakage, low noise, beautiful appearance, convenient installation, run responsible and so on
The pump isn’t sealed with machinery sealing. The stator and rotor of motor are sealed with stainless steel cover. Other parts are all sealed with heat-resisting rubber facing ring,so thaat there is not leakage.
Built-in Flow Switch
Easy installation
Quite to Work
Wide Application
It can be used to supply water and add pressure for mansions of city, villa of suburb, house, to match with insdustrial equipment, to supply water in cycle for cooling air-condition, boiler and solar energy, supply hot water and keep warm in cycle, it can add pressure for water faucet, shower head, toliet, water heater, solar heater, water tank,pipe, etc.
Advantage
Heavy-duty Material
The pump is equipped with a cast iron pump head, aluminum motor shell, PE impeller
The pump is treated with special anti-rust treatment, high temperature resistance, corrosion resistance, antifraying,long life,no rust

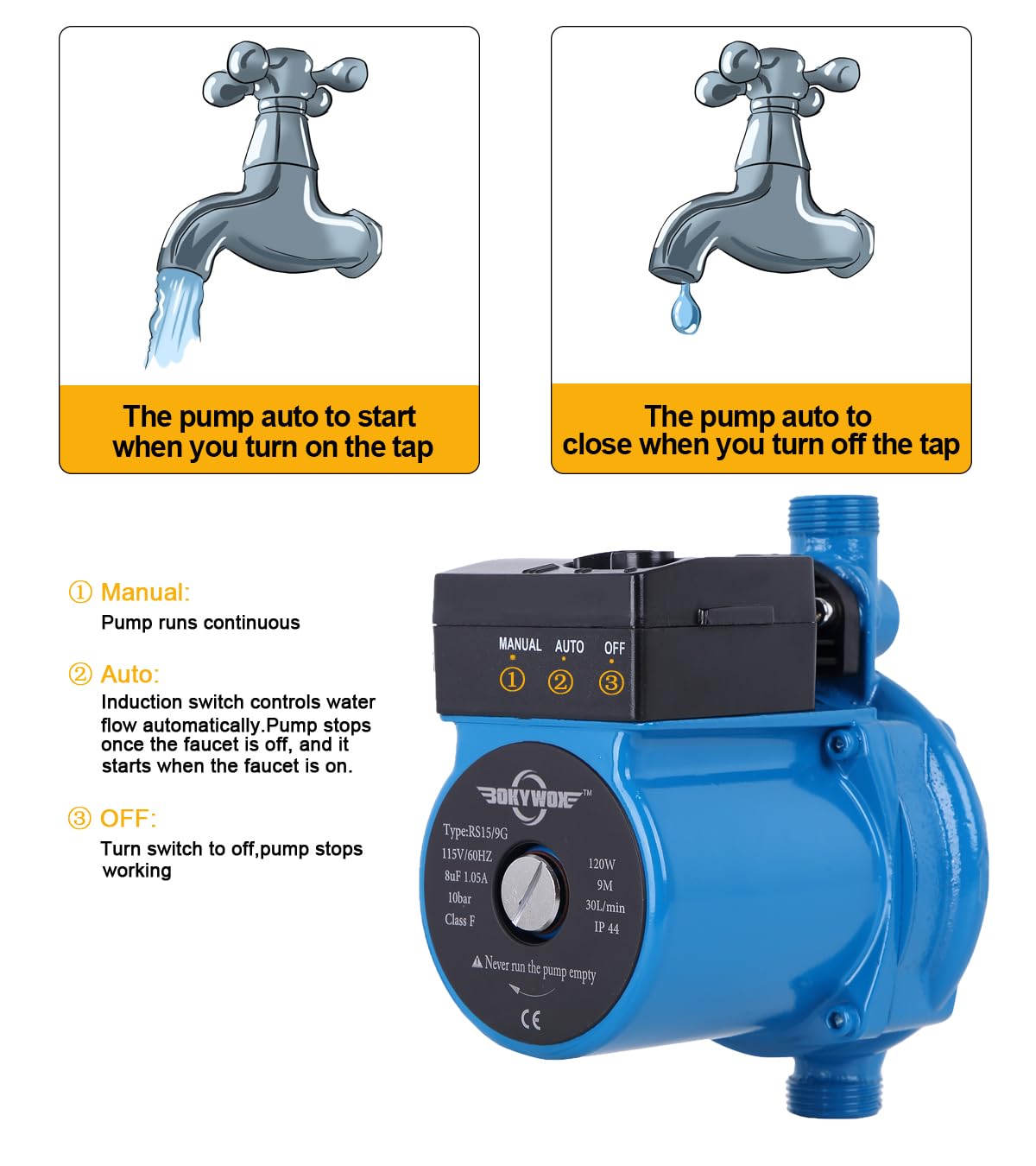

Built-in Flow Switch
Induction Switch which control water flow automatically
Pump starts automatically once the faucet is on
Pump stops automatically once the faucet is off
KEEP QUIET TO WORK
This circulation pump for hot water, it boasts a powerful motor, stable performance and low noise. The average noise level is only 25dB, enabling you to enjoy the pump without disturbing your life.

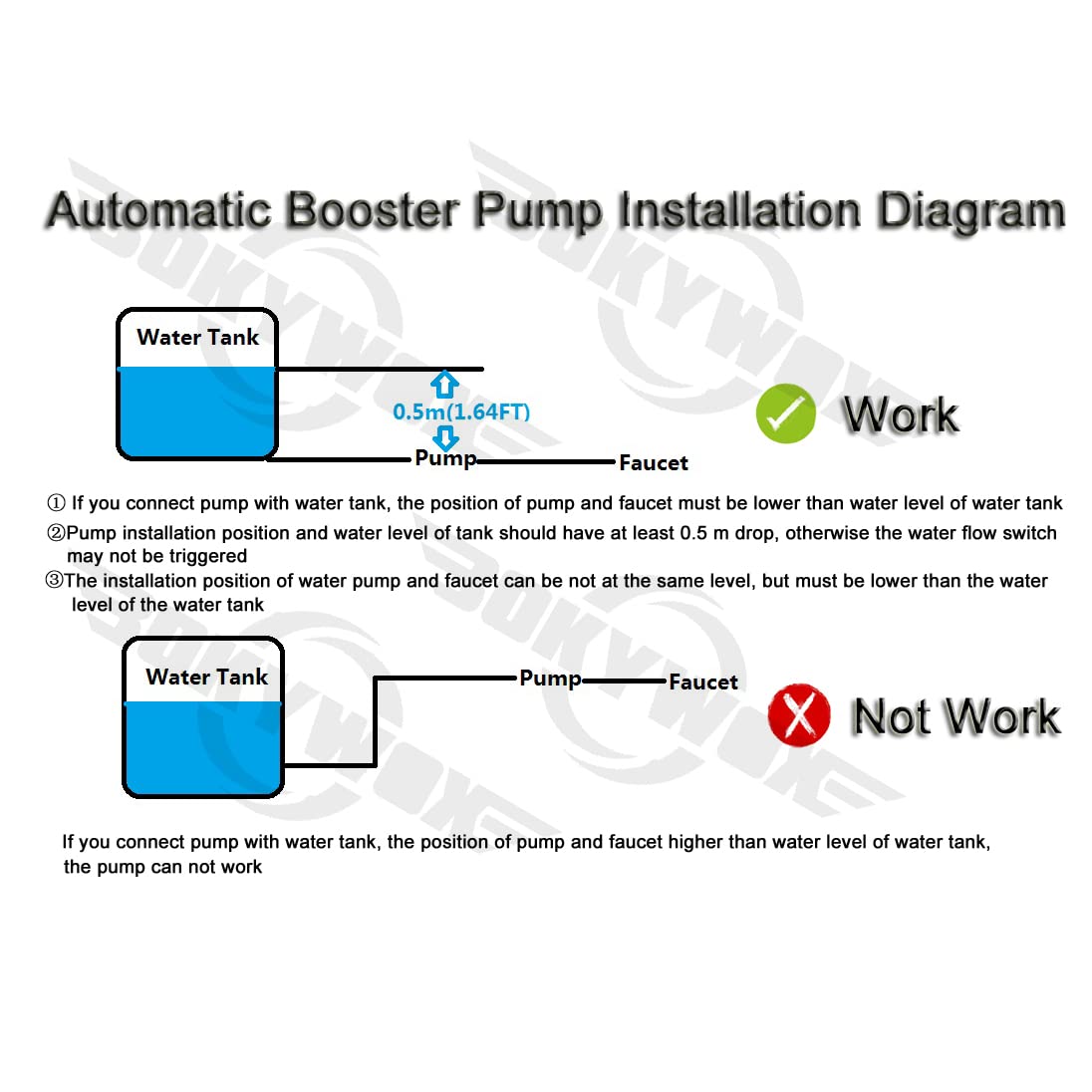

1. If you connect pump with water tank, the position of pump and faucet must be lower than water level of water tank
Pump installation position and water level of tank should have at least 0.5 m drop, otherwise the water flow switch may not be triggered
The installation position of water pump and faucet can be not at the same level, but must be lower than the water level of the water tank
2. If you connect pump with water tank, the position of pump and faucet higher than water level of water tank, the pump can not work
