1.Specific: Voltage: 110V/60Hz; Power: 93/67/46W; Max Flow: 36/29/20 L/min(9.5/7.66/5.28GPM); Max Head: 20/16/13FT (6/5/4M);Inlet/Outlet: NPT 3/4’’
2.Wide application:it is designed special for heating system and it can be used to supply water and add pressure for mansions of city, villa of suburb, house, to match with insdustrial equipment, to supply water in cycle for cooling air-condition, boiler and solar energy, supply hot water and keep warm in cycle, etc.
3.Features: The pump is treated with special anti-rust treatment, high temperature resistance, corrosion resistance, anti-fraying,long life,no rust. No leakage, low noise, environmental protection, beautiful appearance, convenient installation, run responsible and so on.
4.Material: The pump is equipped with a stainless steel pump head, aluminum motor shell, PE impeller, ceramic bearings
5.Forbidden Fluid: Dangerous liquid which contains solid particles, fibre or oil stains is not allowed. Explosive, mucous or corrosive liquid is forbidden. Fluid temperature range: 0-100℃(0-212℉);Ambient Temperature: Permissible up to 40℃(104℉)
Product Specifications
Part Number: PW-8TCO-N1YE
Item Weight: 5.09 pounds

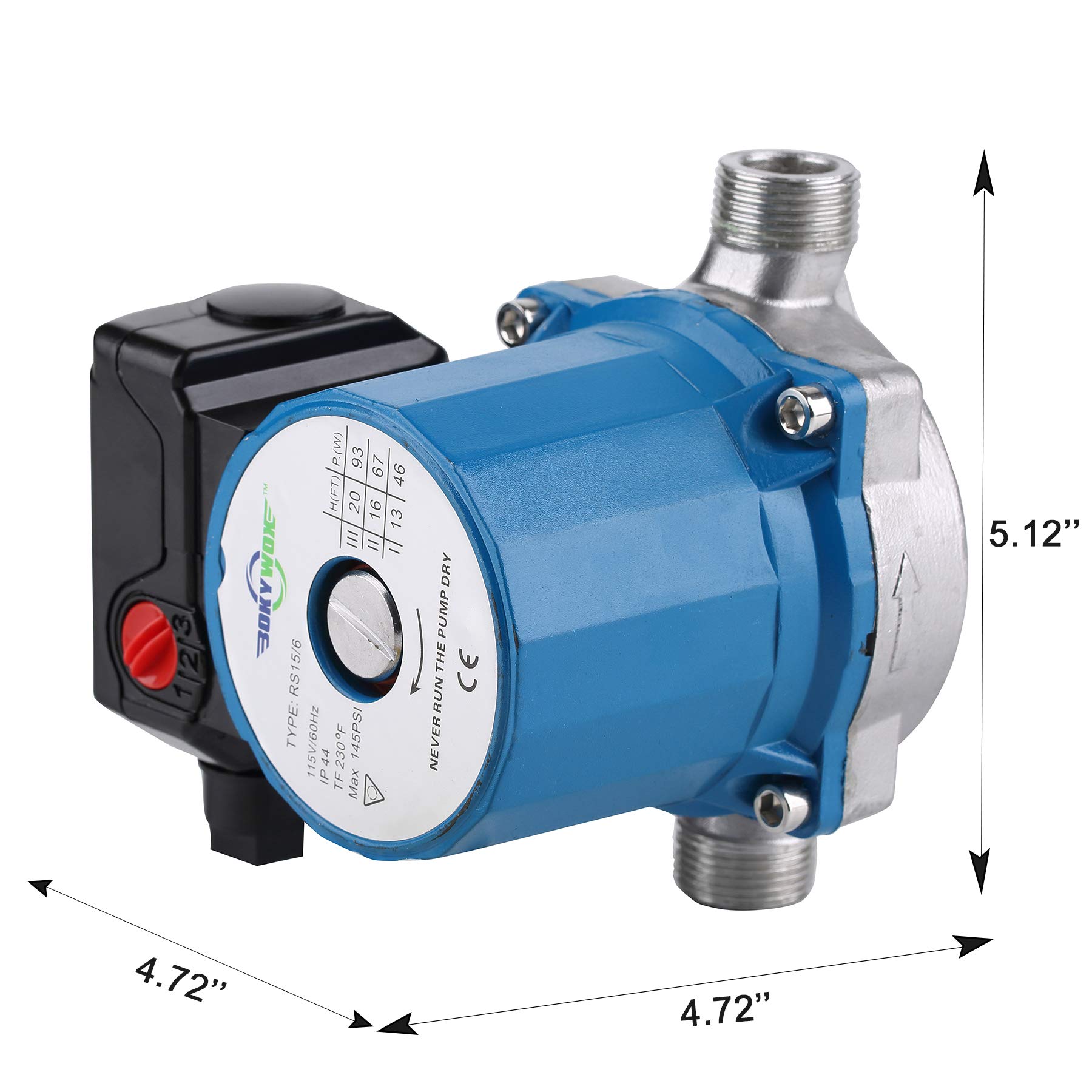

Product Dimensions: 4.72 x 5.12 x 4.72 inches
Item model number: PW-8TCO-N1YE
Is Discontinued By Manufacturer: No
Wattage: 93 watts
Item Package Quantity: 1
Included Components: Pump,Teflon tape
Batteries Included?: No
Batteries Required?: No
Manufacturer: BOKYWOX
UPC: 754047438325
Product Information
Product description
Specification
Type
RS15-6SB
Rated Power
93/67/46W
Inlet/Outle Diameter
NPT 3/4''
Max Flow
9.5/7.66/5.28GPM(36/29/20L/min)
Max Head
20/16/13FT(6/5/4FT)
Volt/Freq
110-120V/60Hz
Length of cable
1.25m(4.1FT)
Liquid temperature range
0 - 100℃(0-212℉)
Ambient temperature
not higher than 40℃(104℉)
Motor
Protection class IP44; Insulation class F
Key Features
Three Speed Control
Speed 1: 5.28GPM (20L/min) / 13FT (4M)
Speed 2: 7.66GPM (29L/min) / 16FT (5M)
Speed 3: 9.5GPM (36L/min) 20FT (6M)
KEEP QUIET TO WORK
This circulation pump for hot water, it boasts a powerful motor, stable performance and low noise. The average noise level is only 25dB, enabling you to enjoy the pump without disturbing your life.
Heavy-duty Material
The pump is equipped with a stainless steel 304, aluminum motor shell, PE impeller and a water stop.
The pump is treated with special anti-rust treatment, high temperature resistance, corrosion resistance, antifraying,long life,no rust
