ALITOVE 24V 3A 72W AC to DC Adapter Power Supply Converter AC 100V ~ 240V to DC 24V 3amp Transformer with 5.5x2.1mm DC Output Jack for 5050 3528 LED Strip Module Light, CCTV Camera System
Input: 100V-240V 50/60Hz. Output: 24V DC, 3A max. Output adaptor jack size: 5.5mm x 2.1mm
It comes with a free female DC connector. So you can easily connect wires on it without soldering.
Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.
Enough 72W output power and 24V stable output voltage will protect your electronic products from destruction.
It is perfect for LED Strip Light, Wireless Router, ADSL Cats, HUB, Switches, Security Cameras, Audio/ Video Power Supply.
Product Specifications
Product Dimensions: 4.92 x 2.17 x 1.18 inches
Item Weight: 0.33 Kilograms
ASIN: B078RY7BPL
Item model number: ALT-2403
Customer Reviews: 4.5 out of 5 stars 517Reviews
Is Discontinued By Manufacturer: No
Date First Available: January 2, 2018
Manufacturer: ALITOVE
Country of Origin: China
Color: 3A Black
Input Voltage: 120 Volts (AC)
Mounting Type: Wall Mount
Amperage: 3 Amps
Wattage: 72 watts
Number of Items: 1
Output Current: 3 Amps
Specification Met: CCC
Output Voltage: 24 Volts (DC)
Power Source: Corded Electric
Current Rating: 3 Amps
Frequency Range: 60 hertz
Main Power Connector Type: 2 Pin
Unit Count: 1 None
Over Current Protection: No
Is Touch Safe: No
Product Information
Product description

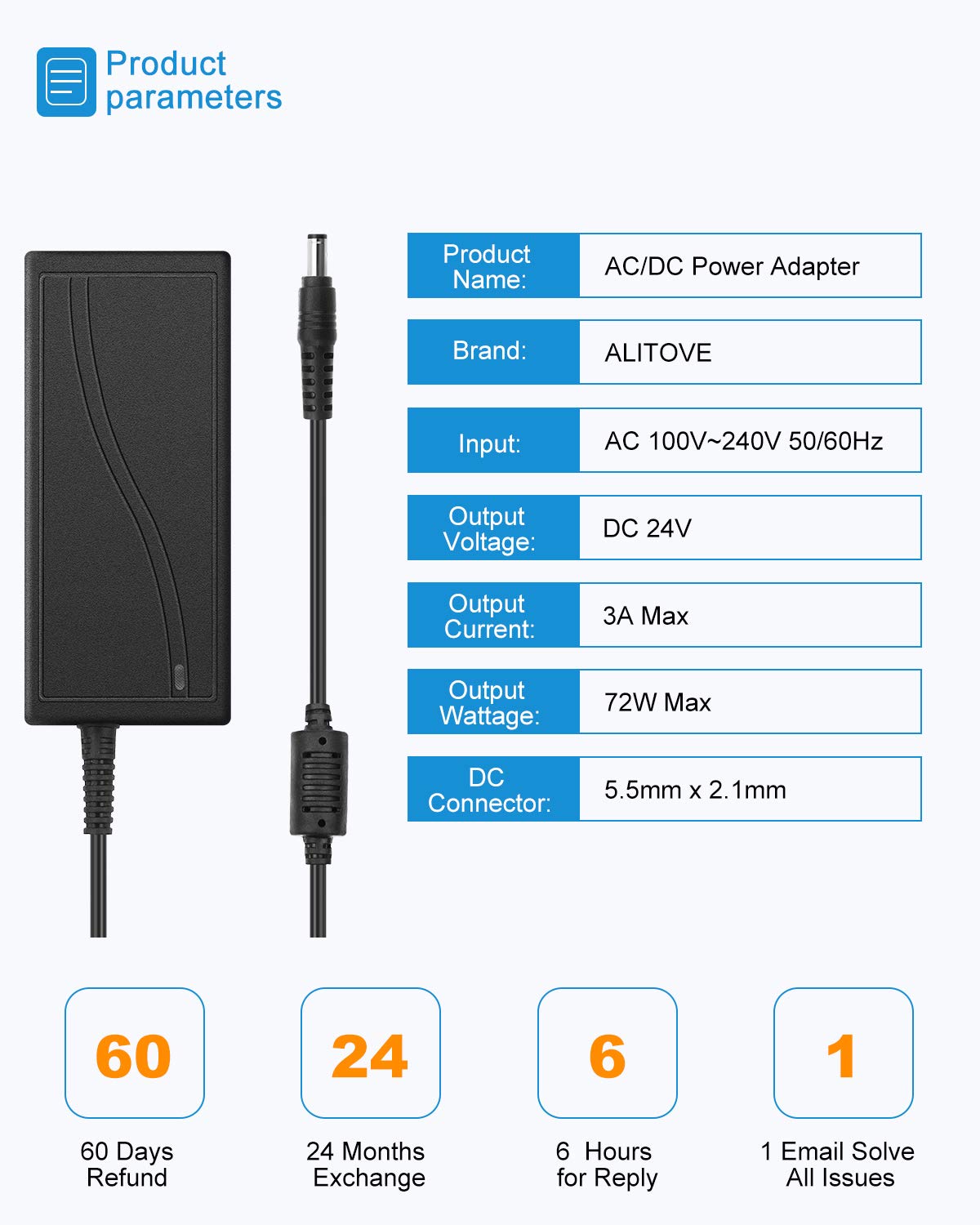

Product Specification:
Input Voltage: 100~240V AC
Output Voltage: 24V DC
Output Current: 3A max
Output wattage: 72W max

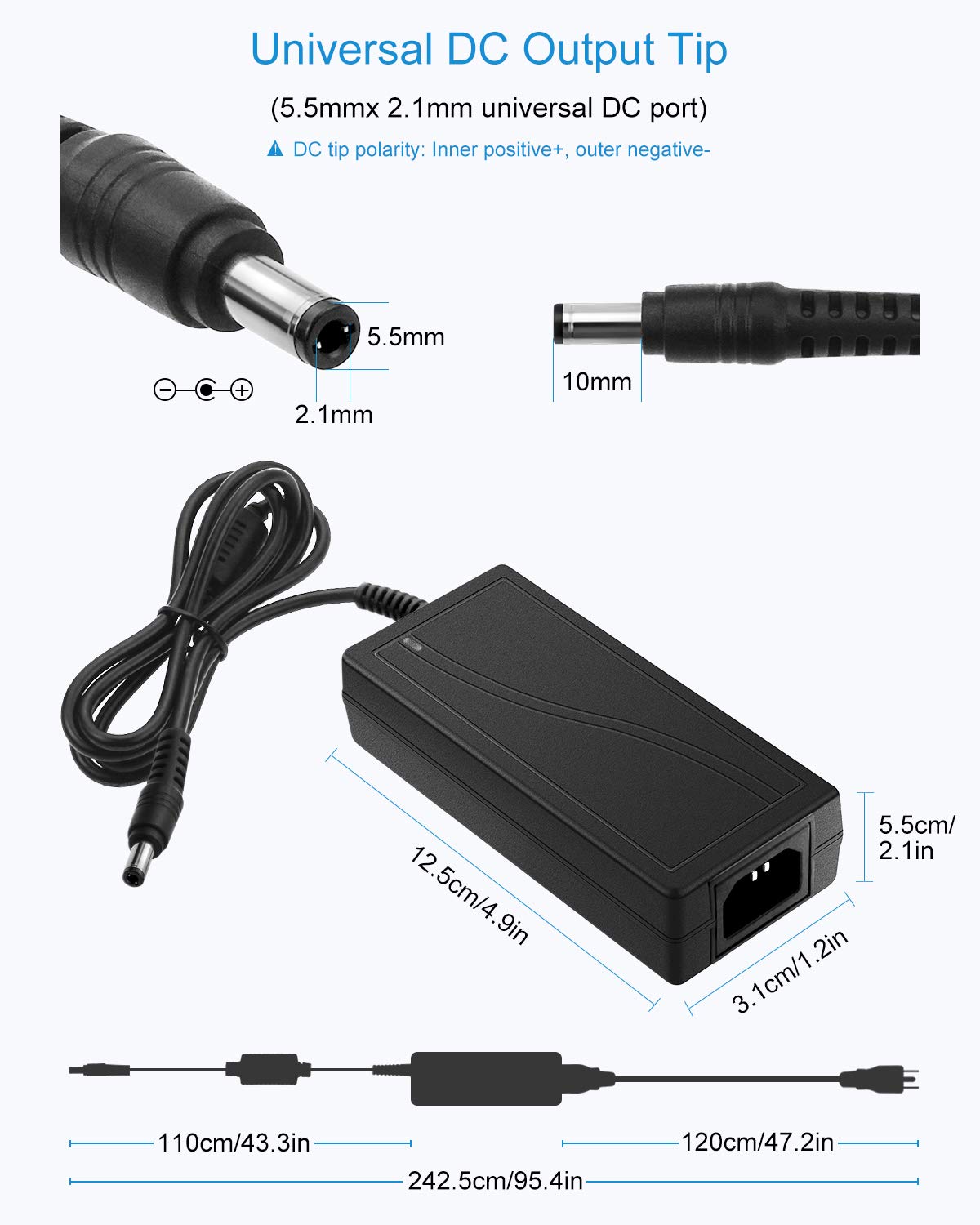

DC plug connector size: 5.5mmx2.5mm; 5.5mmx2.1mm compatible
Polarity: internal "+", outside"-"
Adapter body size: Please refer to the picture
AC Cable length: about 120CM
DC Cable length: about 110CM
Safety Compliance: FCC/CE/RoHS/UKCA
Working Temperature: -20~50℃
Ambient Humidity: 0~95% Non-Condensation
Package List: 1x 24V 3A power supply adapter & 1x AC power cord & 1x DC female connector
Product Highlights

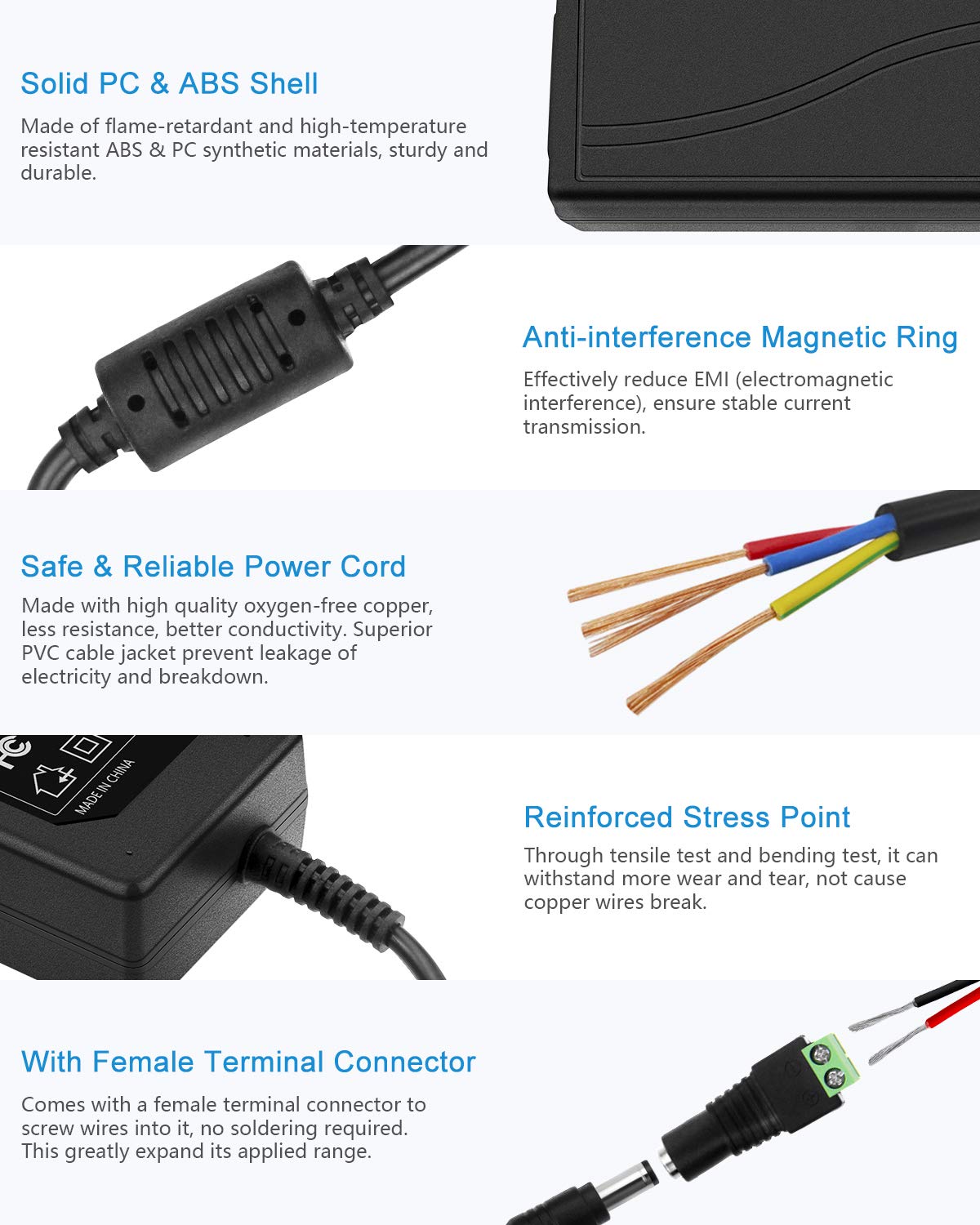

Superior Safety

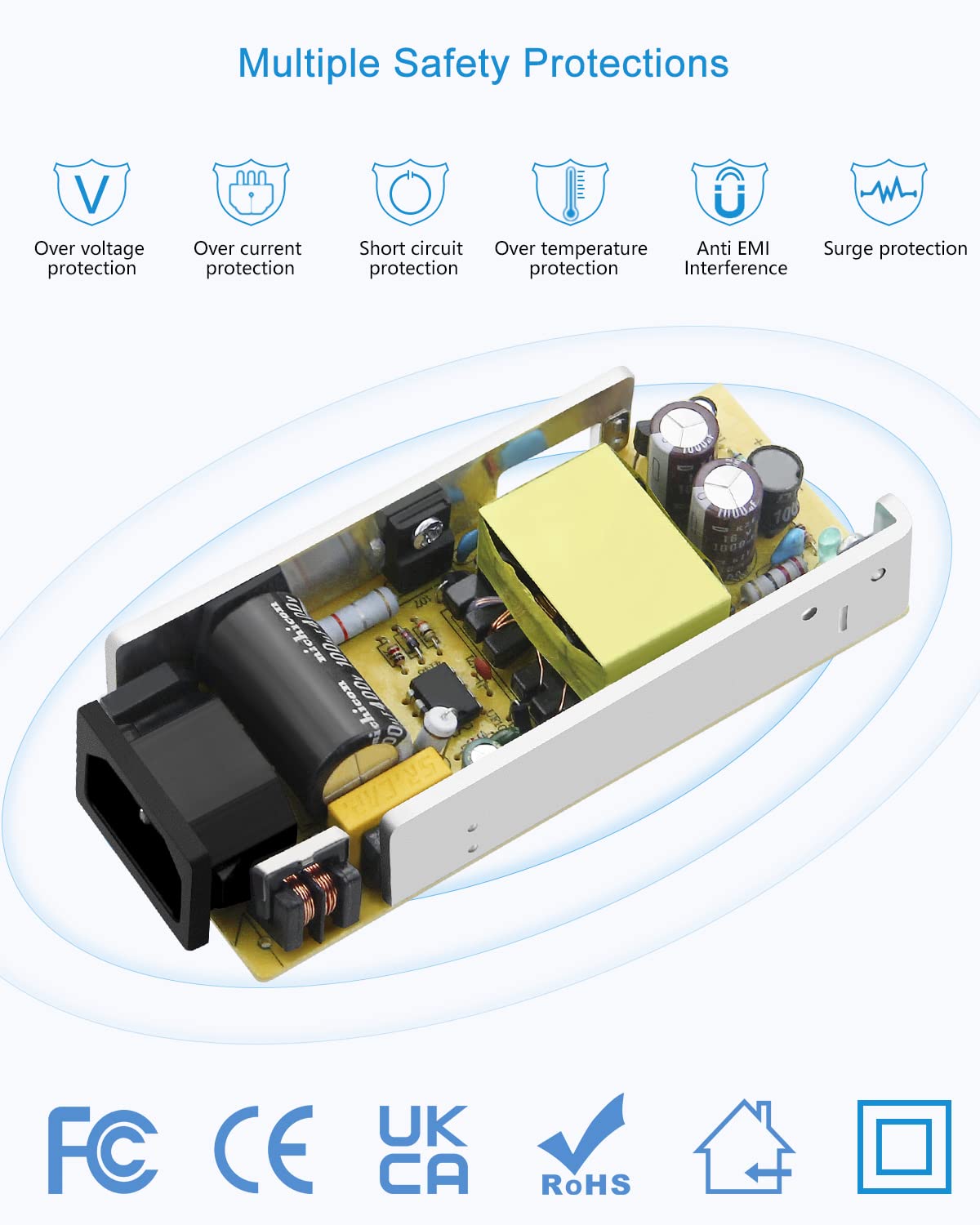

Flame-retardant exterior shell and built-in safeguards to protect against overheat, overload, over-charging, short-circuit provide ultimate protection for you and your devices.
Stable Output
Built-in advanced synchronous rectifier smart chip and EMI filter, convert fluctuating voltage to stable voltage, effectively reduce electromagnetic interference, ensure stable voltage output.
High-quality Cable
3x 0.75 mm²(18AWG) copper conductors, individual wire insulation and flexible flame -retardant PVC jacket provide you a safe and reliable cable with better conductivity.
Durable Design
Robust casing protects against scratches,bumps, drops, withstands pressure and keeps internal components safe during emergencies enhanced longevity.
Broad Compatibility
Max 3A ouput means it can supply with amperage less than 3A. ---such as 1A, 2A,3A. If your device draws 2.5A, 2.5A will be supplied. But if draws more than 3A, only 3A will be supplied.
Expanded Application
We especially add a female terminal connector in the package. You can screw wires onto it to power the devices that have no female DC socket. This will greatly expand its applied range.
Professional Advice
We suggest the max use of power should be no more than 80% of the full loads, otherwise,the power supply's spanlife will be shortened. We recommend to use 72W PS to power devices less than 57W.
