Neewer F100 7-inch 1280x800 IPS Screen Camera Field Monitor Kit: Support 4k input with 2600mAh Rechargeable Li-ion Battery, USB Battery Charger and 11.8-inch Magic Arm for DSLR Camera/Camcorder

Neewer F100 7 Inch Camera Field Monitor HD Video Assist Slim IPS 1280x800 HDMI Input 1080p with 2600mAh Li-ion Battery/USB Charger

Note: 12V adapter is not included.

Troubleshooting

1.Cannot turn on the monitor

Be sure you are powering the monitor with a 12V AC adapter. Or with an NP-F battery, check if it is fully charged and correctly installed. When power is on, the LED indicator will turn red. Wait for 6s and press the power button, the LED indicator will turn blue.

2.There is noise in my recorded videos

Press and hold the left arrow button to decrease the volume close to zero. Doing so can eliminate noise in your videos.

3.The monitor displays “No Signal” or the signal connection is unstable

(1)Try another HDMI cable.

(2)Connect the monitor to your PC via the HDMI cable and see if your monitor has a signal.

(3)Change the signal output of your camera. Make sure the signal is in HDMI mode, and the monitor’s input signal supports your camera’s output signal.

(4)The monitor will lose its signal when the camera is off. Please make your camera’s display stay on longer (disable auto-off if possible) or turn on the camera’s live view function.

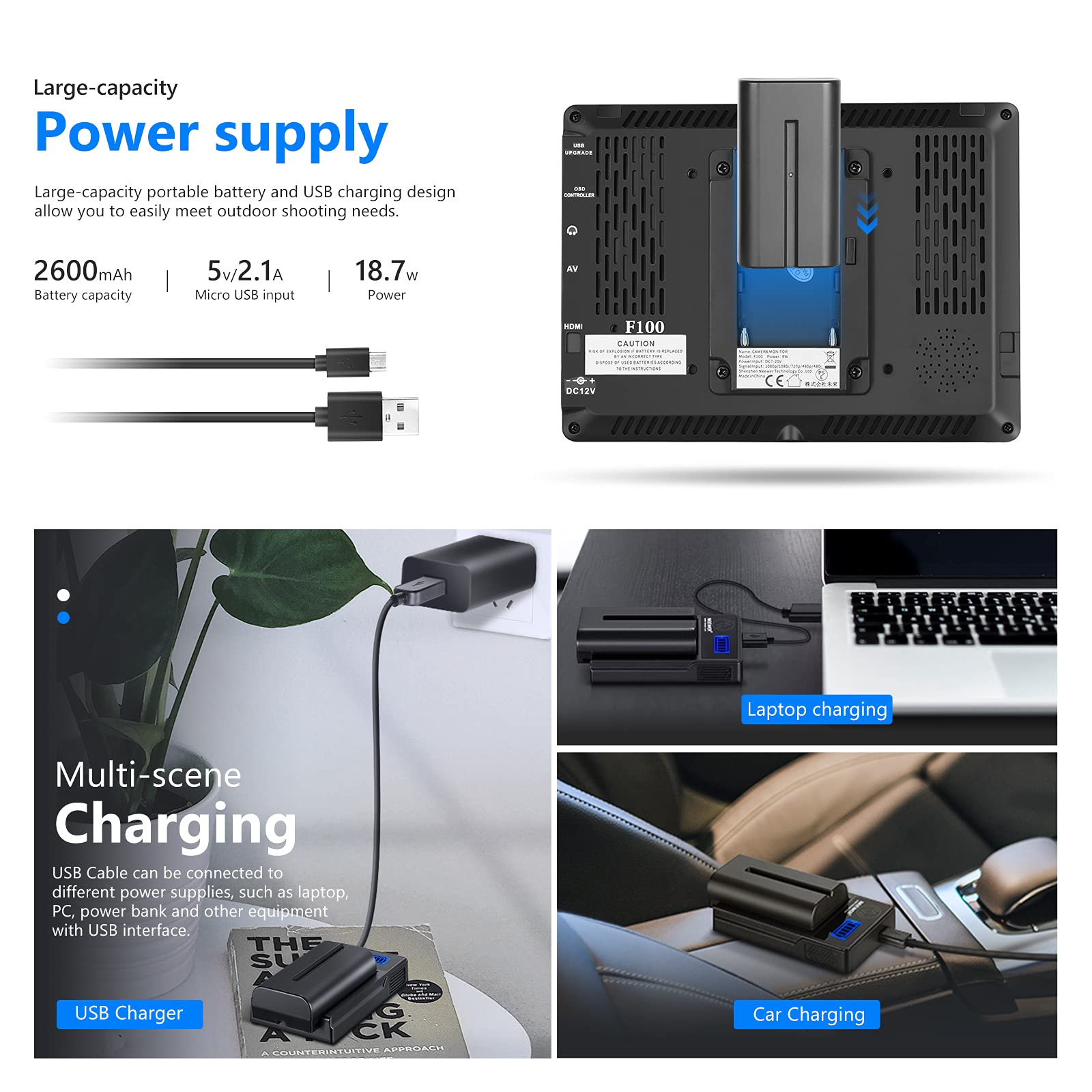

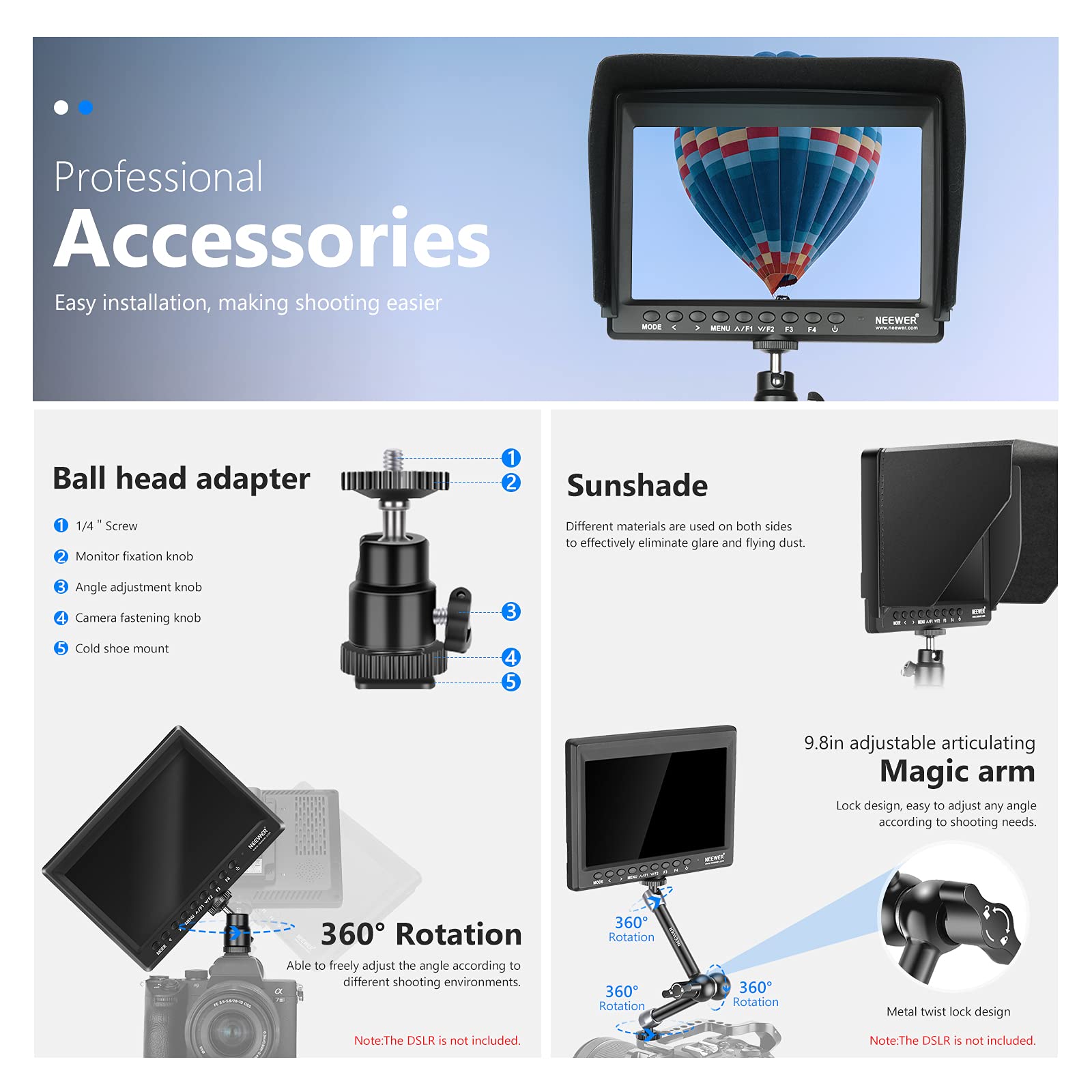

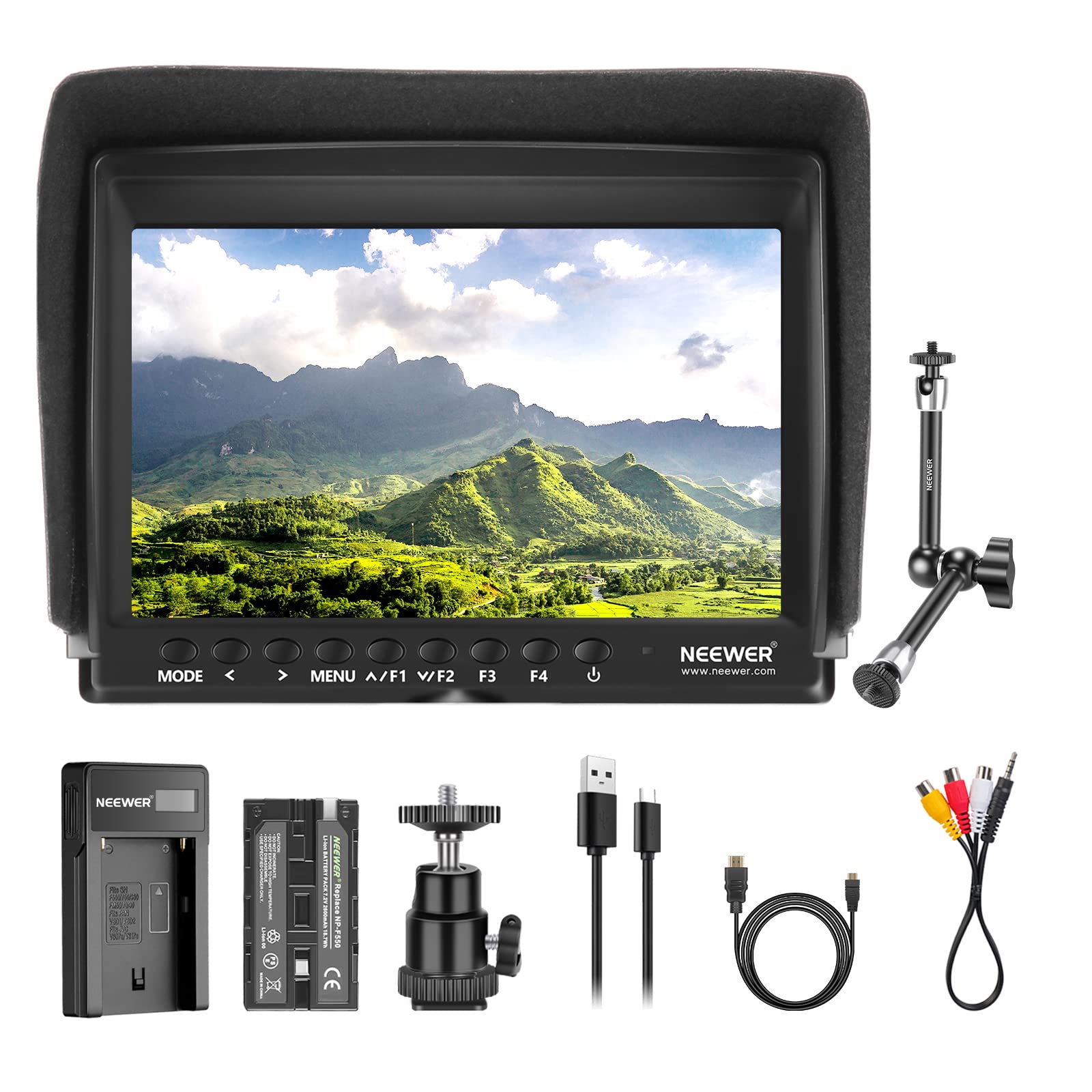

Package Contents: 1 × F100 Monitor; 1 × Sunshade; 1 × Mini HDMI Cable; 1 × Micro HDMI Cable; 1 × AV Cable; 1 × Mini Ball Head; 1 × 11” Magic Arm; 1 × NP-F550 USB Charger; 1 × NP-F550 2600mAh Li-ion Battery; 1 × User Manual

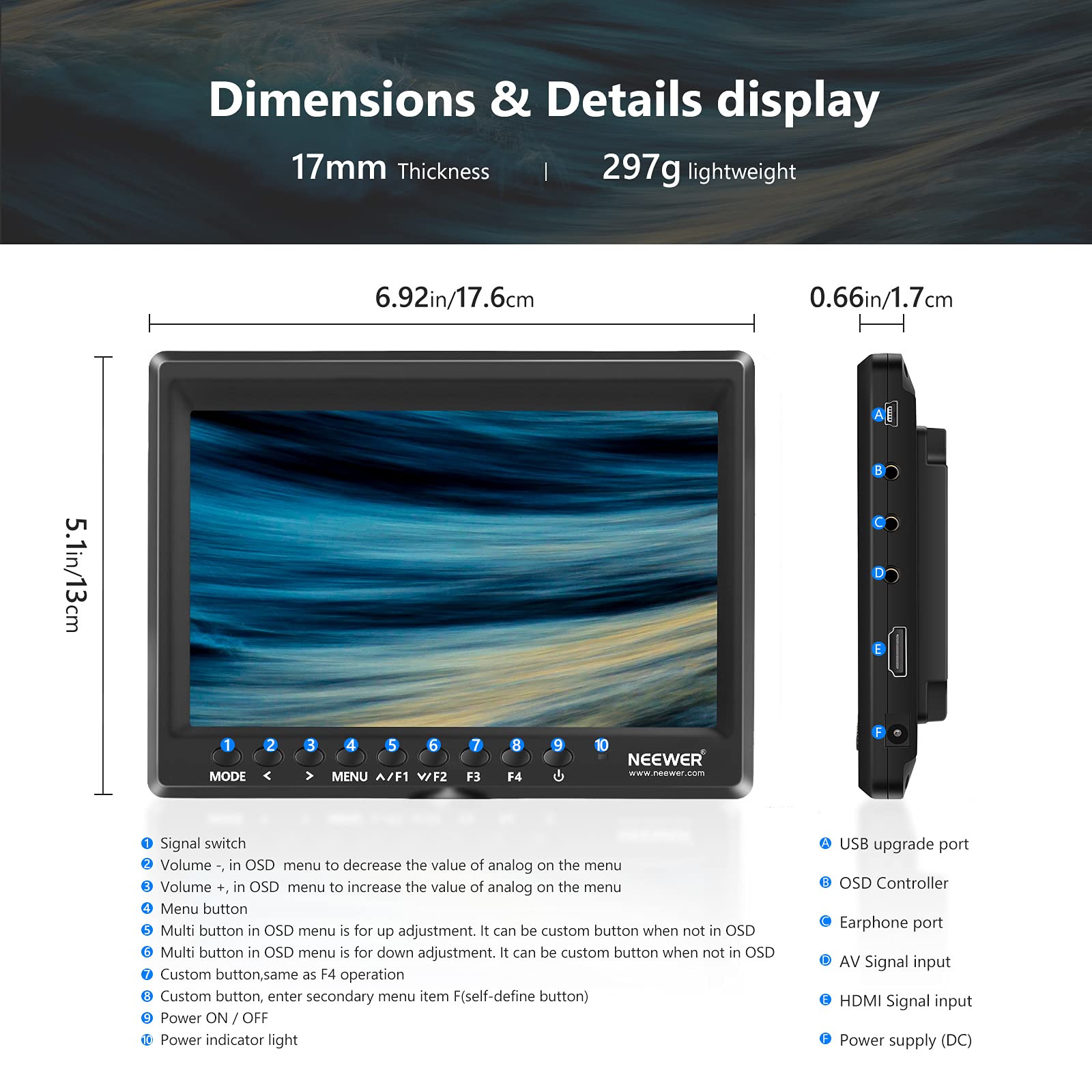

Model: F100

Panel Type: IPS LCD

Resolution: 1280 × 800

Backlight: LED

Dot Pitch: 0.07875 × 0.07875mm

Aspect Ratio: 16:10

Brightness: 450nits

Contrast Ratio: 1200:1

Viewing Angle: 80°/80° (L/R), 80°/80° (U/D)

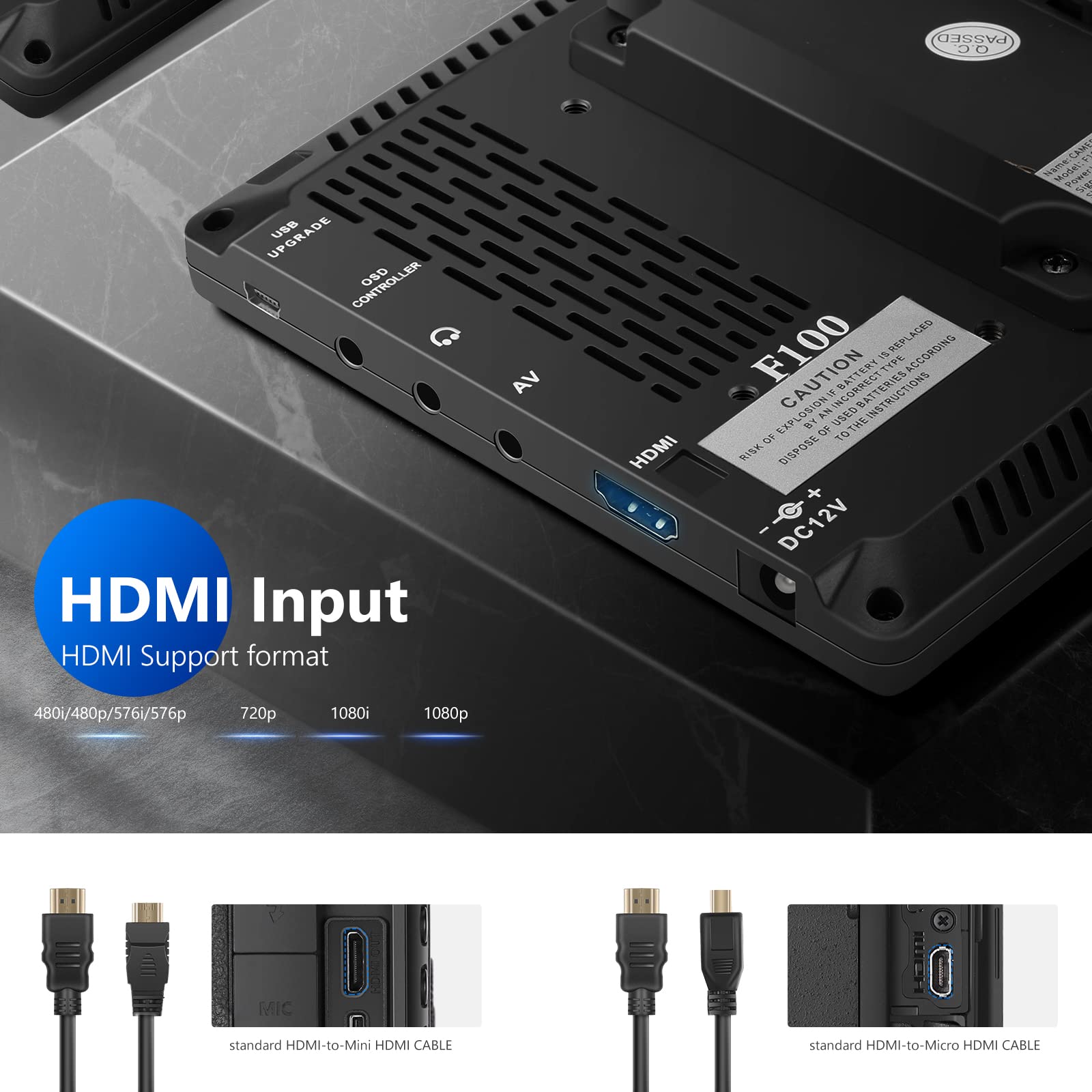

Inputs: HDMI, AV

HDMI Support Mode:

480i / 480p / 576i / 576p / 720p/ 1080i (60/59.94/50) / 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)

Input Voltage: DC 7–24V

Power Consumption: ≤8W
