VANDAL RESISTANT - Puck Antenna is Perfect for Kiosks, Vending Machines, Control Panels, NEMA Enclosures, Ceilings and Covert Installations - Water Tight - No Exposed Cabling
WORKS on Verizon, AT&T, T-Mobile, Telus, Bell Canada, Rogers, DigiCel and all 4G/5G Cellular Broadband Services
COMPATIBLE WITH MIMO Routers, Modems & Gateways from CalAmp, Cisco, Cradlepoint, Digi, MoFi, Netgear, Pepwave, Sierra, ZTE and many others

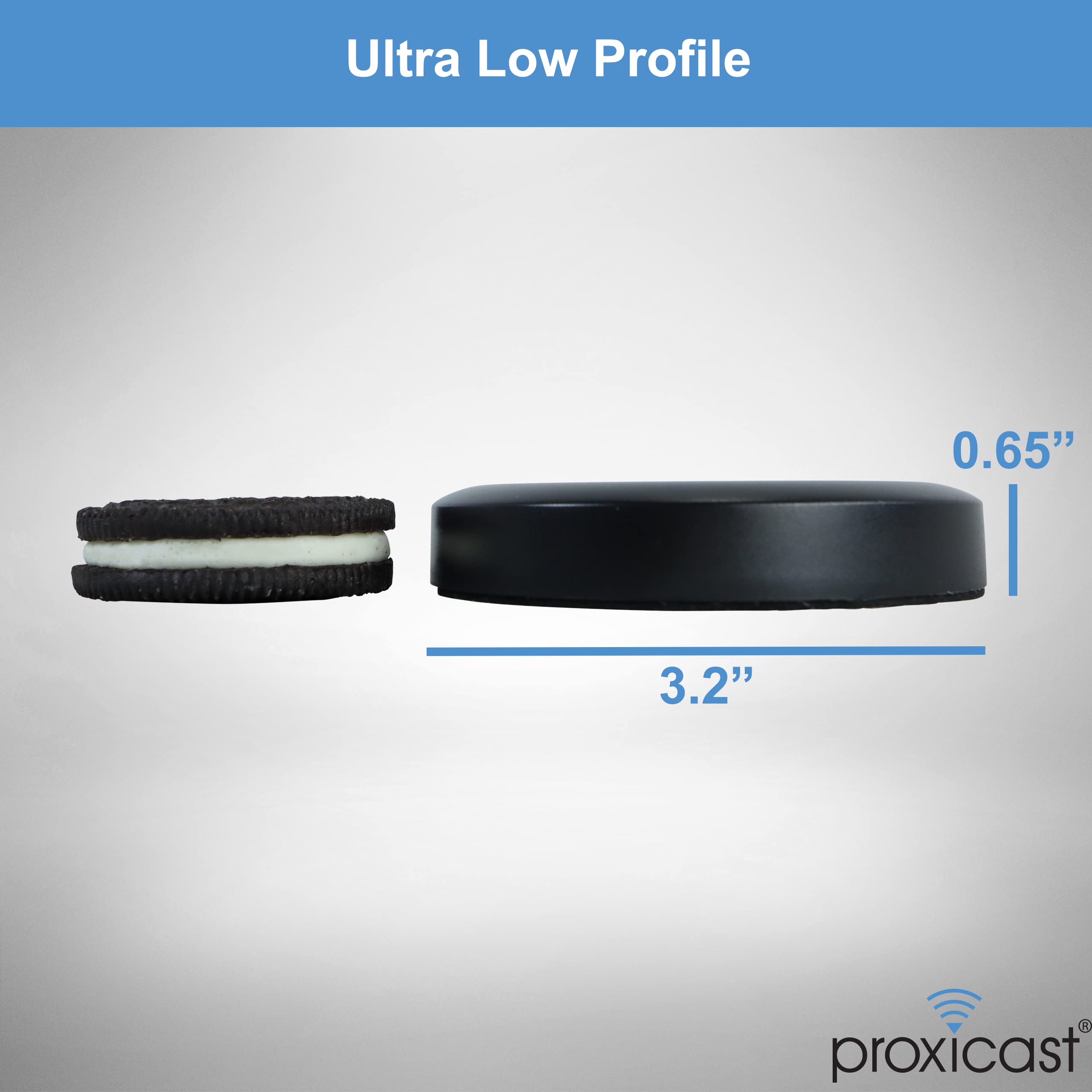

LOW PROFILE - 0.6 inches High x 3.2 inches Diameter - SMA Male Connector with 6.5 ft Coax Cable
DUAL ANTENNA MIMO DESIGN - Improves Performance - 2.5 dBi Omnidirectional Gain
Product Specifications
Product Dimensions: 79 x 3.2 x 0.3 inches
Item Weight: 2 ounces
ASIN: B07DDC9WV5
Item model number: ant-122-s02
Customer Reviews: 4.2 out of 5 stars 35Reviews
Best Sellers Rank: #239 in Computer Networking Antennas
Is Discontinued By Manufacturer: No
Date First Available: September 18, 2016
UPC: 617237751225
Manufacturer: Proxicast
Global Trade Identification Number: 00617237751225
Product Information
Product description
Low Profile Screw Mount 4G/5G Omni MIMO Antenna Model ANT-122-S02
Key Features
Inconspicuous
Low Profile - 0.6 inches Tall
Simple Geometric Shape
Omnidirectional Coverage
Paintable to Blend into Surroundings
MIMO Design
Two Isolated Internal Antenna Elements
Improves Signal Quality
Maximizes Throughput
Through Hole Mount
1/2 Inch Diameter Screw Mounting Post
Includes Washer and Lock Nut
No Exposed Coax

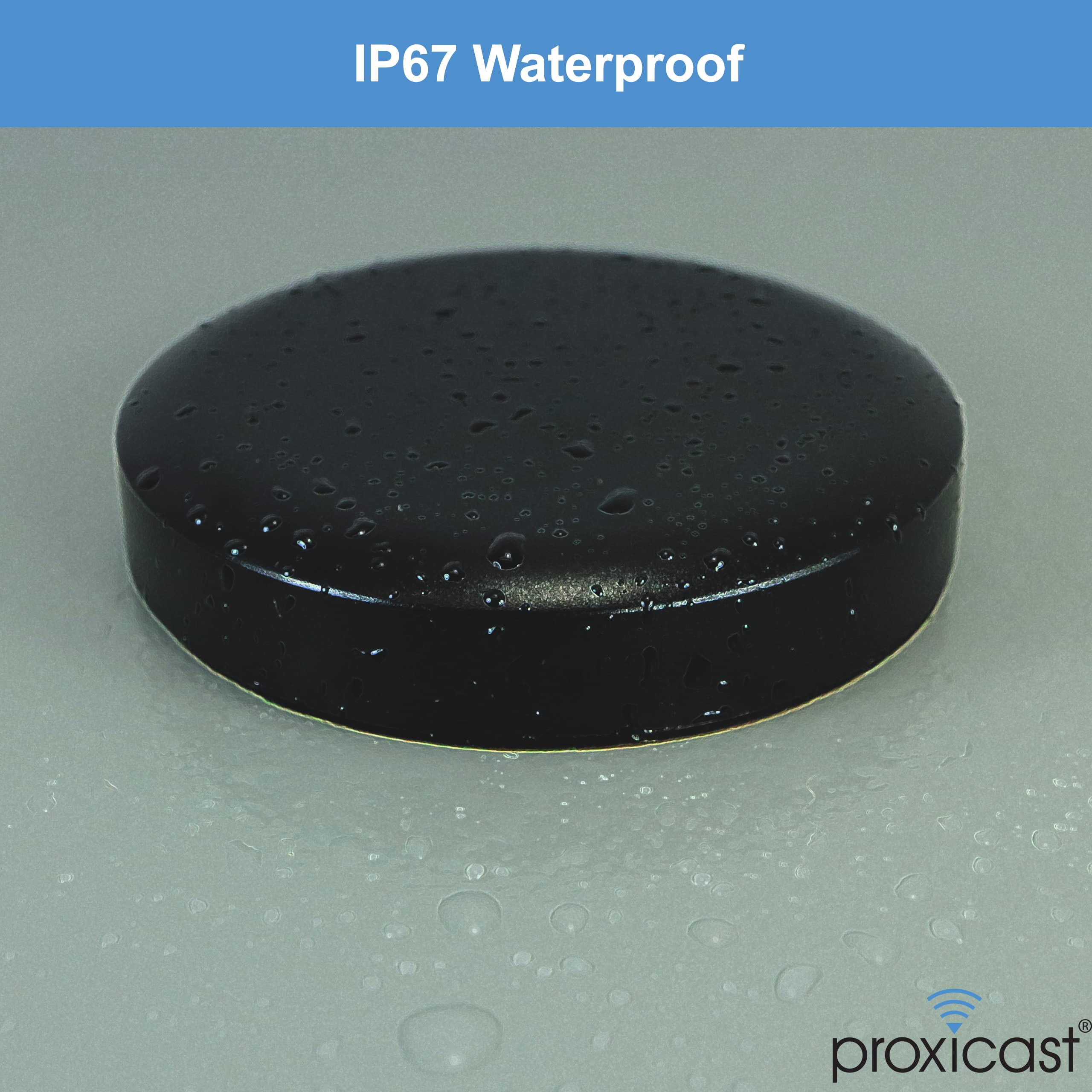

Waterproof
Water & Dust Proof
IP67 Rated When Installed
Adhesive Rubber Gasket between Antenna and Mounting Surface
*** IMPORTANT ***
Requires external min. 8" dia. metal ground plane for proper operation
Gain is similar to stock/internal antennas included with modems/routers
Works on All 4G/5G Networks
AT&T
T-Mobile
US Cellular
Verizon
Canada
Mexico
Compatible with Any MIMO Hotspot/Router
Cradlepoint
Digi
MoFi
Pepwave
Sierra
. . . and many others
Technical Specifications
Frequency Range
600~6000 MHz
Peak Gain
2.5 dBi
Impedance
50 Ohm
Polarization
Vertical
Connector
2x SMA Male Plugs
Coax Length
6.5 ft (2 m) low-loss CFD100 paired coax
Mounting
Screw mounted via a 1/2 in. (12 mm) hole with internal nut
Ground Plane
8 inch (20 cm) diameter min

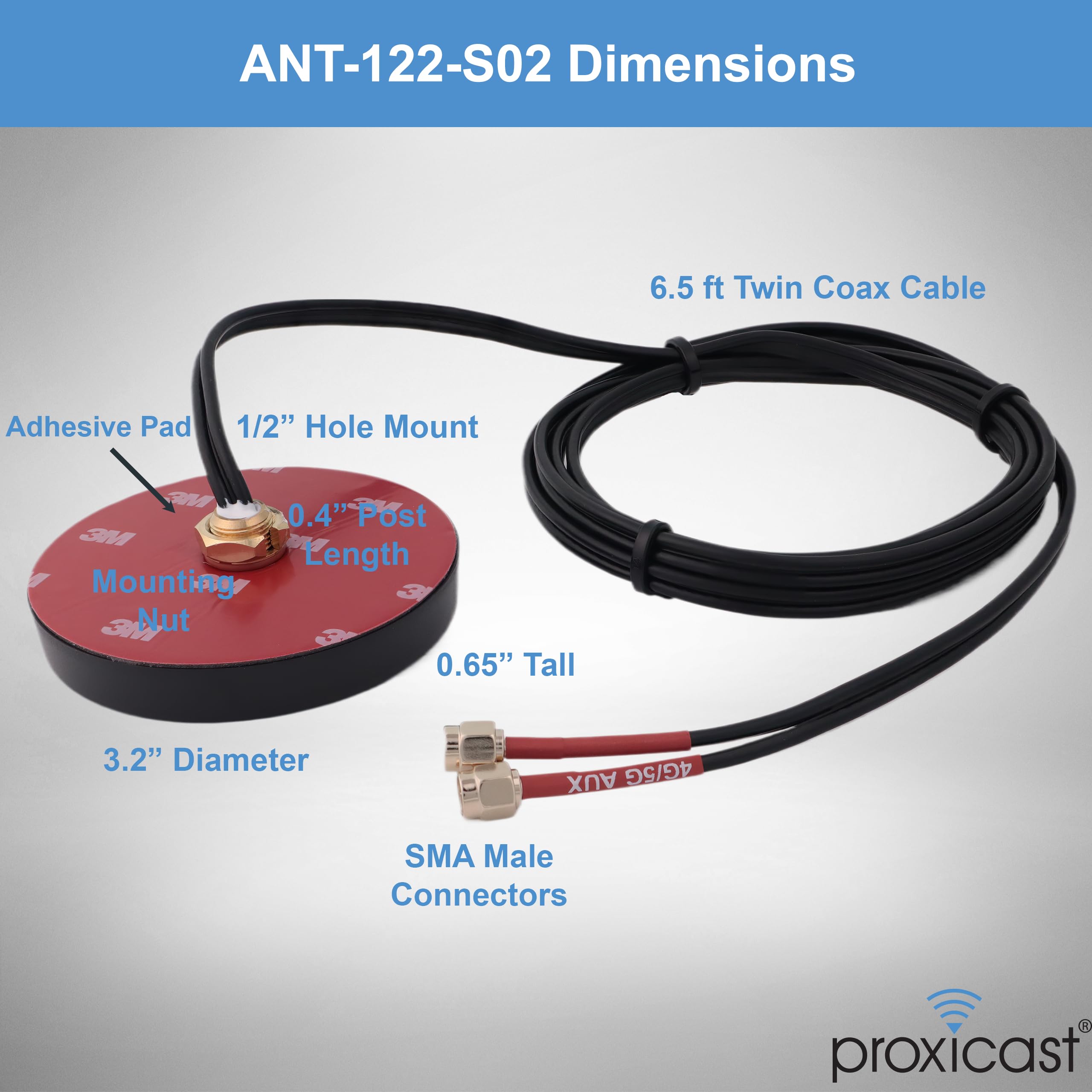

Dimensions
Height 0.6 in. (15 mm) above mounting surface; Post Length 0.4 in (10 mm); Diameter 3.2 in. (81.3 mm)
Weight
3.8 oz (108 g)
Materials
UV stabilized PC plastic (black) + Brass + Foam Adhesive Pad
Environmental
Op. Temp. -40°C to +85°C -- IP67 Waterproof
Full Specification Sheet
Download PDF under the Technical Specification section of this listing
Support
Free US-based Support
Model Number
ANT-122-S02
Application Examples
Vending Machines
Inventory Levels
Machine Status
Advertising Updates
Price Changes
Kiosks & ATMs
Bank Machines
Self Service Kiosks
Digital Signage
Alarm Systems
Machine Control Panels
PLC's

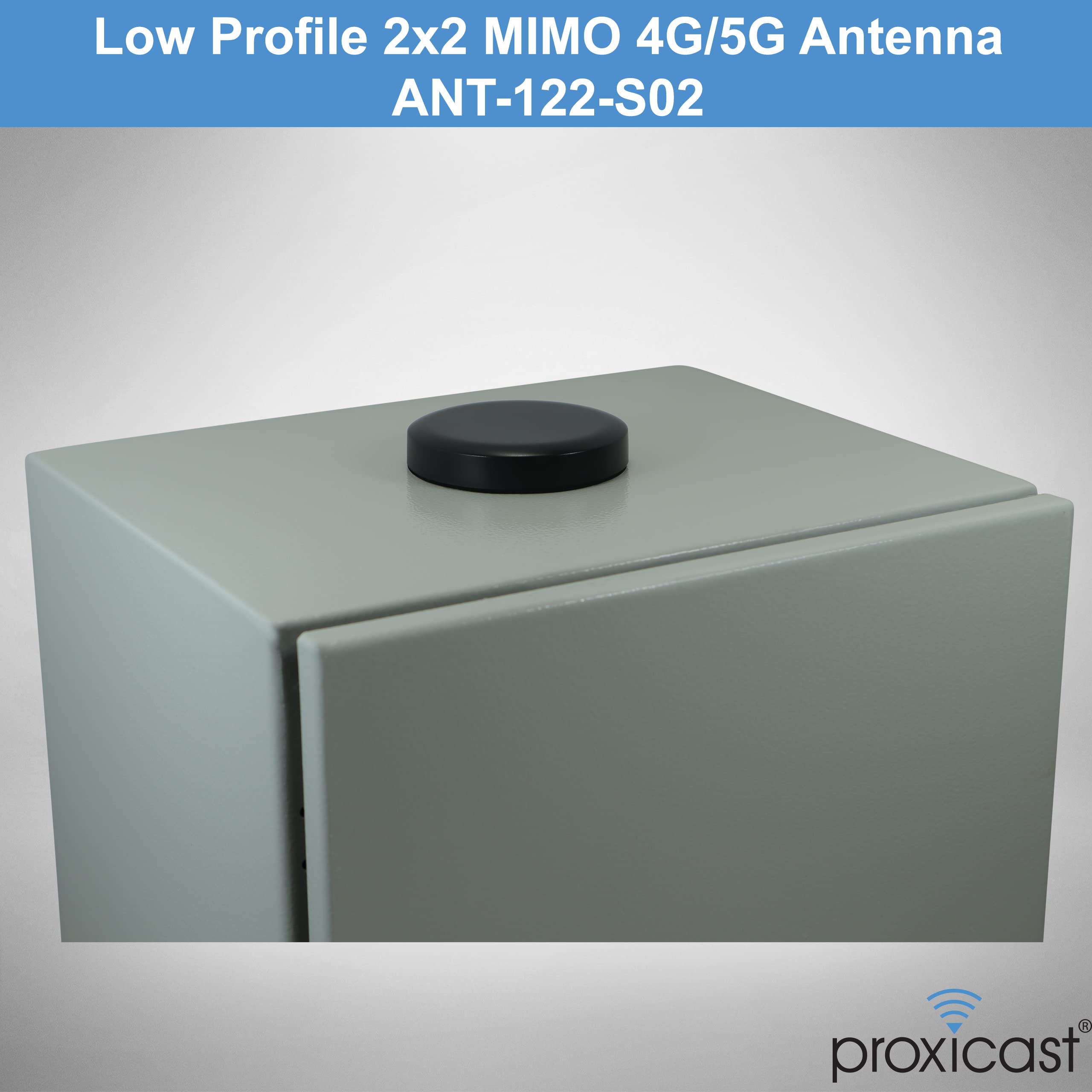

NEMA Enclosures
Weather Stations
Meters & Pump Houses
Vehicles
Cars / Trucks
RV / Campers
Vans
EMS
For Best Results
Orient antenna vertically
Do not extend coax cables
Do not use a Y cable to connect the 2 antenna leads to 1 modem port
Mount away from large vertical objects
Stand 3+ feet away from antenna when testing
Maximize signal Quality (SINR, RSRQ) not signal Strength (RSSI, RSRP, bars)
