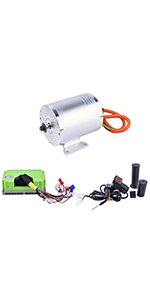

Electric Brushless DC Motor Complete Kit, 48V 2000W 4300RPM High Speed Motor, With 33A 15 Mosfet Controller, Battery Display LCD Throttle, Electric Scooter Bicycle Motorcycle Mid Drive Motor, DIY Part

48V 2000W Motor

2000W 48V DC BRUSHLESS MOTOR POWERFUL

The rated voltage of the BLDC motor is 48V, the peak power of the motor can reach 2000W, and the maximum current is 42A; under no-load conditions, the rated speed is 4300rpm/min, and the maximum is about 5400r/min, but it is best to use a 40-45A controller.

T8F 11T SPROCKET, and WITH RADIATING HOLES

The electric motor brushless is made of aluminum alloy material, which is able to resist oxidation, compression, vibration, and deformation. In addition, it is lightweight enough to carry and process with ease.

POSITIVE & NEGATIVE ROTATION DESIGN

The running direction of the motor can be changed by changing the wiring between the motor and the controller (reverse-counterclockwise) :

Step 1: 3 thick yellow, green and blue wires (phase wires) : Controller to the motor - yellow to yellow, blue to green, green to blue;

Step 2: 6 Hall Wires: Controller to the motor - blue to yellow, other unchanged.

Brushless Controller 33A

• Rate Voltage: 48V
• Rate Power: 2000W
• Rate Current: 33A
• Mosfet: 15 MOS
• Phase Degree: 120°

Multiple Functions

The controller has multi-function, 3-speed, reverse, indicator light, brake light and charging port.

• Please be sure to turn off the power when connecting the cables to avoid short circuits.
• Disassemble the controller: please turn off the main power first, then open the electric e-lock, wait a few minutes to discharge the electricity in the capacitor

High Quality Controller

KRBC-15MOS, the controller adopts high quality motherboard and chip.
