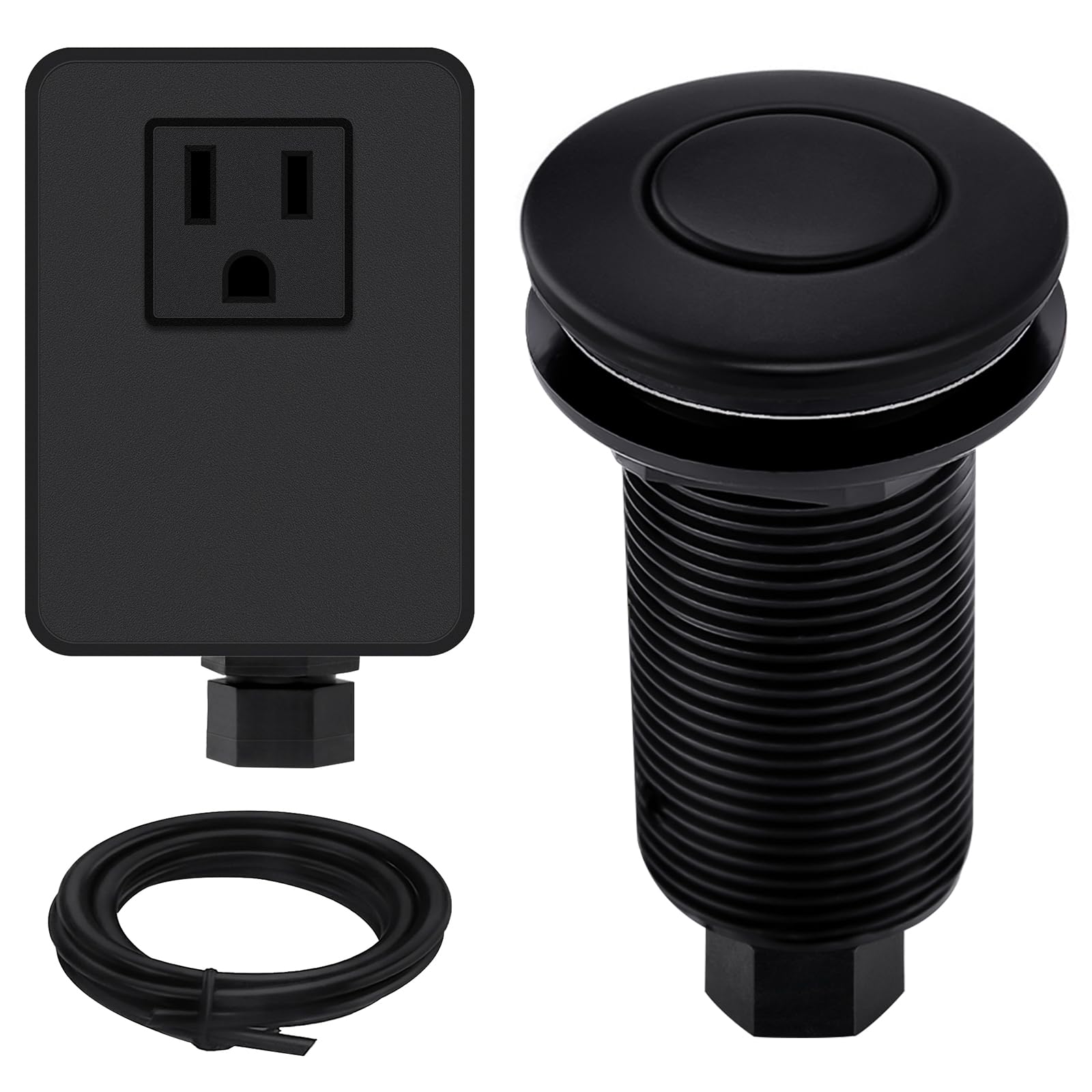

Finish: Matte Black Sinktop Air Switch Button, Available Six Finishes.
Work: Air Switch Set Fit in Any Food Waste Disposer , Even Dishwasher.
Feature: Air Switch Set Button Cover is Made of High Quality Brass. There is A Drainage Hole on The Side of The Air Switch Button. Waterproof, Anti-leakage.
Digital: 3.15"x 2.40"x 1.95" Power Module, 60.0" Air Tube, 3.60"x 1.80" Air Switch Adapter Button, 1-1/4"Countertop Hole, 2HP, UL Certification.
Install: Air Activated Button Can be Easily Installed on Sink Top or Counter Top by Island Installation. Two Gaskets Provide Stable Installation, do not need Screw Mounting.
Product Specifications
Manufacturer: SINKINGDOM
Part Number: SK40C03BL
Item Weight: 9.6 ounces
Package Dimensions: 4.84 x 4.84 x 3.03 inches
Item model number: SK40C03BL
Is Discontinued By Manufacturer: No
Size: LONG/3.58"
Color: Black
Style: LONG/3.58"
Finish: Matte Black
Material: Metal
Horsepower: 3 hp
Hose Length: 1.5 Meters
Switch Style: Coldless Air Switch
Batteries Included?: No
Batteries Required?: No
Product Information
Product description
Brushed Nickel
Chrome
Matte Black
Oil Rubbed Bronze
Champagne Bronze
The cover of the plastic button is made of brass, value for money and durable.
Both buttons have drain holes and rubber gasket. Effectively prevent water entering the air tube and buttons.

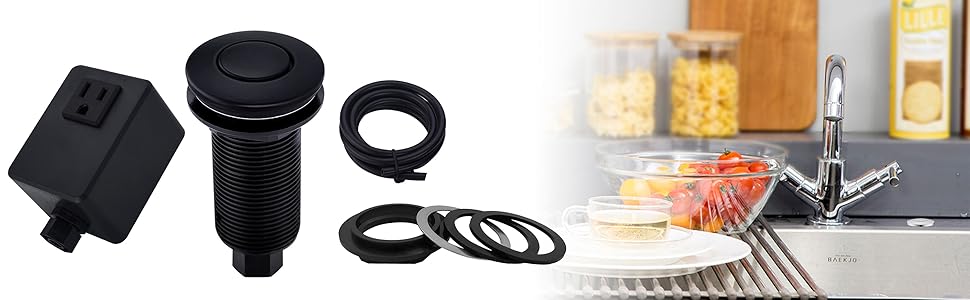

Pakage Include
1x Control Box
1x Push Button
1x Vacuum Hose
2x Rubber Gasket
1x Mounting Screws

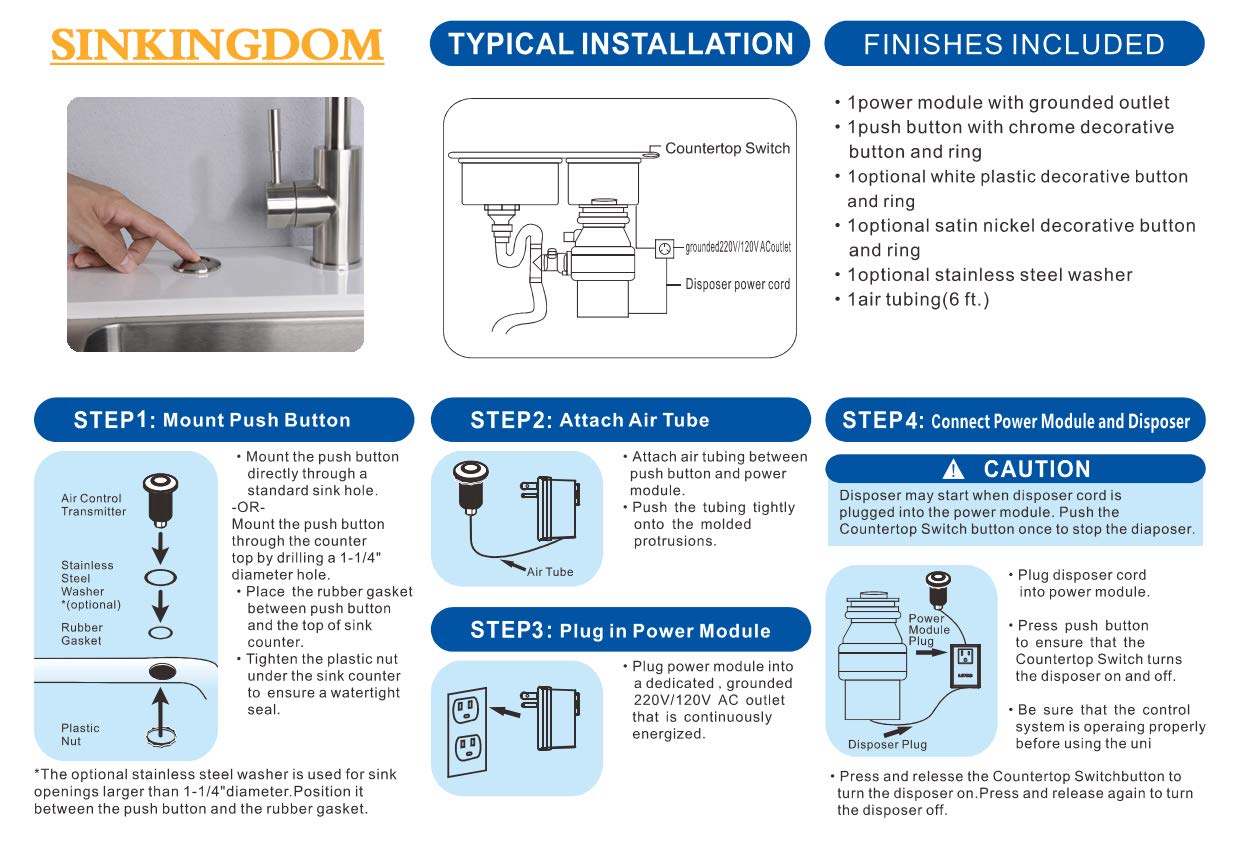

Install
Button installation
Install the buttons and accessories directly into the standard sink hole. Button mounting portion of the length of 2.68 inches.

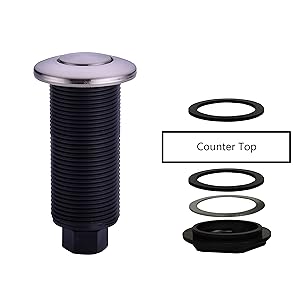

In the order shown, Button--Rubber Gasket--Sink Top/Counter Top--Rubber Gasket--Metal Gasket--Screw Nut.
Tighten the plastic nut to ensure a seal.
Tips: Drill a hole with diameter not narrower than 1-3/8inches. Countertop or Sinktop not thicker than 2.50 inches.
Air Tube installation

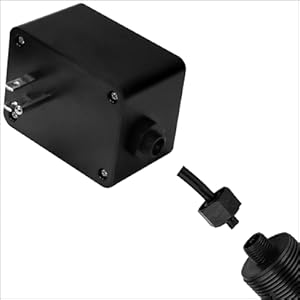

Pass the air tube through the nut.
Then connect the nozzle of the air tube to the protrusion.
Push in forward.

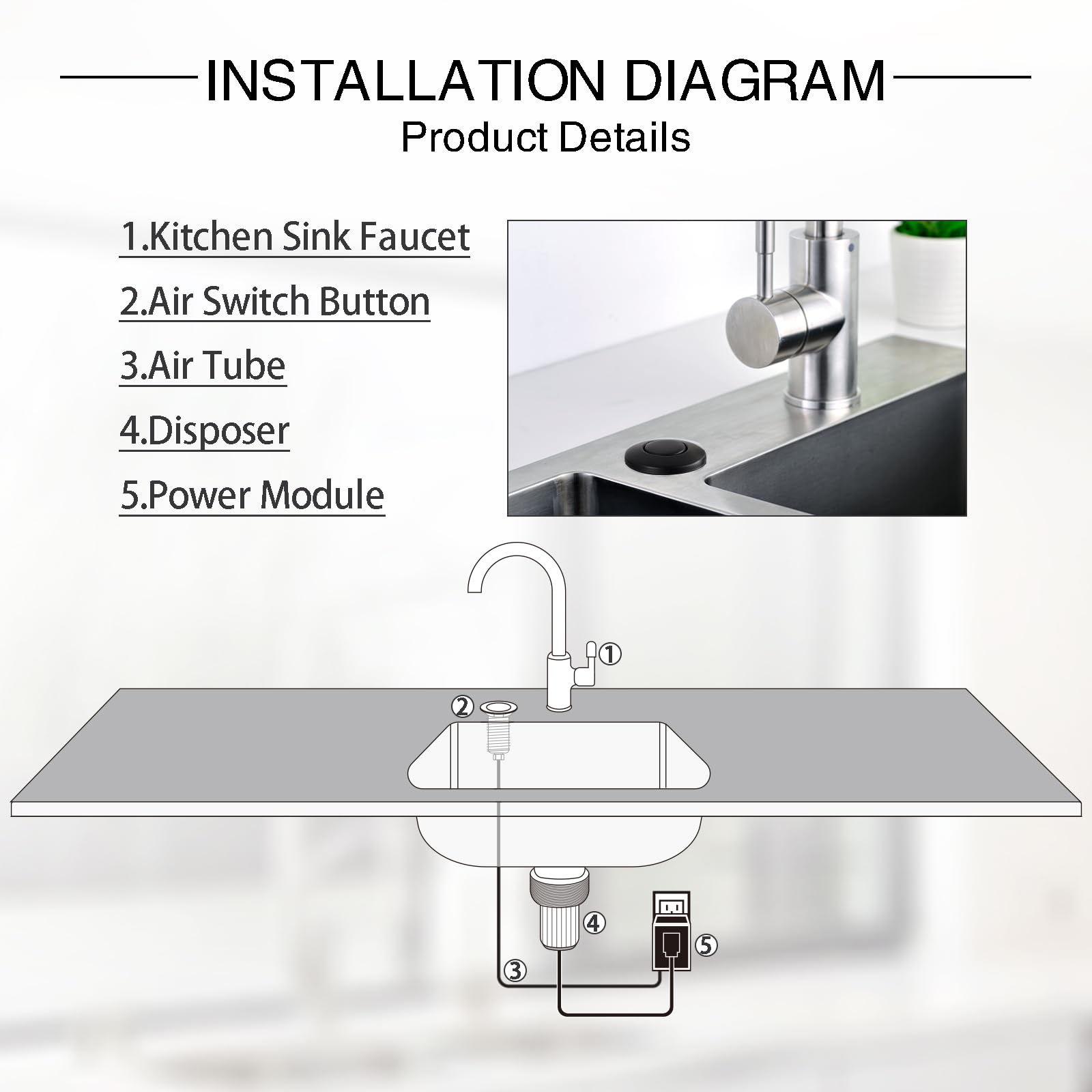

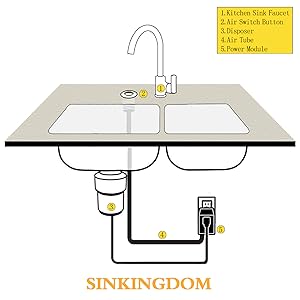

General diagram
Install air switch button on sink top.
Use air tube to connect air switch button and power module.
Plug the controller into the wall socket and press the button to get started.

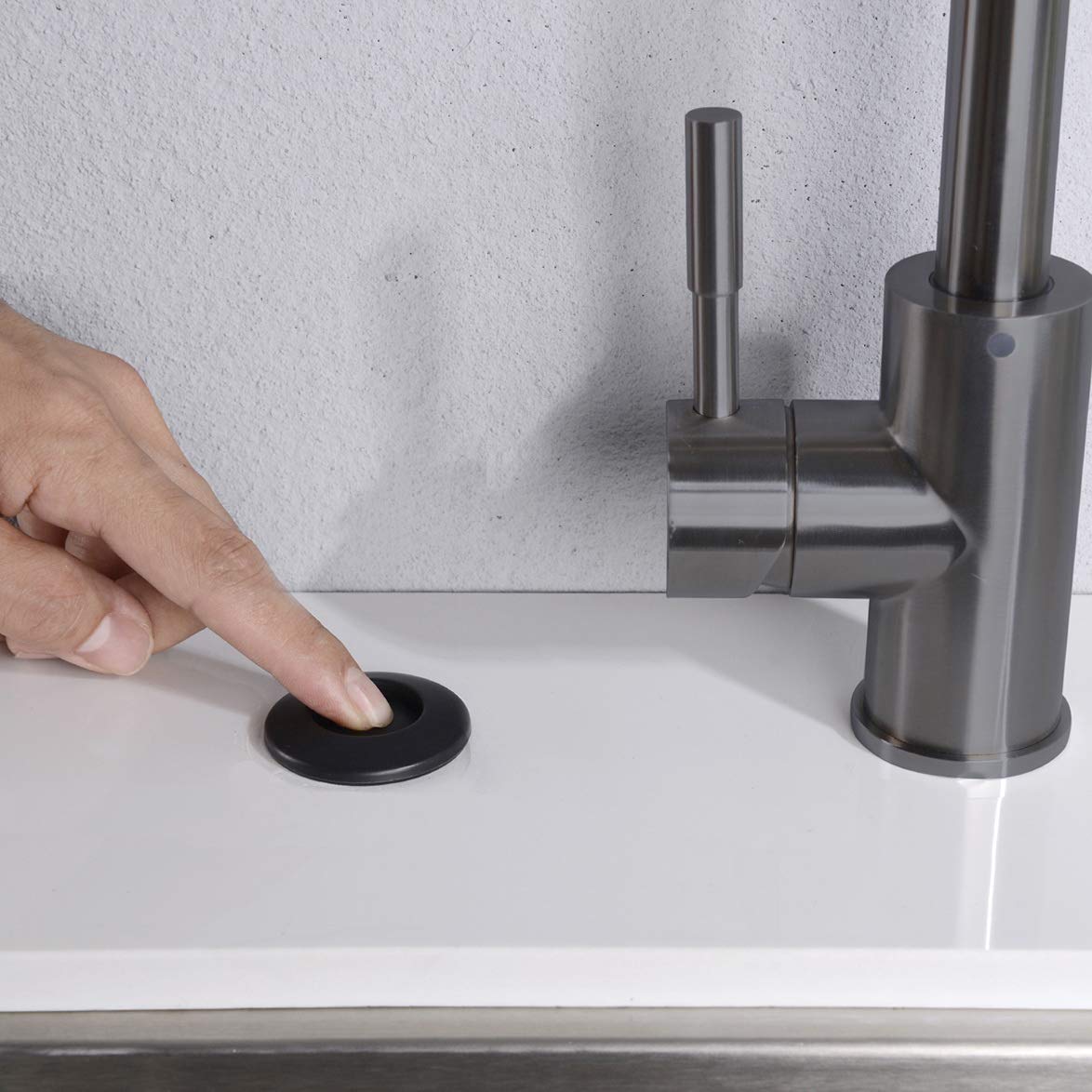

Tips: Gently press the air switch button to start the garbage disposal, press again to turn it off.
