The wide frequency range ranges from 1,300Hz to 19,000Hz, and the high sensitivity of 108 db makes it a very loud and efficient driver.
Handles an impressive 250 Watts Max power and 75w RMS, ensuring that it effortlessly complements your entire audio system. Capacitor included. 8 Ohm Voice Coil.
Complete your pro audio system with the TPT-DH175. With its 1″ voice coil, this driver maximizes loudness per watt, delivering crisp and clear high frequency range sound.

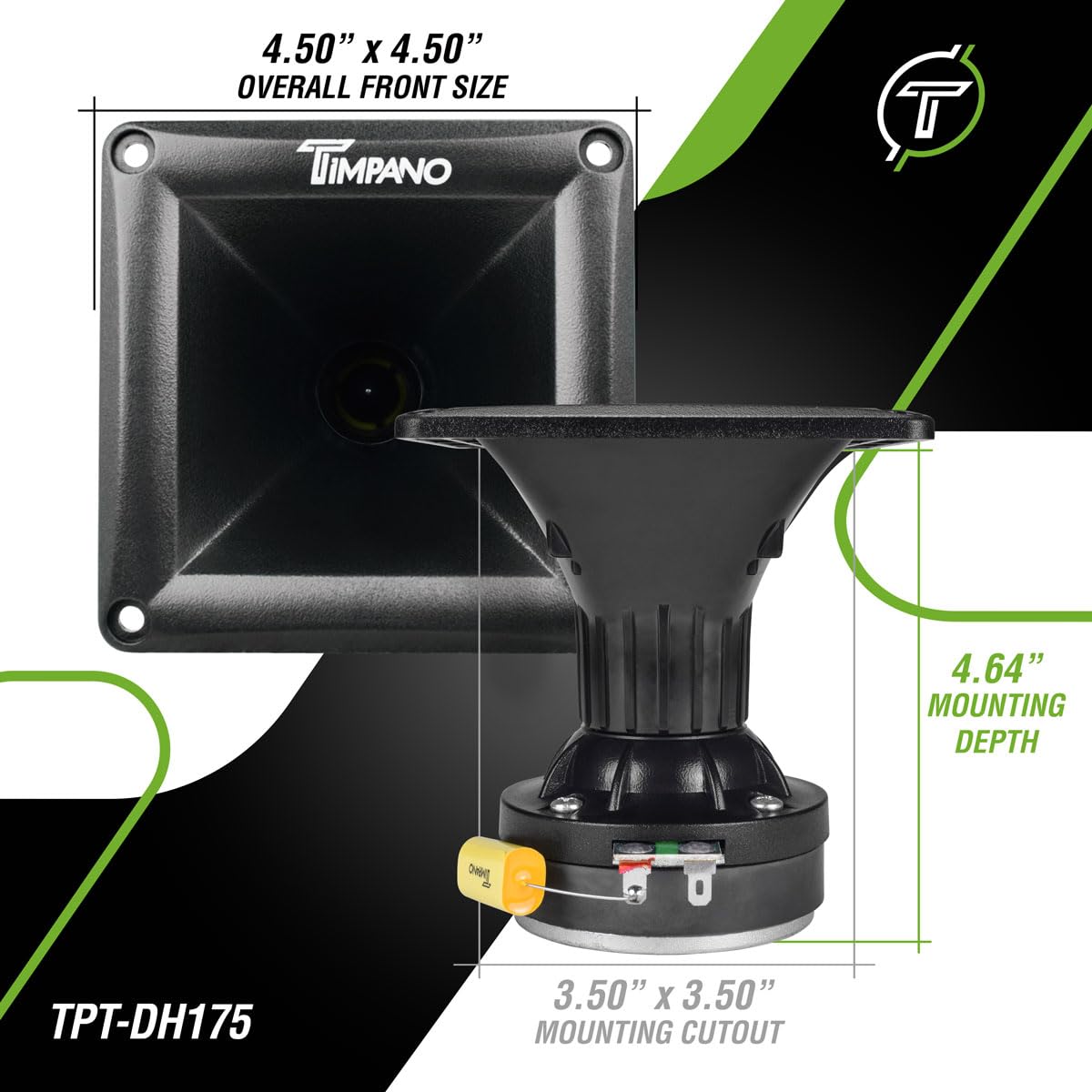

Mounting Depth: 4.64”. Extremely loud and clear highs with an amazing frequency response that can even play some mids. Shallow mounting depth for custom car audio door panels.
Product Specifications
Brand: Timpano
Speaker Maximum Output Power: 250 Watts
Mounting Type: Door Mount" or "Vehicle Mount
Model Name: TPT-DH175
Speaker Type: Horn Driver
Recommended Uses For Product: For Pro Audio
Unit Count: 1.0 Count
Controller Type: Voice control
Surround Sound Channel Configuration: 1.0
Color: Black
Included Components: Compression Driver and Horn
Product Dimensions: 6 x 6 x 4 inches
Impedance: 8 Ohm
Is Waterproof: FALSE
Number of Items: 1
Speaker Size: 1 Inches
Power Source: 12V
Subwoofer Connectivity Technology: Wired
Includes MP3 player?: No
Is Electric: No
UPC: 611056238745
Global Trade Identification Number: 00611056238745
Manufacturer: Timpano
Item Weight: 2.01 pounds
ASIN: B07KGJ7MTZ
Item model number: TPT-DH175
Customer Reviews: 4.4 out of 5 stars 195Reviews
Best Sellers Rank: #15,549 in Electronics (See Top 100 in Electronics) #61 in Security Horns & Sirens
Is Discontinued By Manufacturer: No
Other display features: Wireless
Date First Available: March 13, 2020
Product Information
Product description

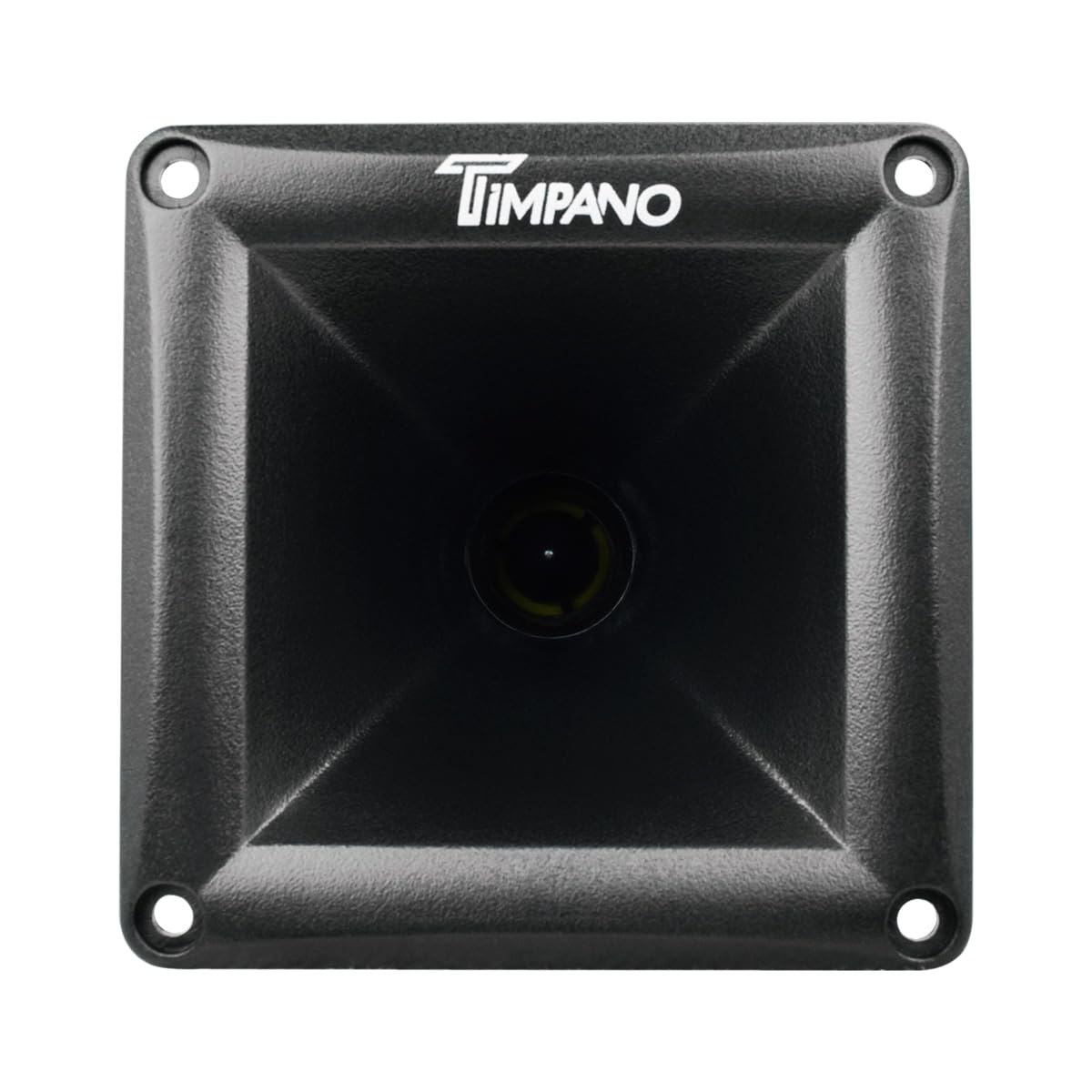

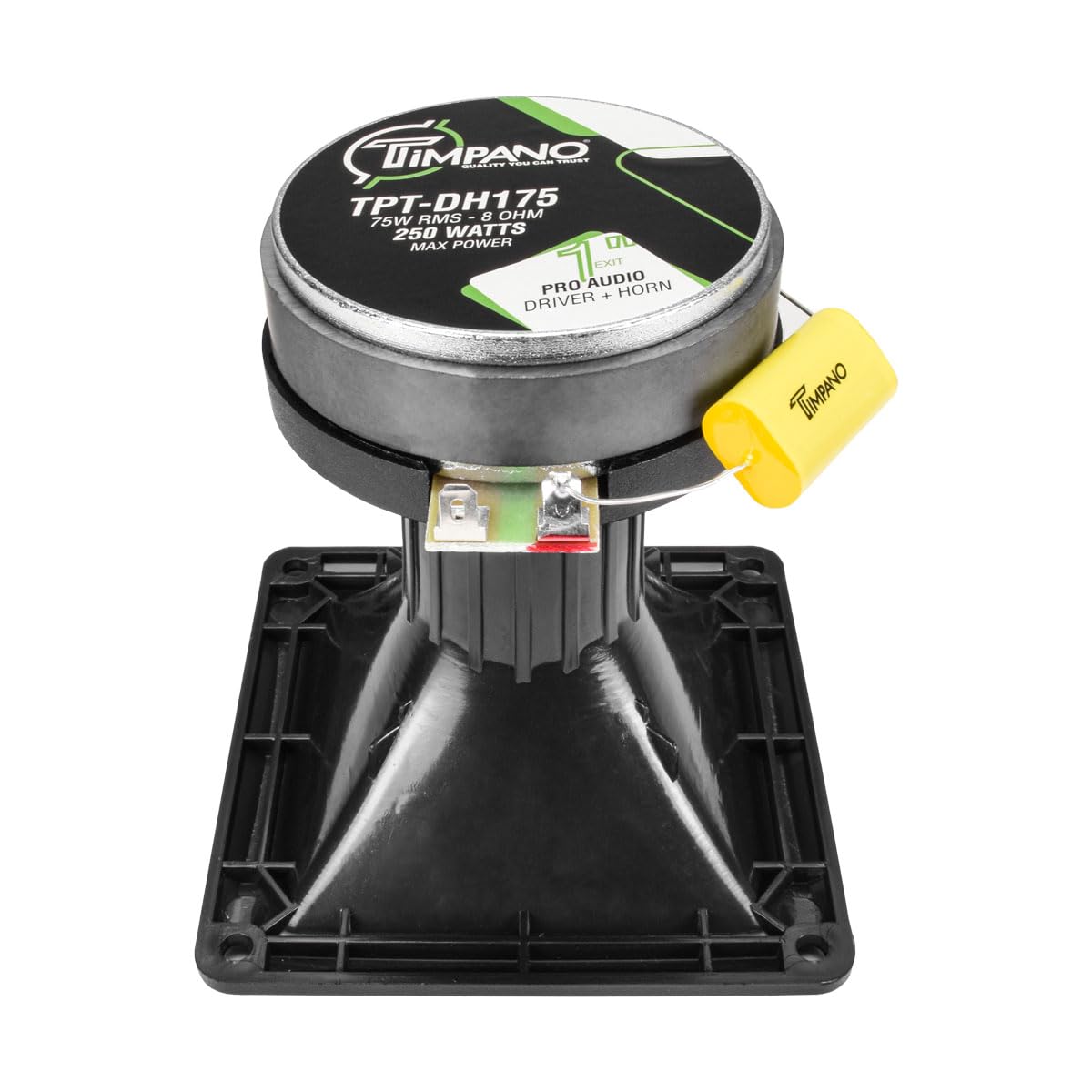

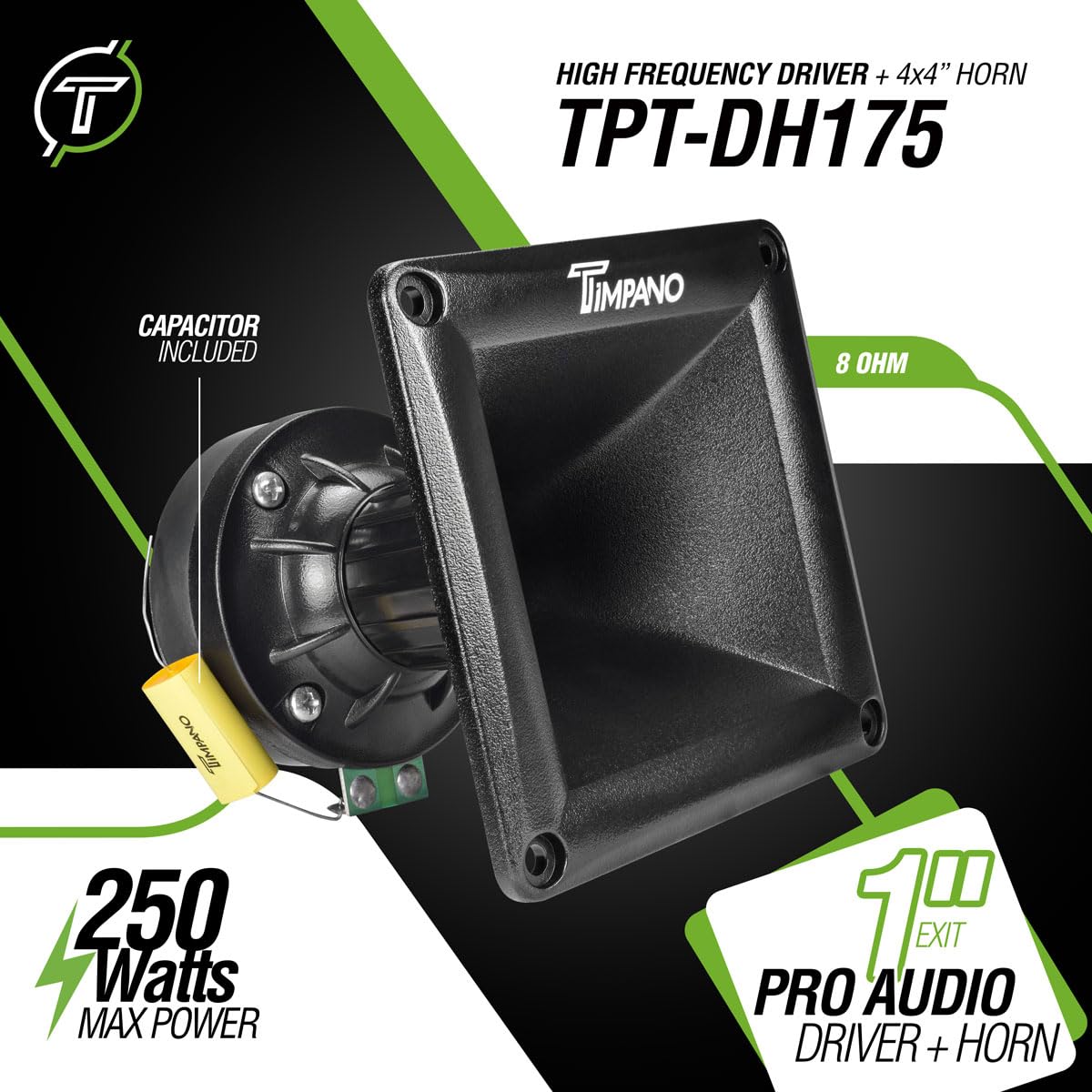

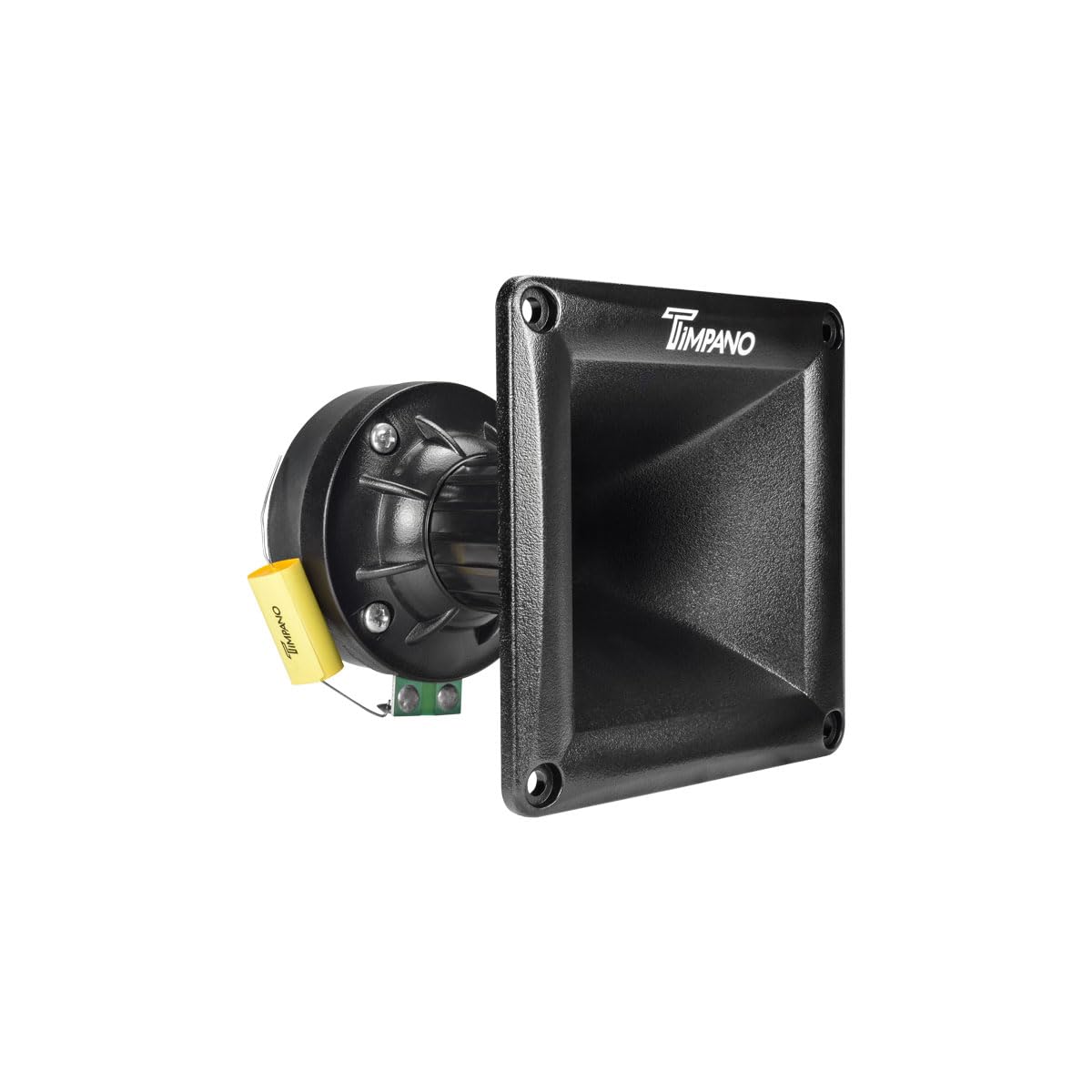

The Timpano TPT-DH175 SLIM is a 1″ phenolic dome compression driver specially designed to offer a smooth extended frequency response over a broad band, from mids to highs, with very high efficiency.
Easy to install anywhere, even on car doors. In addition, the small diameter of the compression driver allows simple installation at the front. This shallow horn driver can deliver space filling sound at extremely high SPL levels, a great choice for high output for custom car audio systems.
Ideal for compact 2 or 3-way systems. The 4.5″ x 4.5″ shallow horn produces a controlled 60° x 60° dispersion pattern to reduce unwanted reflections in a very wide dispersion as a super tweeter. Designed for car audio door panels.
