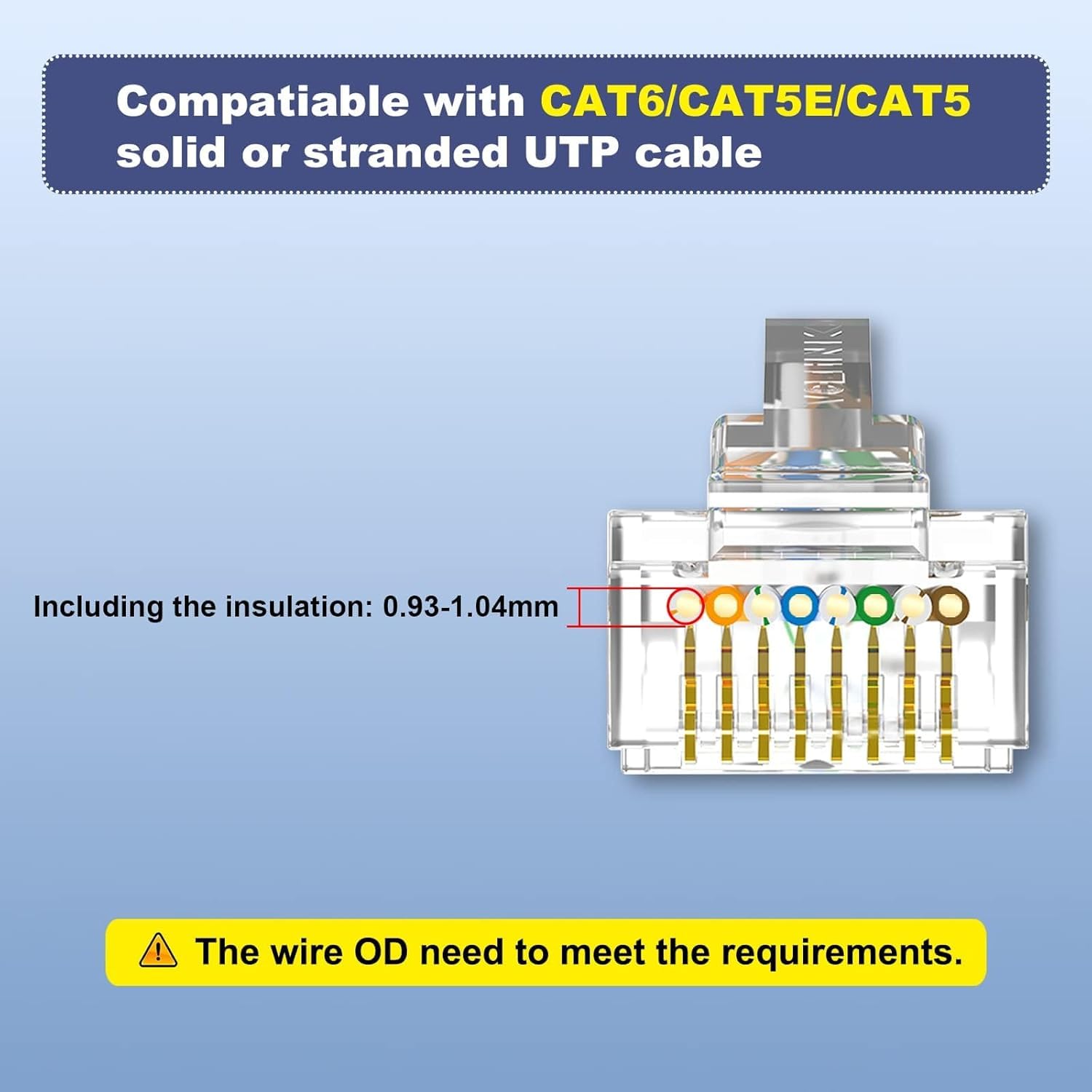

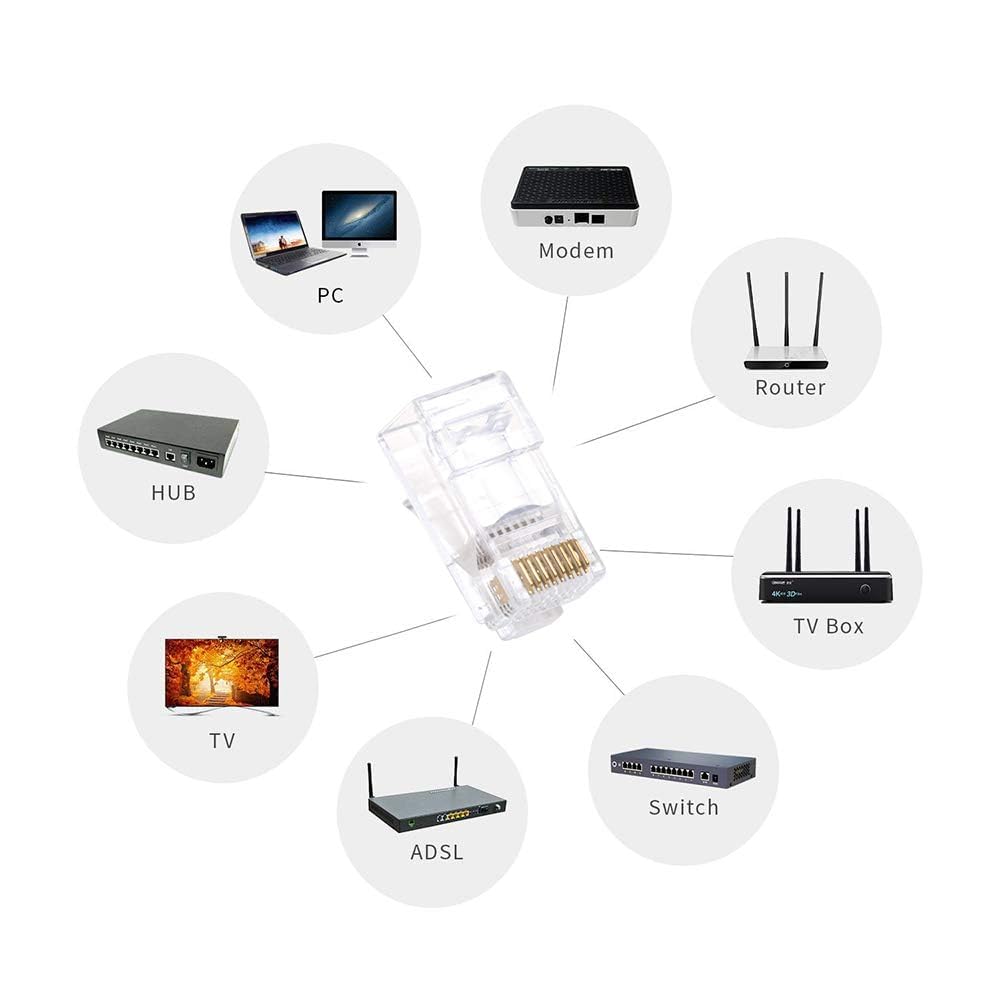

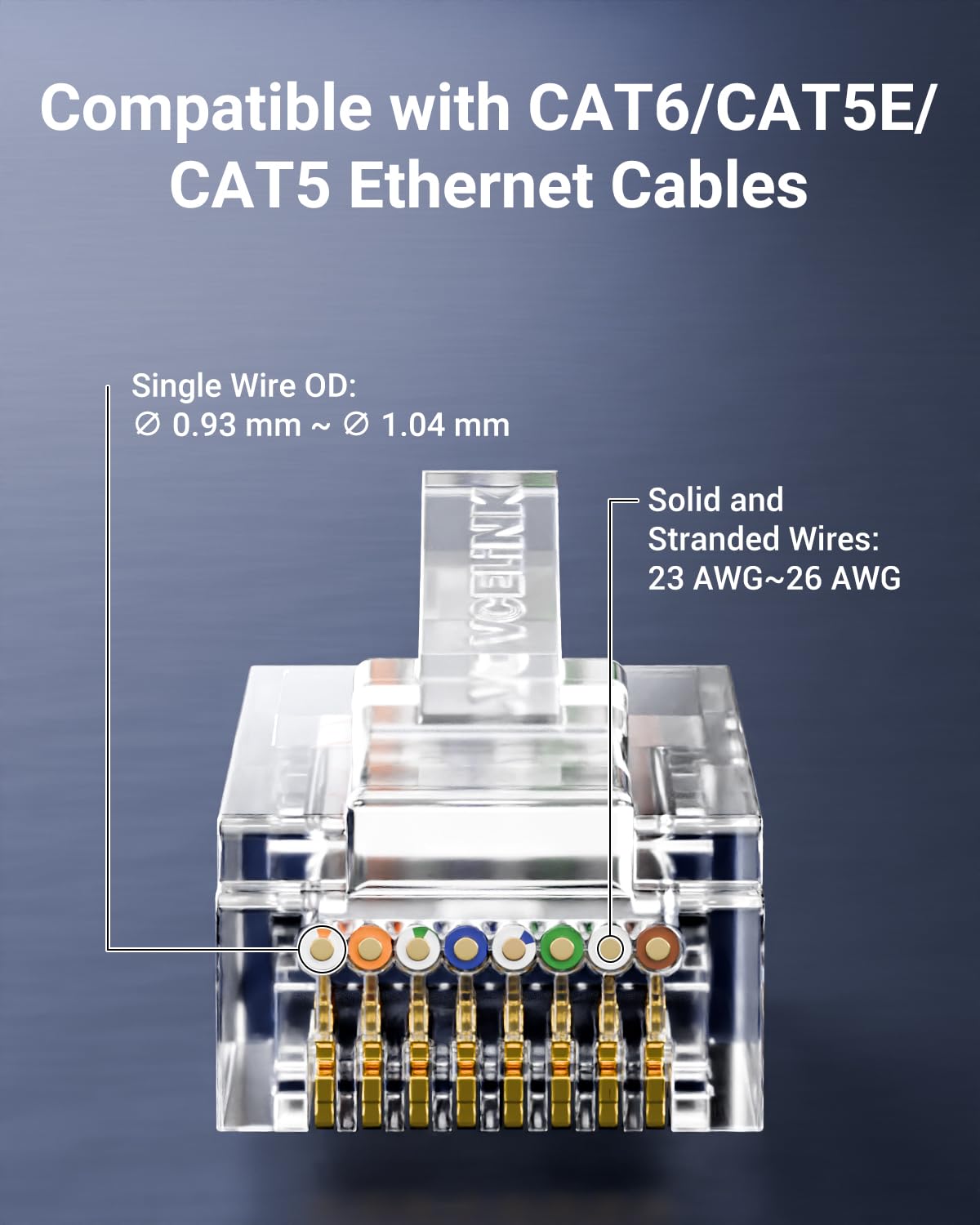

CAT6 PERFORMANCE--The UTP rj45 pass thru connectors support solid or stranded UTP CAT6/CAT5E/CAT5 cable ( wire core diameter should be 0.93 mm-1.04 mm ). Suitable for devices with standard RJ45 ports such as PC, Hub, Router, Switch, etc.
High Quality--The contacts are made of Phosphor Bronze with 3μ gold-plated, anti-oxidational and durable. 3-Prong contact blades can more accurately pierce the wire than 2-prong blades, ensure more stable and high data transfer speed. The transmission speed can up to 1000Mbps.
SAFER AND DURABLE--Our cat6 connectors with UL Listed are flame retardant, and safer to use in computer rooms, offices, and homes.
EASY TO USE--The PASS-THRU DESIGN cat6 termination end can help you easily insert the wire trough the connector, and you can reconfirm wiring sequence before crimping to improve install success rate and reduce waste.
Package Contents: 50 x cat6 rj45 pass-thru plug. All our products have 24h friendly customer service. If there is any problem, please be assured that we will try our best to help you.
Product Specifications
Product Dimensions: 0.87 x 0.47 x 0.43 inches
Item Weight: 76 Grams
ASIN: B07MM3FQ3F
Item model number: SJ661-50P-UK
Customer Reviews: 4.5 out of 5 stars 3,823Reviews
Is Discontinued By Manufacturer: No
Date First Available: January 8, 2019
Recommended Uses For Product: Creating, repairing, or extending Ethernet cables
Ethernet cable category: Cat 6
Color: Transparent
Connector Gender: Female
Data Transfer Rate: 1 Gigabits Per Second
Shape: Round
Number of Pins: 8
AC Adapter Current: 2 Amps
Unit Count: 50 Count
Connectivity Technology: Ethernet
Gauge: 23.0
Indoor/Outdoor Usage: Outdoor, Indoor
Number of Items: 50
Maximum Voltage: 2.5E+2 Volts
Outer Material: Polycarbonate
Manufacturer: VCE
Product Information
Product description
VCE RJ45 CAT6 Pass Through Connectors
VCE Pass Through 8P8C CAT6 Gold Plated Ethernet Connectors are designed for fast, reliable installations for Category 6 networks.
DIY RJ45 cable connector termination solution for making custom length Ethernet patch cords.
OPERATION CAUTIONS:
Before passing through, please make sure that the wire core is straight enough, which is related to whether the smooth passing through.
When you are making, you need to pay attention to whether the direction of the RJ45 pass through connector is consistent with the order of the wire cores to avoid the wrong wiring direction.

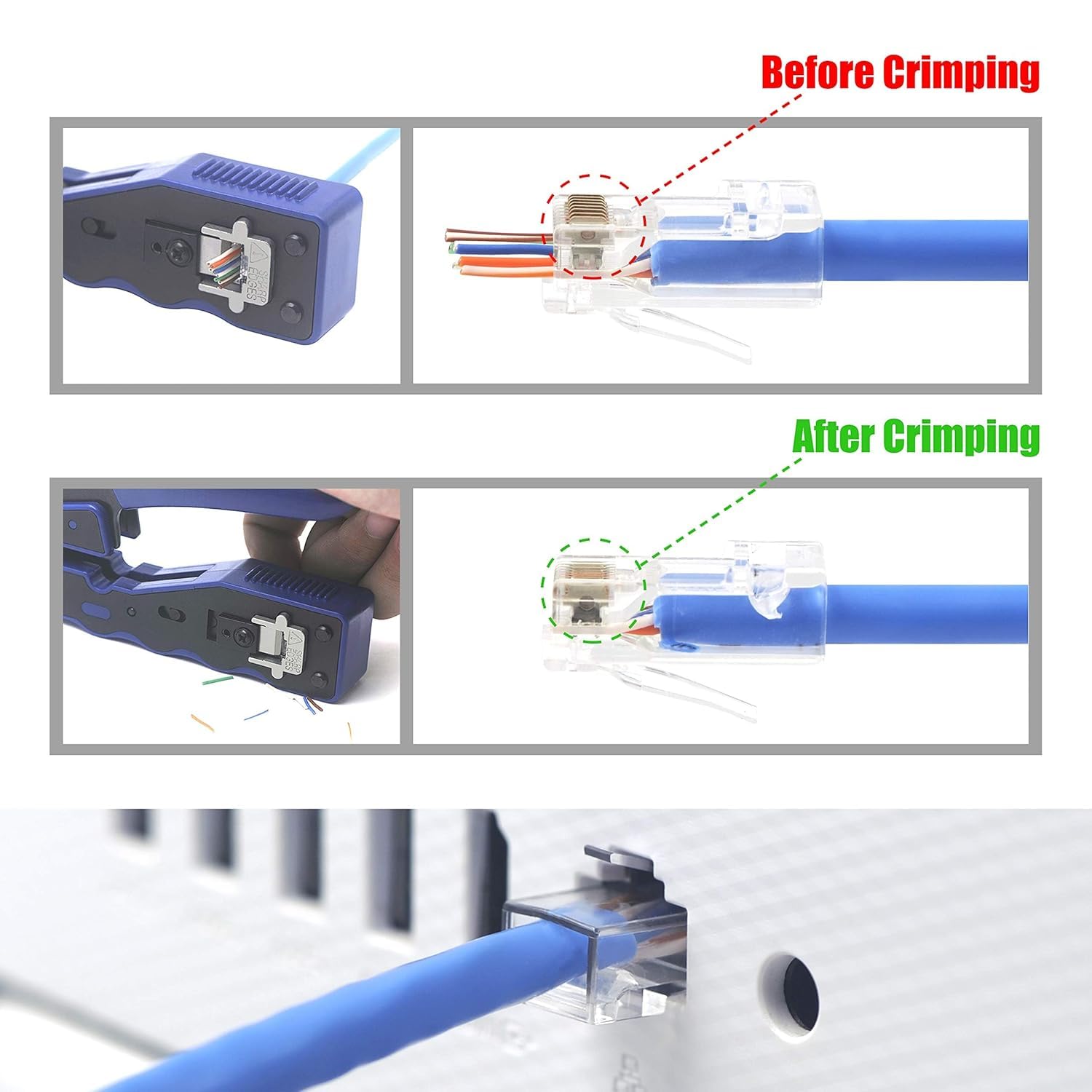

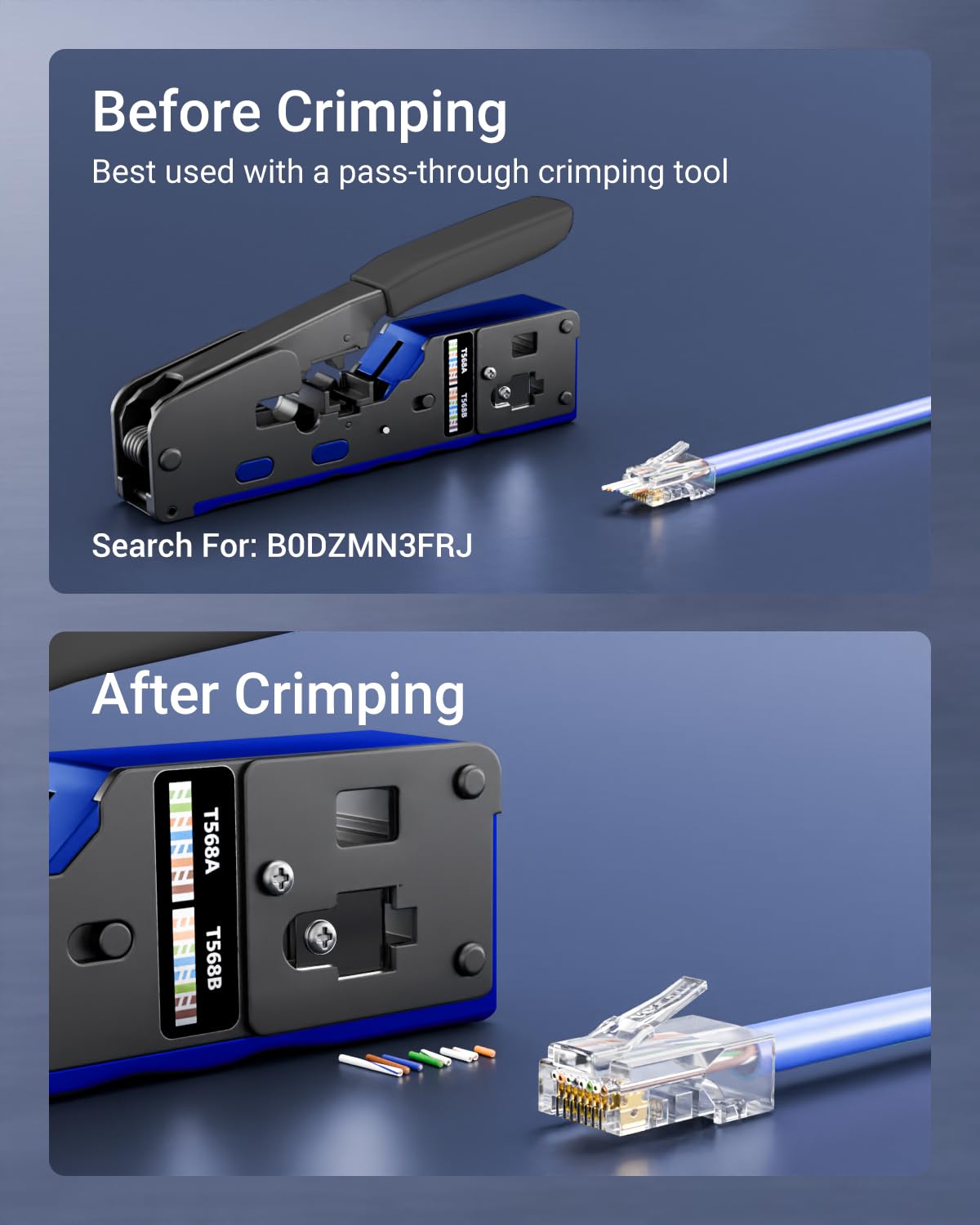

Before crimping, please make sure that the CAT6 RJ45 pass through ends have been fully pushed into the jaws of the tool(note the “click”), otherwise it will lead to cut and crimp incompletely.
Package Contents: 50pcs x VCE Pass-Thru RJ45 CAT6 Modular Data Plug.
ELECTRICAL:
Ul Applications: 250 Volts Ac Max. At 2 Amps.
Dielectric Withstanding Voltage : 1000 Volts Ac. 60 Sec.
Insulation Resistance: 500 MΩ.
Contact Resistance: 20mΩ Max.
Operating Ambient Temperature: -20°c ~ 75°c.
MATERIAL:
Housing: Polycarbonate, Ul94v-0 Or Ul94v-2.
Color: Transparent.
Contact Blade: Copper Alloy.
Gold Plating: 50u.
MECHANICAL:
Strain Relife: 20pound Min.
Durability: 1200 Mating Cycles.

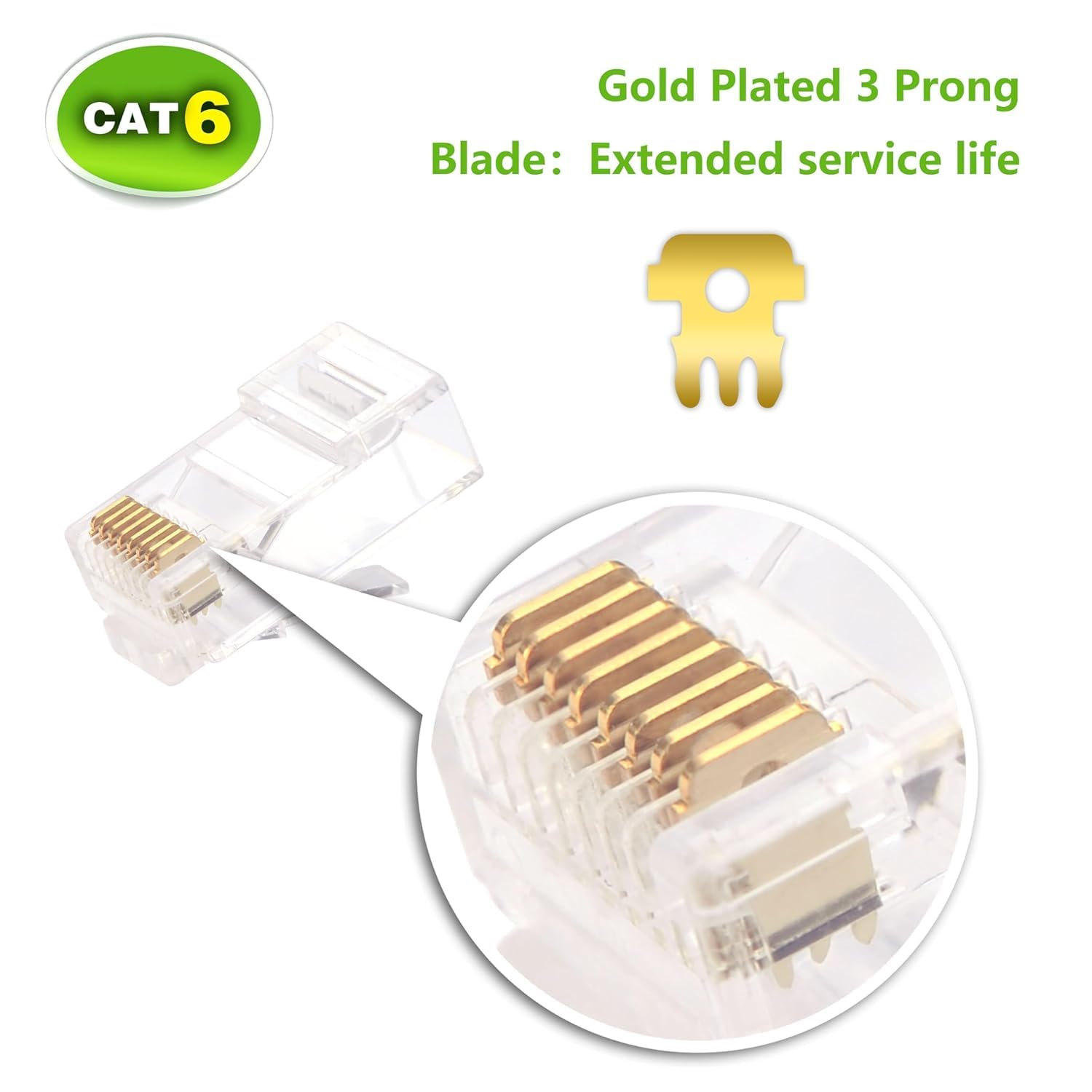

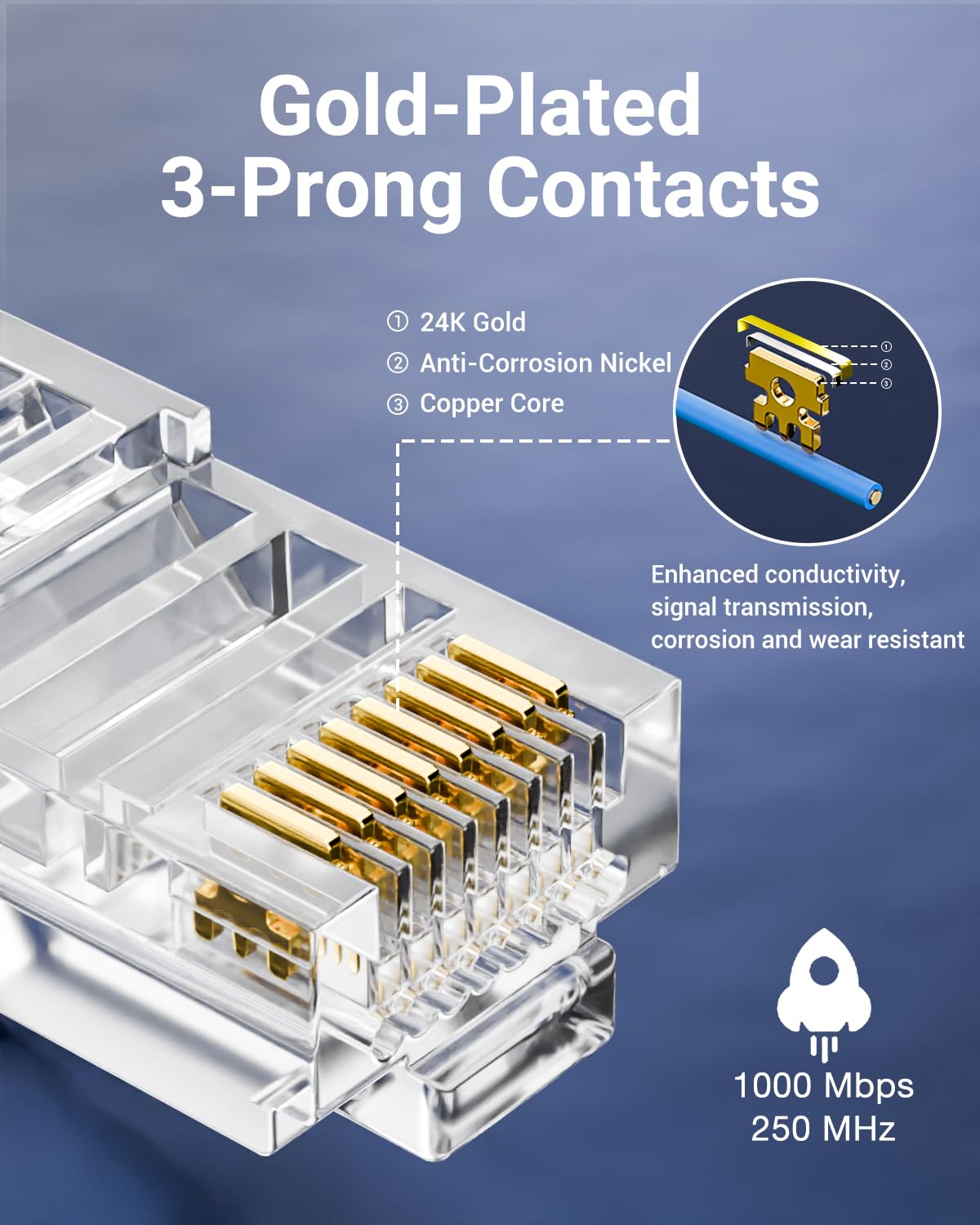

3 Prong Design
3-Prong Blade ensures closer combination between the contacts and the wire core than 2-Prong Blade.
50u gold-plated contacts provide faster speed with less interference.
High Quality Construction

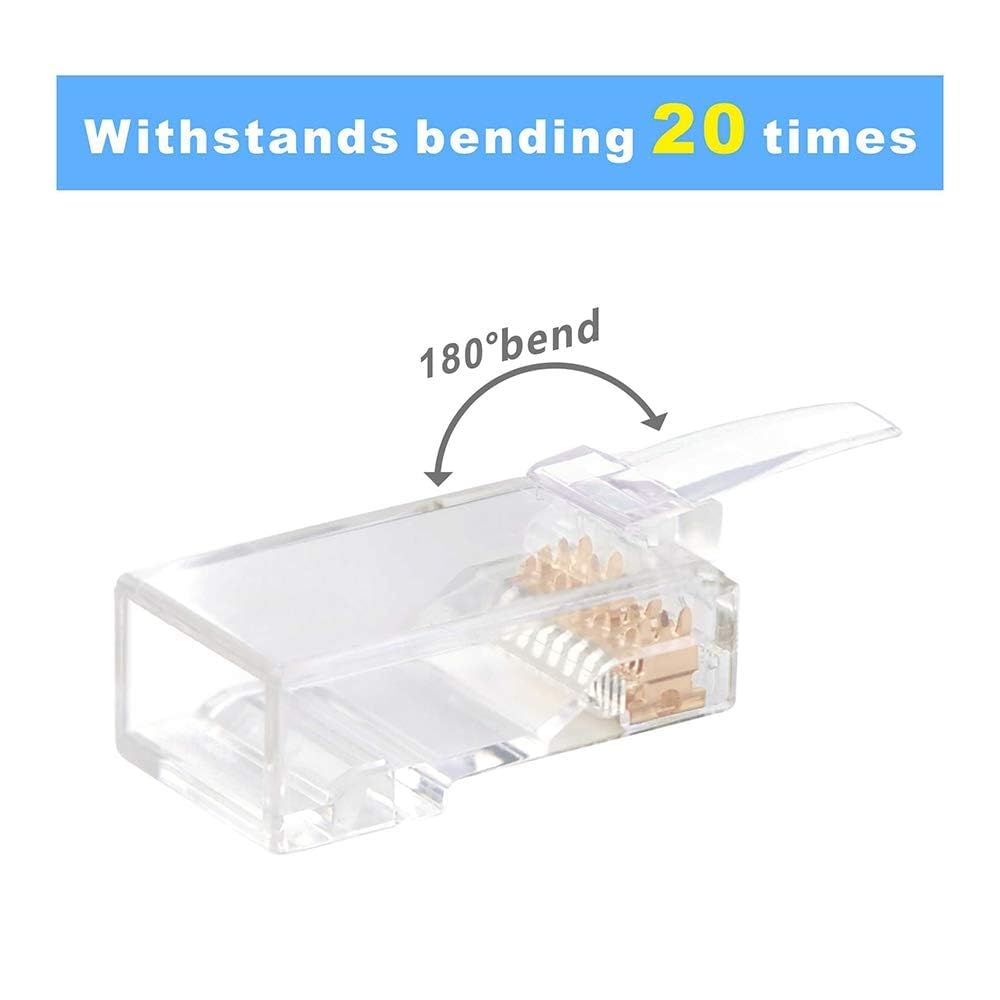

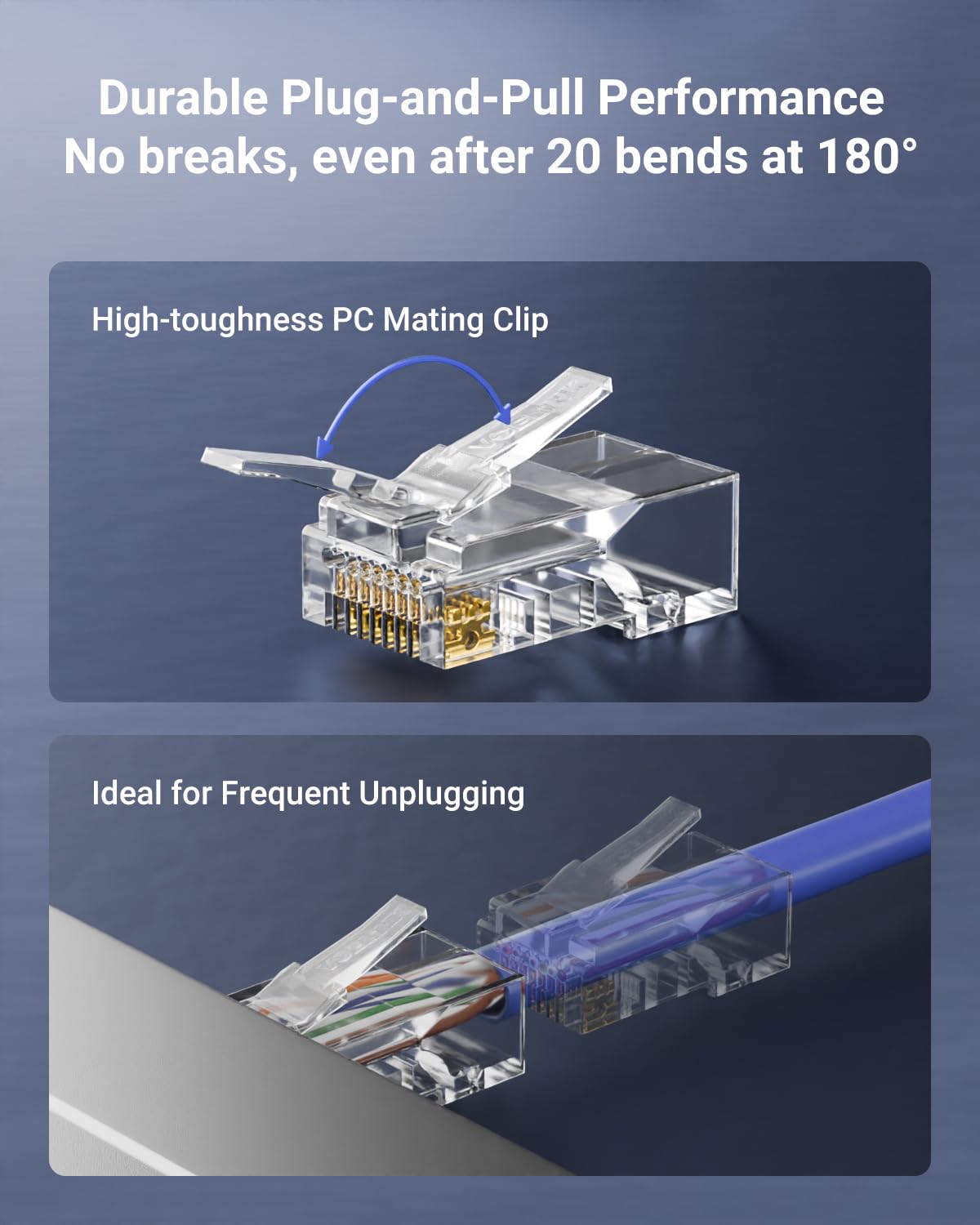

Strong mating clip for frequent unplugging.
High-Transparency shell allows you to identify wire sequence, eliminate scrap and improper crimps.
Easy to Use
You can use them on both solid and stranded cable.

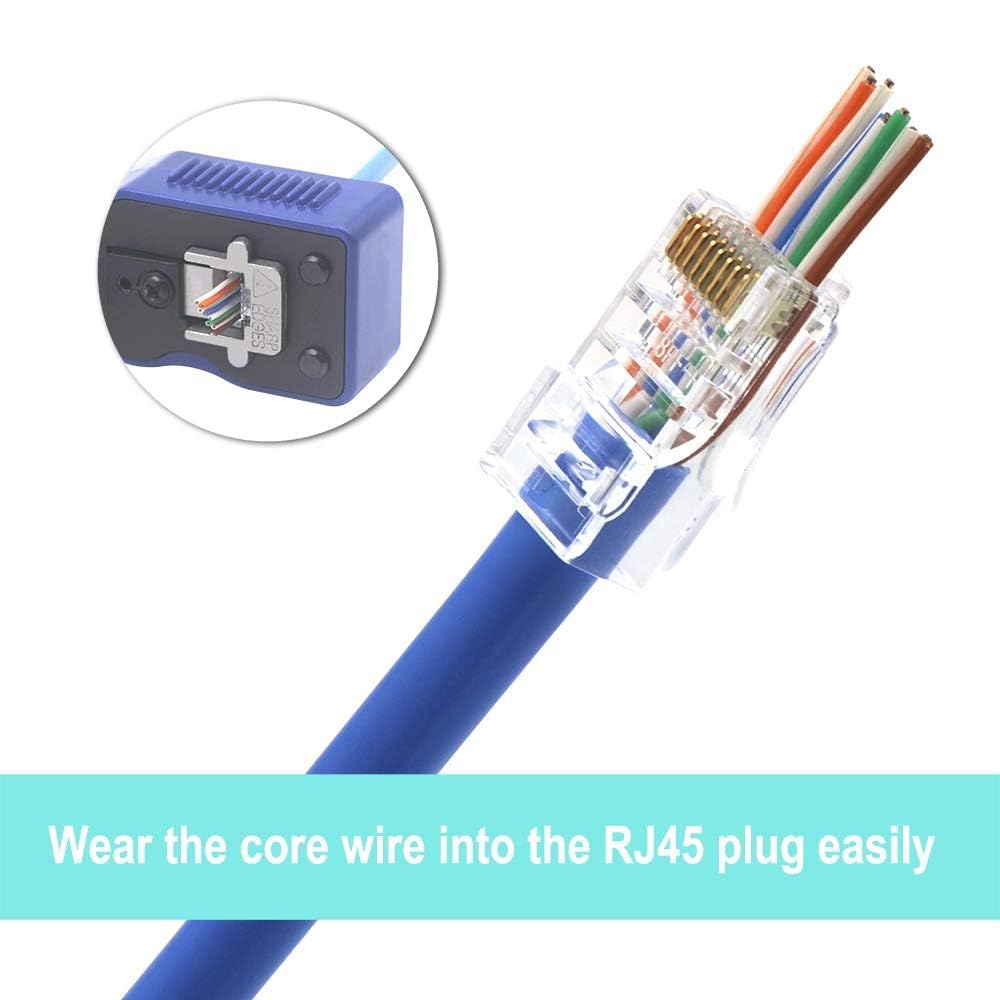

Pass-thru design simplifies terminations as wires are inserted through the connector and out the other side.
