Genmitsu CNC 3018-PRO Router Kit GRBL Control 3 Axis Plastic Acrylic PCB PVC Wood Carving Milling Engraving Machine with Offline Controller, XYZ Working Area 300 x 180 x 45mm
New Version: Genmitsu Cnc 3018-Pro Is An Upgraded Version Of 3018. All Components Do Not Need To Be Positioned, Which Greatly Reduces The Difficulty Of Assembly And Improves The Working Accuracy. The Base Height Is Raised To 4Cm For Better Stability. Capable Of Cutting All Types Of Plastics, Soft Aluminum, Woods, Acrylics, Pvcs, And Pcbs, The Genmitsu Can Be Used On A Wide Range Of Projects And Materials
Upgraded Power Adapter: Ul Approved And Out-Of-The-Box Support For The Drop In 20,000Rpm Spindle, No Need To Modify G-Code To Ramp Up To Full Speed
Controller Software: The Genmitsu 3018-Pro Uses Grbl, A High-Performance Open-Source Software For Controlling Movement, And Runs On Arduino. Its Dependability And Simplicity Make Grbl An Industry Standard, So There’S No Lack Of Support And Resources Available When You Get Stuck. Includes Carveco Maker Cam Design Software And Candle For Controlling Your Machine And Running Your Gcode Design Files
Optional Upgraded Parts: Super Size Your 3018 Cnc To A 3040 By Getting A Genmitsu 3040 Y-Axis Extension Kit (B08P2S3Jwp). The 3040 Aluminum Spoilboard (B08Vnlp24C) And 3040 Mdf Spoilboard (B08Wz8Rv3Y) For This Extension Kit Are Also Available To Buy
Product Specifications
Manufacturer: SainSmart
Part Number: B07P6K9BL3
Item Weight: 15.33 pounds
Product Dimensions: 7.09 x 0.01 x 11.81 inches
Item model number: 3018-PRO
Style: 3018-PRO
Thickness: 0.1 Millimeters
Power Source: Corded Electric
Voltage: 24 Volts
Horsepower: 120
Item Package Quantity: 1
Included Components: Wood Carving Milling Engraving Machine
Batteries Included?: No
Batteries Required?: No
Product Information
Product description
Genmitsu 3018-PRO CNC Machine
Designed for the absolute beginner, the Genmitsu is a great tool for starting CNC learning. If wood-working is your hobby, you can use it to add features like curved words and exquisite patterns. If you are a student just learning CNC, it can help you engrave models that you are coding and designing.

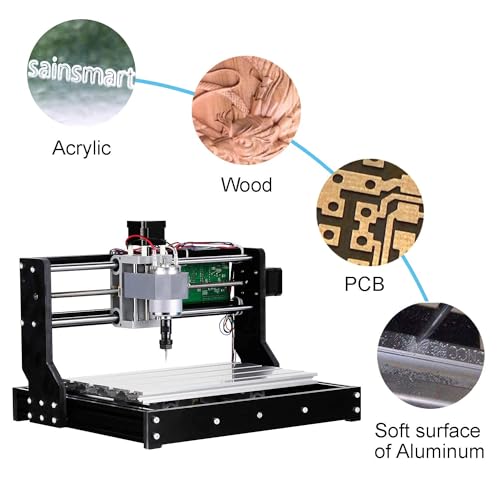

It is capable of cutting all types of plastics, soft aluminum, woods, acrylics, PVCs, and PCBs, and a wide range of other materials. You will find the SainSmart Genmitsu an excellent self-learning tool that allows you to DIY your great projects on a cost-effective platform without the risk of damaging expensive equipment.
SPECIFICATIONS

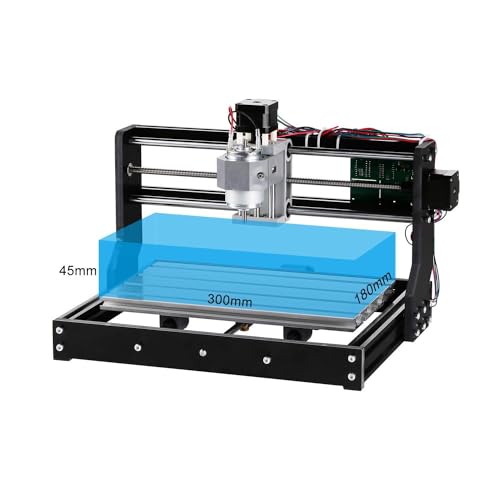

Effective Engraving Area
300 x 180 x 45 mm(11.8 x 7.1 x 1.8”)
Frame Size
400 x 330 x 240 mm(15.7 x 13.0 x 9.4")
Frame Material
PF+ Aluminum
Z-Axis Component Material
Nylon
Spindle
775 motor, 24V, 1000 RPM
Rated power
60W; Maximum power: 120W
Step Motor
1.3 A, 12V, 0.25 Nm torque (2.2 in lb)
Drill Bits
Tip 0.1 mm, 20 degree, Diameter 3.175 mm
Supported OS
Windows XP, Windows 7, Windows 8, Windows 10, MAC OS
Software
Grbl control(Candle)
Power Supply
24V/5A
Upgraded Power Adapter
The upgraded power adapter comes with CE, FCC & UL certifications, with over-voltage protection, over-current protection, over-temperature protection, and short-circuit protection. And it supports the drop in 20,000rpm Spindle, no need to modify G-code to ramp up to full speed.
Redesigned Control Board
Equipped with ABS case and fan, the performance and stability of the new mainboard have been greatly improved.
Built to Suit Your Needs
Support and convenience for years to come. Your Genmitsu3018-PRO comes with access to a wide variety of accessories, parts, and upgrades., like the easy-to-install dust shoe for dust removal, the KABA enclosure for noise reduction, and MDF spoilboard for protecting the router table from damage, enhanced all metal parts, and more. (Sold Separately)

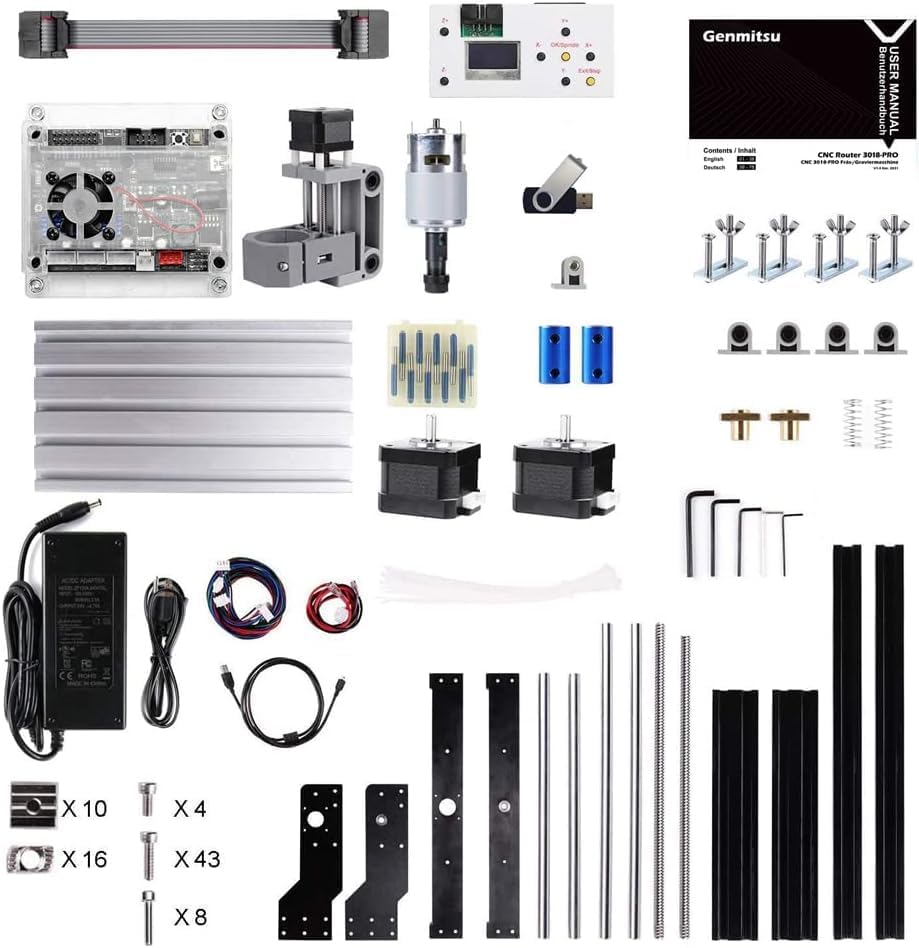

WHAT'S IN THE BOX
1 x 3018 PRO DIY Router Kit
1 x Offline Controller
1 x Extension Rod with ER11 Collet (3.175mm)
4 x Plate Clamps
10 x CNC Router Bits (Cutting Angle: 20 Degree; Shank Diameter: 3.175mm; Tip Diameter: 0.1mm)
