SainSmart Genmitsu 10Pcs Nano Blue Coat Flat Nose End Mill CNC Router Bits, 1/8" Shank Spiral Upcut Single 1 Flute End Mill Set (3.175 x 17 x 38mm)

Brand: SainSmart

(908 votes)

Seller: N/A

Sell on:

Amazon US

SainSmart Genmitsu 10Pcs Nano Blue Coat Flat Nose End Mill CNC Router Bits, 1/8

0885996168

/ Email: Support@fado168.com

Monday to Friday: from 08h - 22h, including Saturday and Sunday

$29.32

Delivery time 15-20 day. View detail

The Product does not have an exact weight, The total order value may be changed after approval

Style:

3.175mm Set (1-Flute Flat Nose)

3.175mm Set (2-Flute Ball Nose)

3.175mm Set (2-Flute Flat Nose)

Quantity:

Seller List

The Time commitment

Fado168.com offers flexible shipping packages
3-5 days 7-20 days

+ See the detail

Free customs procedures

Fado168.com represent the customers to handle all the paperworks from the stage of export from ASIA import to Cambodia

+ See the detail

Diversified payment, flexible

Transfer by Internet Banking, via Bank account, by Wing or pay direct at Company

+ See the detail

Free delivery

Free delivery in Phnom Penh

+ See the detail

Safe shopping

With Fado168.com buyers always have insurance the risk when order the international goods

+ See the detail

Loading Product Infomation...

PRODUCT FEATURES

Number of Flutes: 1.
Cutting Edge Diameter (CED): 3.175mm (1/8") approx.
Advantage: Sharp cutting edge, milling, hole and plate edge, clean surface, neat, no glitches.
Application: Widely use for 3D relief sculpturing, cutting, engraving, slotting, milling, etc.
Suitable Material: Nylon, Resin, ABS, Acrylic, PVC, MDF, Hardwood.

Product Specifications

Item Weight: 0.01 Ounces
ASIN: B07P84YFS9
Customer Reviews: 4.4 out of 5 stars 858Reviews
Date First Available: February 28, 2019
Brand: SainSmart
Shape: Round
Product Dimensions: 1.5"L x 0.12"W
Tolerance Held: Standard
Number of Cutting Edges: 1
Global Trade Identification Number: 04897093841346
Manufacturer: Genmitsu

Product Information

From the manufacturer

The Genmitsu CNC Router Bits Tool Database is available now!

Download location of the database

Please refer to the Product Guide and Documents on the product page.
We have included the download links for the various software, including Fusion 360, Carveco and G-Wizard, in a PDF document (can only be called a USER GUIDE due to Amazon policy).
To cover all the other options, we have included two tables with all the parameters for bits, speeds and feeds.

What's it for?

The Tool Database is used to make tool management and selection very quick and easy, reducing the possibility of programming jobs with incorrect depths, speeds and feeds.
The Tool Database is accessed from the Select button each time a new toolpath is created and allows pre-defined tools and settings (speeds, feeds, etc.) to be selected from a list.
Overall, a tool database can help you save time, money and improve safety in your workplace.
Note: The database can only be used as a guide, please start with conservative settings, low speeds and depths of cut and see what speeds and feeds work best for your specific application.

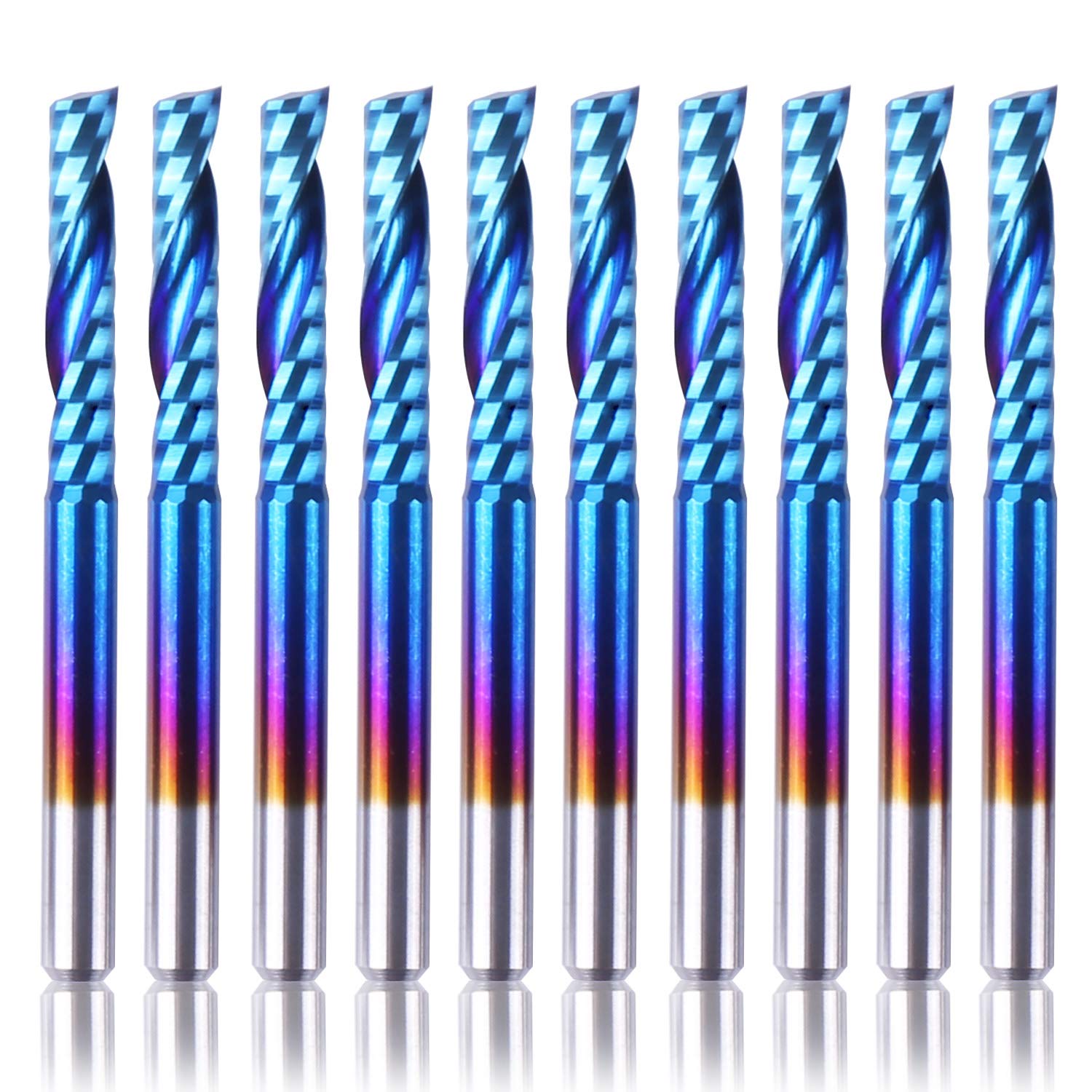

1/8" Shank Spiral Upcut

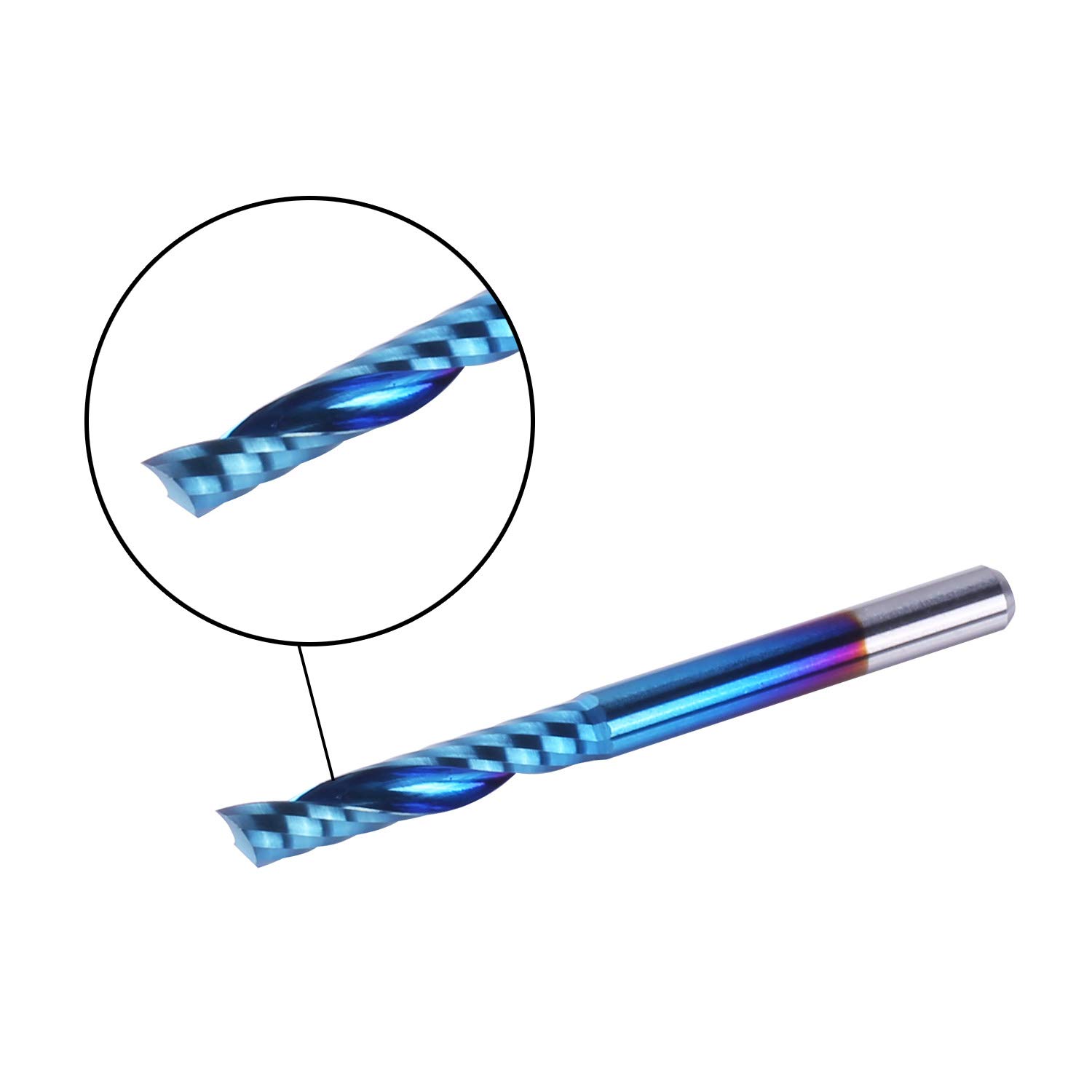

Spiral Upcut Design

The design of 1/2 flutes, larger spiral chip space of CNC Router Bit makes non-stick crumbs, smooth cutting, and fast chip-removal.

Size optional

Cutting Edge Diameter (CED): 3.175mm (1/8") approx.
Advantage: Sharp cutting edge, milling, hole and plate edge, clean surface, neat, no glitches.
Application: Perfect for 3D relief sculpturing, cutting, engraving, slotting, milling, etc.

Features

Wide Application

Suitable for PCB, SMT, CNC, MDF, ABS, PVC, Mold, acrylic, nylon, resin, plastic fiber, carbon fiber, density board, hardwood, plywood, printed circuit board, and other precision parts processing and milling.

High Precision Material

With sufficient flexural strength and wear resistance, which ensure high work efficiency. Sharp cutting edge, milling, hole and plate edge, clean surface, neat, no glitches.

Abundant Quantity

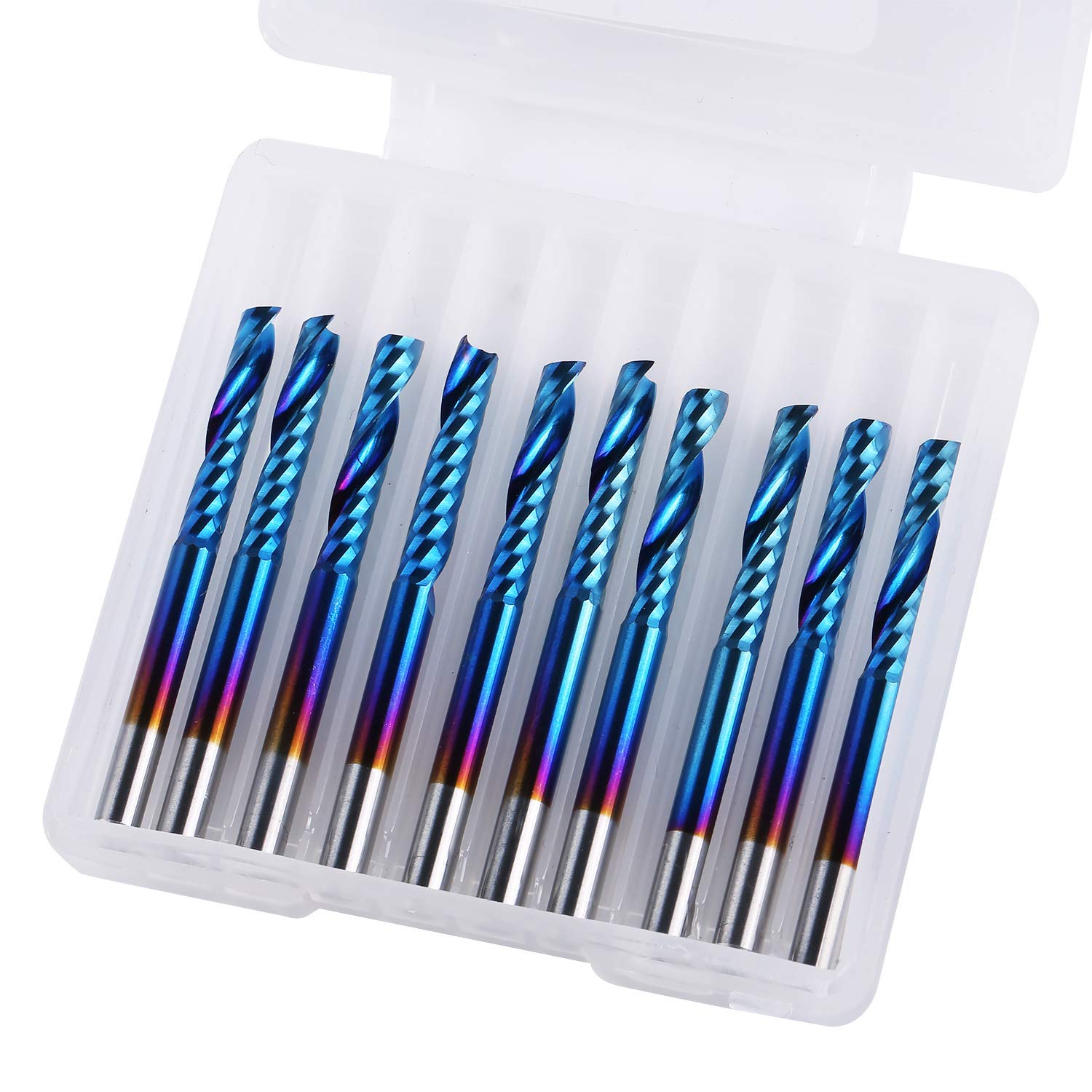

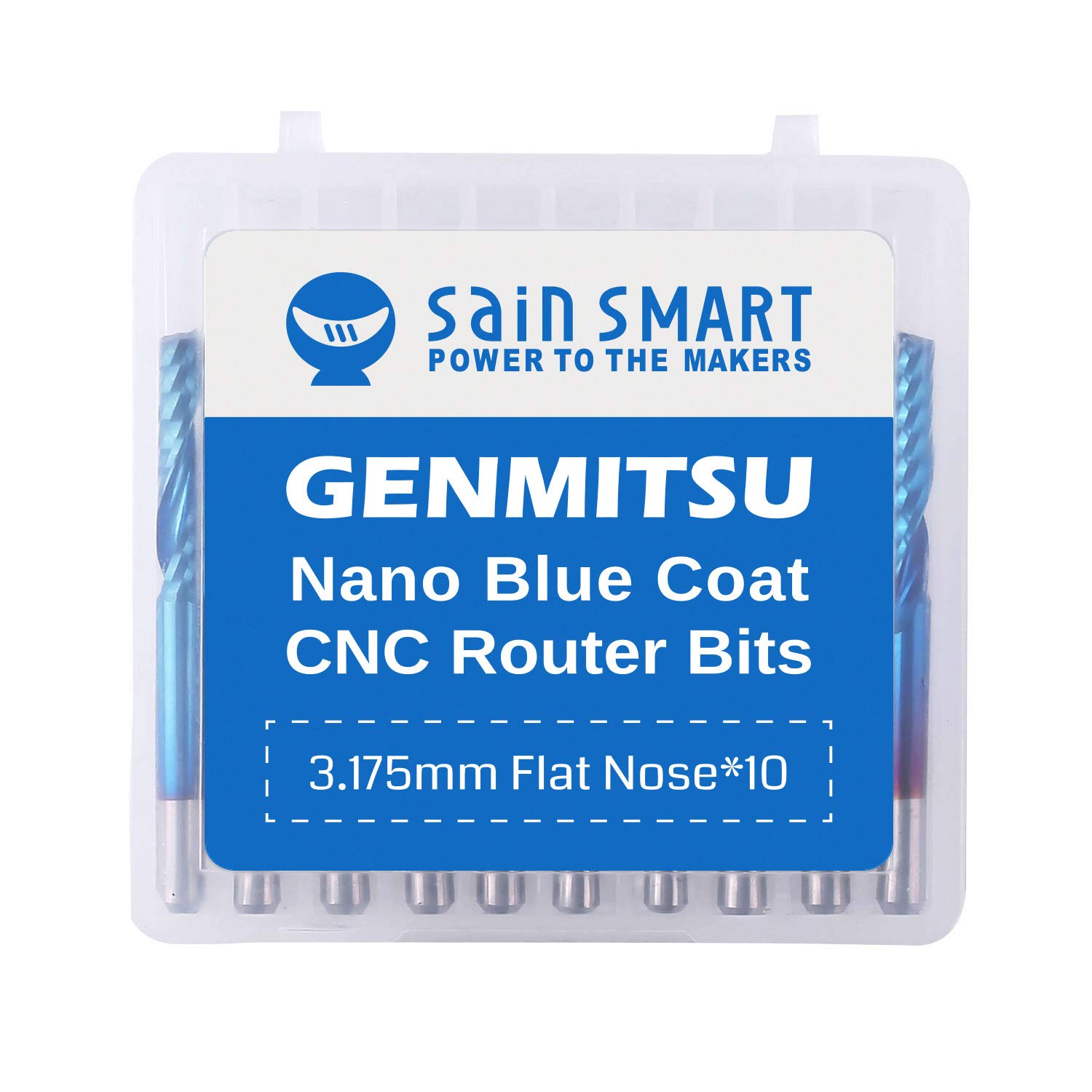

With 10Pcs a set, it's cost-effective for the CNC makers. Come with a portable plastic case, each is stored in an individual section, the set is easy for storage and carries.


	MC30B	EM05A	SN05A	WC04A	MC10A	VG03A

Customer Reviews	5	—	—	164	8	137
Material	Tungsten Carbide Steel Alloy	Tungsten Carbide Steel Alloy	Tungsten Carbide Steel Alloy	Tungsten Carbide Steel Alloy	Tungsten Carbide Steel Alloy	Tungsten Carbide Steel Alloy
Surface	Nano Blue Coating / Titanium Coating	Nano Blue Coating	Nano Blue Coating	Nano Blue Coating	Nano Blue Coating	/
Shank Diameter	1/8'' (3.175mm)	1/4'' (6.35mm); 1/8'' (3.175mm)	1/8'' (3.175mm)	1/4'' (6.35mm)	1/4'' (6.35mm)	1/4'' (6.35mm)
Quantity	30	5	5	4	10	3

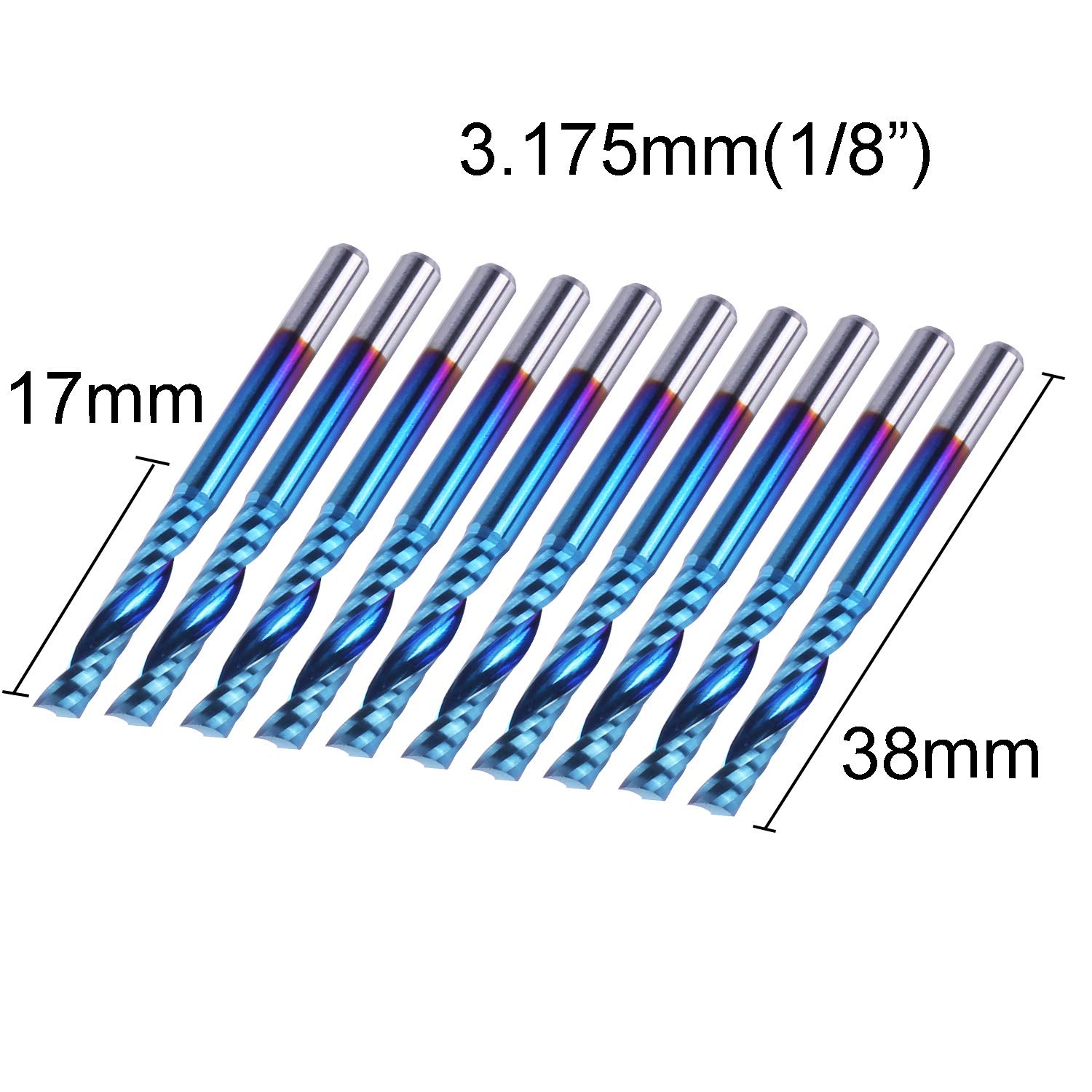

SPECIFICATIONS

Shank Diameter: 3.175mm
Cutting Edge Length: 17mm
Overall Length: 38mm (Tolerance: ±1-2mm)
Cutting Edge Diameter: 3.175mm; 10Pcs

Innovative Nano Blue Coat

Chemical Composition: Ni-La203

Physical Characteristics:

1. Enhance the hardness of the bits.
2. Reduce the frictional resistance coefficient of the bits at high speed to improve the smoothness of the machined surface.
3. Increase the heat dissipation performance of the bits to avoid the influence of the crystal structure change due to excessive
temperature.
4. Reduce the phenomenon of chipping of the cutting edge. Enhance the elasticity of the bits. The impurities of the workpiece
can be elastically skipped to avoid damage to the cutting edge.
5. Extend service life.
6. Since the carbide bit has high hardness and is relatively brittle, the machine speed range should be controlled during use.

WHAT'S INCLUDED?

1 x Set (10Pcs Nano Blue Coat 1 Flute Flat Nose End Mill CNC Router Bits)
