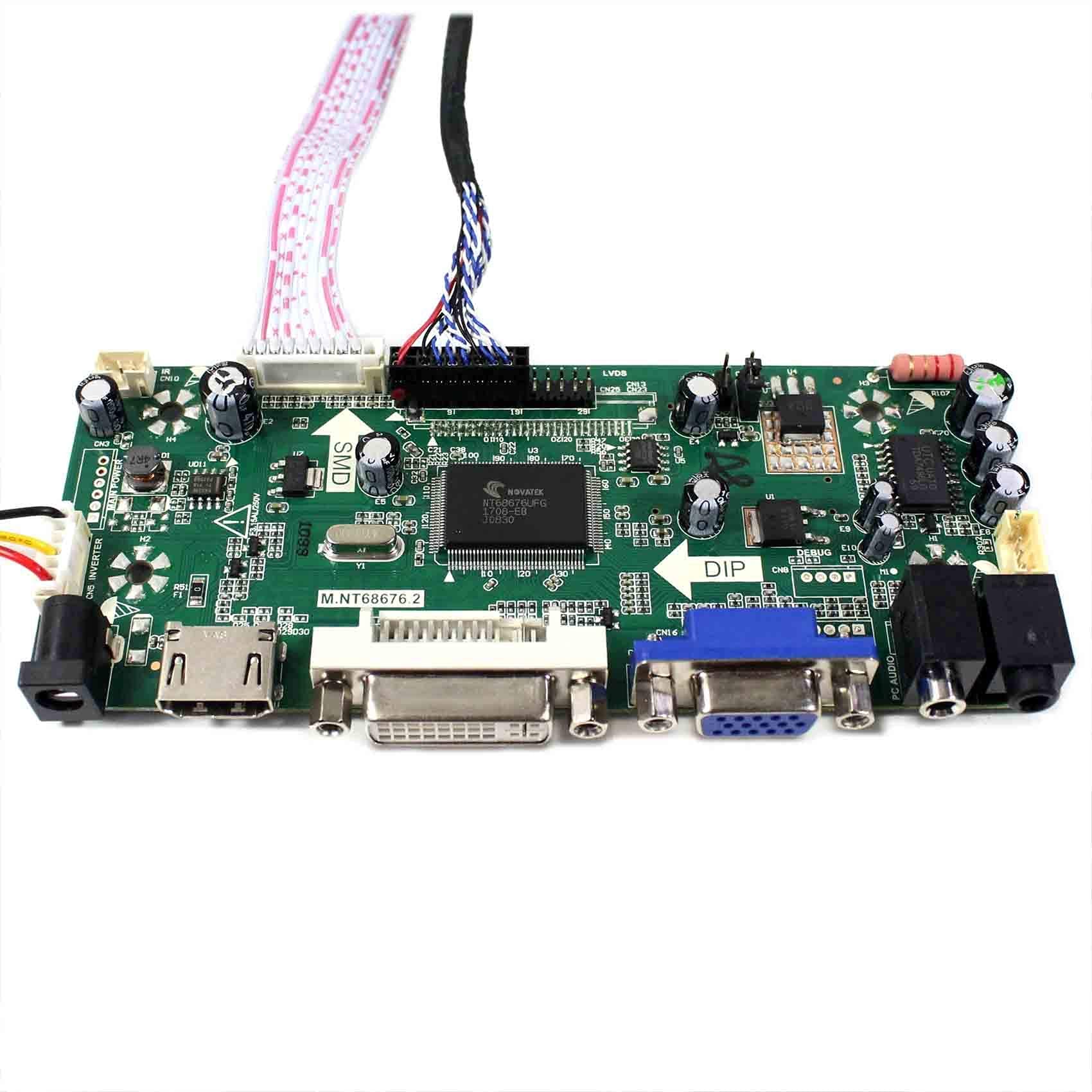

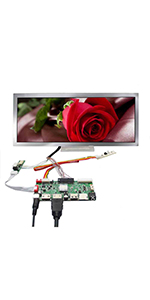

14.9" LTA149B780F 1280X390 LCD Screen ,HD-MI DVI VGA AUDIO LCD Controller Board work for screen.
14.9 inch special long strip industrial display , LVDS interface LCD screen, Brightness 400 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) (TM) .Fit for Game display, car monitor.

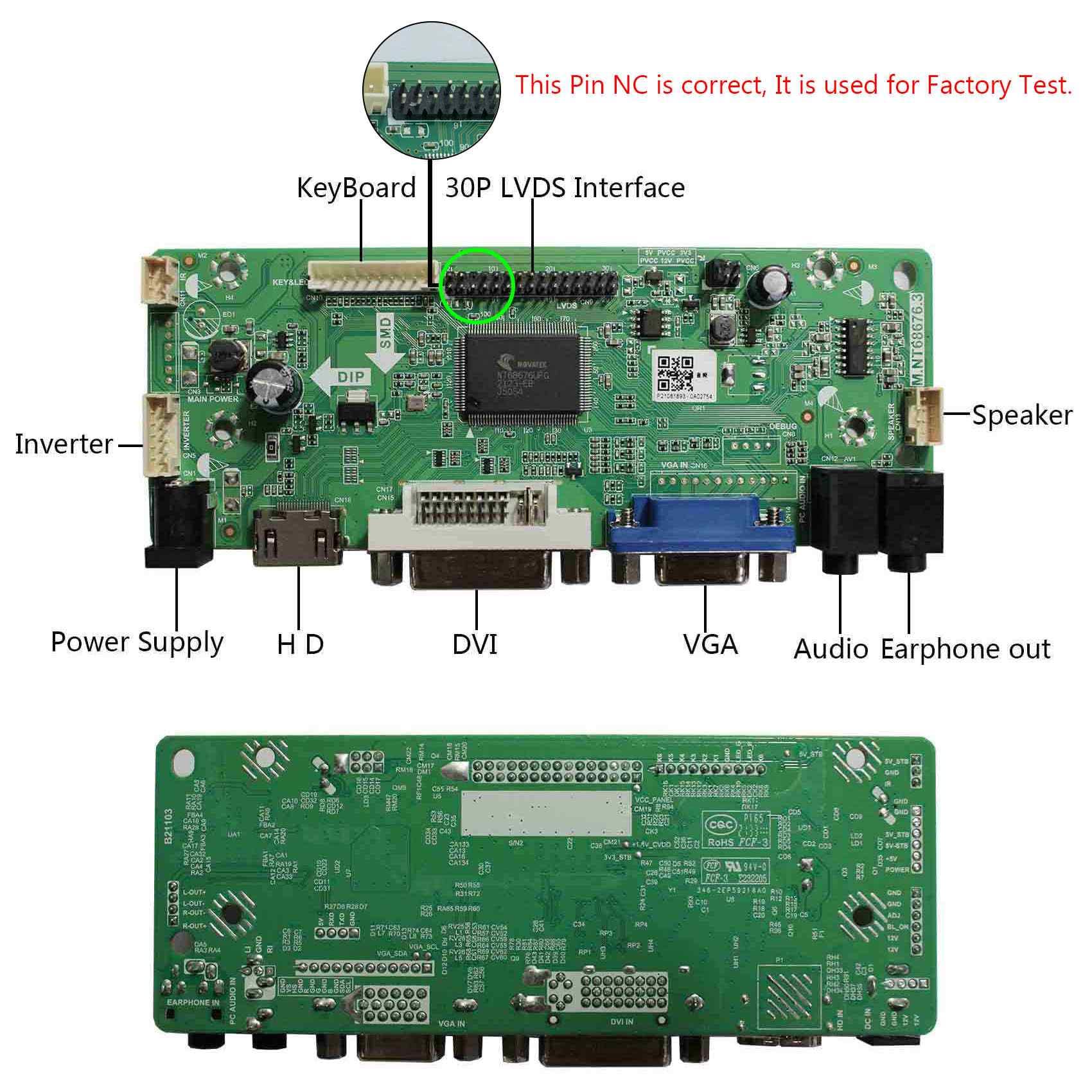

Audio Input: HD-MI,Audio Output: Speaker Connector. Can work with :VSDISPLAY Speaker 8ohm 2W 70mmx33mmx15mm 4Pin Cable for LCD Controller Board M.NT68676 HD-MI DVI VGA Audio input
Input Power Adapter: 12Vdc More than 2A. Power Size:Connector 5.5mmx2.1mm , help to notice there is no power adaptor in the packing list. Recommend adapter :VSDISPLAY Power Adapter, AC 100-240V Input to 12V DC,2A Output,Power Supply, US Plug,Fit for Many Types of VSDISPLAY LCD Controller Board

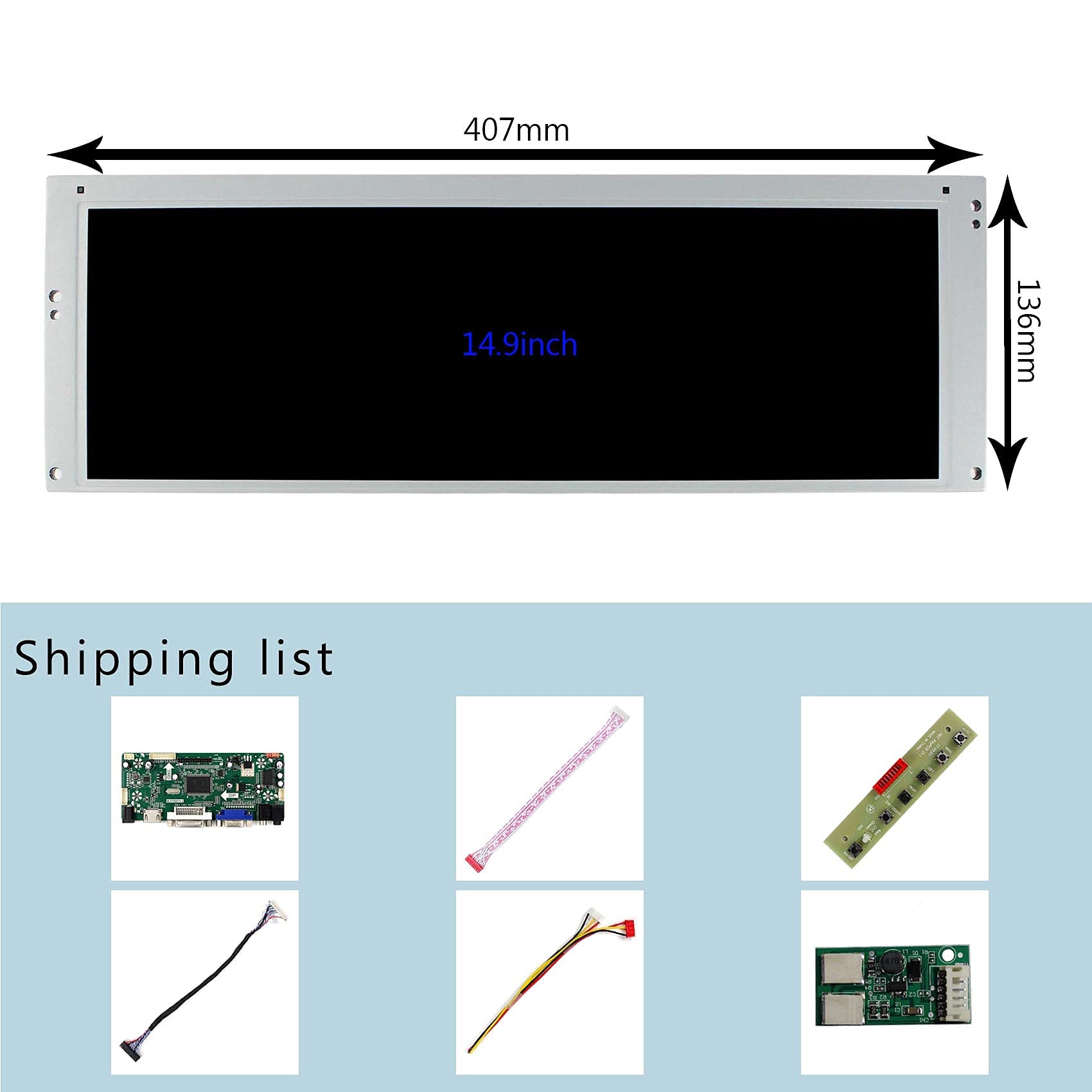

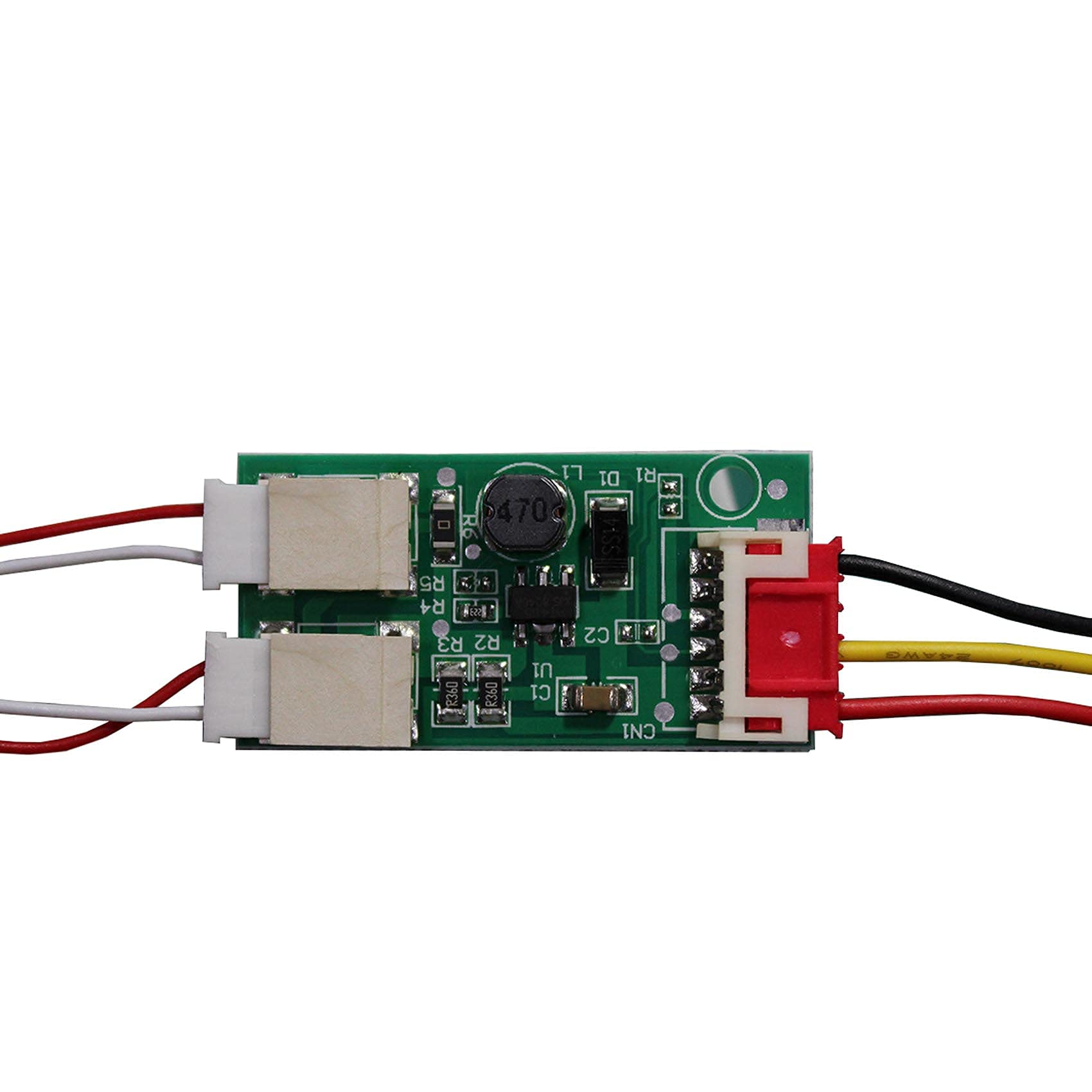

Packing list : 1× HD-MI VGA DVI LCD Controller Board M.NT68676 1× 14.9inch LTA149B780F 1280X390 LCD Screen 1× LVDS Cable 1× Converter Board 1× Keyboard With Cable 1x instruction ( Help to notice , help to notice there is no power adaptor and speaker in the packing list.) Please free free to conact us if you have any question (First click sold by 'Shenzhen Weisi Electronics Co., Ltd', then 'ask a question')
Product Specifications
Product Dimensions: 160.43 x 53.54 x 8.07 inches
Item Weight: 1.98 pounds
Manufacturer: VSDISPLAY
ASIN: B07QGBL568
Item model number: LTA149B780F
Customer Reviews: 4.1 out of 5 stars 144Reviews
Best Sellers Rank: #153,496 in Electronics (See Top 100 in Electronics) #3,249 in Computer Monitors
Language: English French German Spanish Italian And So On
WHen power on the LED light will be green .
If there is no signal ,the LED light will become to red

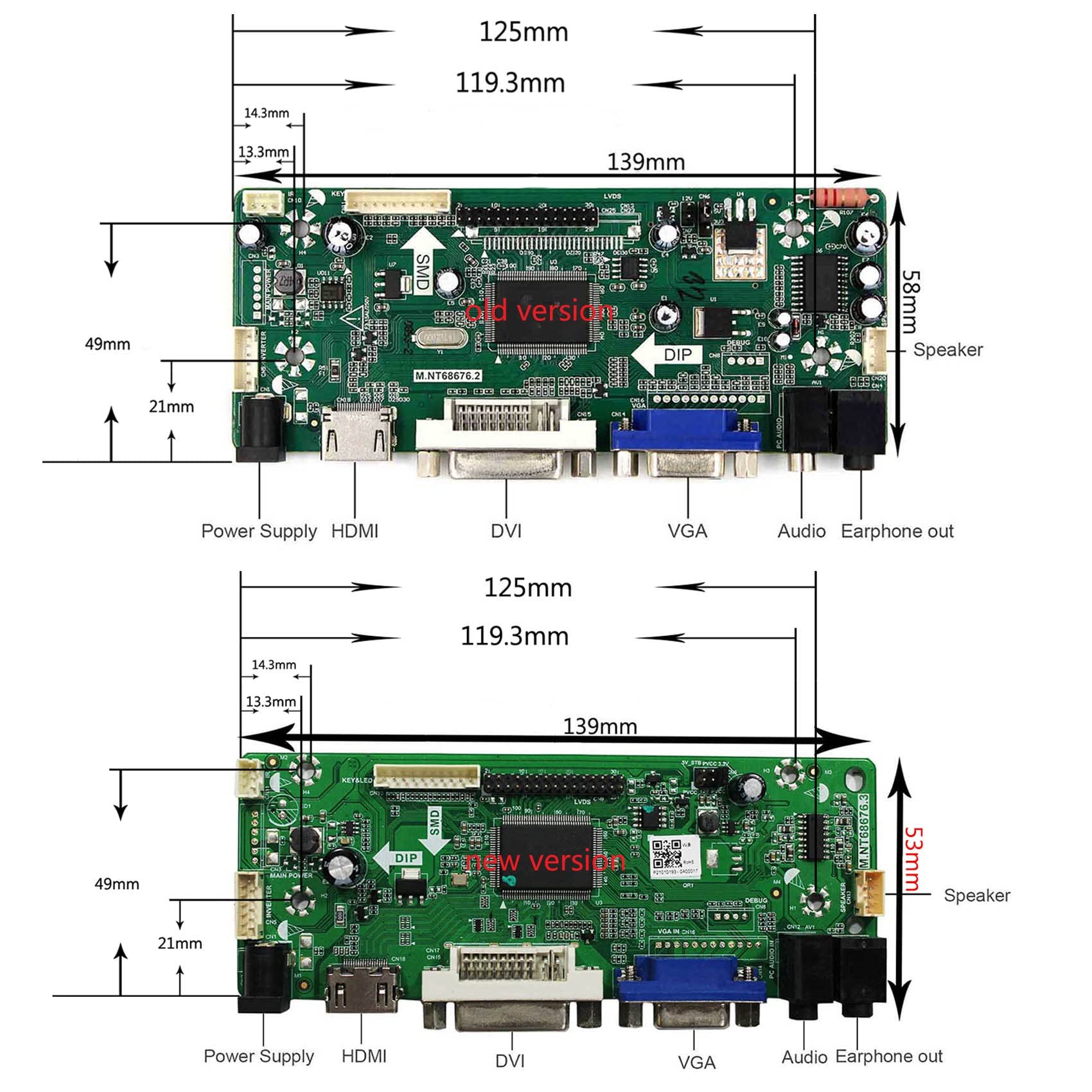

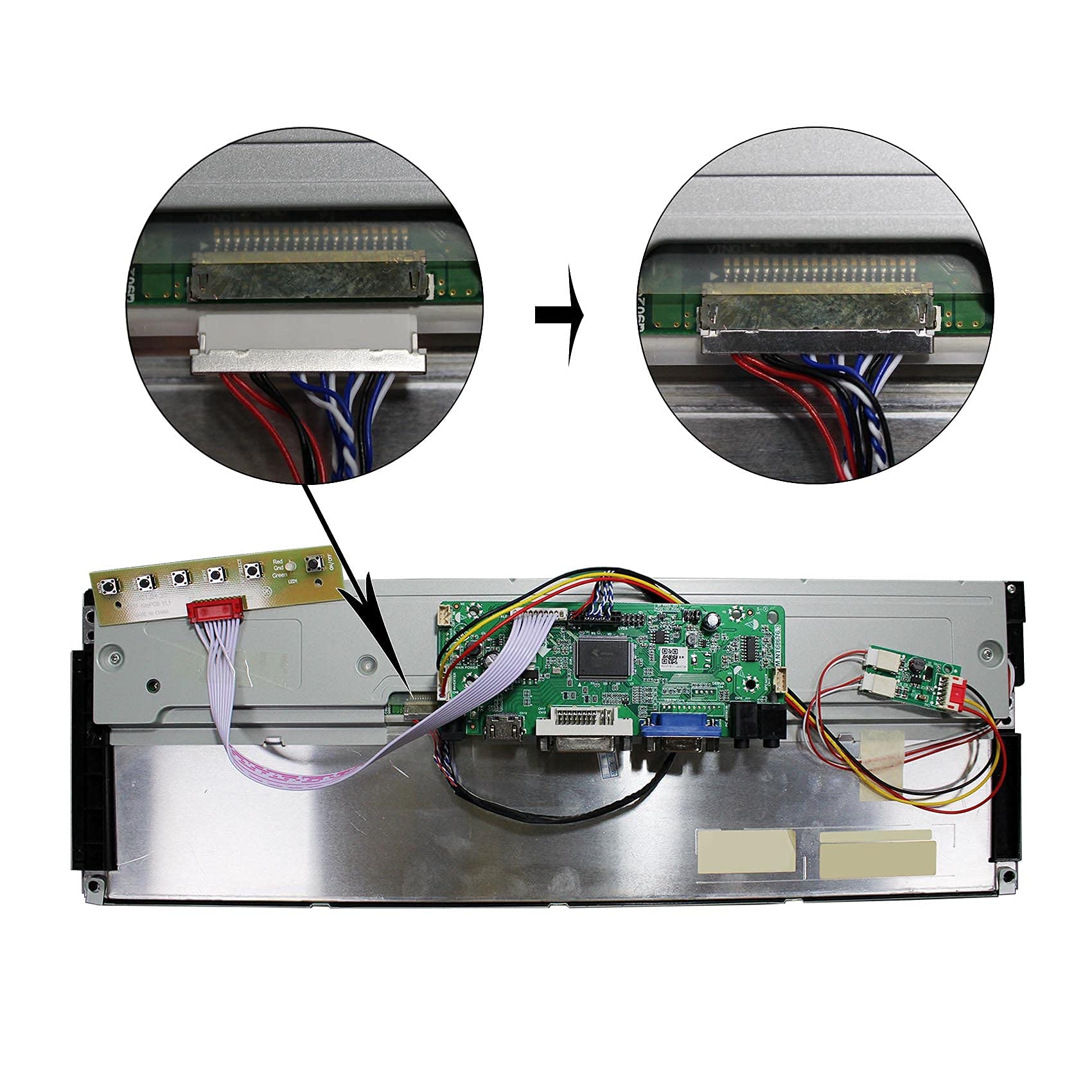

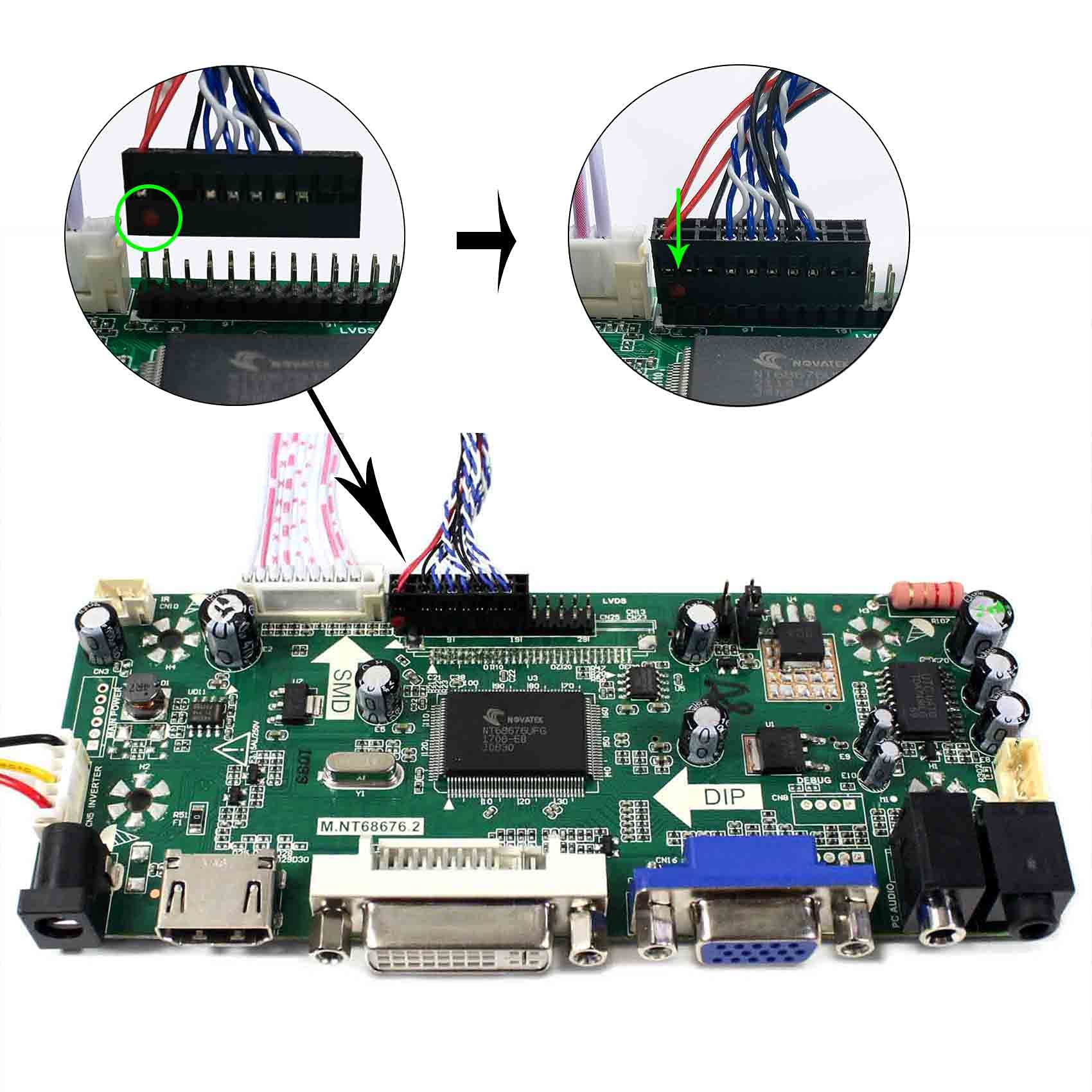

Cable connecting details
Operation steps:
1.Pls make sure the board working in insulated environment to avoid short road.
2.No need driver to be installed ,directly connecting the cables as link pictures.
3.Power on the board with 12V DC 2A input ,the LED light on keyboard will be green.
4.When the LED light green ,enter into HDMI/VGA/DVI signal ,Then customize the resolution to 1280x390,60HZ ,choose full screen ,Then the screen will show pictures or video perfectly.
Resolution setting details1
1.Choose the Display -changing resolution .
2.Check if there is 1280x390 resolution ,If yes,Directly choose this resolution ,If no ,Chose "Customize".
3.Creat custom resolution to 1280x390,60HZ
Manual setting : 1280x390,too .
4.When setting well ,you can checked there is a option on the resolution .
5.Pls choose the correct resolution :1280x390,and click "Apply"
Resolution setting details1
Resolution setting :
1.Choose the Display resolution setting .
2.Customize the resolution to 1280x390,60HZ.If not 1280x390,then the resolution will be deformed .
3.Scaling a scaling mode to :Full-screen.Then the icons and pictures can be showing great on screen .
4.Should be clarified ,If the resolution is not the same as 1280x390,60HZ ,the screen picture will be deformed.
