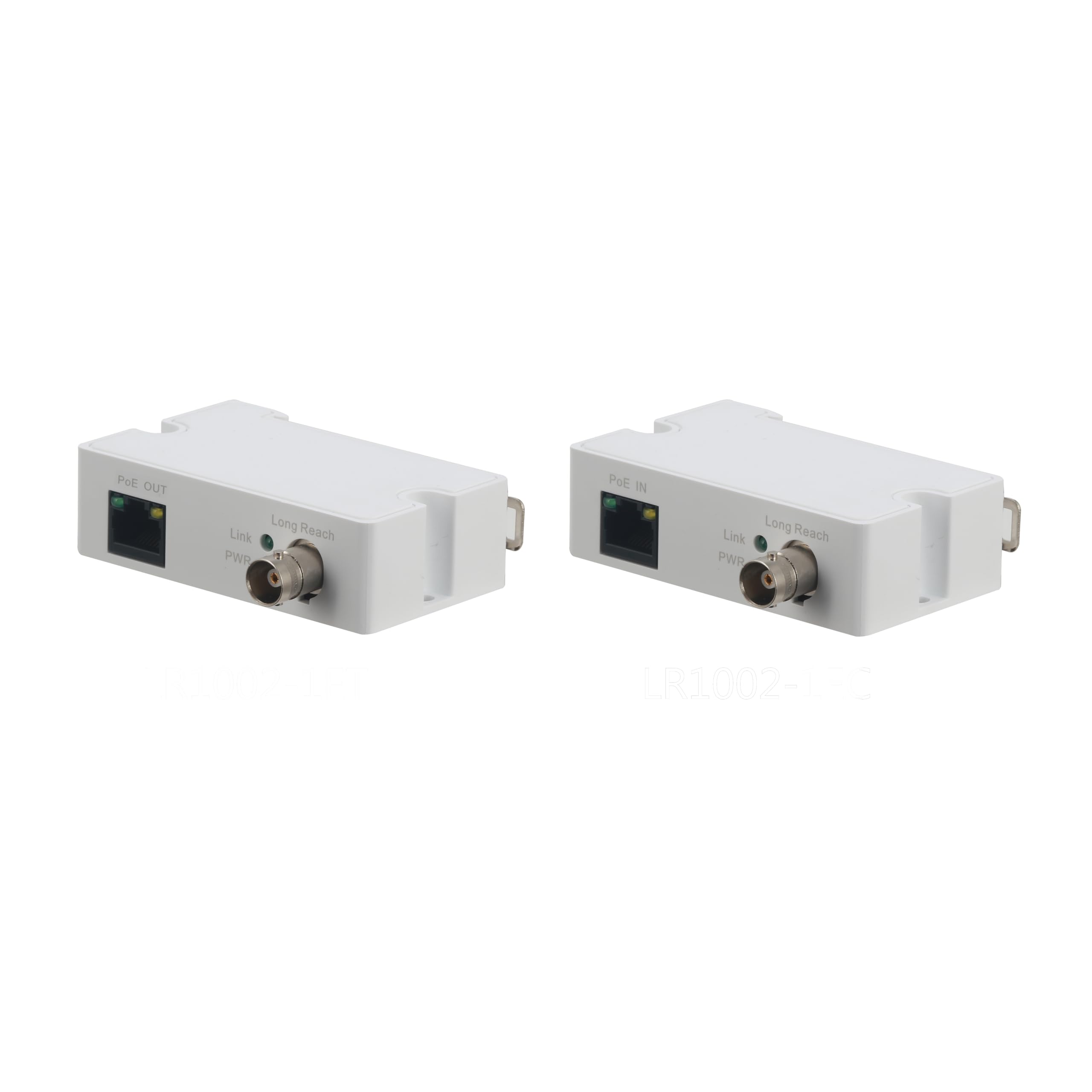

EmpireTech Coaxial Cable Single-Port Ethernet Over Coax Extender EOC Converter IP Over Coax max 3000ft POE Power and Data Transmission Over Regular RG59 LR1002-1ET+LR1002-1EC

Brand: Loryta

(19 votes)

Seller: N/A

Sell on:

Amazon US

EmpireTech Coaxial Cable Single-Port Ethernet Over Coax Extender EOC Converter IP Over Coax max 3000ft POE Power and Data Transmission Over Regular RG59 LR1002-1ET+LR1002-1EC

0885996168

/ Email: Support@fado168.com

Monday to Friday: from 08h - 22h, including Saturday and Sunday

$90.46

Delivery time 15-20 day. View detail

The Product does not have an exact weight, The total order value may be changed after approval

Quantity:

Shipping costs may be calculated and shown in your cart.

Seller List

The Time commitment

Fado168.com offers flexible shipping packages
3-5 days 7-20 days

+ See the detail

Free customs procedures

Fado168.com represent the customers to handle all the paperworks from the stage of export from ASIA import to Cambodia

+ See the detail

Diversified payment, flexible

Transfer by Internet Banking, via Bank account, by Wing or pay direct at Company

+ See the detail

Free delivery

Free delivery in Phnom Penh

+ See the detail

Safe shopping

With Fado168.com buyers always have insurance the risk when order the international goods

+ See the detail

Loading Product Infomation...

PRODUCT FEATURES

Single-Port Ethernet over Coax Extender

Product Specifications

Product Dimensions: 4.53 x 3.15 x 3.07 inches
Item Weight: 6.5 ounces
Manufacturer: China
ASIN: B07RWT8SDX
Country of Origin: China
Item model number: LR1002-1ET LR1002-1EC
Customer Reviews: 4.5 out of 5 stars 17Reviews
Date First Available: May 16, 2019

Product Information

Product description

Loryta LR1002-1ET+LR1002-1EC EOC Converter IP Over Coax max 3000ft POE Power and Data Transmission Over Regular RG59 coaxial Cable

Product description

Bullet Point

Single-Port Long Reach Ethernet over Coax Extender
Supports IEEE802.3, IEEE802.3u standards ; Port: 1*RJ45 10/100Mbps, 1*BNC
Supports IEEE802.3af and IEEE802.3at power supply standards
Supports MDI/MDIX self-adaption ; Supports long range power supply transmission via coaxial cable
Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps

Technical Speciﬁcation:

Power Consumption : <2W
Transmission Bandwidth : RG59 coaxial cable:400m/100Mbps, 1000m/10Mbps
PoE Protocol:IEEE802.3af, IEEE802.3at
Network Standard : IEEE802.3, IEEE802.3u, IEEE802.3x
Lightning Protection : Common Mode 4KV ; Differential Mode 2KV
Operating Temperature : -30°C-65°C
Operating Humidity : 5%~95%
Weight : 61g

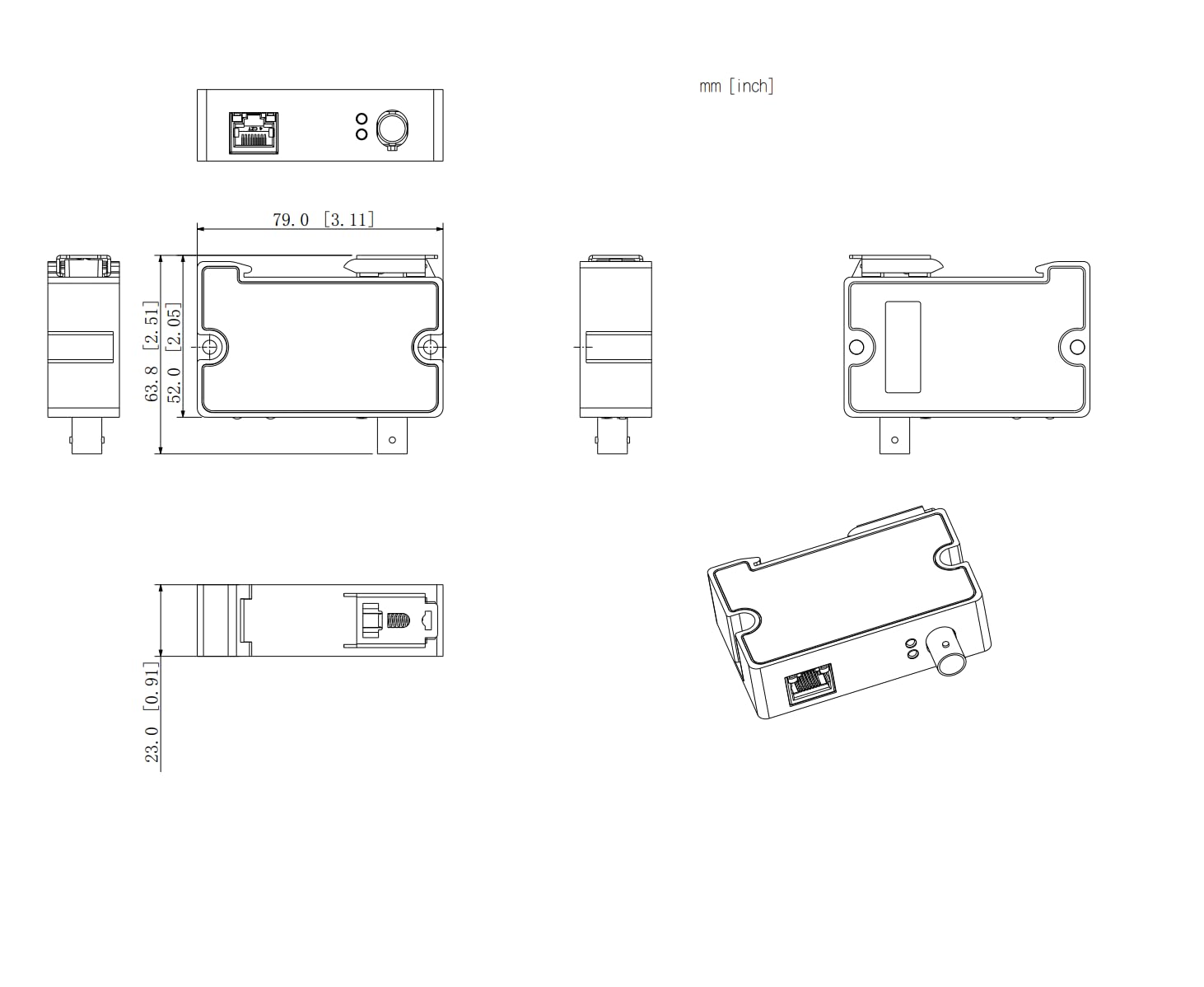

Dimension (W×D×H) : 79mm×52mm×23mm

Loryta LR1002-1ET+LR1002-1EC EOC Converter IP Over Coax max 3000ft POE Power and Data Transmission Over Regular RG59 coaxial Cable

Product description

This is perfect choice when you renovate analog system to POE IP surveillance system, no need to rewire the coaxial cables to Cat5/6 cable, just use this small one port gadget and changed the front end(analog camera to IP camera) and back end(digital recorder to network recorder)

Speciﬁcation:

Model : LR1002-1ET LR1002-1EC
Function Port :

1*10/100 Mbps Base-TX
1*BNC

1 Product Overview

1.1 Product Introduction Single-port Long Reach Ethernet over Coaxial Extender is a type of converter from RJ45 to BNC port , which supports long range power supply transmission via coaxial cable . It provides one BNC coaxial port and one RJ45 port . The product is equipped with two transmission modes which are 100M bps and 10M bps . It can be modified according to the transmission distance .

1.2 Product Features

Supports IEEE 802.3，IEEE 802.3 u and IEEE 802.3 X standards
Supports IEEE802.3af and IEEE802.3at power supply standards.
Port: 1*RJ45 10/100Mbps, 1*BNC.
Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps .
Supports MDI/MDIX self-adaption .
Supports long range power supply transmission via coaxial cable .
Operating temperature : -30~65℃ .

1.3 Typical Application :

The product is divided into trans mitter ( LR1002-1ET) and receiver (LR1002-1EC), which can be used together with EoC Passive Converter (LR1002) . It owns three types of networking schemes ,which is shown in this picture . ePoE switch or ePoE IPC means the specific switch or IPC with the function of long distance .

2 Device Structure

2.1 Device Panel

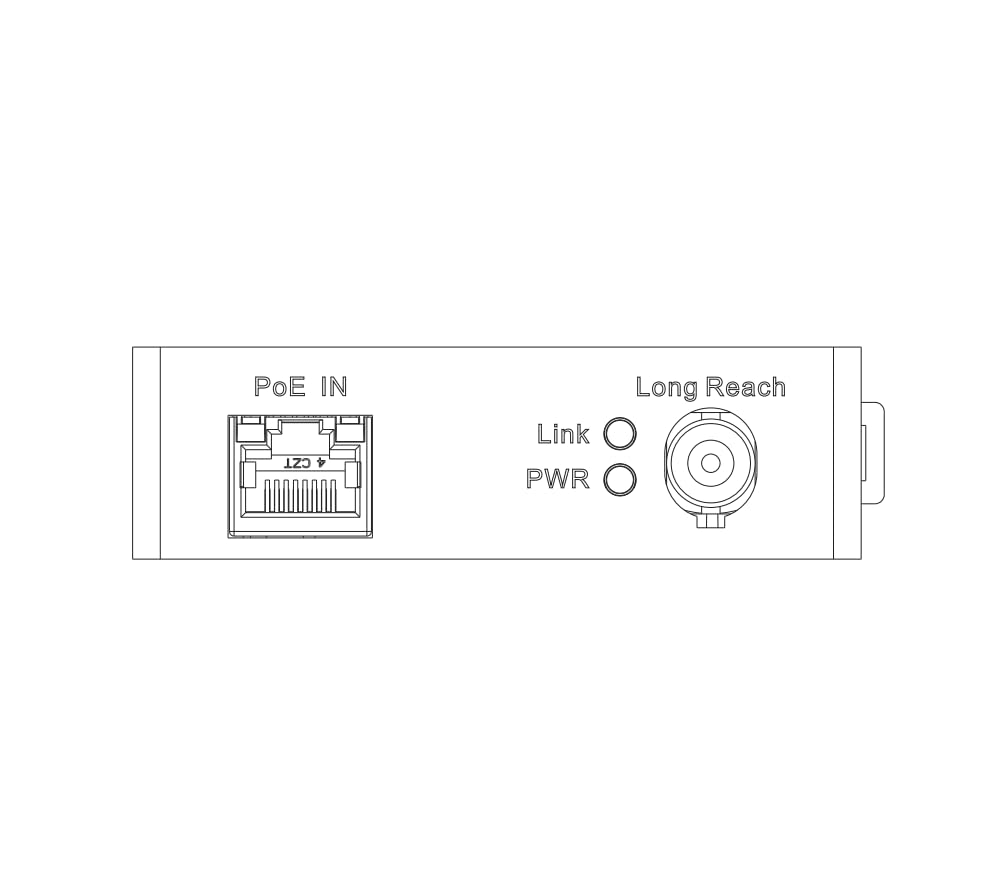

The device panel is shown in Figure 2-1 (LR1002-1ET) and Figure 2-2 (LR1002-1EC)

Please refer for more details.

PoE OUT : PoE out put port
PoE IN : PoE in put port
Link :

BNC port Link in dicatorlight
E100 : On for 3 seconds , off for 1 second
E10 : On for 1 second , off for 1 second
PWR : Power in dicator light
Long Reach : Coaxial cable port

3 Installation Guide

3.1 Device Installation

Single-Port Long Range Ethernetover Coaxial Extender supports two installation modes .It can be installed into the junction box or it can support DIN rail mount .

Please refer to Figure3-1 for installation Inside junction Box.

Please refer to Figure3-2 for DIN rail mount .

Take RG59 as an example (Max. DC resistance < 5.0Ω/100m)
