EmpireTech 4MP 1/1.8" CMOS Full Color Starlight IVS WDR AI IP Camera with 2 LEDs Fixed Lens,Motion Detection, Video MetaData, Built-in Mic, Outdoor IP67,IPC-T549M-ALED-S3 2.8MM

Brand: Loryta

(25 votes)

Seller: N/A

Sell on:

Amazon US

0885996168

/ Email: Support@fado168.com

Monday to Friday: from 08h - 22h, including Saturday and Sunday

$198.37

Delivery time 15-20 day. View detail

The Product does not have an exact weight, The total order value may be changed after approval

Quantity:

Shipping costs may be calculated and shown in your cart.

Seller List

The Time commitment

Fado168.com offers flexible shipping packages
3-5 days 7-20 days

+ See the detail

Free customs procedures

Fado168.com represent the customers to handle all the paperworks from the stage of export from ASIA import to Cambodia

+ See the detail

Diversified payment, flexible

Transfer by Internet Banking, via Bank account, by Wing or pay direct at Company

+ See the detail

Free delivery

Free delivery in Phnom Penh

+ See the detail

Safe shopping

With Fado168.com buyers always have insurance the risk when order the international goods

+ See the detail

Loading Product Infomation...

PRODUCT FEATURES

4-MP 1/1.8" CMOS image sensor, low illuminance, high imagedefinition.
Built-in warm light and the max. illumination distance is 30 m.

Product Specifications

Product Information

Product description

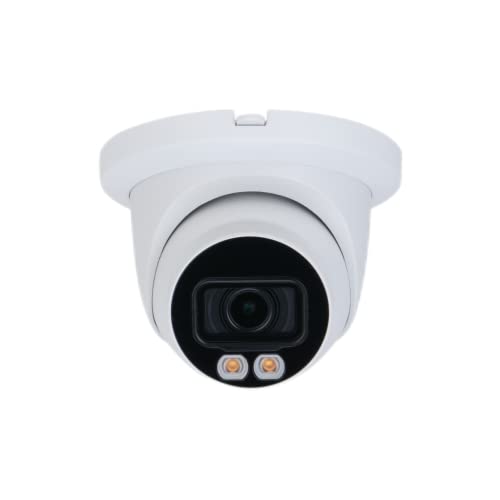

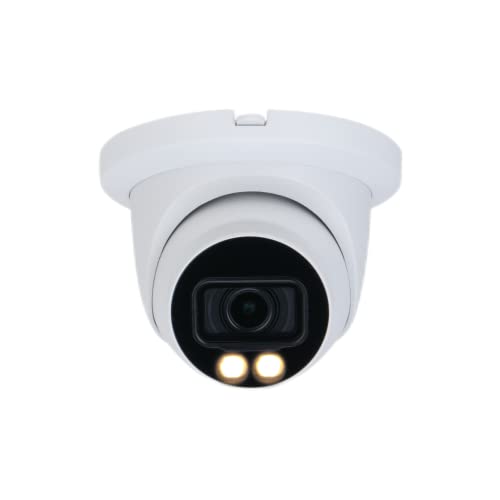

Full-color 4MP Fixed-focal Warm LED Turret IP Camera

IPC-T549M-ALED-S3

4MP 1/1.8" CMOS image sensor, low illuminance, high imagedefinition.
Outputs max. 4 MP (2688 × 1520) @ 30 fps.
Built-in warm light and the max. illumination distance is 30 m (98.43 ft) .
ROI, SVC, AI H.264/H.265, flexible coding,applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking,applicable to various monitoring scenes.
With deep learning algorithm, it supports: video metadata,IVS, facedetection, smart object detection, and people counting, etc.
Supports max. 512 G Micro SD card, built-in Mic.
12 VDC/PoE power supply; ePoE.

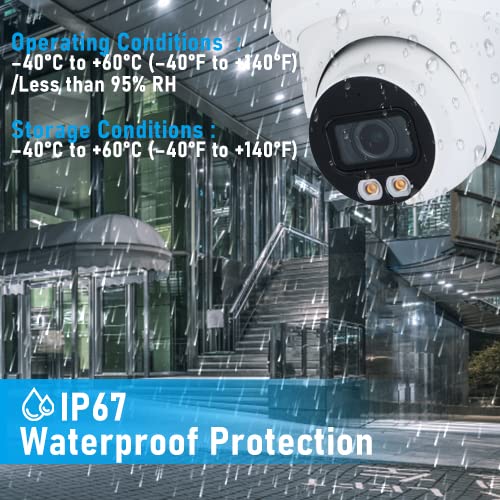

IP67 protection.

Camera

Image Sensor : 1/1.8" CMOS
Max. Resolution : 2688 (H) × 1520 (V)
ROM /RAM : 256 MB / 1 GB
Scanning System : Progressive
Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
Min. Illumination : 0.0005 lux @ F1.0
S/N Ratio : > 56 dB
Illumination Distance : Up to 30 m (98.43 ft)
Illuminator On/Off Control : Auto; Manual
Illuminator Number : 2 (Warm light)

Audio

Built-in MIC : Yes
Audio Compression : PCM; G.711a; G.711Mu; G.726; G.723

Smart AI

IVS (Perimeter Protection)
Smart Object Detection
SMD 3.0
AcuPick
Face Detection
People Counting
Heat Map
Video Metadata

Lens

Lens Type	Fixed-focal
Lens Mount	M16
Focal Length	2.8 mm; 3.6 mm
Max. Aperture	F1.0
Field of View	2.8 mm: H: 112°; V: 60°; D: 135° / 3.6 mm: H: 95°; V: 51°; D: 116°
DORI Distance	Lens ---------- Detect ---------------------- Observe ----------------- Recognize ------------- Identify
.	2.8mm ------- 58.2m(190.94ft) -------- 23.3m(76.44ft) ---------- 11.6m(38.06ft) -------- 5.8m (19.03ft)
.	3.6mm ------- 70.3m(230.64ft) -------- 28.1m(92.19ft) --------- 14.1m(46.26ft) -------- 7.0m(22.97ft)
Network Port	RJ-45 (10/100 Base-T)
SDK and API	Yes
Network Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
User/Host	20 (Total bandwidth: 80 M)
Storage	FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Browser	IE: IE 11 and later / Chrome: Chrome 45 and later / Firefox: Firefox 46 and later / Safari: Safari 12 and later

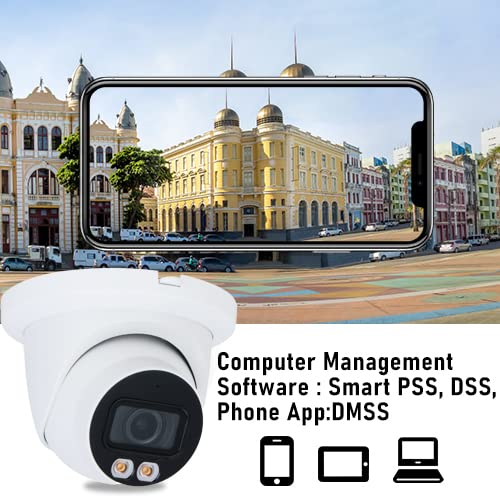

Management Software	SmartPSS Lite; DSS; DMSS
Mobile Client	iOS; Android

Intelligence

IVS (Perimeter Protection)	Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
Smart Object Detection	Smart abandoned object; smart missing object
SMD	SMD 3.0
AcuPick	Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
Face Detection	Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
People Counting	Tripwire people counting and people counting in area; generating and exporting report (day/month/year); 4 rules can be set for tripwire, people counting in area and queue management.
Heat Map	Yes
Video Metadata	Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload.
.	Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle
.	Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body.
Smart Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Alarm Event	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; scene changing; audio detection; voltage detection; external alarm; face detection; SMD; security exception; people detection; area people counting; stay alarm; people counting; people number exception detection

Video

Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
AI Coding	AI H.265; AI H.264
Video Frame Rate	Main stream: 2688× 1520@(1 fps–25/30 fps) ; Sub stream: D1@(1 fps–25/30 fps) ; Third stream: 1080p@(1 fps–25/30 fps)
Stream Capability	3 streams
Resolution	2688 × 1520; 2560 × 1440; 2048 × 1536; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA(640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR /ABR
Video Bit Rate	H.264: 32 kbps–16384 kbps / H.265: 12 kbps–16384 kbps
Day/Night	Color/B/W
Support	BLC /HLC /WDR(140 dB )/Scene Self-adaptation (SSA) /Motion Detection (3D NR )/Defog /Mirror /LDC
White Balance	Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control	Auto/Manual
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 4M resolution and lower)
Privacy Masking	4 areas

Installation Types

Loryta Wall Mount Bracket PFB205W-E For EmpireTech Camera

Optional Accessories（Bracket needs to be purchased separately）：

PFA130-E Junction box
PFB205W-E Wall Mount Bracket
PFA152-E Pole Mount Bracket
PFA109 Mount Adapter
PFB220C Celling Mount Bracket
LR1002-1ET/1EC Single-port Long Reach Ethernet over Coax Extender

Power

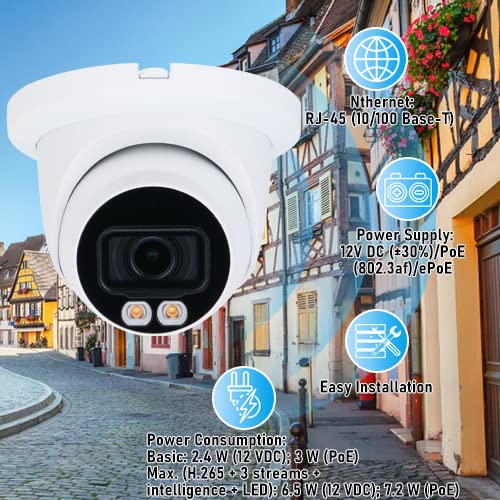

Power Supply : 12 VDC /PoE (802.3af)/ePoE
Dual Power Backup : When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption : Basic: 2.4 W (12 VDC); 3.2 W (PoE) / Max. ( warm light+ intelligence on + WDR): 8.4 W (12 VDC); 9.8 W (PoE)

Structure

Casing Material : Inner core: metal / Cover: metal / Decoration ring: plastic / Quick install mounting plate: metal
Product Dimensions : Φ122.0 mm × 104 mm (Φ4.80" × 4.09")
Net Weight : 494 g (1.09 lb)
Gross Weight : 711 g (1.57 lb)

	IPC-Color8M-TL	IPC-Color4M-T	IPC-Color4K-T180	IPC-Color4K-T

Customer Reviews	—	—	31	51
Price	$179.99	— no data	$249.99	$229.99
Type	Smart Dual Lights Camera	Smart Dual Lights Camera	2×4MP Full-color Duo Splicing Camera	Full-color Camera
Pixel	4K 8MP	4MP	4K 8MP	4K 8MP
Illuminator	2 (Multi-core (IR + warm) light)	2 (Multi-core (IR + warm) light)	4 (Warm light)	2 (Warm light)
Lens	2.8 mm; 3.6 mm Fixed-focal Optional	2.8 mm; 3.6 mm Fixed-focal Optional	3.6 mm Fixed-focal	2.8 mm; 3.6 mm Fixed-focal
Smart AI	IVS (Perimeter Protection),Face Detection(Full Image),SMD 4.0,AcuPick,AI SSA,Smart Search.	IVS (Perimeter Protection),Face Detection(Full Image),SMD 4.0,AcuPick,AI SSA,Smart Search.	IVS (Perimeter Protection) ,Heat Map ,Smart Object Detection ,People Counting ,SMD3.0.	IVS (Perimeter Protection),Face Detection,People Counting,Intelligent Search.
Audio	Support Two-way Talk	Support Two-way Talk	Support Two-way Talk	Built-in Mic
Selling Point 1	Built-in warm light and IR LED	Built-in warm light and IR LED	Outputs 180° wide angle splicing image	Full-color ,built-in warm light .
Selling Point 2	Sound and light alarm (red and blue lights).	Sound and light alarm (red and blue lights).	Full-color ,built-in warm light .	no data
Protection	IP67	IP67	IP67	IP67
