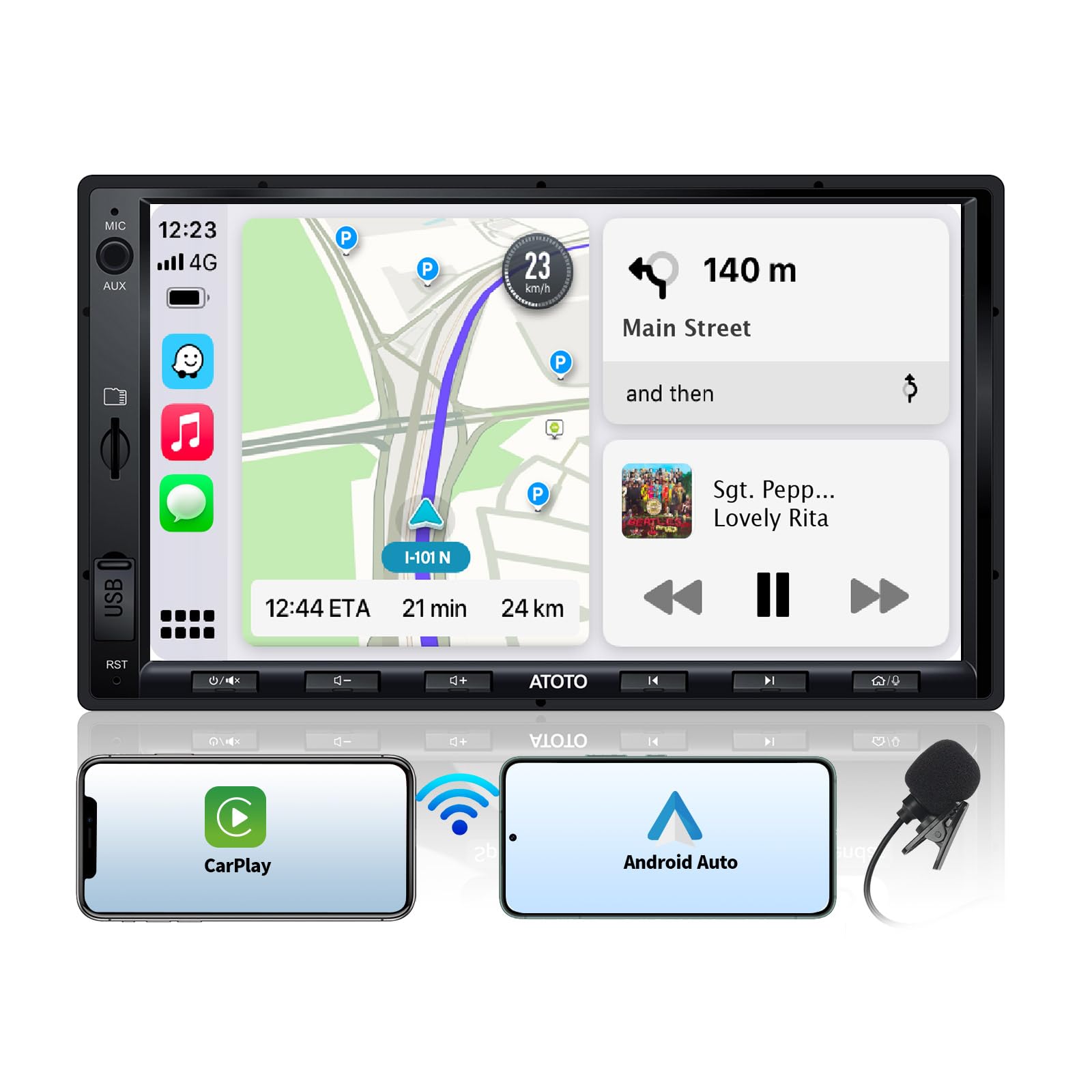

ATOTO F7WE Double DIN Car Stereo Wireless CarPlay, Wireless Android Auto 7inch in-Dash Navigation, Touch Screen Car Radio, Bluetooth 5.3, FM/AM/USB/AUX, 4.1 Channel Audio Out, HD LRV, F7G2A7WE

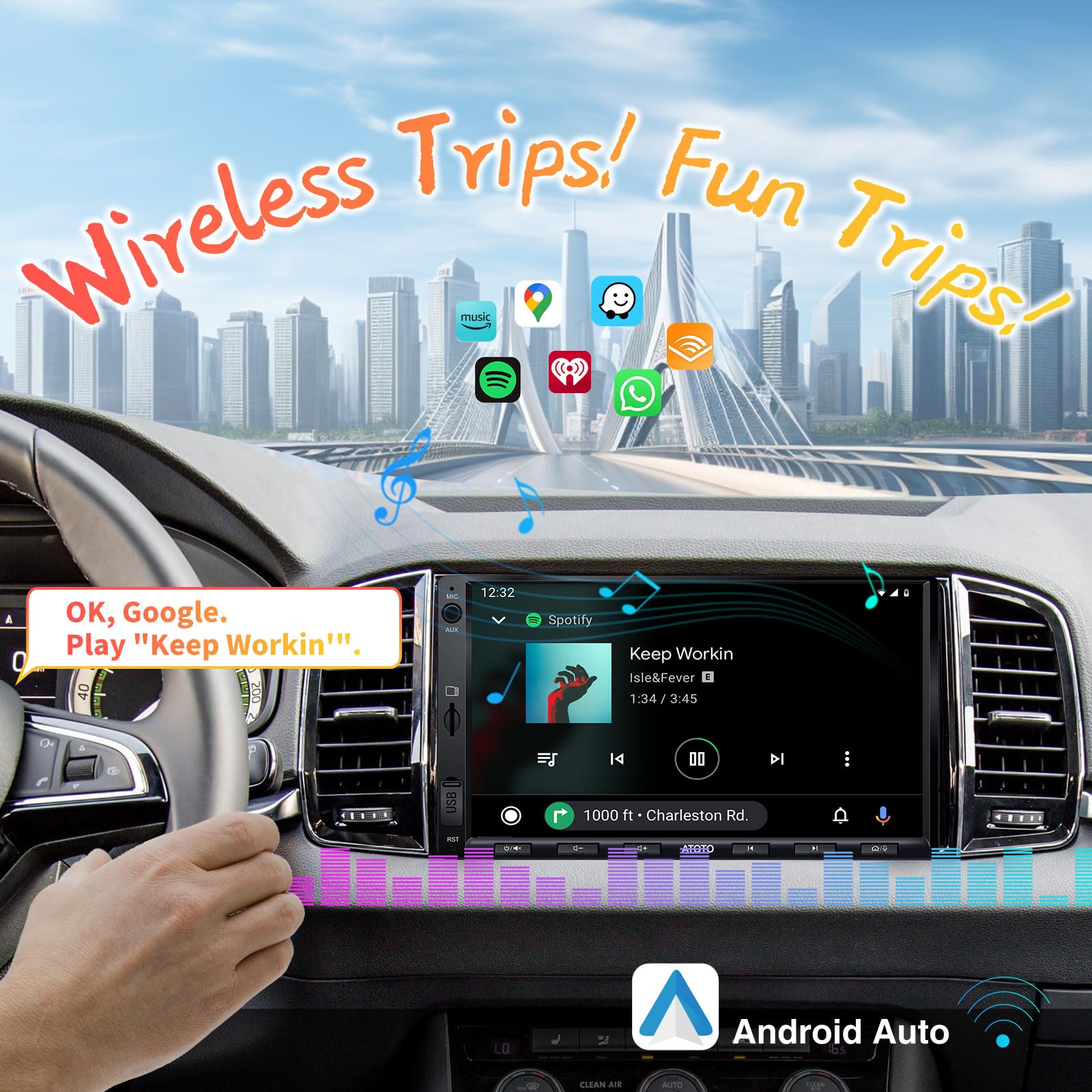

ATOTO F7 WE Double Din Car Stereo - Wireless Trips! Fun Trips!

Main Functions of F7WE Wireless Double Din Car Stereo Android Auto Carplay

1. Product Version: F7 Wireless Edition (WE). Model: F7G2A7WE; Mounting style: Universal Double DIN with a 7-inch Display
2. WIRELESS & wired CarPlay and WIRELESS & wired Android Auto: (compatibility information is specified in the corresponding sections below)

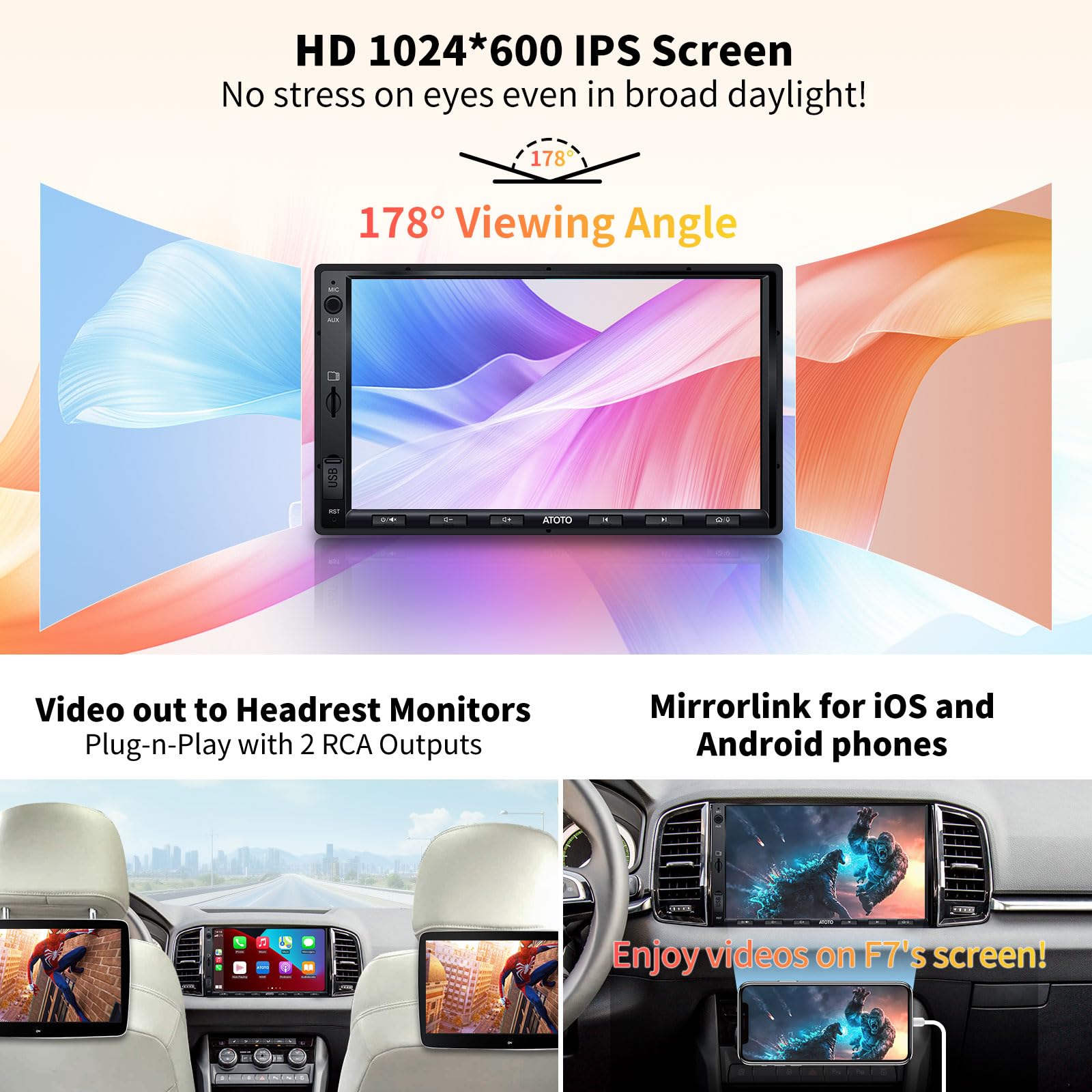

3. Full HD 7" 1024*600 IPS: display screen with a 178° full-viewing angle (brightness 600cd/m2), outstanding brightness, clear viewing even in broad daylight, never miss an important prompt; 5-Touch Capacitive Touchscreen
4. Max. 4*45W, RMS 4*24W built-in amp: (Vcc=14.4v, THD=10%, drives 4-8 ohm speakers); 10-band EQ with 7 presets
5. Navigation: F7G2A7WE comes with a specific hardware solution to integrate iOS CarPlay or Android Auto into its system so that you can run iOS Maps or Google Maps/Waze etc. on the big HD screen, as long as they are available on your phone
6. HD 720P Front and Rear View Input with Live Rear View: you can check the front view and the rear view at any time, making driving safer (ATOTO AC-HD02LR rearview camera is required for LRV, sold separately)
7. Bluetooth: supports hands-free calls and streaming music; safer driving when you can answer calls/hang up, play/pause, switch tracks, adjust the volume, etc. on the head unit, with the steering wheel controls, or with ATOTO AC-44F5 wireless remote (not included)
8. Radio tuner: Built-in FM/AM Radio Tuner
9. 6 physical buttons: with 8 functions in total enable you to perform simple tasks such as turning down the volume during driving with ease
10. Constant firmware update: ATOTO does not stop developing new firmware versions to add new features and reduce bugs. You can get them when available.

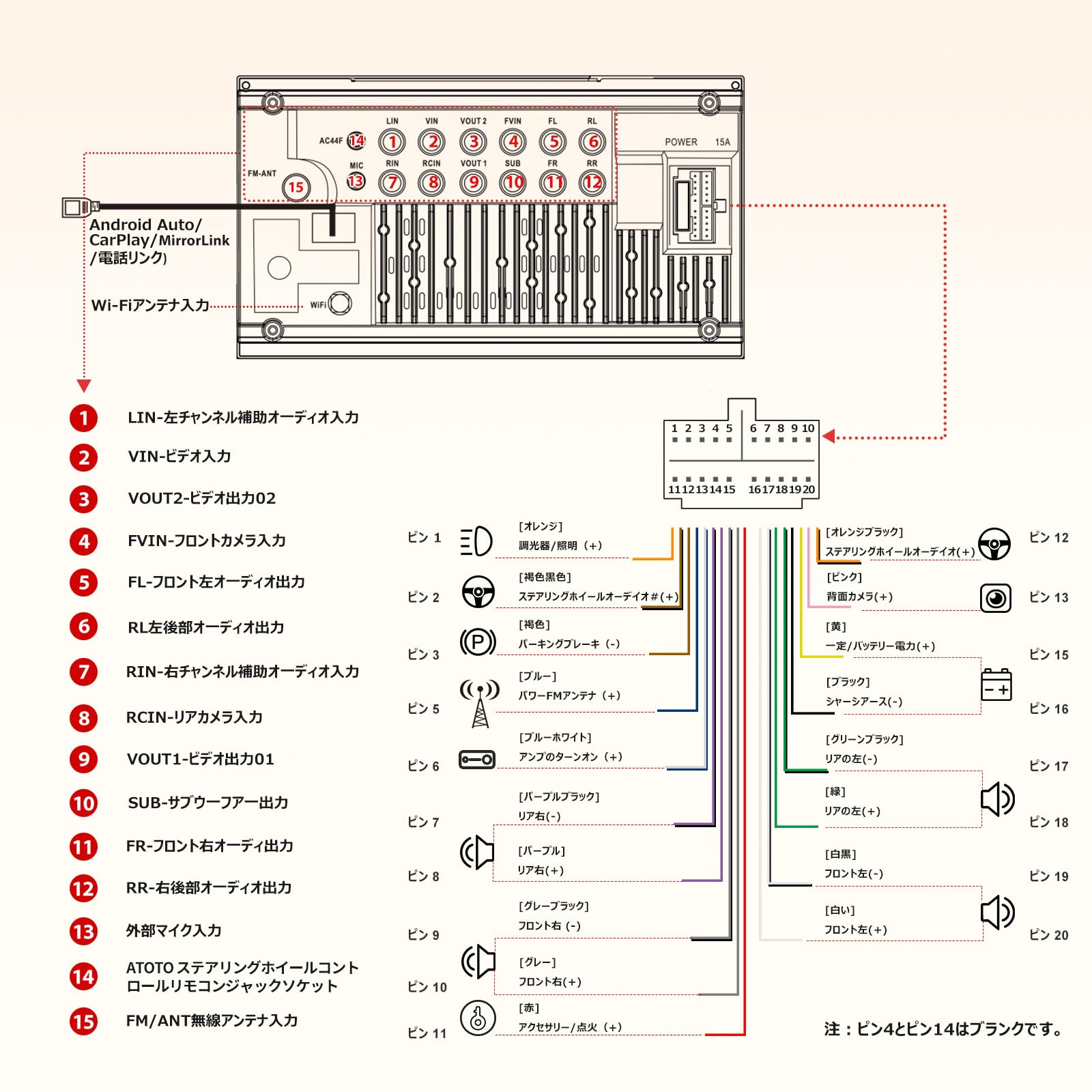

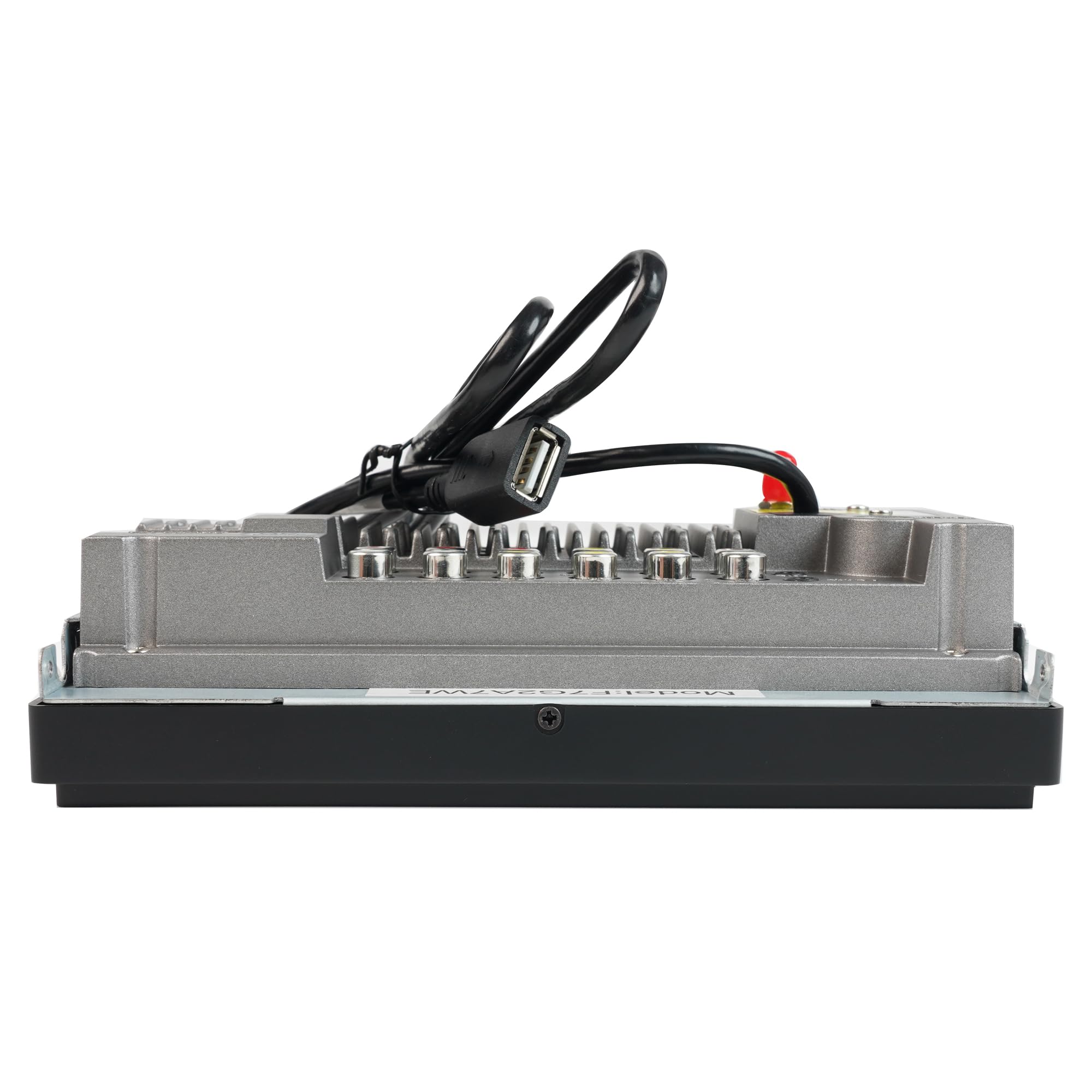

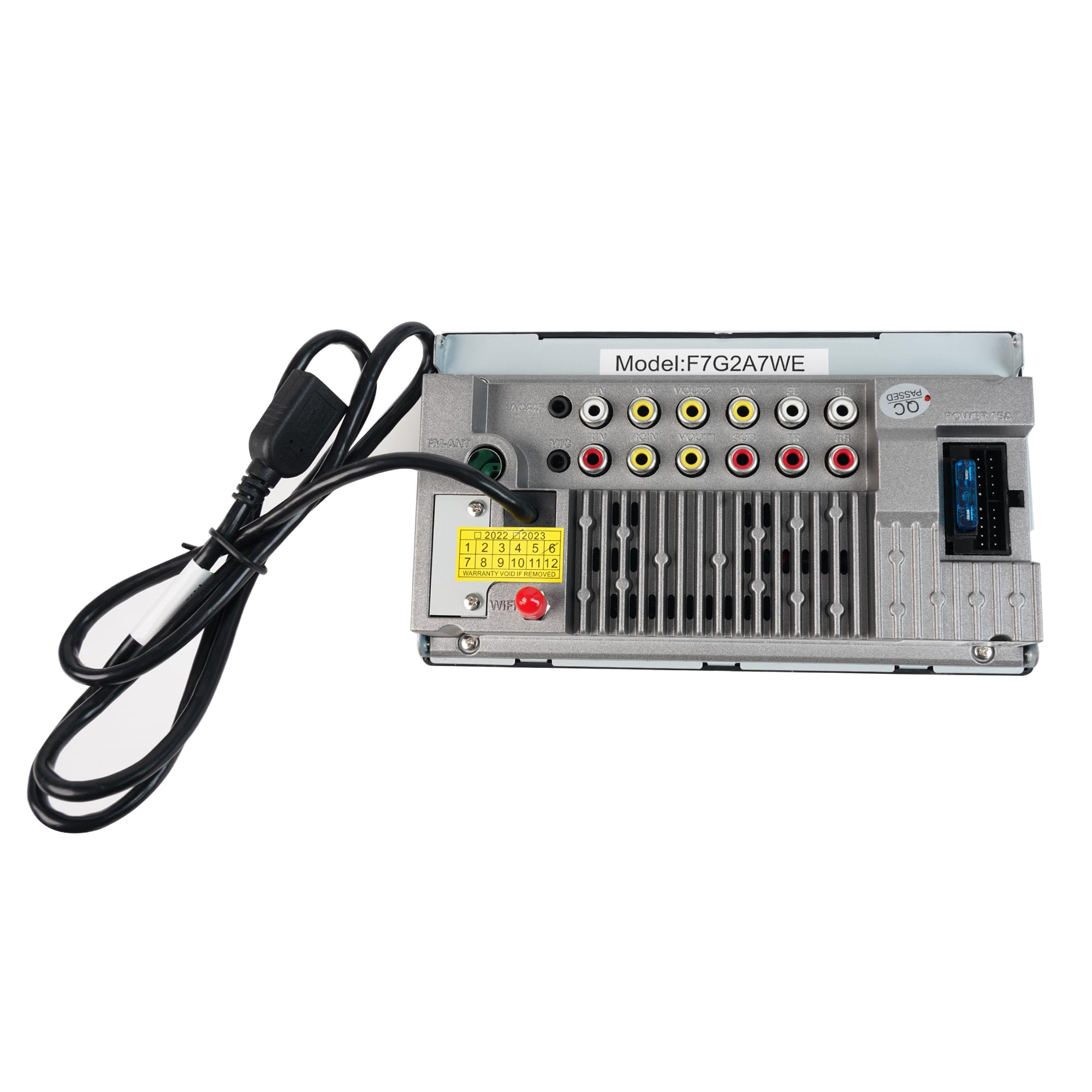

Inputs, Outputs & Slots

1. Inputs: 3 video inputs, Reversing Camera Input, AUX Audio/Video In & Front Camera Video In, can process 720P HD video signals. For reversing camera input, you can connect a specified ATOTO HD rearview camera to F7G2A7WE for 720P video display (most other head unit brands can only process CVBS 480-600 lines video signals); For F7 WE head units, the specified rearview camera is AC-HD02LR (sold separately); AC-HD03LR is not compatible
2. Outputs: 2 RCA Headrest Video Outputs; 4-CH RCA Audio Out (4v) for connecting to a factory/aftermarket amplifier; Separate Subwoofer Out (3v, full range)
3. External storage devices: One Micro SD slot - to store media files, up to 512GB; 2 USB interfaces - one for phone connection (CarPlay/Android Auto/AutoLink) and one for external storage devices and media playback. The latter reads up to 2TB SSD. Both SD & SSD must be in FAT32 or NTFS format

Wireless CarPlay and Wireless Android Auto!

The advantages of Wireless CarPlay/Android Auto on F7 WE

Wireless Connection: No longer will you need to hunt for a cumbersome holder that feels unnecessary. Wave farewell to the nuisance of tangled cables that pull your attention away. Enjoy a seamless experience, allowing you to focus on what truly matters.

Automatic Connection: For wireless CarPlay/Android Auto, the Buetooth works fine -- after you make the connection for the first time, it will all be automatic. For wired CarPlay/Android Auto, once you plug your iOS Phone/Android phone into the "Phone Link" port on F7 WE, it takes about 3 seconds for CarPlay/Android Auto to be automatically launched. Just plug-n-play.

No Concern for Phone Battery: you can drive using CarPlay/Android Auto while plugging your iOS Phone/Android phone into the USB port dedicated for charging in your vehicle, or putting it on the charging dock station. For a wired connection, it is recommended to use the original USB cable to avoid connection failures or an unstable phone connection.

Audio Performance: the M-a-x. 4x45W, RMS 4x24W (Vcc=14.4v,THD=10%) built-in amp gives you a clear audio at a pleasing volume experience when you're engaged in a phone call, immersed in your favorite music, or enjoying podcasts and so on. The included microphone is a good tool for capturing your voice clearly.

Clear- Visibility: the full HD 7" 1024x600 IPS screen not only delivers stunningly vivid colors, but also provides visibility even in bright daylight. Additionally, the touch capacitive touchscreen is easy and smooth to operate on.

Stable Data Transfer: F7 WE is more capable of delivering stable and reliable data transfer thanks to the upgraded hardware (support Wi-Fi and USB).

Vehicle Fit:

• True 7-inch screen: Typically, North American dashboard mounting frame suppliers (Metra, Scosche, PAC, etc.) provide double DIN mounting frames with a 174 mm*98 mm opening, limiting the screen size of aftermarket head units to 6.75-inch or smaller (false 7-inch). ATOTO is the first manufacturer to introduce true 7-inch Android head units with a minimal front panel size of 172 mm*97 mm (fitting the mounting frames commonly available). If needed, an extra frame adapter is also included to expand it to 178 mm*101.5 mm.
• Compatible with 3rd-Party dash kits: The Standard chassis size for double DIN head units is 178 mm*100 mm. In the case of the frontal faceplate, however, there is no such standard. As a result, many users have issues mounting head units from other brands with dash kits commonly available on the North America market. F7G2A7WE, on the other hand, with its faceplate size of 172 mm*97 mm, is compatible with products from most North American dash kit brands (Metra, Scosche, PAC, etc.).

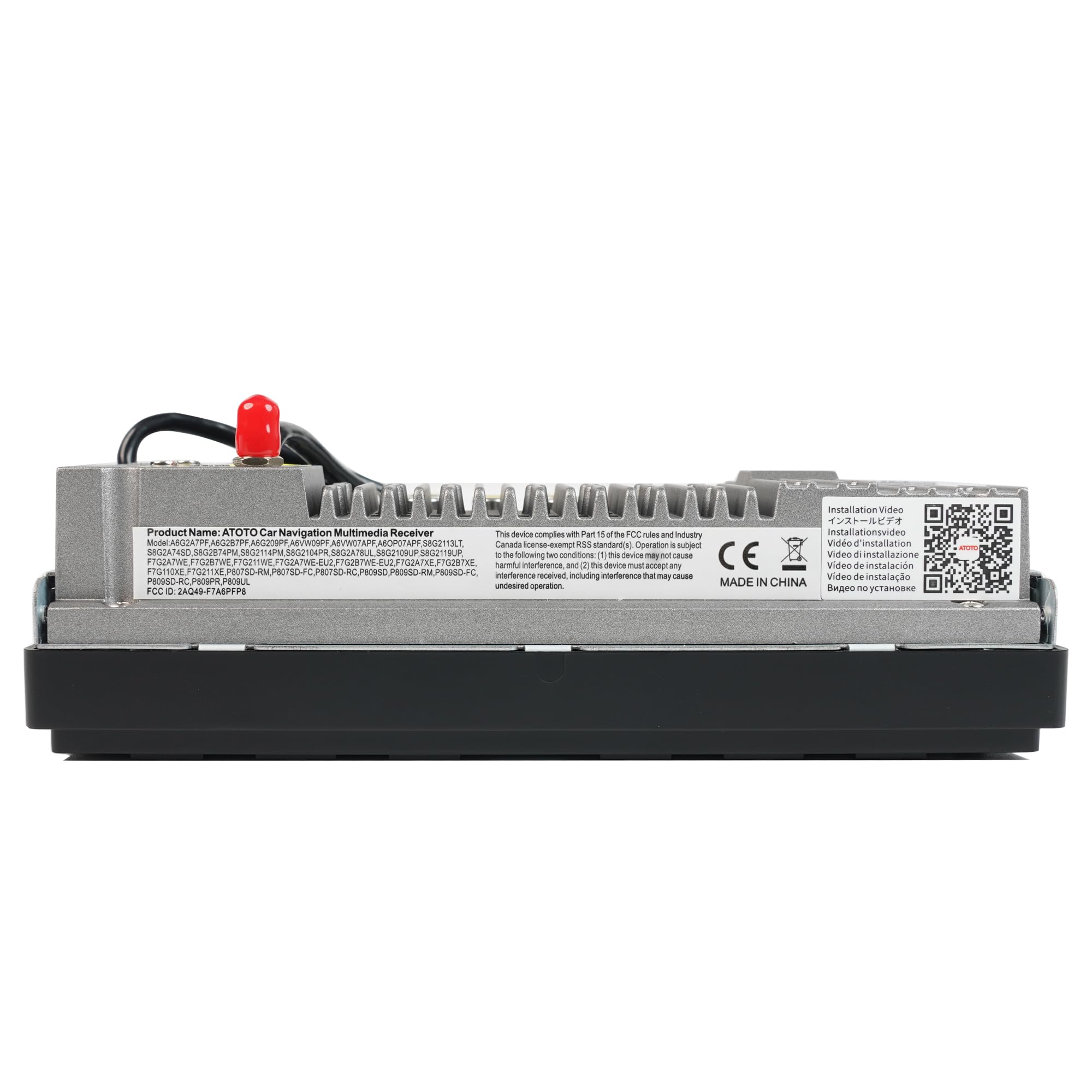

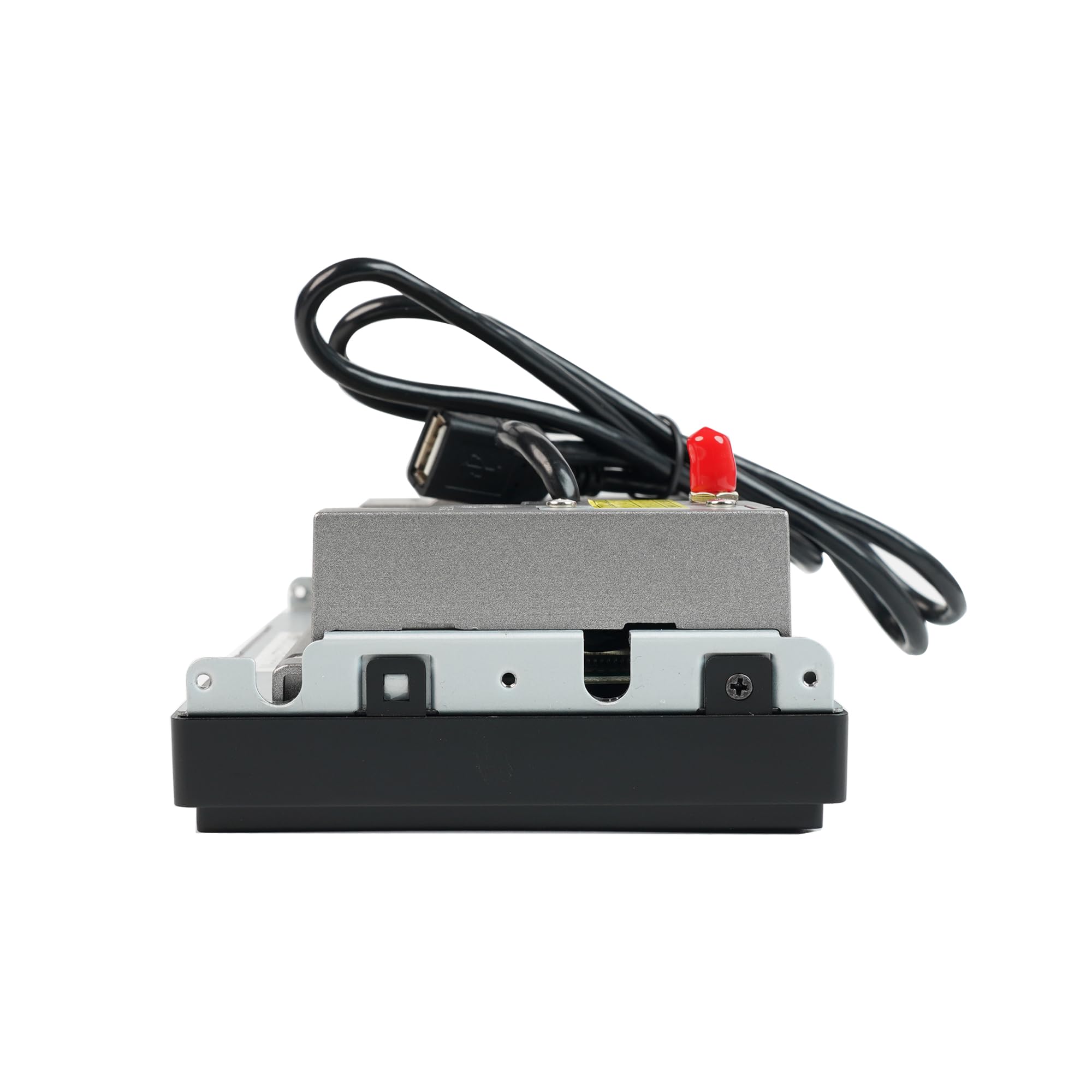

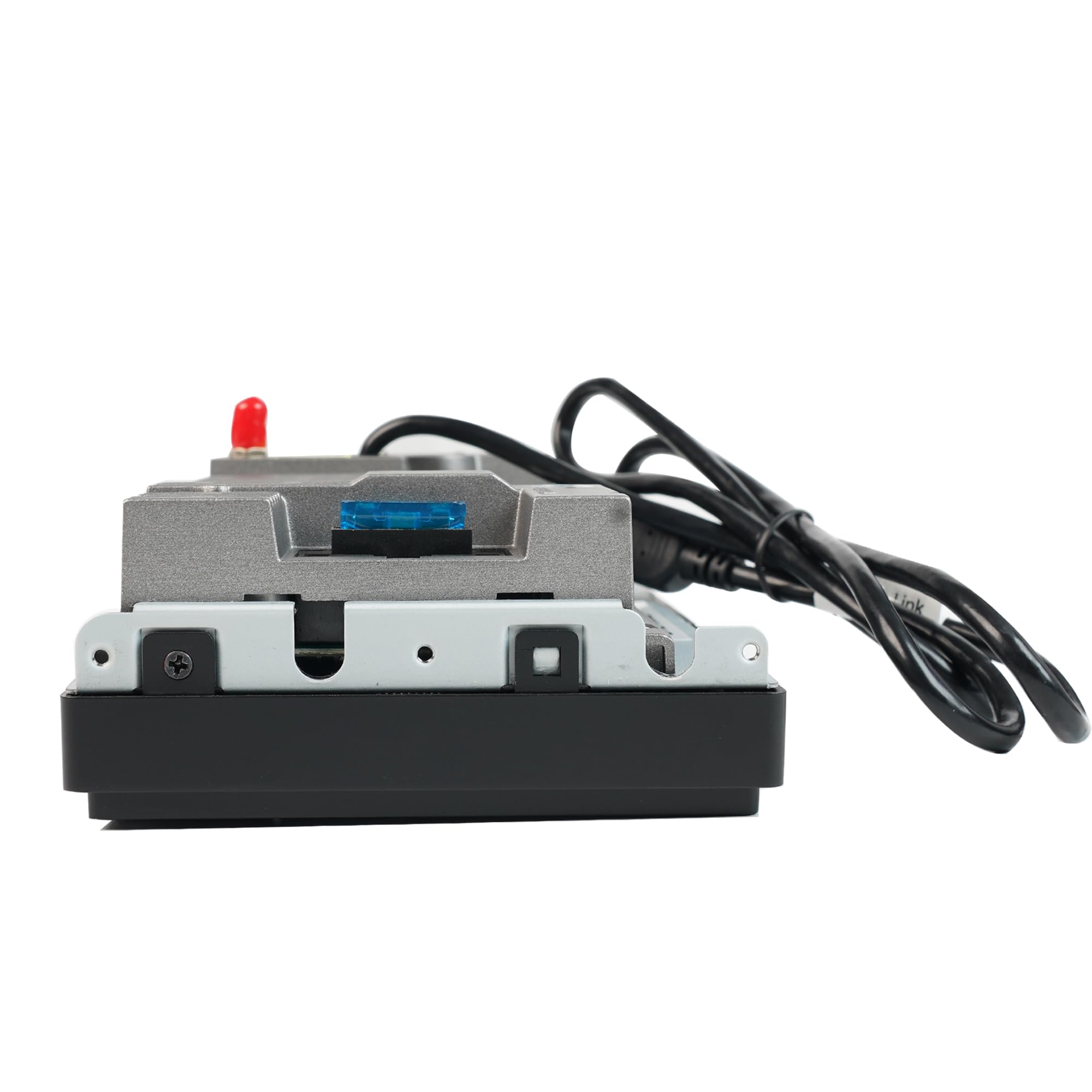

• Compact chassis for more room: The chassis is only 50-mm deep, shorter than the typical depth. Therefore, there is a larger space for cabling and other accessories.
• Extra accessories you may need to purchase: As this is a universally fit head unit, extra accessories may be required to finish installation in a specific vehicle (not provided in the package). It is the buyer's responsibility to prepare them (if applicable). They may include (but are not limited to) a dash frame kit, a wiring harness, a radio antenna adapter, a data interface, etc.

Notice: Optional parts for working with ATOTO F7 are sold separately:

1. ATOTO CA-AEC02 Plug-n-Play 4 Channel Car Amplifier (60 watts RMS x 4), a punchy audio booster with SPDIF input;
2. ATOTO AC-44F5 Steering wheel control wireless Remote;
3. ATOTO AC-HD02LR Live Rearview Camera (F7 is NOT compatible with AC-HD03LR);
4. ATOTO AC-HAV50 HDMI to AHD Video Converter, Support HDMI 1.4. Compatible with Play Station game consoles, TV Boxes, and other devices with HDMI output.
5. ATOTO CS-101SW 10" Slim Amplified Subwoofer, 400 Watts MAX peak power, 150 Watts MAX RMS power, with low & high-level inputs and remote bass control, compatible with most vehicle models.
6. ATOTO CS-651DST 6.5" 2-Way Component Speaker System pumps out up to 250 watts peak power and 70 watts RMS for OEM car audio upgrades.

• All ATOTO optional accessories/parts are available for purchase at [visit the ATOTO store] near the page title.
