CrocSee Miniature Current Switch, CS-TS0, Normally Open Amp Sensor Monitoring Relay, AC 1-50A Detectable

CrocSee AC Current Switch is designed for AC current monitoring, motor overload protection, automatic control system and other applications. This device senses a current draw of between 1amp and 50 amps and closes a set of contacts while AC current is passing through sensor.

Main Specifications:

• Enclosure Dimensions(LxWxH): 88 x 25 x 50mm; Or approx. 3.46 x 0.98 x 1.97 inch
• Sensor Hole Diameter: 20mm (0.79 inch)
• Mounting Holes: 2x5mm holes spaced 76mm on base (2 x 0.19”holes spaced 3”on base)
• Voltage Range: 120-240VAC
• Switch Rating: 2.5 A @ 120 VAC/240VAC (Only works with AC current, not for DC current)
• Contact Type：Normally Open
• Operating Temperature: -20 to 45℃（-4 to 113℉）
• Humidity Limits: 0-95% RH, non-condensing
• Response Time: ≤200ms
• Accuracy: 1%
• Hysteresis: ≤1%

NOTE:

1. Disconnect and lock-out all power sources prior to installation.

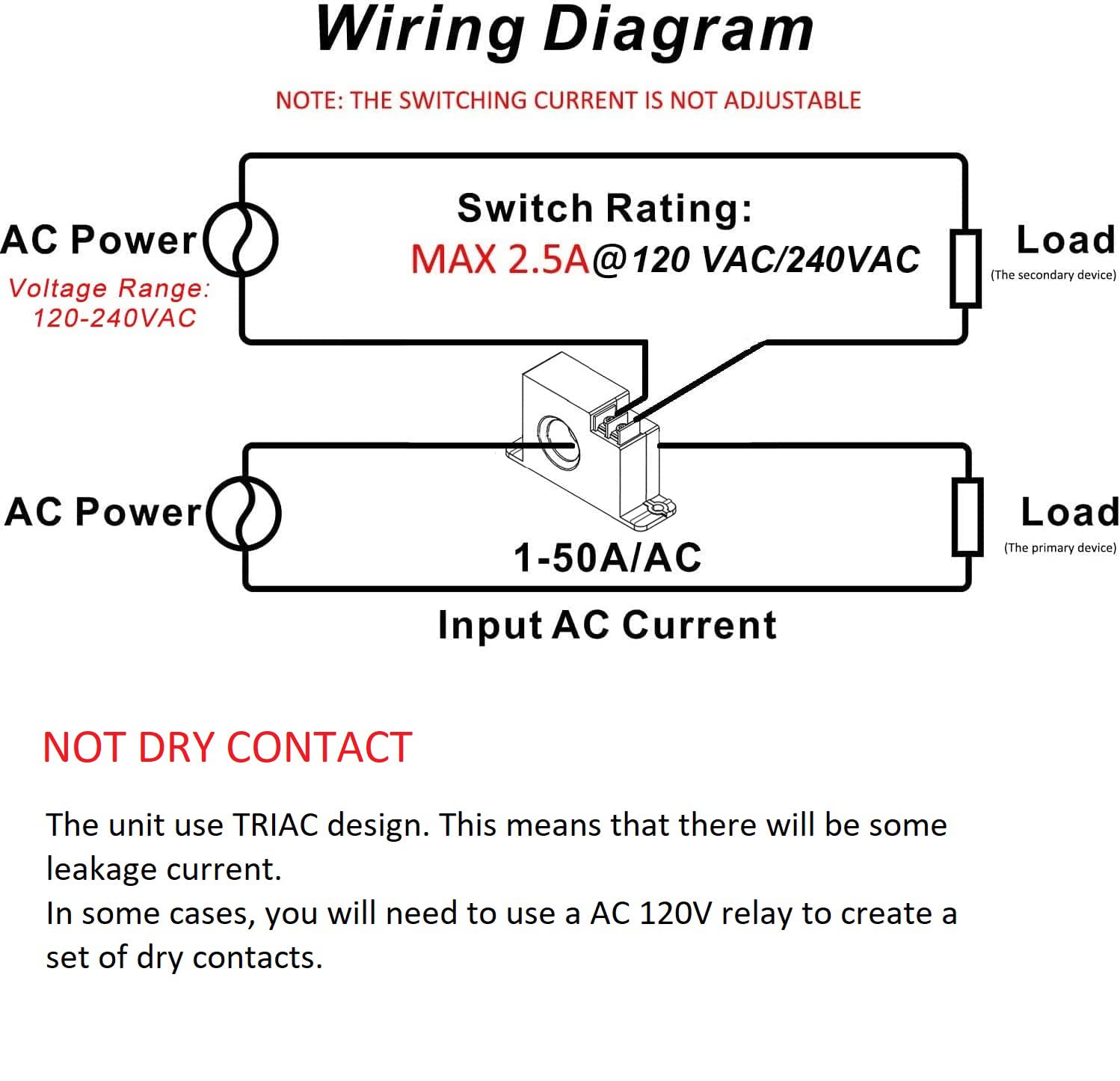

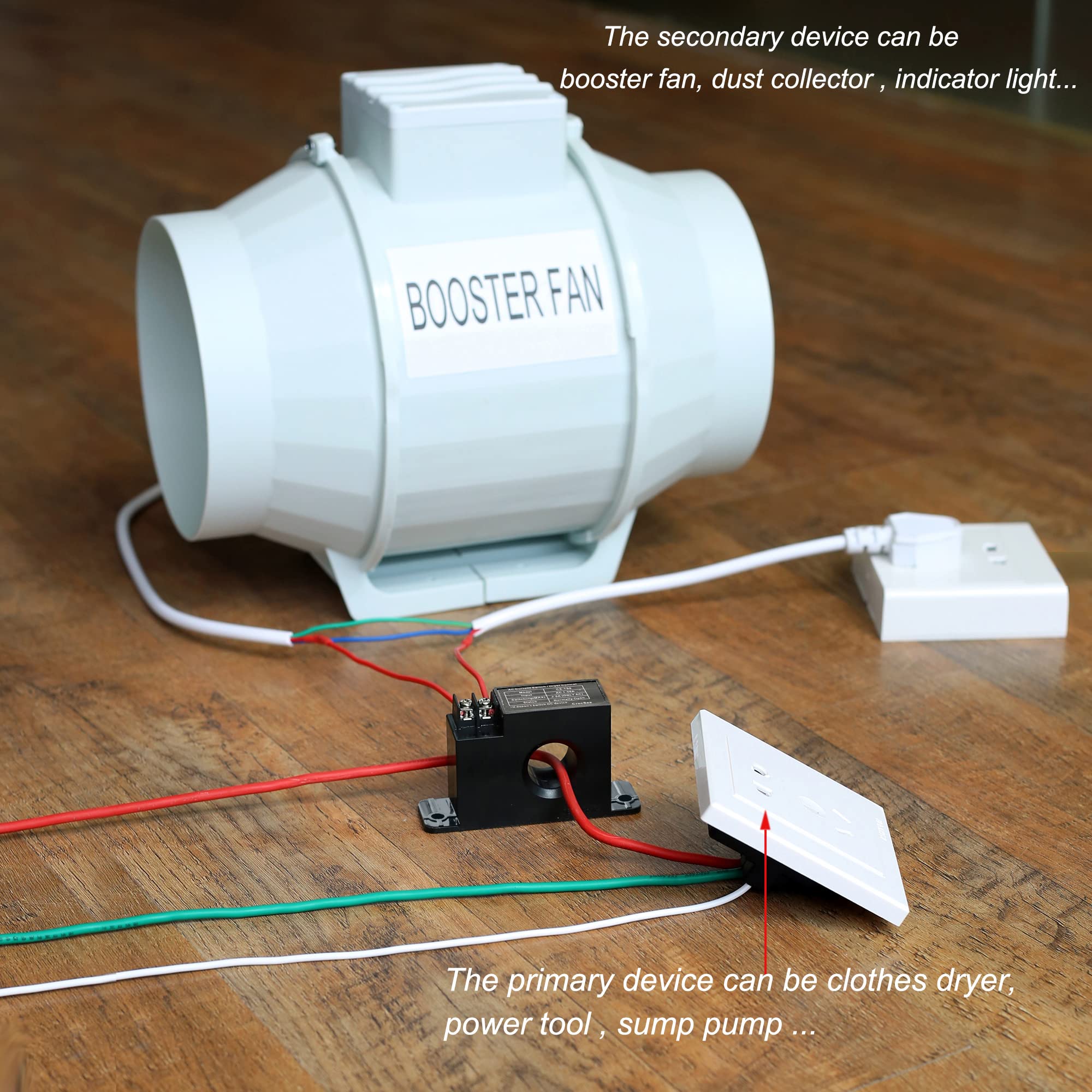

2. The current switch has a rating of 2.5 Amps maximum. If the secondary device (which is conncted with the switch) draws more than 2.5 Amps, then you will need a separate high current relay.
3. A load must be applied across the NO switch to work. If no load is applied across the NO switch, these NO terminals will not close with correct operating primary current.

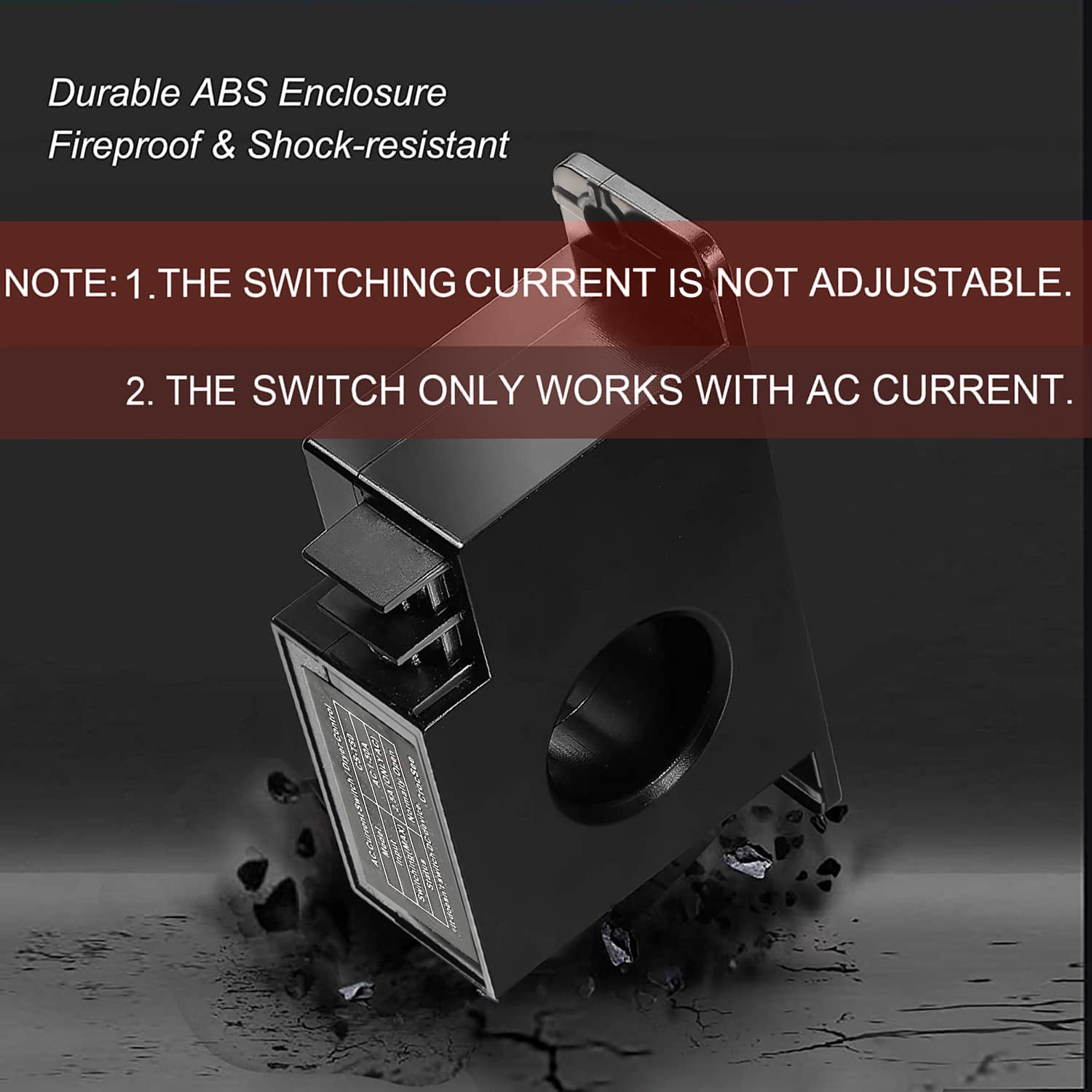

4. The switching current is NOT calibratable. However, it is sensitive enough to detect any current draw of between 1amp and 50 amps.

Package includes:

• 1x AC Current Switch
• 1x Instruction Manual
