Brook Wingman SD Converter - Support XB Series X/S/One/360, PS5/PS4/PS3, Xb Elite 1/2, NS Pro Controllers on Dreamcast, Saturn Console and PC(X-Input), Retro Controller Adapter, Turbo and Remap

Introduction

Saturn and Dreamcast are the common memory of a generation, and now we provide more ways to tap the potential of these two consoles. Now you can use PS5/ XB 360/PS4/ PS3 controllers on them, and the Switch Pro controller, XB Elite controller, XB Elite Series 2 controller, XB adaptive controller, even Retro-Bit Saturn USB controller are all supporable.

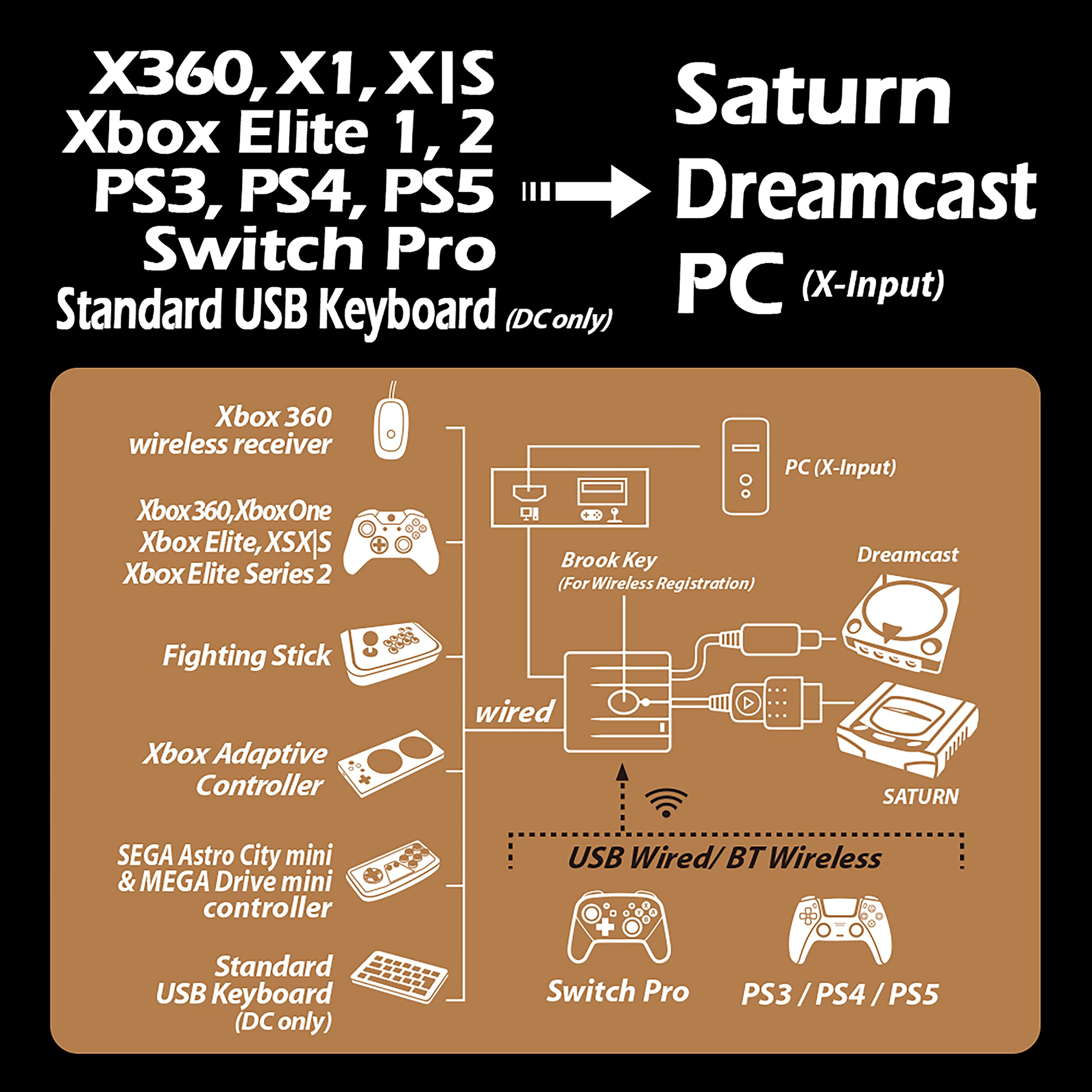

• Support PS5 / XB 360 / XB Elite 1(wired)/ PS3 /PS4/ SEGA Astro City mini(wired) controllers and arcade stick use on Dreamcast, Saturn, PC(X-input).
• Support to use keyboard on Dreamcast (the game must support keyboard)
• Support to backup DC VMU and upgrade memory to 240 blocks on PC
• 20211229 firmware update (V1.4a)

1. Fix to support Splatterhouse Trilogy
2. Fix the wireless controller wireless pairing problem in Standard mode on Saturn
3. Fix the problem that UP+START can’t activate to execute VUM Tool when using Astro City controller/ fight stick
4. Support to use Select as mode switch key for Retro-Bit SEGA Saturn wireless controller
5. Fix the button mapping of SNK_NeoGeoArcadeStickPro. The mapping would be like general fight stick

• Please visit Brook website to check whether there is firmware update before using.

Connecting to the Device

step.1

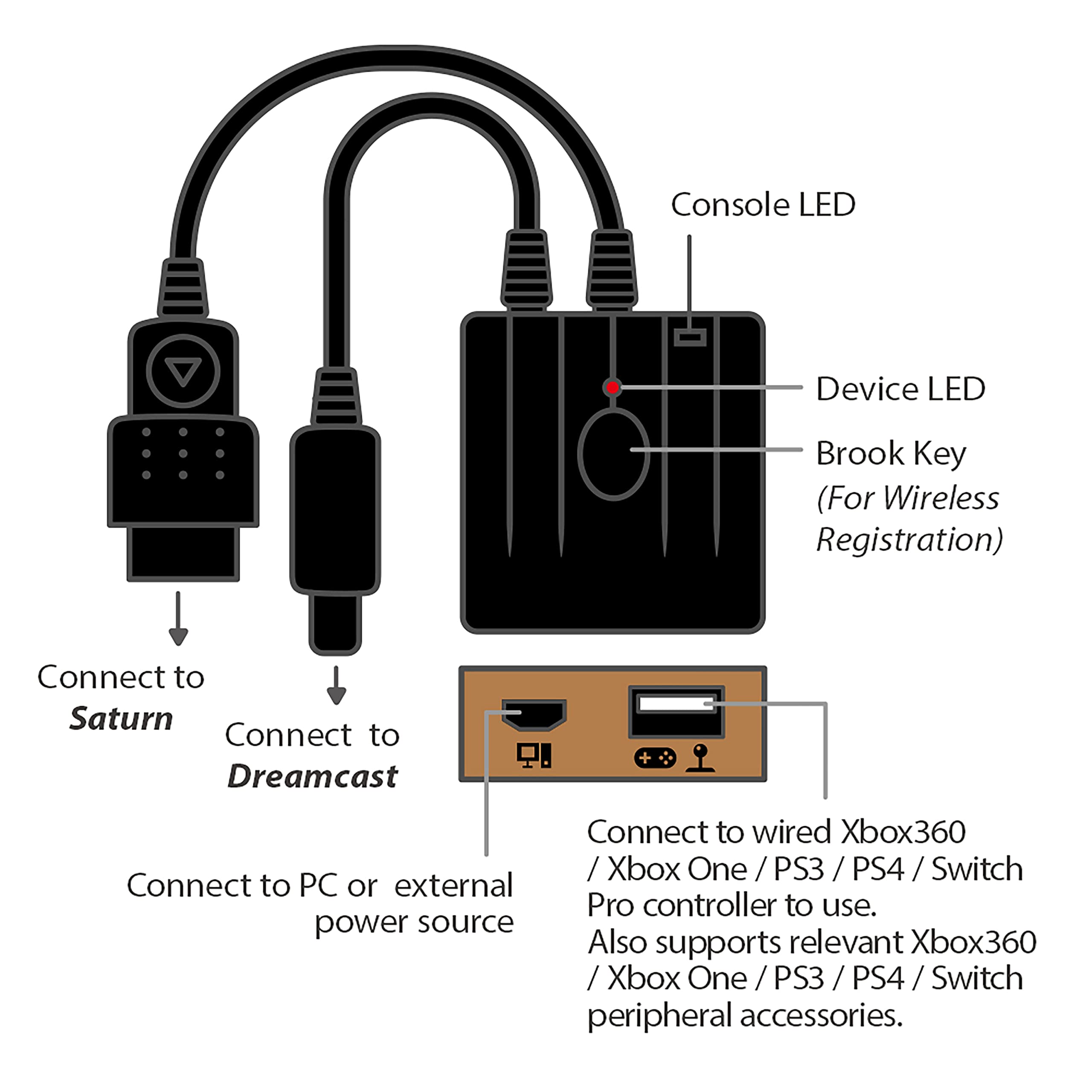

• Connect Wingman SD to Saturn / Dreamcast / PC via port. Permanently light of the Console Green LED of Wingman SD indicates that the connection to the console is successful.

step. 2

• Wired Connection:
• Connect the XB 360 / PS3 / PS4 / Switch wired controller or game pad to Wingman SD through the USB port. Some devices with high power consumption, such as the Switch Pro controller, require an external USB power source for normal use.
• Using a X360 wireless controller:
• Simply connect the wireless X360 wireless receiver to the Wingman SD through the USB port.
• Using PS3 / PS4 / Switch Pro wireless controller:
• After completing the connection according to the instructions of the Wired Connection, remove the USB cable, and then wake up the PS3 / PS4 / Switch Pro wireless controller.

step. 3

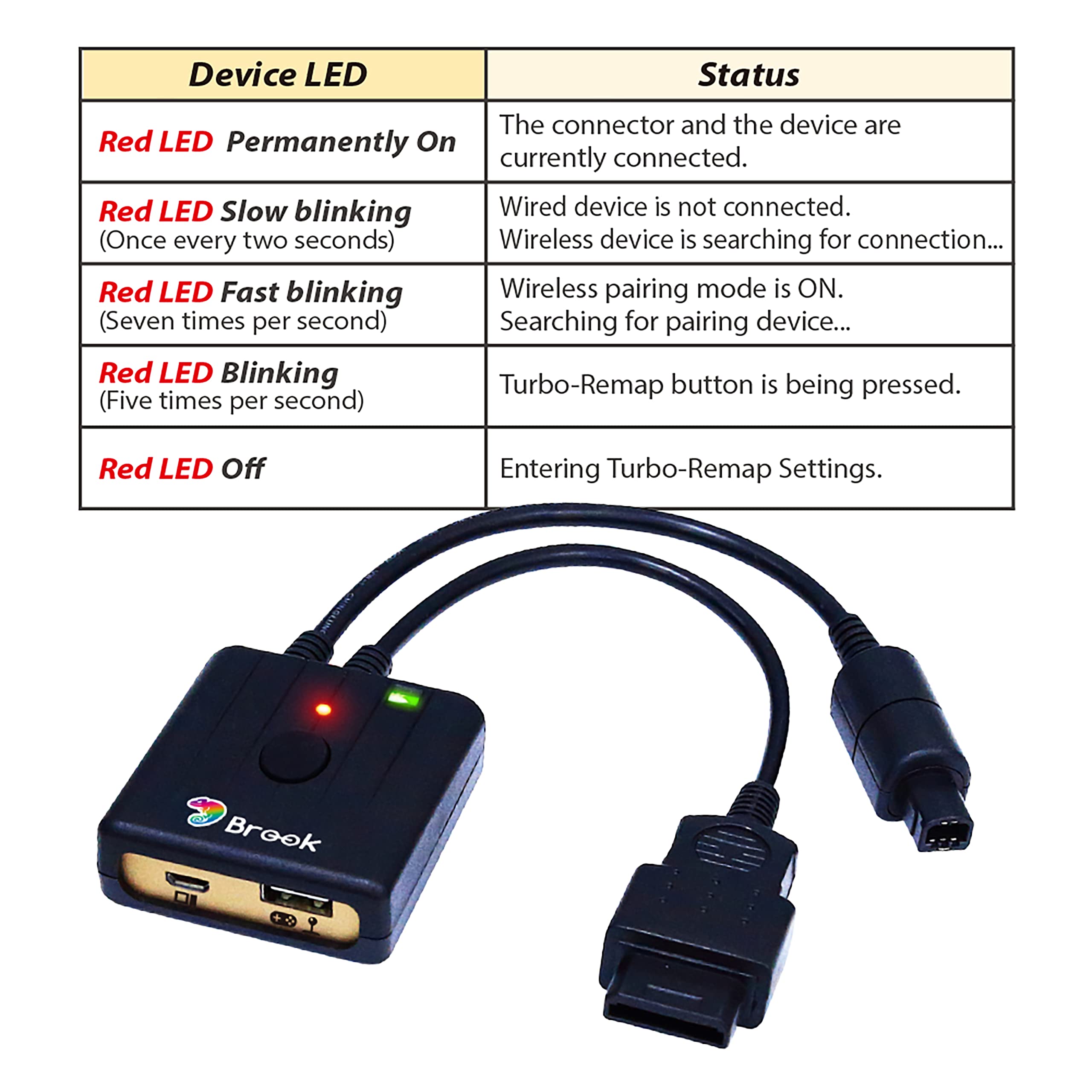

• Check whether the Device Red LED of the Wingman SD is permanently on. This indicates that the connection is completed.

Corresponding Buttons

Notice:

• Each Wingman SD can only connect to a single XB 360 / PS3 / PS4 / Switch device. Wingman SD supports most of the accessories that are compatible with original factory specifications. To expand the number of supported accessories, firmware will be updated irregularly.
• Wingman SD do not support headset/microphone function which provides by controller audio jack.
