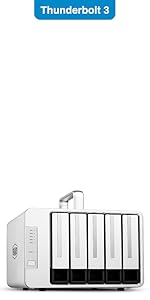

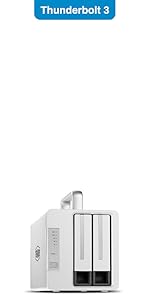

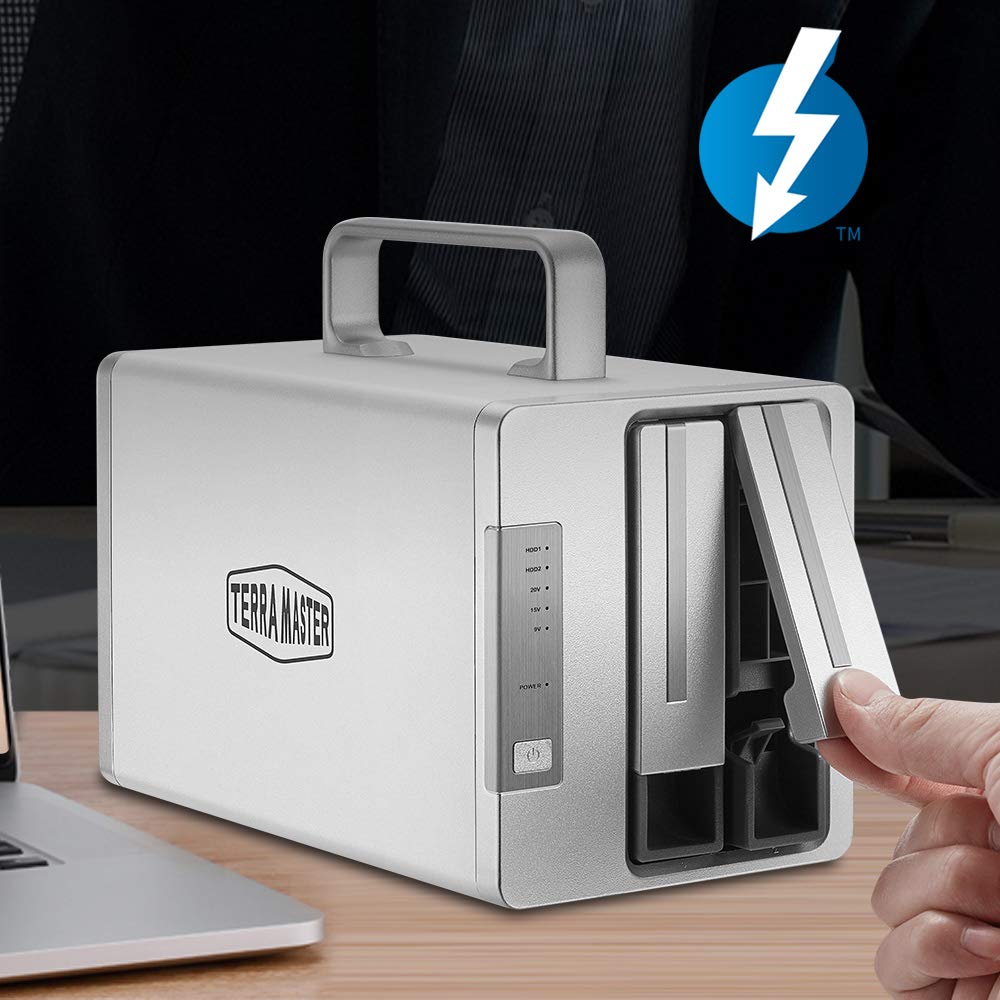

| TD2 Thunderbolt 3: 2-Bay Thunderbolt 3 | TD2 Thunderbolt 3 Plus: 2-Bay Thunderbolt 3 | D5 Thunderbolt 3: 5-Bay Thunderbolt 3 | D8-332: 8-Bay Thunderbolt 3 | 16 Thunderbolt 3: 16-Bay Thunderbolt 3 |
---|
| | | | | |
---|
Customer Reviews | | | | | |
---|
Drive Bays | 2 | 2 | 5 | 8 | 16 |
---|
Thunderbolt Interface | Thunderbolt 3 (40Gbps) x2 | Thunderbolt 3 (40Gbps) x2 | Thunderbolt 3 (40Gbps) x2 | Thunderbolt 3 (40Gbps) x2 | Thunderbolt 3 (40Gbps) x2 |
---|
DisplayPort | DP1.4 x1 | DP1.4 x1 | DP1.4 x1 | DP1.4 x1 | DP1.4 x1 |
---|
USB Interface | No | No | USB HOST 3.1 Gen 2 x1 | USB HOST 3.1 Gen 2 x1 | USB HOST 3.1 Gen 2 x1 |
---|
Max. number of HDDs/SSDs | 2 x 2.5" or 3.5" SATA 6Gb/s, | 2 x 2.5" or 3.5" SATA 6Gb/s, | 5 x 2.5" or 3.5" SATA 6Gb/s | 8 x 2.5" or 3.5" SATA 6Gb/s, | 16 x 2.5" or 3.5" SATA 6Gb/s, |
---|
Max. Storage | 40TB (20TB x 2) | 40TB (20TB x 2) | 100TB (20TB x 5) | 160TB (20TB x 8) | 320TB (20TB x 16) |
---|
RAID controller | Hardware RAID | Hardware RAID | Hardware RAID | Hardware RAID | Hardware RAID |
---|
RAID Mode | RAID 0, 1, JBOD, Single | RAID 0, 1, JBOD, Single | RAID 0, 1, 5, 10, JBOD, Single | RAID 0, 1, 5, 10, 50, JBOD, Single | RAID 0, 1, 5,6,10, 50, JBOD, Single. |
---|
Reading Speed (max.) | 810MB/sec (tested by 2 SSD, in raid 0, Windows OS) | 810MB/sec (tested by 2 SSD, in raid 0, Windows OS) | 1035MB/sec (tested by 5 SSD, in raid 0, Windows OS) | 1600MB/sec (tested by 8 SSD, in raid 0, Windows OS) | 2817MB/sec (tested by 16 SSD, in raid 0, Windows OS) |
---|
Writing Speed (max.) | 520MB/sec (tested by 2 SSD, in raid 0, Windows OS) | 520MB/sec (tested by 2 SSD, in raid 0, Windows OS) | 850MB/sec (tested by 5 SSD, in raid 0, Windows OS) | 1400MB/sec (tested by 8 SSD, in raid 0, Windows OS) | 2022MB/sec (tested by 16 SSD, in raid 0, Windows OS) |
---|
