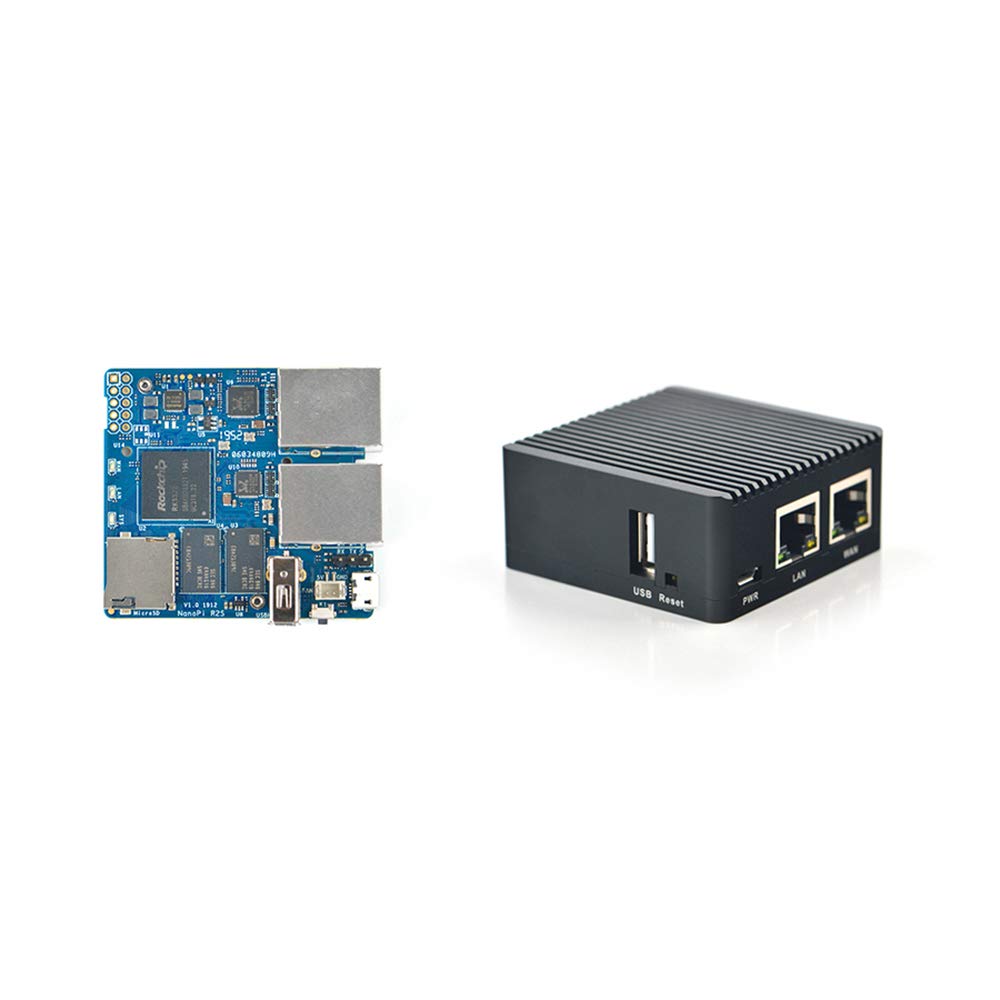

NanoPi R2S Open Source Mini Router with Dual-Gbps Ethernet Ports 1GB DDR4 Based in RK3328 Soc for IOT NAS Smart Home Gateway, Bundle with CNC Metal Case
[WIRELESS MOBILE MINI TRAVEL ROUTER] NanoPi R2S can support external USB wifi adapter. Simultaneous dual band with wireless speed 150Mbps(2.4G)+433Mbps(5G).Convert a public network(wired/wireless) to a private Wi-Fi for secure surfing
[OPEN SOURCE & PROGRAMMABLE] It can support FriendlyWrt, which is a customized system based on an OpenWrt distribution. It is open source and well suitable for developing IoT applications, NAS applications, smart home gateways etc
[DUAL GBPS ETHERNET PORTS] The NanoPi R2S has two Gbps Ethernet ports: one directly extended from the SoC and the other converted from a USB3.0.gets around 941 mbits/second download and upload
[LARGER STORAGE & EXTENSIBILITY] 1GB RAM DDR4, up to 128GB MicroSD slot, USB 2.0 port x1 , Dual Gigabit Ethernet ports (1 WAN and 1 LAN)

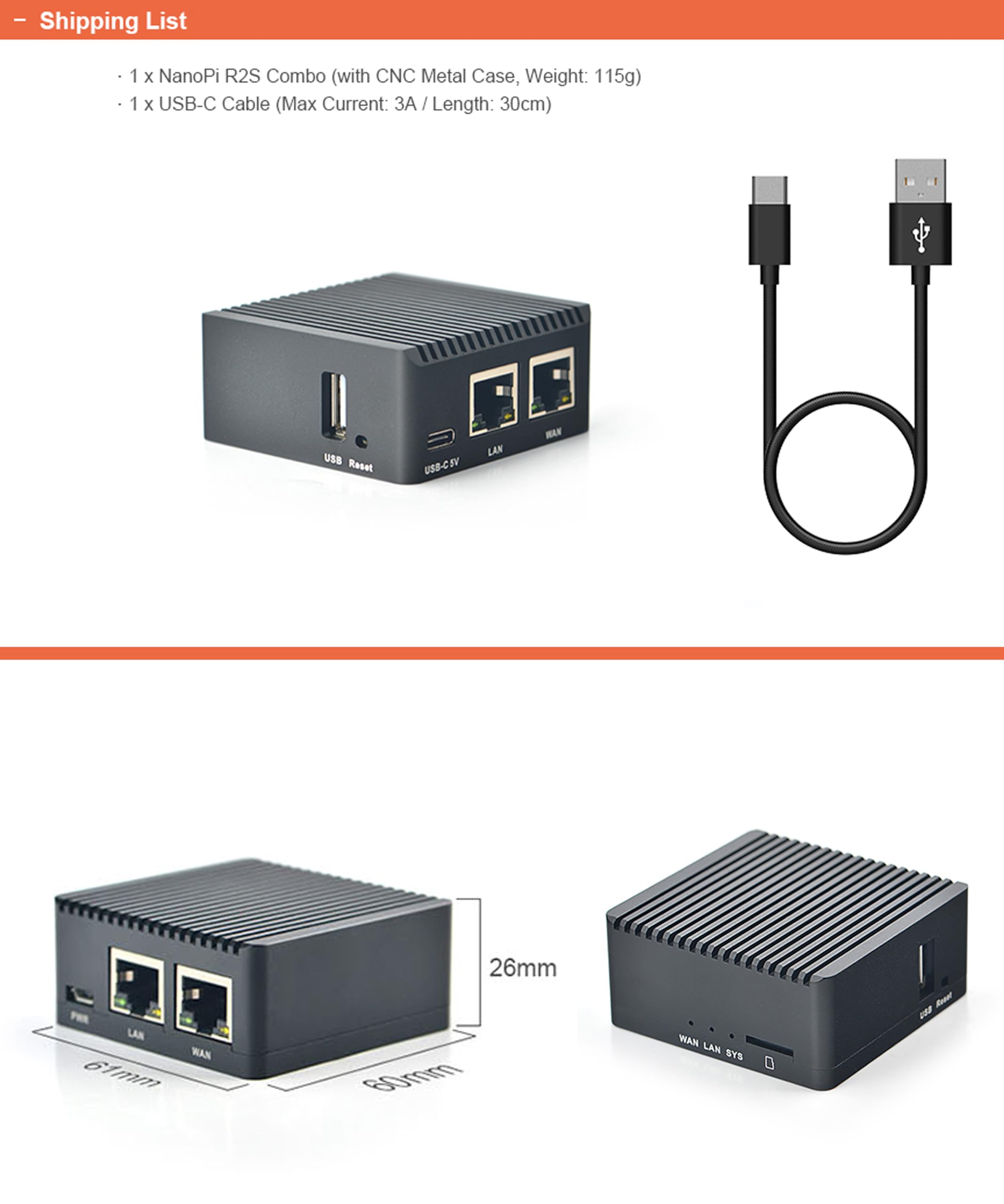

[ USER MANUAL & PACKAGE CONTENTS]WIKI:https://youyeetoo.com/blog/nanopi-r2s-ys107-57. NanoPi R2S Portable MINI Router with 1-year limited warranty.Package include: NanoPi R2Sx1;Heat sink with cooling fan;Casex1; Pls feel free to email us to get the Datasheet or any questions of this module after you purchased it. How to email us? Click "SmartFly info" and ask a question

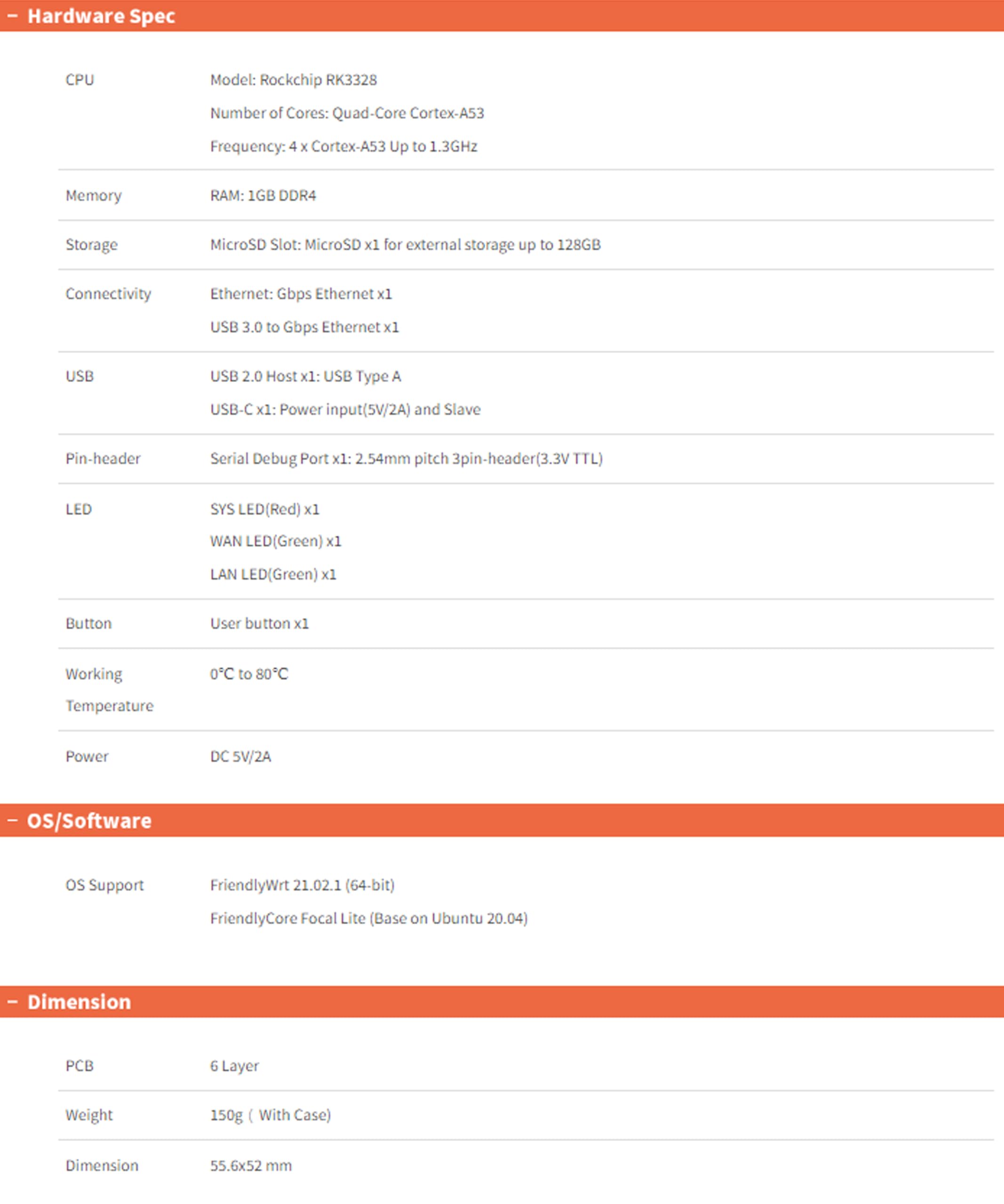

Product Specifications
Customer Reviews: 3.8 out of 5 stars 23Reviews
Best Sellers Rank: #131,747 in Electronics (See Top 100 in Electronics) #708 in Computer Routers
Product Information
Product description

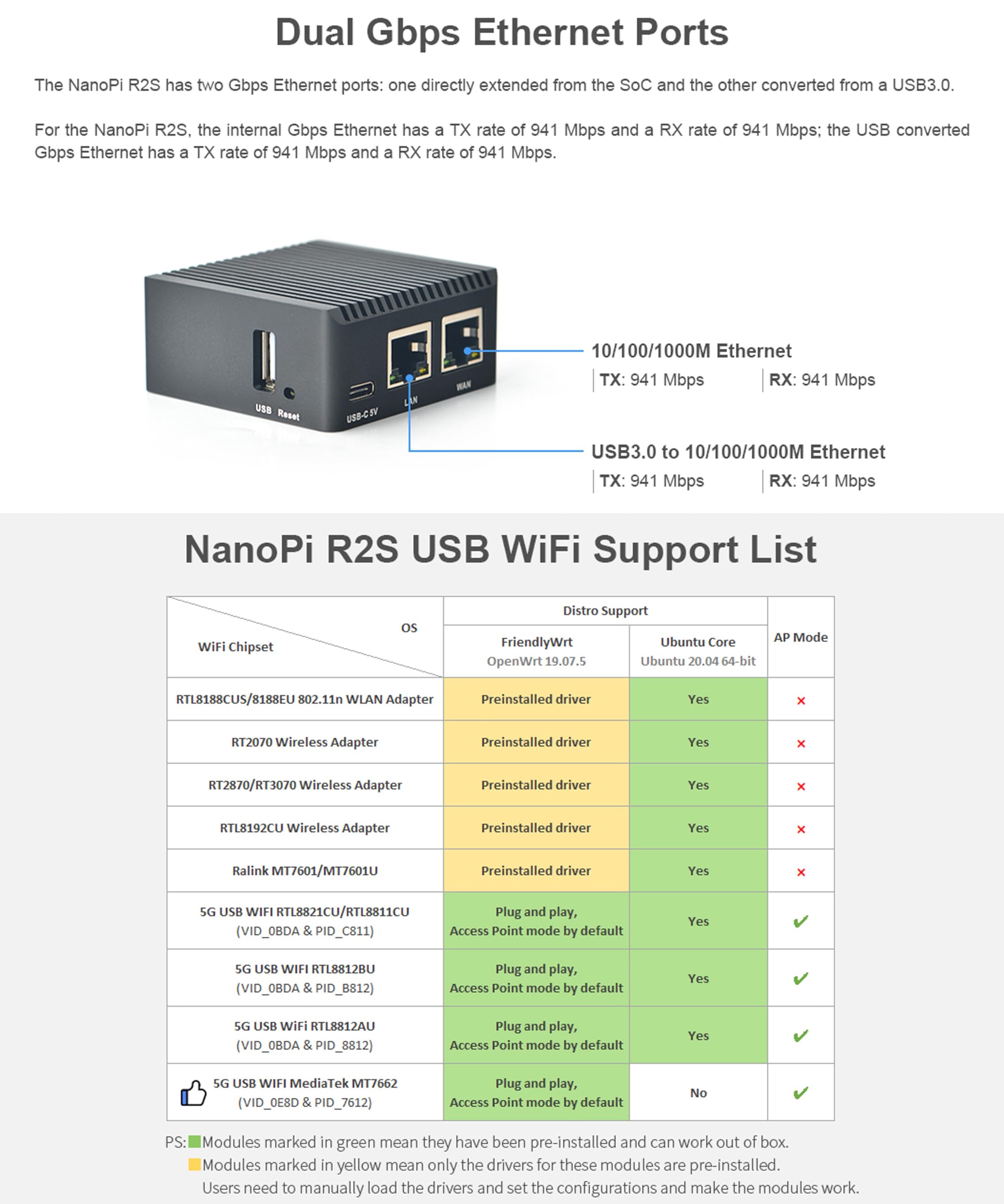

NanoPi R2S Wireless Mini Wifi Router support Dual Gbps Ethernet
The NanoPi R2S has two Gbps Ethernet ports: one directly extended from the SoC and the other converted from a USB3.0.
For the NanoPi R2S, the internal Gbps Ethernet has a TX rate of 941 Mbps and a RX rate of 941 Mbps.
The USB converted Gbps Ethernet has a TX rate of 941 Mbps and a RX rate of 941 Mbps.

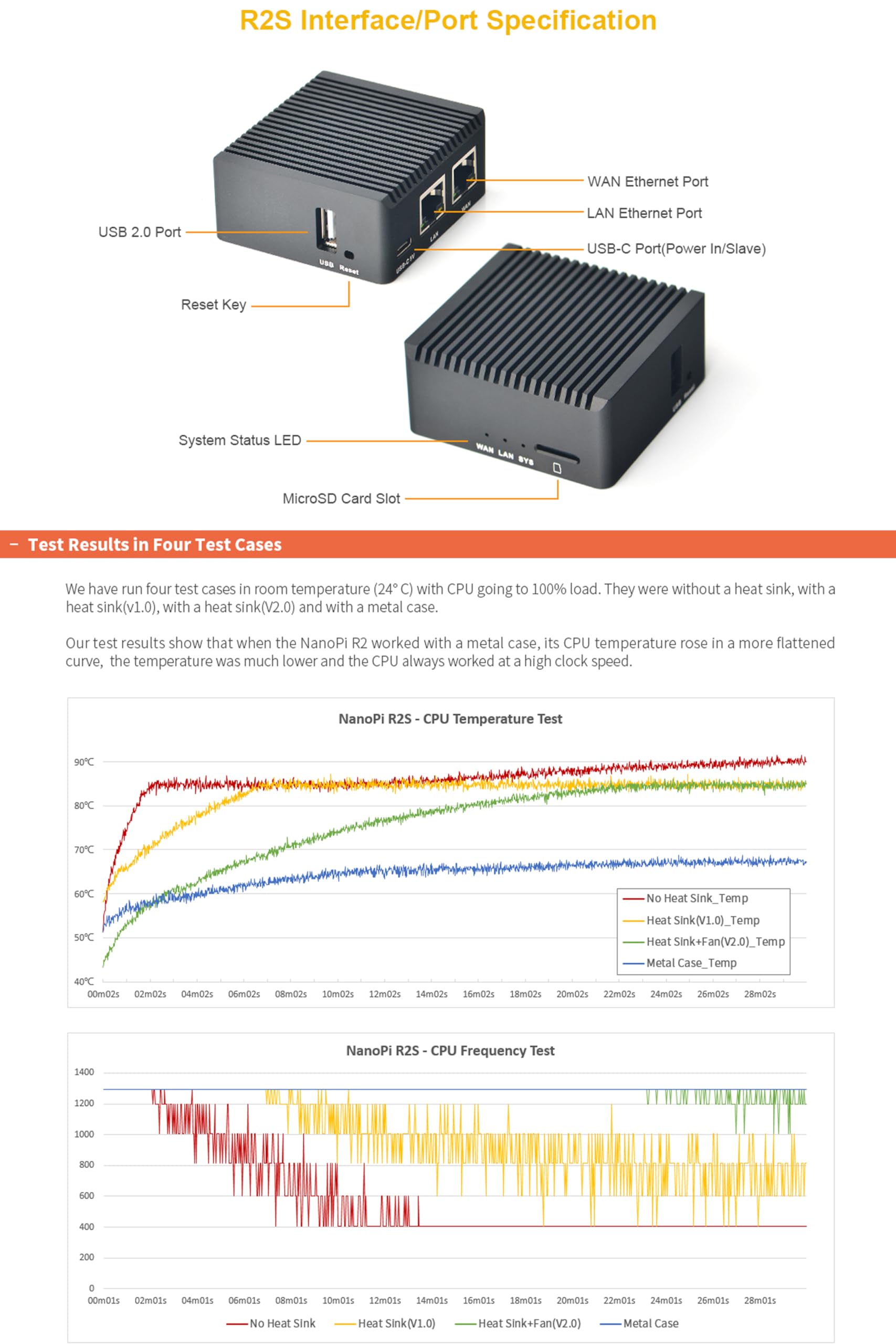

NanoPi R2S Wireless Mini Router with Rich interface
Ethernet: Gbps Ethernet x1
USB 3.0 to Gbps Ethernet x1
USB 2.0 Host x1: USB Type A
USB-C x1: Power input(5V/2A) and Slave
Serial Debug Port x1: 2.54mm pitch 3pin-header(3.3V TTL)
