➥ Igniter: 18 mm (0.708 inch) diameter mounting hole. CSA Certified, Durable, and Lasts Longer.
➥For use with natural gas or liquid propane fuels fire pit, work with units providing 150,000 BTUs or less
➥includes spark Ignitor wire & ground wires, Cable length:36 inches. The ignition pin and the ground wire must be installed on the same conductor panel
➥Easy To Install | Perfect For Containing Fire Glass | Natural Gas or Propane Versions Available;THIS IGNITION KIT ONLY INCLUDES:BUTTON SWITCH, 2 OUTLET IGNITER, IGNITION WIRE AND GROUND WIRE!
Product Specifications
Product Dimensions: 3.2 x 2.36 x 1.97 inches
Item Weight: 4.2 ounces
Manufacturer: Tshang
ASIN: B08DR81PGS
Country of Origin: China
Item model number: 2245
Customer Reviews: 4.4 out of 5 stars 49Reviews
Best Sellers Rank: #337,012 in Patio, Lawn & Garden (See Top 100 in Patio, Lawn & Garden) #822 in Grill Igniters
Product Information
Product description
Schematic Diagram

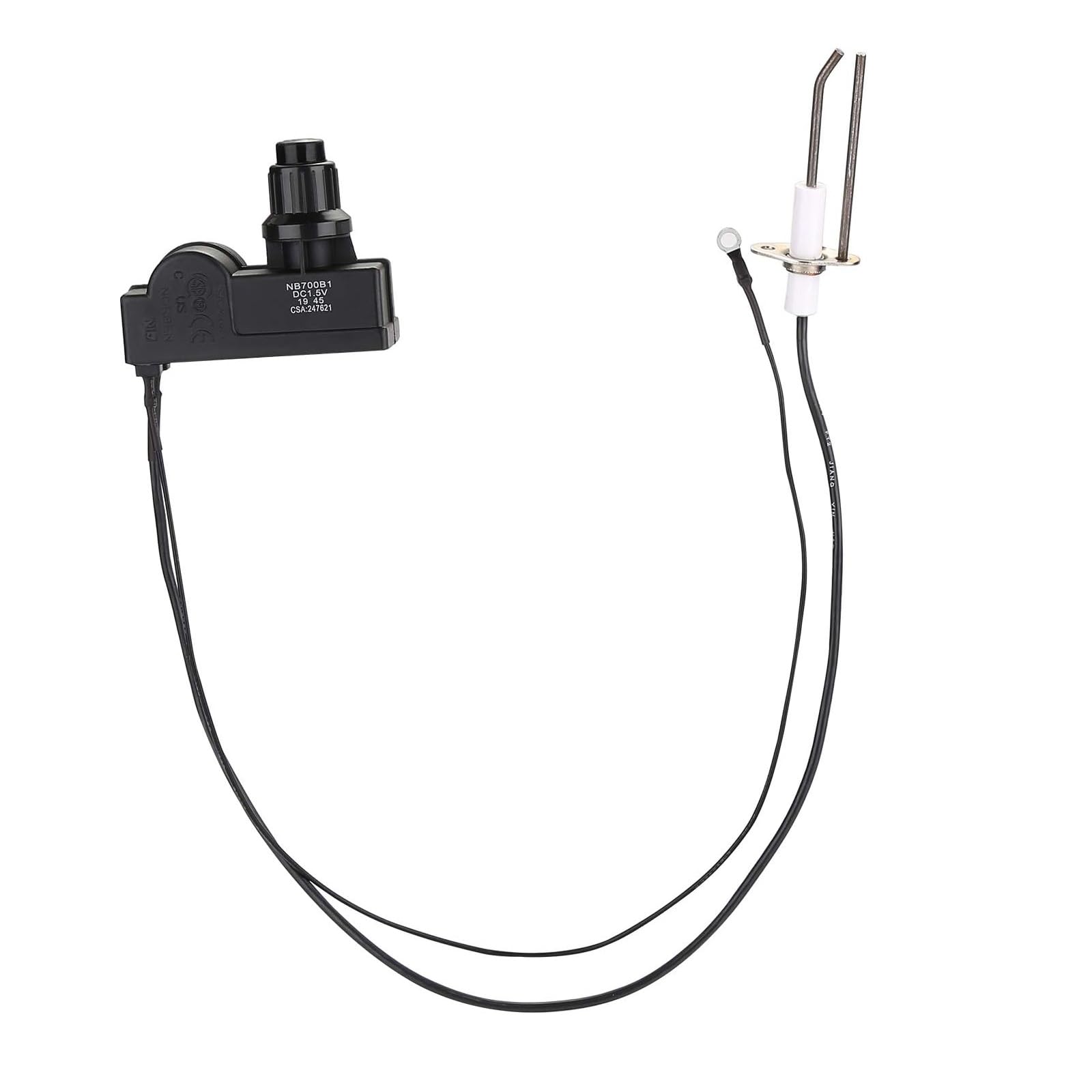

Push Button Ignition Kit
Includes switch, igniter, leads & ground wire(Battery not include)
Using life cycle :>30000 times. By CSA Certified.
Min ambient temp.-4℉, Max operating Ambient Temp 185℉

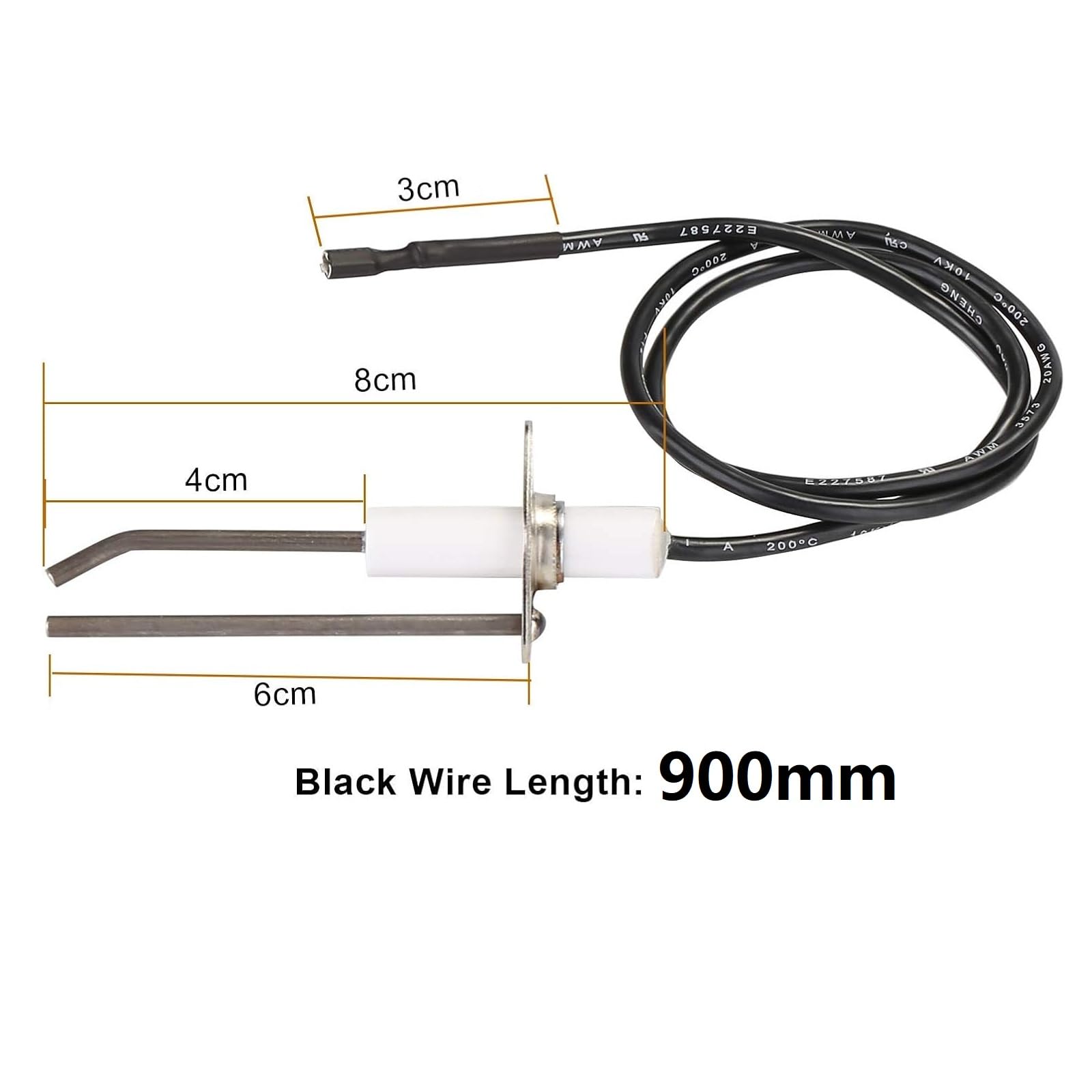

Igniter Mounting Hole Size
Igniter diameter mounting hole : 18 mm (0.708 inch)
Easy installation or replacement of ignition kit
leads Ignition & Ground Wire
Cable length:35.4 inches(900mm)
The ignition pin and the ground wire must be installed on the same conductor panel, They must bemutual conduction!
Warm Tips
Suitable for 150,000 BTU or less fire pit equipment natural gas or liquid propane fuel
The ignition pin and the ground wire must be installed on the same conductor panel. Min Spark gap 0.4 inch, Max spark gap 0.6 inch
