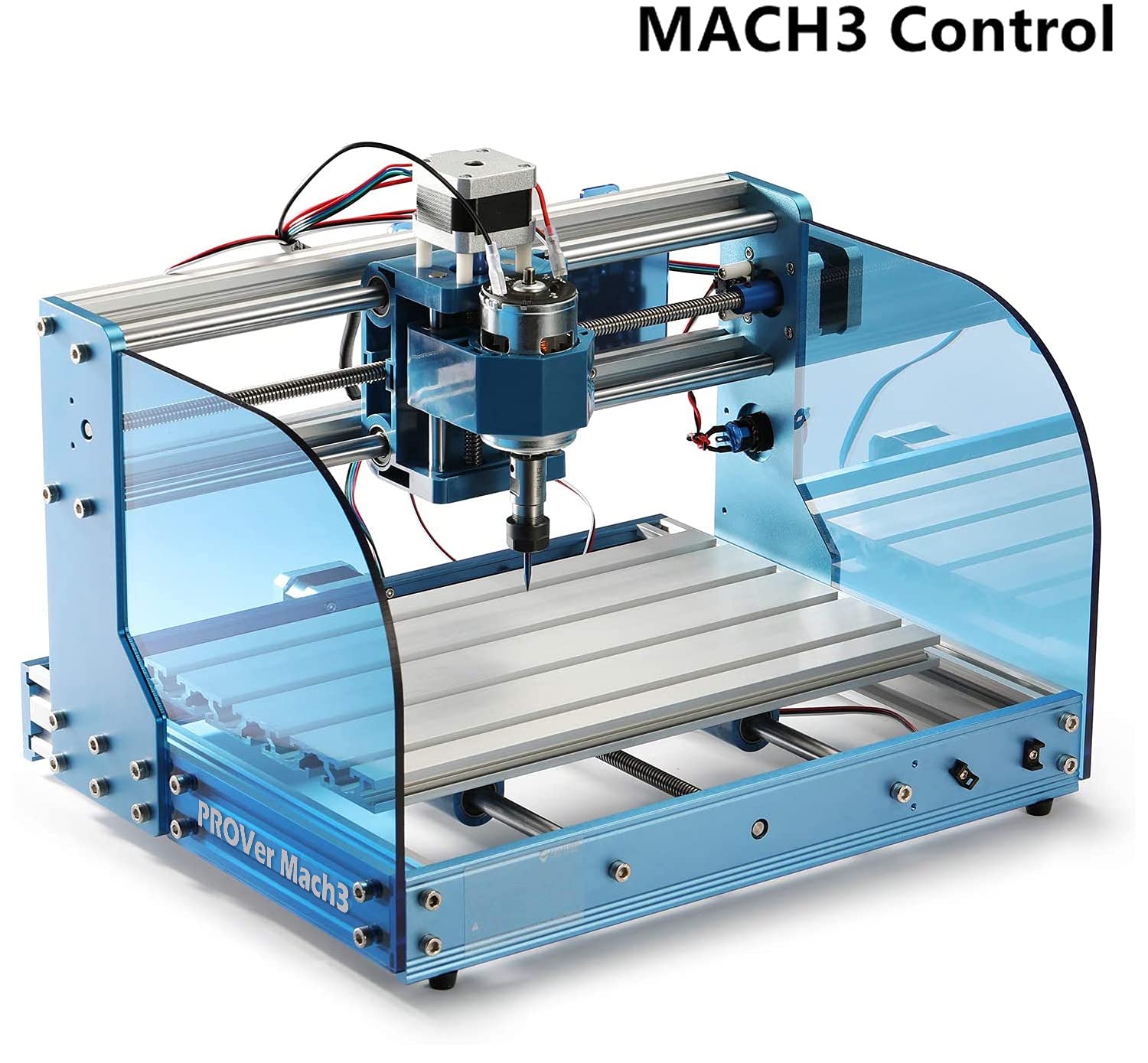

Built for Power Users: Compatible with Mach3, DrufelCNC, the 3018-PROVer Mach3 CNC machine is perfect for users who are looking to build CNC skills or have had previous experience with Mach software. Capable of Canned cycles for pre-programmed actions and other advanced features not available through open source GRBL.
Pre-assembled: It is mostly pre-assembled and no fuss with basic setup taking less than 30 minutes out of the box. Upgraded with the All-Aluminum body and take advantage of the added stability for milling a wider range of materials while also making clean up even easier with acrylic safety baffles to help contain dust and provide a safety barrier.

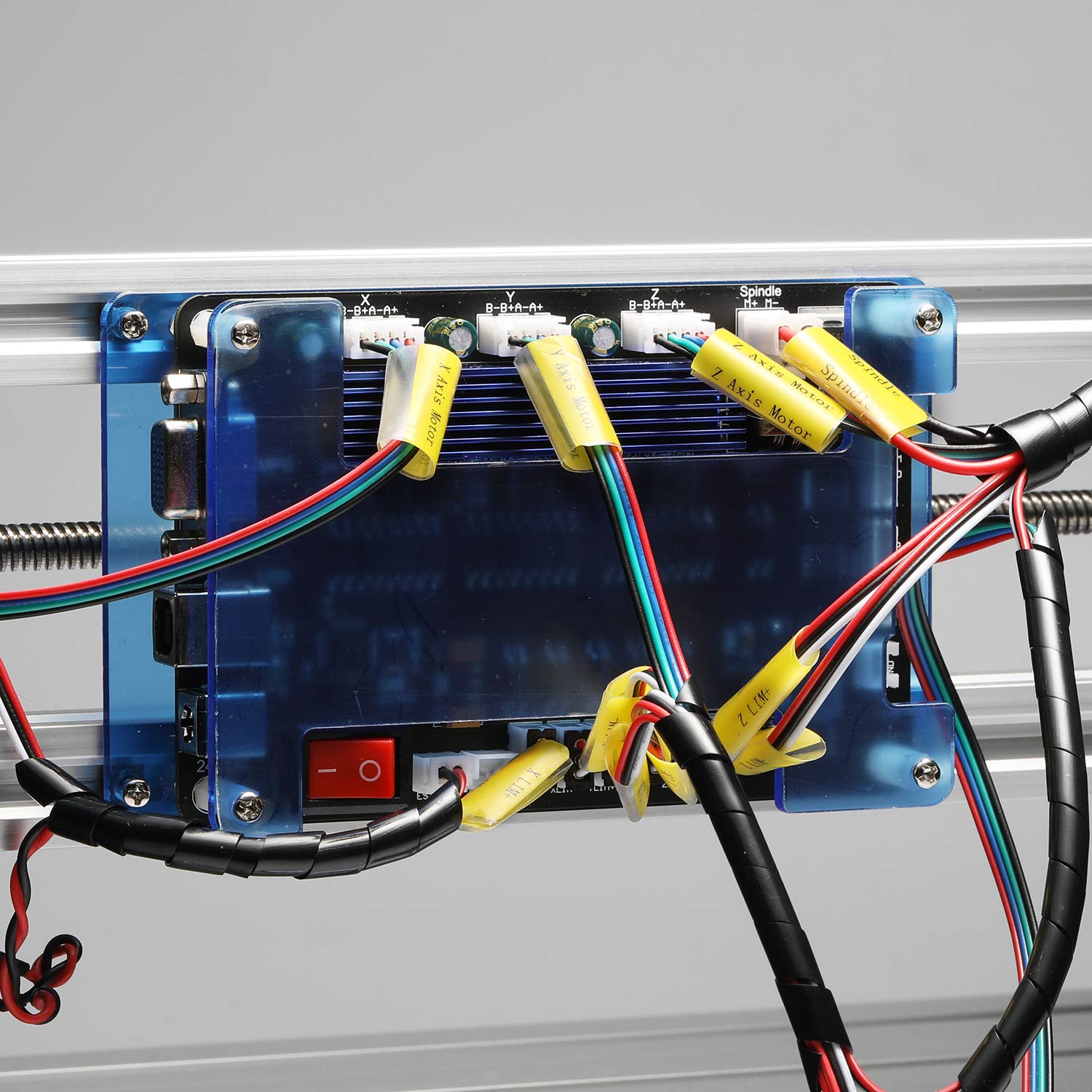

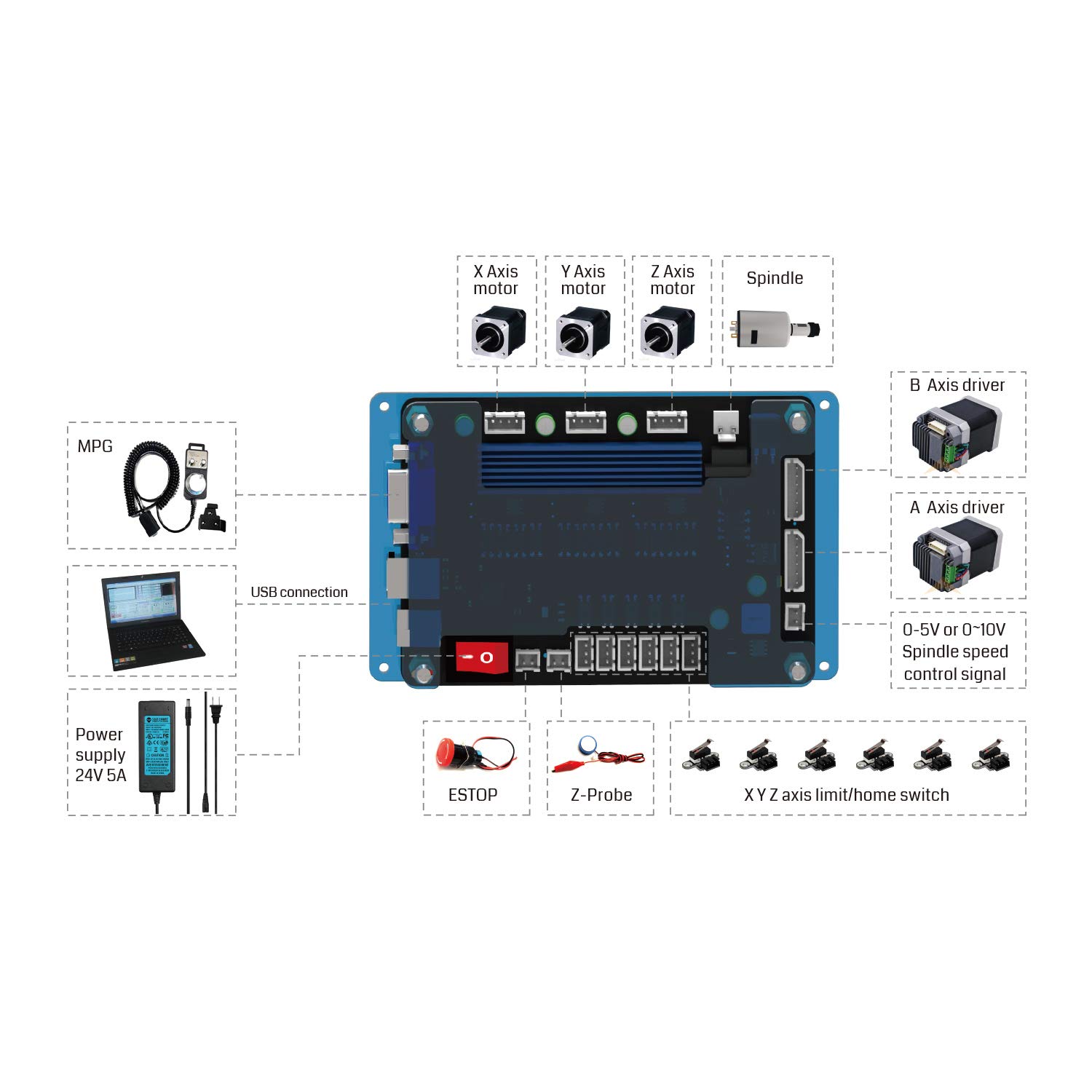

Controller Board: It's suitable for Mach3 and DrufelCNC and supports the Windows system. The spindle motor interface can be connected to DC motors which can up to 100W, and also suitable for 775 spindle motors. (Please note that "3018-PROver" and "3018-PROver Mach3" are not the same model. "3018-PROver Mach3" has a similar appearance to "3018-PROver", but it works with the Mach3 system.)

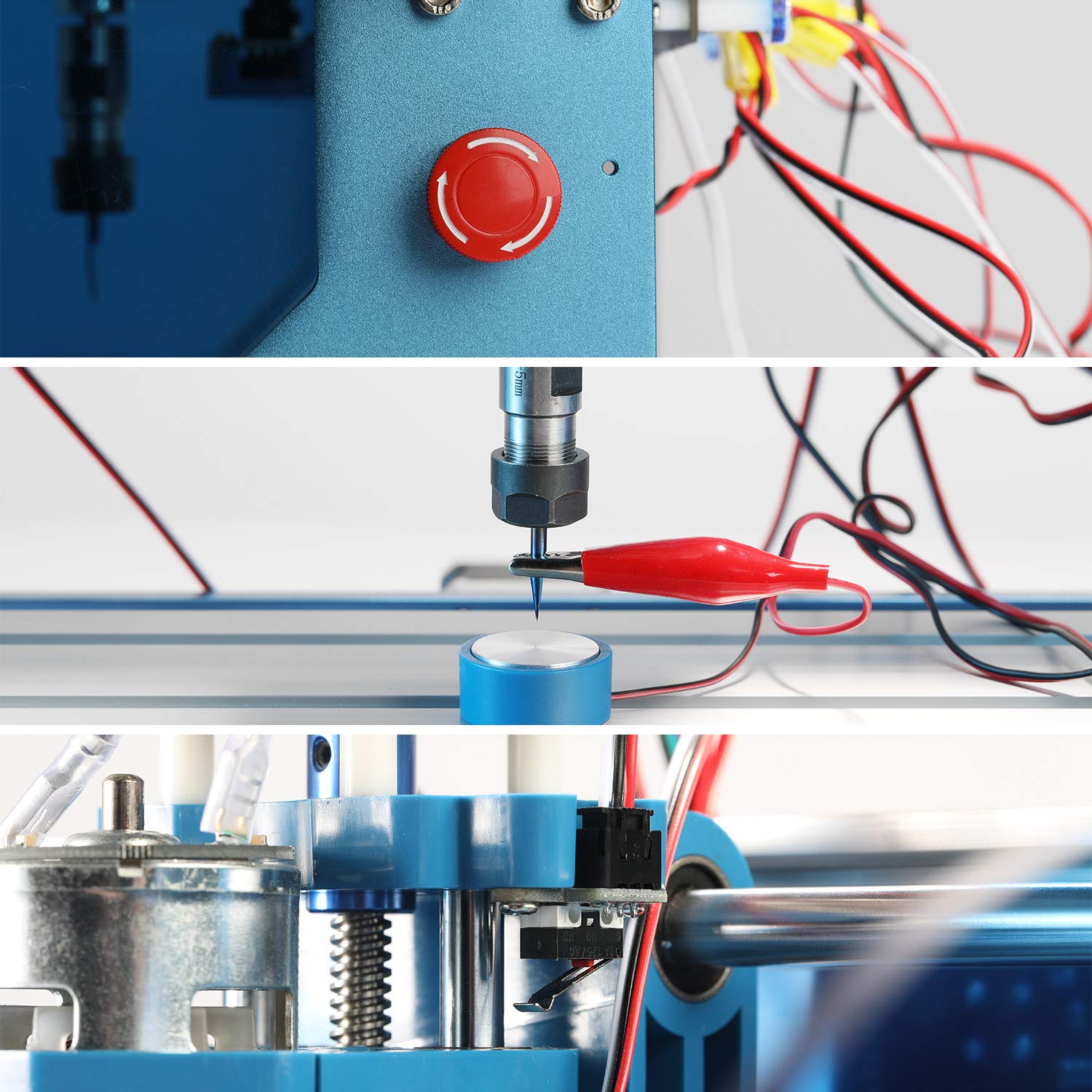

Auto Tool Zero: With one mouse click, 3018-PROVer Mach3 will automatically return to a predefined position, allowing you to easily change and calibrate your tools.

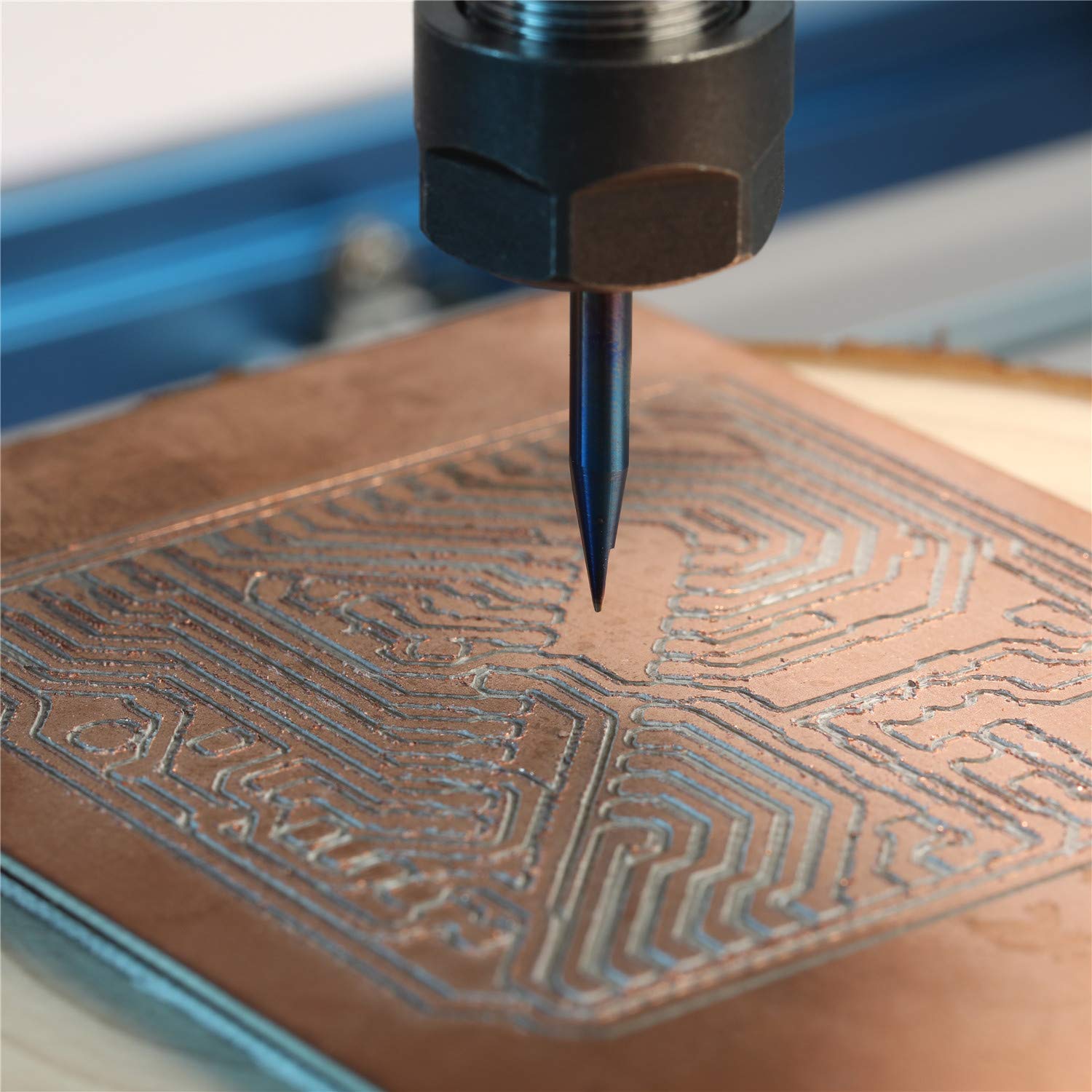

Versatile: Capable of cutting all types of plastics, woods, soft aluminum, acrylics, PVCs, and PCBs, 3018-PROVer Mach3 can be used on a wide range of projects and materials. The open design with an effective engraving area of 260 x 155 x 35mm (10.2 x 6.1 x 1.4'') allows you to work on even larger pieces with fewer limits.
Product Specifications
Manufacturer: Genmitsu
Part Number: 3018-MX3
Item Weight: 21 pounds
Package Dimensions: 18 x 16.5 x 11 inches
Item model number: 3018-PROVer Mach3
Batteries Included?: No
Batteries Required?: No
Base Type: Fixed
Product Information
Product description
High-quality Material

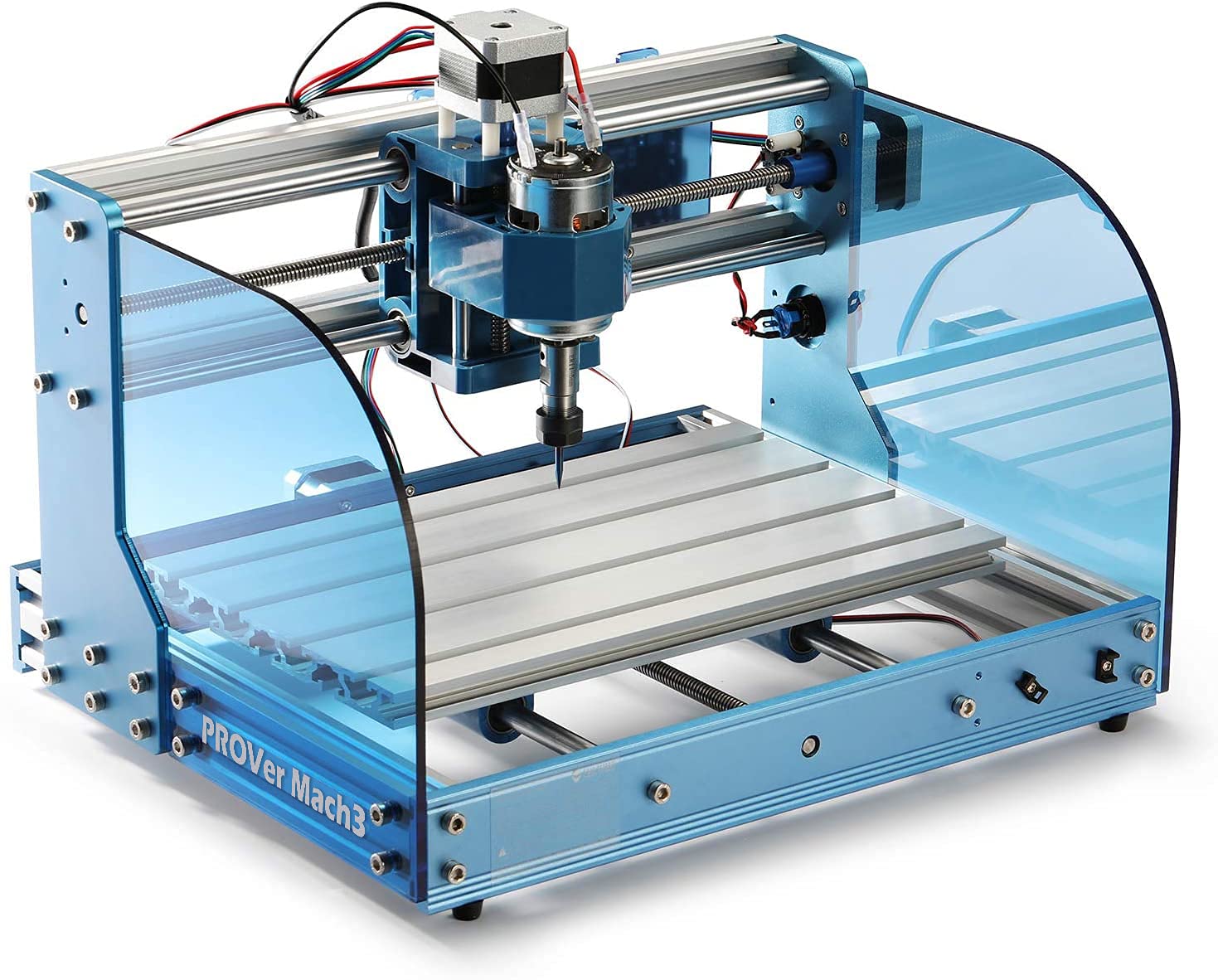

Boasts an all-aluminum body with an oxide blue look, the 3018-PROVer Mach3 gives you a premium look and feel for your machine.
Safety Design
The 5mm acrylic baffles can block the 'flying' pieces of wood/other cutaway materials so that you can safely monitor the engraving process
Efficient Pre-assembly
The 3018-PROVer Mach3 desktop CNC machine, upgraded of 3018-MX3, is pre-assembled, which allows you to be up and running in 30 minutes instead of 2 hours, saving more time to engrave.
NOTE: The Mach3 System doesn't support laser module. If you need the laser engraving function, you could choose the 3018-PROVer.
Wide Applications

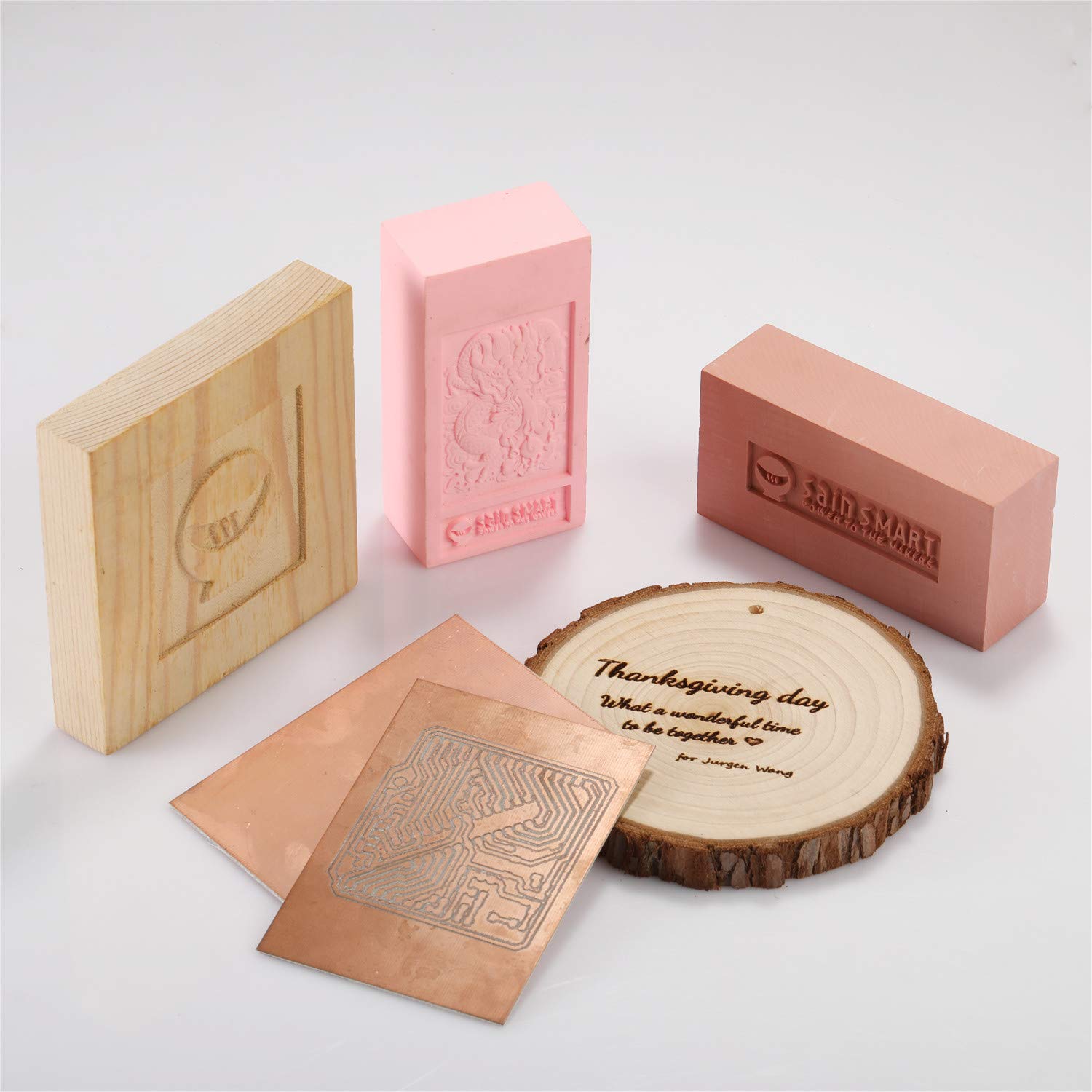

The 3018-PROVerMach3 is capable of carving and cutting different materials such as plywood, MDF, PCB, acrylic, nylon, carbon fiber, leather, graphite blocks, inlays in wood, plexiglass, vinyl, brass, and other soft metals. (For engraving on stainless steel, copper, 6061 aluminum, we suggest that you upgrade the spindle to a more powerful one or consider our latest CNC machine for metals carving, Genmitsu 3020-PRO MAX) Whether you’re a CNC beginner, a hobbyist or a small business owner looking for an enterprise quality for commercial purposes, this is an excellent choice. Genmitsu keeps providing more and more upgrade parts for expanding the 3018-PROVer Mach3 CNC Machine’s potential. This is just the beginning.
More Features of Mach3
Converts a standard PC to a fully featured, 6-axis CNC controller
Allows direct import of DXF, BMP, JPG, and HPGL files through LazyCam
Visual G Code display
Generates G Code via LazyCam or Wizards
Fully customizable interface
Customizable M-Codes and Macros using VBscript
Wizards are “mini-programs” that extend the capabilities of Mach3. Wizards can be written by anyone and are designed to allow users to quickly perform routine or convenient operations without the need to have a pre-written G-Code file.
Mach3 includes some free Wizards that were contributed by users. These short-cuts should not be confused with the Add-on’s for Mill or the new Mill Wizard software, which are more advanced wizard packages with integrated operations. Some typical wizard operations:
Gear cutting
Digitizing
Holes
Slots and keyways
Text engraving
Standard shapes
Surfacing
SPECIFICATION
Effective Engraving Area
260 x 155 x 35mm(10.2 x 6.1 x 1.4'')
Frame Size
400 x 330 x 240mm(15.7 x 13.0 x 9.4'')
Frame Material
Aluminum
Z-Axis Component Material
ABS
Spindle
775 motor 12V; 24V 9000 RPM
Rated Power
60W
Maximum Power
120W
Step Motor
1.3 A 12V; 0.25 Nm torque (2.2 in-lb)
Drill Bits
Tip 0.2 mm; 20 degrees; Diameter 3.175 mm
Supported OS
Windows XP; Windows 7 32/64 bits; Windows 8; Windows 10
