NINE-SCREEN PROCESSING – Video wall controller to create a 3x3 video wall from one of the 4 switchable sources: Type-C, VGA, DisplayPort, or HDMI. Supports up to 4K @30Hz from all inputs. 2 default EDID options: 4K @30Hz and 1080p. *Note: HDR is NOT supported
VIDEOWALL MODES – Supports 25 modes: 1x1, 1x2, 1x3, 1x4, 1x5, 1x6, 1x7, 1x8, 1x9, 2x1, 3x1, 4x1, 5x1, 6x1, 7x1, 8x1, 9x1, 2x2, 2x2 rotation, 2x3, 2x4, 3x2, 3x3, 3x3 rotation, 4x2. Cascading up to a 10x10 video wall
ADVANCED FEATURES – Supports 180º image rotation, edge correction, HDMI loopout, 1U rack mountable, SPDIF Coaxial and Analog audio extraction, up 5.1-channel audio (HDMI input), firmware upgradable

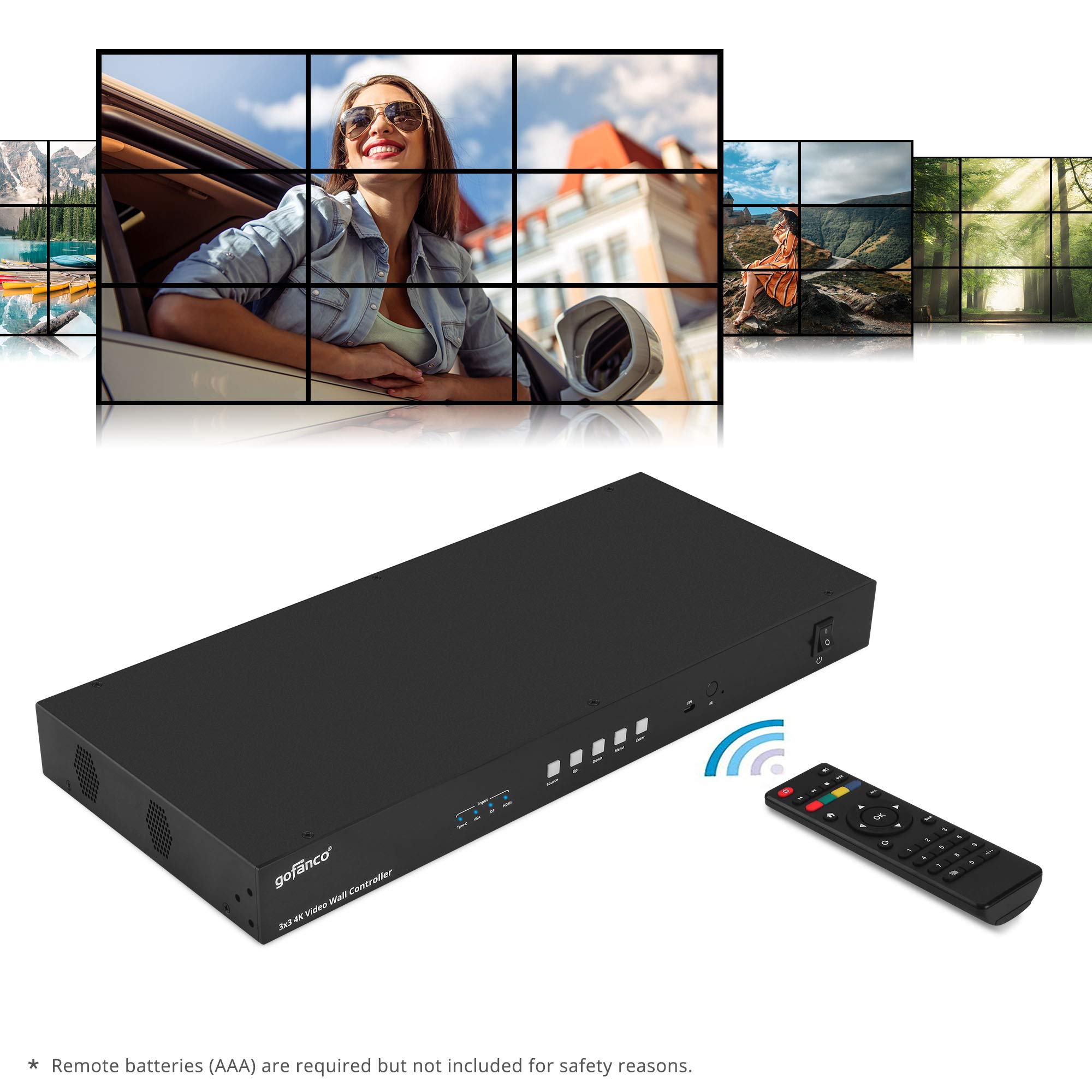

CONTROL METHODS – 1) Panel buttons, 2) IR remote, 3) RS-232, and 4) Web GUI control. *Note: Remote batteries (AAA) are required but not included for safety reasons
FIVE STAR CUSTOMER SUPPORT: Surface mountable 1U metal housing. FCC, CE and RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. If you have any questions or concerns, visit our gofanco website or click on our name in the buy box and select "Ask a Question"
Product Specifications
Product Dimensions: 10.79 x 17.24 x 1.73 inches
Item Weight: 8.16 pounds
ASIN: B08GSM5XZG
Item model number: Videowall33
Customer Reviews: 4.4 out of 5 stars 15Reviews
Best Sellers Rank: #818 in Audio & Video Selector Boxes
Date First Available: August 27, 2020
Manufacturer: gofanco
UPC: 818354022353
Product Information
Product description
gofanco 3x3 4K Video Wall Controller and Processor with Audio Extractor
The Videowall controller makes it easy to conjoin multiple TVs into one screen in the configuration of your choice. Display attractive, crisp, high-definition images and videos in a unique way.
It is a TV wall processor that is excellent for digital signage solutions for enhanced marketing, decor, or informational content in numerous settings.
TVs are not included*
Specifications
Compliant with HDMI 1.4, HDCP 2.2
Video resolution: up to 3840x2160@30Hz for Type-C, DisplayPort, HDMI inputs, 1080p for VGA input
Video input: USB-C / VGA / HDMI / DP Inputs
Audio: Coaxial S/PDIF output: Up to 5.1 channels & 3.5mm jack: Stereo 2ch
LAN port: RJ-45 connector for 10/100 BASE-T CAT-5 extension
Serial port: DB-9 RS-232 female connector
Housing: Metal
Control Options
1. Front Panel Buttons 2. IR Remote 3. RS-232 4. Web GUI
Advanced Features
Built-in Audio Extractor to either coaxial or 3.5mm stereo

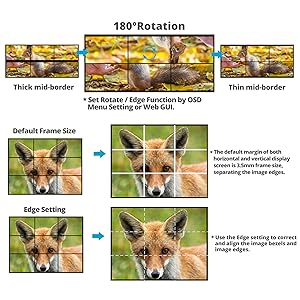

180 degree image rotation
Edge correction
HDMI loopout
Firmware up gradable for new features and technology enhancements

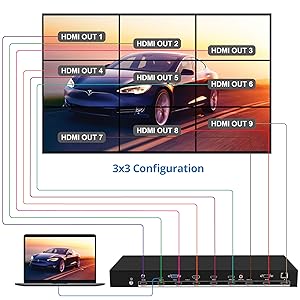

Multiple Video Wall Configurations

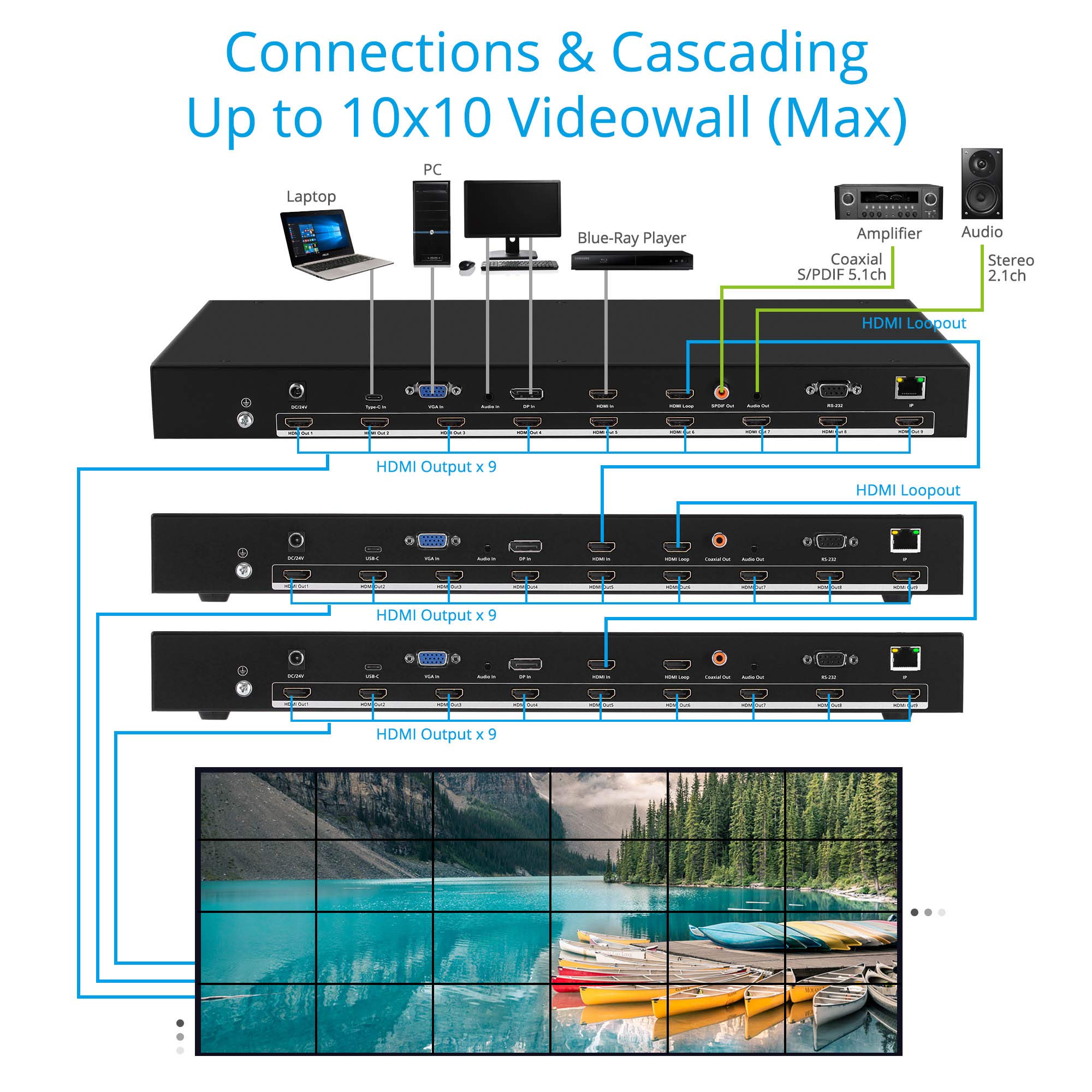

Single or cascading video wall includes 1x1, 1x2, 1x3, 1x4, 1x5, 1x6, 1x7, 1x8, 1x9, 2x1, 3x1, 4x1, 5x1, 6x1, 7x1, 8x1, 9x1, 2x2, 2x2 rotation, 2x3, 2x4, 3x2, 3x3, 3x3 rotation, 4x2. Cascading up to a 10x10 video wall.
Use Cases
Bars, Restaurants, and Clubs, Stadiums, Malls, Digital Signage Advertising, Retail Stores, Exhibitions and More!

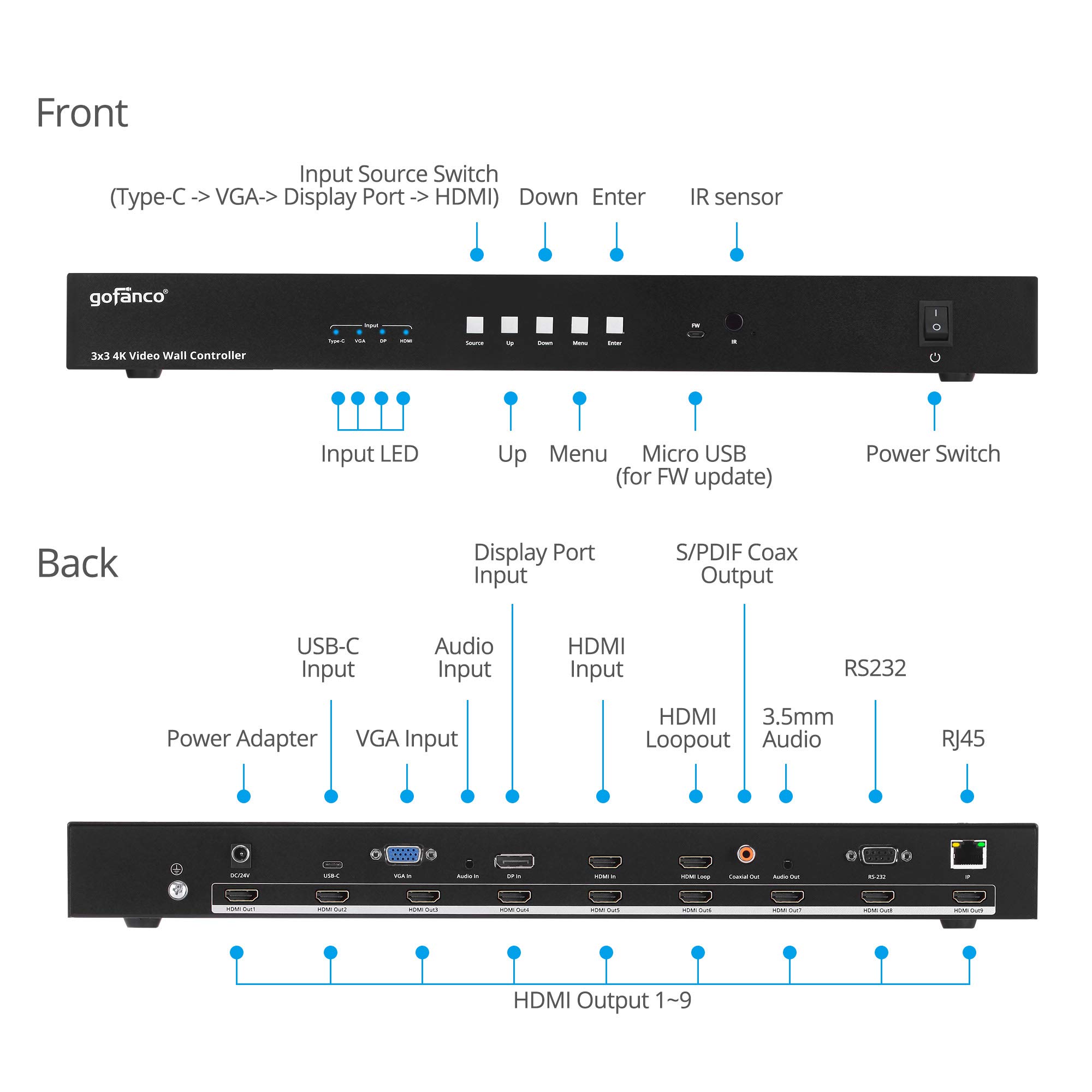

Inputs and Outputs (4 Switchable Video Options)
9x HDMI Output (1 for loopout)
1x USB-C Video Input (4K 30Hz)
1x VGA Video Input (1080p)
2x HDMI Input (4K 30Hz)
1x Coaxial S/PDIF Audio Output
1x 3.5mm Stereo Audio Output
1x RS-232 Serial Control Port
1x Ethernet TCP/IP Control Port
1x Micro USB Firmware Update Port

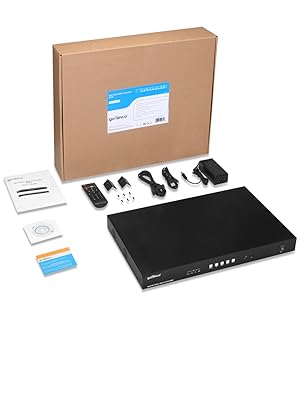

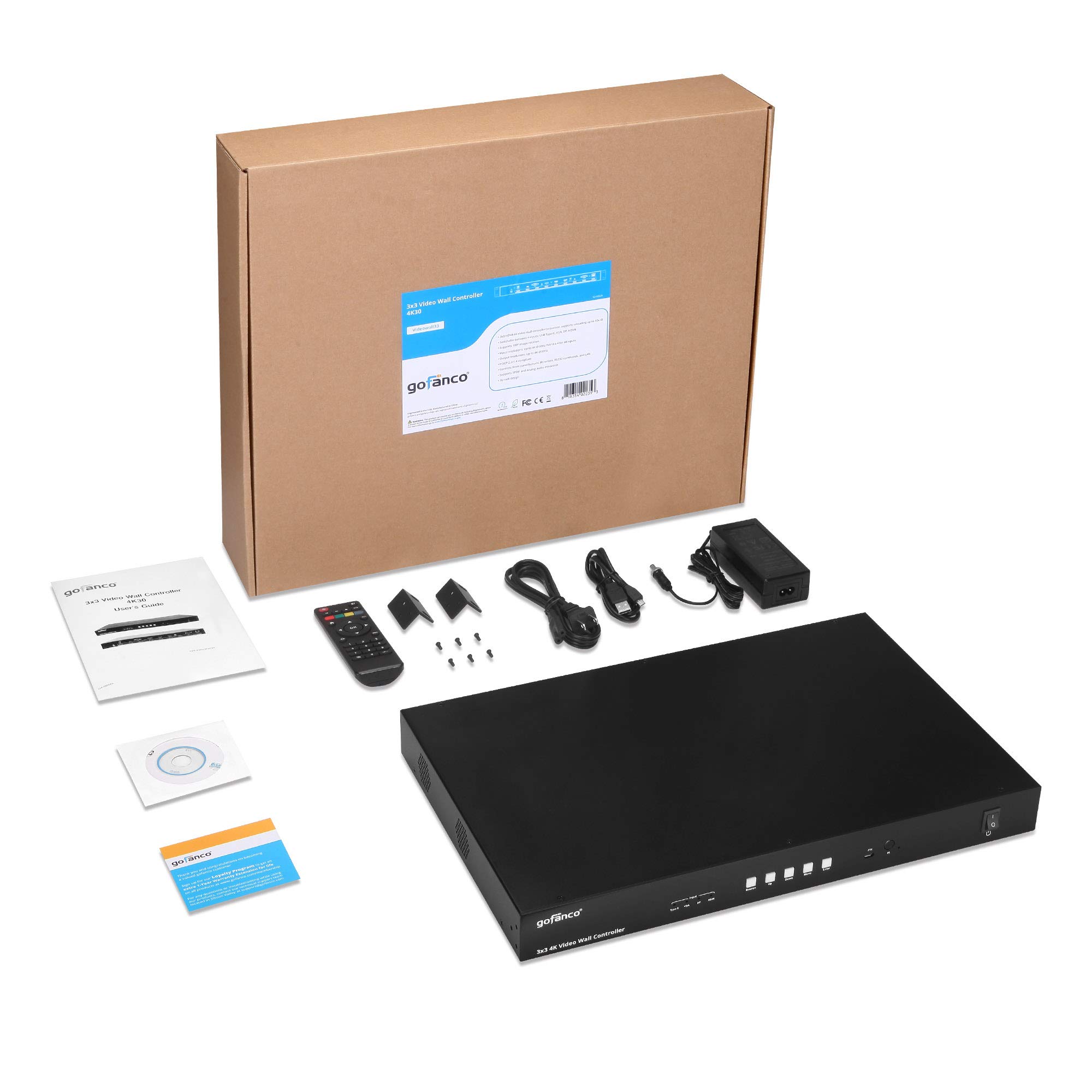

What's in the Package
F r e e L i f e t i m e S u p p o r t
All gofanco products include lifetime technical s upport from our team in the Silicon Valley.
Click on our name in the buy box and select " A s k a Q u e s t i o n "
3x3 4K Video Wall Processor with USB-C/DP/VGA/HDMI In
