ELUTENG M.2 SSD Enclosure NVME SATA Dual Protocol SSD to USB Adapter Aluminum USB C 3.2 Gen 2 10Gbps PCIe M and B&M Keys External Solid State Drive Case Max 4TB for 2230/ 2242/ 2260/ 2280 SSDs

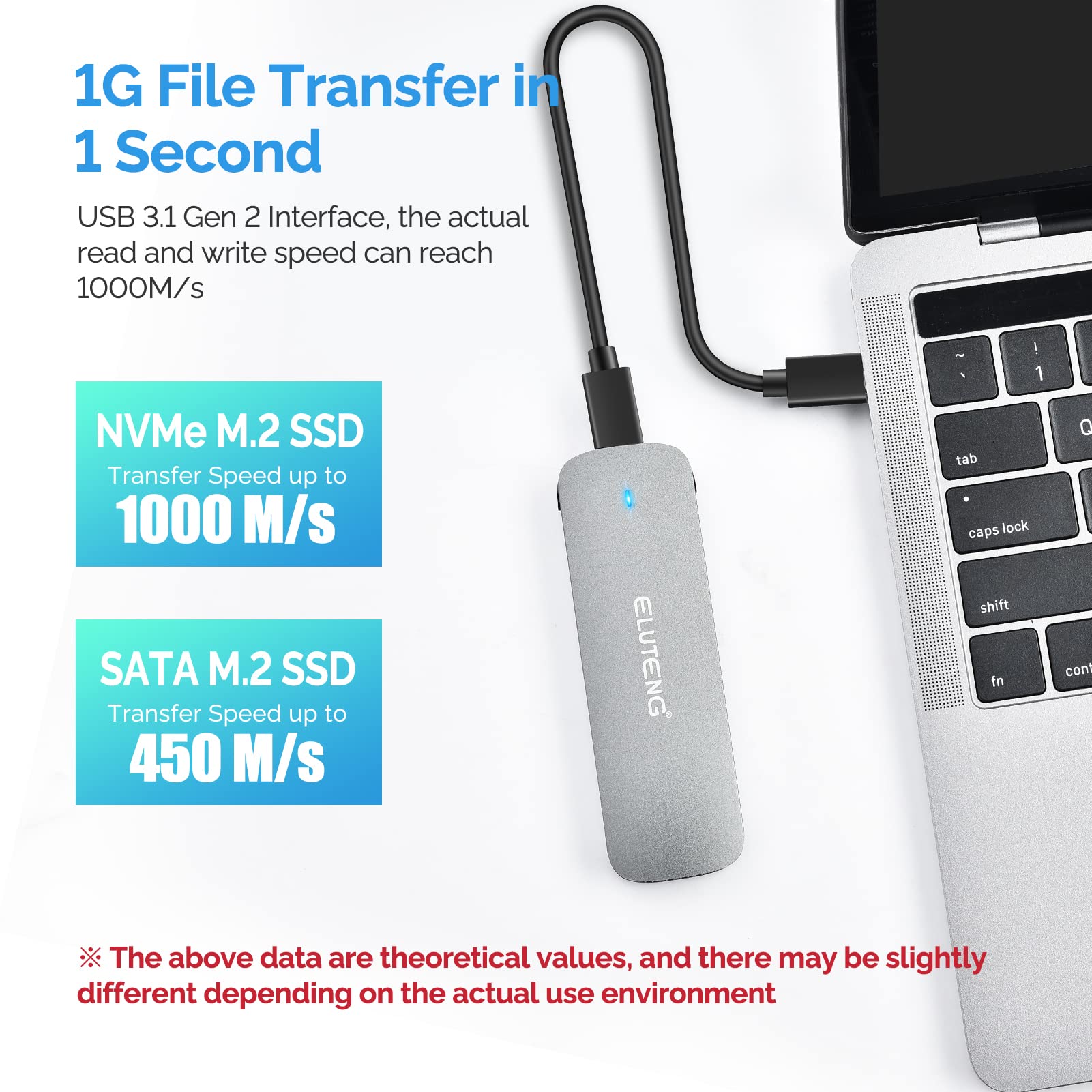

【10Gbps High Speed】This NVMe enclosure adopts USB3.2 GEN2 Type-C interface, NVMe SSD can support up to 10Gbps transfer rate, SATA SSD supports up to 5Gbps transfer rate; The M.2 enclosure built in RTL9210B main control chip, support UASP Trim, can reduce CPU load, reduce consumption, greatly improve read and write efficiency.

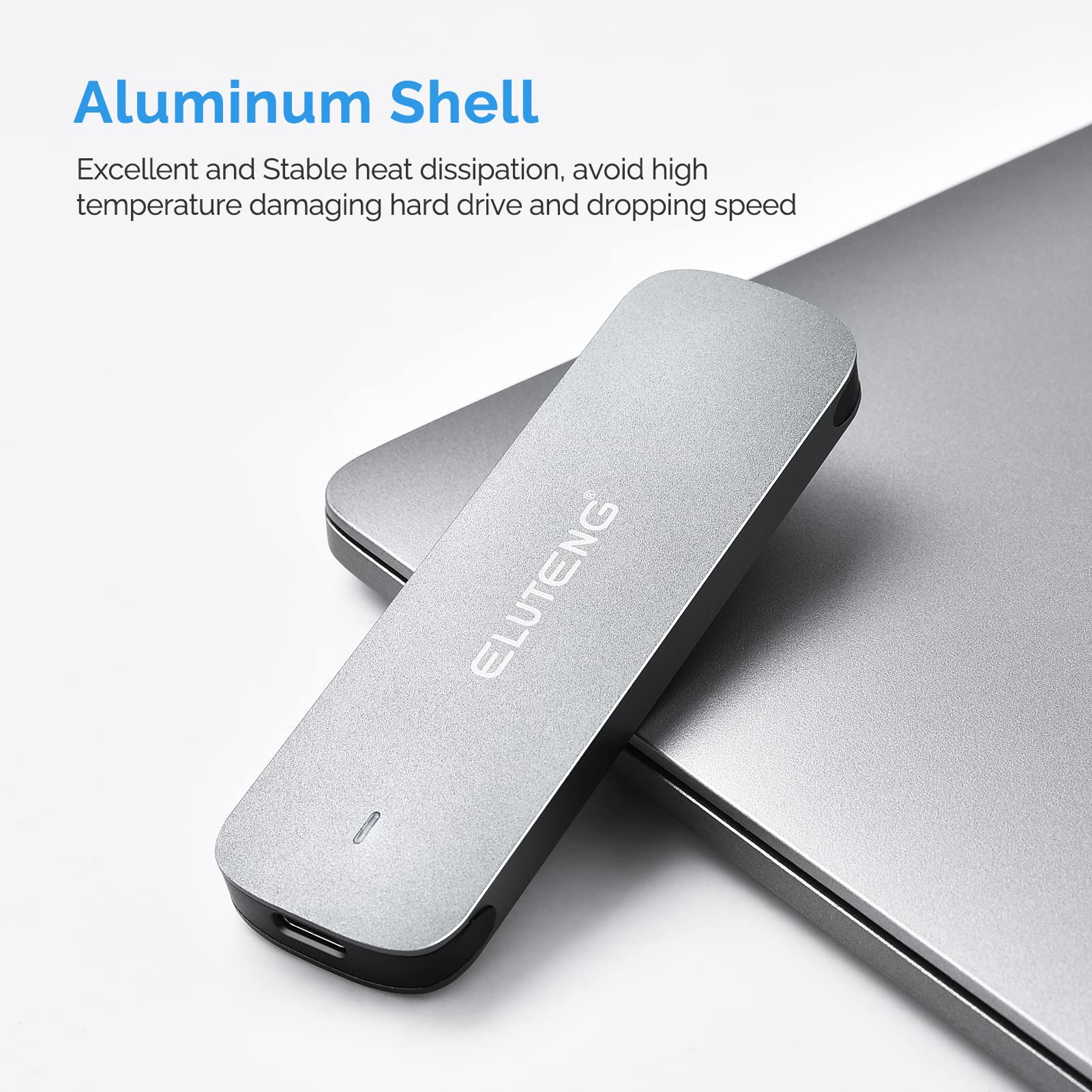

【Excellent Heat Dissipation Performance】This NVMe adapter shell is made of aluminum alloy, stylish and texture, abrasion, scratch resistance and durable. Allowing heat to be transmitted to the shell in time, avoiding damage to the hard disk and preventing speed loss.
【Easy to Install/Remove】This SSD enclosure allows you to easily install and remove, no tools and no driver required, plug and play. With a compact and portable design, easy to carry. Blue Indicator shows the data transfer status, easy and clear.

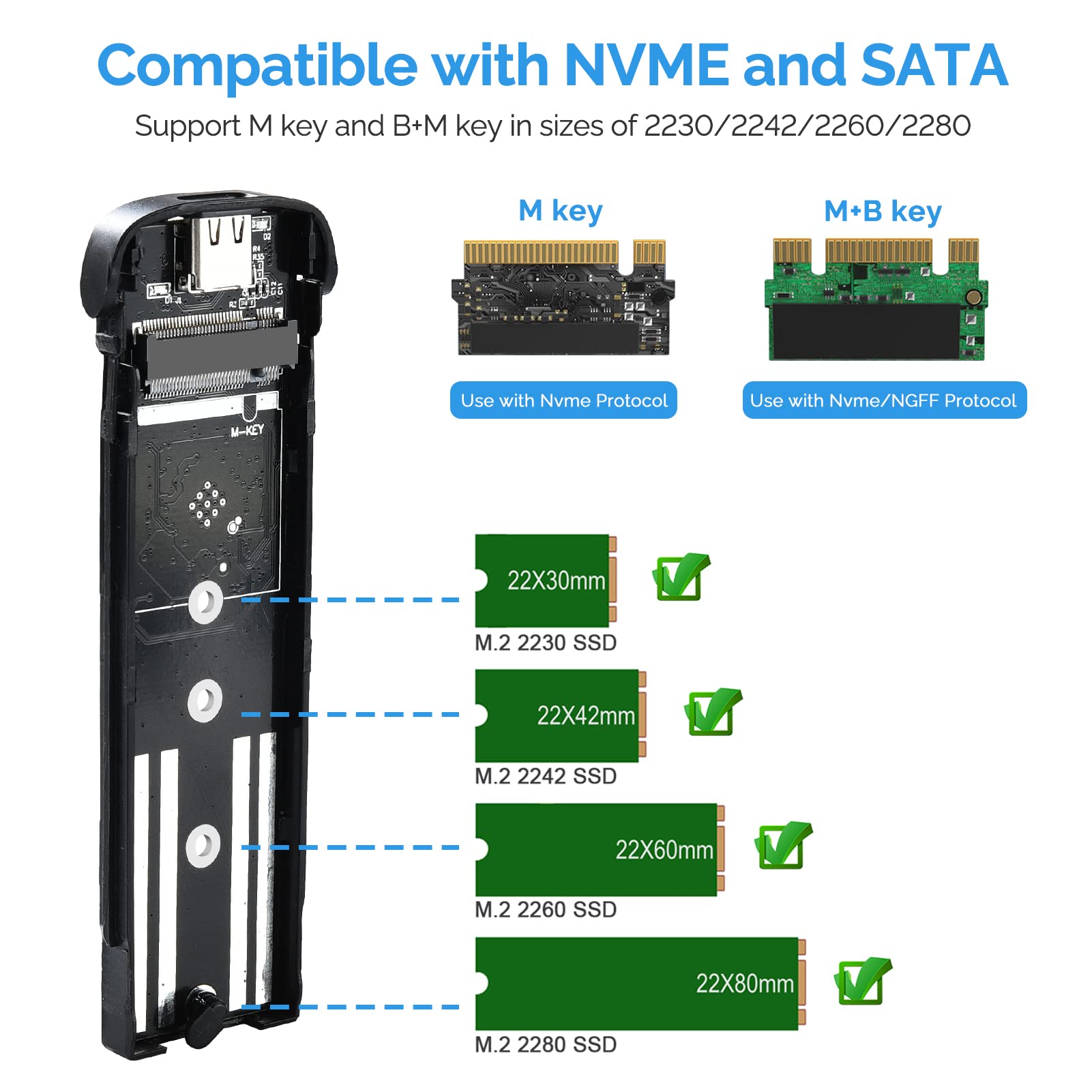

【NGFF SATA & NVMe PCIe 2-In-1】M.2 SSD enclosure is suitable for M.2 NVMe M Key/B+M Key and M.2 NGFF SATA B+M Key. Support SSD Size: 2230/2242/2260/2280. The maximum capacity of SSD is 4TB.
【Wide Application】The M.2 external encolusre Equipped with USB Type-A to Type-C and USB Type-C to Type-C data cables, compatible with Window 7/ 8/ 10/ 11/ Mac OS / Linux multi-platform operation system. Suitable for connecting PC, smart phone, tablet, smart TV, smart router, PS4 and other devices.
【4TB large Capacity】This NVME SATA SSD enclosure up to 4TB SSD can be installed. backward compatible with 2TB/1TB/512GB/256GB/128GB, read speed: 1000MB/s (This data is for reference only). Compatible with Windows 7/8/10/11/Mac OS / Linux systems.
Product Specifications
Hardware Interface: USB
Brand: ELUTENG
Color: Black
Product Dimensions: 4.25"L x 1.26"W x 0.45"H
Hardware Platform: Laptop
Material: Acrylonitrile Butadiene Styrene (ABS)
Memory Storage Capacity: 4 TB
Compatible Devices: Laptop
Max Number of Supported Devices: 1
Data Transfer Rate: 5000 Megabytes Per Second
Manufacturer: ELUTENG
Item Weight: 2.39 ounces
ASIN: B08H22BV1N
Item model number: M.2 SATA/NVME Enclosure
Customer Reviews: 4.3 out of 5 stars 490Reviews
Best Sellers Rank: #96 in Enclosures
Date First Available: August 31, 2020
Product Information
Product description
M.2 SSD NVME/SATA External Case
*Please note that this product is not applicable to B key NGFF/SATA.
Transfer rate:
NVMe protocol: 10Gbps SATA protocol: 5Gbps
Material:
Aluminum alloy
Supported OS:
Windows 11/10/8/7/Mac OS/Linux
Multi-OS, Windows, Mac OS, Linux, Android
Output ports:
USB3.1 GEN2 USB Type-C
Supported sizes:
2230/2242/2260/2280mm
UASP and TRIM functions are provided.
Equipped with High-performance Chip
The RTL9210B chip enables stable data transfer and can reach a transfer rate of 10 Gbps! (For NVME)
The external output port is USB3.1 GEN2 USB Type-C, which improves read/write efficiency for large amounts of data and accelerates the transfer of large files.

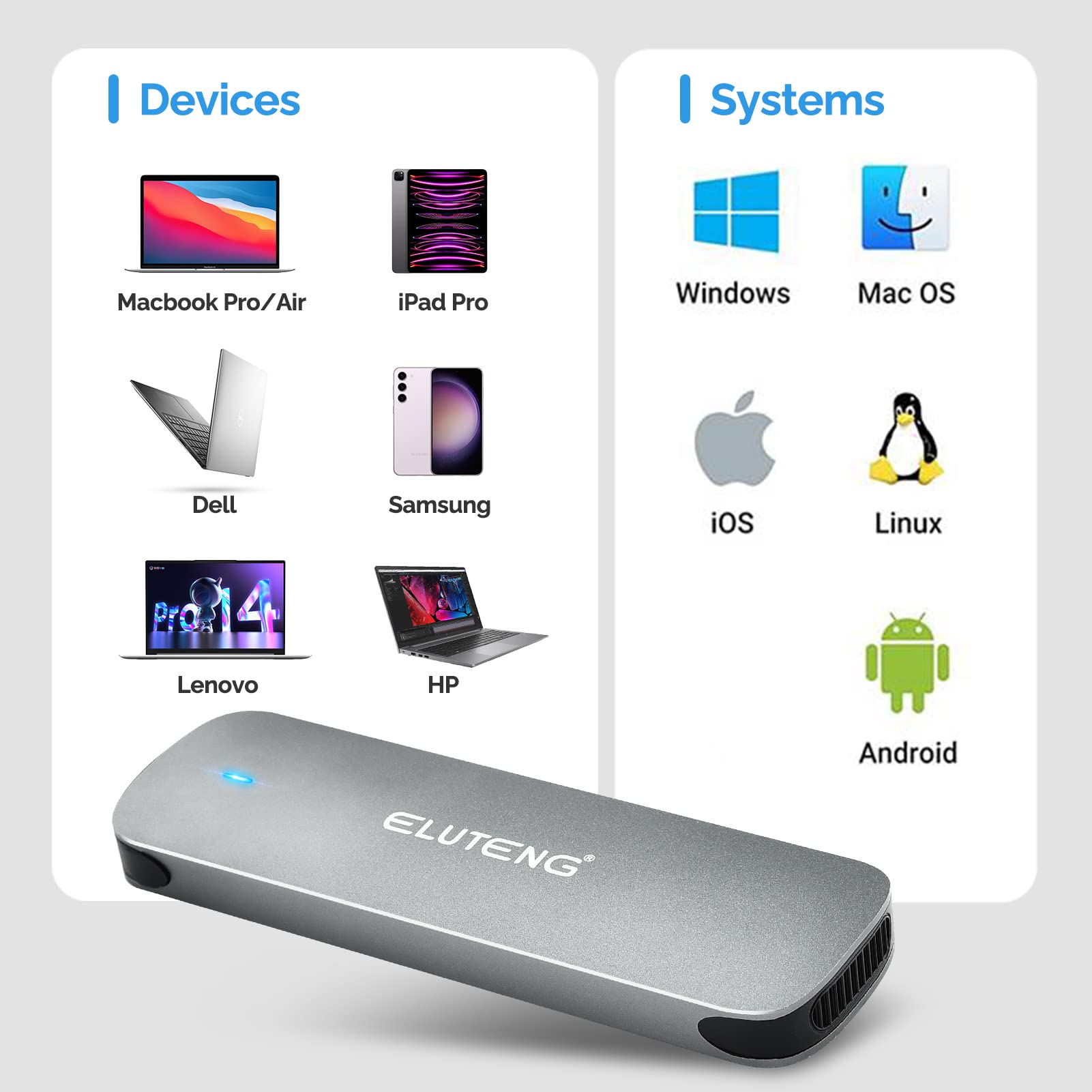

Compatible OS
Compatible with Windows 11/10/8/7/Mac OS/Linux systems. Supports Multi-OS, Windows, Mac OS, Linux, Android; compatible with PC, Smartphone, PC, Smart TV, Intelligent Router, PS4, etc.

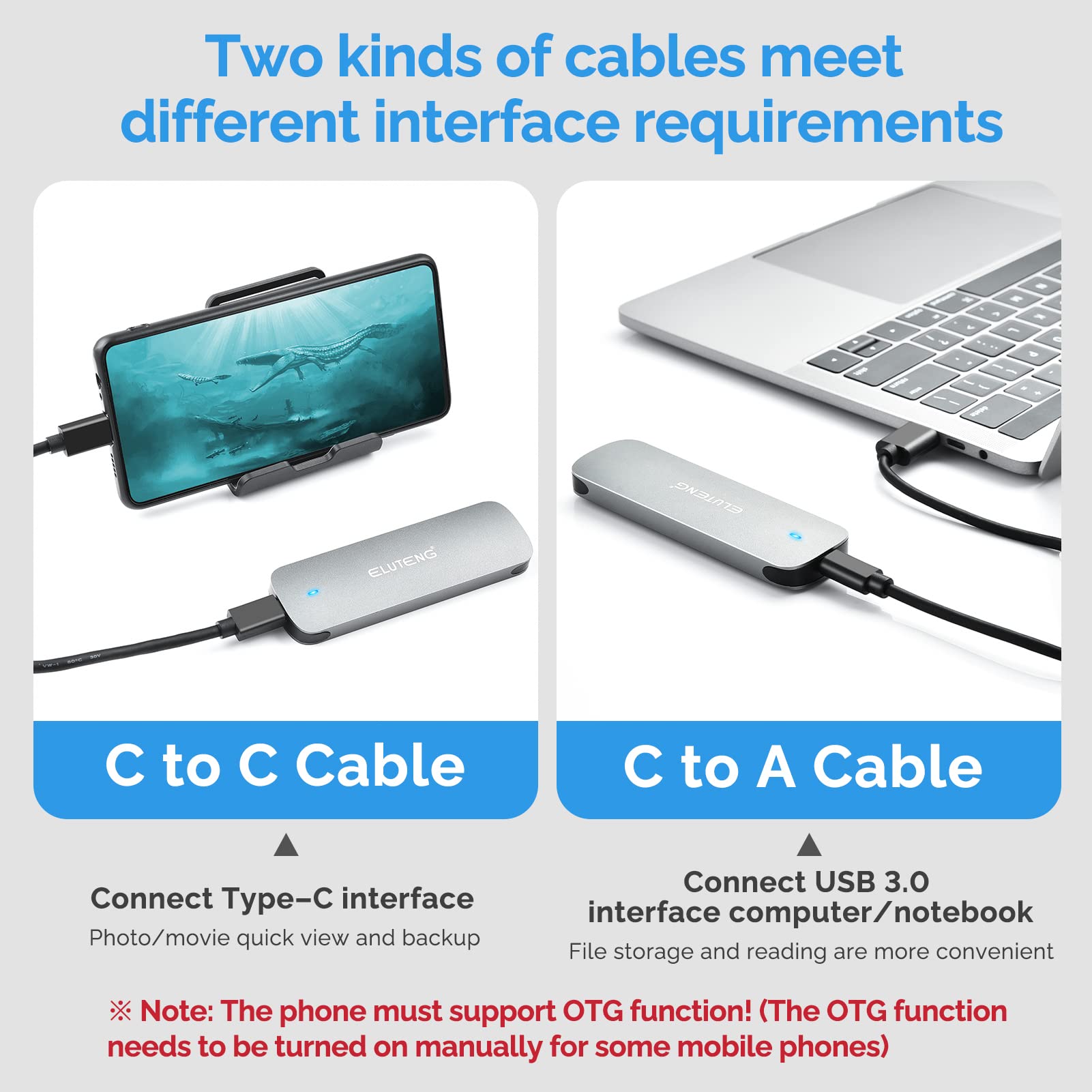

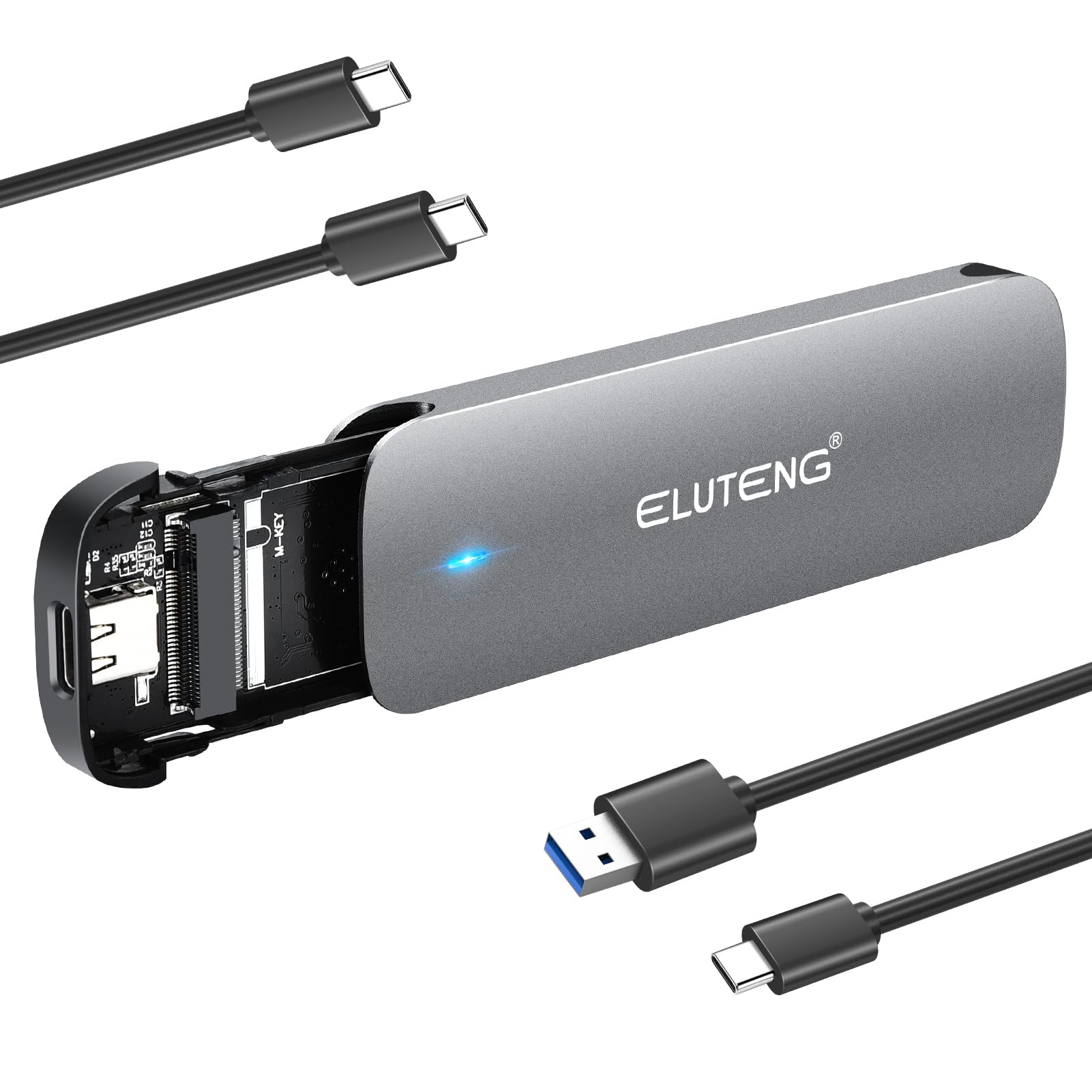

Two Cables Included
USB Type-A to Type-C and USB Type-C to Type-C data cable (0.5m).

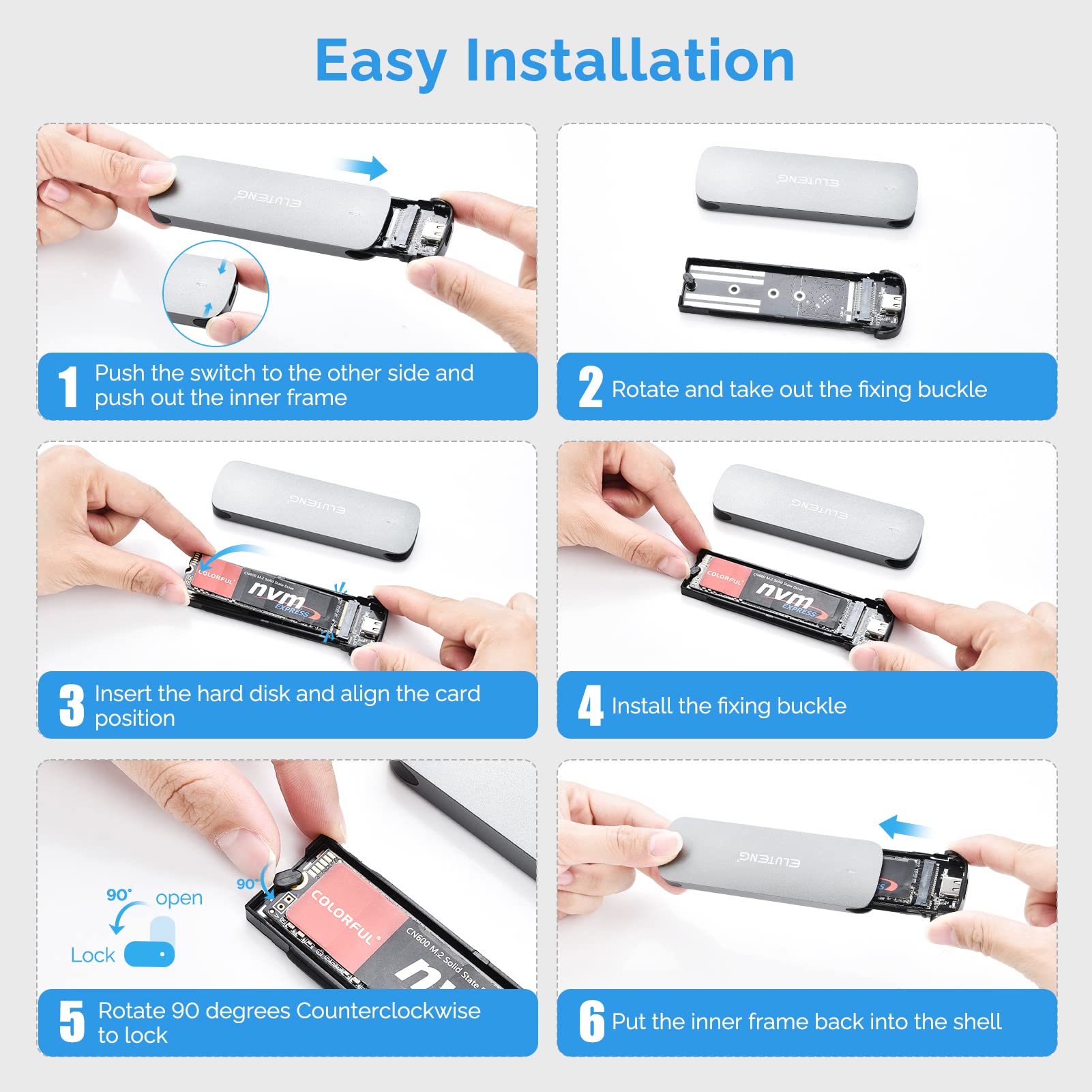

Easy to install and disassemble; easy to replace hard disks.
Equipped with LED Indicators
Equipped with LED indicators to monitor hard disk operating status.
Handling precautions:
1. If you use a new SSD, you need to partition it.
2. Due to the nature of SSD and aluminum has high thermal conductivity, the surface may become hot during use. Please be careful when touching directly.
3. The m.2 external SSD case is best connected to the USB port on the back of the desktop.
4. The drive speed itself is different, so it depends on the OS and drive you are using.
5. When removing the hard drive, do the removal on your PC before removing it from your PC. Be aware that forceful removal of hard disk cases or hard disks can result in data loss and hard disk corruption.
6. The rubber clasp in the case is easy to break, so you can not push this part when installing the SSD.
