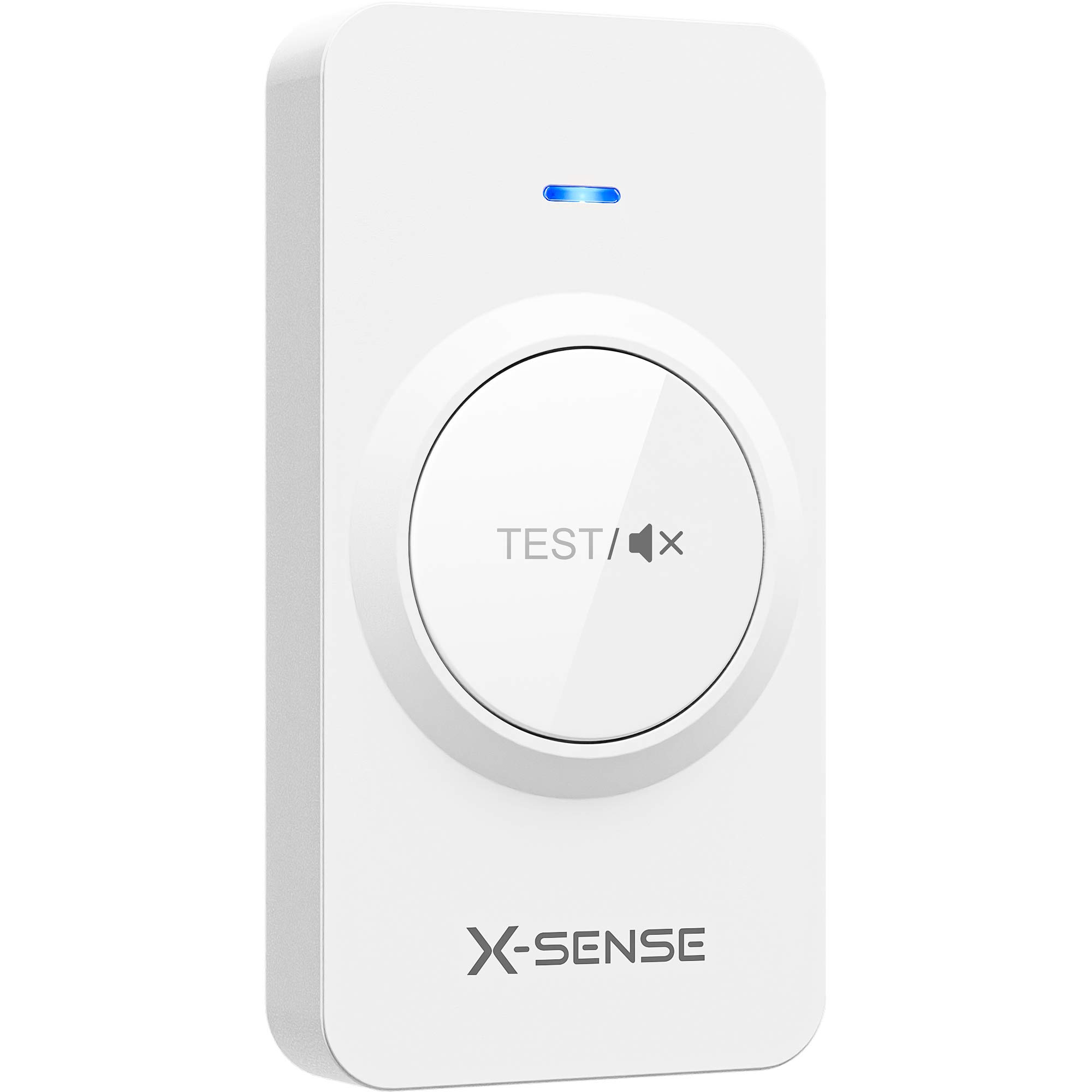

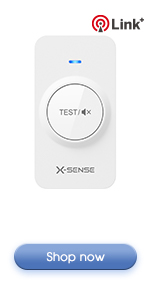

X-Sense Remote Controller RC01 Pro for X-Sense Link+ Wireless Smoke & Carbon Monoxide Detector Alarms (1-Pack)

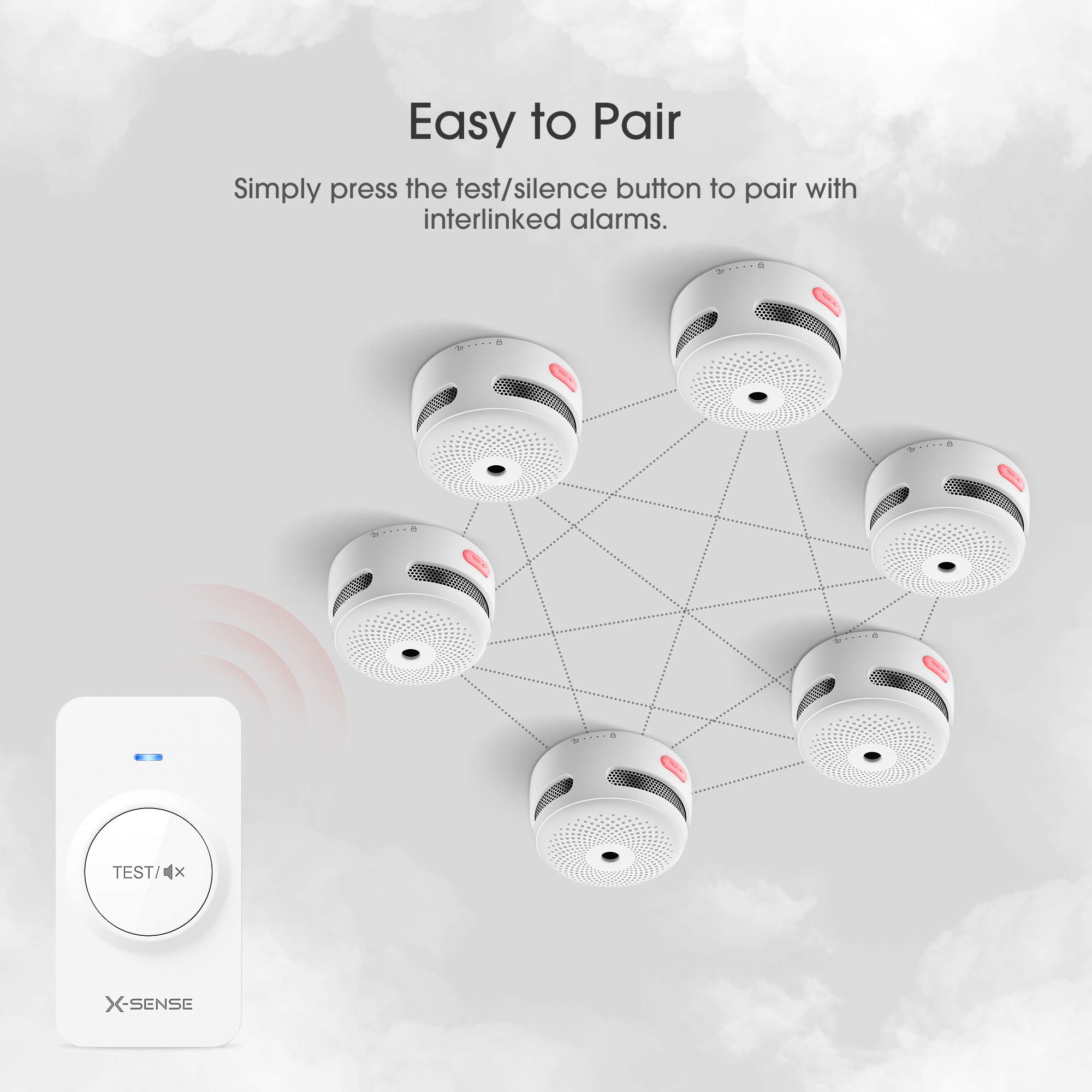

Pair the Remote Controller with the X-Sense Alarm

1. Press the test/silence button on one of the interlinked detector group 4 times. The unit will beep once, and the red LED will flash slowly, indicating it is waiting for a new unit to be added.

2. Press the test/silence button on the remote controller twice. The LED will flash rapidly, indicating it is searching for a device to connect to.

3. After successful linking, the alarm will beep once and automatically exit the paring mode.

Test the Wireless Connection Between Alarms

1. Hold the test button while within wireless range. The LED indicator on the remote controller will flash.

2. After the alarms have received a signal (takes about 7 seconds), their LED indicators will flash and the alarms will sound continuously.

3. Release the test button. The LED indicator on the remote controller will stop flashing, indicating that the testing has ended.

Silence the Alarms

Simply press the test button to silence the alarms when non-emergency smoke (e.g. steam) causes nuisance alarms.

During an alarm state, press the test button once and all the interlinked alarms but the initiating alarm will be silenced. Press again to silence the initiating alarm. The LED indicator on the remote controller will blink blue with each press.

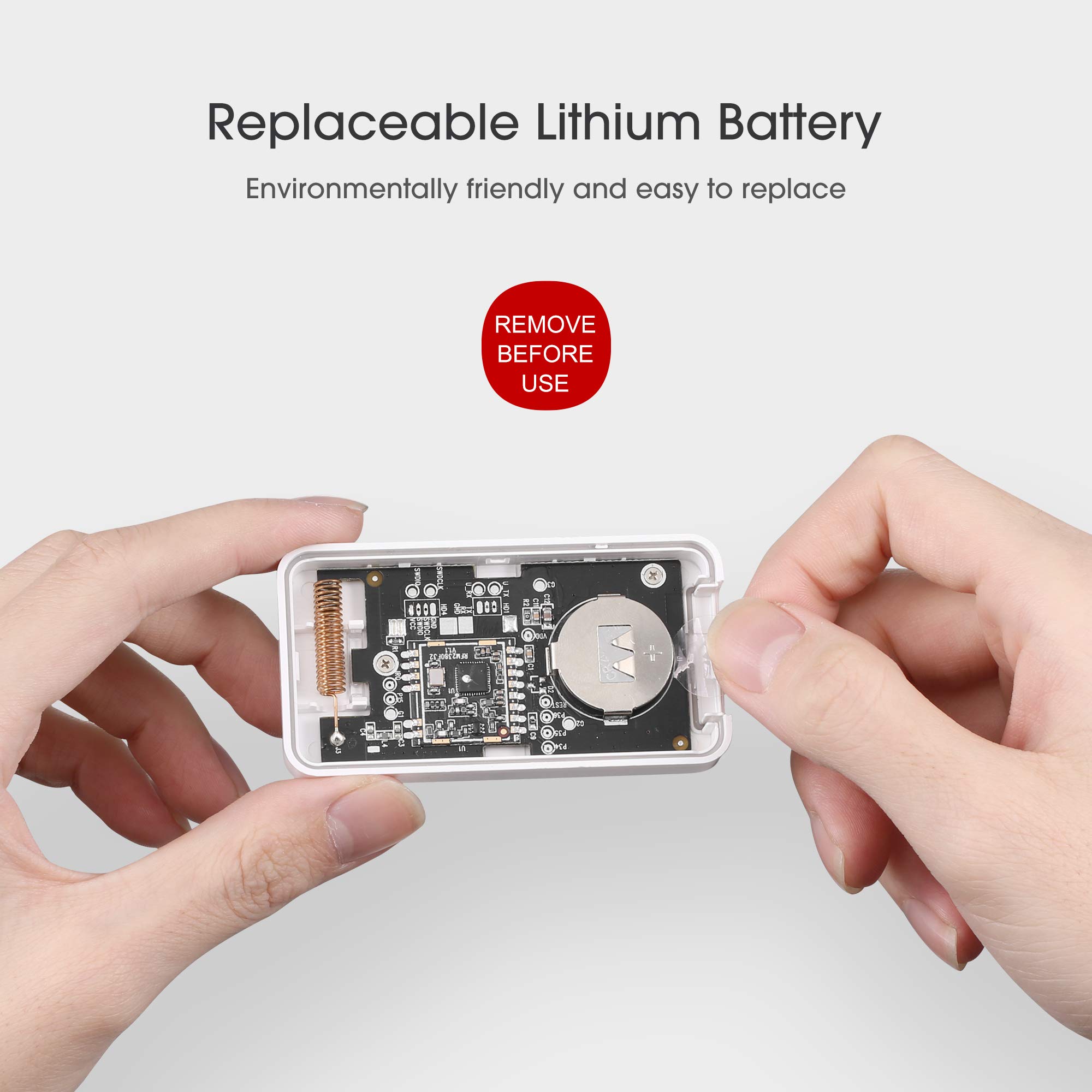

Test the Remote Controller’s Power Status

In standby mode (non-alarming state), when you press the test button, the LED indicator on the remote controller will blink blue, indicating a normal power supply.
