Electric Motor 1600W 48V go Kart Electric Motor kit with Throttle 33A Speed Controller BLDC ATV Kits Scooter Motorcycle Engine Ebike Conversion Kit Chain T8F
【HIGH-SPEED POWERFUL MID MOTOR】- High Speed Brushless DC Motor Kits 1600W48V, Rated Speed No-load 3900rpm, Max can be 4500rpm, Motor Rated current 33A, The scooter motor is Smaller and Lighter Compared body Make More Power efficient, High Quality Aluminum Shell to be Sturdy and Reliable, Easy to Install for Go kart E-bike E-Scooter mini Motorcycle Quad atv and more.
【Electric Gokart Motor HIGH EFFICIENCY】- Small Size, With high Torque High speed, BLDC Mid Drive Motor, and the Scooter Motor with Mounting Bracket is more easy to Install and Enough Carry, with wind cold hole, Motor Wiring length about 150cm(59inch),Motor Weight about 3.3kg (7.3lb).
【DC MOTOR KITS POSITIVE & NEGATIVE ROTATION】- BLDC Go kart Motor Can Through the Motor Reversing Wire or Handlebar reverse Switch To Let The Motor Go Clockwise or Counterclockwise, And with 3 Speed Function, Low speed 50%, Mid speed 70-80%,High Speed 100% Efficiency, But Don’t let the Motor Run Reverse Long Time, is Not safe for Motor Life.
【15Mosfet 33A Brushless Motor Controller】- The Motor Kit include 15MOS 33A±1A Speed Controller, BLDC Motor Controller with high Quality Material, is enough for the Motor, with Hall 3-Speed Reverse Throttle Charging e-Braking Power lock Light Functions etc.
【E-scooter Motor Kit List and Useful】- 1600W BLDC Motor, Speed Controller, Handlebar Twist Grip Throttle, Foot Throttle, Power lock key, T8F Tooth, T8F Chain, 3 speed Switch, is Good for Electric Scooter, E-bike, Mini Motorcycle, Dirt bike, Electric Go karts, Bicycle, Quad carOther DIY project and more.
Product Specifications

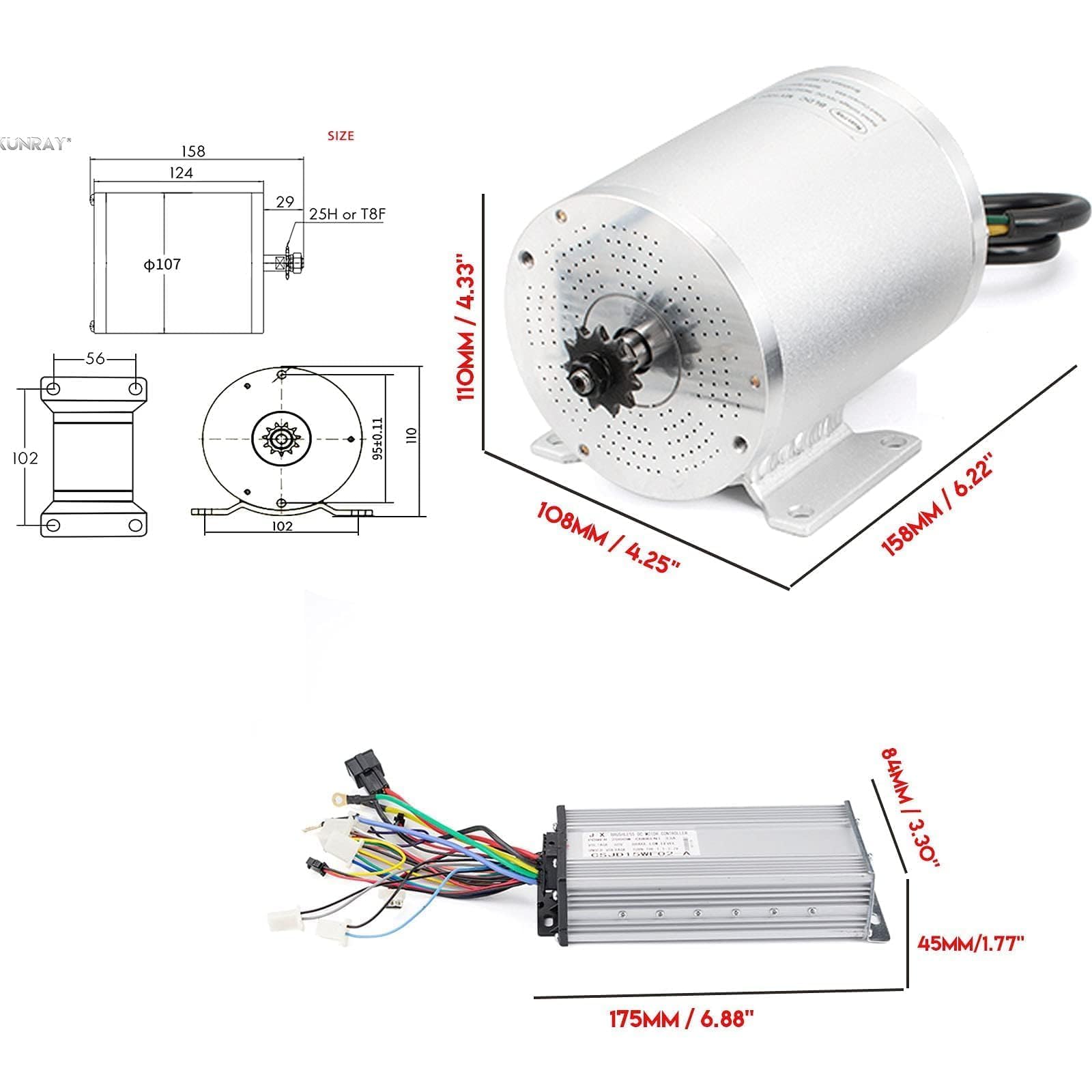

Product Dimensions: 6.54 x 4.02 x 4.33 inches
Item Weight: 9.4 Pounds
ASIN: B096K2RL78
Customer Reviews: 4.0 out of 5 stars 303Reviews
Date First Available: June 3, 2021
Material: Aluminum
Manufacturer: Kunray
Product Information
Product description
1600W Brushless Motor Kit
Brushless Motor
Brushless DC motor with low noise, smooth operation, long service life and low maintenance cost.
The running direction of the motor can be changed by changing the wiring between the motor and the controller (reverse-counterclockwise) :
Step 1: 3 thick yellow, green and blue wires (phase wires) : Controller to the motor - yellow to yellow, blue to green, green to blue;
Step 2: 6 Hall Wires: Controller to the motor - blue to yellow, other unchanged.

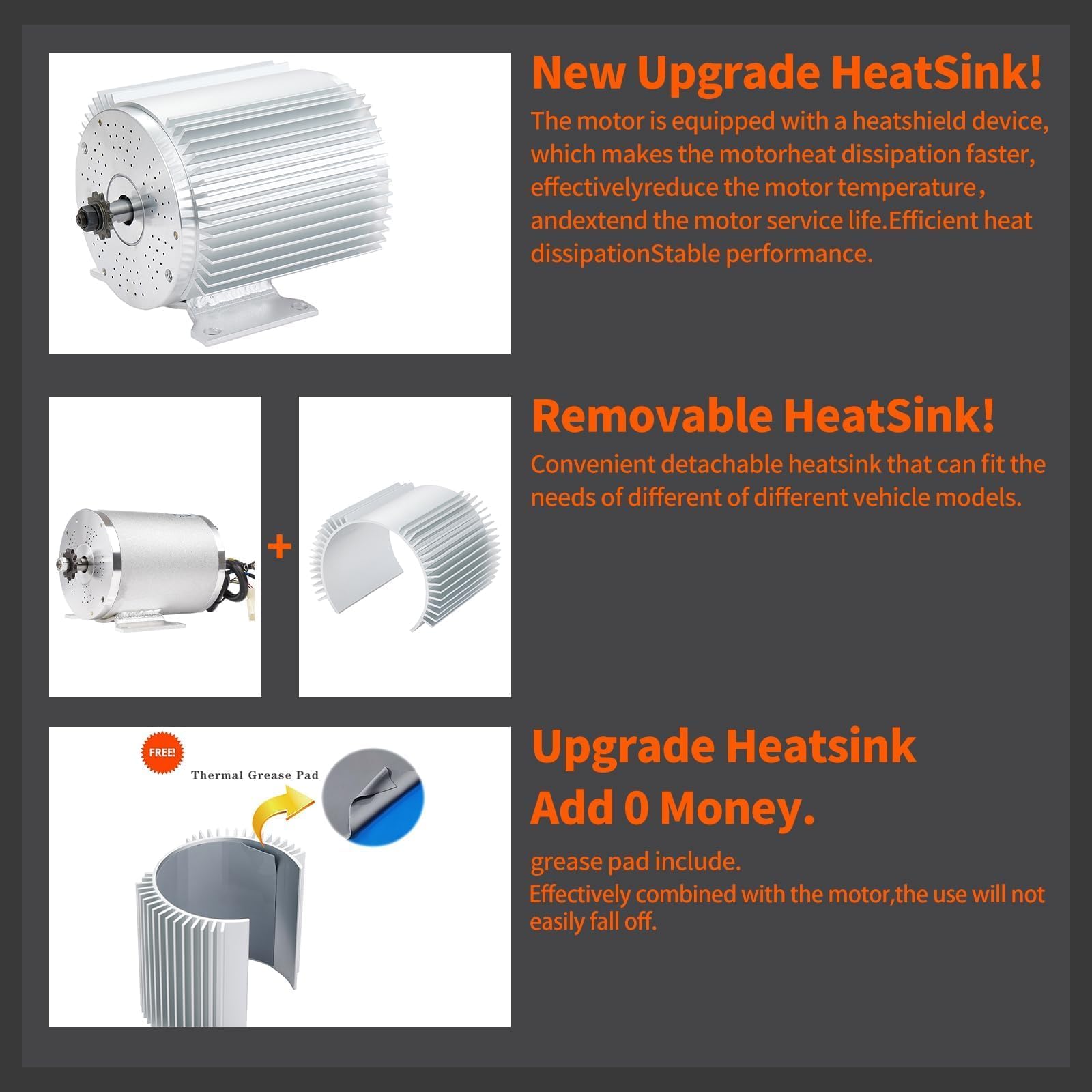

High power, fast heat dissipation
1600 watt rated power, 3900rpm/min rated speed, max speed is about 4300rpm/min. High-speed operation, and has 214 cooling holes for fast heat dissipation.
With Mounting Brackets
All aluminum body, comes with two mounting brackets for more models, with 8/10 mm axle and the bolts used are M6.
The sprocket is T8F 11T, and the matching chain is also T8F; 25H chain can also be used, but the sprocket must be replaced with 25H.
48V 1600W Electric Go Kart Motor

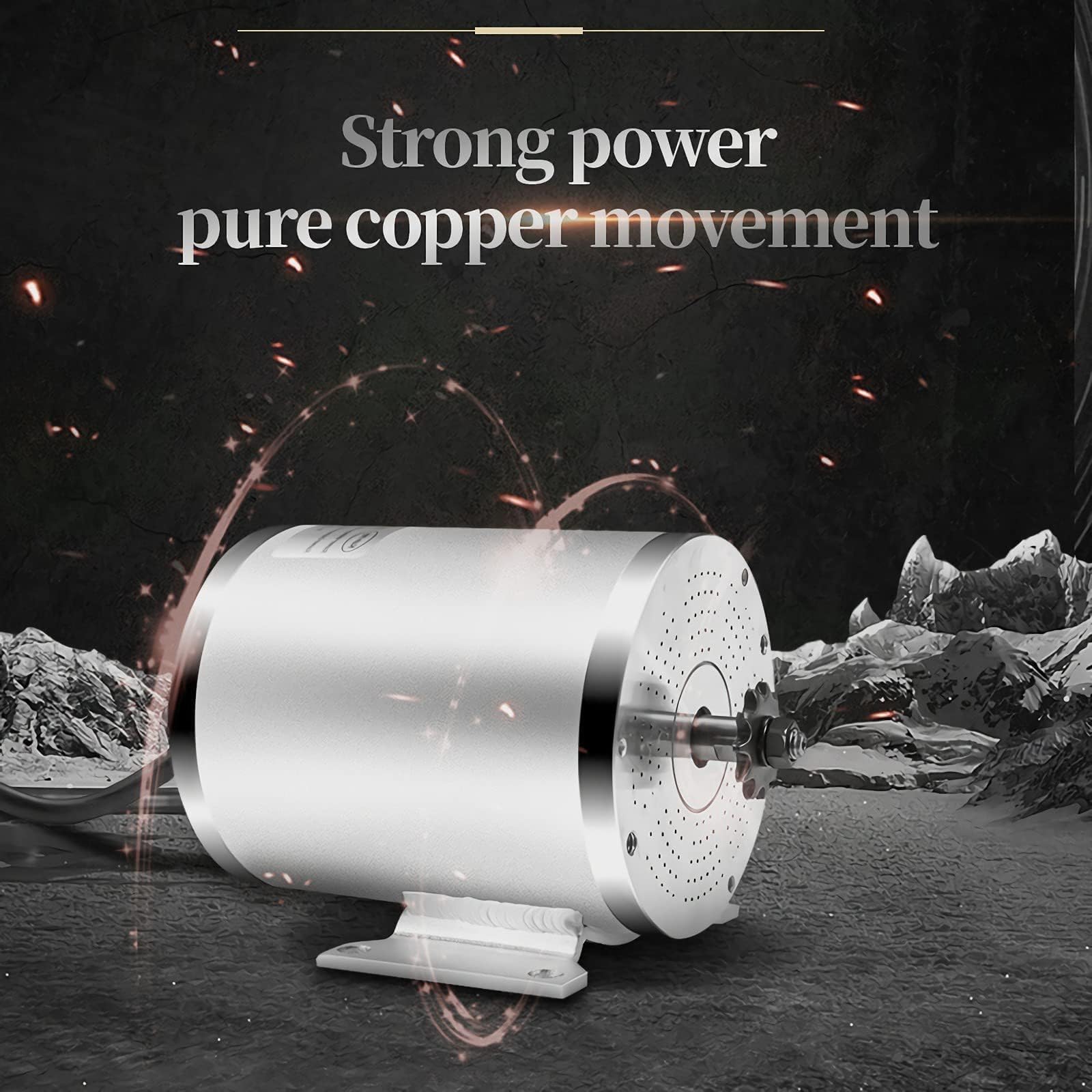

High Quality Motor, All copper movement
All copper movement, High quality motor with long service life.
Sprocket: T8F 11T
Magnet Poles: 6 pairs / 12 pieces
High Speed

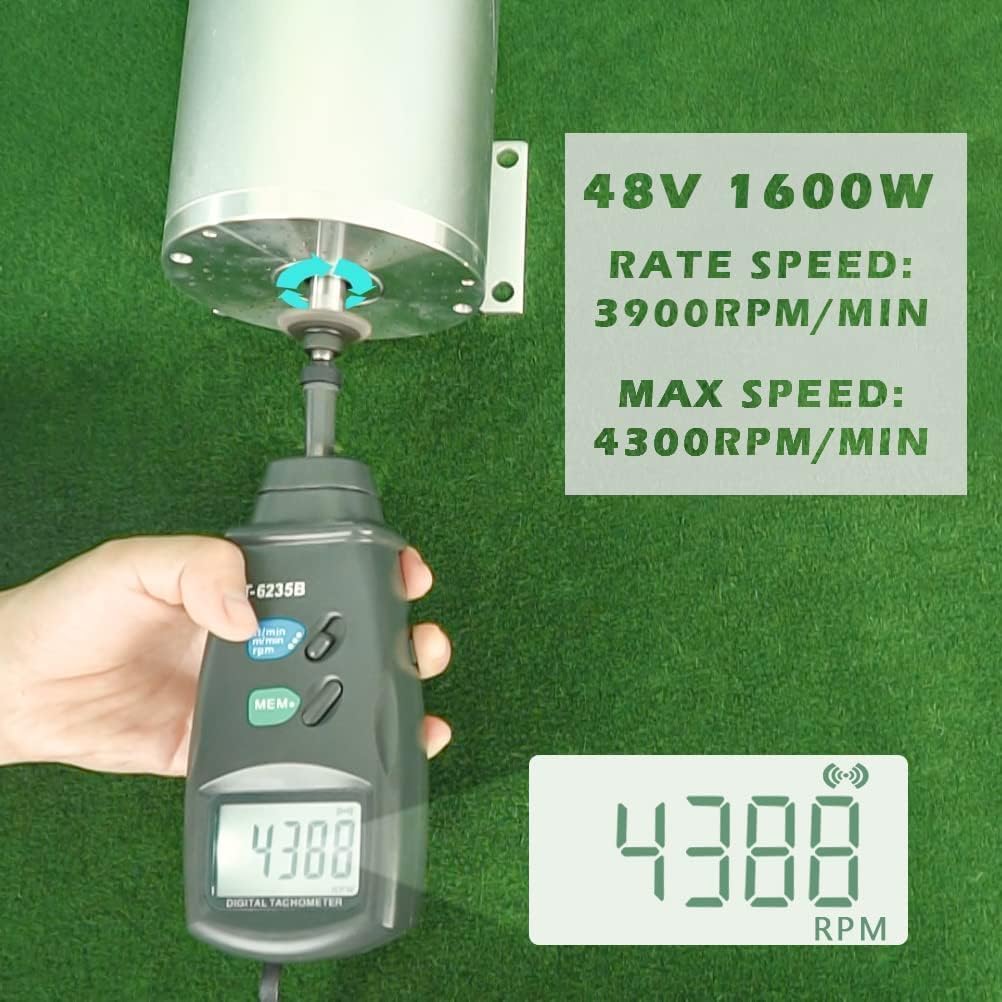

Kunray's 48V 1600W brushless motor has a rated speed of 3900rpm/min and a maximum speed of 4300rpm/min.
Rate Voltage: 48V
Rate Power: 1600W
Rate Current: 33A
Rate Speed: 3900rpm/min
Max Speed: 4300rpm/min
Torque: 5.1N.m
Load Weight: about 150-200KG

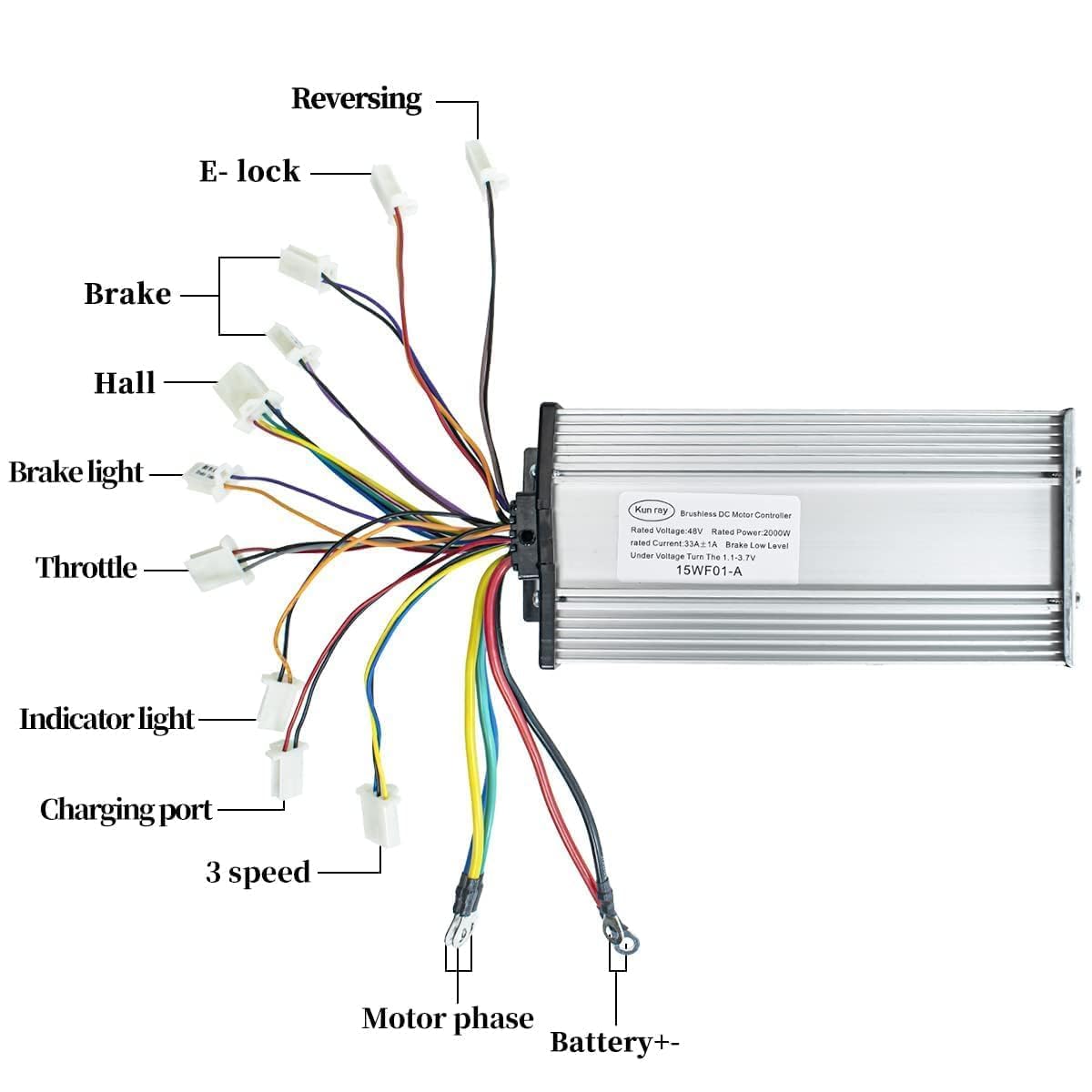

Electric Brushless Controller
Brushless Controller 33A
Rate Voltage: 48V
Rate Power: 1600W
Rate Current: 33A
Mosfet: 15 MOS
Phase Degree: 120°
Multiple Functions
The controller has multi-function, 3-speed, reverse, indicator light, brake light and charging port.
Please be sure to turn off the power when connecting the cables to avoid short circuits.
Disassemble the controller: please turn off the main power first, then open the electric e-lock, wait a few minutes to discharge the electricity in the capacitor
High Quality Controller
KRBC-15MOS, the controller adopts high quality motherboard and chip.
Accessories of Brushless Motor Kit

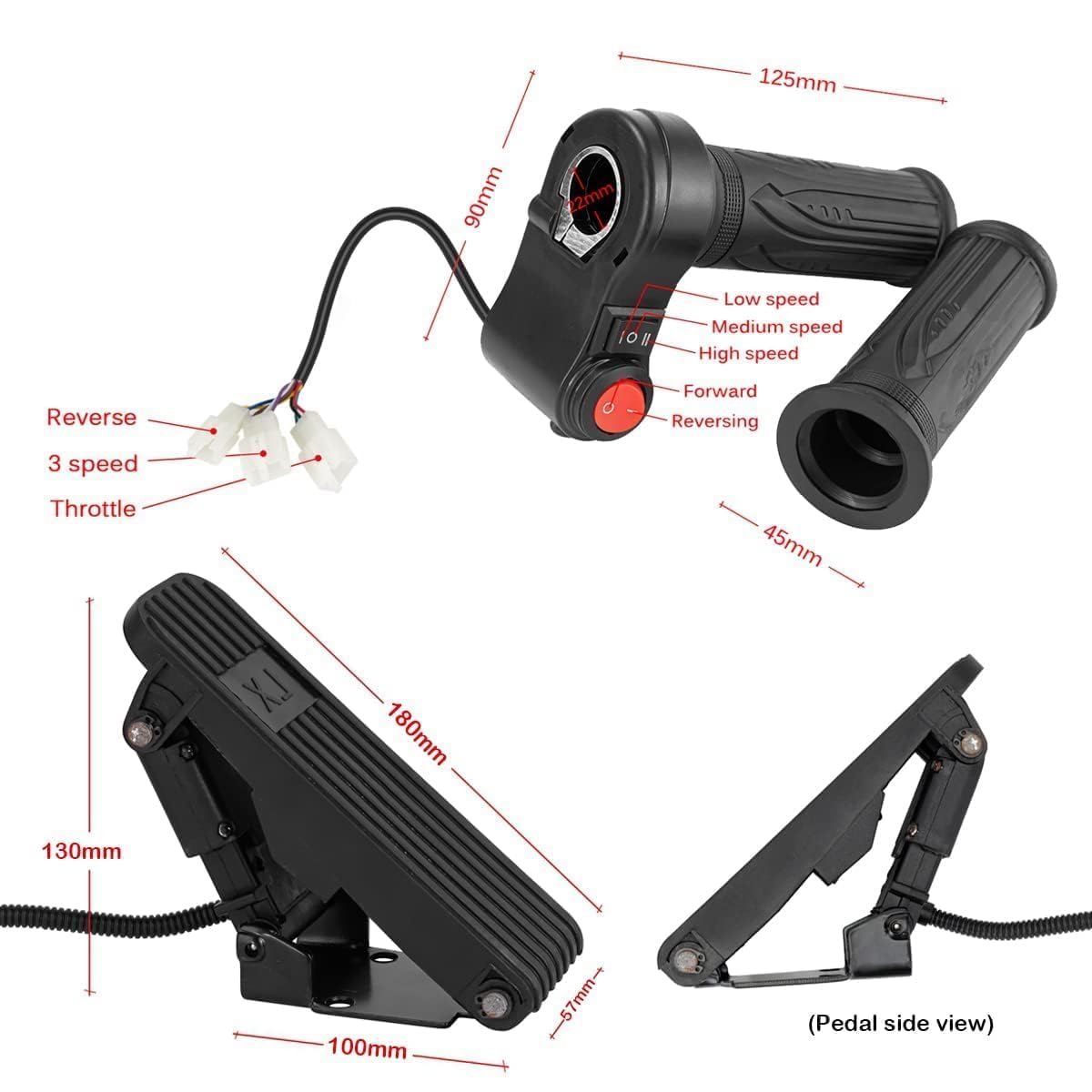

3 Speed Handlebar
3 Speed: low speed, medium speed, high speed;
Forward and reverse
Cable length: about 150cm/59inch
Foot Pedal
Suitable for go kart, cable length is about 150cm/59 inches
3 Speed Switch and E-lock
3 Speed Switch: low speed, medium speed, high speed (use with pedal)
T8F Sprocket and Chain
Sprocket: T8F 54T;
Chain: T8F, 4mm

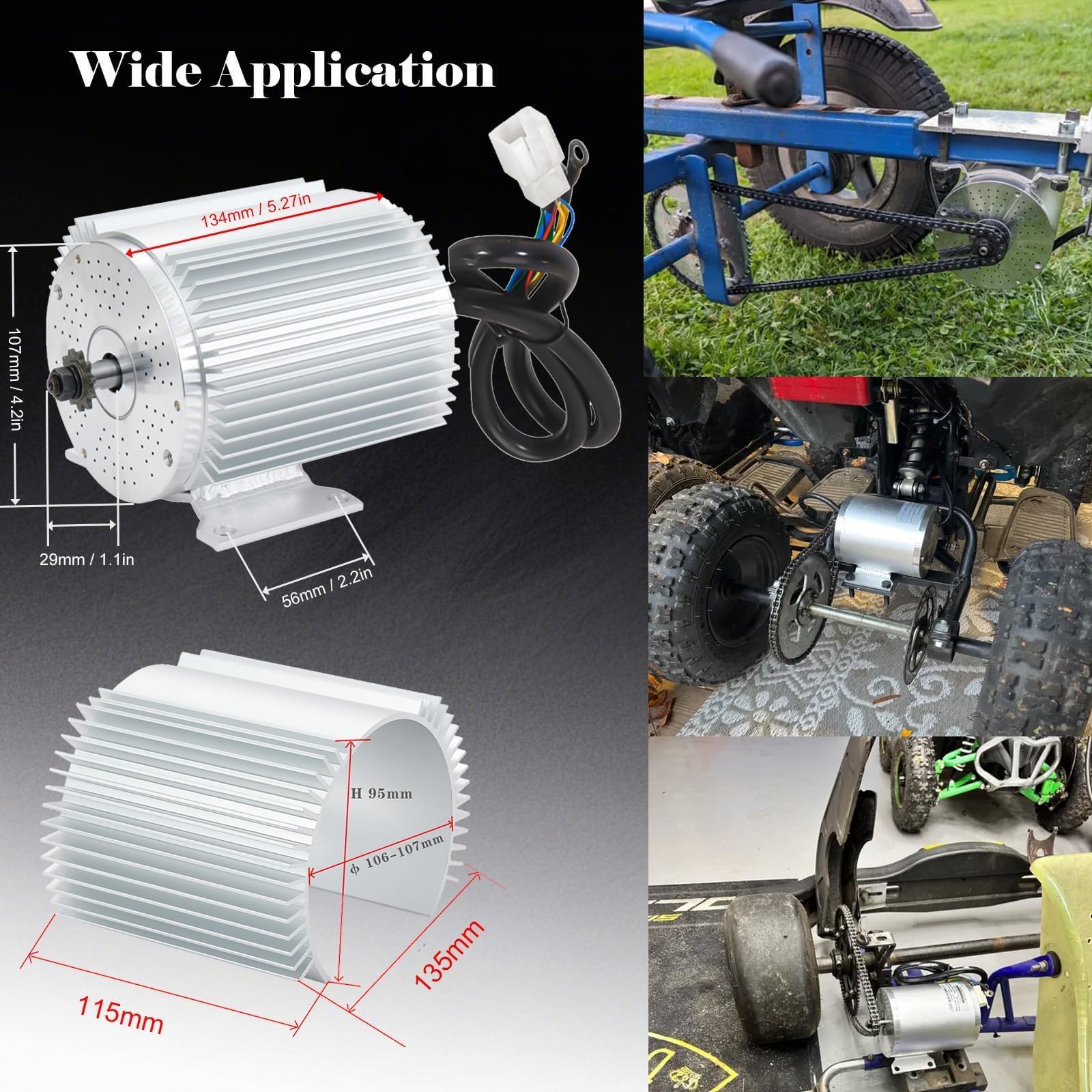

Mid Drive Motor Applications Wide
The electric motor is good for electric scooter, e-bike, mini motorcycle, dirt bike, electric go karts, Bicycle, Quad car, other DIY project and more.

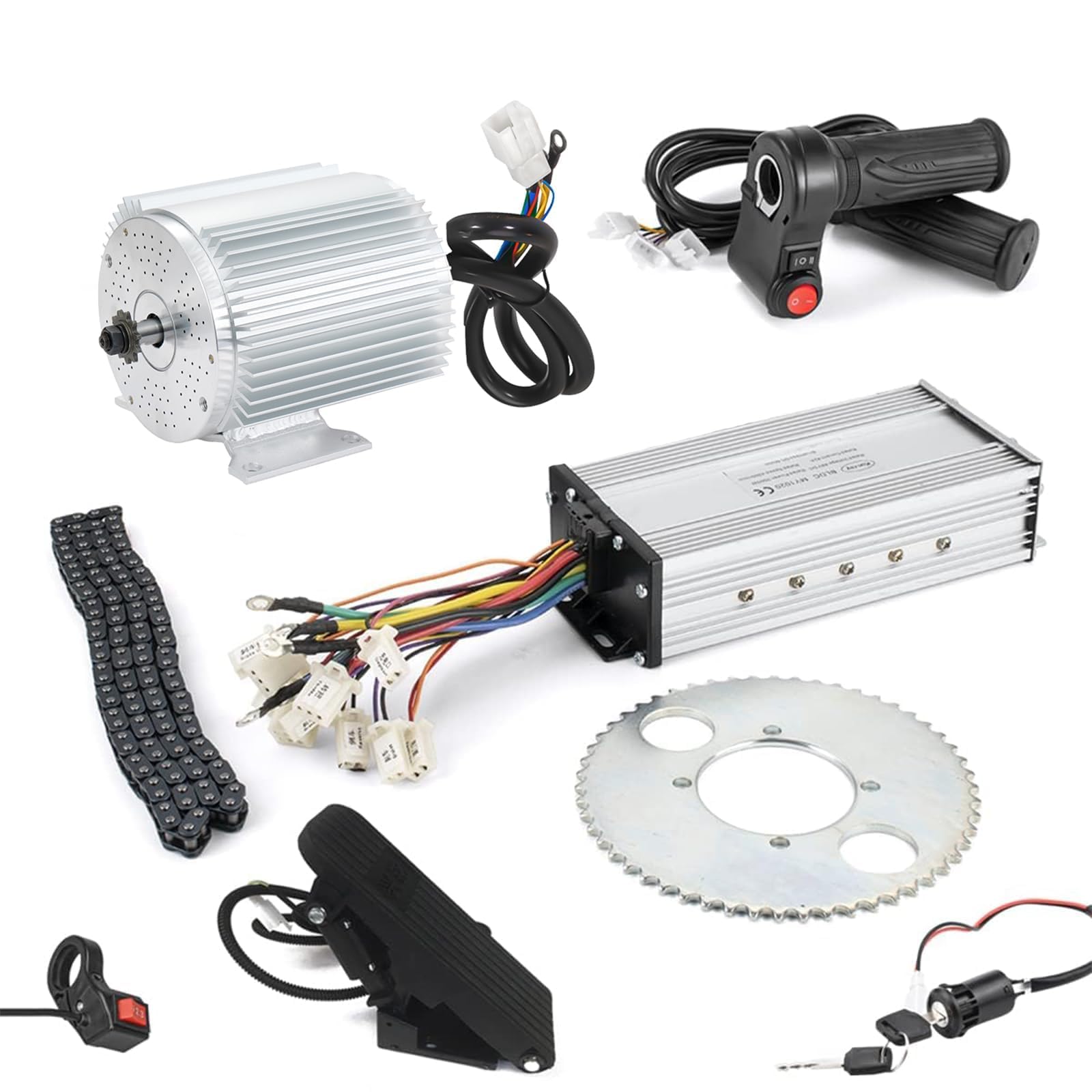

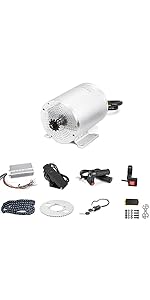

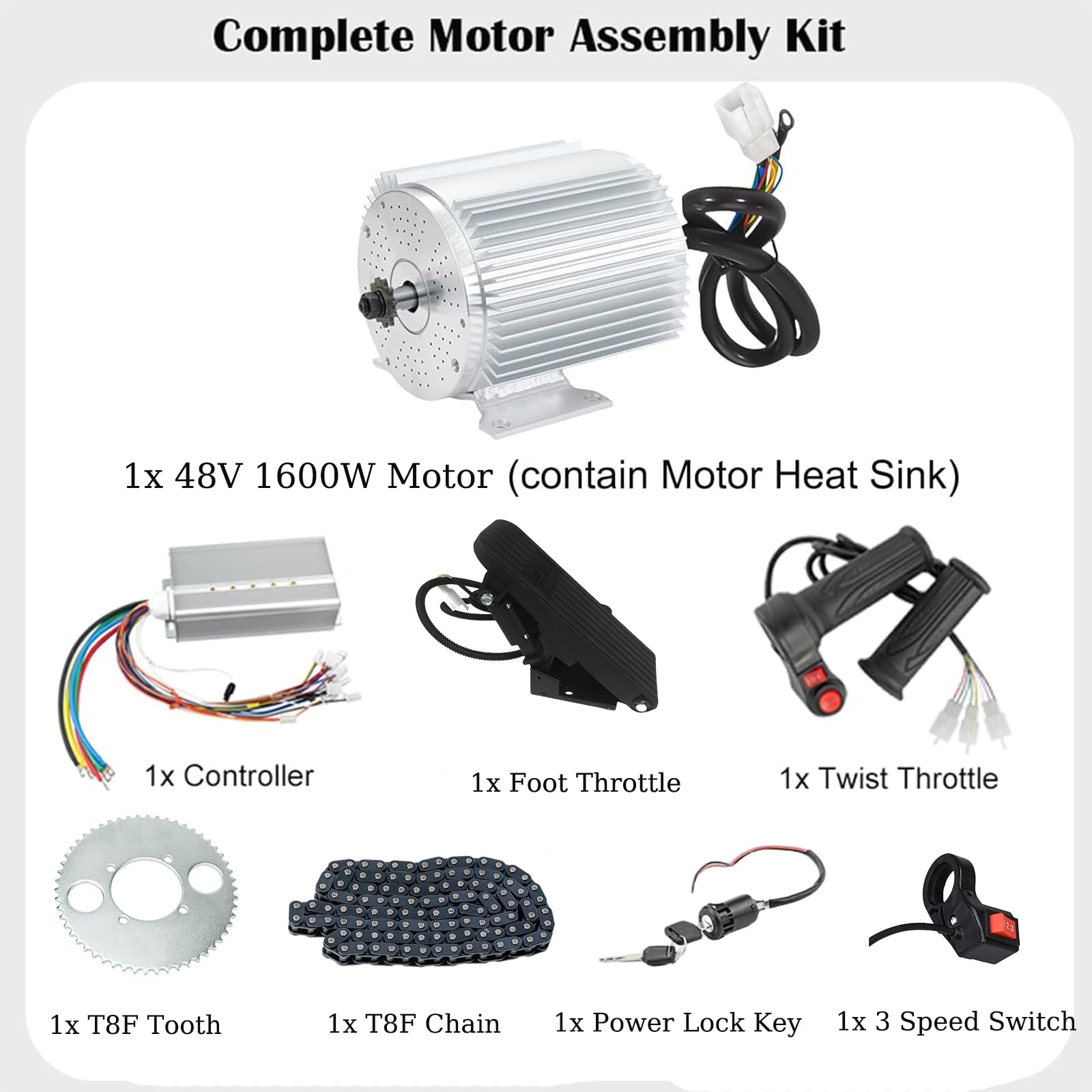

Packing list:
48V 1600W DC Motor - 1PC
33A Brushless Controller - 1PC
Three Speed Handlebar - 1 Pair and Foot Pedal - 1PC
Three Speed Switch - 1PC and E-lock - 1PC
T8F Sprocket - 1PC and T8F Chain - 1PC
Installation gadgets: terminal block and wrench - 1 Set
About after-sales service
When you receive the product, if there are missing parts, please contact the online staff immediately.Motor, controller maintenance one year, other parts series is half a year. If there is any problem in use, please feel free to contact our after-sales team, or online staff. We are always at your service.
