TOTO WASHLET A2 Electronic Bidet Toilet Seat with Heated Seat and SoftClose Lid, Elongated, Cotton White - SW3004#01

Heated Seat

• Contoured seat is heated to provide maximum comfort and keep you warm and cozy
• Adjustable temperature settings allow users to create and maintain the perfect level of warmth

Quick Release

• Provides easy installation and removal of WASHLET with just a touch of a button
• Quick release feature simplifies cleaning by allowing users to remove the seat easily

Side Control Panel

• Convenient side panel remote configures your personalized cleansing settings
• No more lost or out-of-reach remotes! The side panel is attached directly to the WASHLET

Auto Energy Saver

• Helps to save energy effortlessly!
• The WASHLET detects time periods of infrequent use and lowers the seat temperature automatically.

Easy, do-it-yourself installation!

• Step 1 - Remove your current seat.
• Step 2 - Install the WASHLET base plate. The rubber grommets can be lubricated with water if needed. Tighten the screws completely.
• Step 3 - Slide the WASHLET onto the base plate. Check the fit on your toilet and readjust the base plate as needed. A quick release button on the right-hand side allows for easy removal.
• Step 4 - Connect the tee connector to your fill valve inlet. Connect the WASHLET hose and reconnect the water supply hose.

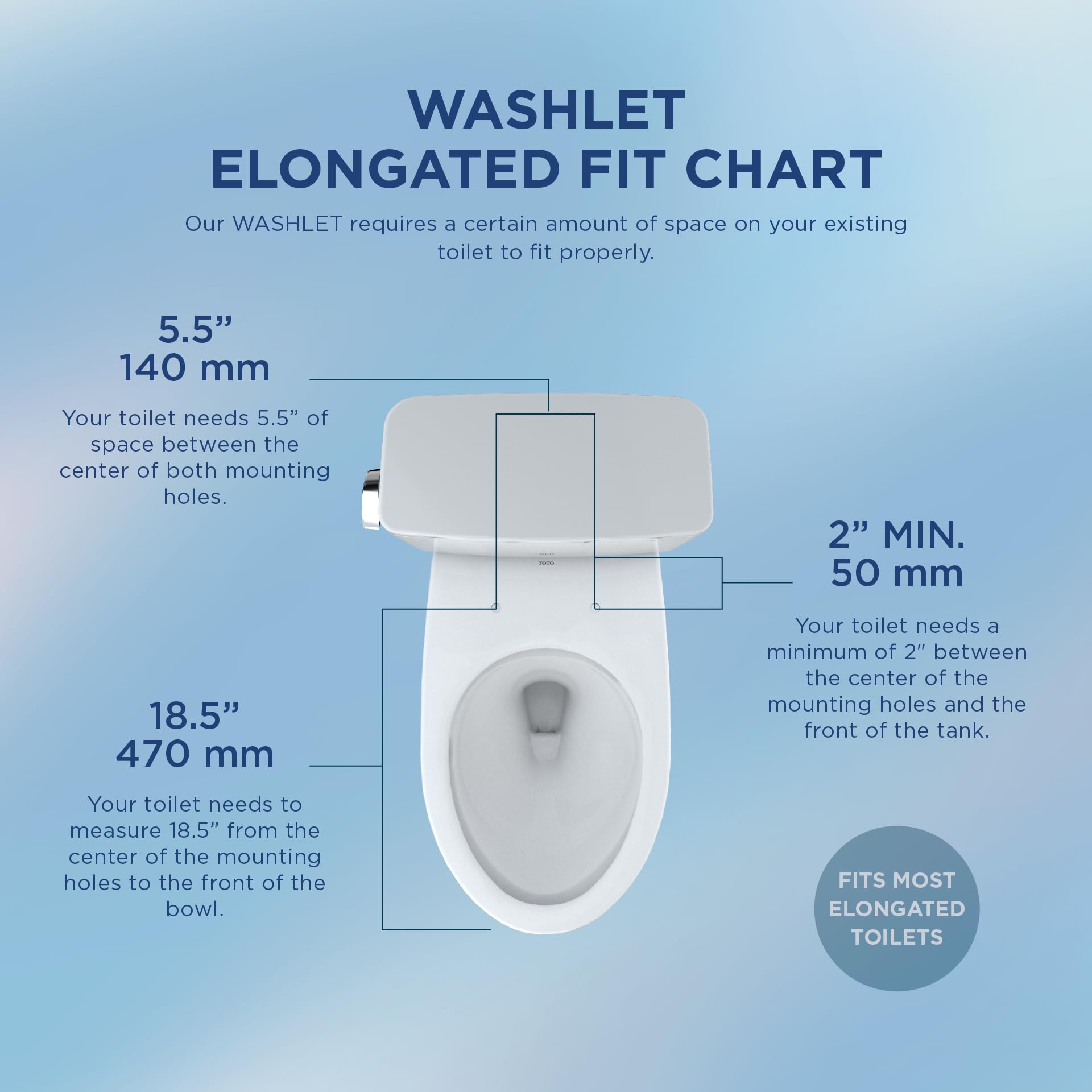

Fits Most North American Toilets

• The WASHLET fits most toilets that feature a standard design.
• Check the dimensions of your toilet to ensure proper fit and installation.
• French curves may inhibit proper installation of the WASHLET. Check to ensure adequate space across the width of the tank.
• Be sure that you are able to access the tank's fill valve inlet in order to complete the water connection. Extenders are available if space is limited.

Included and Required Items

• Included Items - WASHLET, base plate with top-mount installation hardware, and tee connector
• 120V GFCI outlet required. Rated 15 Amps. Surge protection recommended to protect your WASHLET.
• The 3.9 foot three-prong power cord originates on the back left-hand side of the WASHLET when facing the toilet.
• Meets or exceeds electrical and mechanical standards for the US and Canada. IAPMO EGS and cUPC listed.

Other Considerations

• Some toilet designs, such as fully skirted bowls, restrict access to the fill valve inlet. Limited space can prevent completion of the water connection.
• Check to ensure there is adequate space under your tank to install the tee connector and complete the water connection.
• Extenders are available if your fill valve inlet is difficult to reach.
• Additional fittings are needed for wall-hung toilet installations.
