DIRECT REPLACEMENT for low gain antennas included with many cellular products
BOOSTS SIGNAL STRENGTH and UPLOAD / DOWNLOAD DATA SPEEDS on AT&T, Verizon, T-Mobile, USCellular, Bell, Telus, Rogers, Telcel, Movistar and most other cellular carriers

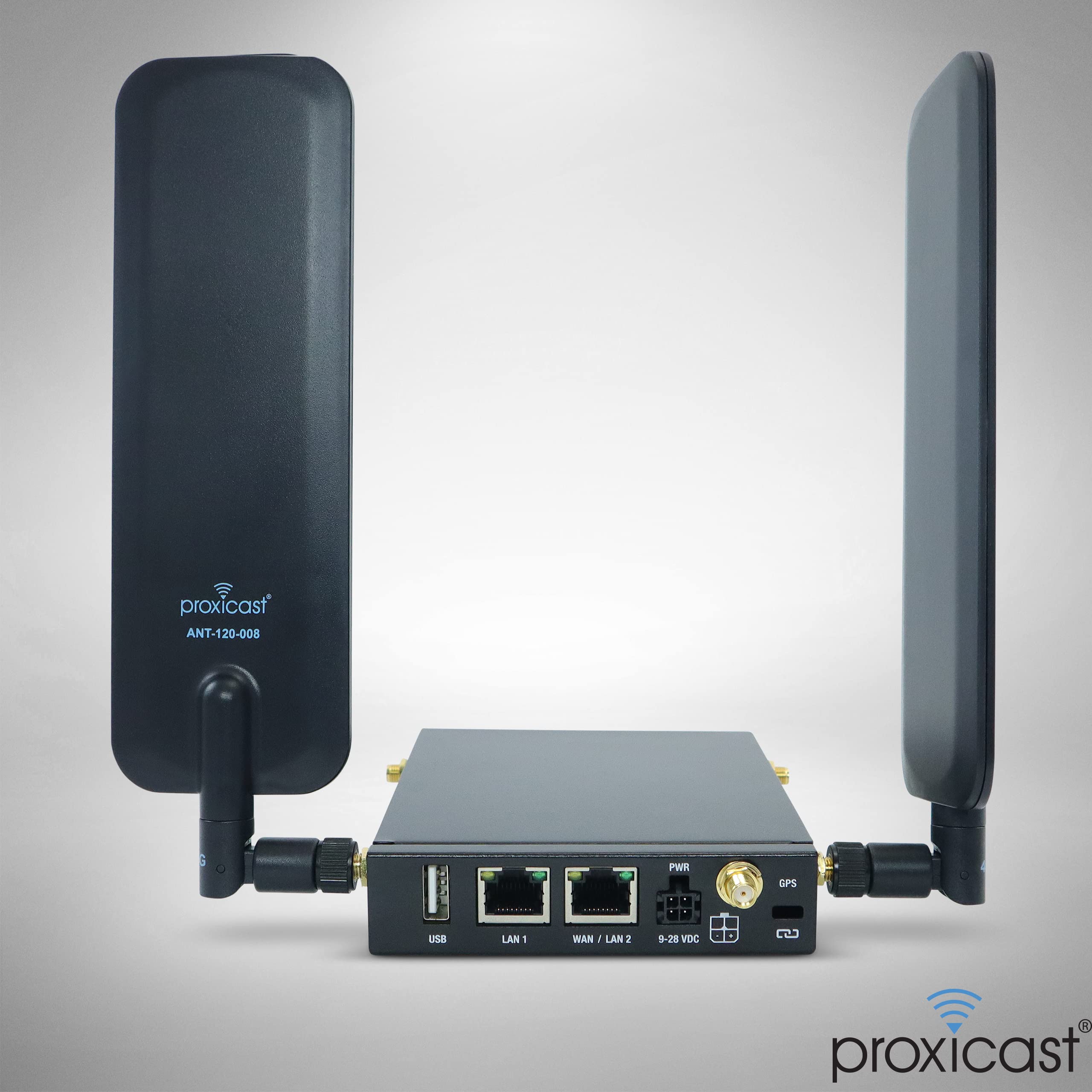

COMPATIBLE WITH ANY 4G/5G Sub-6 broadband router, modem, trail camera or amplifier / booster with an SMA antenna jack
Supports all 4G/LTE bands and 5G NR FR1 low frequency bands n71 (T-Mobile), n5 (AT&T, Verizon), n2 (Verizon), n66 (Verizon) and mid frequency C-bands n41 (T-Mobile) and n77 (AT&T, Verizon)
USE ON FirstNet & Citizens Broadband Radio Service (CBRS) equipment
Product Specifications
Product Dimensions: 7.7 x 1.5 x 0.25 inches
Item Weight: 1.5 ounces
Manufacturer: Proxicast
ASIN: B09K63LQX3
Country of Origin: China
Item model number: ANT-120-008-2PK
Customer Reviews: 4.0 out of 5 stars 69Reviews
Best Sellers Rank: #146 in Computer Networking Antennas

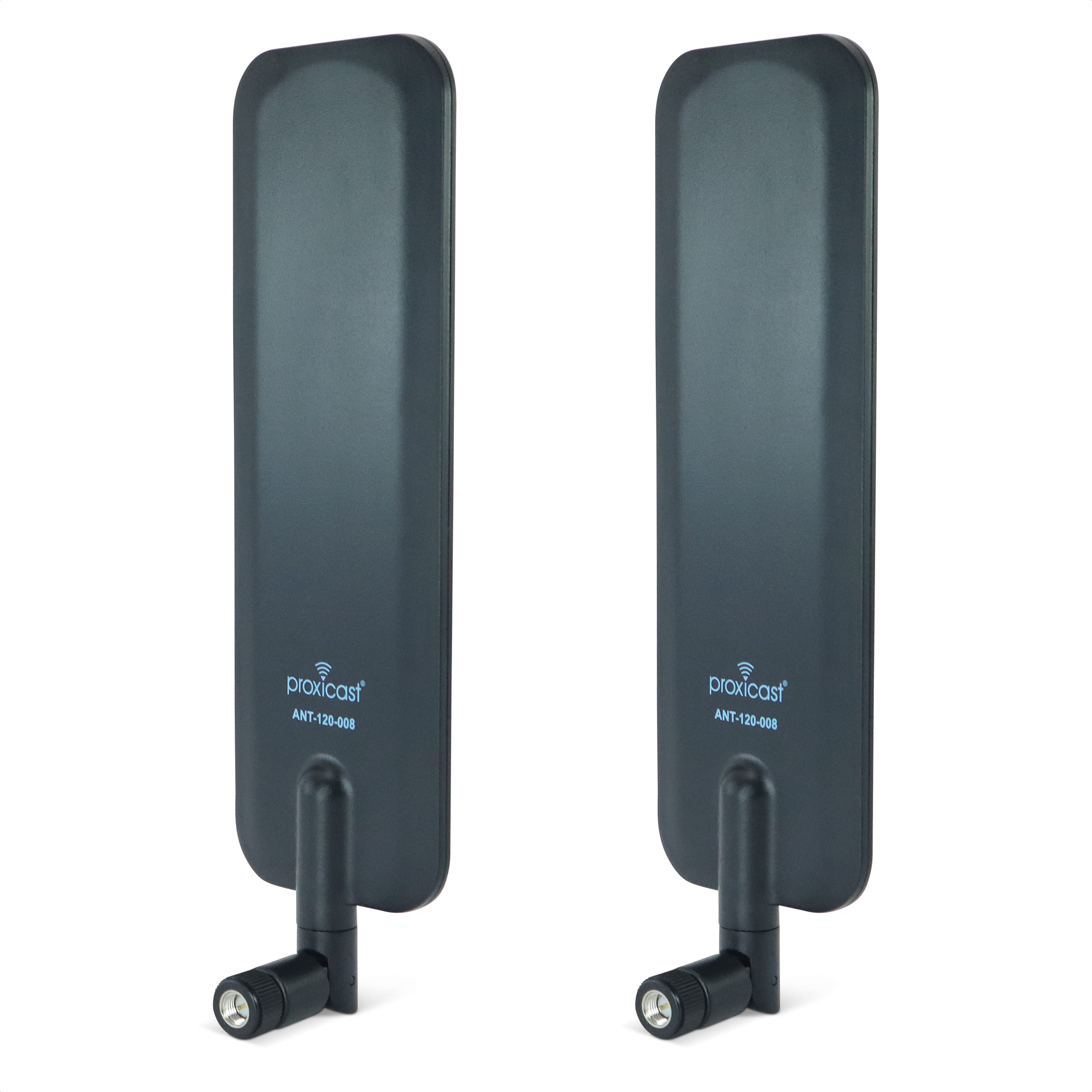

This high-efficiency 4G/5G/FirstNet/CBRS omnidirectional antenna provides up to 6 dBi of gain and supports all sub-6 GHz frequency bands used by cellular carriers worldwide.

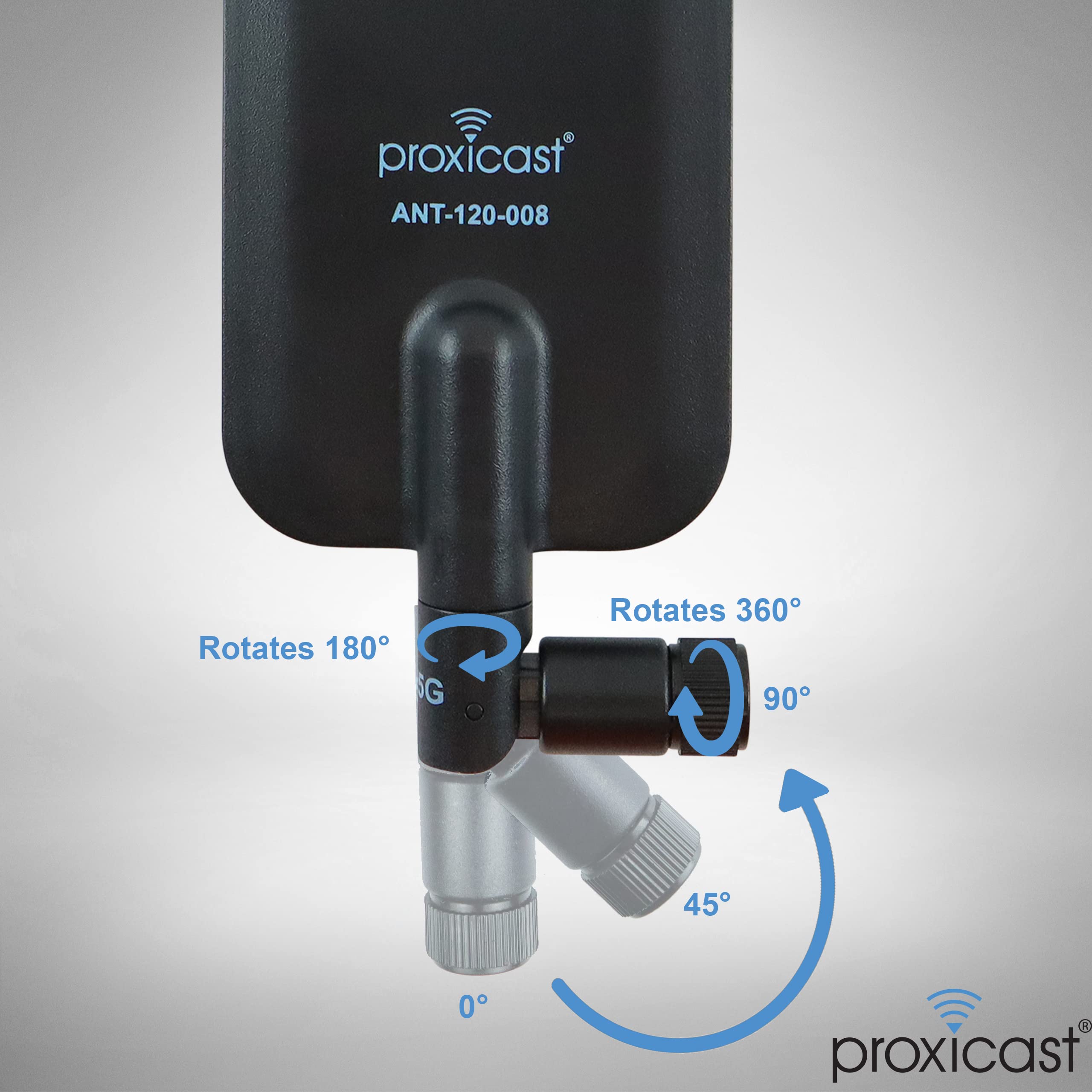

The polycarbonate antenna's 3-way hinge rotates 360 degrees, swivels 180 degrees and tilts 90 degrees for optimal positioning and maximum signal reception.
Replacement for Standard Low Gain Antennas
The SMA male screw-on plug and integrated ground-plane make installation simple. This antenna is a smart choice for applications where extra gain is required.
Key Features
Universal Compatibility
6 dBi Peak Gain
600 - 6000 MHz Frequency Coverage
Omni Directional Radiation Pattern
SMA Male Connector
Integrated Ground Plane
3-Way Swivel Hinge
4G LTE, 5G, FirstNet & CBRS
Supports all 4G/LTE, 5G, FirstNet and OnGo (CBRS) radio bands between 600 and 6000 MHz. Compatible with all brands of modems and routers with SMA antenna jacks.
3 Way Hinge
Our 3 Way SMA Connector hinge provides the ultimate in positional flexibility. Rotate it, twist it and flip it to find the best signal.

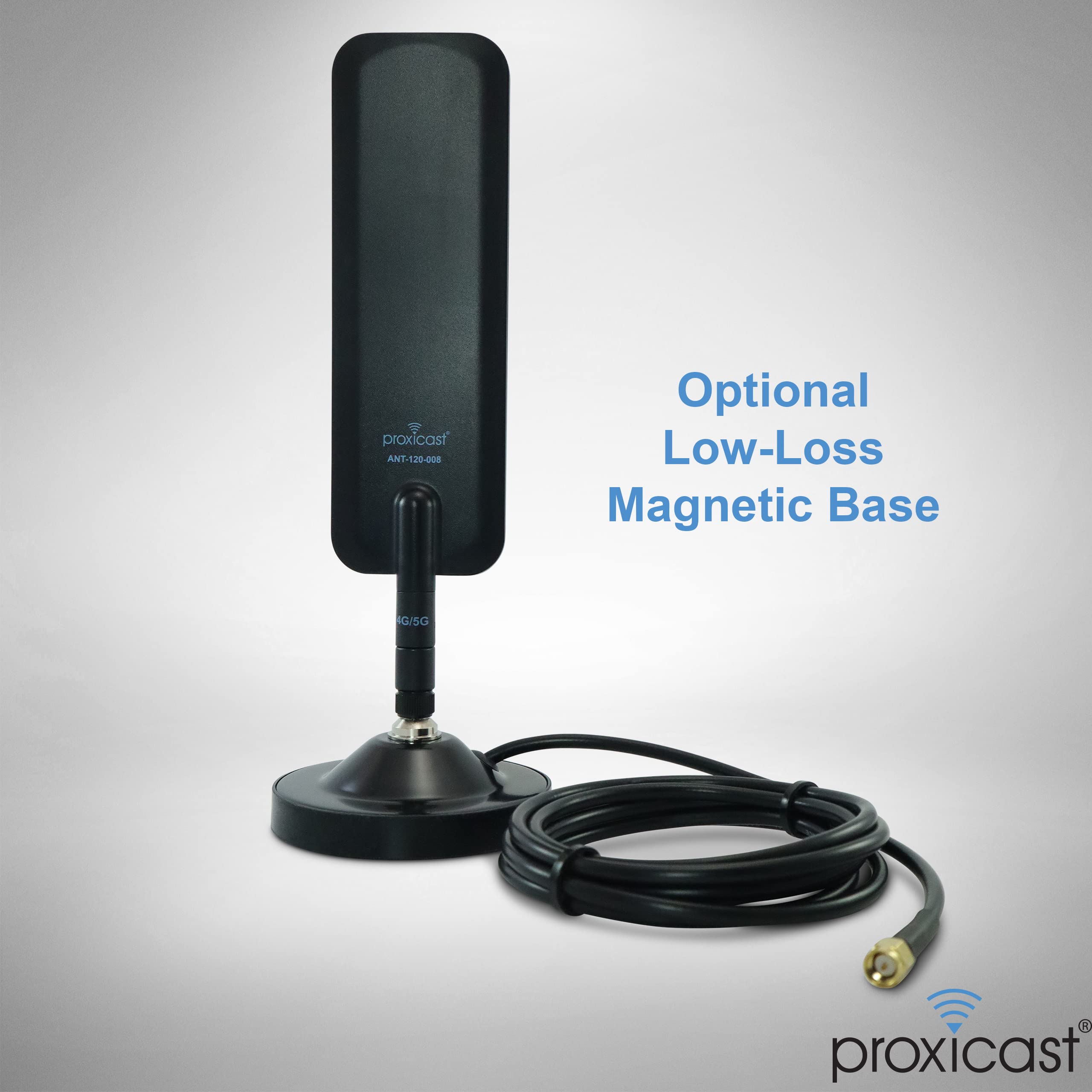

Optional Magnetic Base
Need to position the antenna in a better location? Our Pro-Grade Magnetic Base (ANT-120-MB5) is designed for ultra-low loss at high frequencies.
Specifications
Frequency Range:
600-6000 MHz
Impedance:
50 Ohms
Peak Gain:
6 dBi
Radiation Pattern:
Omni-directional
Polarization:
Vertical
VSWR:
< 2.0:1
Ground Plane:
Integrated
Connector:
SMA Male 3-Way Swivel
Material:
Polycarbonate / Brass - RoHS compliant
Operating Temp:
-40C to +60C

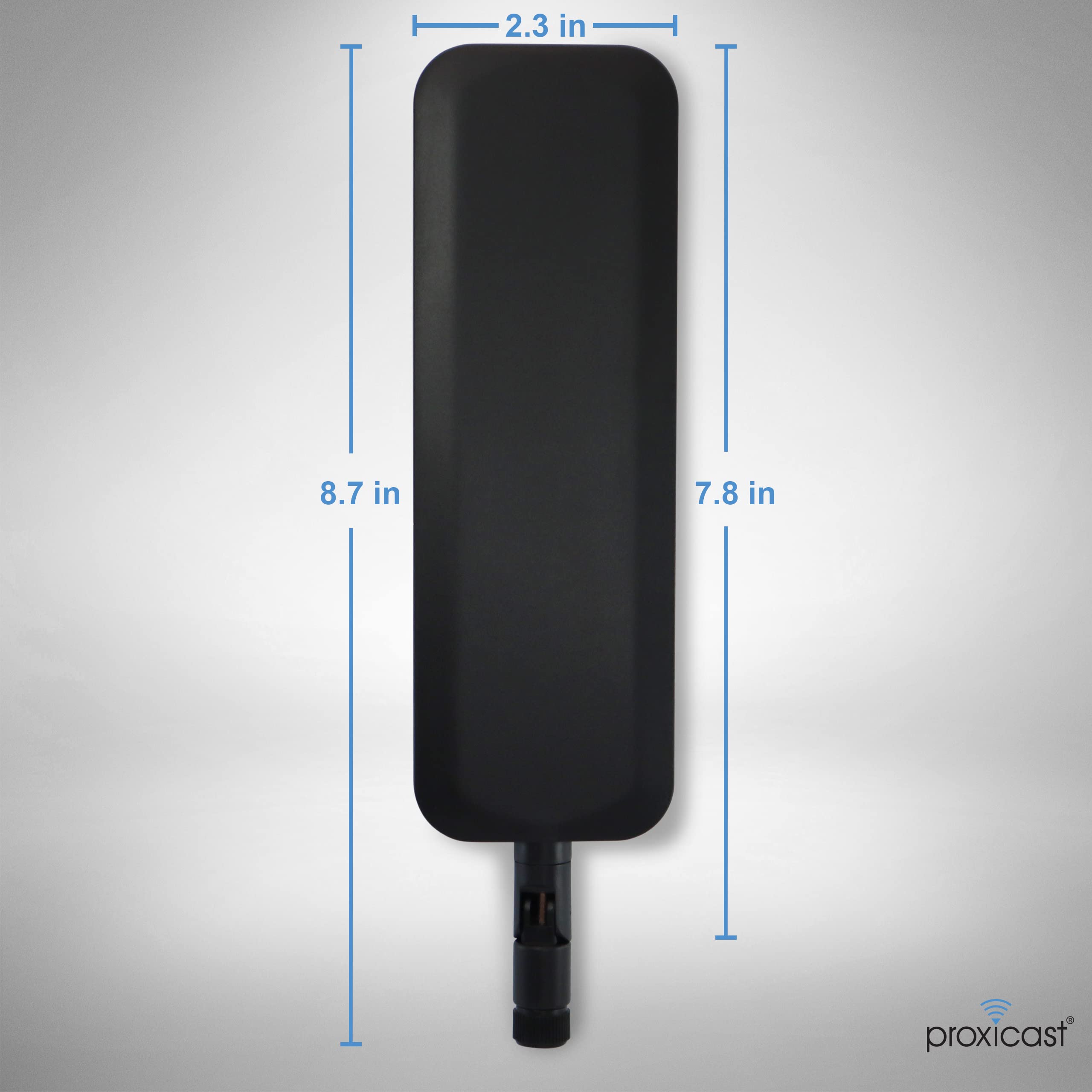

Height:
8.7 inches / 22 cm
Diameter:
2.3 inches / 57 mm
For Best Results
Start with antennas oriented vertically
Fully tighten coax connectors to modem antenna port
Stand 3+ feet away from antenna when testing
Maximize signal Quality (SINR, RSRQ) not signal Strength (RSSI, RSRP, bars)

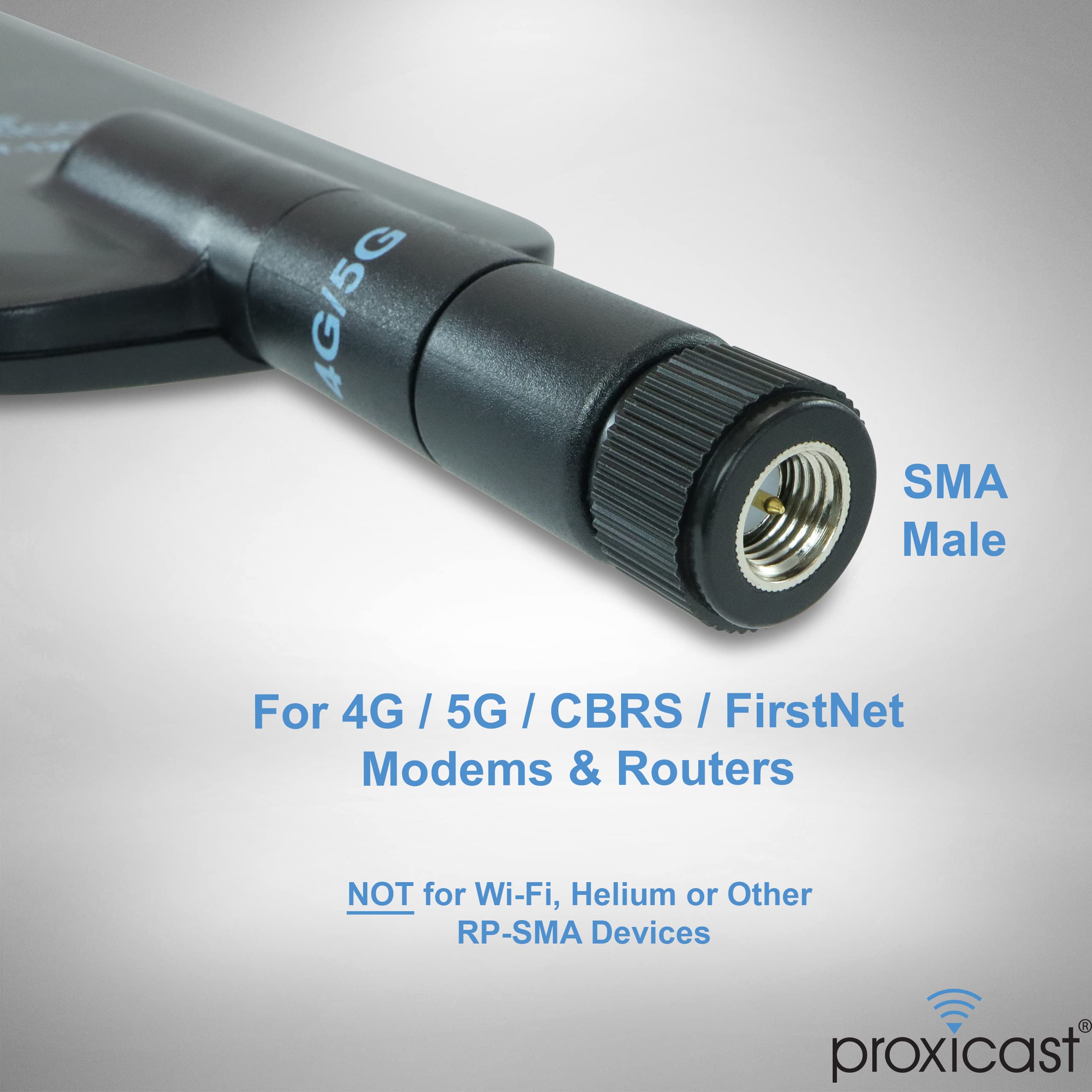

This antenna does NOT mate with Wi-Fi or Helium (RP-SMA) antennas jacks
