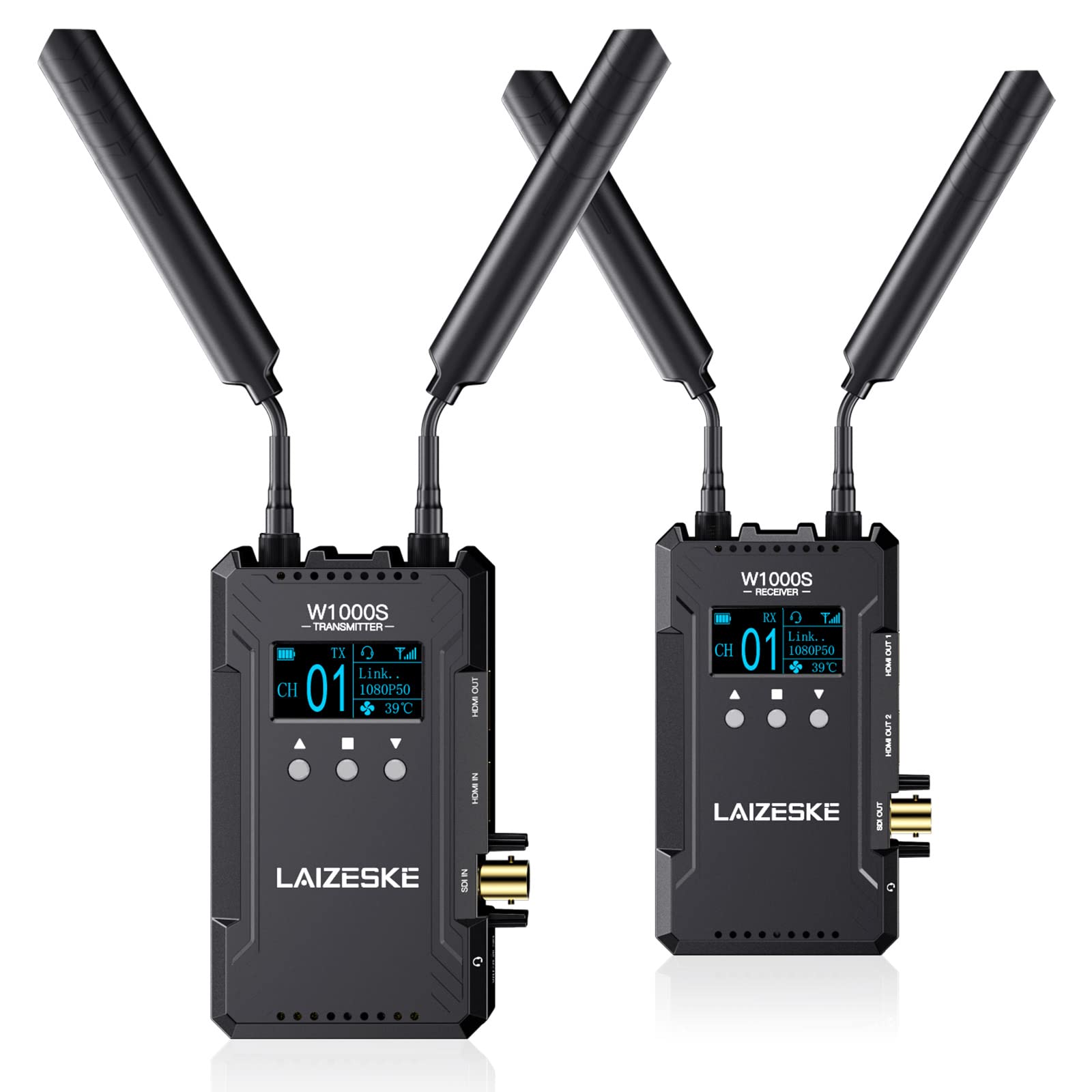

W1000S Wireless Video Transmission System Dual HDMI SDI 1000FT Transmission Range 0.08S Low Lantency Real Time APP Monitoring

Full Duplex Intercom Wireless Video Transmission System

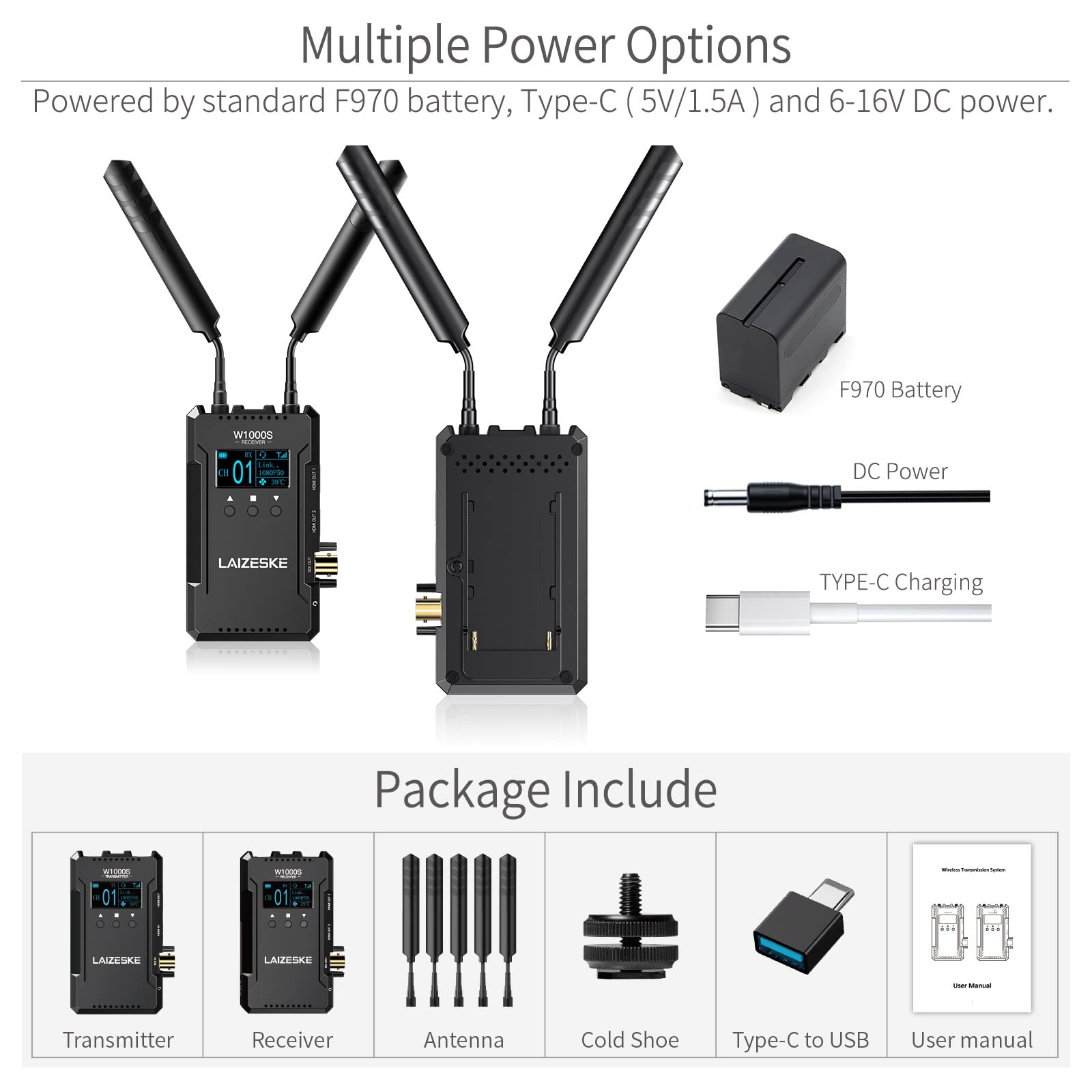

LAIZESKE W1000S TX/RX set is a real-time wireless video transmission system integrated with intercom which enable communication between the director and the photographer as well as wireless video transmission system functions, save your time and costs to set an extra intercom system. Supports SDI and dual HDMI wirelessly transmission range in 300 meters (max 400m) with 0.08S ultra-low latency, up to 1080P/60Hz video signal provide higher quality image. Supports one transmitter to multiple receivers, the transmitter can be switched as receiver at will. OLED screen show link status, signal strength, video format, intercom mode, battery level, temperature, fan status, etc. information. Android/iOS system APP monitoring; mulitple power options. Ideal for filmmaking, sports events, wedding live broadcast, church live streaming, etc.

HDMI Format:

480P60, 576P60

720P60/59.94/50

1080P60/59.94/50/30/29.97/25/24/23.98

1080I60/59.94/50

SDI Format:

480P60, 576P60

720P60/59.94/50

1080P60/59.94/50/30/29.97/25/24/23.98

1080I60/59.94/50

Key Features:

* Dual HDMI + SDI signal interfaces, meet your different needs

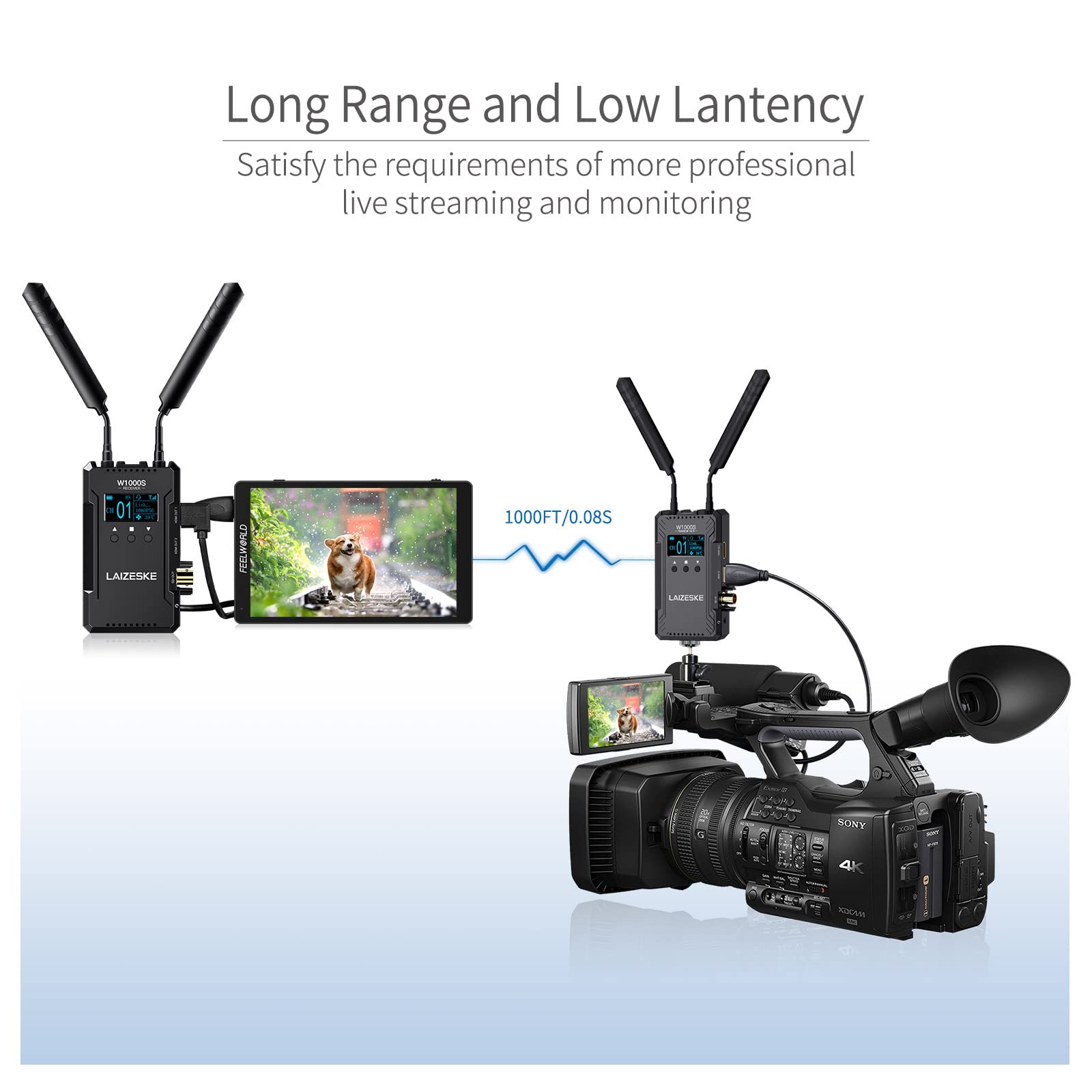

* More than 1000ft transmission range with 0.08S ultra-low latency

* Up to 1080P@60Hz, provide high quality image

* Wireless full-duplex talkback, real-time intercom between the director and the photographer

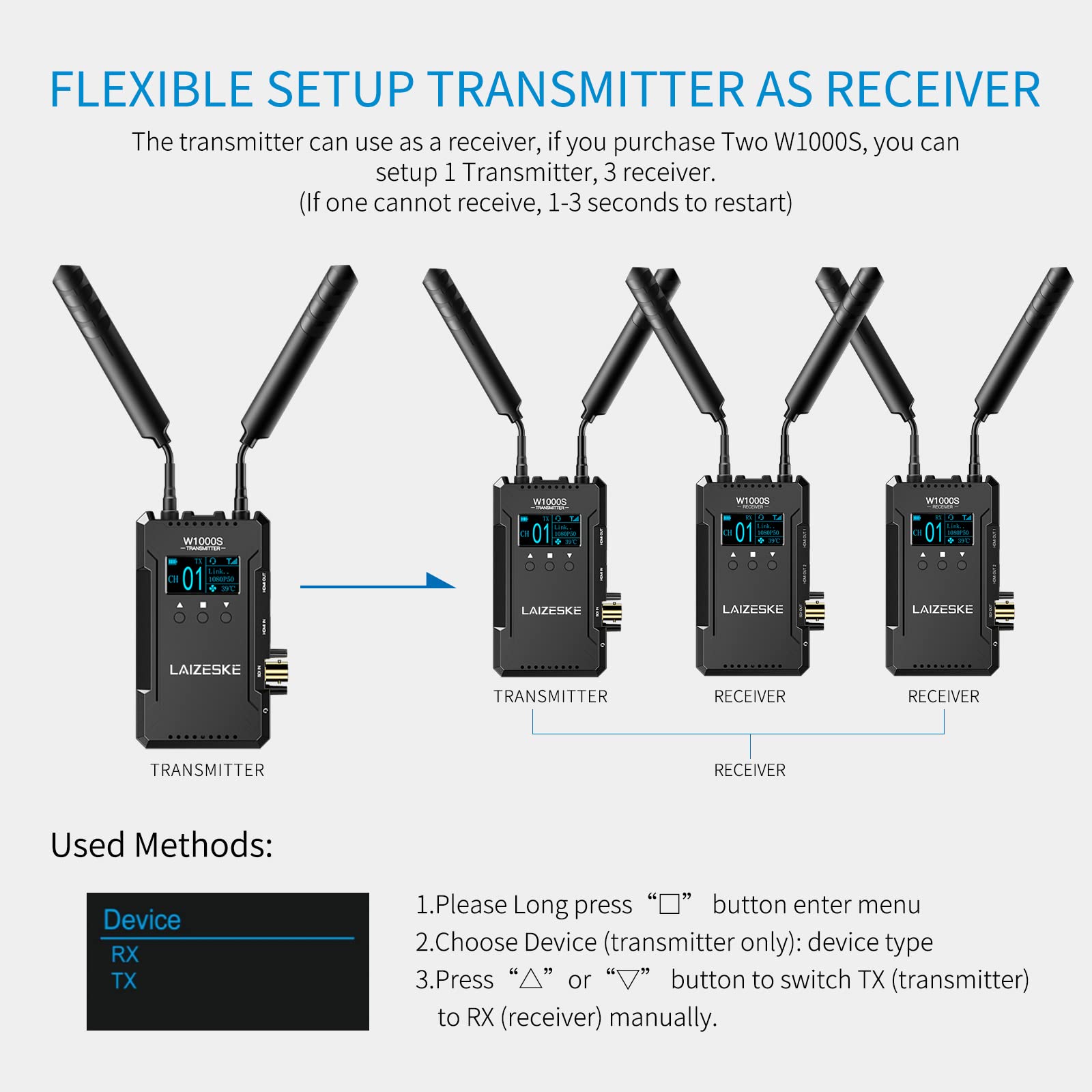

* The transmitter can be switched as a receiver at will

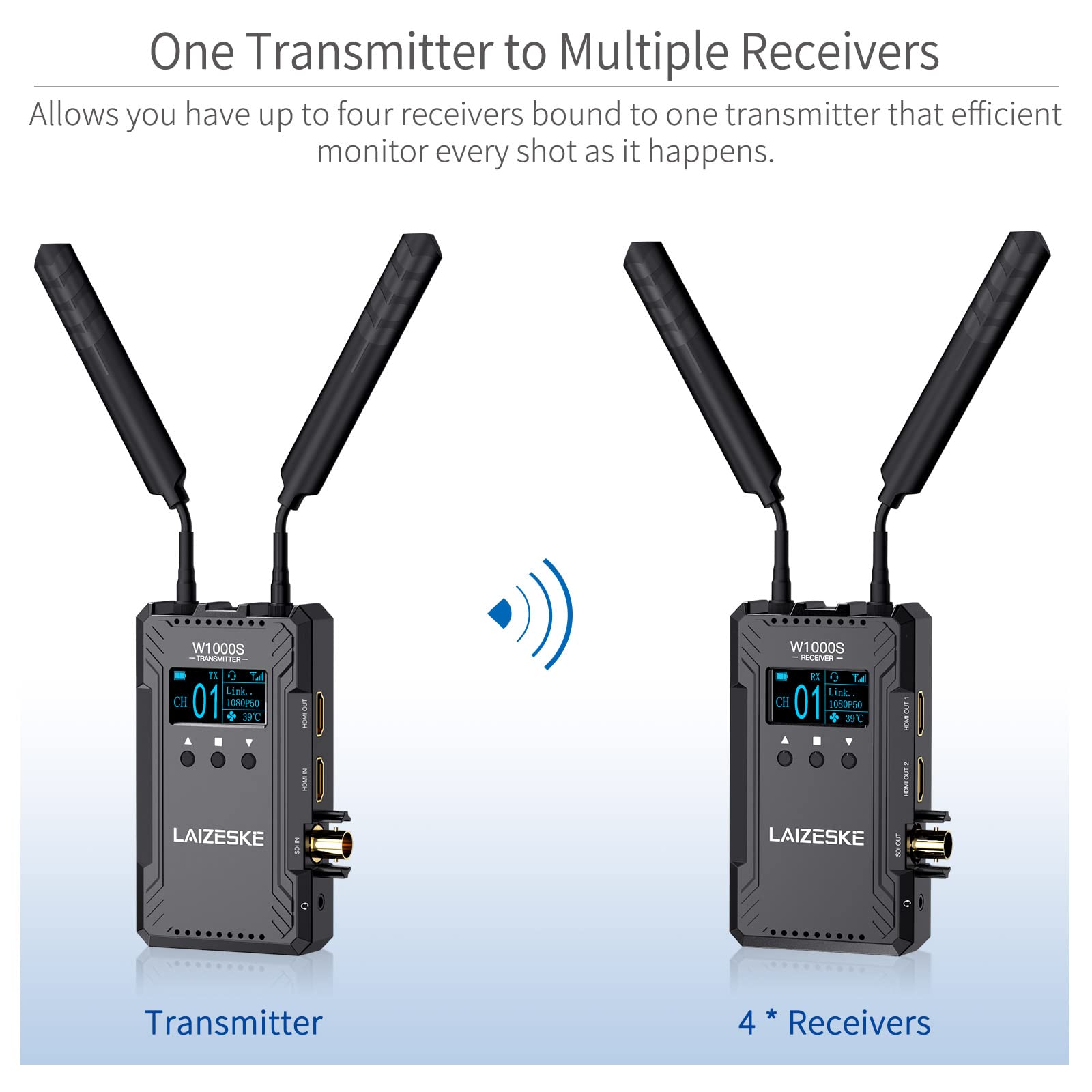

* One TX to multiple RX, monitoring for everyone on set

* Real-time APP monitoring for Android/iOS system

* 13 frequency channels, AUTO channel scan

LAIZESKE W1000S Video Transmission System Uprade to Version 1.1.9

In order to improve user experience,we updated the W1000S to V1.1.9. The user who has purchased can update the firmware.

The Laizeske W1000S FAQ Setting Method:

Q: Connection State, the screen appears mosaic or the signal connection is unstable?

A:It means that there is a wifi signal close to the transmission frequency, you can re-select another channel.

Only the receiver is allowed to adjust the channel in the connected state, press the up and down keys to select the channel, and press the menu key in the middle to confirm the channel.

Q: Unconnection State, the transmitter and receiver cannot be connected?

A: Please turn off the transmitter and receiver, and turn them on again at the same time, press the menu button in the middle, enter the WPS mode and turn it on, then it will pair automaticly.

Notice:

1. When signal frequency is weak, please try to choose another channel with a wider frequency span. (For instance, the signal of channel 10 is weak, please choose channel 1 or 6, but not channel 9 or channel 11)

2. The poor wifi reception of the mobile phone is related to the brand and model of the mobile phone. Please try different mobile phones.

Q: Latency

A: W1000S adopts 5G wifi transmission technology, which can well avoid the influence of 2.4G signals in the environment, such as wifi signal interference caused by your household appliances, wireless mouse, etc., and has built-in up to 13 channels to ensure transmission stability and low latency.

1. However, the influence of environmental factors on the delay of wifi transmission is inevitable. We recommend that you do a wifi signal test before starting your shooting, and turn off or stay away wifi signal sources that may have an impact and select the best signal channel.

2. Please make sure your camera output setting is 1080p and 50-60fps. Other settings may affect the delay and transmission stability.
