【AMD AM4 Socket】Supports ALL AMD 1st & 2nd gen Ryzen, Ryzen 3000, Ryzen 4000, Ryzen 5000 series WITHOUT radeon graphics(NOTE: Need Bios Flash to Ssupport RYZEN 3000, 4000, 5000 SERIES APU WITH RADEON GRAPHICS)

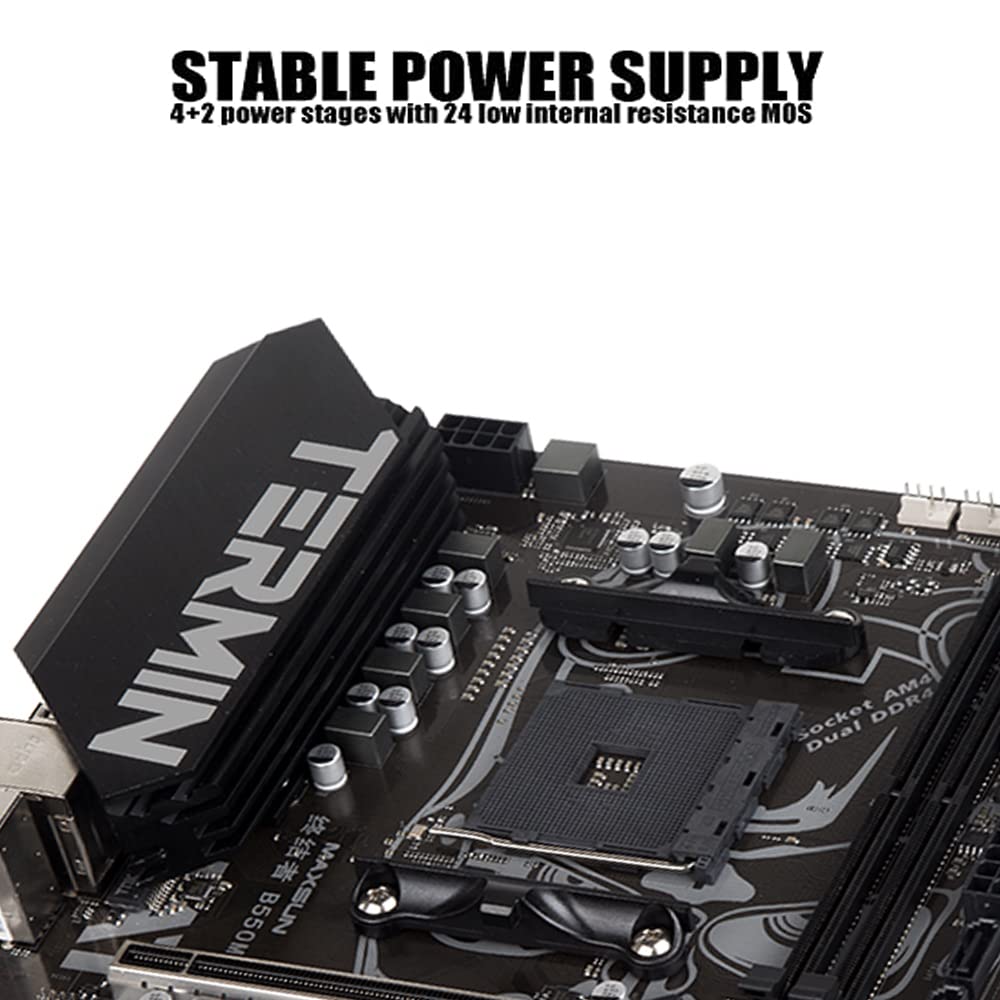

【Strong Power Design】4+2 Phases pure digital PWM with 24 low internal resistance MOS and R22 Ultra-Low Temperature Coil Solid State Inductor
【Optimized Thermal Solution】VRM heatsinks with underneath thermal pads and southbridge hollow heatsinks, providing a large contact area for MOSFETs and chokes, transfer much more heat to the heatsink.

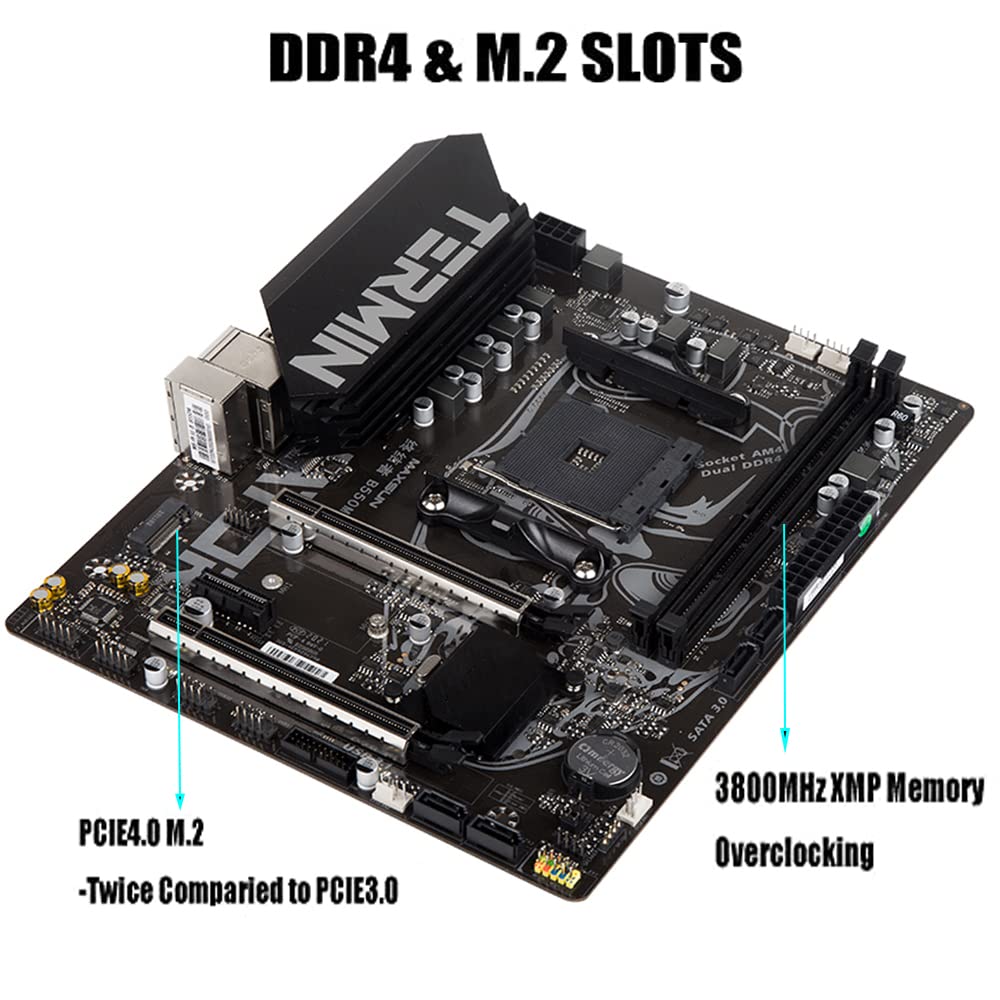

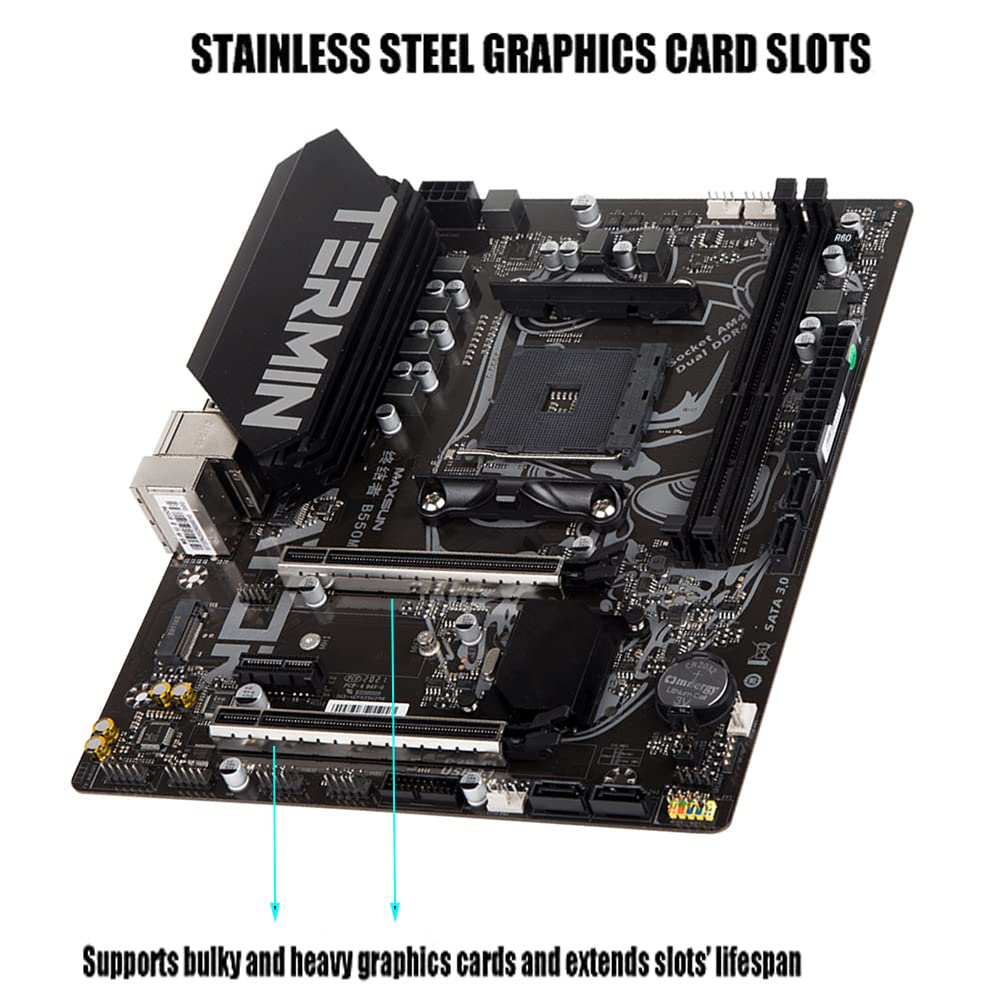

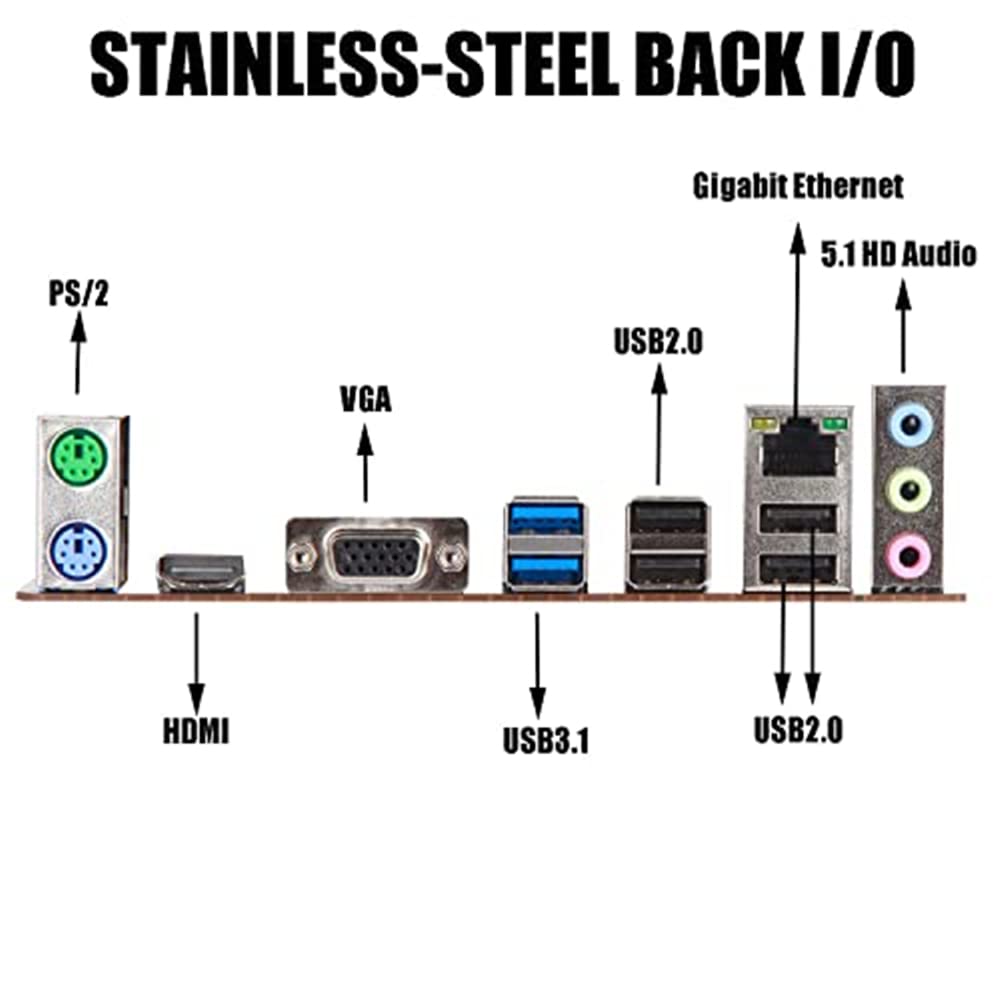

【Faster Connectivity】Dual Channel DDR4 Memory(XMP Up To 3800MHz), Dual Ultra Durable PCIe 4.0 x16 Slots, Ultra-Fast NVMe PCIe 4.0 x4 M.2 SSD Connectors, USB3.1, HDMI/VGA (Available with APU) and 5.1 HD Audio.
【Durable Network Filter Module】Durable materials, significantly optimizing the network delay problem and further reducing the packet loss rate.
Product Specifications
Package Dimensions: 11.22 x 10.87 x 2.32 inches
Item Weight: 2.09 pounds
Manufacturer: maxsun
ASIN: B09VL3CCX2
Item model number: B550M
Batteries: 1 CR2032 batteries required.
Customer Reviews: 4.1 out of 5 stars 34Reviews
Best Sellers Rank: #1,957 in Computer Motherboards
Date First Available: March 15, 2022
Memory Storage Capacity: 6 GB
RAM Memory Maximum Size: 64 GB
Main Power Connector Type: 24-Pin
Graphics Card Interface: PCI Express 4.0
Memory Slots Available: 2 dimm
System Bus Standard Supported: SATA 3
Total SATA Ports: 4
Number of USB 2 Ports: 5
Total USB Ports: 8
Total Ethernet Ports: 1
Total HDMI Ports: 1
Total PCI E- Ports: 3
Product Information
Product description
Q: Which series of CPU does this motherboard support?
A: Please note that we have updated latest BIOS for these new shipping motherboards, which supports all Ryzen 3000 & 5000 series CPU.
