【Brand Overview】Thermalright is a Taiwan brand with more than 20 years of development. It has a certain popularity in the domestic and foreign markets and has a pivotal influence in the player market. We have been focusing on the research and development of computer accessories. R & D product lines include: CPU air-cooled radiator, case fan, thermal silicone pad, thermal silicone grease, CPU fan controller, anti falling off mounting bracket, support mounting bracket and other commodities.

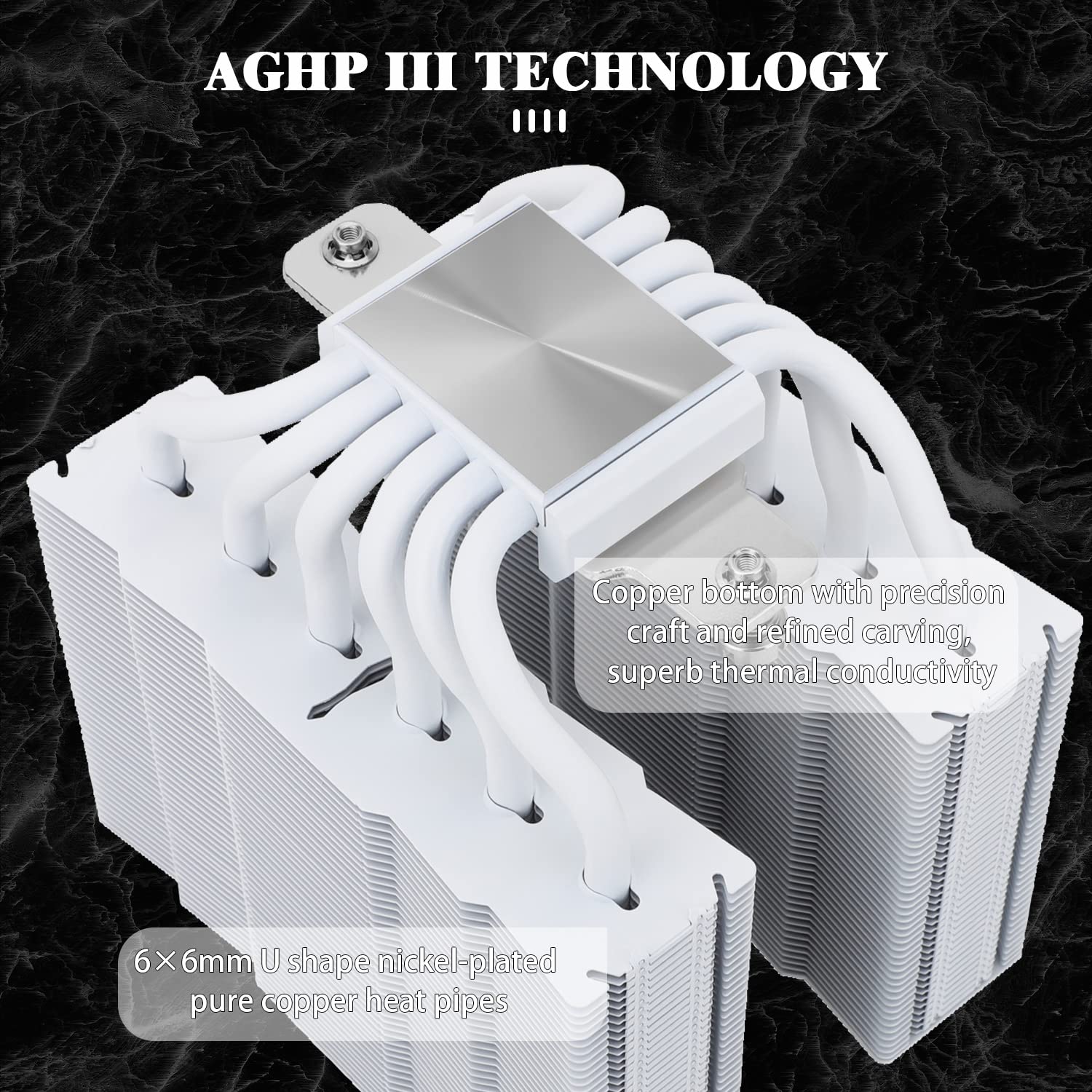

【AGHP technique】6x6mm heat pipes apply AGHP technique, Solve the Inverse gravity effect caused by vertical / horizontal orientation, The cooler body features full reflow technology, a white metal top cover in a decreasing symmetrical armour type design and a combination of all aluminium fins and a finely engraved copper base to enhance the cooling effect.

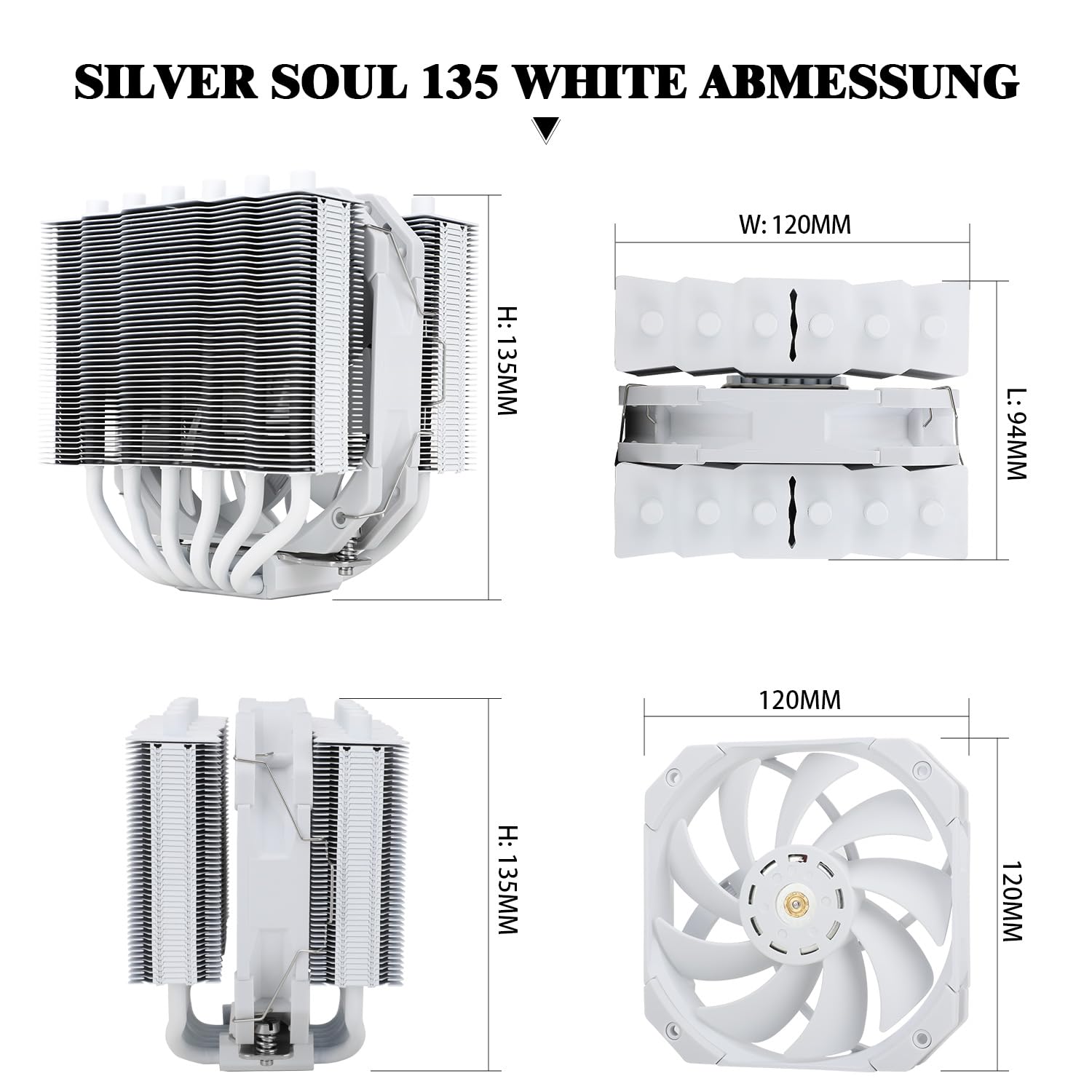

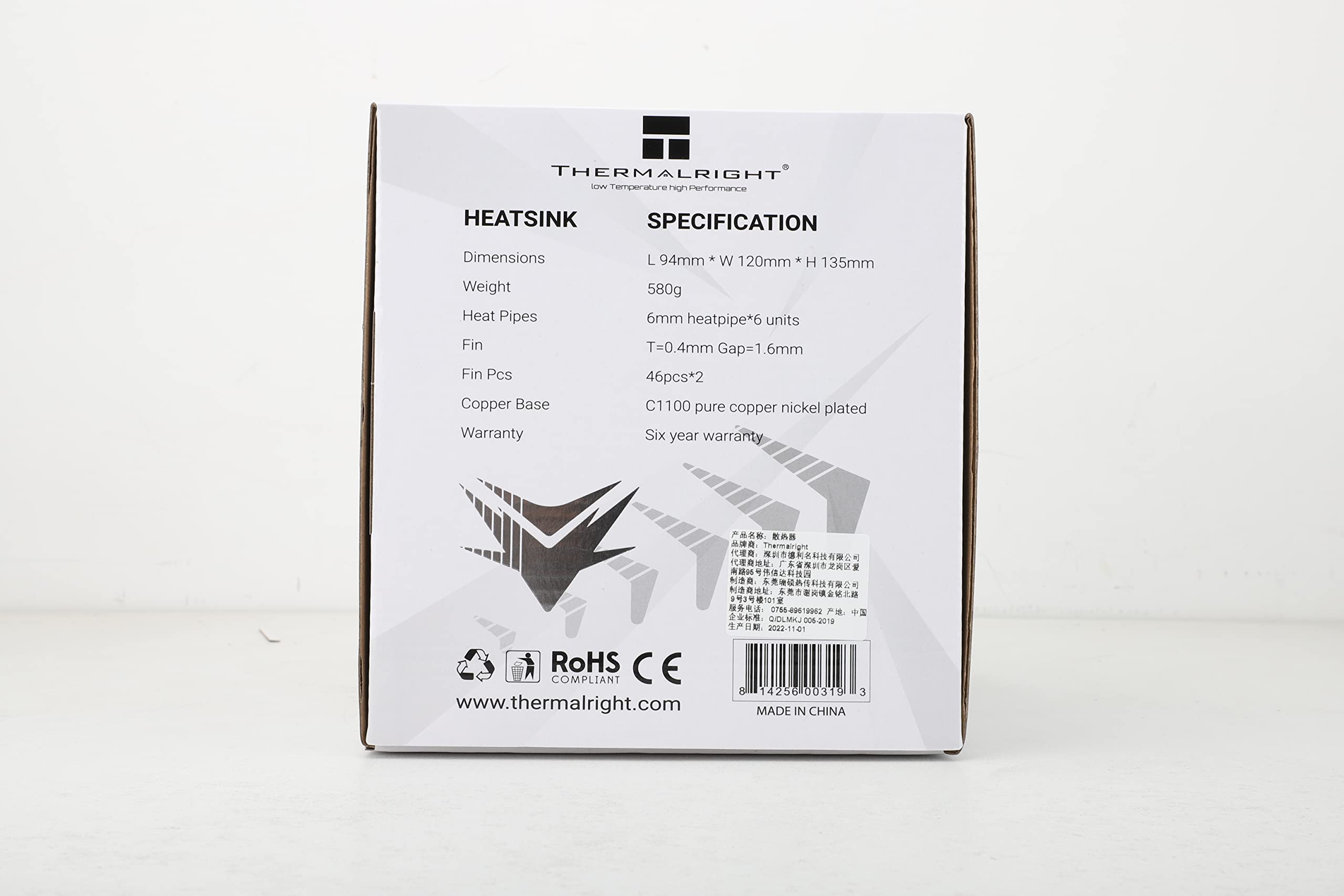

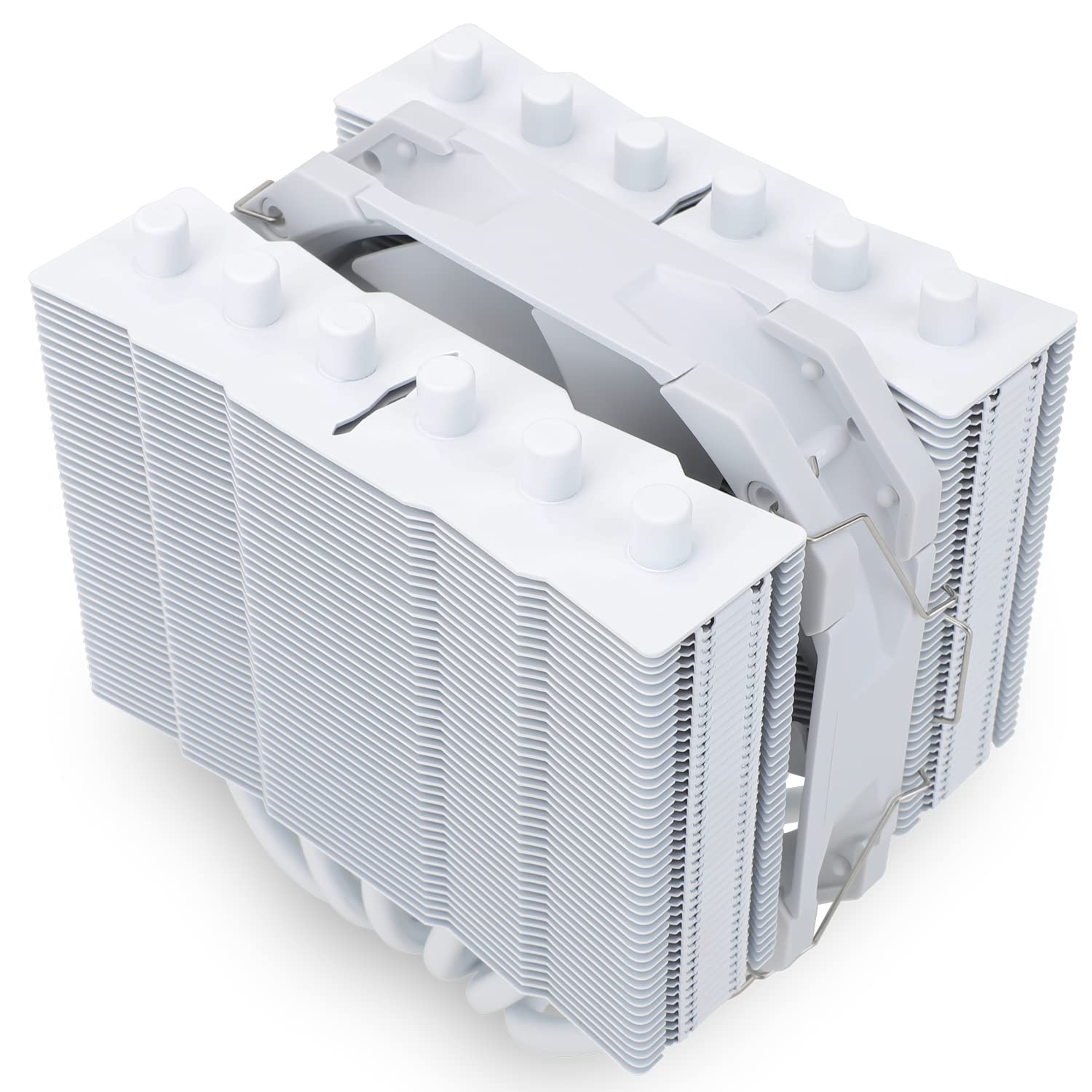

【Product Specification】Thermalright Silver Soul 135 White; CPU cooler dimensions: 120 (L) x 94 (B) x 135(H) mm (4.72 x 3.7 x 5.31 inch); Heat sink material: Aluminum, CPU cooler is equipped with metal mounts of Intel and AMD platform to achieve better installation, dual tower cooling is stronger,leave space for memory chip (RAM) so that the installation of ice cooler CPU is unrestricted;Height only 135mm, fits most medium to large cases.

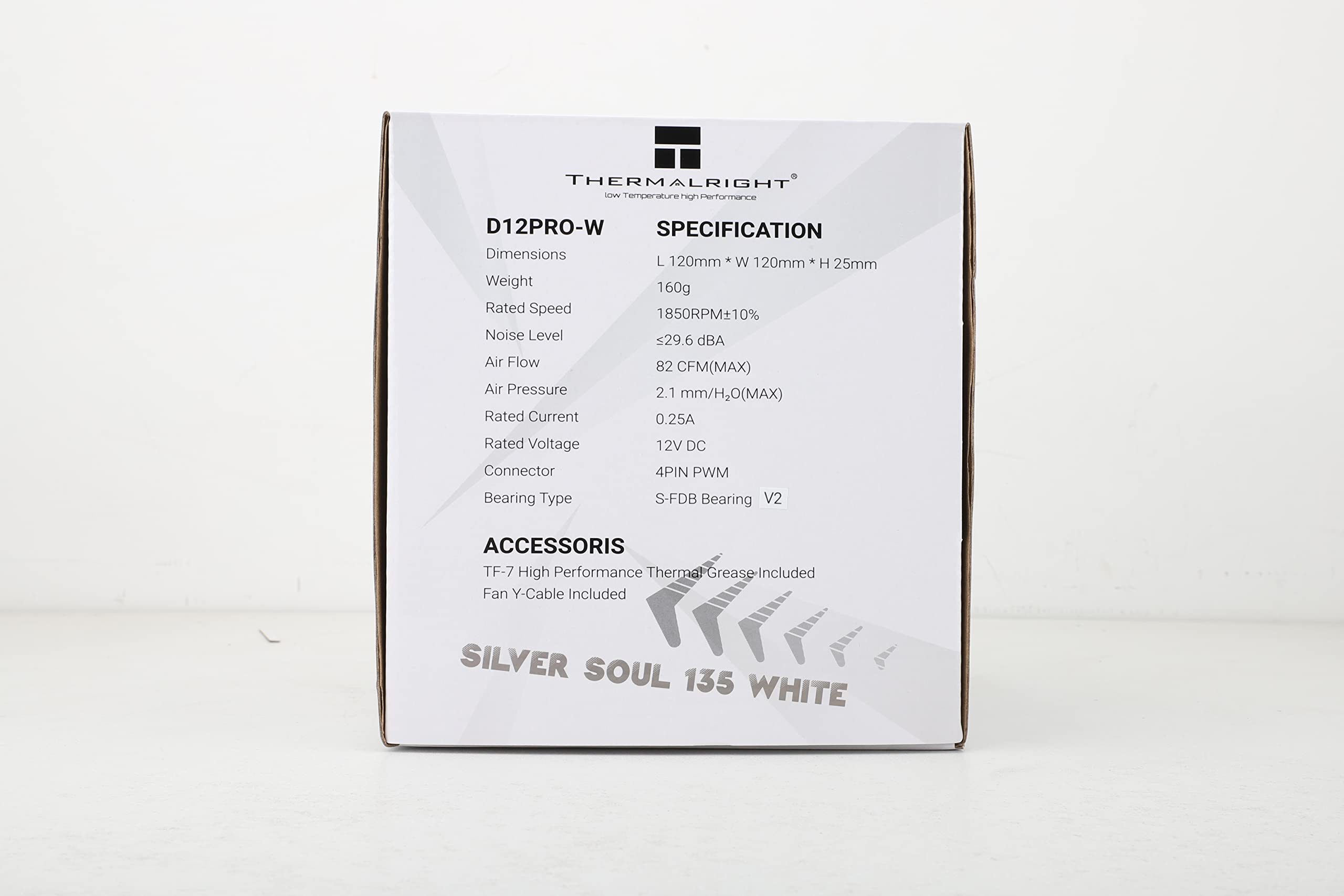

【PWM fan】TL-D12PRO-W; PWM fans in standard size: 120 x 120 x 25 mm (4.72 x 4.72 x 0.98 inch); Product weight: 0.74 kg (1.63 lb); Fan speed (rpm): 1850 rpm ± 10%; Power connection: 4-pin; Voltage: 12V; airflow: 82 CFM (MAX); Noise Level≤29.6dB(A), The fan has a red rubber block in the center, specially designed for balance, and is surrounded by silicone corners for shock absorption. The fan's S-FDB bearings have the advantage of a long service life.

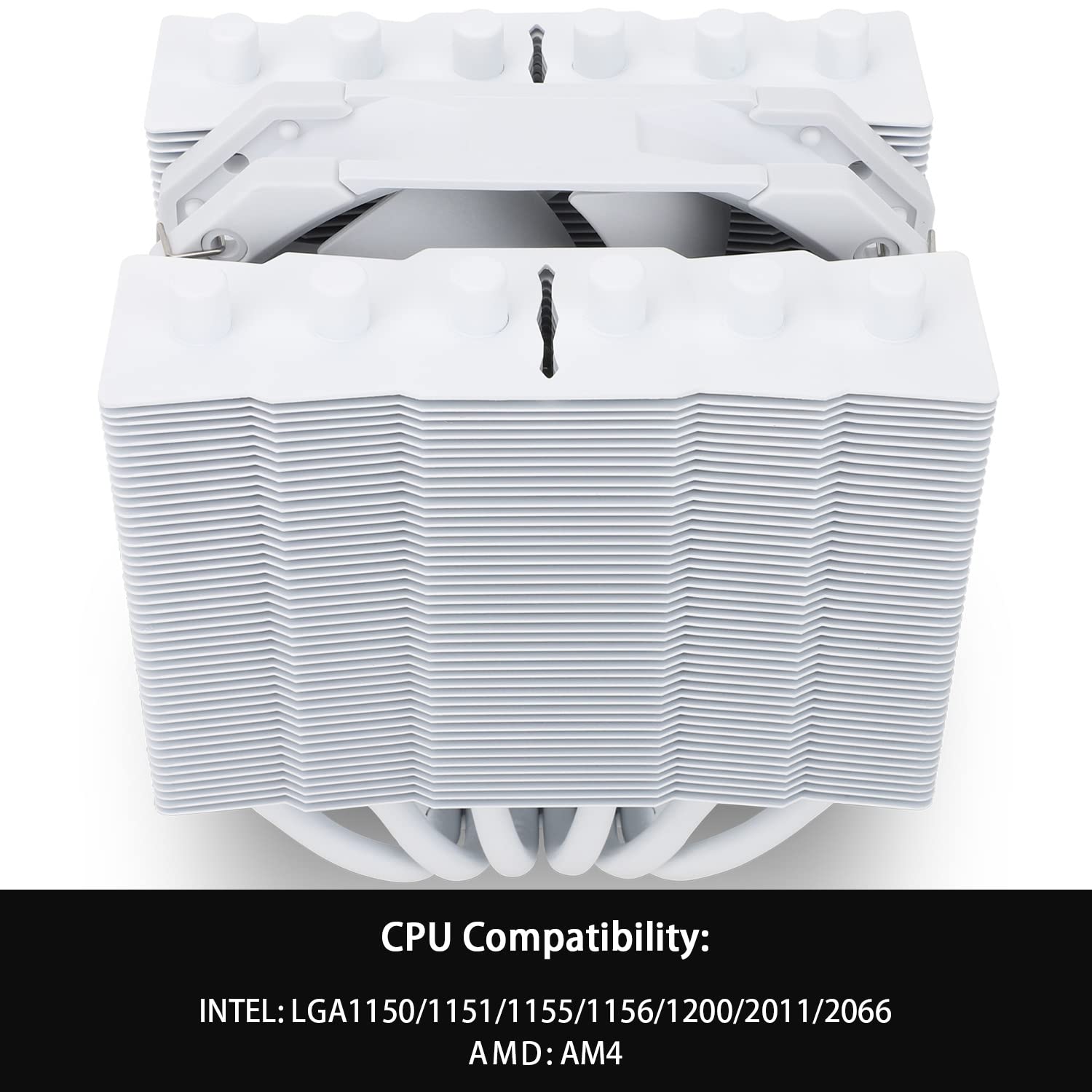

【High compatibility】Thermalright has been developing coolers and improving their performance for many years, deluxe choice for Intel Core i9, i7, i5, i3 (e.g. 12900F,12700F,12300,11800H, 11700K, 10900K, 10980XE) and AMD Ryzen (e.g. 5950X, 5900X, 5800X,3950X,1600,5600X), CPU cooler socket supports: Intel:1150/1151/1155/1156/1200/1700/17XX/2066/2011; AMD:AM4/AM5; Suitable mounting plates or mounting parts are supplied for different CPU socket platforms.
Product Specifications
Product Dimensions: 4.72 x 3.7 x 5.31 inches
Item Weight: 1.63 pounds
Manufacturer: Thermalright
ASIN: B0B1PQ1FQG
Customer Reviews: 4.5 out of 5 stars 45Reviews
Date First Available: May 19, 2022
Product Information
Product description
REFINED COMPATIBILITY FOR SFF CASES

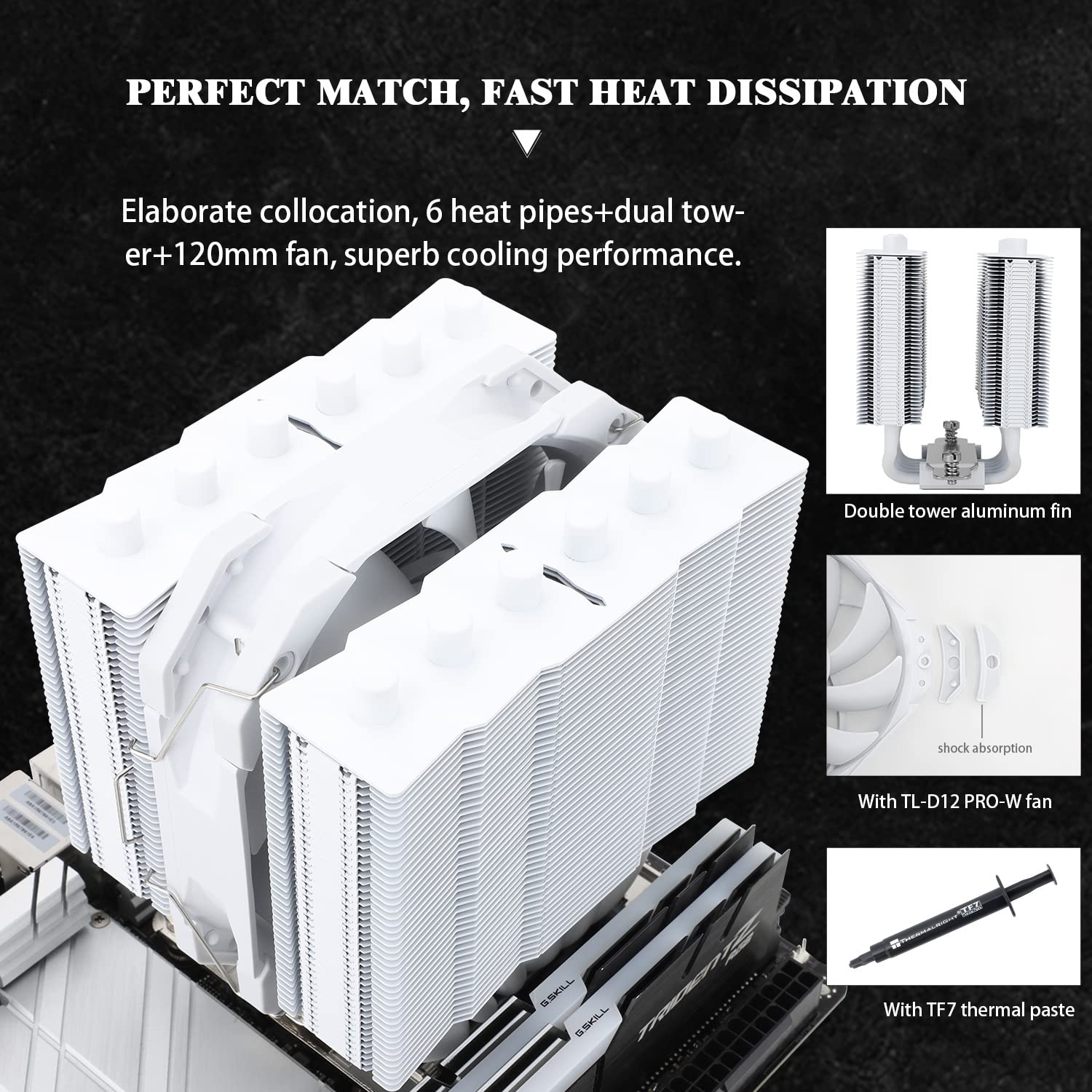

With middle fan installed, Silver Soul 135 only measures 135mm in height, adapted for ITX or SFF case builds. TL-D12PRO-W 120mm round fan and symmetrical fin stacks are adjusted to fit RAM module or motherboard heatsinks.
Common heat pipes heavily depend on gravity to achieve optimal performance.
Heatsink equipped with THERMALRIGHT Special design AGHP Heat Pipes is not affected by the mounting direction. This ensures user’s cooler experience in different computer case designs.
HIGH PERFORMANCE TL-D12PRO-W FAN
THERMALRIGHT special designed fan blades for advanced airflow performance, to achieve smooth operation, each TL-D12PRO-W fan is dynamic balanced and calibrated in factory. High quality PBT fan blade, frame and S-FDB bearing offer TL-D12PRO-W long lasting durability.
