FriendlyElec Nanopi R5S Mini Router OpenWRT with Three Gbps Ethernet Ports LPDDR4X 4GB RAM Based in RK3568 Soc for IOT NAS Smart Home Gateway Support Linux Ubuntu (with CNC Metal Case)
[WIRELESS MOBILE MINI TRAVEL ROUTER] NanoPi R5S Mini Router can support external USB wifi adapter. Simultaneous dual band with wireless speed 150Mbps(2.4G+433Mbps(5G).Convert a public network(wired/wireless) to a private Wi-Fi for secure surfing
[Open Source and Programmable] NanoPi R5S OpenWRT Router can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home gateways, and more
[DUAL GBPS ETHERNET PORTS] The NanoPi R5S Mini Router has three 2.5Gbps Ethernet ports: one directly extended from the SoC and the other two converted from a PCIe.gets around 934Mbits/second download and upload
[LARGER STORAGE & EXTENSIBILITY] 4GB RAM LPDDR4X, 32GB eMMC 5.1 Flash, up to 128GB MicroSD slot/UHS-I; USB3.0 Host x2: USB Type A; 2.54mm 4pin-header;support USB-C, PD x1: Power Input supply, one Native Gigabit Ethernet and Dual Gigabit Ethernet ports (1 WAN and 2 LAN)
[OS SUPPORT] NanoPi R5S WiFi Router also works with Android, Debian ,Ubuntu Desktop and Buildroot etc and works with headless systems as well. It supports decoding 4K60p H.265/H.264 formatted videos.
[INFINITE POSSIBILITIES] NanoPi R5S mini wifi router is a board featured with multiple Ethernet ports, light NAS and video playing. It is a cannot-miss platform with infinite possibilities for geeks, fans and developers.
[USER MANUAL] WiKi:youyeetoo.com/blog/nanopi-r5s-ysdpnanor5sa-135.Pls feel free to email us to get the Datasheet or any questions of this module after you purchased it. How to email us? Click ''forum.youyeetoo.com/'' and ask a question

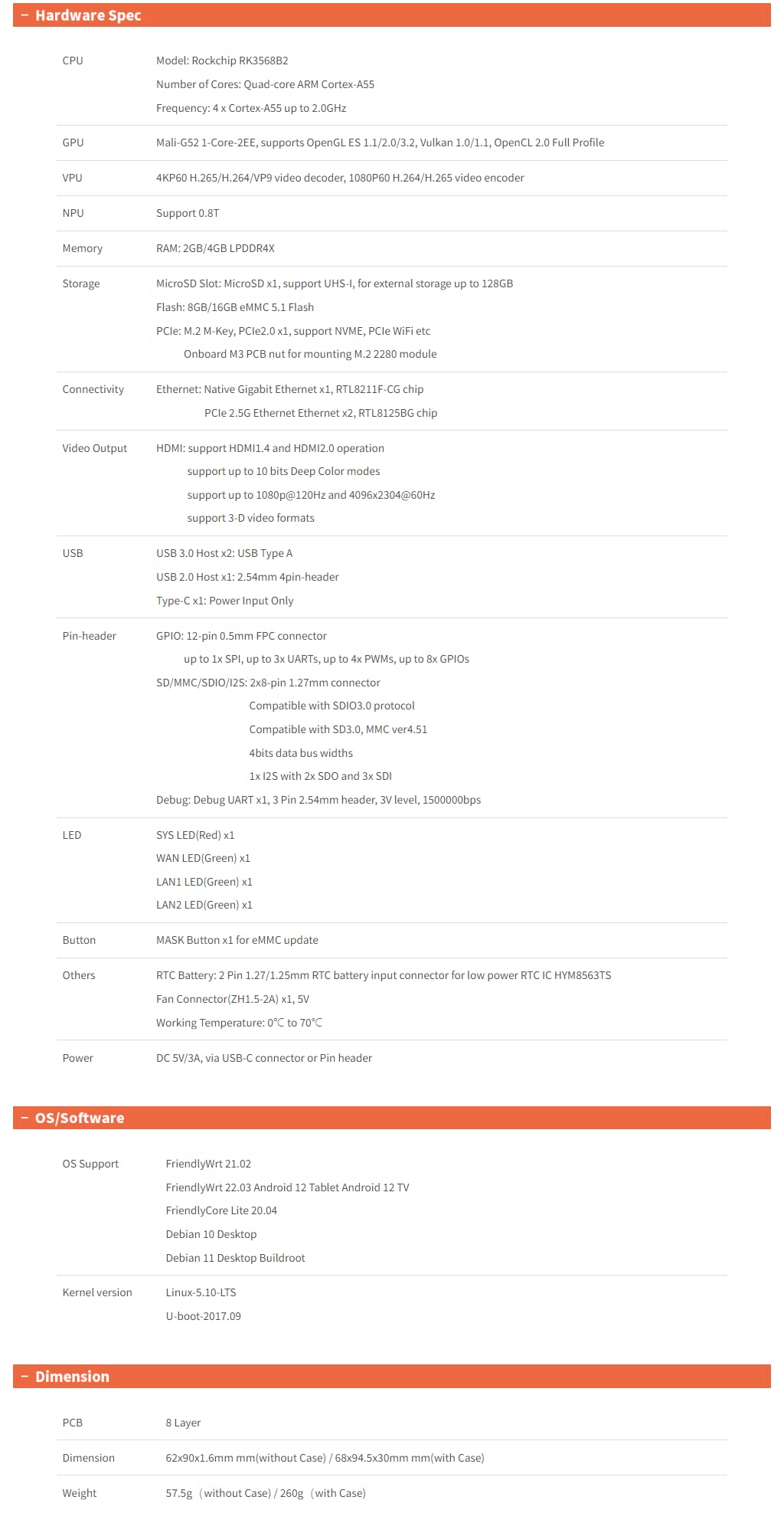

Product Specifications
Customer Reviews: 4.5 out of 5 stars 24Reviews
Best Sellers Rank: #157,497 in Electronics (See Top 100 in Electronics) #841 in Computer Routers
Product Information
Product description
The NanoPi R5S (as “R5S”) is an open-sourced mini IoT gateway device with two 2.5G and one Gbps Ethernet ports.It is integrated with a Rockchip RK3568B2 CPU, 4GB LPDDR4x RAM and 32GB eMMC flash. It supports booting with TF cards and works with operating systems such as FriendlyWrt etc.

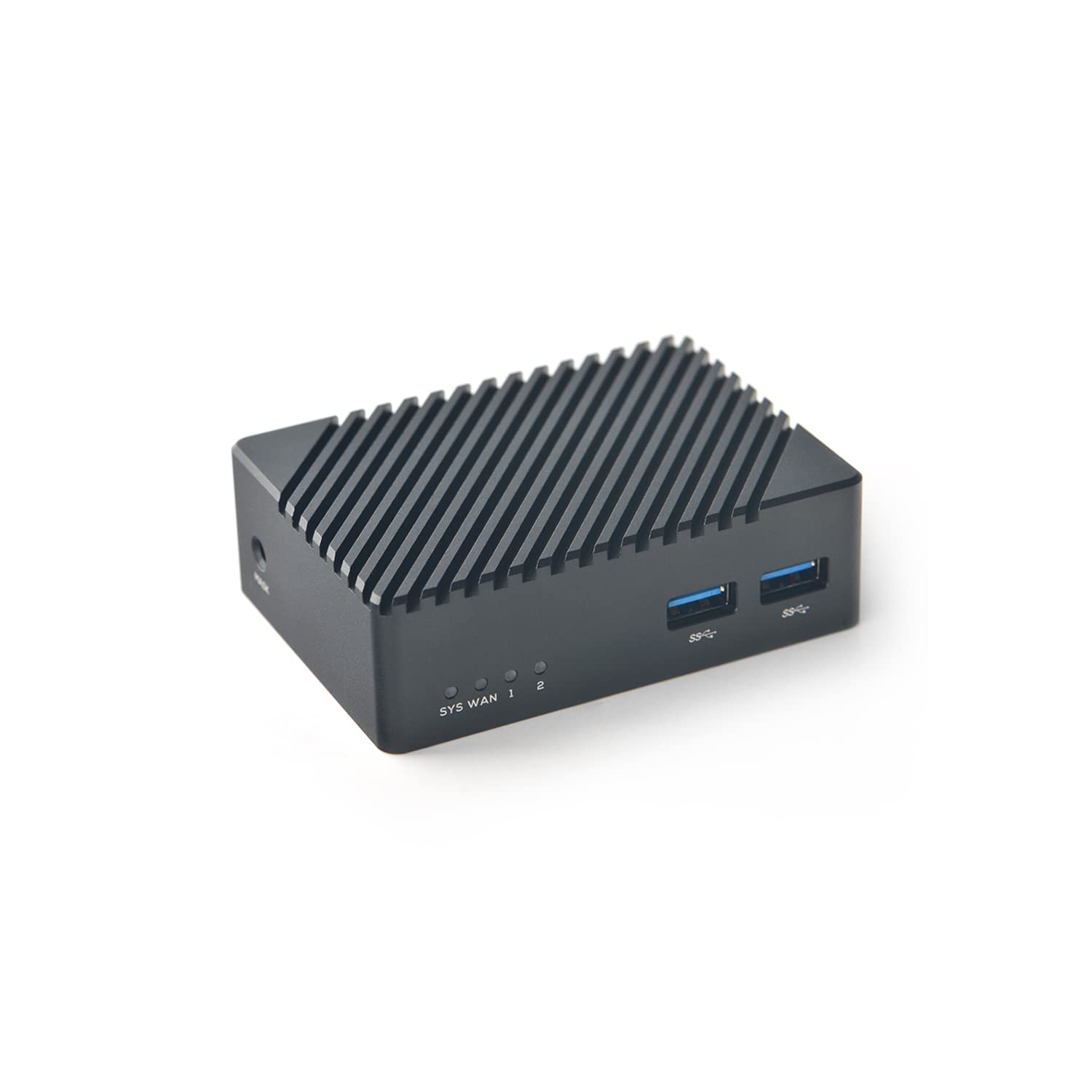

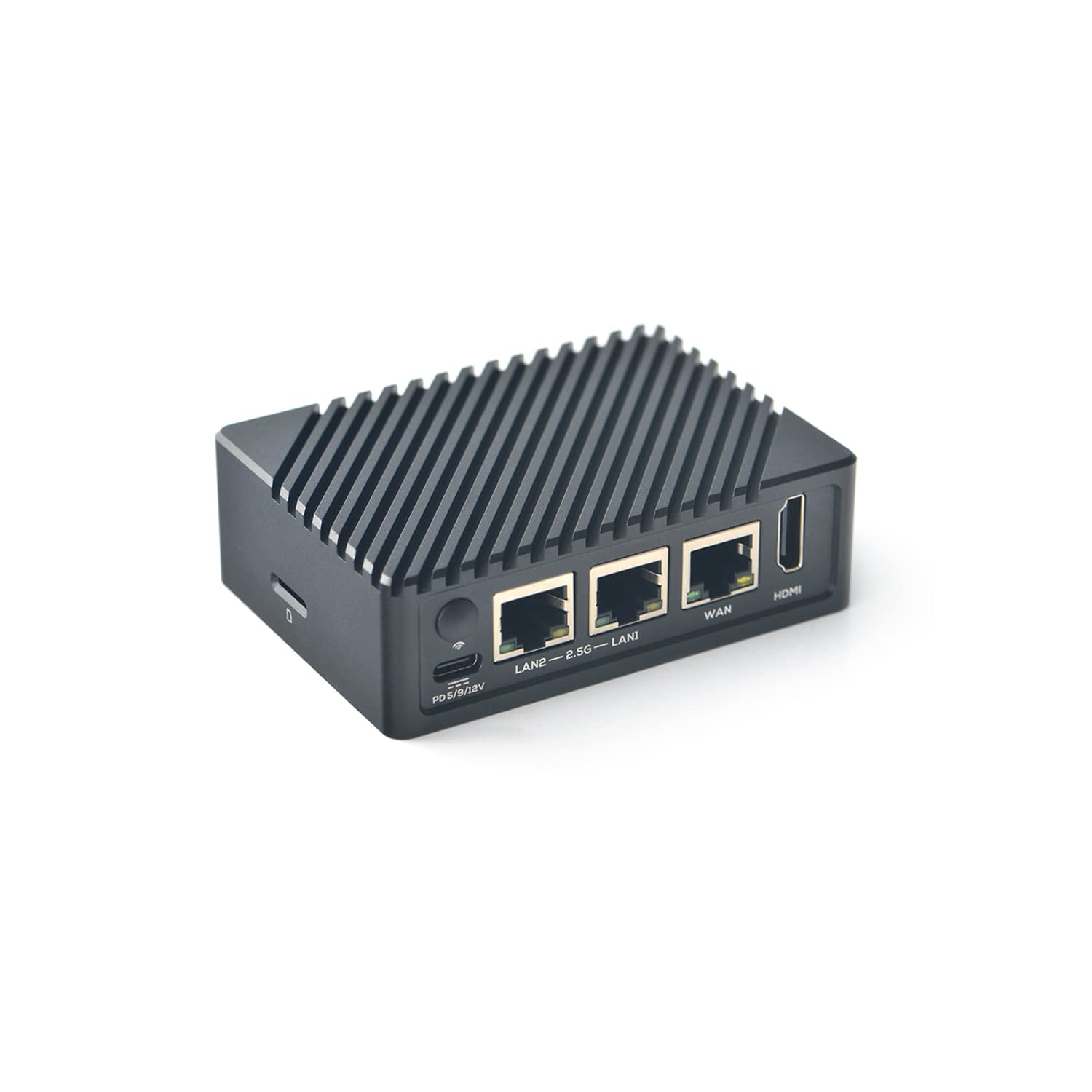

The NanoPi R5S has rich hardware resources with a compact size of 90 x 62 x 20 mm. WayPonDEV has released a carefully-designed custom CNC housing for it. It has one HDMI port. It works with Android, Ubuntu Desktop and Buildroot etc and works with headless systems as well. It supports decoding 4K60p H.265/H.264 formatted videos.
The NanoPi R5S has one M.2 NVME port, two USB 3.2 Gen 1 ports, and supports USB type-C power delivery. It is an ideal portable drive for saving images and videos.
All in all, the NanoPi R5S is a board featured with multiple Ethernet ports, light NAS and video playing. It is a cannot-miss platform with infinite possibilities for geeks, fans and developers.
