Banana Pi BPI-R3 Wi-Fi 6 OpenSource Wireless Dual-Band OpenWRT Router Board with MediaTek MT7986(Filogic 830),Support 5X GbE and 2X 2.5GbE SFP (Bundle3-BPI R3+Antennas)

Brand: WayPonDEV

(32 votes)

Seller: N/A

Sell on:

Amazon US

Banana Pi BPI-R3 Wi-Fi 6 OpenSource Wireless Dual-Band OpenWRT Router Board with MediaTek MT7986(Filogic 830),Support 5X GbE and 2X 2.5GbE SFP (Bundle3-BPI R3+Antennas)

0885996168

/ Email: Support@fado168.com

Monday to Friday: from 08h - 22h, including Saturday and Sunday

$178.23

Delivery time 15-20 day. View detail

The Product does not have an exact weight, The total order value may be changed after approval

Color:

Black

Bundle1-BPI-R3 with Power Supply

Bundle2-BPI R3+Metal Case

Bundle3-BPI R3+Antennas

Quantity:

Seller List

The Time commitment

Fado168.com offers flexible shipping packages
3-5 days 7-20 days

+ See the detail

Free customs procedures

Fado168.com represent the customers to handle all the paperworks from the stage of export from ASIA import to Cambodia

+ See the detail

Diversified payment, flexible

Transfer by Internet Banking, via Bank account, by Wing or pay direct at Company

+ See the detail

Free delivery

Free delivery in Phnom Penh

+ See the detail

Safe shopping

With Fado168.com buyers always have insurance the risk when order the international goods

+ See the detail

Loading Product Infomation...

PRODUCT FEATURES

[MediaTek CPU Built in Filogic 830 chip ] Banana Pi BPI-R3 Router board with MediaTek MT7986(Filogic 830) quad core ARM A53 + MT7531A chip design.Filogic 830?s built-in hardware acceleration engine enables fast and reliable Wi-Fi offloading and wireless network connection,suitable for games, AR/VR and other low-latency applications
[Strong Network Communication Capability] On-board 5x 1000Mbps RJ45 Ethernet, 2x SFP 2.5GbE port
[Low-latency Wi-Fi 6 Connection] Wi-Fi 6 2.4G wifi use MT7975N and 5G wifi use MT7975P,which has many advantages over its predecessors, including lower latency, larger bandwidth capacity and faster transmission rates. it has enough bandwidth for 128 devices.
[Massive Capacity Support] The on-board M.2 KEY-M PCIe inerface can be connected with SSD mass storage devices, which makes it a reality that the device can be easily expanded with TB storage capacity
[Wide Application] It can be used for Internet service Router,Wireless Router,Wireless Repeater,Home security Gateyway,Home Automation,Nas device,Network and communication applications

Product Specifications

Brand Name: WayPonDEV
Item Weight: 9.6 ounces
Package Dimensions: 7.8 x 1.9 x 1.1 inches
Country of Origin: China
Item model number: 123456789123456
Data Transfer Rate: 1000 Megabits Per Second
Number of Items: 1
Model number: 123456789123456
Operating System: Routeros
CPU Manufacturer: MediaTek
Wireless Communication Standard: 802.11ax
Compatible Devices: Personal Computer
RAM Memory Technology: DDR
Processor Count: 4

Product Information

Product description

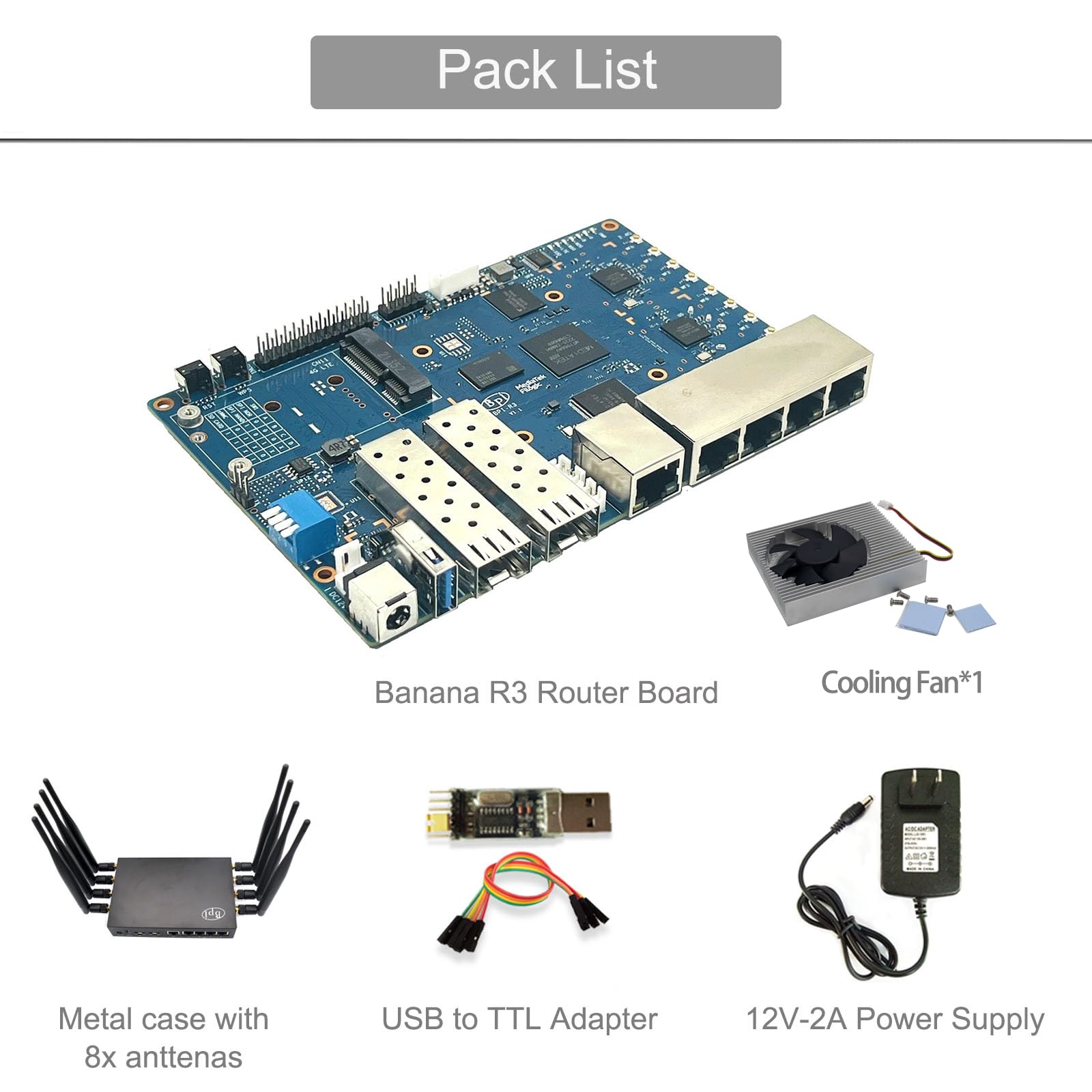

BPI-R3 OpenWRT Router Board Shipping List

BPI-R3 Wi-Fi 6 OpenWRT Router Board Hardware Spec

CPU	MediaTek MT7986 (Filogic 830) Quad core ARM Cortex A53+MT7531 chip design
SDRAM	2GB LPDDR3
Onboard Storage	8GB eMMC and MicroSD (TF) Slot
GPIO	26 Pin GPIO,some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S
Network Port	5x 10/100/1000Mbps Gigabit ports
SFP Optical Port	2 SFP 2.5GbE
Wifi	Wifi 6 4x4 2.4G Wifi (MT7975N) + 4x4 5G Wifi (MT7975P)
PCIe	Mini PCIe via USB
M.2	M.2 KEY-E PCIe inerface
USB	1 USB 3.0 host ,2 USB interface with slot.
DC Power Supply	12V/2A with DC in
Leds	Power status Led and RJ45 Led
Sizes	100.5x148mm same as Banana Pi BPI-R64 and Banana Pi BPI-R2
Weights	200g

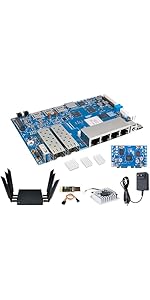

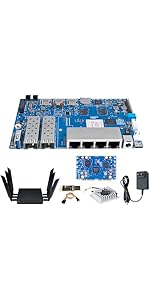

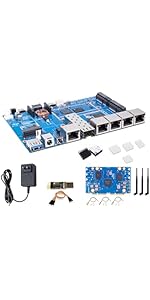

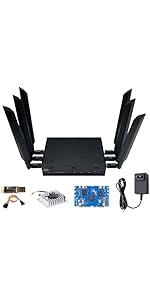

	BPI-R4 WiFi 7 Router Board (4GB Standard)	BPI-R4 WiFi 7 Router Board (8GB Standard)	BPI-R3 WiFi 6 OpenWRT Router Board Bundle3	BPI-R3 Mini WiFi 6 OpenWRT Router Board

Customer Reviews	44	—	27	8
Price	$259.99	$264.99	$149.99	$116.99
CPU	MediaTek MT7988A (Filogic 880)	MediaTek MT7988A (Filogic 880)	MediaTek MT7988A (Filogic 880)	MediaTek MT7986A (Filogic 830)
RAM	4GB DDR4	8GB DDR4	2GB DDR4	2GB DDR4
Memory	8GB eMMC, and 128MB SPI-NAND flash	8GB eMMC, and 128MB SPI-NAND flash	8GB eMMC	8GB eMMC
SFP	2x 10Gbe SFP+ (Fibre/Copper Module)	2x 10Gbe SFP+ (Fibre/Copper Module)	2x SFP 2.5GbE	2x SFP 2.5GbE
WiFi	Wifi7 2x2 2.4GHz + 3x3 3ss 5GHz + 3x3 3ss 6GHz BE13500 (MT7995AV Chip)	Wifi7 2x2 2.4GHz + 3x3 3ss 5GHz + 3x3 3ss 6GHz BE13500 (MT7995AV Chip)	Wifi 6 4x4 2.4G Wifi(MT7975N) +4x4 5G Wifi(MT7975P)	Wifi6 2x2 2.4G + 3x3 5G(MT7976C)
Network	4 Port 10/100/1000Mbps Ethernet	4 Port 10/100/1000Mbps Ethernet	5 Port 10/100/1000Mbps Ethernet	2 Port 10/100/1000Mbps Ethernet
Package Contents	Show as picture	Show as picture	Show as picture	Show as picture
Size	100.5x148x15 mm，250g	100.5x148x15 mm，250g	100.5x148x15 mm，250g	65x65x10 mm, 100g (only board)

Banana Pi BPI-R3 Wi-Fi 6 Wireless Dual-Band OpenWRT Router Board

Banana Pi BPI-R3 Wi-Fi 6 Open Source Wireless Dual-Band OpenWRT Router Board

Banana Pie BPI-R3 open source router development board using MediaTek MT7986 (Filogic 830) quad-core ARMA53 + MT7531A chip design, on-board 2G DDR memory and 8G eMMC storage, this is a very high-performance open source router development board , support for WIFI 6, 2.4G Wifi wireless using the MT7975N chip, 5G Wifi using the MT7975P chip, support for 2 SFP optical communication interface, 5 Gigabit Ethernet port.
MediaTek Filogic 830 Filogic 830 integrates four Arm Cortex-A53 cores at up to 2GHz, with processing power of up to 18,000 DMIPs, dual 4x4 Wi-Fi 6 connectivity of up to 6Gbps, and two 2.5G Ethernet interfaces and Serial Peripheral Interface (SPI).Filogic The 830 has a built-in hardware acceleration engine for fast and reliable Wi-Fi offloading and wireless connectivity.
In addition, the chip supports MediaTek's FastPath technology for low-latency applications such as gaming, AR/VR, etc. The Wi-Fi 6 offers a number of advantages over its predecessors, including lower latency, greater bandwidth capacity, and faster transfer rates. Wi-Fi devices supporting the 6GHz band utilize a 160MHz wide channel and the uncongested bandwidth of 6GHz to provide multi-gigabit transmission and low-latency Wi-Fi connectivity for reliable wireless connectivity for applications such as streaming media, gaming, AR/VR, and more.

Application Direction :

Internet service router
Wireless Router
Wireless Repeater
Home security Gateyway
Home Automation
Nas equipment
Network and communication applications

BPI-R3 Router Board Hardware interface

Banana Pi BPI-R3 WiFi 6 Router Board OpenWRT

2x 2.5G SFP Module Slot

Notice:

The SFP serdes of R3 are fixed 2.5Gbase-X, so only SFP that support this protocol can be used.
And there is no debugging insertion detection function, so there will be no prompt when inserting any SFP module.

-----The SFPs we have tested that work are as follows:

2.5G Copper: SFP-2.5G-T-R-RM
2.5G Optical Fiber: SFP-2.5G-BX0-U/SFP-2.5G-BX0-D
TP-LINK 2.5G Copper: TL-SM410U
TP-LINK 2.5G Optical Fiber: TL-SM411LSA-500m/TL-SM411LSA-500m
