bayite Volt Amp Meter, DC 5-100V 100A Dual Display Current Voltage Meter, Digital Mini Ammeter Voltmeter Gauge with Hall Effect Sensor Current Transformer

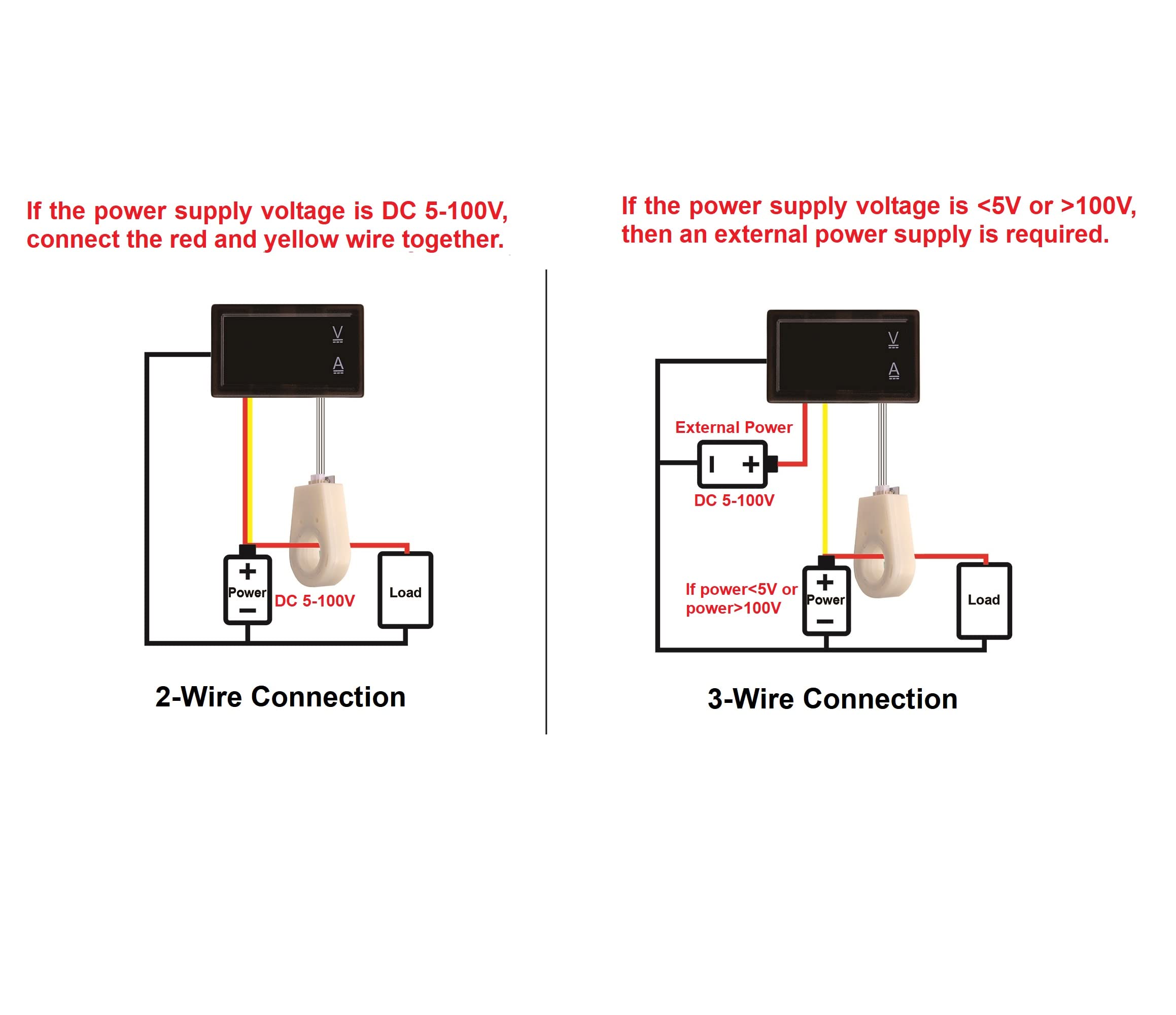

Dual display: Display Voltage and (+ -) Current at the same time; Power supply: DC 5~100V; Voltage test range: 0~300V; Current test range: ±0~100A

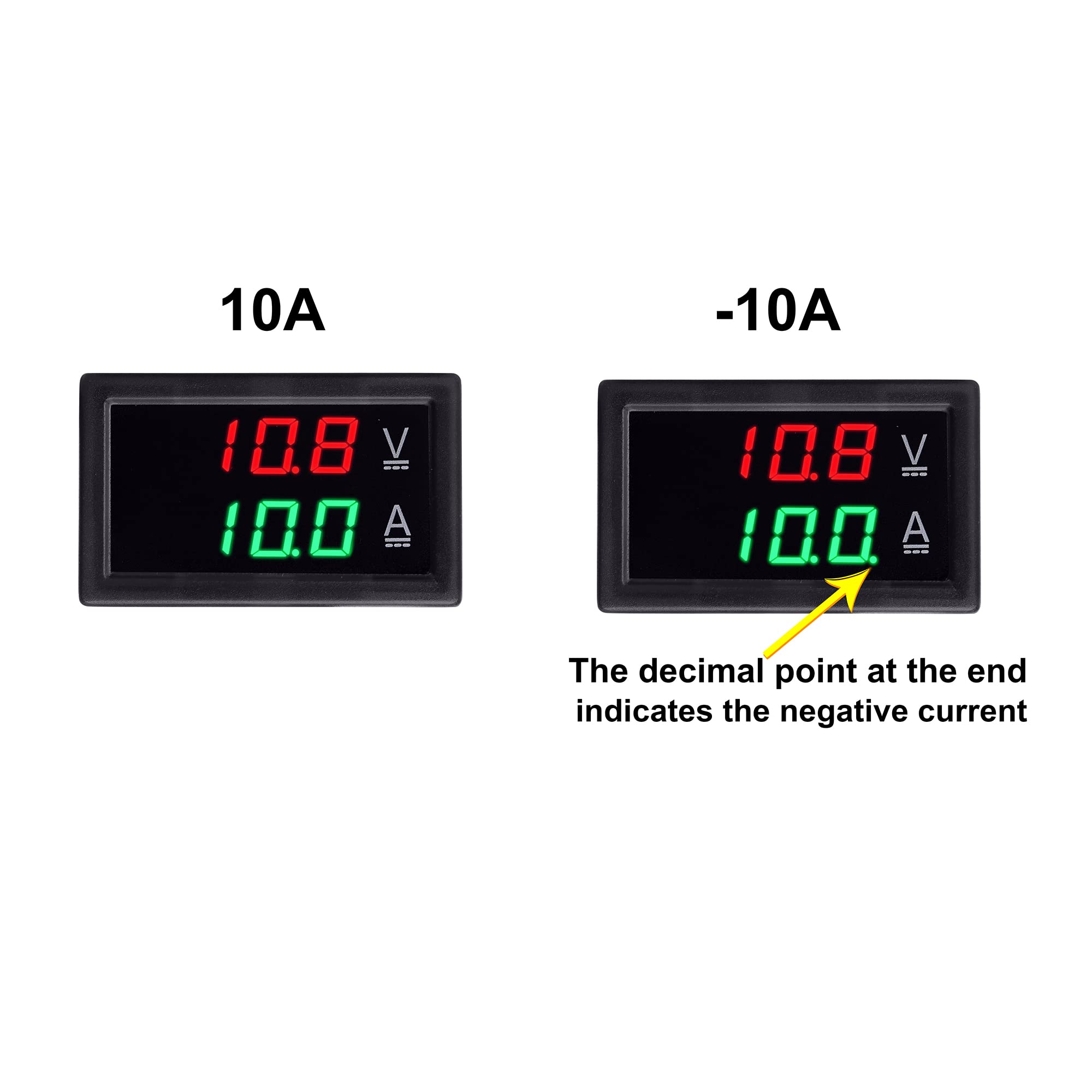

Through-hole design: Easy Wiring; Measure positive or negative current; No current direction limitation
Electrically isolated from high voltage power source which eliminates risk to delicate monitoring equipment and also minimizes safety concerns
Compatible with large wire; Diameter of the sensor hole is 3/4 inch (19 mm)
Loop through sensor multiple times to strengthen signal. For example, if your current signal is only 0.2 Amps, you could loop the wire through the sensor 10 times and the signal would by 10X stronger and would appear as 2.0 Amps
Product Specifications

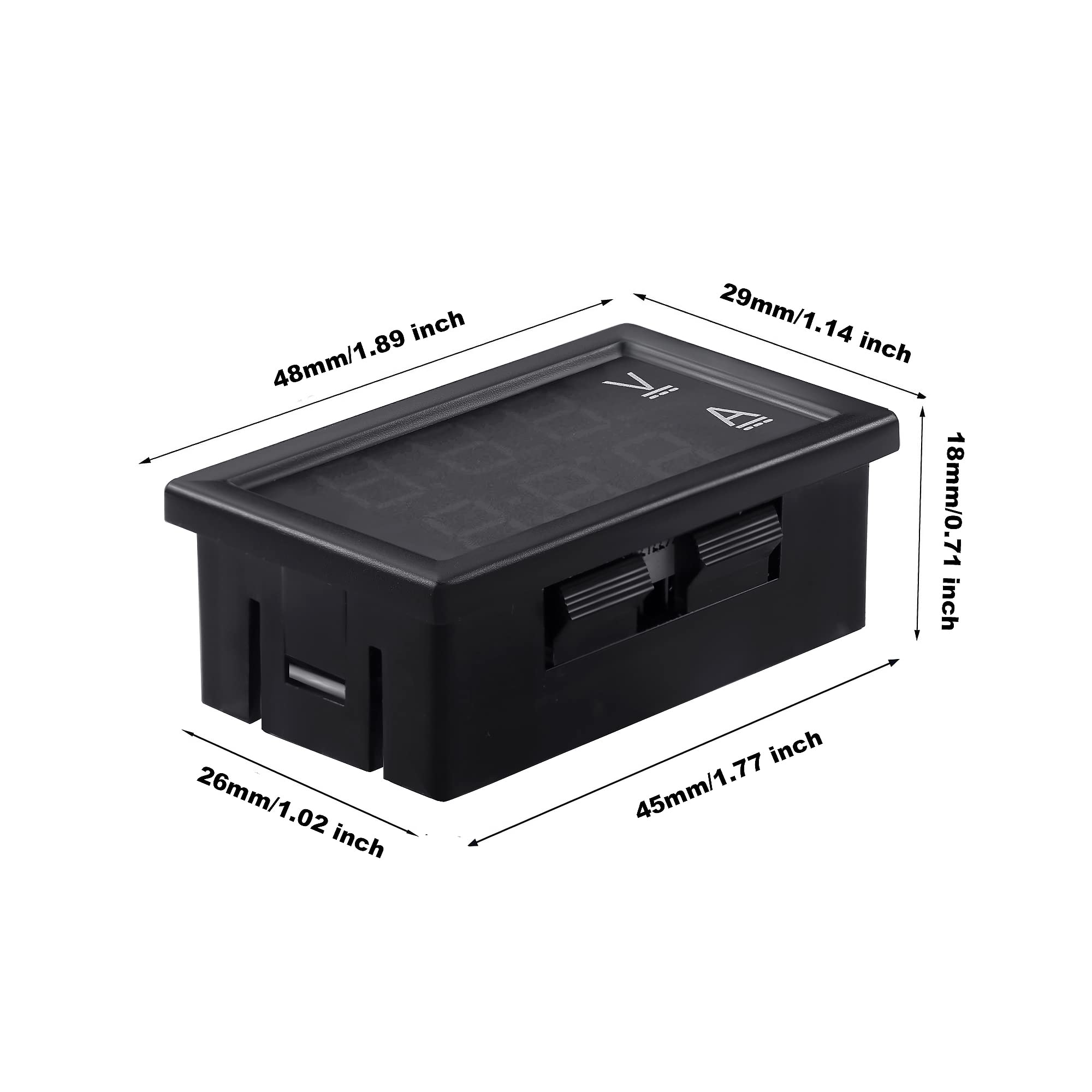

Product Dimensions: 1.77 x 1.02 x 0.71 inches
Item Weight: 2.99 ounces
Manufacturer: bayite
ASIN: B0BFJ5NV5L
Customer Reviews: 4.6 out of 5 stars 200Reviews
Date First Available: September 16, 2022
Product Information
Product description

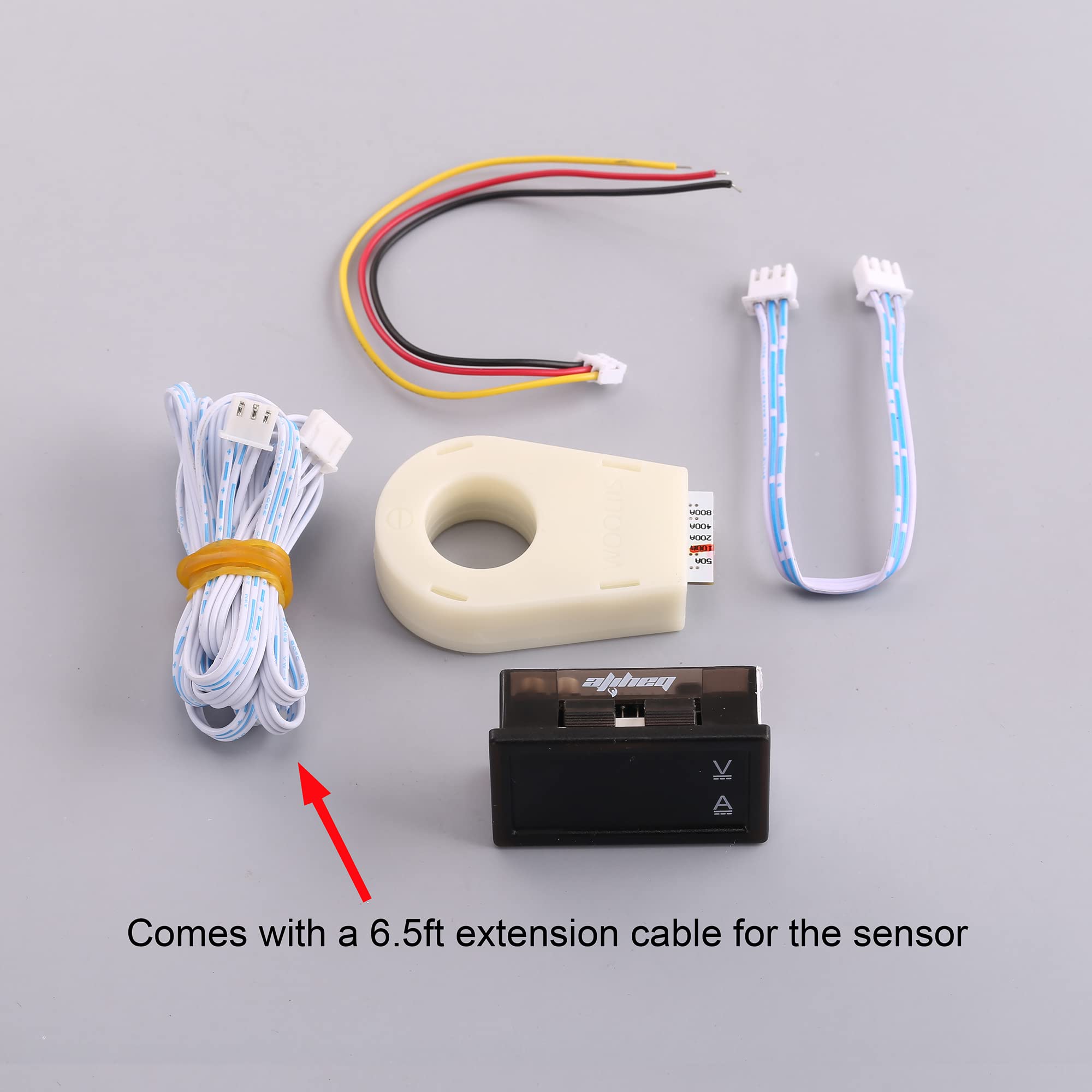

bayite DC 5-100V 100A Digital Volt Amp Meter is a 2-in-1 meter for real-time current and voltage monitoring. The display is large, easy to read, and accurate. Package even includes an extension cable (6.5 feet) for the Hall effect sensor, providing more versatile installaitons.
