MT-VIKI Rack Mount KVM, 8 Port KVM VGA Switch w/15.6'' LCD Monitor, 1080P, Mount into 23.6-31.5'' deep Server Cabinet, Integrated Touchpad+Keyboard+8 KVM Cables
MT-VIKI 1568UL Rack Mount KVM Console with 8 port kvm switch is the latest version to manage up to 8 computers by 1 user. 15.6'' LCD Monitor. Resolution: 1920*1080.
Product Dimension (WxDxH): 18.9x16.2x1.7 inch (479x410x44mm). This integrated LCD monitor KVM console is best-fit for 1U 19" rack network data server cabinet with column depth 450-800mm (17.7 -31.5 inch) . Full 1U, front and back side without any bulgy.

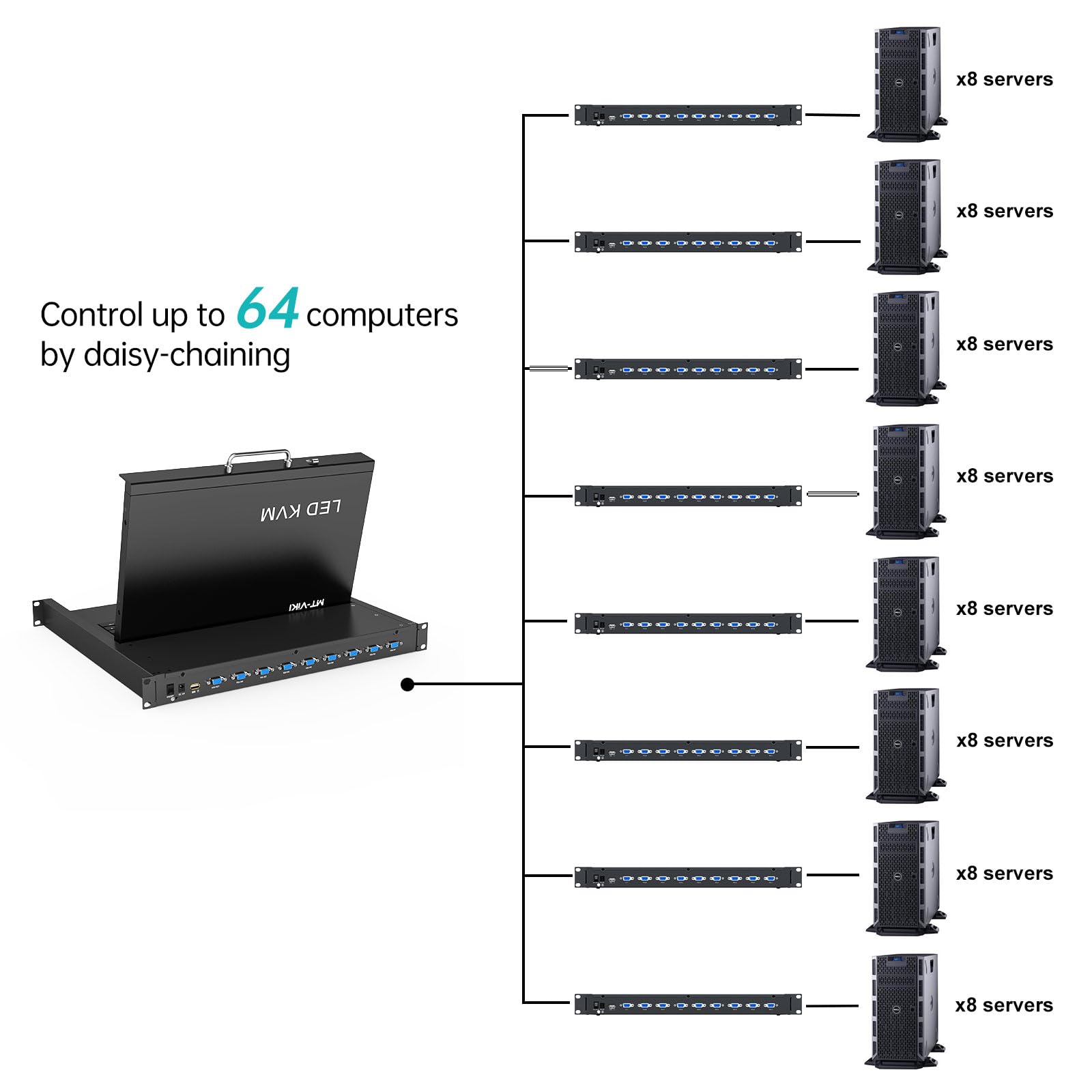

Support OSD menu, Hot-key or push button switching.【Daisy chain 】up to 64 computers with our this KVM Switch (ASIN: B09NPXNC6X or B0BJ6M71RP), and provides 2-level password security (administrator and user), up to 8 authorized users and an administrator view and control the computers.
This all-in-one kvm has been installed before delivery. You just need to place the KVM directly into 1U rackmount and tighten the screws. This KVM console is upgraded with alumium for less wight, and the draw shell is made by steel for sturdy.
Widely Compatible with Windows/Dos, Linux, Mac OS8.6/9/10. 8 pack KVM cables with various length are included, but you may order 10ft/16ft for your need ( Asin: B08ZJ41YD4/B09NPMXBDW).
Product Specifications
Item model number: 15608UL
Item Weight: 22.8 pounds
Product Dimensions: 20.67 x 19.88 x 5.71 inches
Manufacturer: MT-VIKI
ASIN: B0BG72RBPX
Date First Available: February 22, 2023
Brand: MT-VIKI
Switch Type: Slide, Push Button, Touch Switch
Terminal: Screw
Material: Alloy Steel
Item Dimensions LxWxH: 20.67 x 19.88 x 5.71 inches
Pls search ASIN: B0C4KTH6MZ/B0C4KT3JZ2 for HDMI or VGA KVM Dongle
HDMI Rack Mount Monitor KVM Console, MT-1568HL
MT-VIKI 8 port HDMI KVM is the latest version to manage up to 8 computers by 1 user, integrated with 15.6 '' TFT LCD monitor, keyboard, touch pad, rack drawer and KVM Cables.
*******
Feature
One-unit Construction: Installed and uninstalled easily, no need to insert components separately
Compatible Rack: fits for 450-600mm column depth network server cabinet.
Fits for rack column depth 450-800mm (17.7 -31.5 inch), 2 additional rails in package back-up for 800mm(31.5") deep rack
Fits 1U rack, mounts into 19"W rack
************
Adjust LCD display function, guide with AUTO-LOCKED device.
Resolution: 1920*1080

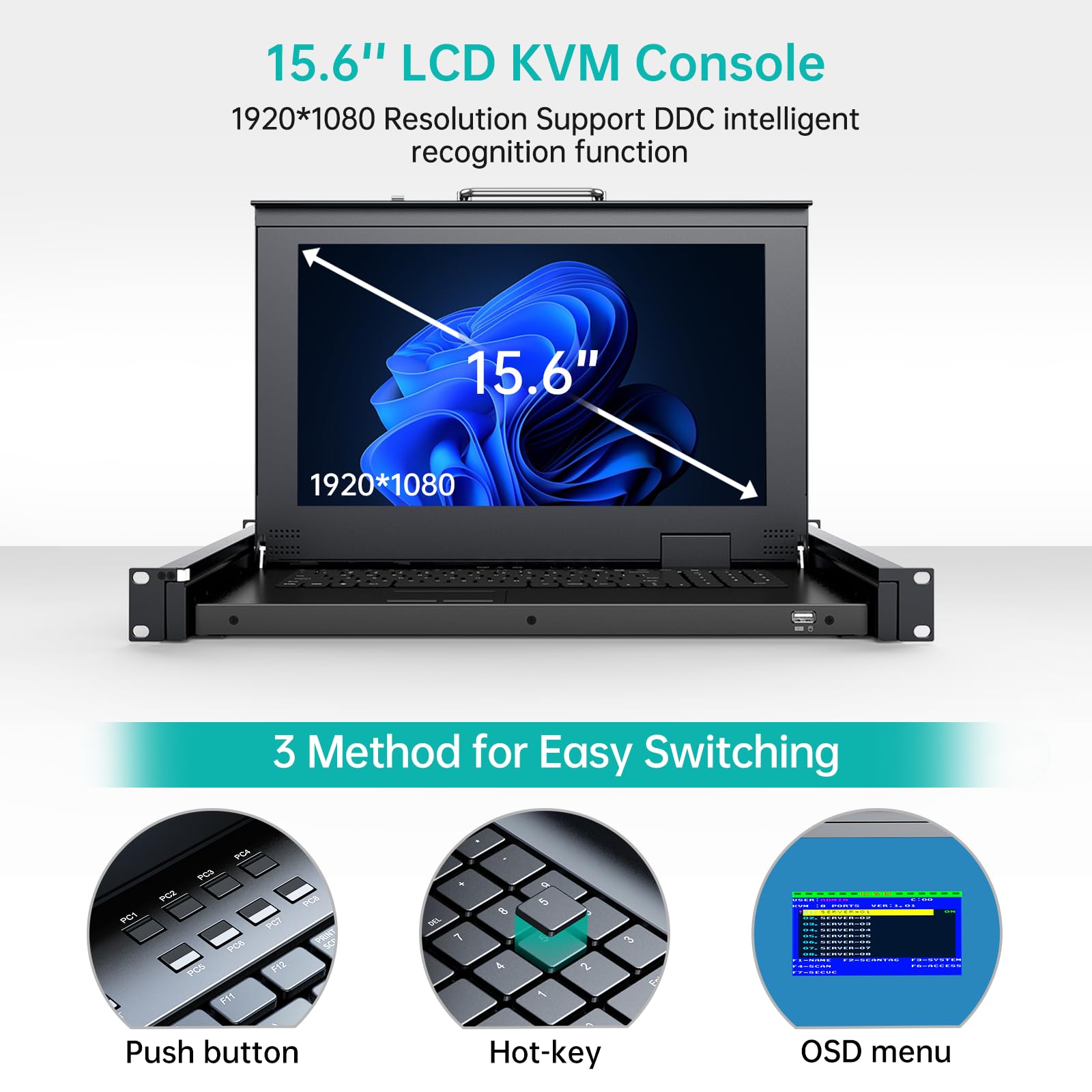

3 WAYS FOR SWITCHING: Hotkey, OSD Menu and press button.
Widely Compatible with Windows/Dos, Linux, Mac OS8.6/9/10, SUN Solaris 8/9.
8 Port KVM Switch w/15.6'' LCD Monitor
Specifications:
Resolution: 1920*1080
Color display: Color-262K
Brightness 250 cd/m2
Keyboard: 98keys, internal PS/2 port, External USB port
Touchpad: 1,000,000 times
Power: DC12V2A
Housing: aluminum + metal
Size: 480X410X45mm
Cabinet installation depth: 450mm-800mm
Package for this HDMI LCD KVM Console 8 Port
1* LCD KVM Switch 8 Port, Model: MT-1568HL
8* USB HDMI KVM Cables (4*1.5m/5ft, 4*1.8m/6ft)
1* Power adapter DC12V
1 set Rack rail (fits rack depth from 23.6 inch to 31.8 inch (600-800mm)
