ALITOVE 24V DC Power Supply 2.5A 60W 24 Volt Transformer AC Adapter 4.92Ft 2500mA 2A AC to DC Converter with 5.5 x 2.5mm Tip for LED Lights Routers Printer SoundBar Electronic LCD Monitor
【 24V 2.5A Power Adapter 】 Input: 100V-240V 50/60Hz; Output: DC 24V, 2.5A 60W Max; The DC Plug Connector size is 5.5mm x 2.5mm,compatible with 5.5mm x 2.1mm. Connector polarity is internal positive "+", outside negative"-".
【 Broad Compatibility 】 Works well with 24V devices that less than 2.5A(2500mA) 60W, such as 500mA 800mA 1000mA 1.2A 1.5A 1.8A 2A 2.5A. If you use it to power device more than 2.5A 60W,it will not work. NEVER OVERLOAD!
【 Expanded Application 】 We especially add a female terminal connector in the package. You can screw wires onto it to power the devices that have no female DC socket. This will greatly expand its applied range.

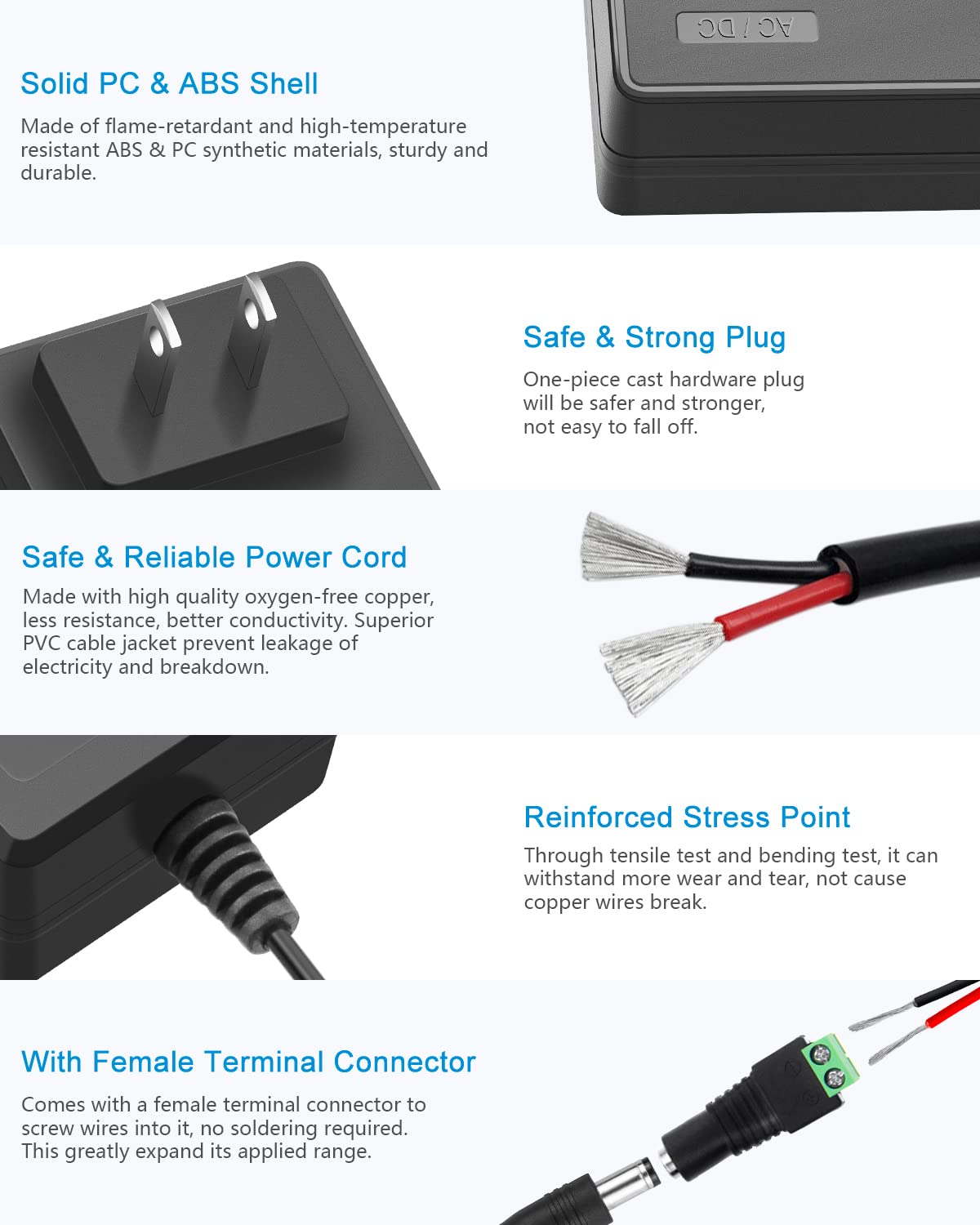

【 Premium Material and Quality 】 Made of high-quality materials, robust casing keeps internal components safe. Pure copper wire provide you a safe and reliable cable with better conductivity. We suggest the max use of power should be no more than 80% of the full loads.
Product Specifications
Product Information
Product description

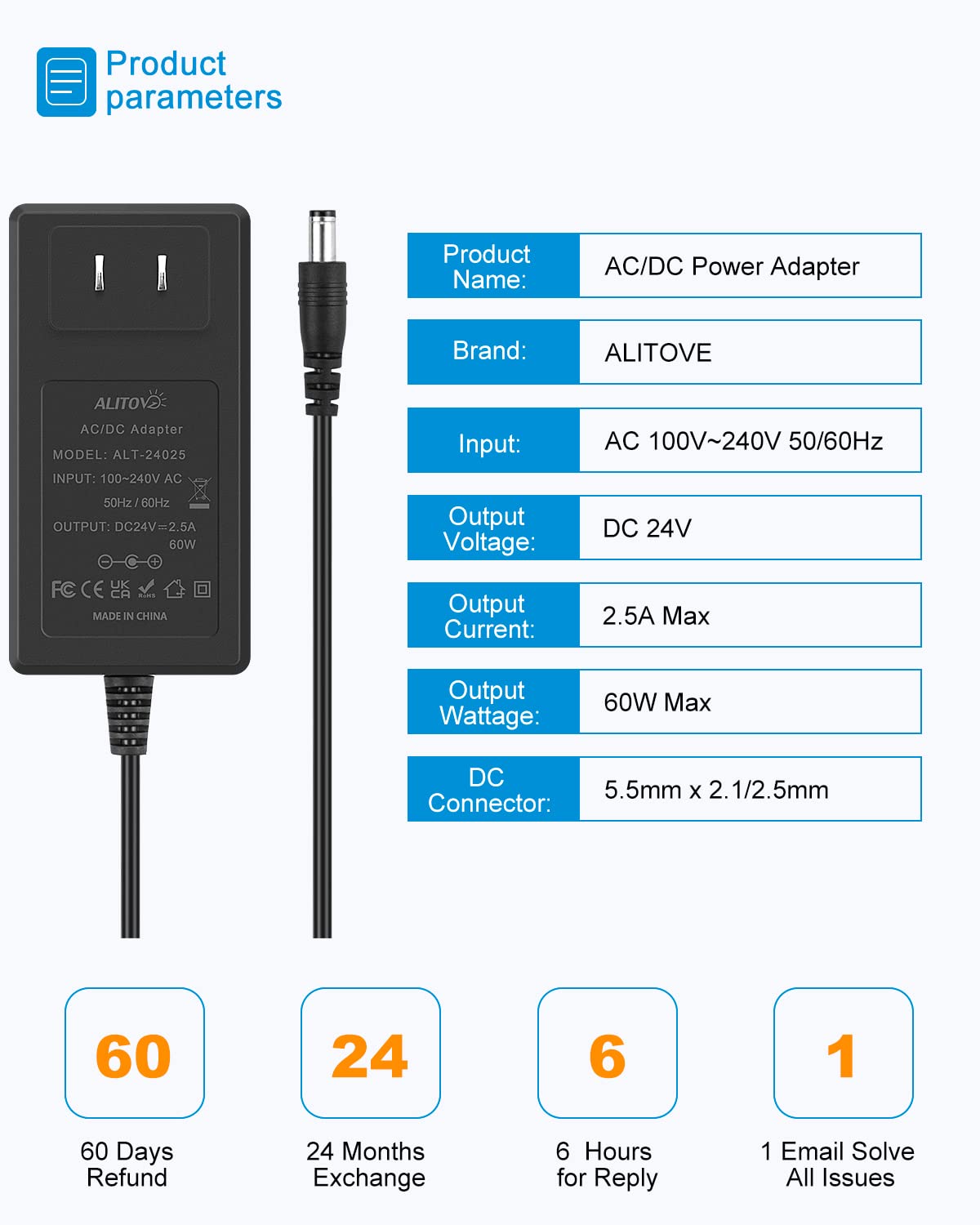

Parameter
Input: 100~240V AC, 50/60Hz
Output voltage: 24V DC
Output current: 2.5 A max
Output wattage:60W max
Dimensions: Please refer to the picture.

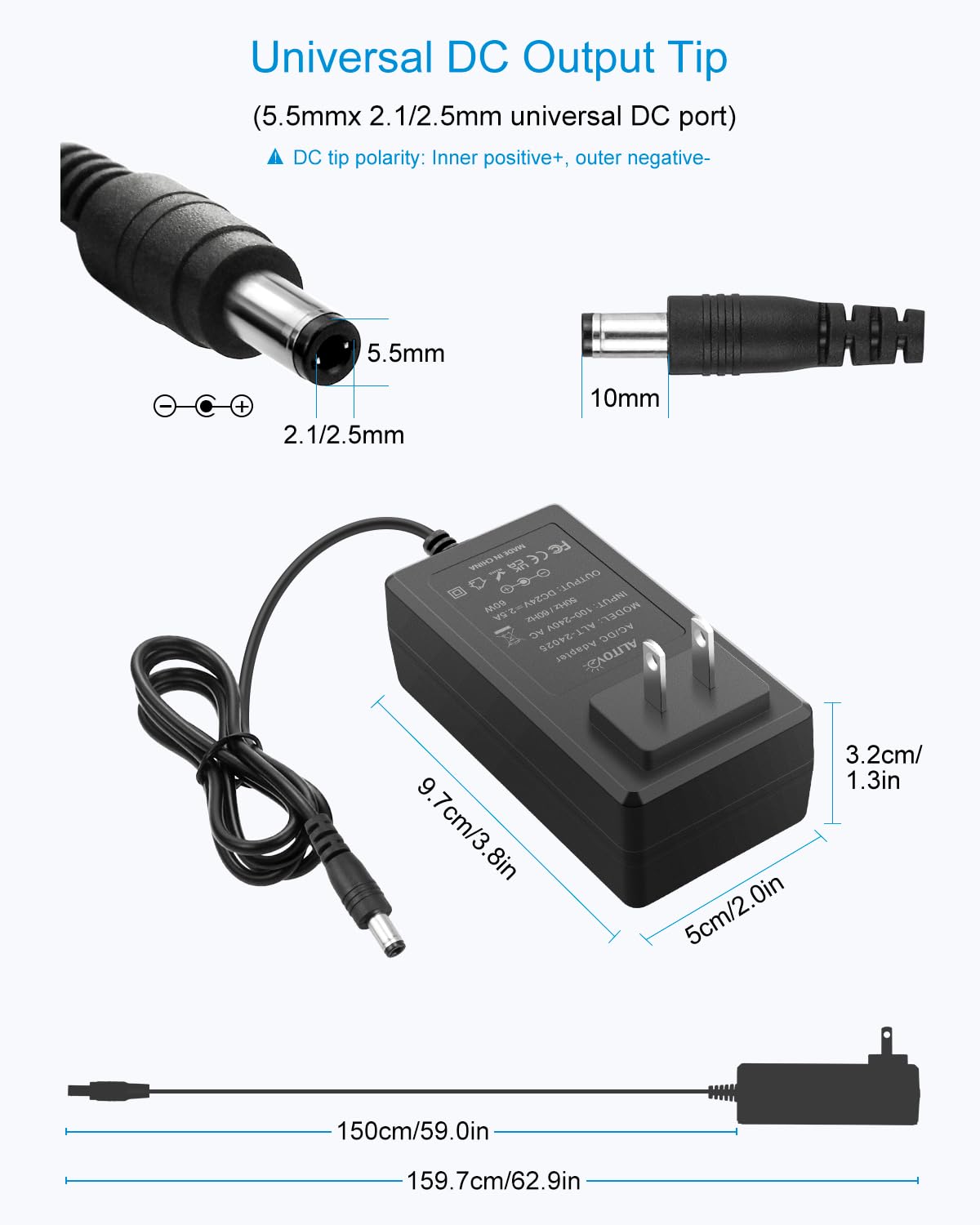

DC plug connector size: 5.5mmx2.5mm; 5.5mmx2.1mm compatible
Polarity: internal "+", outside"-"
Working Temperature: -20~60℃
Ambient Humidity: 0~95% Non-Condensation
Safety Compliance: FCC/CE/RoHS
Weight: 0.33 lb / 150g
Package:
1x 24V 2.5A power supply adapter
1x DC female connector
Product Highlights
Superior Safety

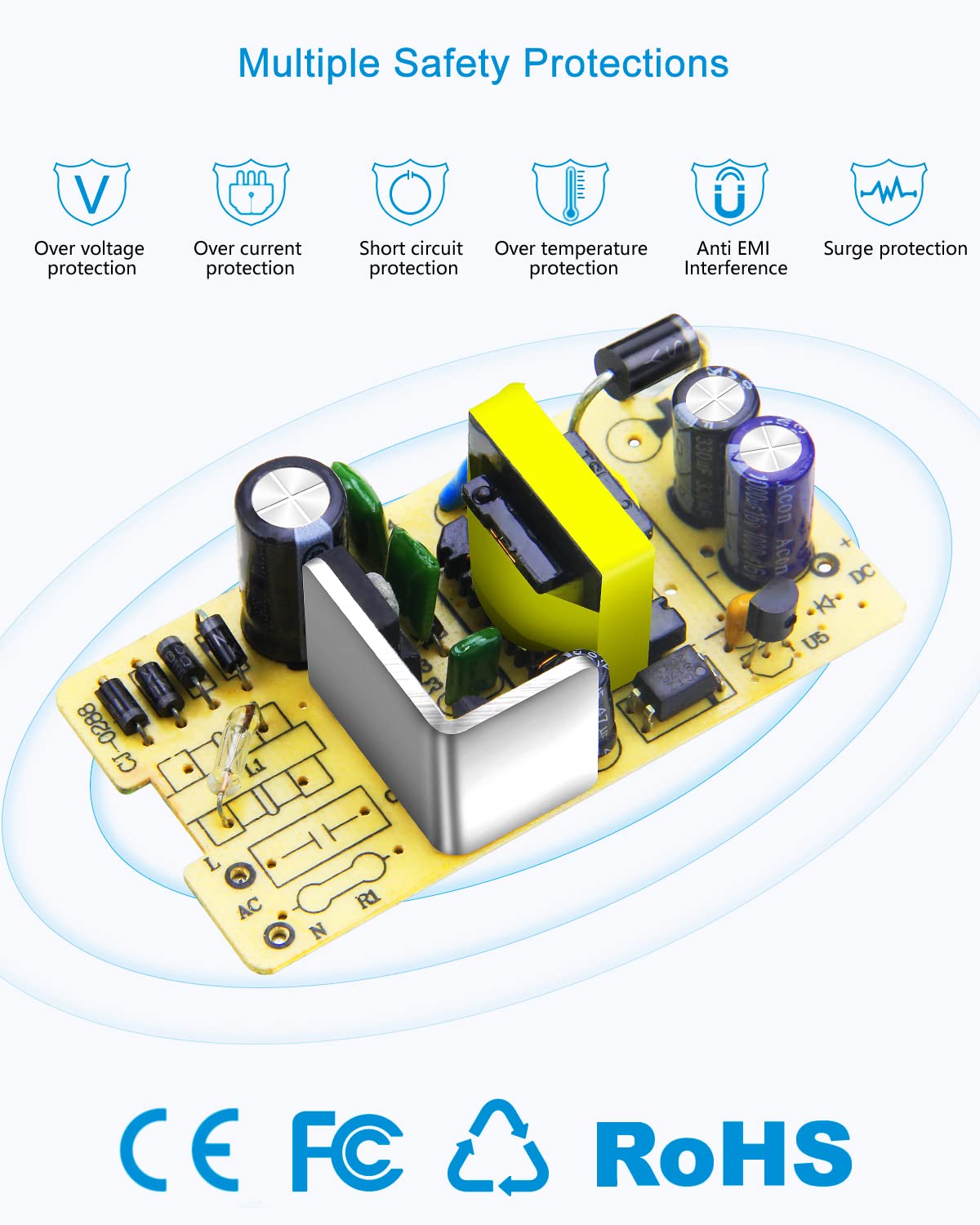

Flame-retardant exterior shell and built-in safeguards to protect against overheat, overload, over-charging, short-circuit provide ultimate protection for you and your devices.
Stable Output
Built-in advanced synchronous rectifier smart chip and EMI filter, convert fluctuating voltage to stable voltage, effectively reduce electromagnetic interference, ensure stable voltage output.
High-quality Cable
2x 0.5 mm²(20AWG) copper conductors, individual wire insulation and flexible flame -retardant PVC jacket provide you a safe and reliable cable with better conductivity.
Durable Design
Robust casing protects against scratches,bumps, drops, withstands pressure and keeps internal components safe during emergencies enhanced longevity.

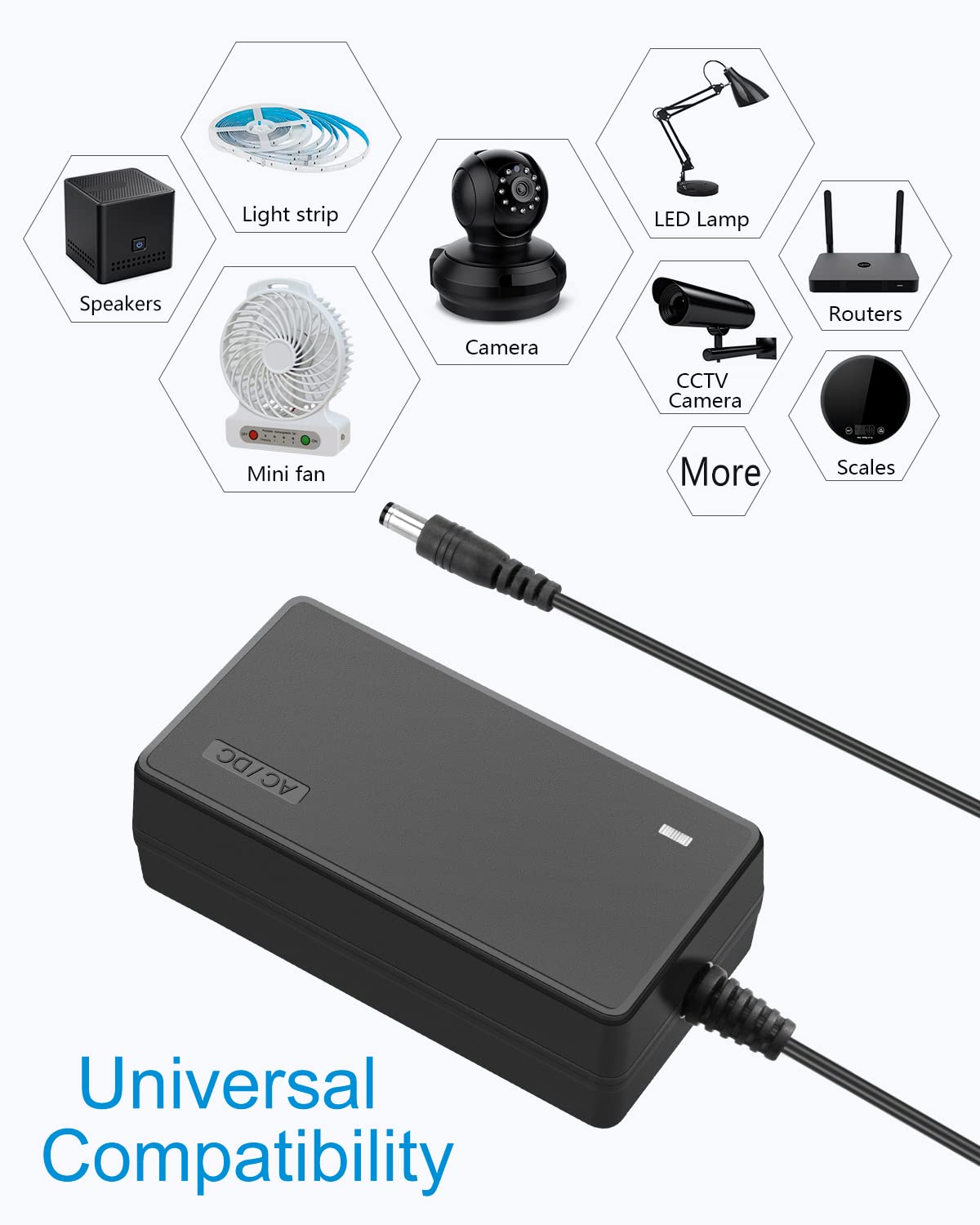

Broad Compatibility
Max 2.5A ouput means it can only supply with amperage less than 2.5A. ---such as 1A, 1.5A, 2A. If your device draws 2A, 2A will be supplied. But if draws more than 2.5A, only 2.5A will be supplied.
Expanded Application
We especially add a female terminal connector in the package. You can screw wires onto it to power the devices that have no female DC socket. This will greatly expand its applied range.

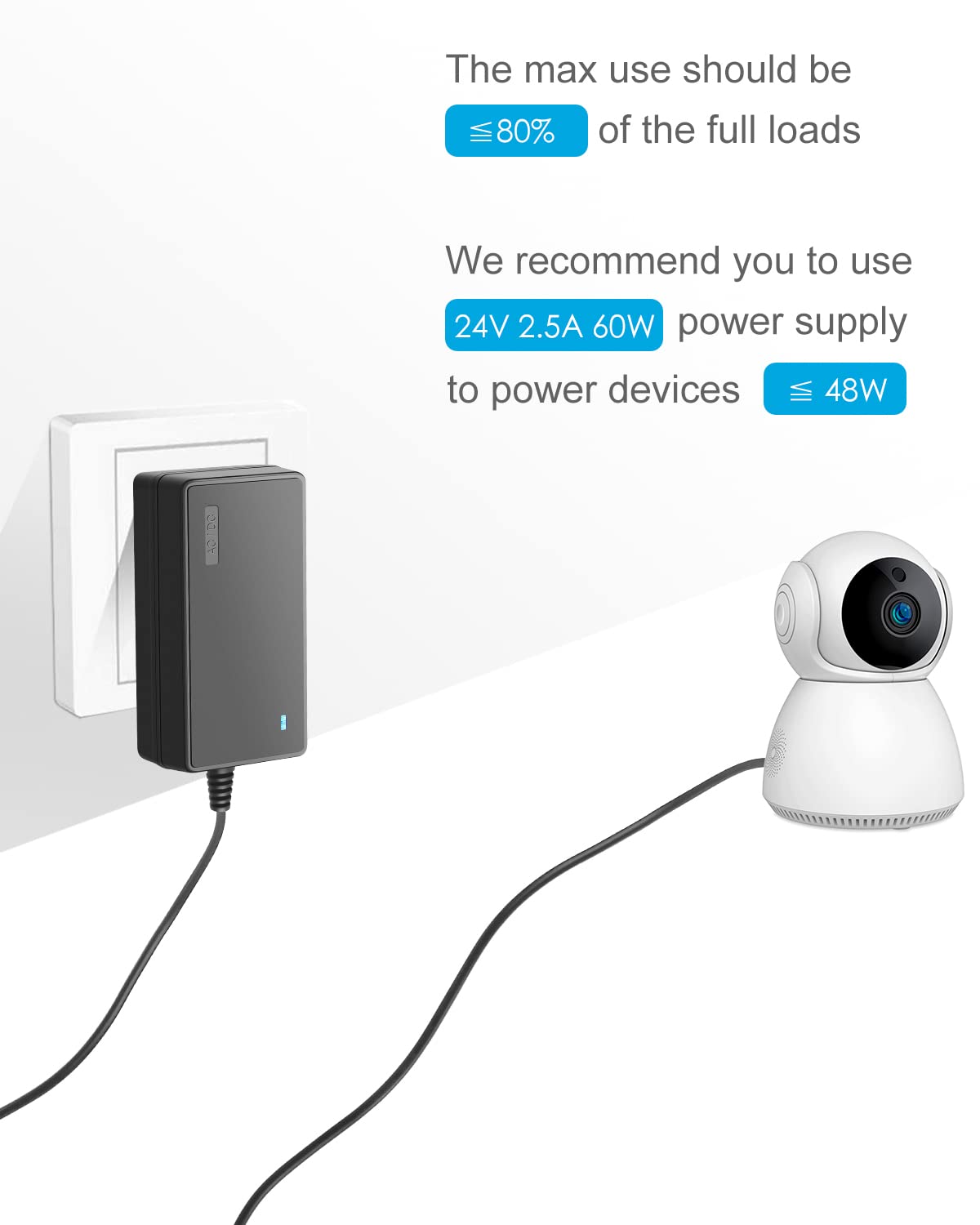

Professional Advice
We suggest the max use of power should be no more than 80% of the full loads, otherwise,the power supply's spanlife will be shortened. We recommend to use 24W PS to power devices less than 60W.
