LJCELL CMOS battery solution
The main function of the CMOS battery is to save the hardware configuration of the current system and the settings of certain parameters by the operator, so as to ensure that the BIOS information will not be lost whether the computer is turned off or the system is powered off.
Another function of the CMOS battery is to enable the real-time clock (RTC) of the BIOS to operate normally and ensure that the computer clock function remains accurate.

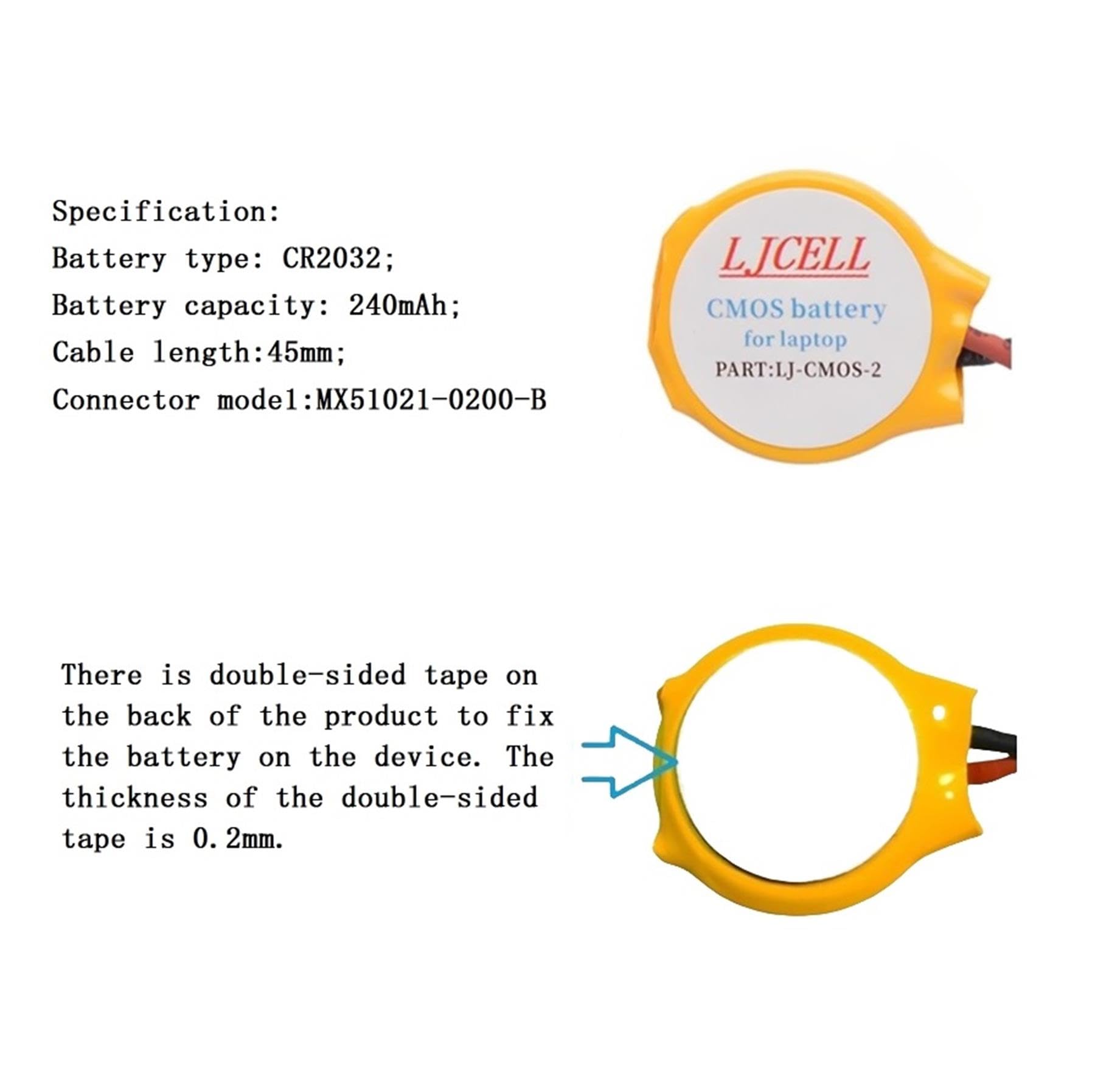

Product parameters:
1、Battery Type:CR2032
2、Voltage:3V
3、Capacity:240mAh
4、Wires Qty:2
5、Size:20mm (0.79in) diameter, 3.5mm (0.138in) height, 45mm (1.77in) wire length

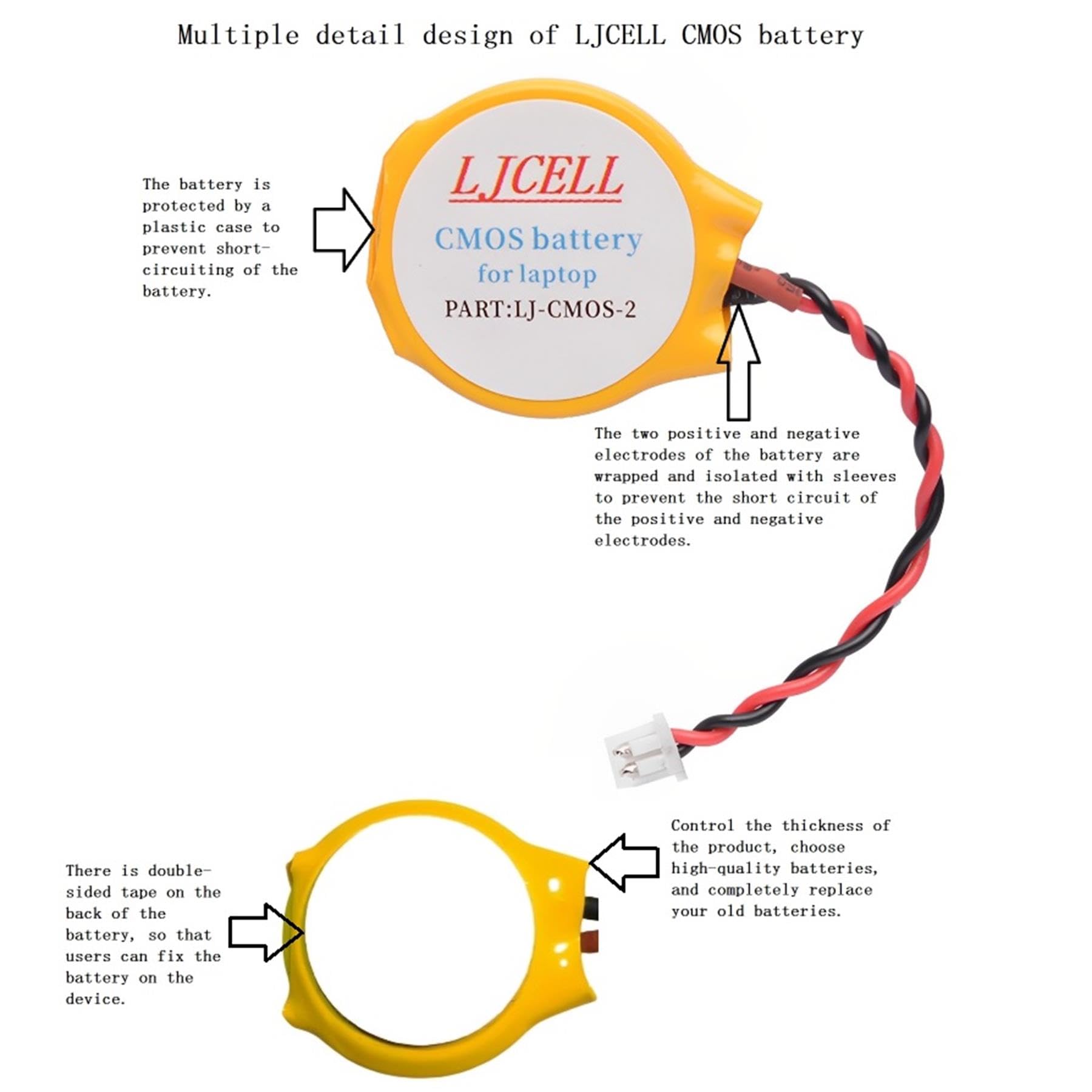

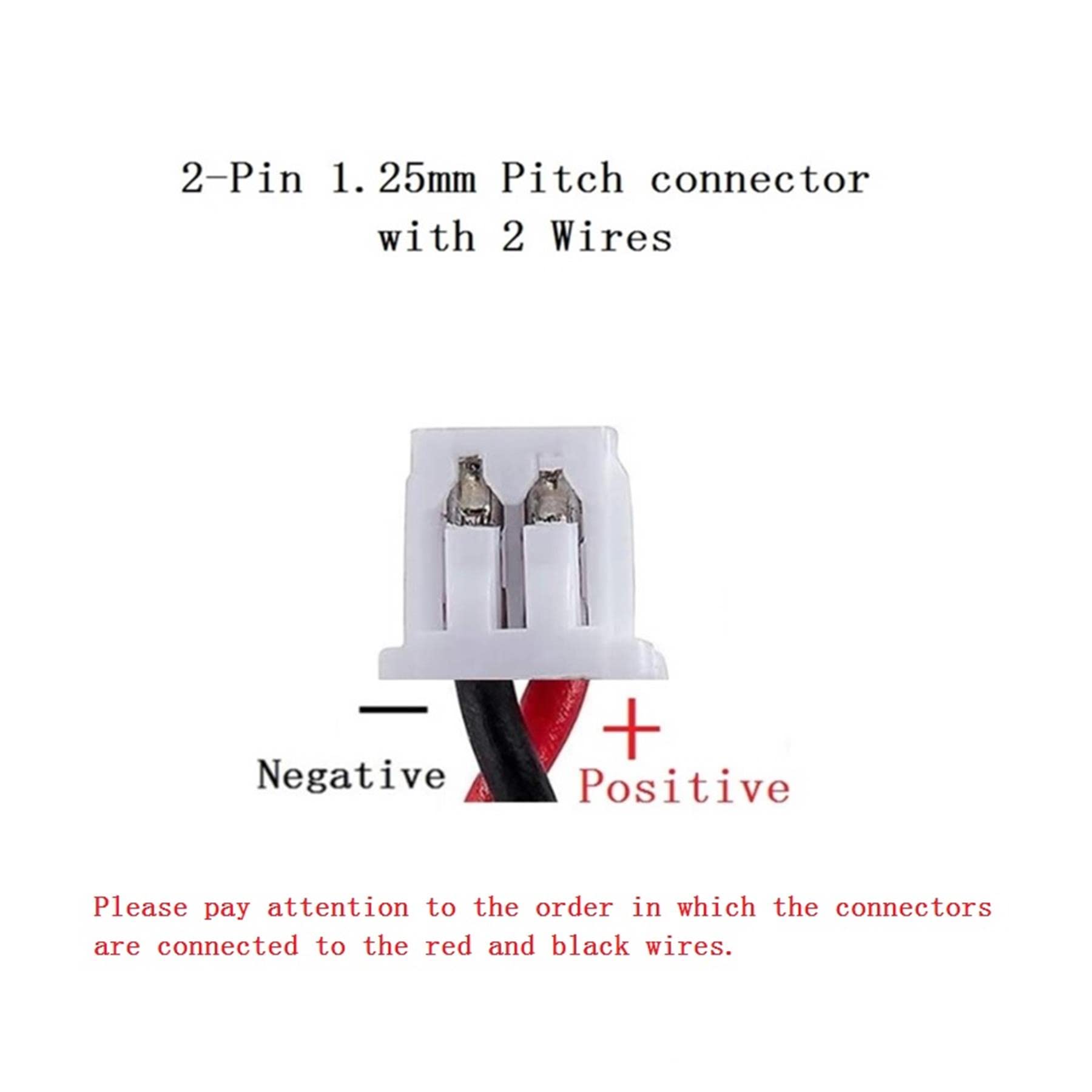

6、Connector model:Compatible with Mx51021-0200-B (can refer to pictures 2,3)

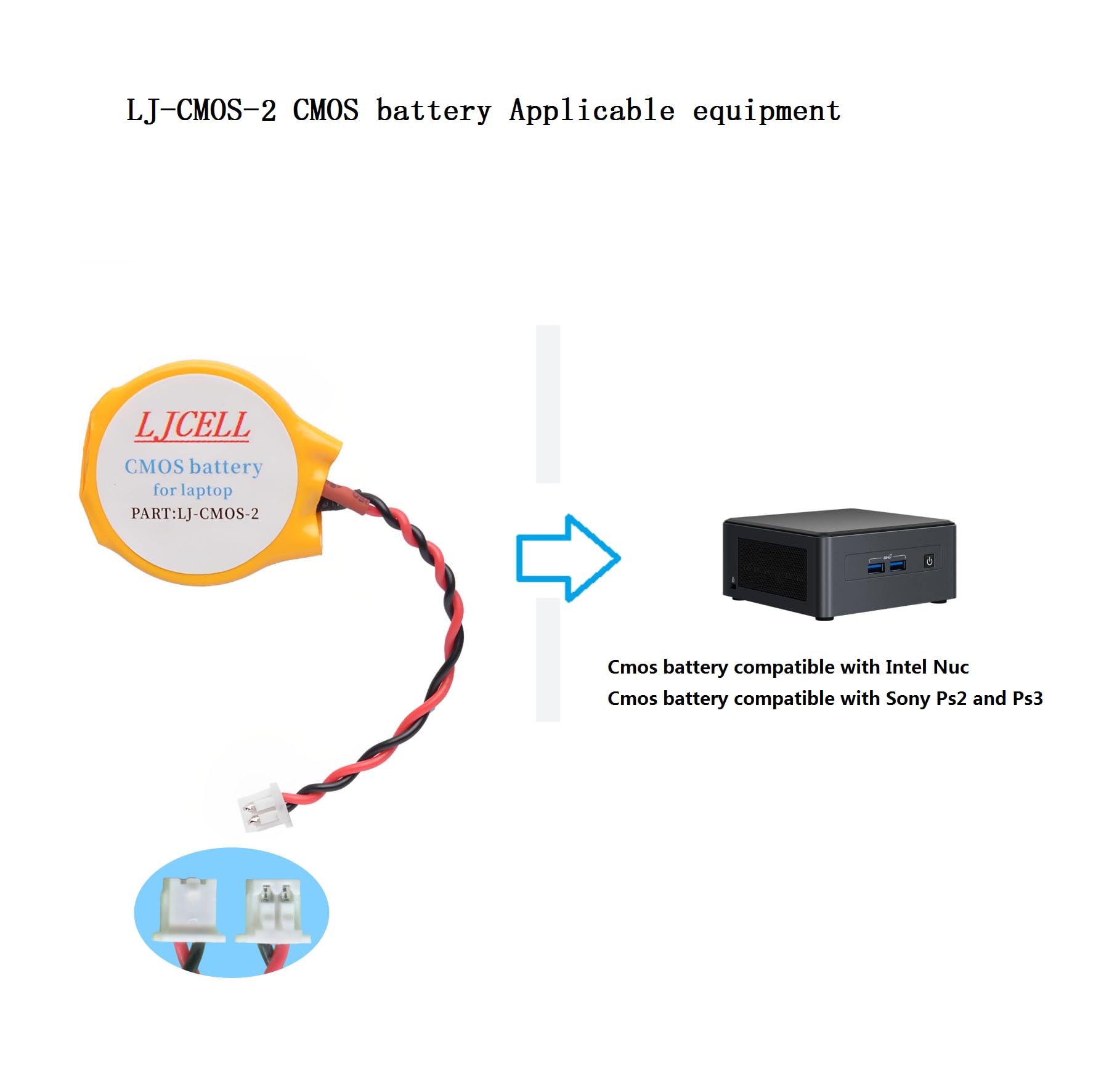

7、Applicable equipment:CMOS battery compatible with Intel Nuc 5PPYH 8i7BEH,CMOS battery compatible with Asus Rog Strix G702 G702V/AsRock AM1H-ITX H110M-ITX H270M-ITX/ac B550M ITX Motherboard, CMOS battery compatible with Sony Playstation 2 and Playstation 3.
