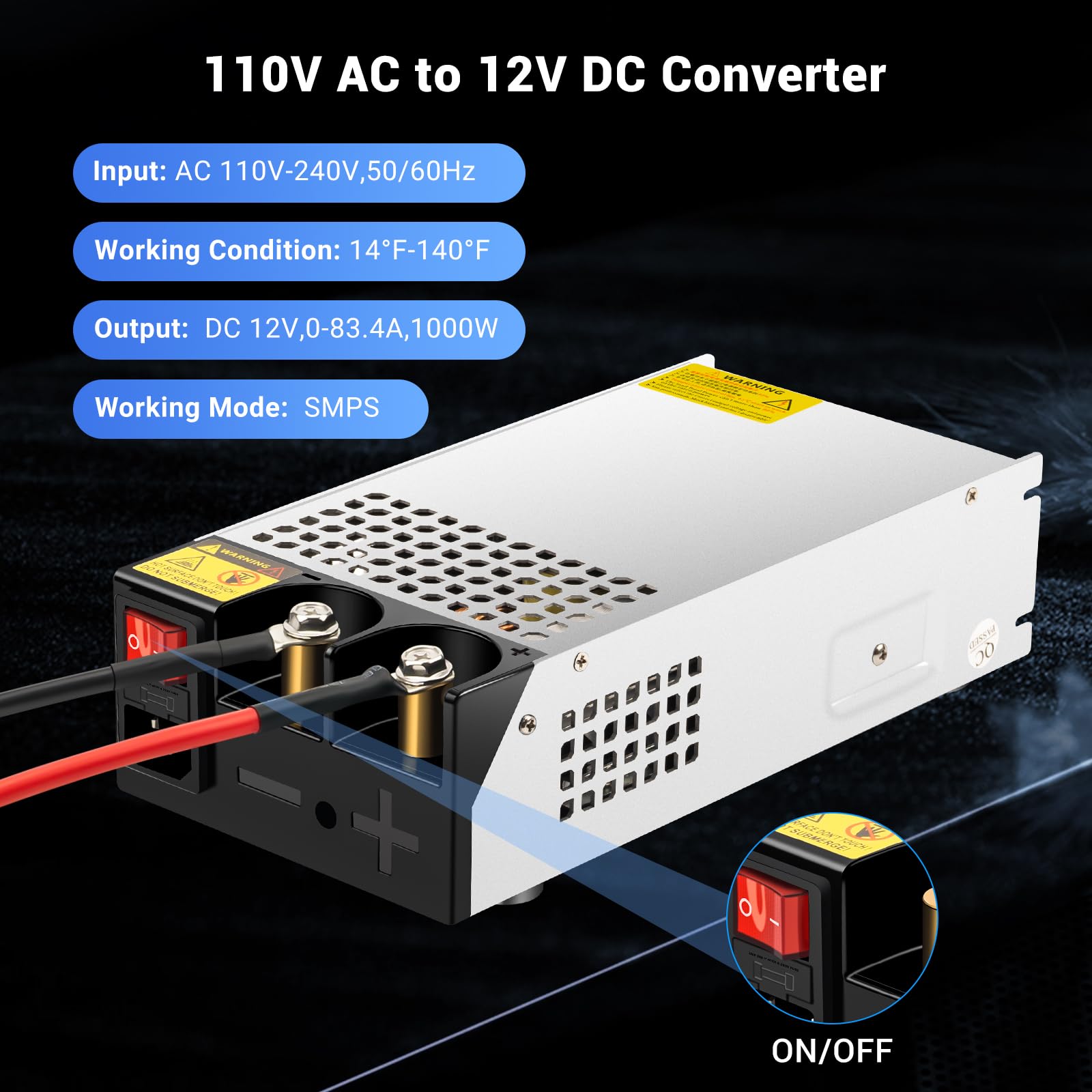

【New Version Converter】Input voltage: AC 110V / 220V (85-145V / 185-265V); Output current depends on the device, output voltage DC 12V, 1A-83.3A/12W-1000W. Recommended for equipment below 83A 1000W. For resistive device, SMPS peak power ≥ device power × 1.25 times. For Motor device, the peak power of the SMPS needs to be more than 2 times the power of the Motor.
【One-Key Operate】With red button on/off switch function, more safe and convenient power start/stop operation, Switch Transformer build with Imported Aluminum alloy shell ,Built-in wire integrated design, Dual power connection methods.

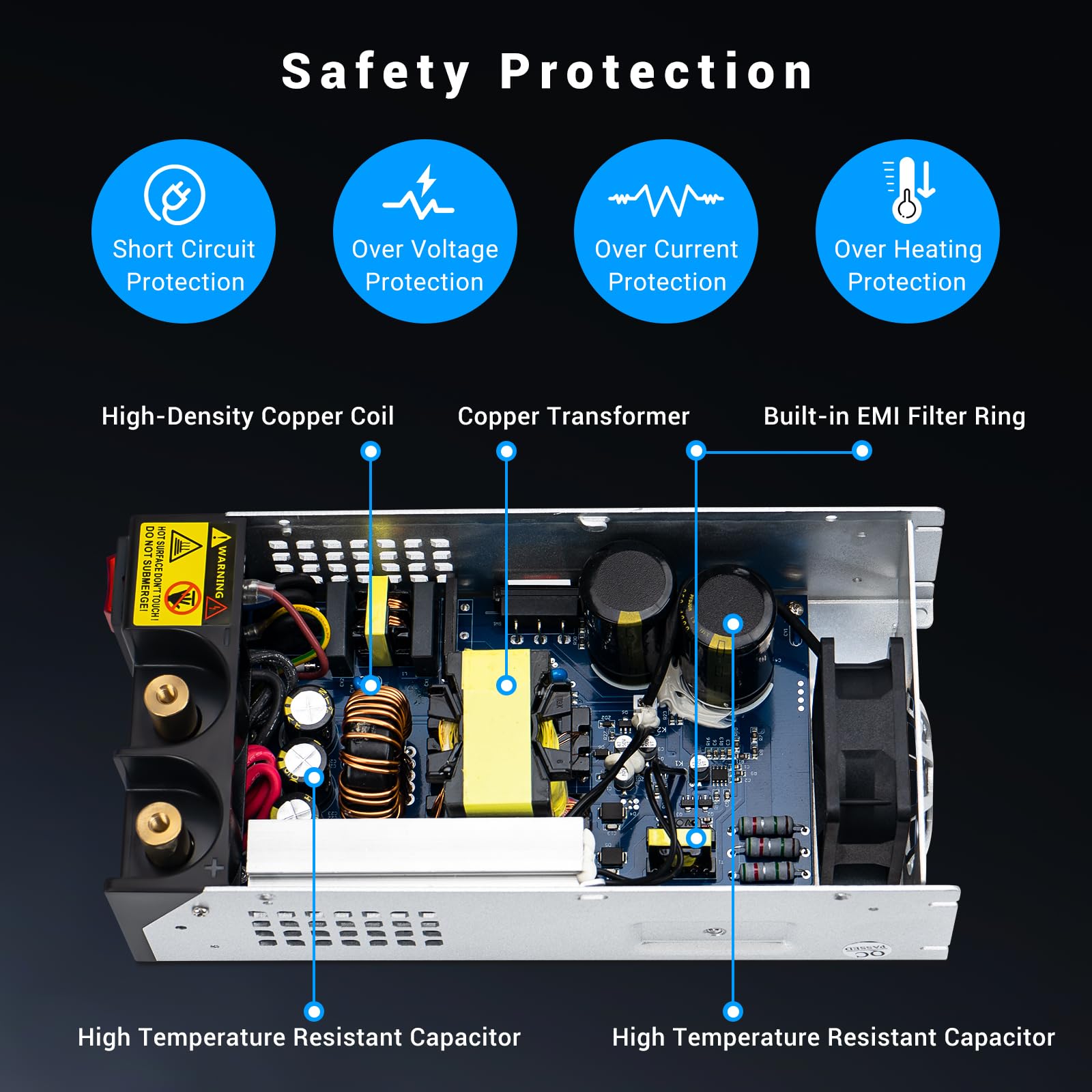

【Safety Features】Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.High Reliability, Low Temperature Rise,Built-in EMI filter, 100% Full load burn-in Tested.
【Includ Clamps and Copper Wire】12V 83A 1000W Power Supply converter with ul power cord ,wire lugs, metal clip and screw. Dial to the correct gear position, cut off the power before disassembling the connection
【Applications Widely】Simultaneous power supplies for devices different currents/watts. Used for DC 12V Pump, PCP Air Compressor,Winch, Car Jack, Car Stereos, Amplifier, Radios, Air Compressor, LED Light Strip, Brushless Motor, Household Appliances, Electronic Devices, Automation Equipment, Computer Project, Servos, etc Cannot be used on the: Programming / Adjustable-Speed Motor /PWM Motor/ Dimming Light / Plant Light / DC Power Controller
Product Specifications
Product Information
Product Description
All copper terminal blocks.
Power input controlled by rocker switch with lights.
UL listed power cord and plug.

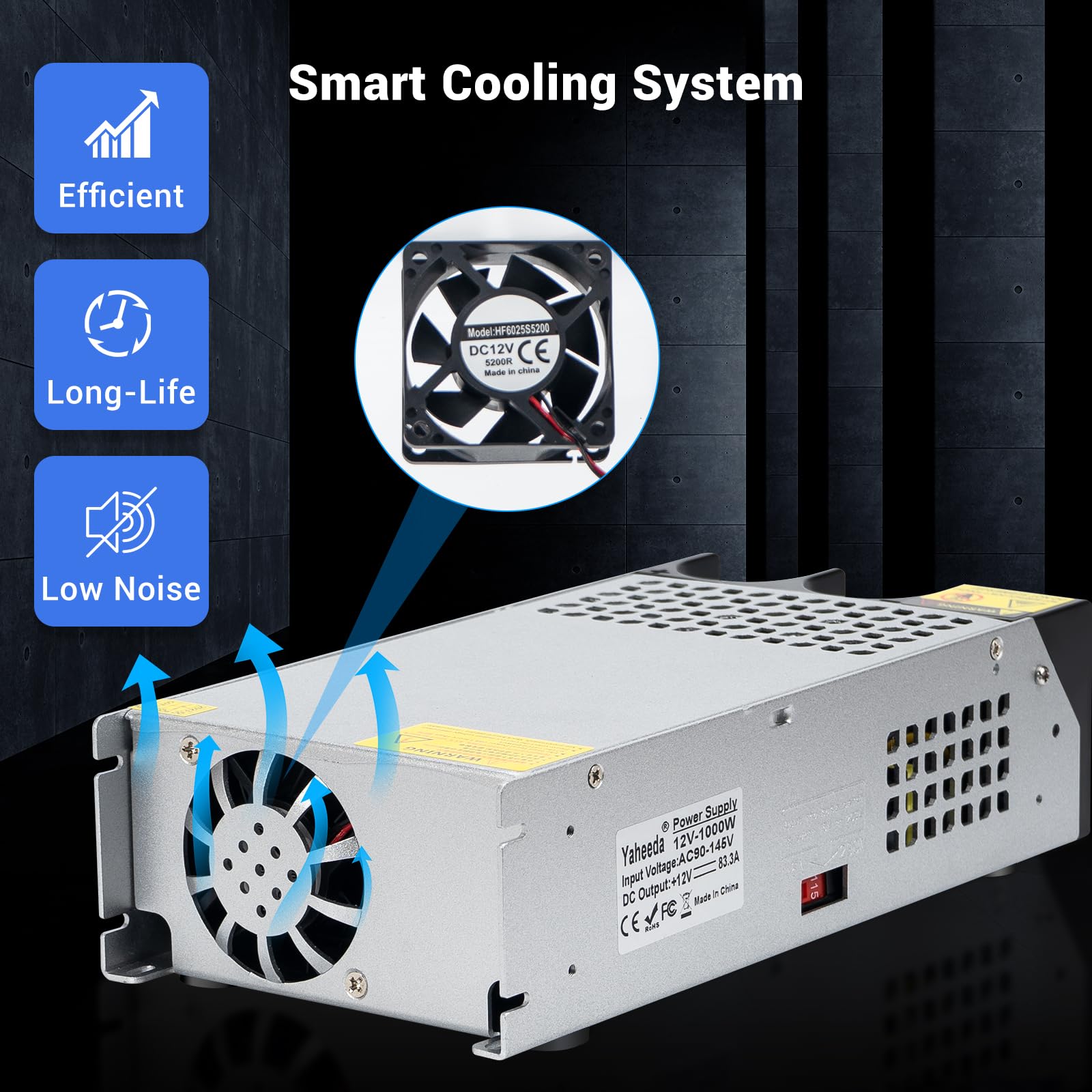

Built-in DC fan forced air cooling.
High efficiency, long life, high reliable strength.
Notes:
Non-professionals please do not disassemble or modify (power seal do not move), otherwise it may cause electric shock or damage the product.
Wiring must be used to meet the use of standard wire, otherwise the wire may not be able to withstand the corresponding large current and lead to heat, burn and other situations.
Be sure to disconnect the input power when wiring installation to prevent injury from electric shock.
Power supply installation fan exhaust bit, do not place the product in a high temperature, humid environment use.
Please be careful not to reverse the positive and negative terminals.
