SHNITPWR Universal Power Supply DC 24V 12V 5V 6V 9V 14V 19V Adjustable AC/DC Adapter 100V~240V AC to DC Variable Power Converter Multi-Voltage 3.5V ~ 24V 6A 144W Power Adapter 14 Tips LCD Display

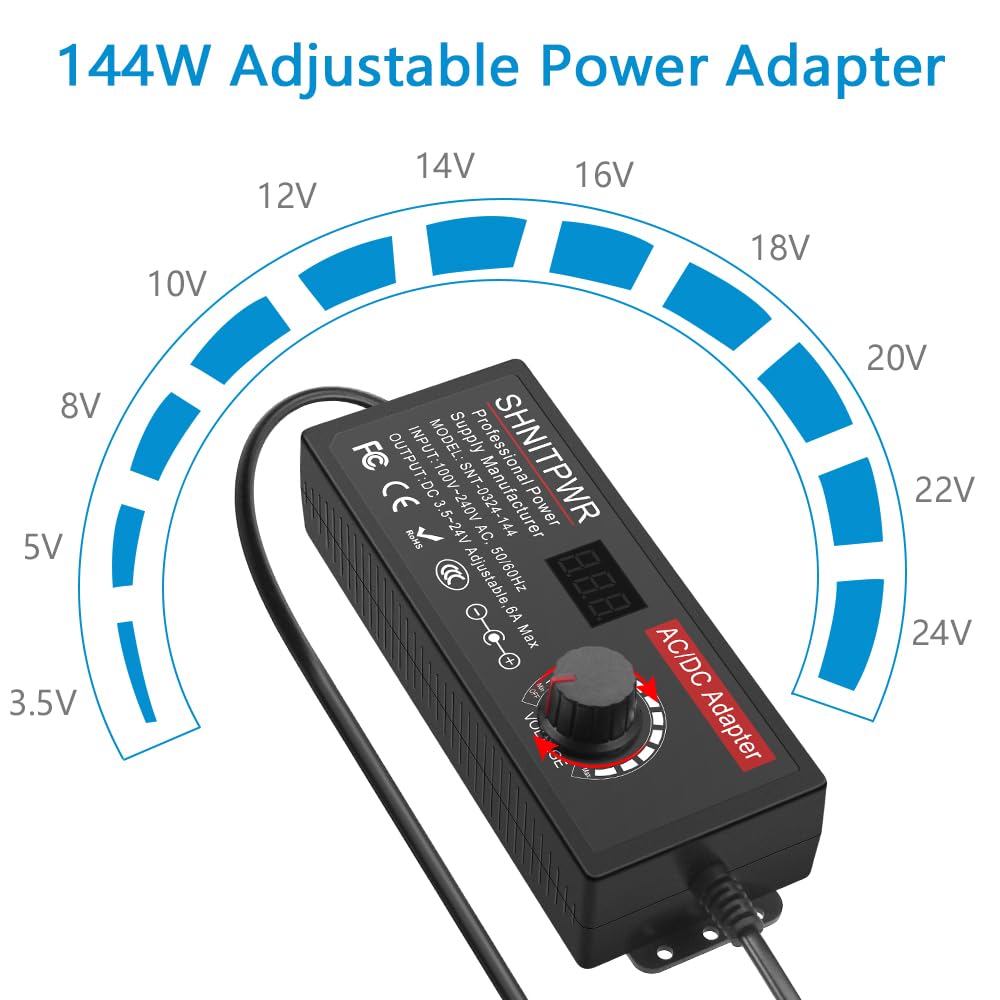

𝐈𝐧𝐩𝐮𝐭 𝐚𝐧𝐝 𝐎𝐮𝐭𝐩𝐮𝐭:AC 100~240V, 50/60Hz ; Output: DC 3.5~24V Adjustable, Max 6A 144W ; It can supply with any voltage between 3.5~24V,such as 3.5V 4V 4.5V 5V 6V 9V 12V 14V 15V 16V 18V 19V 20V 22V 24V etc and any amp less than 6A, such as 500mA, 1A, 1.5A, 2A, 3A, 4A, 4.5A, 5A,6A. LCD display will show the output voltage, in case that wrong voltage regulation damage your device.
𝐔𝐩𝐠𝐫𝐚𝐝𝐞𝐝 𝐕𝐞𝐫𝐬𝐢𝐨𝐧 𝐏𝐨𝐰𝐞𝐫 𝐒𝐮𝐩𝐩𝐥𝐲:Based on hundreds of users feedback, we have made the following improvements: 1. The knob can be adjusted more evenly, and it can reach 13V ~ 14V by rotating 50%. 2. Increase the off gear to turn off the power without pulling the plug. 3.Add a polarity converter cable, which make it compatible with more devices,doubles its range of application.
𝟏𝟒𝐩𝐜𝐬 𝐅𝐫𝐞𝐪𝐮𝐞𝐧𝐭𝐥𝐲 𝐔𝐬𝐞𝐝 𝐓𝐢𝐩𝐬:It comes with an original 5.5x2.5mm tip and 14pcs frequently used tips: 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm, 3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C and DC terminal connector. Can be applied to almost all commonly used electronic devices. You can screw wires onto it easily, perfect for DIY projects.
𝐖𝐢𝐝𝐞 𝐑𝐚𝐧𝐠𝐞 𝐨𝐟 𝐀𝐩𝐩𝐥𝐢𝐜𝐚𝐭𝐢𝐨𝐧𝐬: The 144W all-in-one multipurpose AC/DC adapter fit for many 3.5~24V small household electronics such as LED strips, under-cabinet light, TV Box, smart speaks, wireless routers, essential oil diffuser humidifier, USB fan, Wifi camera, USB Hub, hard disk box, DC motor, DC pump, digital photo frame, DVR NVR surveillance system etc. For indoor use only.
𝐒𝐚𝐟𝐞𝐭𝐲 𝐏𝐫𝐨𝐭𝐞𝐜𝐭𝐢𝐨𝐧 𝐒𝐲𝐬𝐭𝐞𝐦𝐬: Built-in multiple safety protection systems. Automatic over voltage cut-off, over current cut-off, over temperature cut-off, short circuit cut-off. We focus on producing premium quality and safety power adapters. No noise, no spontaneous combustion, no explosion, no fire hazard, safe to use. 6ft long power cable makes it convenient to use.

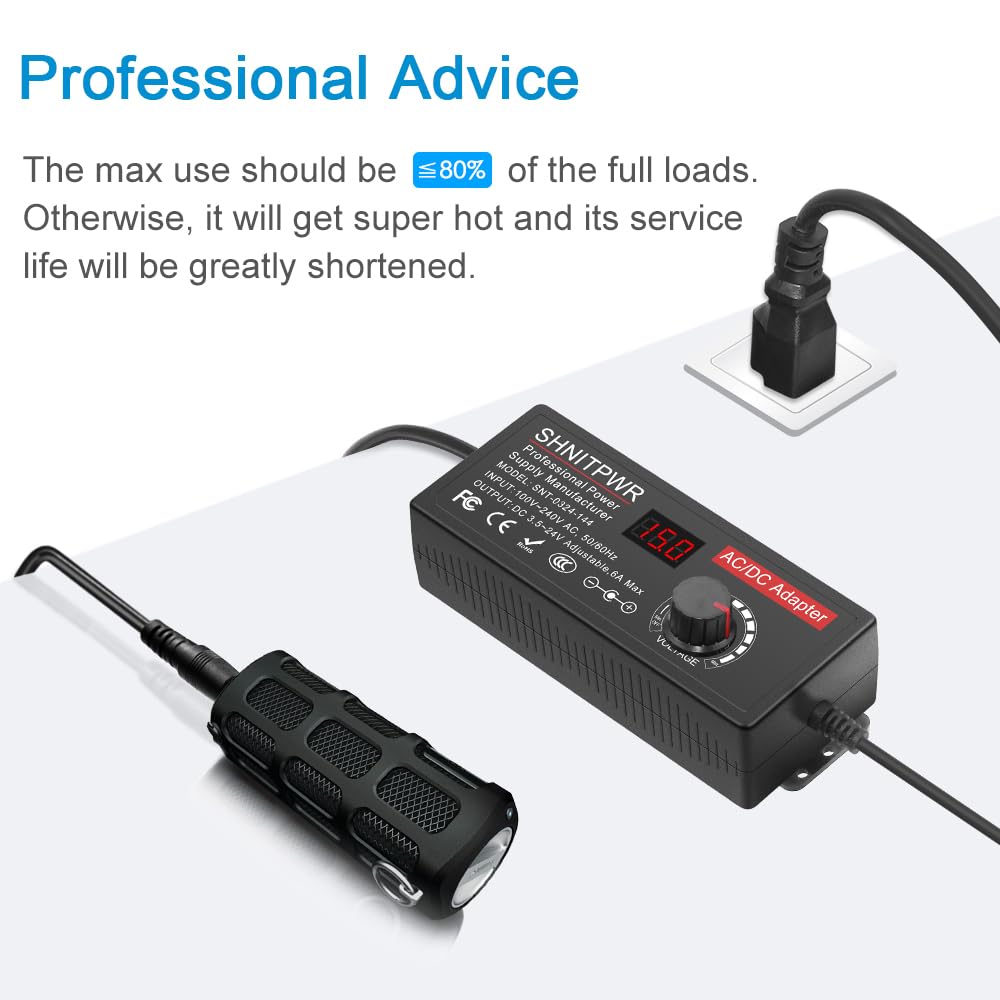

𝐊𝐢𝐧𝐝𝐥𝐲 𝐍𝐨𝐭𝐞 𝐚𝐧𝐝 𝐖𝐨𝐫𝐫𝐲-𝐟𝐫𝐞𝐞 𝐒𝐡𝐨𝐩𝐩𝐢𝐧𝐠: This product is an AC to DC adapter, NOT charger!!!It can’t be used to charge electronic devices with batteries, such as laptops. Please choose correct voltage before plug it to your device. Wrong voltage may damage your device. We recommend to use less than 80% of the full load. We always stand behind our products. If there is any issue, please feel free to contact us. We have 30 days money back guarantee, 12 months exchange.
Product Specifications
Package Dimensions: 8.62 x 3.39 x 2.68 inches
Item Weight: 8.8 ounces
ASIN: B0CB5ZF7DT
Item model number: SNT-0324-144
Customer Reviews: 4.6 out of 5 stars 66Reviews
Best Sellers Rank: #167,793 in Tools & Home Improvement (See Top 100 in Tools & Home Improvement) #609 in Power Converters
Date First Available: July 5, 2023
Manufacturer: Shenzhen shi nai te dian zi ke ji you xian gong si
Country of Origin: China
Product Information
Product description
Parameter
Input: AC 100V~240V 50/60Hz
Output Voltage: DC 3.5V~24V Adjustable
Output Current: Max 6A
Output Wattage:Max 144W

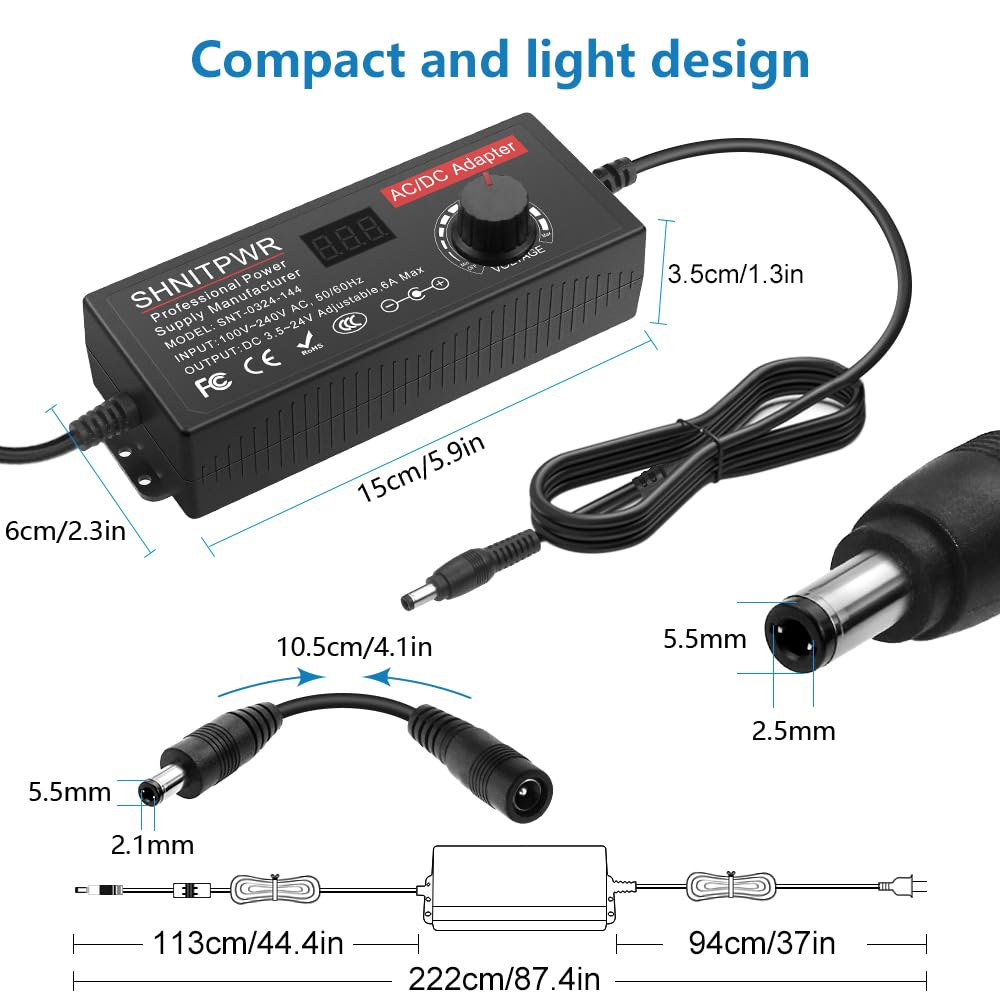

Output DC connector:5.5mm x 2.5mm (inside"+", outside"-")
14 Tips Size: 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm,3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C and DC terminal connector.
Reverse polarity converter: 5.5mm x 2.1mm
Power cable length: 6.89ft / 215cm
Safety Compliance: FCC / CE/ RoHS /CCC
Working Temperature: 0~40℃
Ambient Humidity: 5~95% Non-Condensation
Weight: 0.886lb / 402g
Package include
1x 144W Universal Power Supply Adapter; 14x DC Tips; 1x Reverse polarity converter cable
Attention:
The power cord between power brick and DC plug will lead to 0.4V~0.6V voltage drop, so we designed the screen displayed voltage was 4V~24.5V. Only in this way can your device really get 9V~36V voltage. This is the reason why we advertise the power supply's voltage range is 3.5V~24V, not 4V~24.5V.
Caution:
The 4cm short black power cord is a reverse polarity converter, not extension wire. It is used to reverse the original polarity of the power supply output port ( reverse the internal positive pole to negative , and the external negative pole to positive). Please confirm the polarity of your devices’ power port before use. If the positive and negative poles are reversed, it will cause short circuit and damage your device.
Is this 3.5~24V 144W universal power supply (PS) compatible with your device?
1. Check Voltage
Please find the spec label of your device and check the working voltage. It should be among 3.5V~24V DC, not lower than 3.5V or higher than 24V DC. Otherwise, your device will not work or be damaged.
2. Check Current
Check the max current your device will draw. It should be equal to or less than 6A, such as 1A, 2A,3A,4A, 5A, 6A. Otherwise, your device won’t work well and the PS will be damaged very soon.
3. Check Plugs
Check the power input port of your device. The PS is equipped with 14 pcs frequently-used DC tips. Please confirm wether it fits for your device before buy. If you can 't confirm, please measure it with a ruler.
4. Check Original PS
If you have a original power supply for reference, their output voltage, plug size, polarity should be the same . If our PS’s current is equal to or higher than original one’s, then our PS will work with your device.
