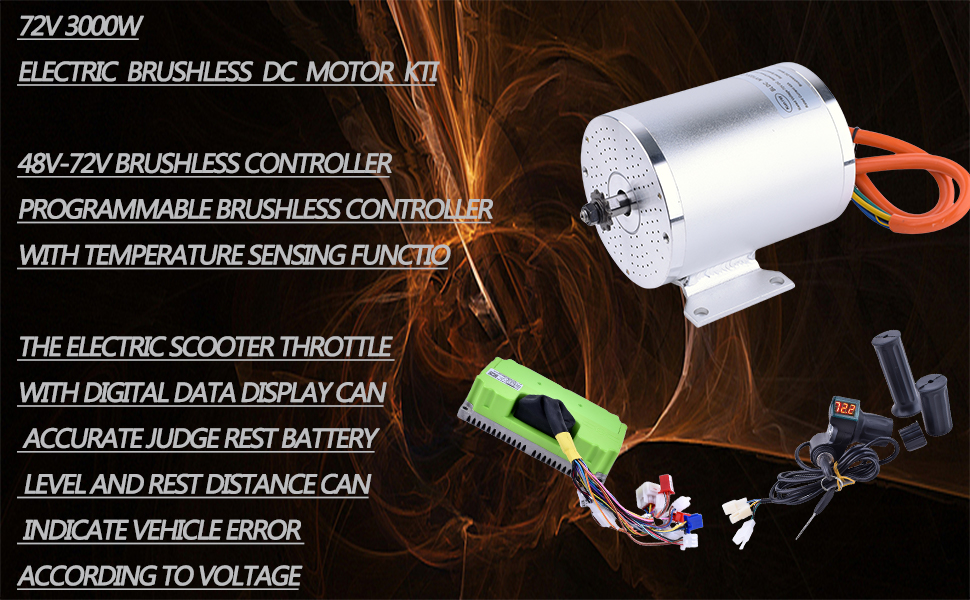

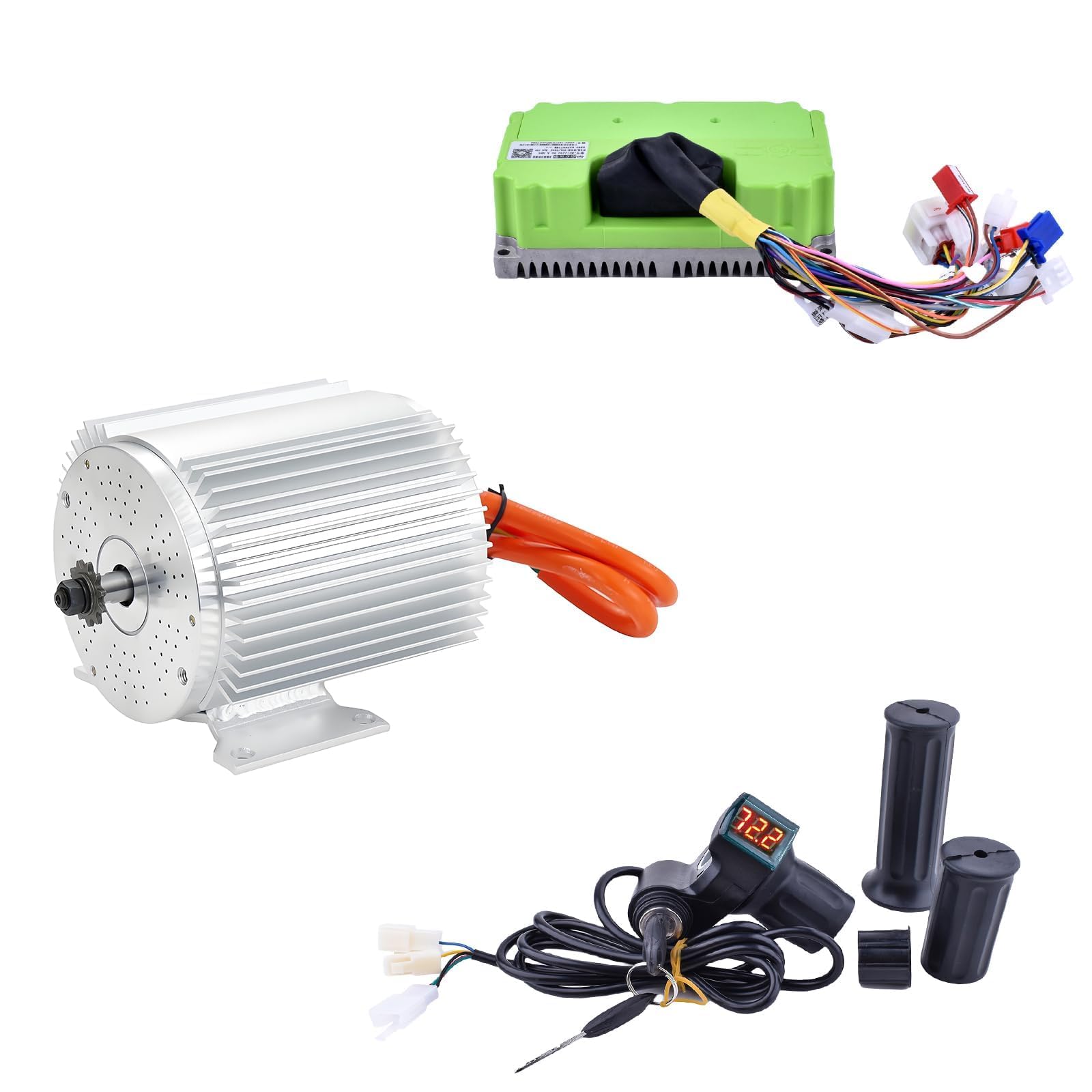

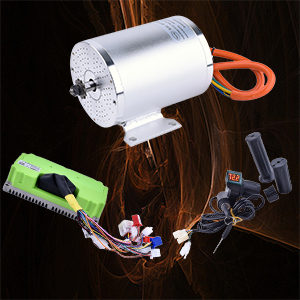

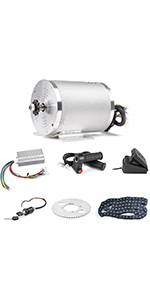

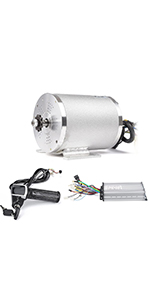

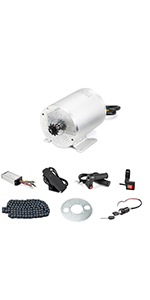

Electric DC Motor 72V 3000W Motor Kit with 48V-72V Brushless Controller and Half Twist Throttle for Go-Karts Programmable Brushless Controller with Temperature Sensing Function (72V 3000W)
TEMPERATURE SENSING: Brushless DC Motor With KTY83-120 Temperature Sensor, 6mm²PHASE WIRE, 8PCS MAGNET POLES, 6pin Car WATERPROOF CABLES, 25H/T8F 11T SPROCKET CHAINWHEEL, The Brushless DC Motor If you Used Big Current Controller It will Heat UP Quickly, and This BLDC Motor UPGRADE Temperature Sensing, You Can Set the Temperature Through Your Controller So it Can Better Protect The Motors. Don't worry about overheating and damaging your Engine.
72V ELECTRIC DC MOTOR PARAMETERS: The 72V DC Motor Rated Watt 3000W, Rated Speed 4900rpm, Maximum Speed 6700rmb(no-load speed), Current 45A, With 25H Sprocket, 3000W Brushless Motor For Electric Go Kart, Ebike Electric Scooter Dirt Bike Light Mini Motocycles Upgrade Replacement.
BLDC Controller: FarDriver controller is sine wave type controller, which is brushless DC controller with self-learning function.ND72260(KR72260) are sine wave controller with waterproofing grade IP67, suit for 2-3kw Brushless motors Hall. Rated Voltage 72V, the peak voltage is 88V, it suitable for 48-72V , rated power: 3KW, Max DC Current 80A, Phase current 260A, Net Weight 1KG, It’s hall version (as default) which suit with hall motors.
Half Twist Throttle:The electric scooter throttle with digital data display can accurate judge rest battery level and rest distance can indicate vehicle error according to voltage.【Wide Range of Applications】This E Bike Throttle Grip is an universal throttle for electric bike, scooter , tricycle, and other electric vehicle.
Multiple Application: This dc Electric Motor Can Running Forward and Backward Rotation,The High-Precision Rotor Features High-tech Components , The High-Speed Motor Suitable for Electric Go-karts, E-scooters, E-bikes, Light ATVs, Mini Electric Motocycles Motorized Bicycles, Mopeds, is ok for Razor Upgrades Replacement, DIY Engines and more.
Product Specifications
Product Information
Product description
Electric Motor with Temperature Sensing
You Can Set the Temperature Through Your Controller ,So it Can Better Protect The Motors. Don't worry about overheating and damaging your Engine.(NOTE: When Motor Working The Temperature is very Hot,Pleast Do NOT TOUCH IT WITH YOUR BODY)

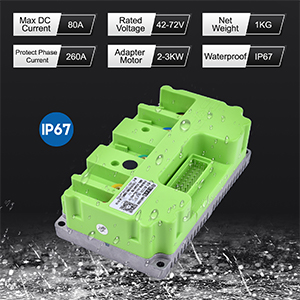

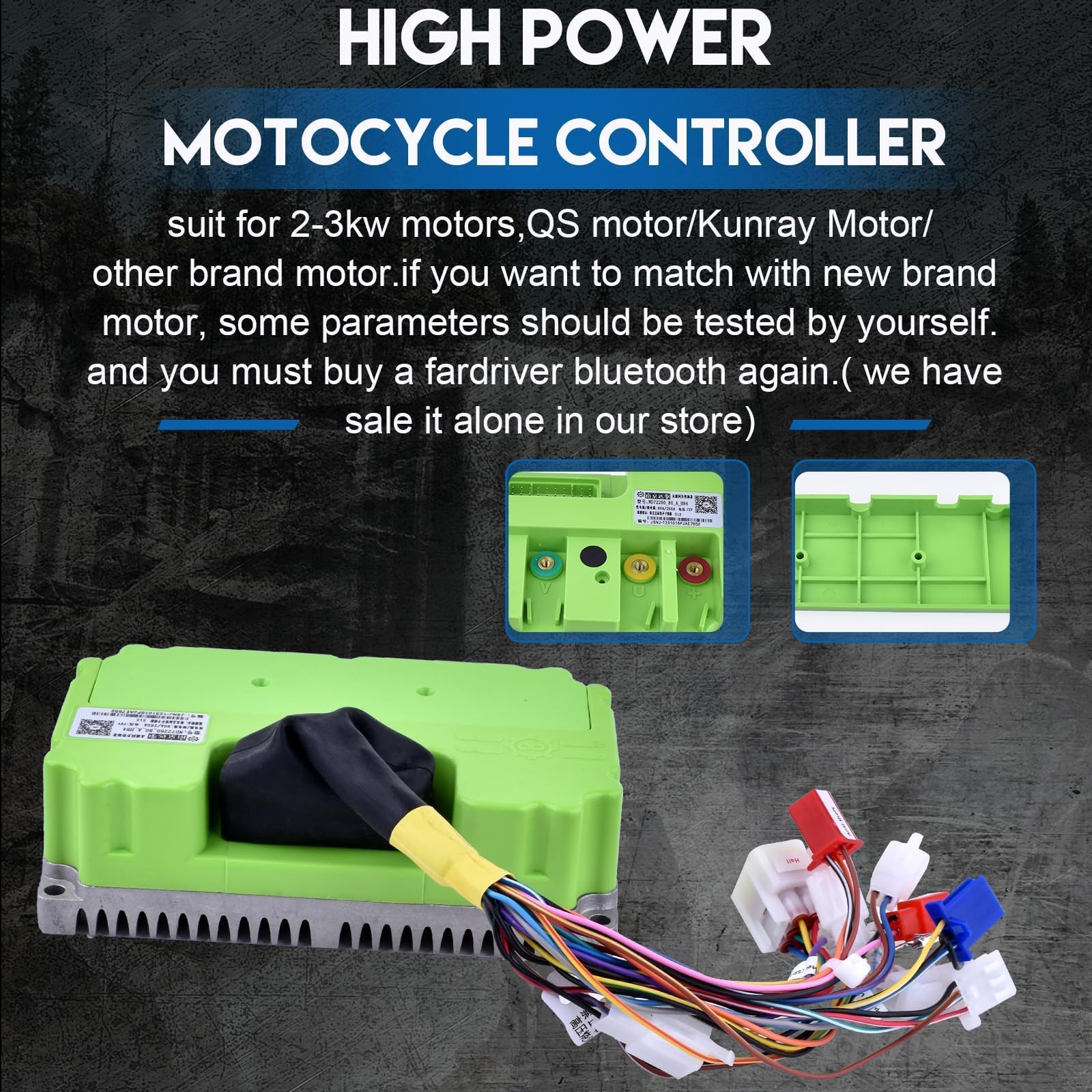

ND72260(KR72260)controller

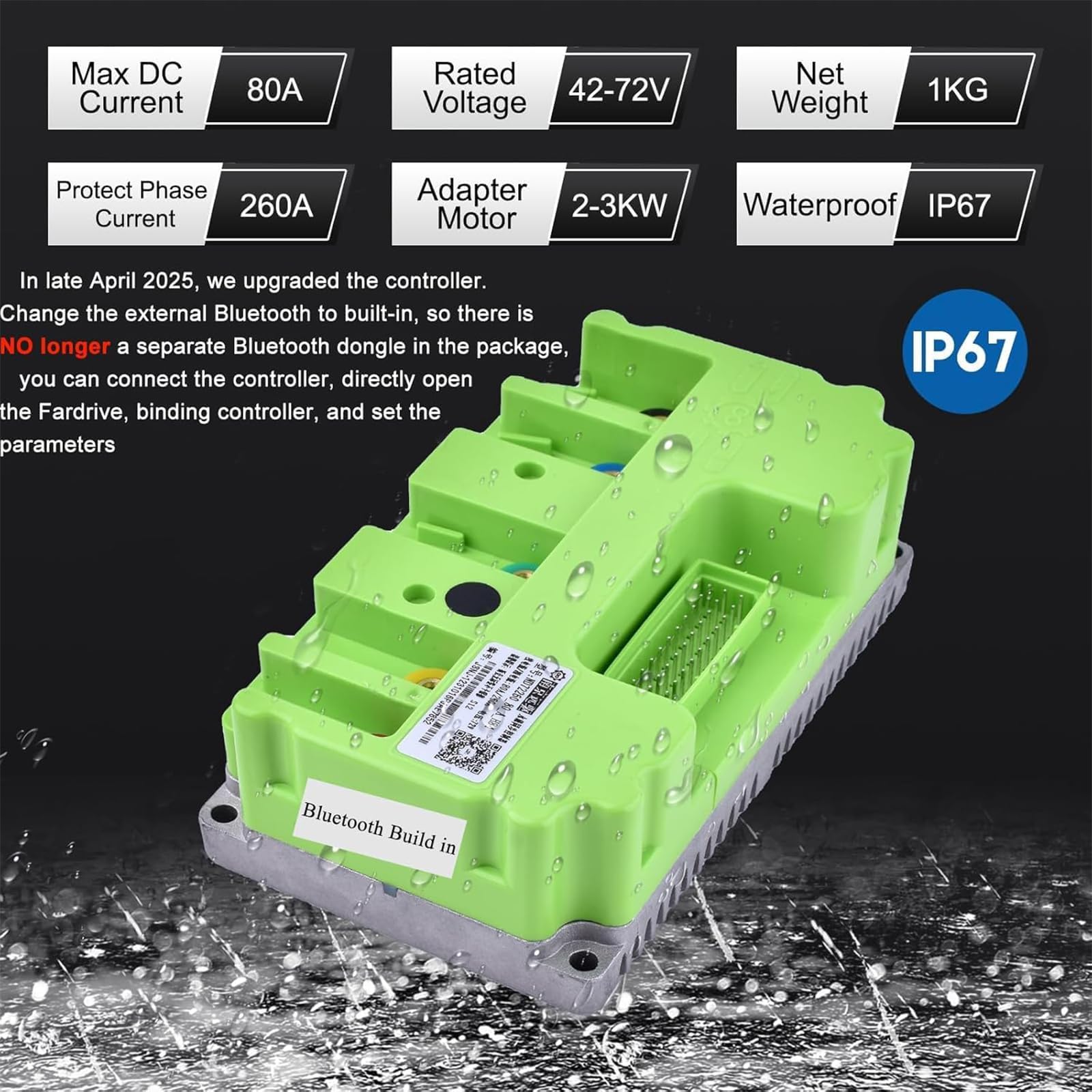

ND72260(KR72260) are sine wave controller with waterproofing grade IP67, suit for 2-3kw Brushless motors Hall. Rated Voltage 72V, the peak voltage is 88V, it suitable for 48-72V , rated power: 3KW, Max DC Current 80A, Phase current 260A, Net Weight 1KG, It’s hall version (as default) which suit with hall motors.

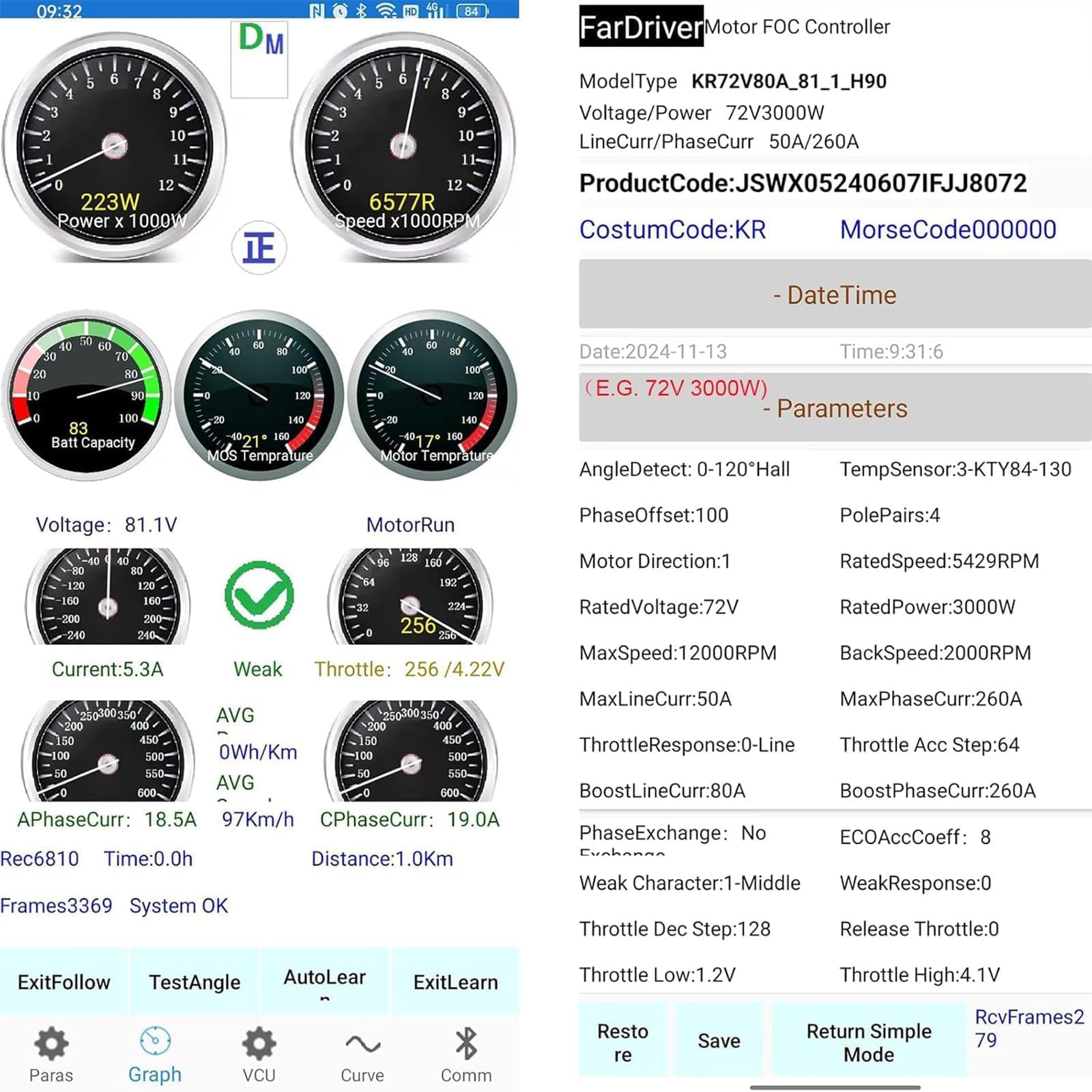

The app compatible with Android and Apple, Android download file in the describe or ask our sales to get it. Apple search in app store FARDRIVER. After you download the APP, you can connect the bluetooth with your telphone to set the controller. The manual download link in the describe.( please see the user guider,Detailed instructions on how to set up)
Controller packaging upgrade
A new upgrade to provide better protection against shocks during transport
Packaging upgrade
Customized packaging with cushioning and shock absorption to better protect the motor in transit.

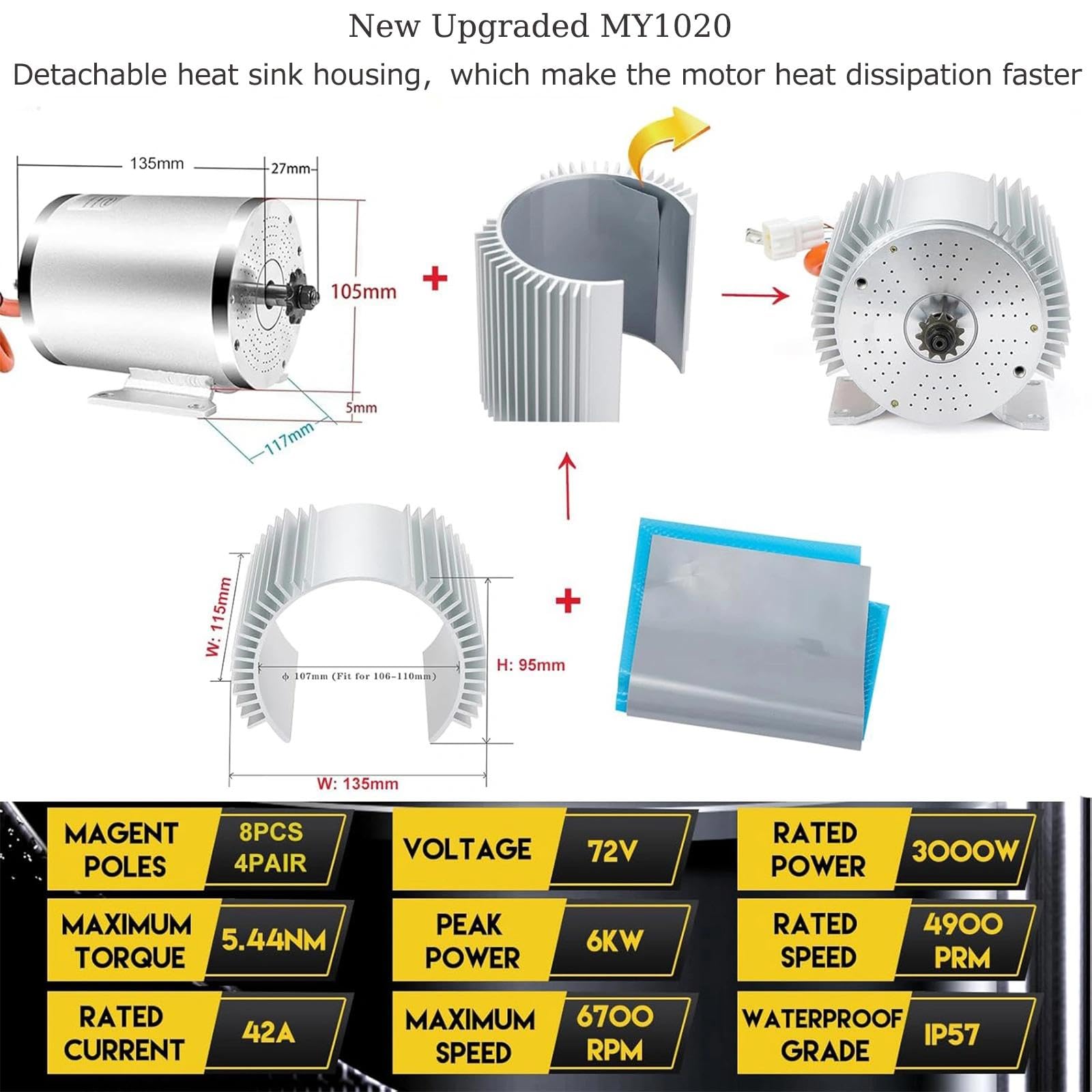

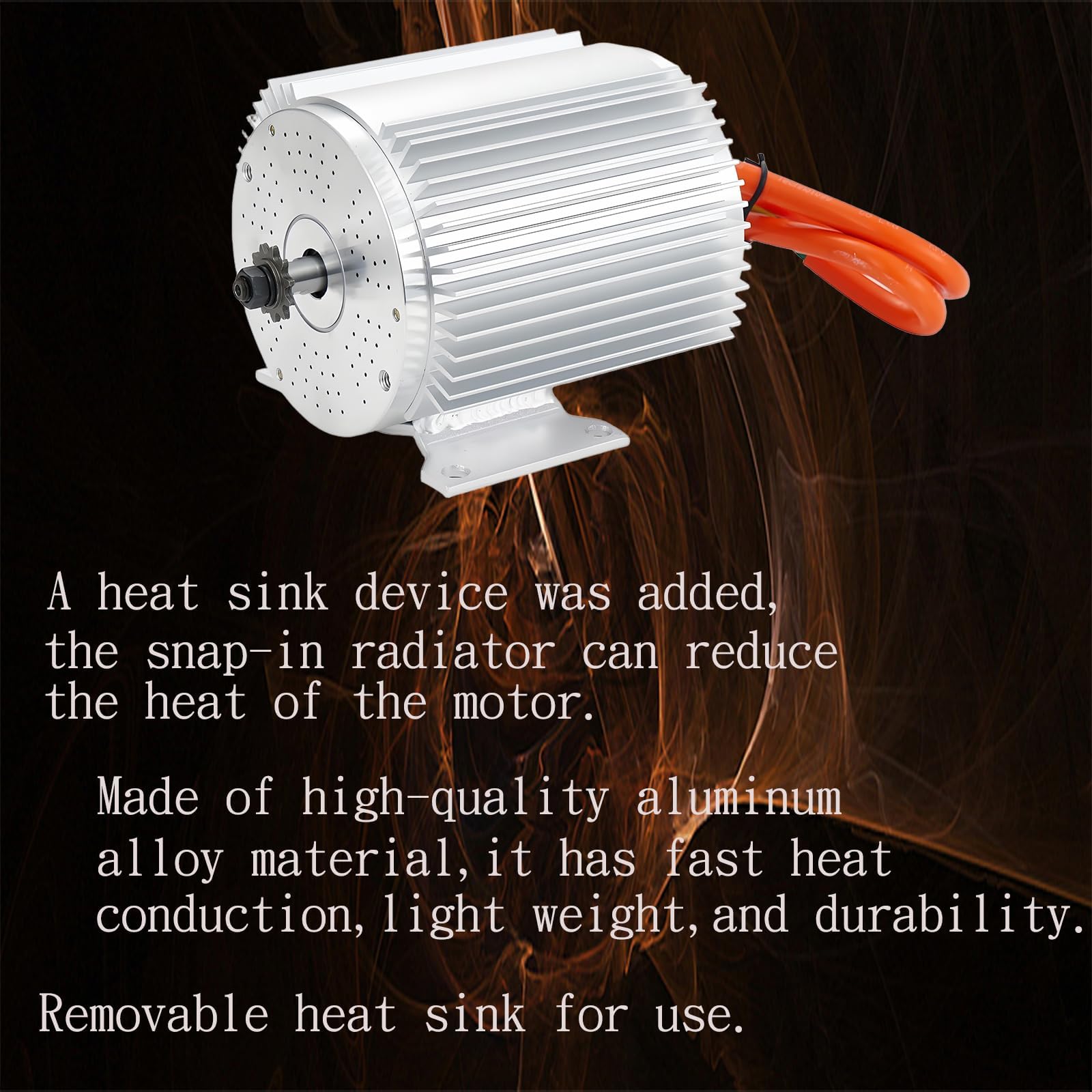

And the heat sensor motor is equipped with a heat shield device, which can be removed according to the needs of the use of the heat shield.
72V DC 3KW BRUSHLESS DC MOTOR

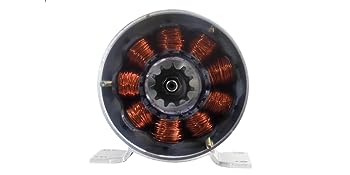

High Quality Motor, All copper movement
All copper movement, High quality motor with long service life.
Electric Motor with Temperature Sensing

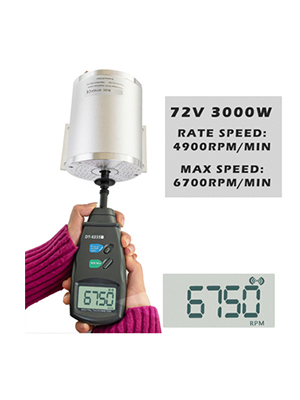

* Rate Voltage: 72VDC * Rate Power: 3000W
* Rate Current: 45A * Rate Speed: 4900rpm/min
* Max Speed: 6700rpm/min * Torque: 5.44N.m
* Load Weight: about 150-200KG

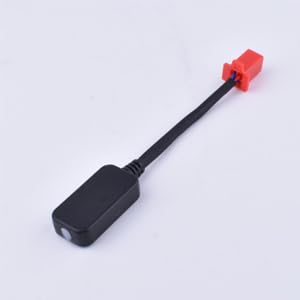

Fardriver Controller Bluetooth
This Bluetooth can be used together with the controller, it is very convenient to use, if you do not understand the problem in the use process can communicate with us to help you solve any problems.

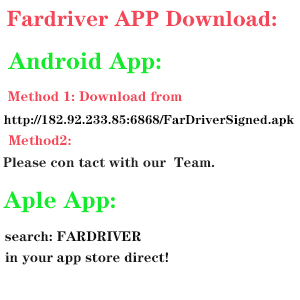

How to Download Fardriver Controller APP?

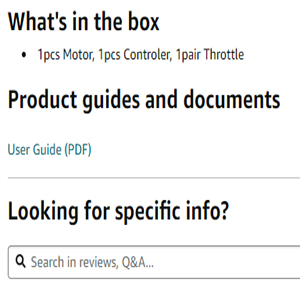

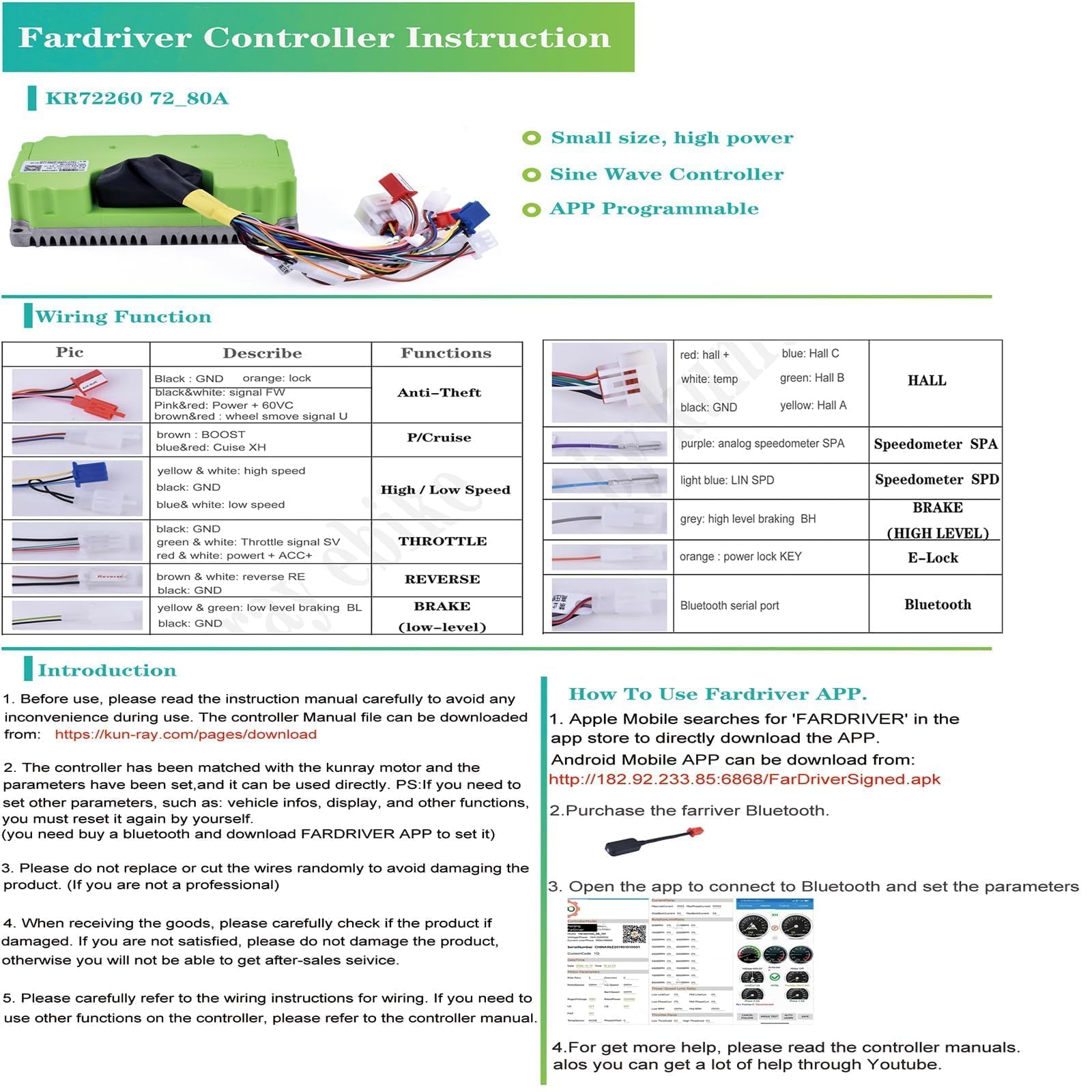

How to Get The KR/ND72260 Controller Instructions
QA Questions and Answers
Why does my electric dc motor turn in the wrong direction and slowly?

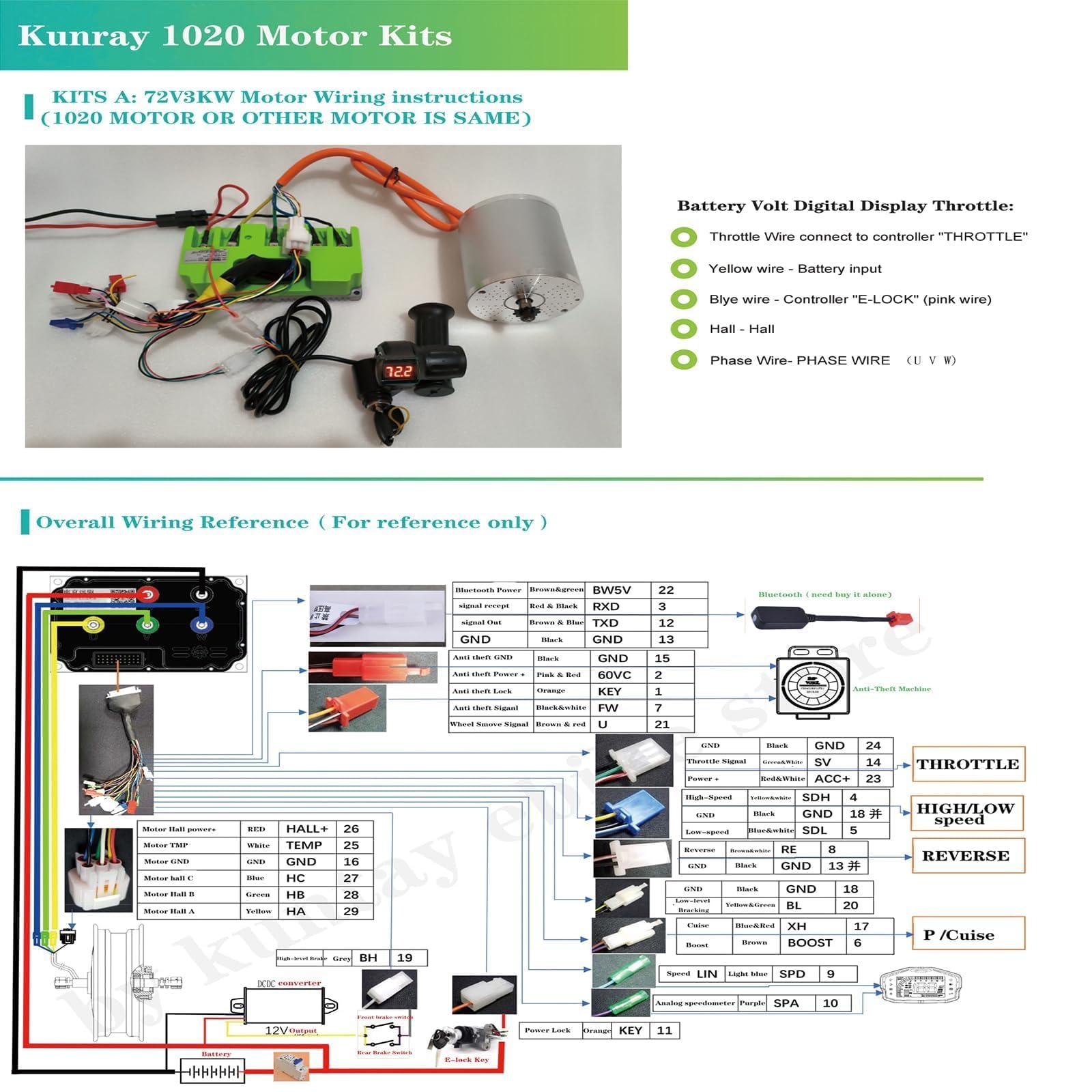

Check whether the phase wires and Hall wires are properly connected, disconnect the self-learning wire and connect again, let the motor self-study 10 to 20 seconds, then disconnect it, there is no need to connect it after motor rotates normally.
2. Why did the brushless motor suddenly stop rotating after it started?
The controller and motor power are large, so the one-time output current of your battery is too large, which turns on the self-protection. Charge your battery for a few minutes and it will be ready for normal use.
3. Why does my motor sometimes fail to start?
When you use the Kick Stand to park, the two wheeled vehicle is not in a balanced state, for safety reasons, the controller does not receive the speed signal at this time, if you do not need this function, you can reset to cancel it.

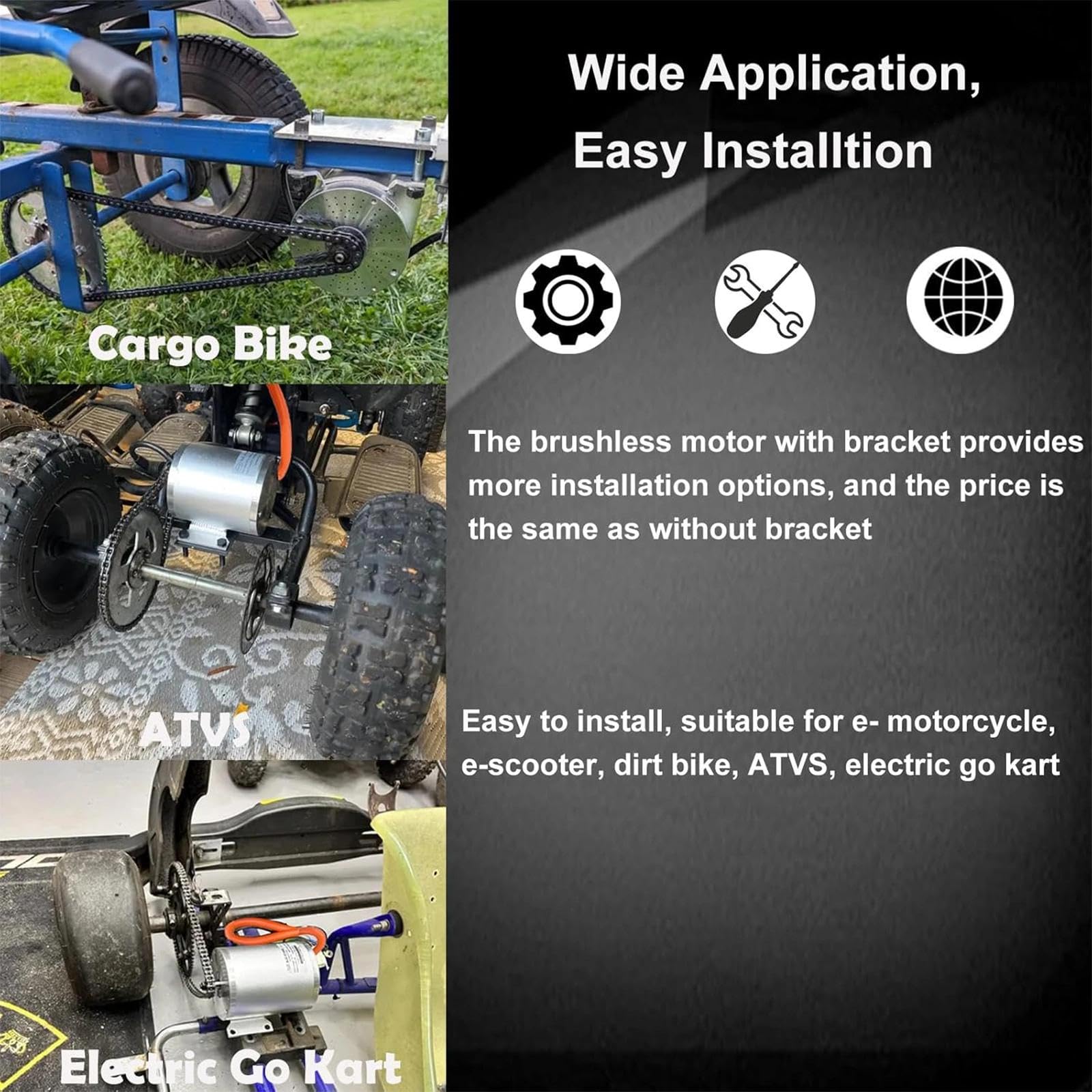

Can Be Used In Multiple Occasions
ELECTRIC SCOOTER Upgrades
Electric Dirt Bike Replacement
If there is any problem in use, please feel free to contact our after-sales team, or online staff. We are always at your service.
