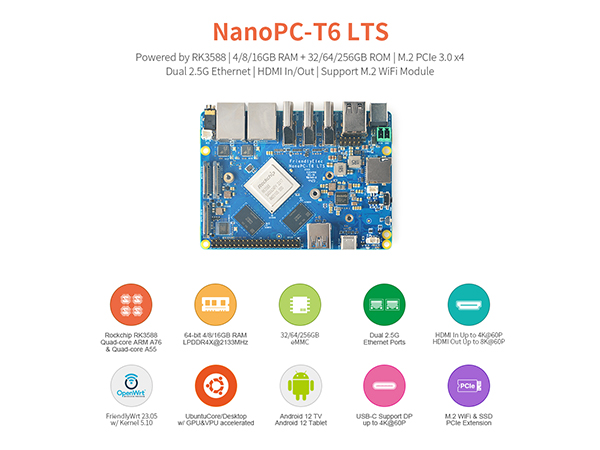

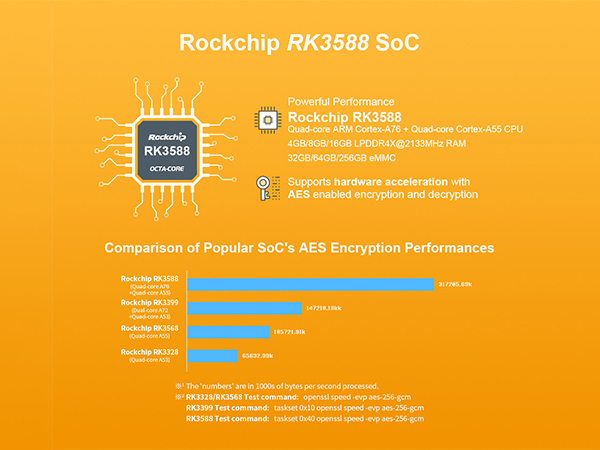

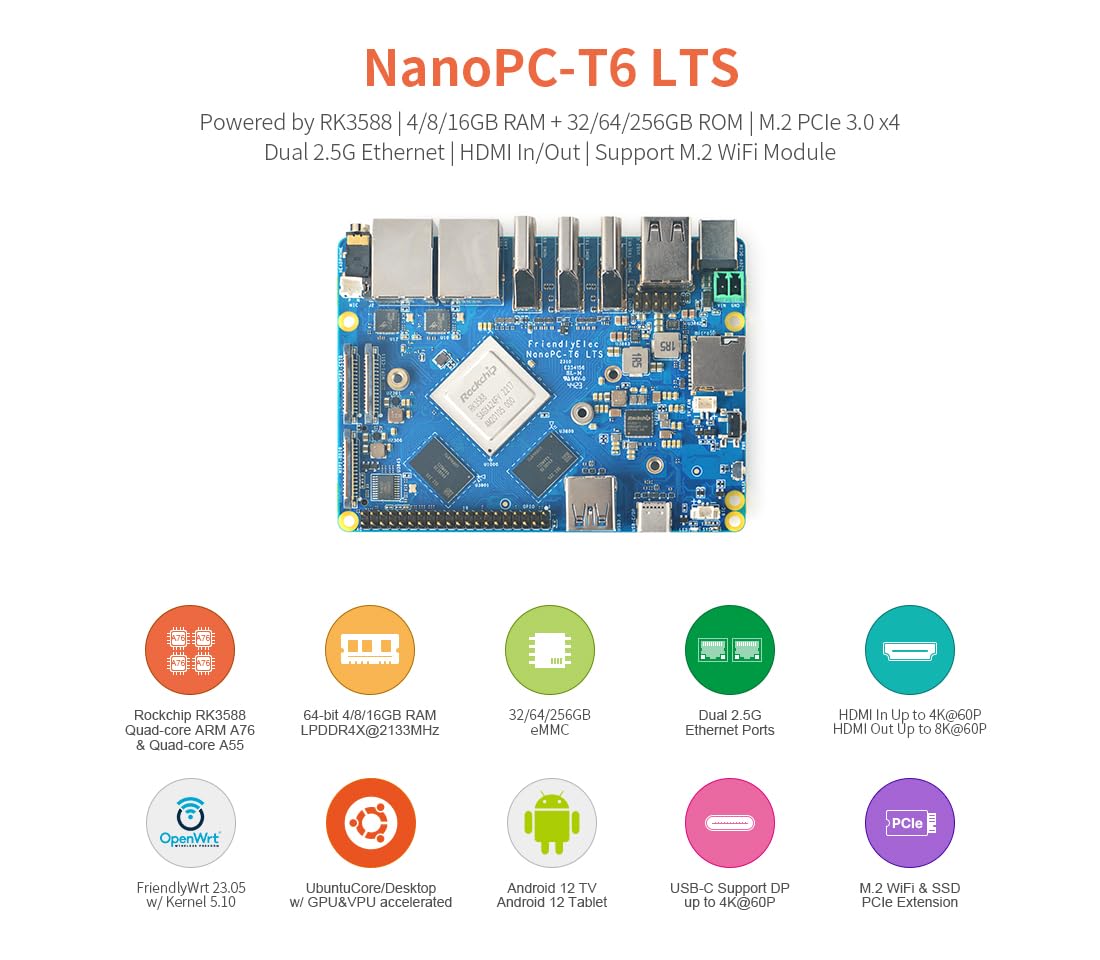

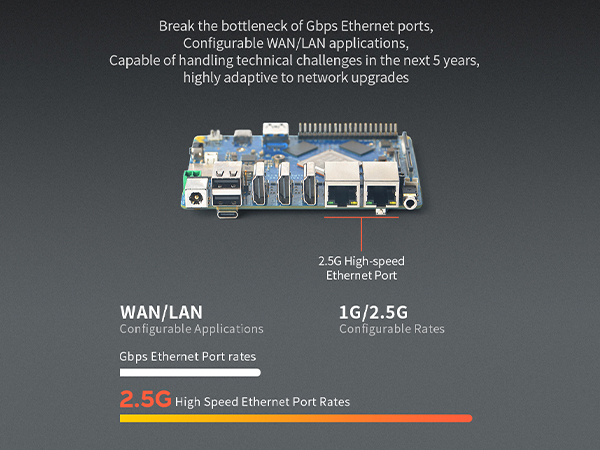

NanoPC-T6 LTS is a high-performance open-source platform for edge computing, designed and developed by the FriendlyElec team. It features two 2.5 Ethernet ports and is based on Rockchip's RK3588 chipset. The board comes with 4GB/8GB/16GB LPDDR4X RAM and optional 32GB/64GB/256GB eMMC flash storage. It supports various operating systems such as OpenMediaVault, FriendlyWrt, Android, Android TV, Debian, and Ubuntu. The T6 LTS also supports GPU and VPU acceleration.

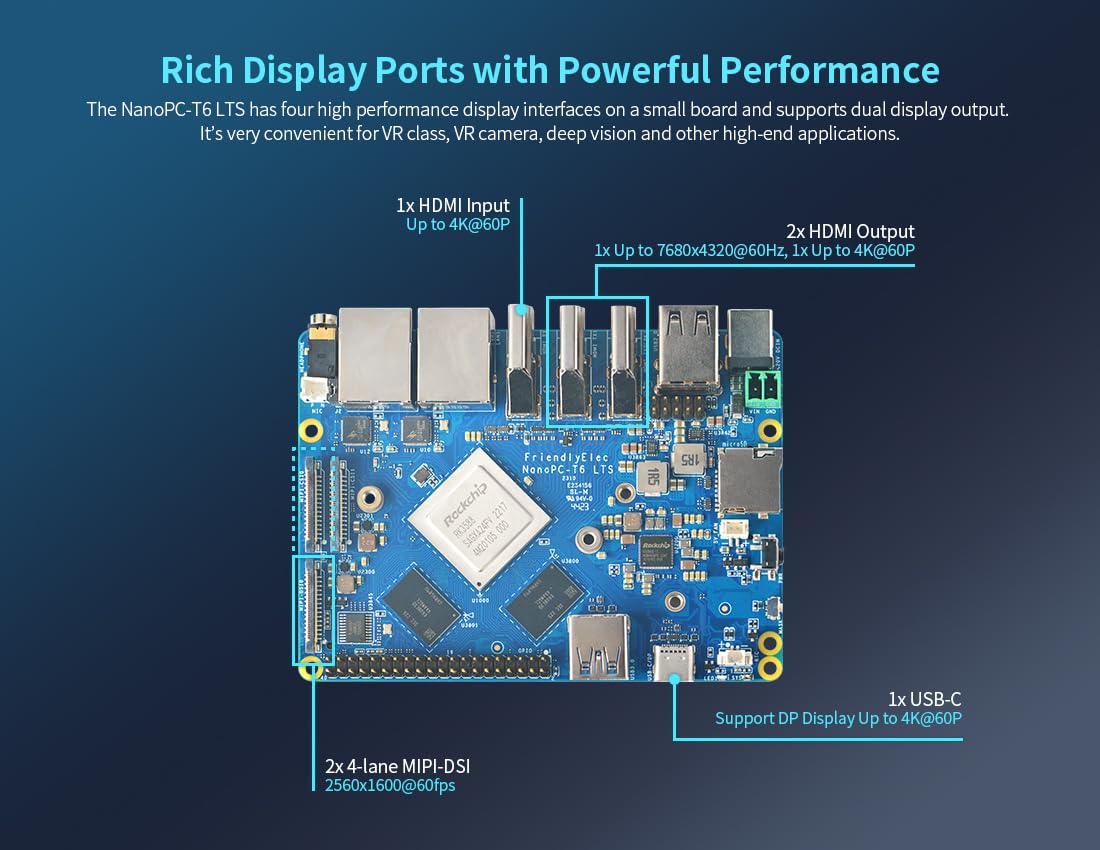

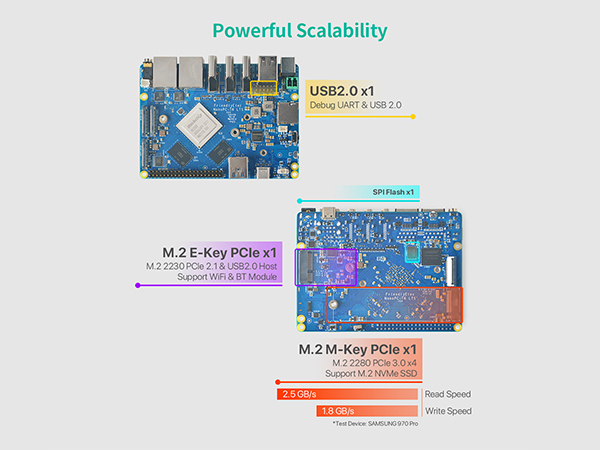

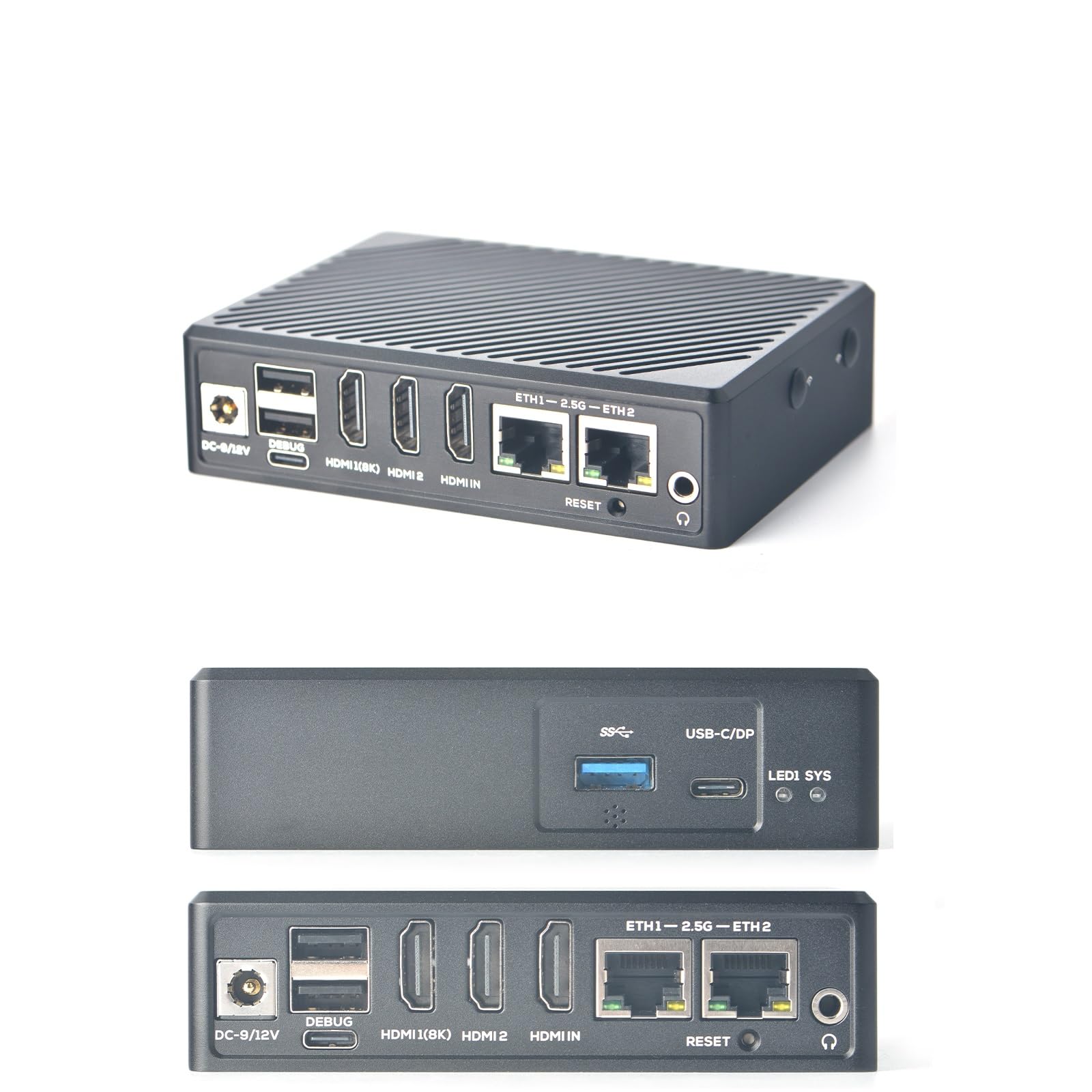

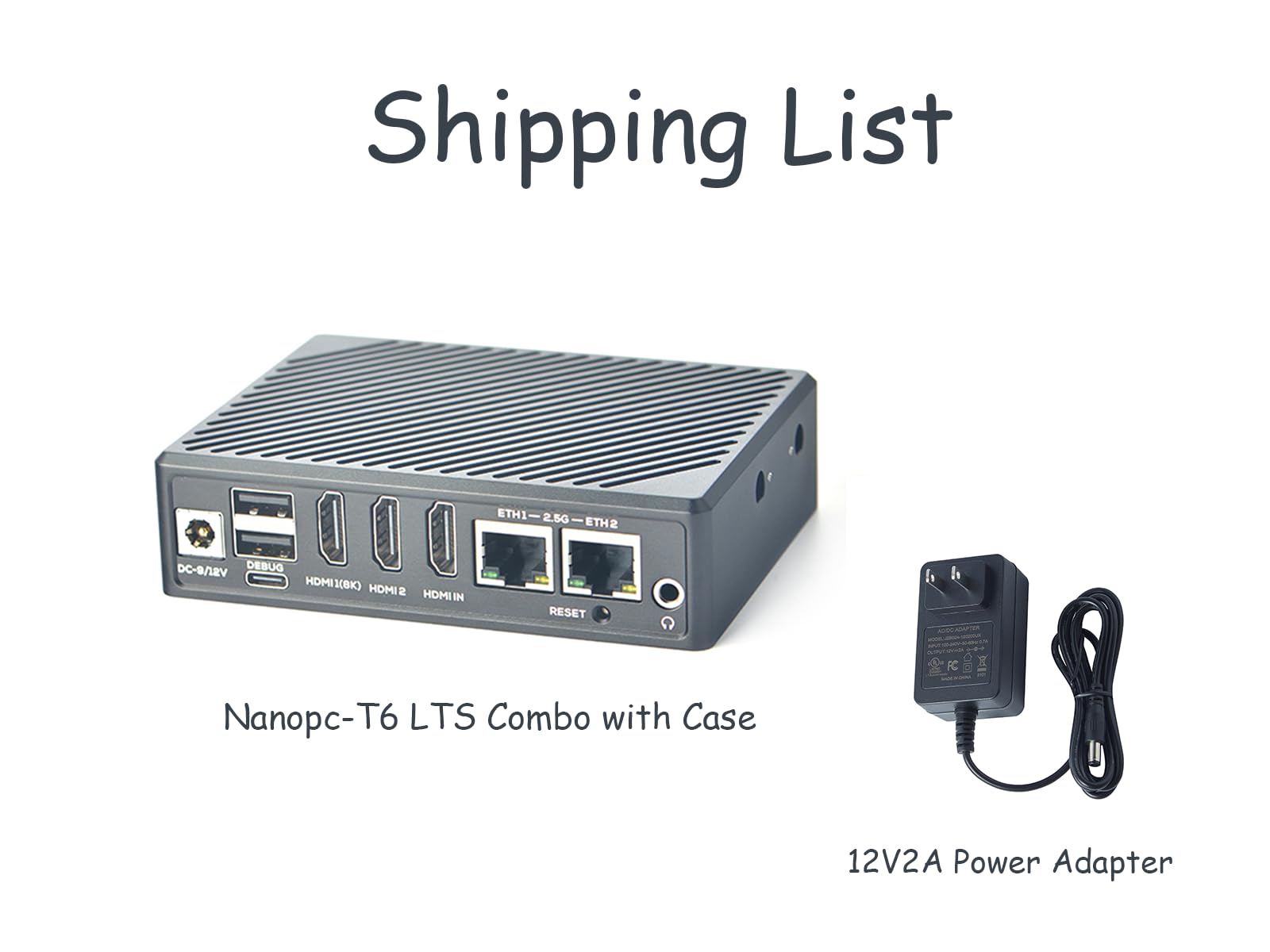

The NanoPC-T6 LTS is a compact board measuring 110x80 mm and offers a range of hardware resources. It comes with an optional CNC metal case. The board features 2 HDMI output ports and 1 HDMI input port. It can play video streams up to 8K@60P H.265/HEVC and 8K@30P H.264 formats, as well as record video streams at 4K@60P H.265/HEVC. Additionally, it has one M.2 B-Key slot for an M.2 NVME SSD disk and one M.2 E-Key slot for an M.2 2230 WiFi module.
Other connectivity options include one USB 3.0 port, two USB 2.0 ports, and a full-featured USB-C port powered by DC-12V. The NanoPC-T6 LTS is suitable for enterprise customers looking to develop mini machine vision systems with multiple Ethernet ports, as well as for embedded system hobbyists interested in exploring and implementing prototype designs.
If you have any questions, please click on "youyeetoo" to get help.
Due to the passive heat dissipation design adopted, heat generation from the casing is a normal phenomenon and will not affect actual use.
