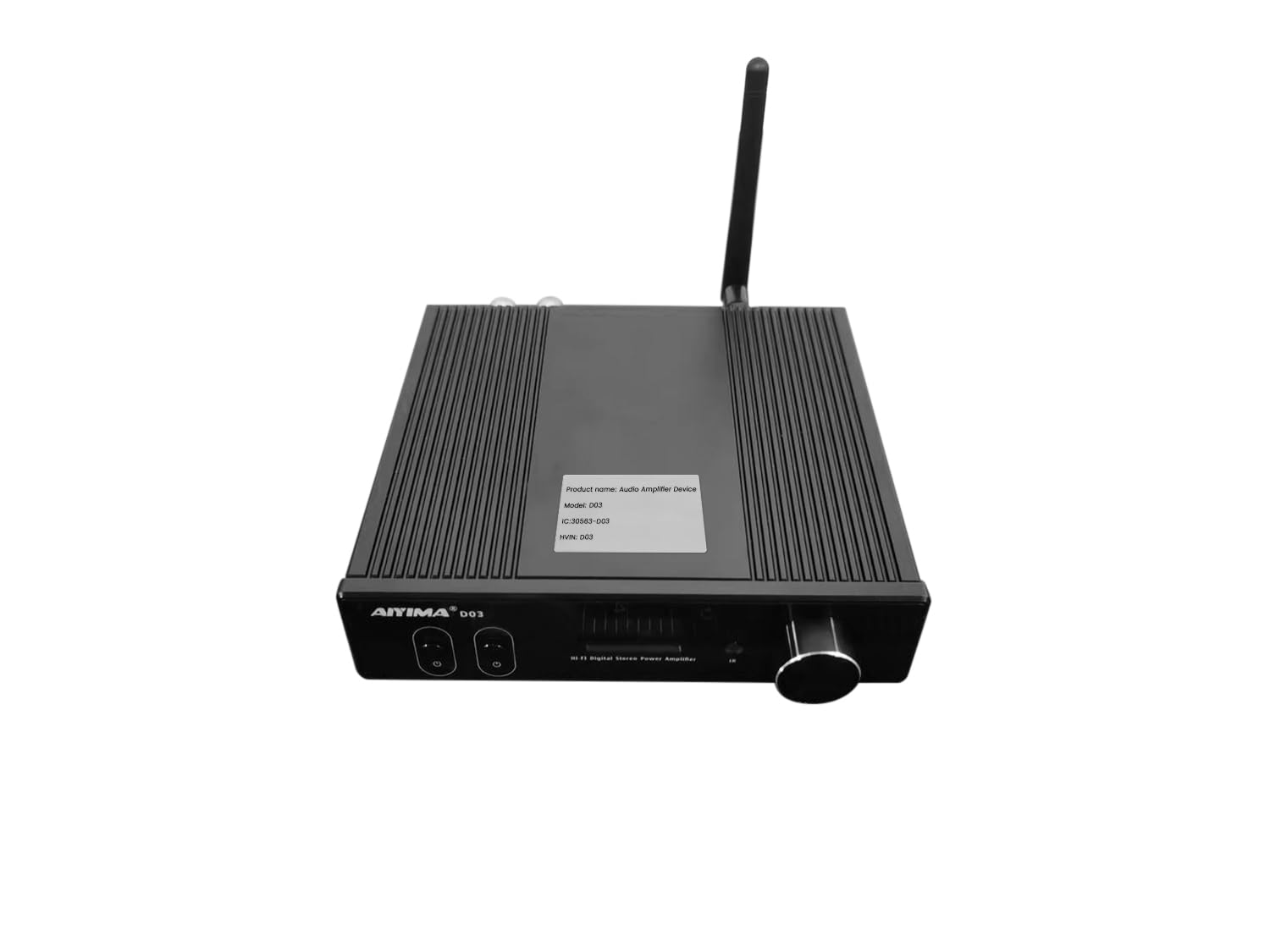

AIYIMA D03 Bluetooth 5.0 DAC Amplifier 150 Watt x 2 Stereo HiFi 2.1 CH Digital Sound Amplificador 24Bit/192kHz Class D Power Amp USB Coaxial Optical OLED AptX, Support Subwoofer & with Remote
This AIYIMA D03 HiFi Stereo Bluetooth Amplifier Use classic TAS5548 + TAS5624 power amplifier chip,Max output power is 150W+150W, load 4Ohm speaker, Let you enjoy Stereo Hi-Fi Music

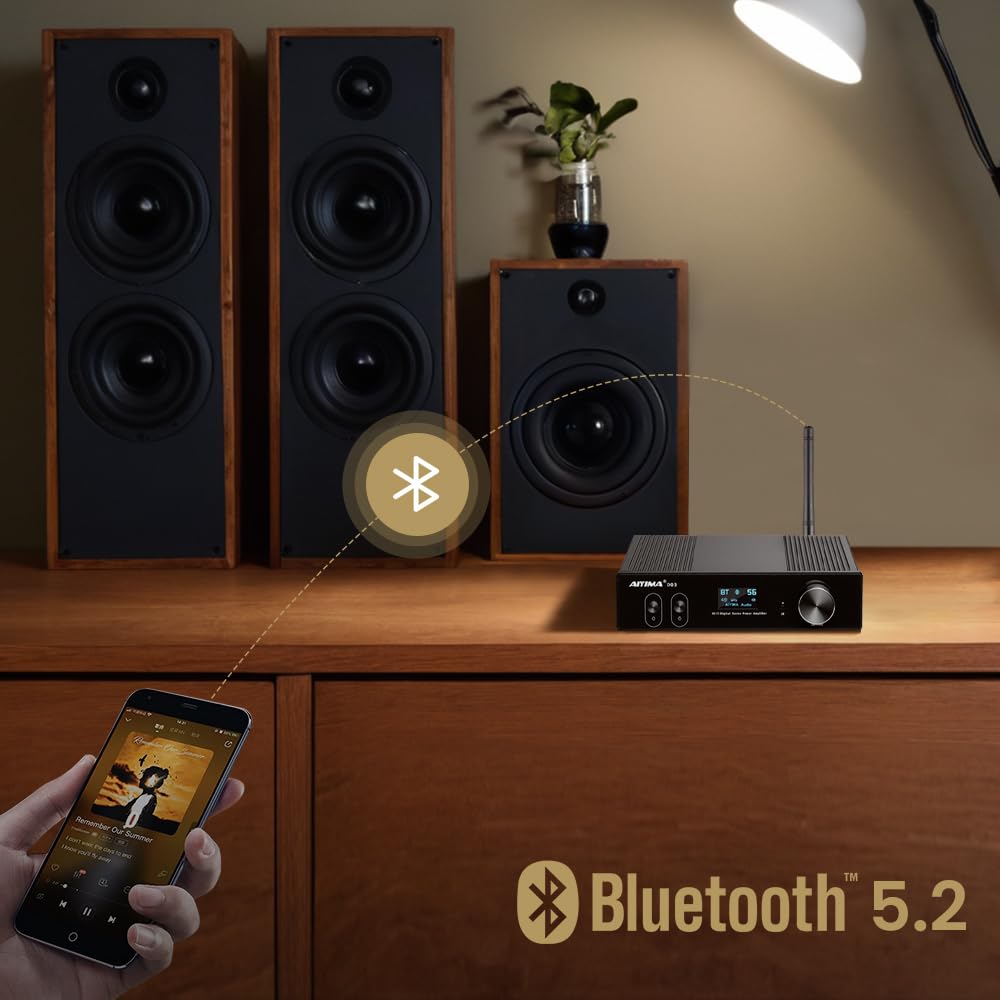

Bluetooth uses QCC3034 chip, version 5.0, supports ACC SBC APT-X and APT-X LL APTX-HD lossless transmission, low frequency output is specially designed to connect active subwoofer, it is very easy to build a 2.1 channel system
Multiple Input Options,Bluetooth/PC-USB/Optical/Coaxial/RCA Audio input,Multiple input options to meet your different needs,providing stable and high-quality wireless streaming from smartphones, tablets, and other Bluetooth-enabled devices,Perfectly compatible with most home audio equipment, such as mobile phones, computers, tablets, TVs, TVs, MP3, CD players
With treble and bass adjustment of ±12 dB and EQ effect, the sound is more delicate, compact and powerful internal layout,to ensure HiFi clear and pure sound, user-Friendly Controls,exquisite appearance and with LED Large display screen and remote control design bring you different enjoyment,for straightforward operation and quick setup

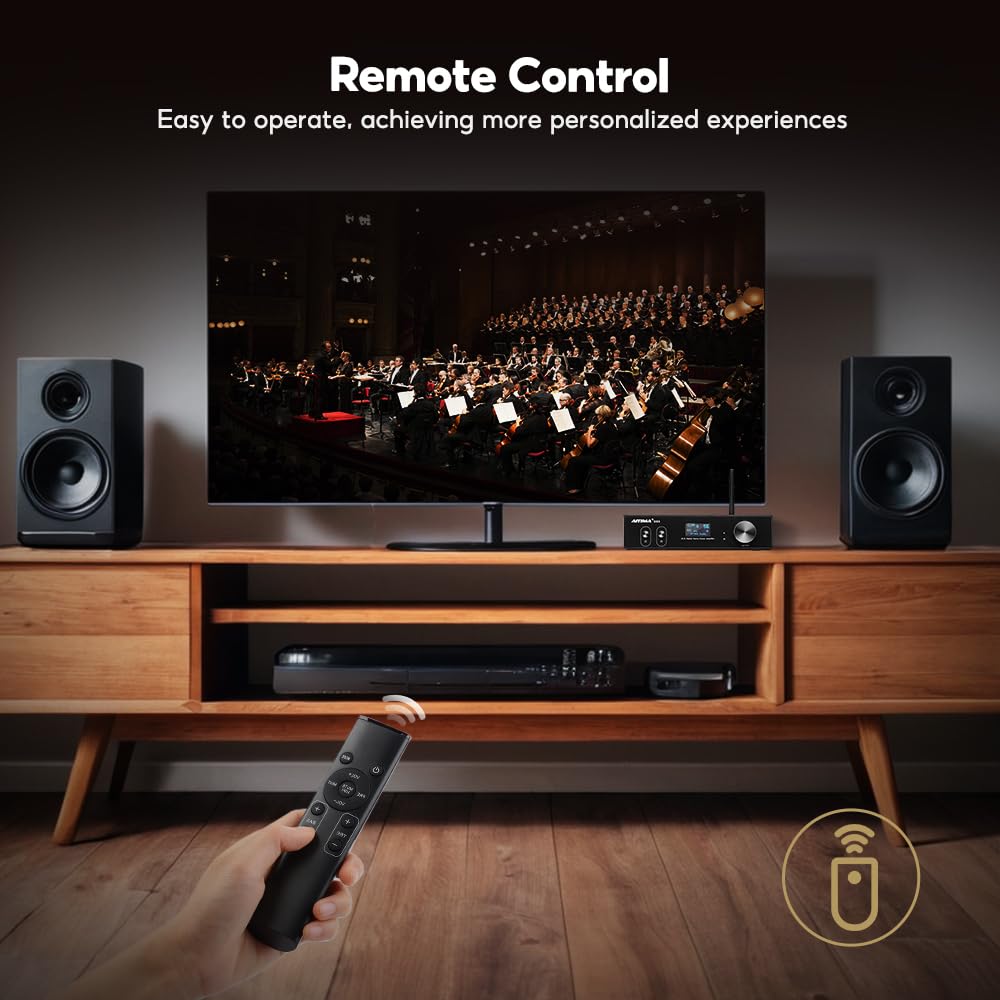

This AIYIMA D03 bluetooth speakers amplifier Package including a remote control that infrared adjust the inputs mode/volume/bass/treble/EQ/mute/loudness setting ect,With 32V/5A power supply, it is enough to drive most desktop/bookcase/desktop/ceiling/outdoor/floor-type speakers
"Climate Pledge Friendly" Certified by Amazon,Empowering Carbon Neutrality Goals.Voice for the Planet, Purity in Sound
Product Specifications
Customer Reviews: 4.2 out of 5 stars 155Reviews
Best Sellers Rank: #96,270 in Electronics (See Top 100 in Electronics) #457 in Audio Component Amplifiers
Product Information
Product description
Bluetooth Version
QCC3034 Bluetooth 5.0 support: ACC, SBC, aptX, aptX-LL, APTX-HD
PC-USB/opt/coa sampling rate
24bit/192khz
PC-USB operating system
Win 10 / Max OS/MAC/Linux/Mobile OTG
Signal to noise ratio
93db
Tonal gain (treble and bass)
±14
Input sensitivity
0.775V
Frequency response
20-20Khz (±1.25db)
Subwoofer output level
2.1V
Total harmonic distortion
0.001% (1kHz 1w)
Speaker impedance
4-8Ω
Output power
150W*2 (4Ω load) 36V, 6%THD+N
Input mode
RCA/Bluetooth/PC-usb/optical/coaxial
Support equipment
mobile phones, tablets, computers, MP3, TV, etc
Output mode
passive speaker, active subwoofer speaker
Working power supply
DC24v-36V(DC32V 5A power recommended)
RCA Audio output
Meet most of the home audio speakers, you can use the RCA banana head output, you can also use bare wire connection, practicality

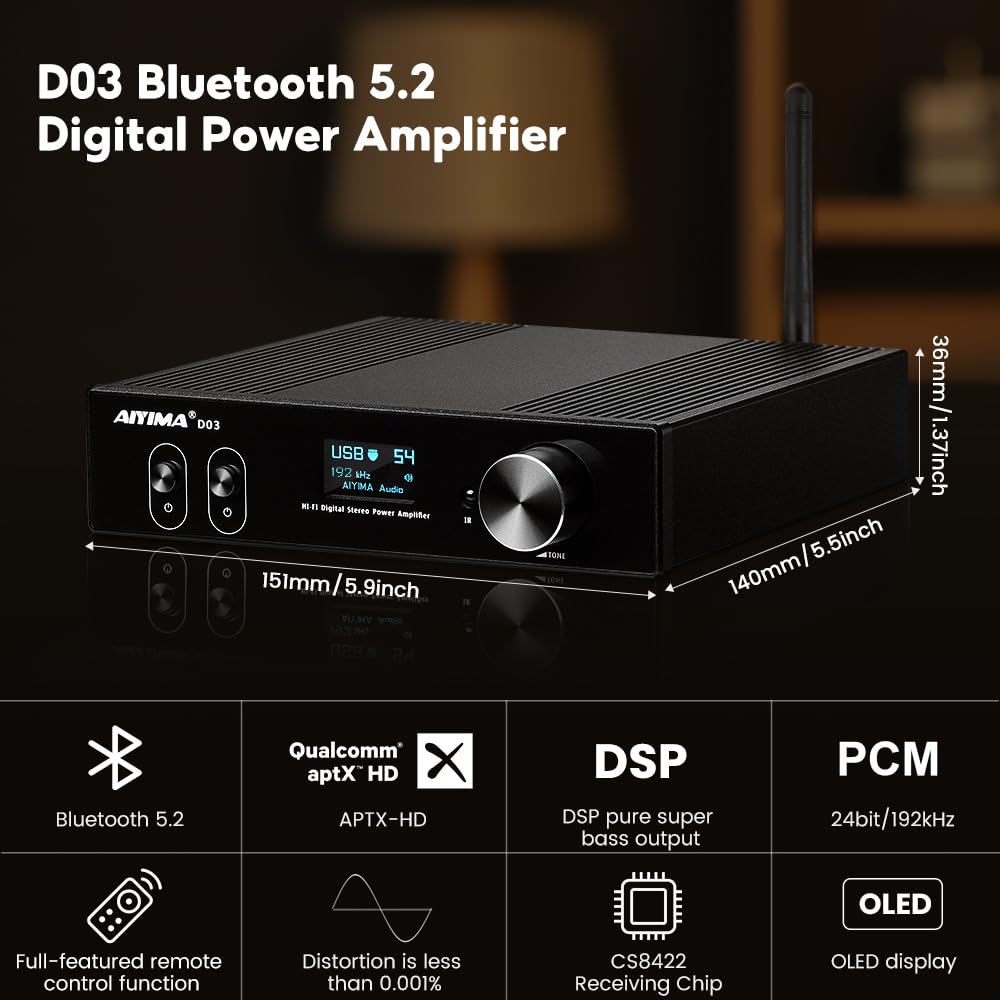

Unique and Amazing design
This hifi digital Power amplifier add a OLED display screen,Easy to view, simple and beautiful when enjoy HiFi music

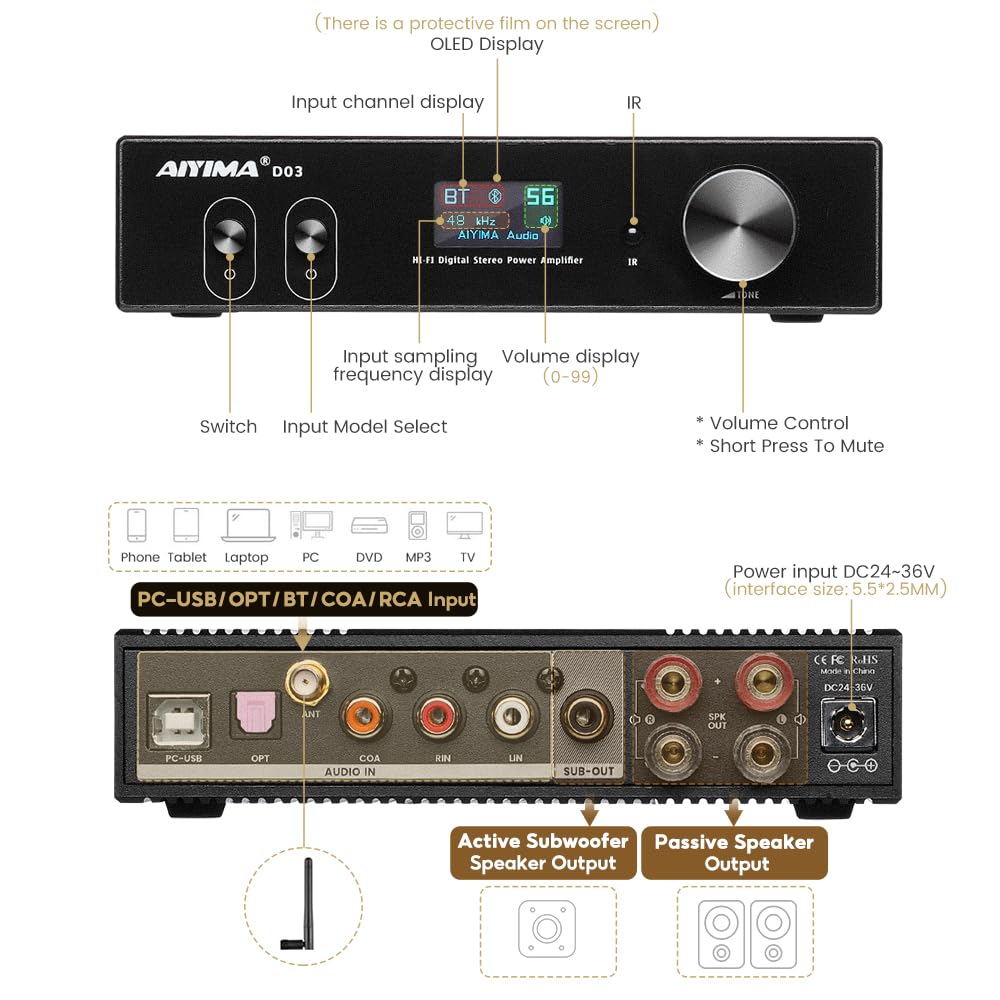

Multiple input methods
Bluetooth/PC-USB/Optical/Coaxial/RCA Audio inputs,Multiple input options to meet your different needs

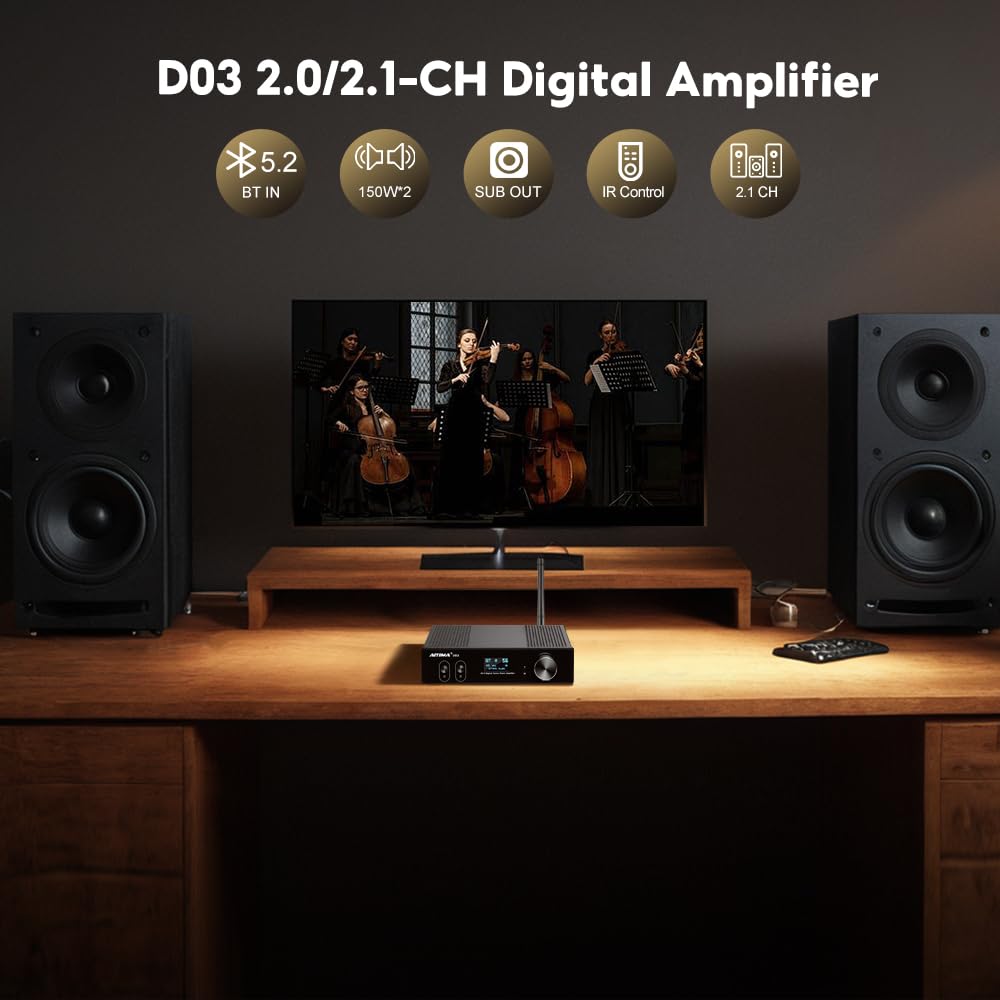

Add Active Subwoofer Output
The D03 power amplifier with active subwoofer output,which forms 2.1 channel home theater system
Tips for Using the AIYIMA D03 DAC Bluetooth Amplifier
1.Computer system below WIN10 need download the drivers!(Contact me for it, or go to our Official-website to load).
Above WIN10 and Apple System don't need it.if have pops in speaker when using BT connection.
Android user try change the Bluetooth AVRCP version to 1.5 or 1.6 (rather than the default 1.4)
2.The OPT input only support SPDIF two channel sound, doesn't support TOSLINK 5 channel surround sound.
3.The optical fiber cannot be folded;The audio cable and PC-USB cable should not be too long, so as not to affect the output of the signal.Thanks!
Note:If no audio output when you connect TV,you need to adjust the TV audio source output to optical fiber, coaxial output.
Pay attention to switch to the corresponding input mode.
