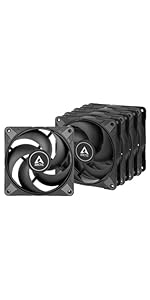

ARCTIC P12 Slim PWM PST (3 Pack) - PC Fans, 120mm Case Fan with PWM Sharing Technology (PST), Pressure-optimised, Quiet Motor, Computer, Extra Slim, 300–2100 RPM - Black

Brand: ARCTIC

(2516 votes)

Seller: N/A

Sell on:

Amazon US

ARCTIC P12 Slim PWM PST (3 Pack) - PC Fans, 120mm Case Fan with PWM Sharing Technology (PST), Pressure-optimised, Quiet Motor, Computer, Extra Slim, 300–2100 RPM - Black

0885996168

/ Email: Support@fado168.com

Monday to Friday: from 08h - 22h, including Saturday and Sunday

$37.09

Delivery time 15-20 day. View detail

The Product does not have an exact weight, The total order value may be changed after approval

Size:

P12 SLIM PWM PST (3 Pack)

120 mm

Quantity:

Seller List

The Time commitment

Fado168.com offers flexible shipping packages
3-5 days 7-20 days

+ See the detail

Free customs procedures

Fado168.com represent the customers to handle all the paperworks from the stage of export from ASIA import to Cambodia

+ See the detail

Diversified payment, flexible

Transfer by Internet Banking, via Bank account, by Wing or pay direct at Company

+ See the detail

Free delivery

Free delivery in Phnom Penh

+ See the detail

Safe shopping

With Fado168.com buyers always have insurance the risk when order the international goods

+ See the detail

Loading Product Infomation...

PRODUCT FEATURES

OPTIMISED FOR STATIC PRESSURE: Through high static pressure, the fan guarantees efficient cooling, even with increased air resistance. Suitable for use on heat sinks and radiators
STRONG COOLING PERFORMANCE: The performance of the P fans has been noticeably increased through numerous improvements, including upgraded engine technology and a newly developed fan design
300 TO 2100 RPM: Thanks to the 4-pin connector, the fan speed can be controlled via PWM PST. This keeps noise to a minimum while at the same time ensuring maximum cooling performance
LOW INSTALLATION HEIGHT: The P12 Slim PWM PST has an installation height of only 15 mm, making it suitable for small form factor cases & for installations for which a 25 mm fan does not fit
TECHNICAL DATA: 3 Pack, Fan speed: 300–2100 rpm (0 rpm <5 %), Airflow: 42.10 cfm | 71.53 m³/h, Noise Level: 0.3 Sone, Static pressure: 1.45 mmH₂O, Pin: 4-pin

Product Specifications

Customer Reviews: 4.6 out of 5 stars 2,412Reviews

Product Information

Product description

arctic p12 slim;p12 max;slim 120mm fan;120mm slim fan;arctic p12 pwm pst 5 pack;arctic f12;p12 pwm

Ideal for small spaces

Unlike standard 120 mm case fans with a thickness of 25 mm, the P12 Slim PWM PST has a mounting depth of only 15 mm. This makes it the ideal choice for Small Form Factor (SFF) builds. Corresponding screws for mounting on a radiator are already included.

Optimised for high static pressure

Because the fan design of the P12 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow— even with increased air resistance. This makes the P12 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.

Maximum quietness, minimum vibration

The operating noise of the newly-developed ARCTIC motor is barely perceptible, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation vibrations of a conventional DC motor. As a result, there is far less vibration on the housing at different speeds and no need for rubber buffering or additional decoupling.

Improved service life

With a wide speed range and innovative PWM Sharing Technology (PST), the P12 Slim PWM PST's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to 4 other PST fans can be connected in series. The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor models. As a result, coil temperature is reduced by up to 20 degrees, quadrupling service life, while reduced frictional losses ensure more efficient operation.

300 to 2100 rpm controlled via PWM PST

High quality sleeve bearing

Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less bearing noise is generated and the life of the fan is extended significantly.

0dB mode - Zero rpm

The speed of the P12 Slim PWM PST can be throttled down to a standstill via PWM. This allows efficient and silent PC operation in idle while ensuring good performance on demand.

General data

Performance

Fan Speed: 300–2100 rpm PWM Controlled (0 rpm below 5% PWM)

Airflow: 42.1 cfm | 71.53 m³/h

Static Pressure: 1.45 mmH₂O

Noise Level: 0.3 Sone

Fan

Fan Frame: Standard

Control Type: PWM PST

Connector: 4-Pin Connector + 4-Pin Socket

Fan Bearing: Fluid Dynamic Bearing

Operating Ambient Temperature: 0–40 °C

Electric Characteristics

Typical Voltage: 12 V DC

Starting Voltage: 5 V

Current | Voltage: 0.12 A | 12 V DC

Cable Length: 400 mm

Size & Weight

Length: 120 mm
Width: 120 mm
Height: 15 mm
Weight: 85 g

	P12 Slim PWM PST (3 Pack)	P12 PWM PST (5 Pack)	P12 (5 Pack)	P12 Max (5 Pack)	F12 (5 Pack)	P12 PWM PST A-RGB (3 Pack)

Customer Reviews	2,412	5,928	2,793	2,102	—	2,482
Price	$28.99	$44.99	— no data	— no data	— no data	$52.99
Size	120 x 120 x 15 mm	120 x 120 x 25 mm	120 x 120 x 25 mm	120 x 120 x 25 mm	120 x 120 x 25 mm	120 x 120 x 25 mm
Fan Speed	300–2100 rpm	200–1800 rpm	1800 rpm	200-3300 rpm	1350 rpm	200–2000 rpm
Airflow	42.1 cfm \| 71.53 m³/h	56.3 cfm \| 95.65 m³/h	56.3 cfm \| 95.65 m³/h	81.04 cfm \| 137.69 m³/h	53 cfm \| 90.1 m³/h	48.8 cfm \| 82.91 m³/h
Noise Level	0.3 Sone	0.3 Sone	0.3 Sone	0.6 Sone	0.3 Sone	0.3 Sone
Control Type	PWM PST	PWM PST	Fixed Speed	PWM	Fixed Speed	PWM PST
Bearing	Fluid Dynamic Bearing	Fluid Dynamic Bearing	Fluid Dynamic Bearing	Fluid Dynamic Bearing	Fluid Dynamic Bearing	Fluid Dynamic Bearing
Weight	85 g	145 g	139 g	184 g	107 g	159 g
Static Pressure	1.45 mmH₂O	2.2 mmH₂O	2.2 mmH₂O	4.35 mmH₂O	1.0 mmH₂O	1.85 mmH₂O
