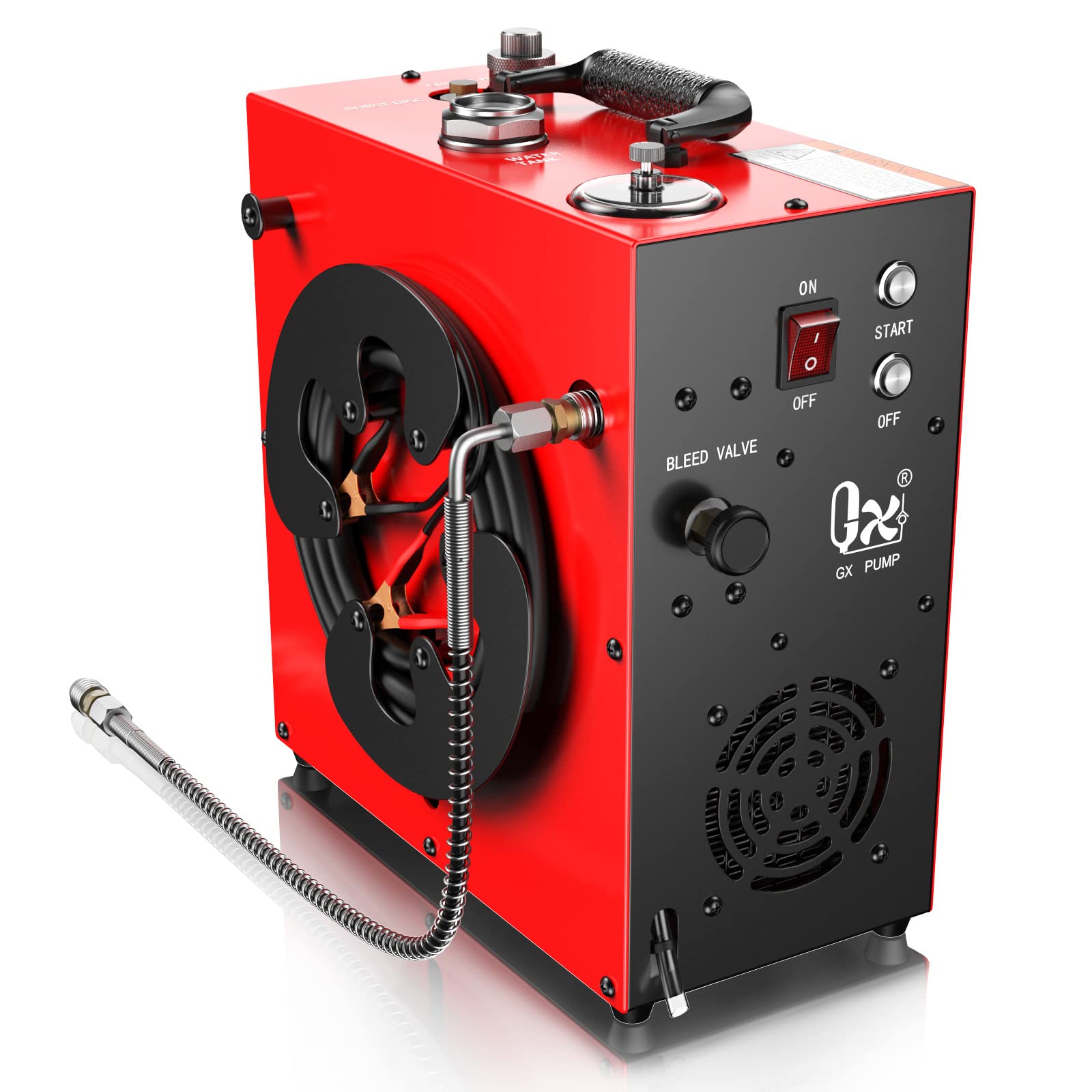

GX PUMP GX-E-CS4 Portable PCP Air Compressor, 350W Powerful Motor,Max 5800Psi/40Mpa, Water and Fan Cooling, 5 Hours Continous Work, 12V Auto Stop Paintball Air Compressor

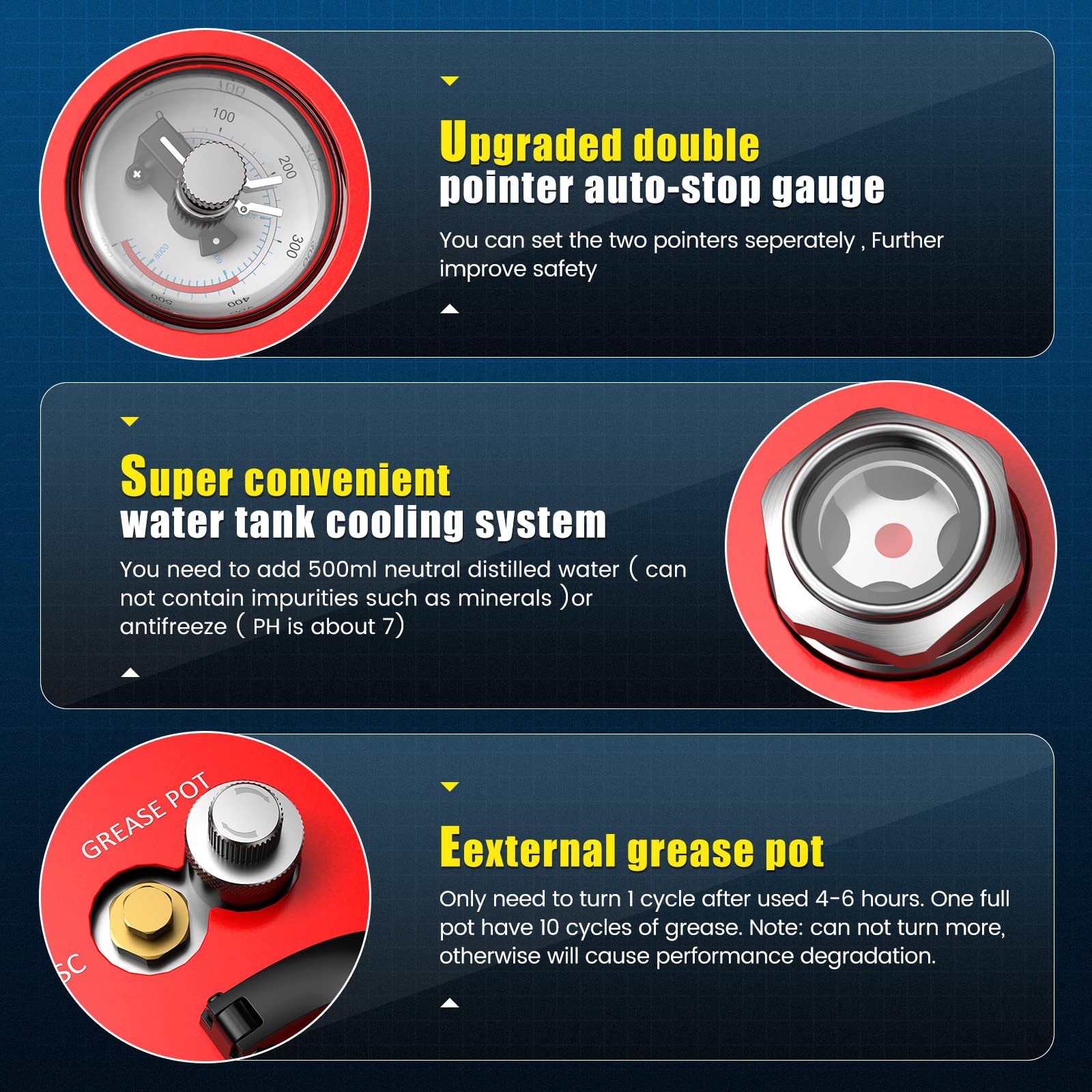

This CS4 pcp air compressor has a new upgraded 350W motor , and adopts four-stage compression technology. It is very stable when working, and it is very quiet with only 70db. Maximum filling 5800Psi/40Mpa.Notice :First confirm the maximum safe pressure of your gas cylinder, do not over-inflate, otherwise it will cause safety problems. At the same time, it is equipped with a double-pointer pressure gauge, and the two-level setting auto-stop pressure, which is more secure.
A water tank and a grease tank are designed on the top of the compressor. The excellent cooling can achieve 5 hours of continuous work and can fill a 3L gas cylinder. Note: For the first use, it must be filled with about 300ml of neutral distilled water or antifreeze ( PH is about 7).Note: 1) Be sure to add neutral antifreeze if it freezes in your area. 2):Do not turn the grease knob until after 4-6 hours of use, otherwise will cause bad performance. then turn it one turn. Search "how to add coolant for cs4" on youtube to learn the correct steps.
15% Faster Filling Speed: Filling 0.5L tank from 3000Psi to 4500psi ,only needs 4-5 minutes. Filling 0.5L from 0-4500psi, only needs 14-16 minutes. Filling 6.8L from 0 -4500psi, needs 2 hours and 40 minutes. Notice: CS4 and CS4-I are mainly used for high pressure, small gas cylinders below 6.8L, especially PCP. It is not recommended to fill large gas cylinders. Otherwise, you can choose 5K1 and 5K2.
12V DC input, you can use car battery or household outlet for power supply, equipped with 110V-12V converter. The machine is equipped with a built-in oil-water separator which is not a cotton filter and never needs to be replaced. This is an ideal choice for airgun and scuba tanks. Suggest to buy GX professional external filter if you need enhanced filtration performance.
Please read user manual carefully before turning on compressor. Quick connector : M10*1, 8MM female connector. Product size: 11.8*6.1*12.4 inch , weight: 29lb. ATTENTION: when filling is complete, please close the bottle valve first (when filling bottle) and then open compressor's bleed valve to release line pressure . All pressure must be released from compressor before starting.
Note: when add coolant first time, add full tank, turn on switch (don't press start button), water pump will run, coolant will flow into inner water pipes, then keep adding more coolant until water tank is full.
Product Specifications
Part Number: GX-E-CS4
Item Weight: 33.7 Pounds
Product Dimensions: 11.81"L x 6.1"W x 12.4"H
Country of Origin: China
Item model number: CS4
Wattage: 350 watts
Special Features: AC & DC Adaptable, Portable, GX PATENT, Quick Inflation
Batteries Included?: No
Batteries Required?: No
Included Components: fans
Maximum Power: 350 Watts
Capacity: 6.8 Liters
Color: Red+black
Material: Metal
Style: Portable
Air Flow Capacity: 11 LPM
Model Name: GX-E-CS4
Hose Length: 19.6 Inches
Maximum Operating Pressure: 400 Bars
Manufacturer: GX
Product Information
Product description
Note:
1,For the first use, it must be filled with full tank of pure water or antifreeze before turning on power.
2 ,Do not turn the grease knob until after 4-6 hours of use, then turn it one turn. otherwise will cause bad performance.
3,Please release the bleed valve first after finishing the inflation, and do not start it when there is still air pressure inside your compressor.
Notice:
This CS4 model was designed with 2 stages of check valve inside. When working, it does not leak. but after turn off power, it may leak pressure from the second stage check valve. For example, 300 bar drops to 200bar in several minutes. This is normal and please don't worry.
This CS4 compressor supports the max design pressure 5800psi/400bar, but it does not mean you can fill the max pressure anytime. Almost all pcp tanks and bottles only support 4500psi/300bar as the service pressure to avoid the safety problem, although they state the burst pressure can be over 50mpa/500bar. As a result, the burst disc coming with compressor only support the 350bar as the burst pressure. If you fill over 350bar, it will be blown. If you really need the higher pressure, pls contact with us to buy 400bar burst discs.
